Description:
The Gate Hub is an advanced access control solution designed to enable seamless gate access through connected Access readers or an Intercom. It provides gate operator terminals, a lock terminal for a side door, an auxiliary terminal for an external siren, and multiple additional inputs for sensors and emergency functions.
Note: For installation assistance, you can contact us or reach out directly to the brand.

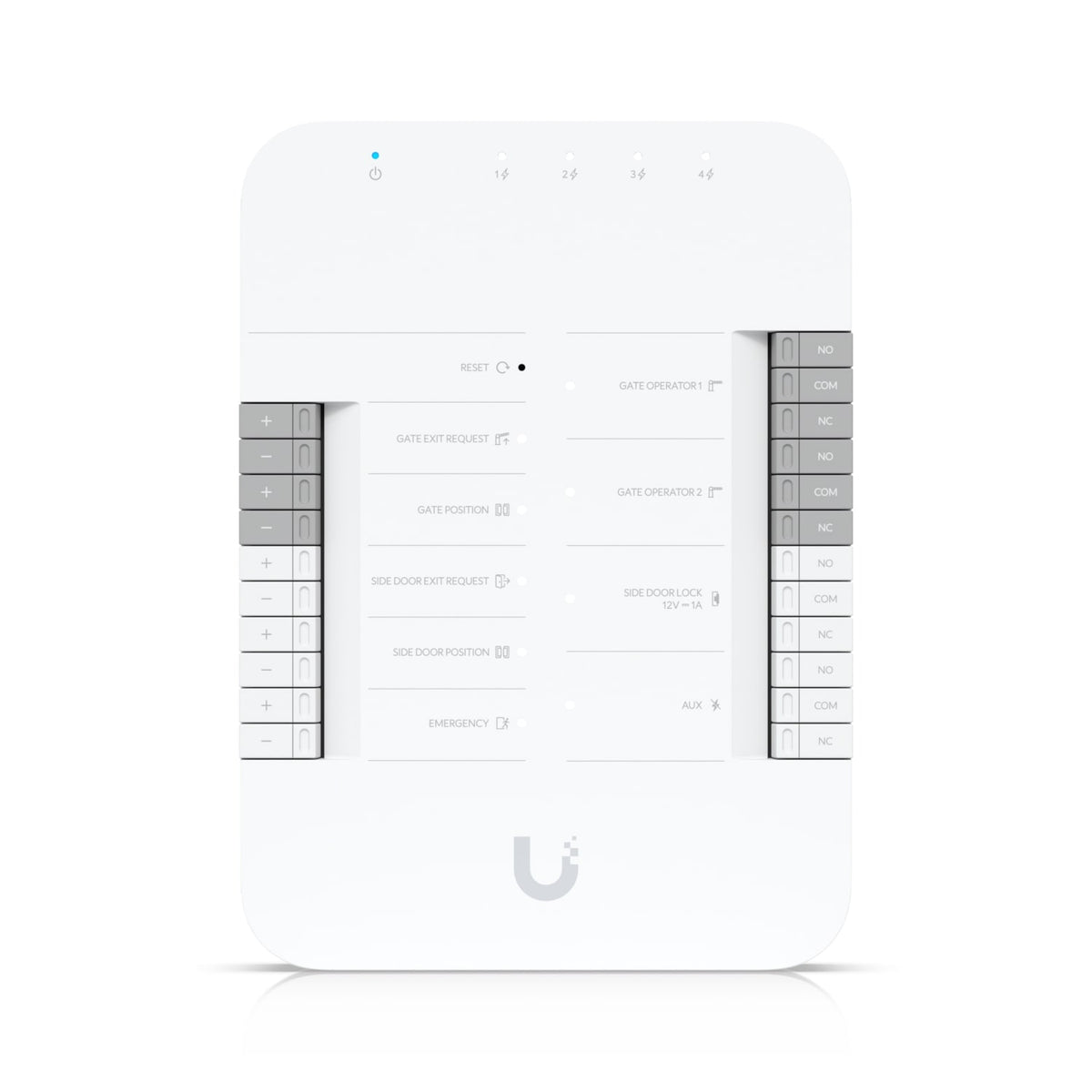

Features:
- Two gate operator terminals (dry)
- One lock terminal (12V) for side door
- One AUX terminal for an external siren
- Five additional inputs for sensors and emergency functions
- License plate unlock when paired with AI Camera
- Connects up to four UniFi Access readers or UniFi Protect cameras
Specifications:
- Dimensions: 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
- Supported Doors: 1
- Maximum User Count: 3,000
- Input Terminals: One door exit request, one door position
- Power Method: PoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- NDAA Compliant: Yes
- UL 294 Level: Destructive attack Level I, Line security Level I, Endurance Level I, Standby power Level I
- Weight: 190 g (6.7 oz)
- Enclosure Material: Polycarbonate, metal

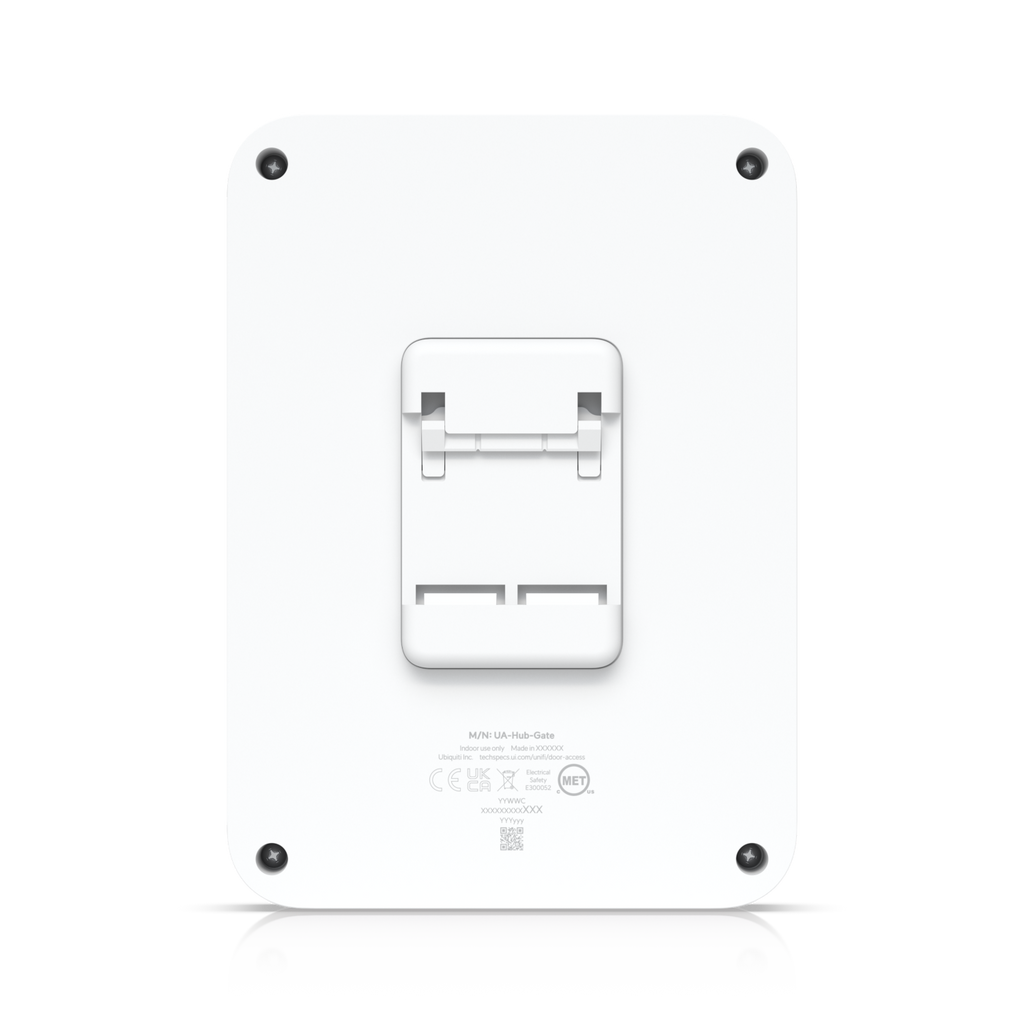

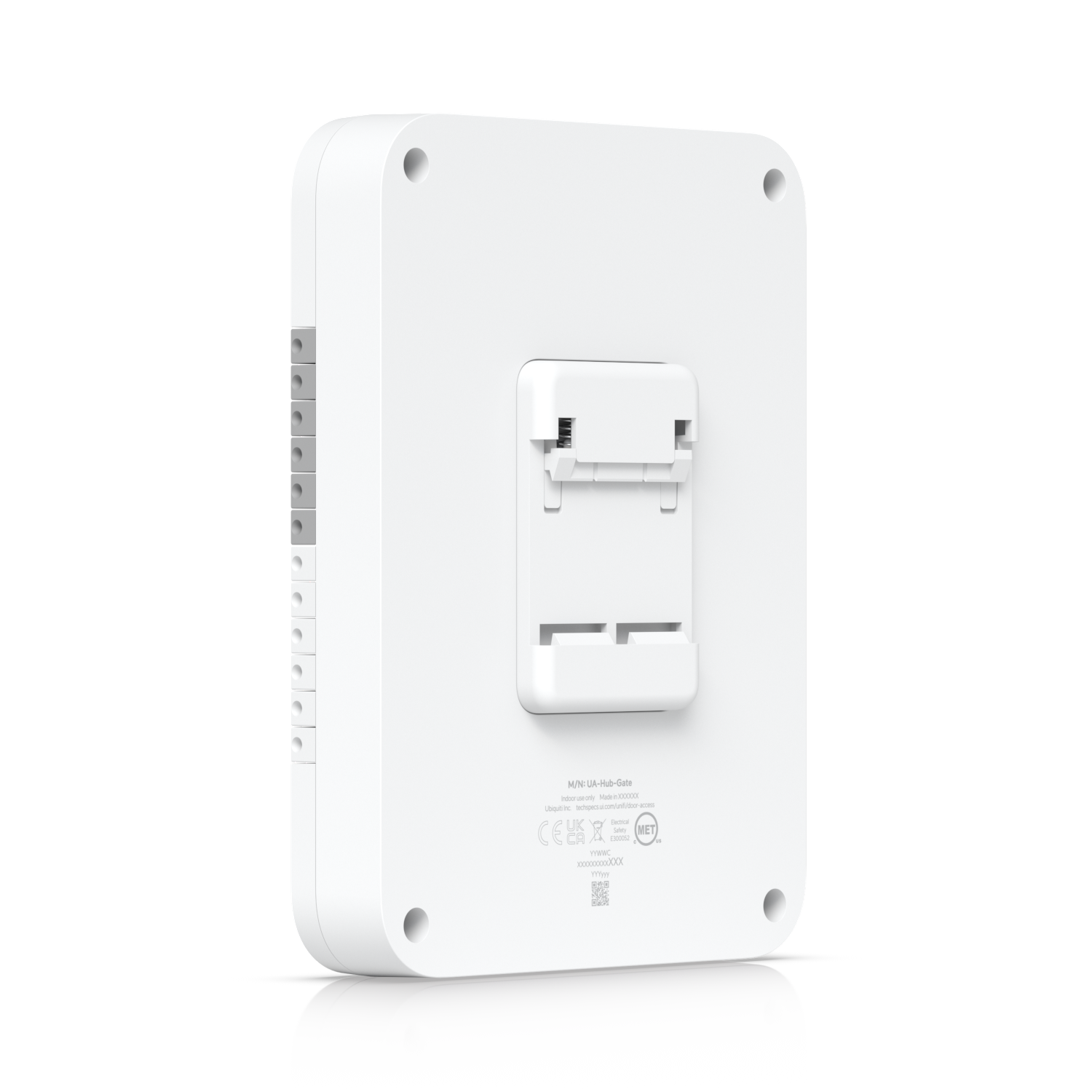

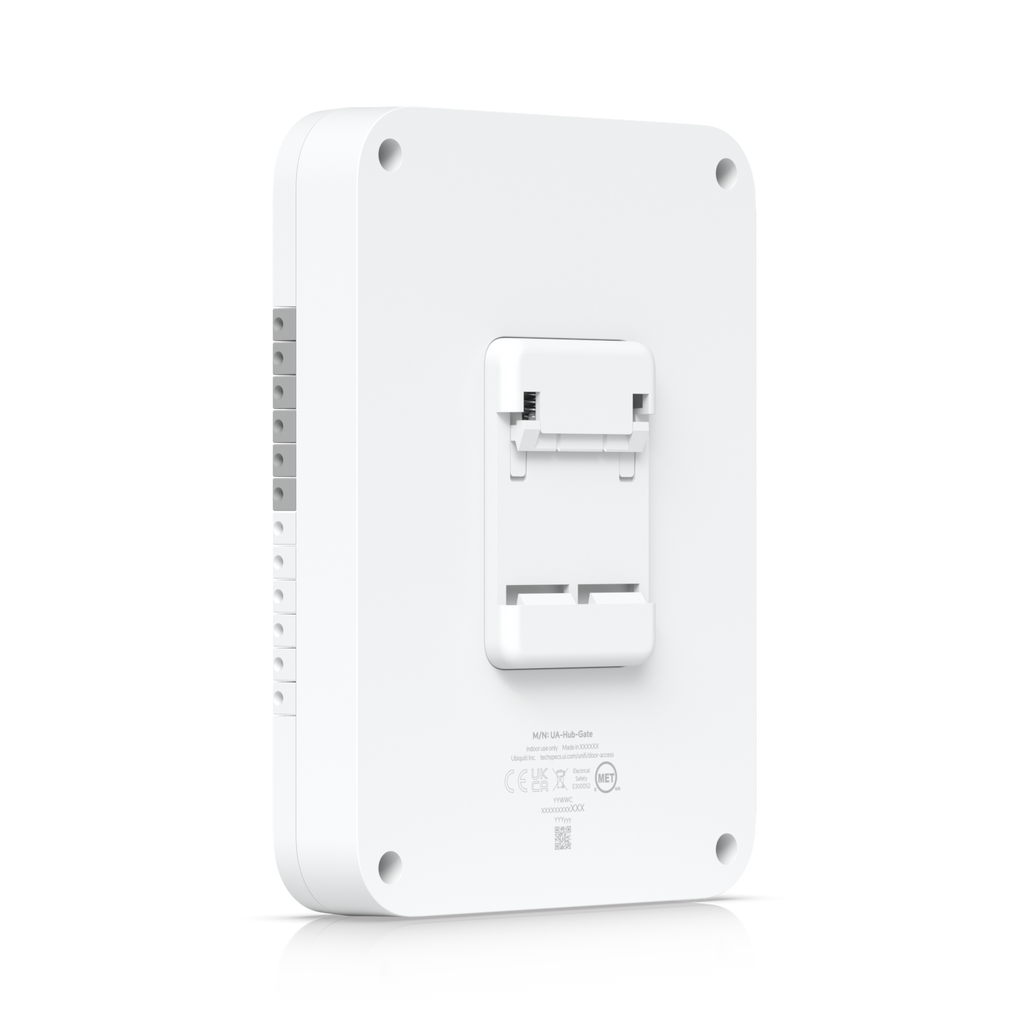

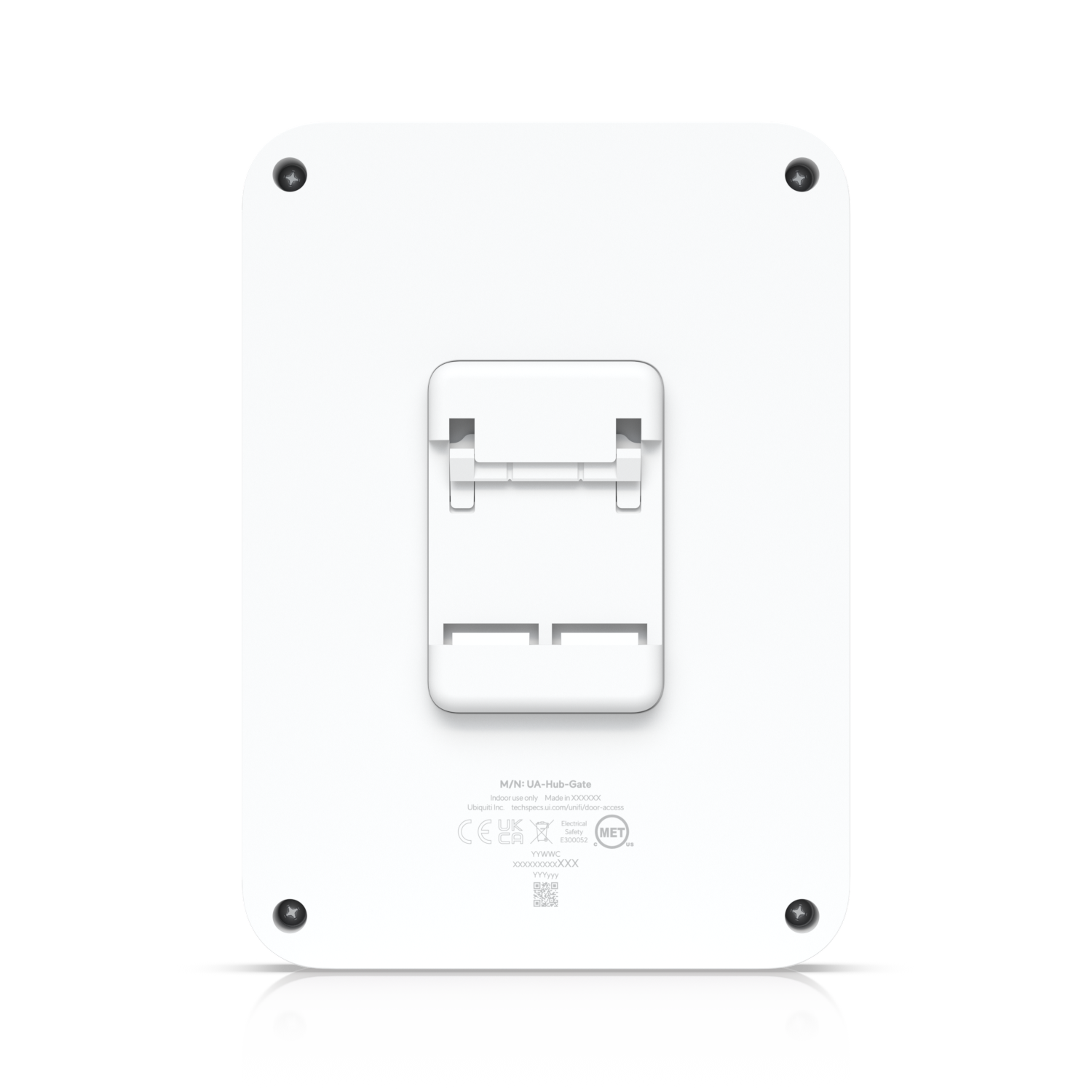

- Mounting: DIN-rail (included)
- Dry Output Relay: 30V DC, 1A
- Wet Output Relay: 12V DC, 1A
- Indoor and Outdoor Use: Indoor only
- Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
- Ambient Operating Humidity: 5 to 90% noncondensing

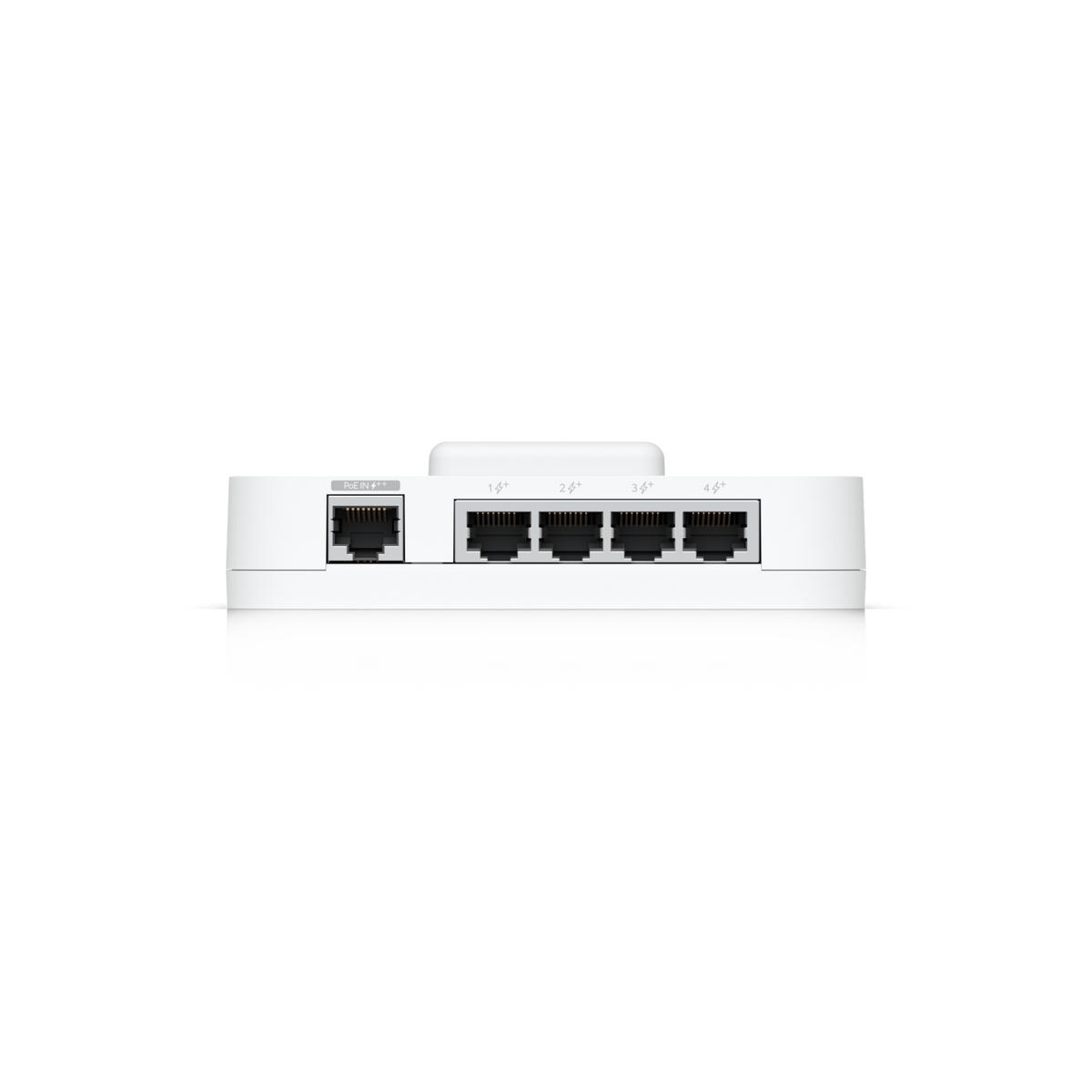

- Networking Interface: Three GbE RJ45 ports
- PoE Interface: One PoE++ input, 50V DC, 1A; two PoE+ outputs, 50V DC, 30W per port (max 45W aggregated)
- Maximum Power Consumption: 19W without PoE output, 50W with PoE output
- LEDs: Bicolour (W/B)
- Buttons: One factory reset, one dry/wet switch
- PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended, matched to the transmission speed required at the installation site. Minimum conductor gauge is 26 AWG (0.13 mm²) for patch cords and 24 AWG (0.21 mm²) for horizontal or riser cable
- UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
- CAN/ULC-60839-11-1 Grade: Grade assignment I
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Management Application: Access
