Description:
The Gateway Fiber is a desktop 10G independent gateway built with an integrated 4-port 2.5 GbE switch, including one PoE+ port, to simplify network setups and reduce the need for extra hardware. It delivers 5 Gbps routing with IDS/IPS support for enhanced network protection, backed by advanced firewall capabilities such as application-aware Layer 7 filtering and content filtering.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch
- One PoE+ port included within the integrated switch
- 5 Gbps routing throughput with IDS/IPS protection

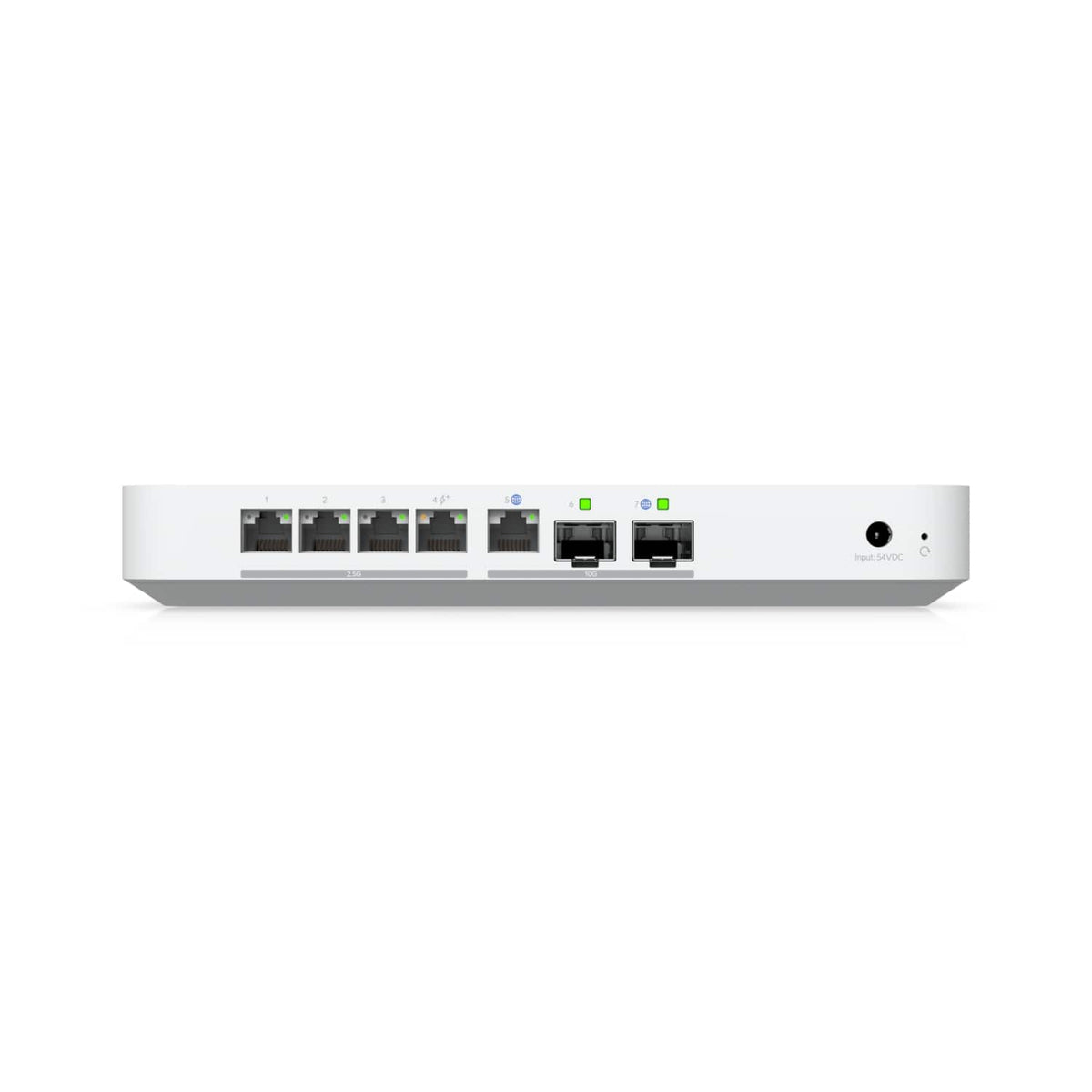

- One 10G SFP+ and one 10 GbE RJ45 WAN port
- One 10G SFP+ LAN port
- Manageable through CloudKey, Official UniFi Hosting, or UniFi Network Server
- Application-aware Layer 7 firewall and content filtering
- Zone-based firewall with advanced filtering by region, domain, and app
- Intrusion prevention and ad blocking
- License-free SD-WAN and site-to-site VPN with Site Magic
- IPsec, OpenVPN, WireGuard, and L2TP VPN support
- Teleport zero-configuration VPN
- Multi-WAN load balancing
- Dynamic routing with OSPF
- Advanced QoS and advanced NAT support
- Integrated RADIUS server with RadSec support
- Internet failover with UniFi LTE backup
- Internet quality and outage reporting

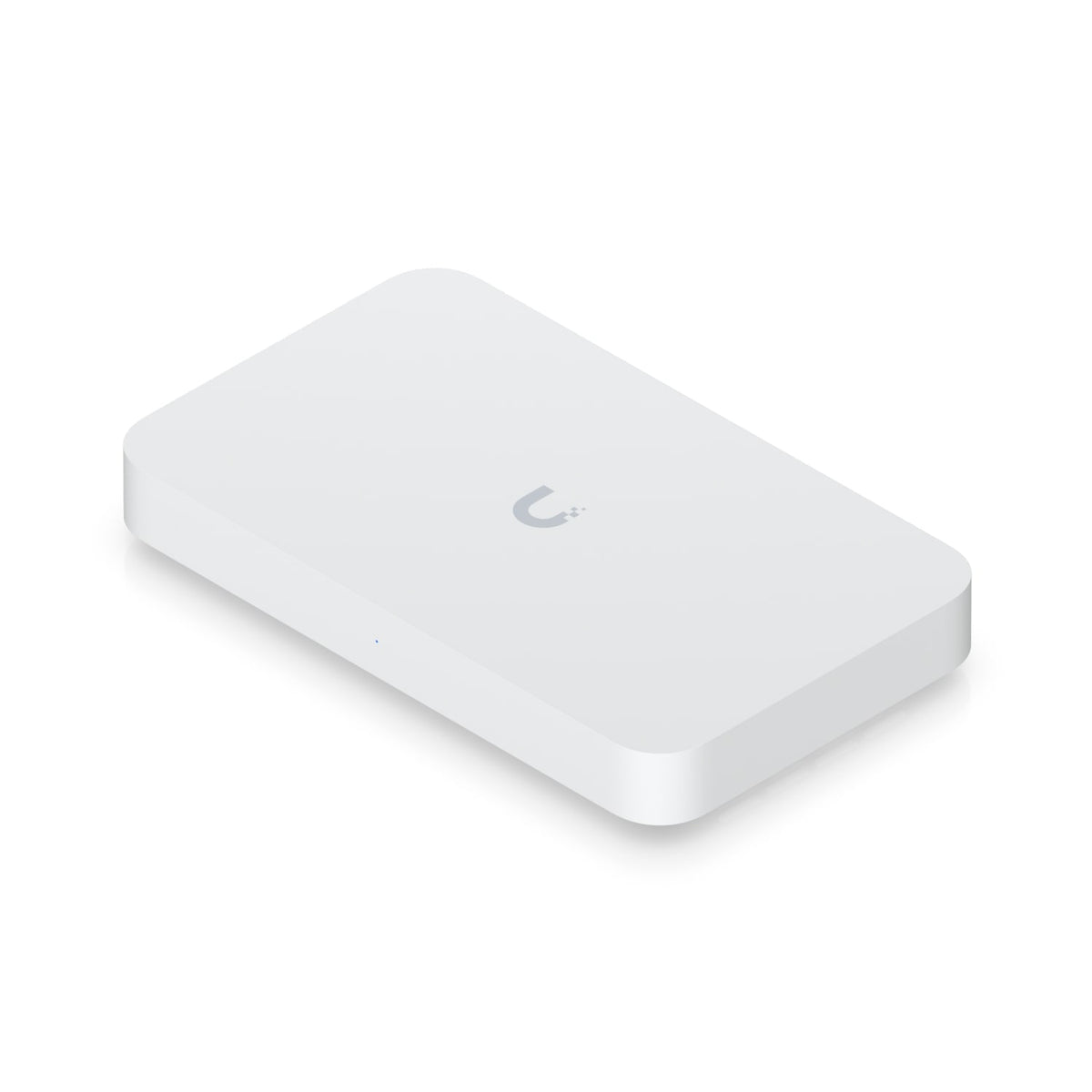

- Compact desktop form factor for flexible deployment
Specifications:
- Dimensions: 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2 in)
- Form Factor: Compact desktop
- Weight: 605 g (1.3 lb)
- Enclosure Material: Polycarbonate
- Max WAN Port Count: 6
- Default WAN Ports: One 10G SFP+, one 10 GbE RJ45
- IDS/IPS Throughput: 5 Gbps
- Stateful Firewall: Yes
- Application-Aware Layer 7 Firewall: Yes
- DPI and Traffic Identification: Yes
- Zone-Based Firewall Advanced Filtering: Yes
- Content Filtering: Yes
- Intrusion Prevention (IPS/IDS): Yes
- Ad Blocking: Yes
- IDS/IPS Signatures: 55,000 plus with CyberSecure
- License-Free SD-WAN: Yes
- Site-to-Site VPN, Site Magic: Yes
- Site-to-Site VPN, IPsec: Yes
- Site-to-Site VPN, OpenVPN: Yes
- VPN Server, Teleport Zero-Configuration VPN: Yes
- VPN Server, WireGuard: Yes
- VPN Server, OpenVPN: Yes
- VPN Server, L2TP: Yes
- VPN Client, OpenVPN: Yes
- VPN Client, WireGuard: Yes
- Multi-WAN Load Balancing: Yes
- Dynamic Routing, OSPF: Yes
- Advanced QoS: Yes
- Multicast DNS (mDNS): Yes
- Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
- Integrated RADIUS Server: Yes
- RADIUS over TLS (RadSec): Yes
- Internet Failover with UniFi LTE Backup: Yes
- Internet Quality and Outage Reporting: Yes
- MAC Address Table Size: 4,000
- PoE Budget: 30W
- Max PoE Wattage per Port by PSE: PoE+ 30W
- Voltage Range PoE Mode: 50 to 57V
- Max Power Consumption: 25W, excluding PoE output
- Power Method: DC jack (54V DC/1.1A)
- Power Supply: 54V DC/1.1A, adapter included
- Supported Voltage Range: 100 to 240V AC
- Processor: Quad core Arm Cortex-A73 at 2.2 GHz
- System Memory: 2 GB
- Management: Ethernet, Bluetooth
- LEDs: Ethernet, SFP+, System
- Button: One factory reset button
- ESD/EMP Protection: Air ± 8kV, Contact ± 4kV
- Ambient Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
- Ambient Operating Humidity: 5 to 95 percent noncondensing
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC
Package Contents:
- Gateway Fiber Unit
- Power Adapter
