Description:

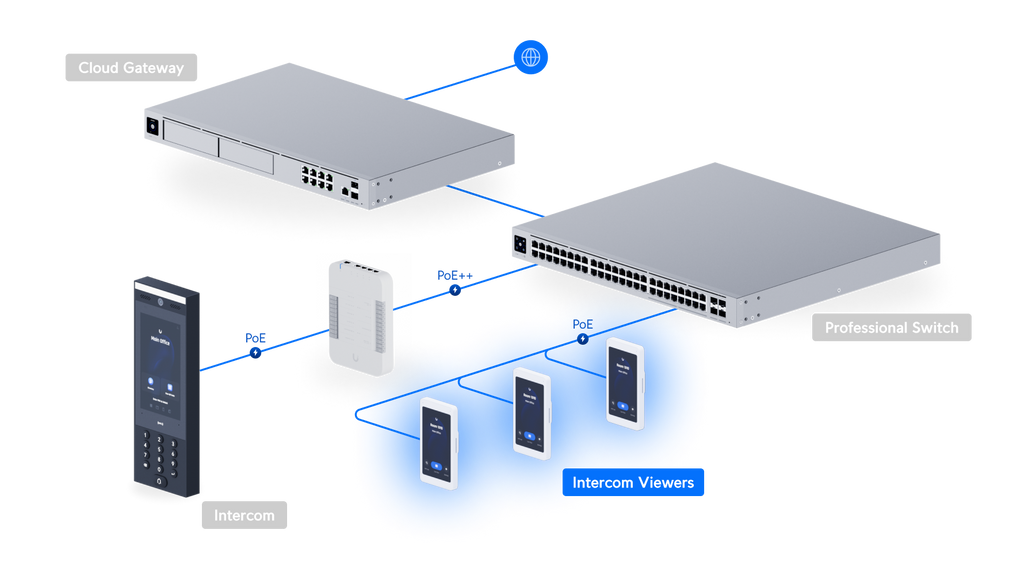

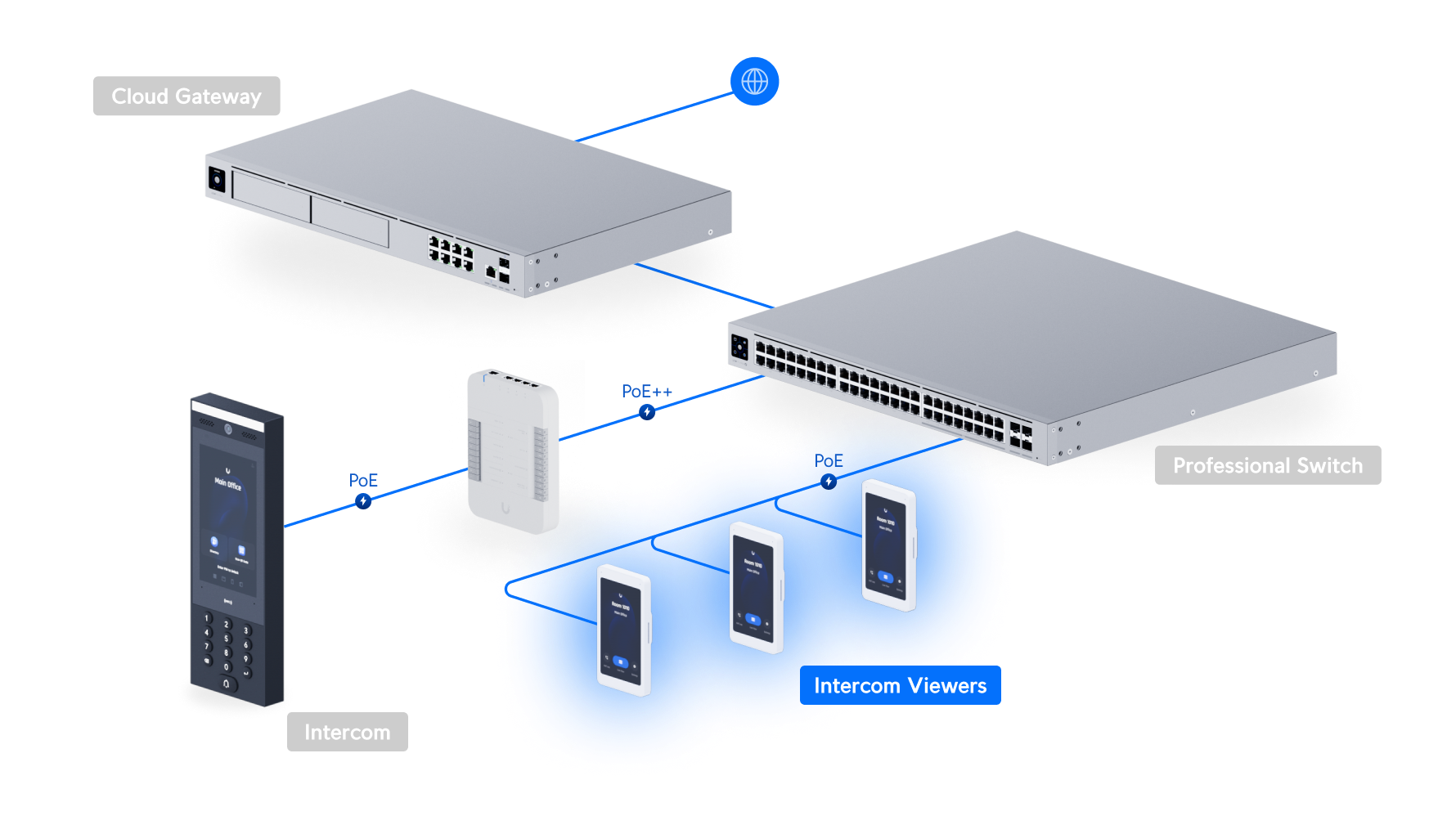

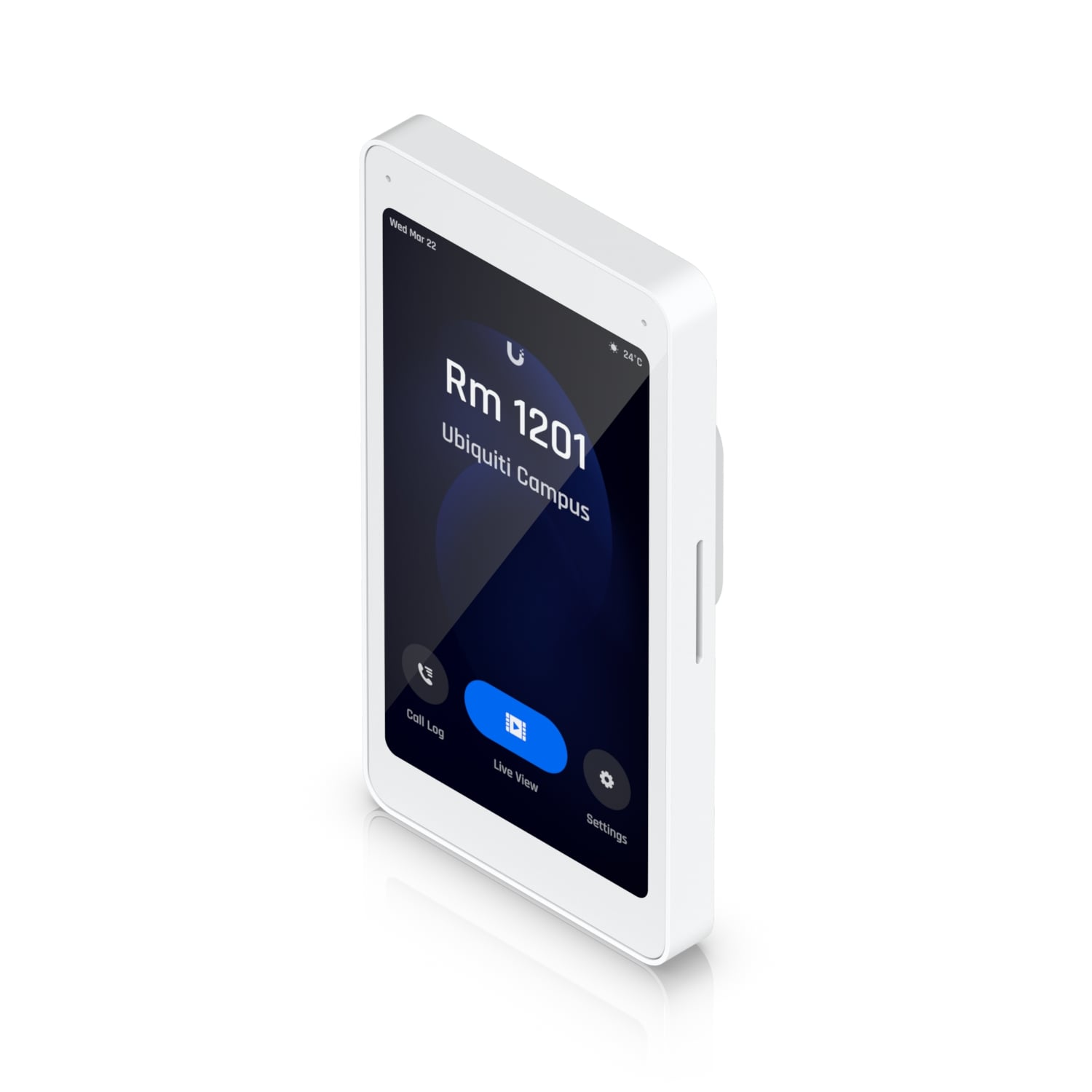

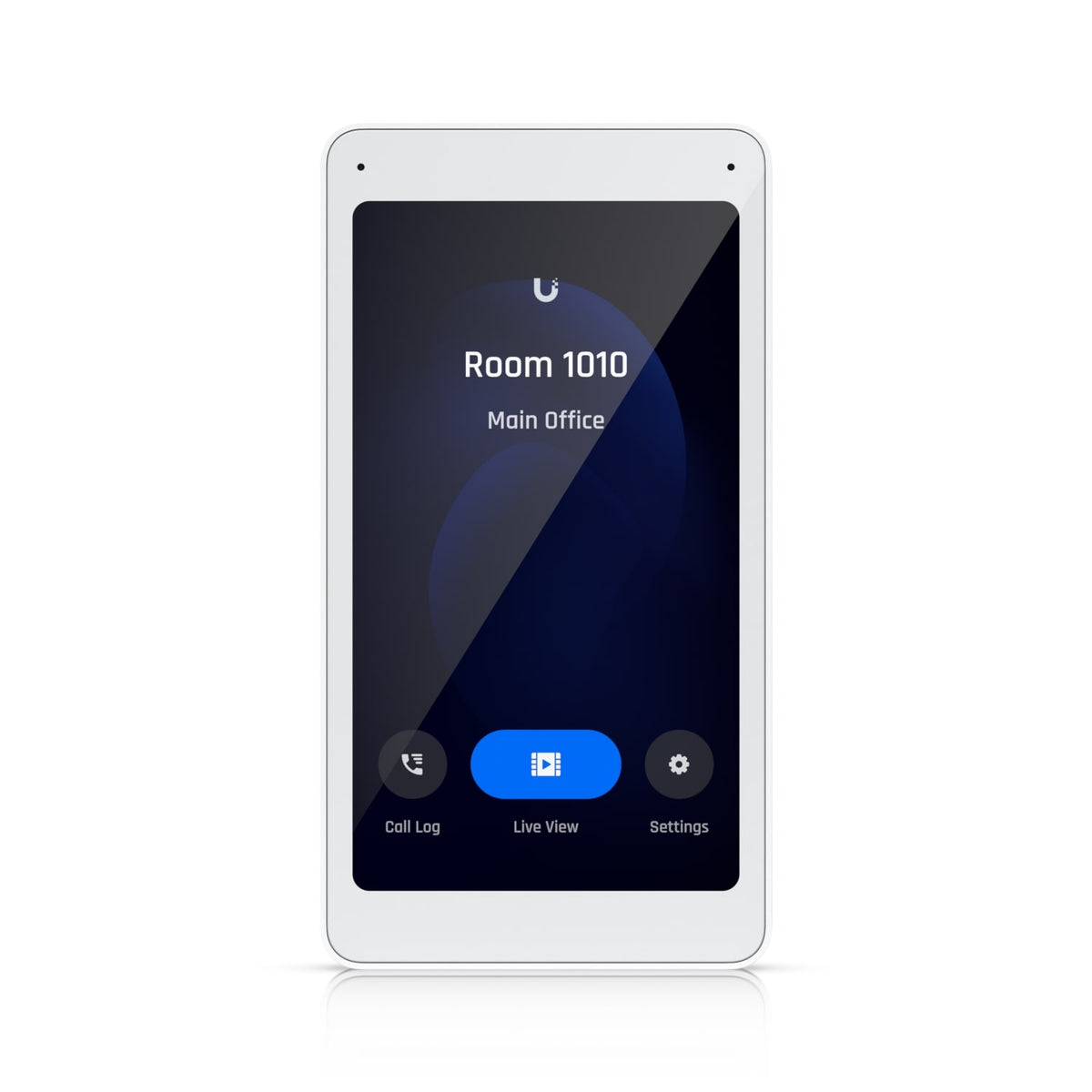

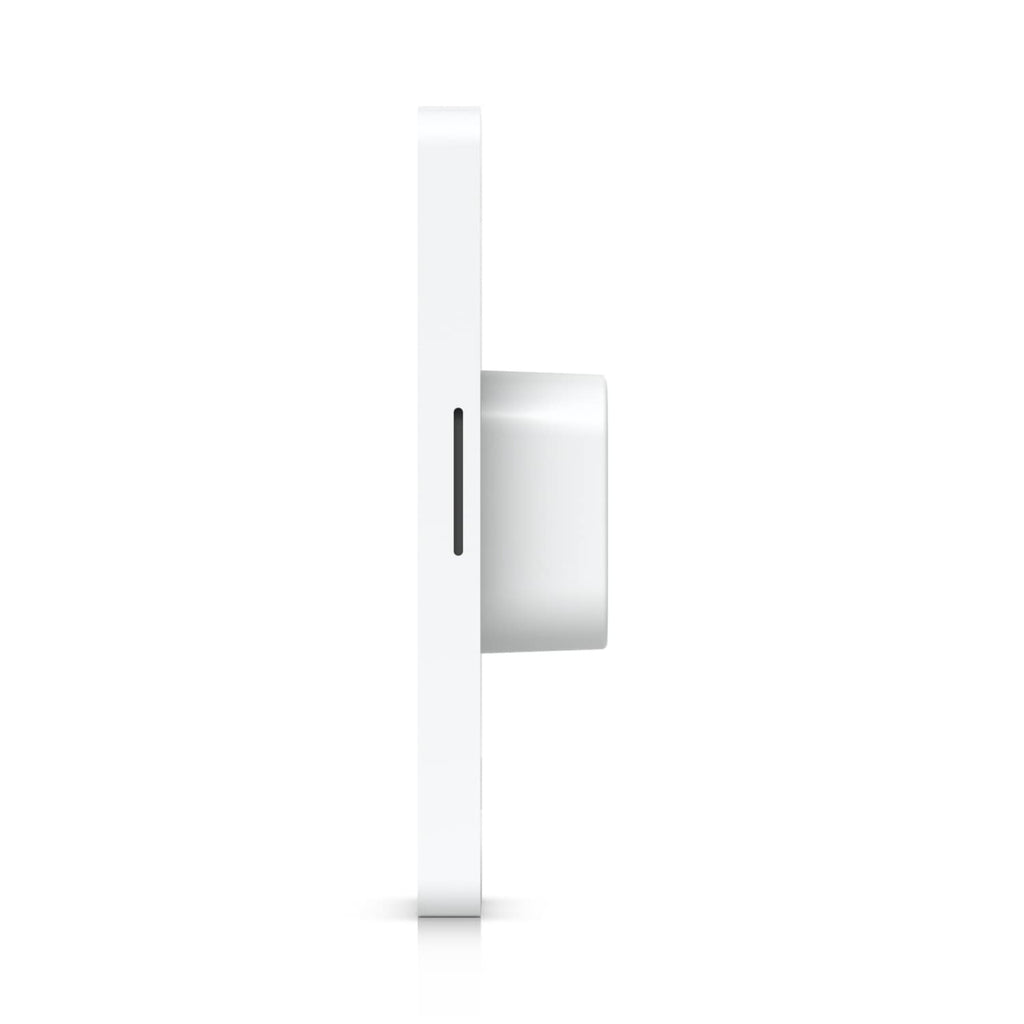

The Intercom Viewer is a display that pairs with the Access Intercom, enabling visitor screening and remote access control. Designed for mounting in multiple locations throughout a building, it offers two way audio and instant live view through its 5 inch touch display. Connected and powered using a PoE switch, it provides a convenient way to monitor and manage entry points from various areas of a facility.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:

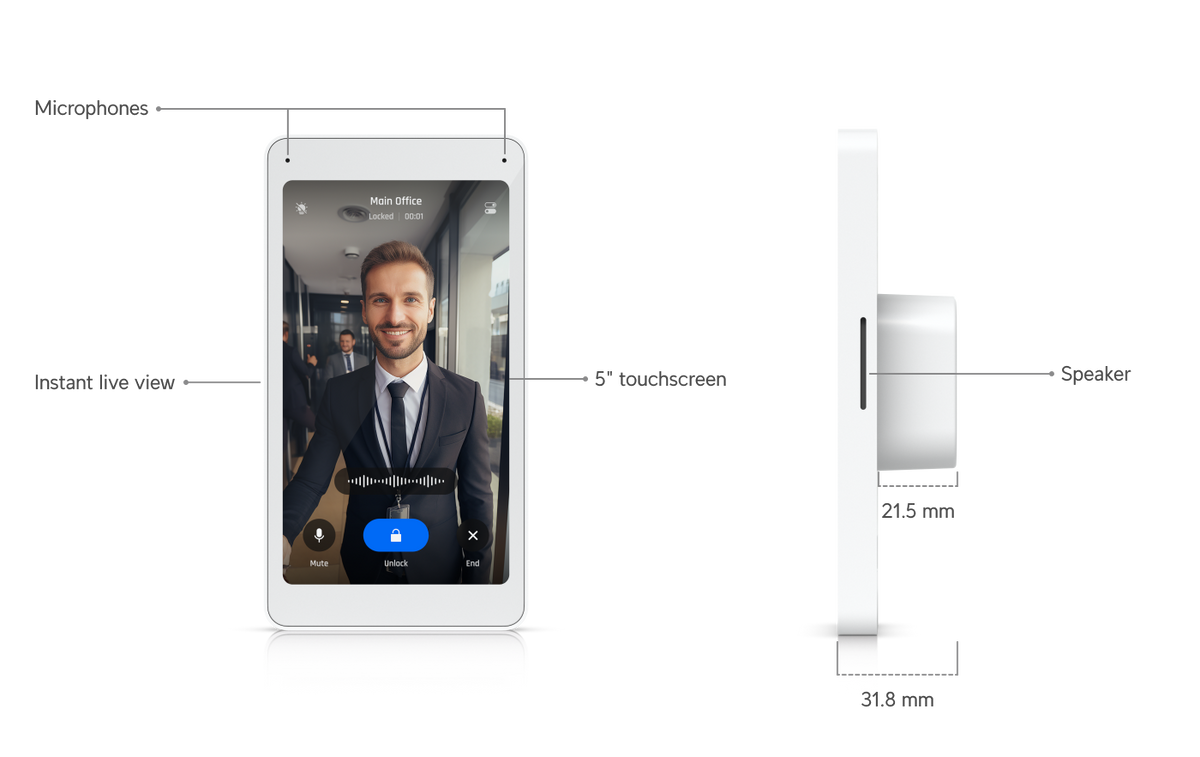

- Two way audio
- Instant live view
- 5 inch touch display
- Connect and power using a PoE switch
Specifications:

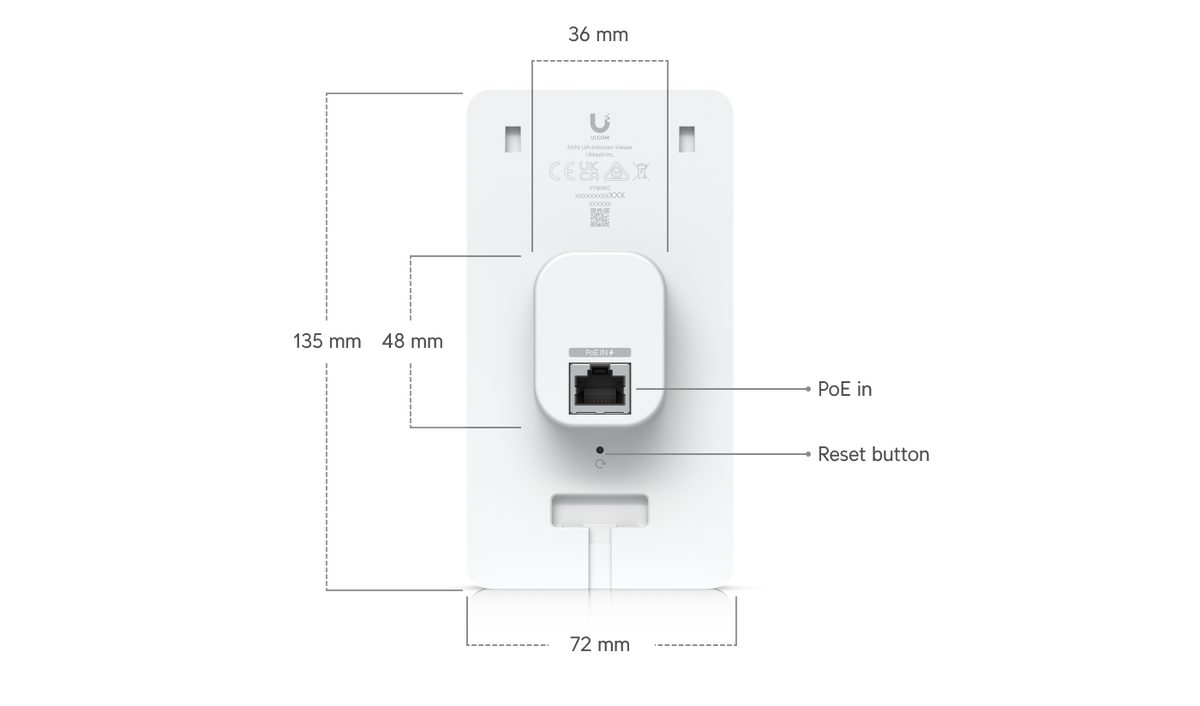

- Dimensions: 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3")
- Mobile Unlock: Yes
- NDAA Compliant: Yes
- UL 294 Level: Destructive attack Level I, Line security Level I, Endurance Level I, Standby power Level I
- Weight: 168 g (5.9 oz)
- Enclosure Material: Glass, polycarbonate
- Mount Material: Aluminum alloy
- Mounting: Wall (included), gang box mount (optional)
- Indoor and Outdoor Use: Indoor only

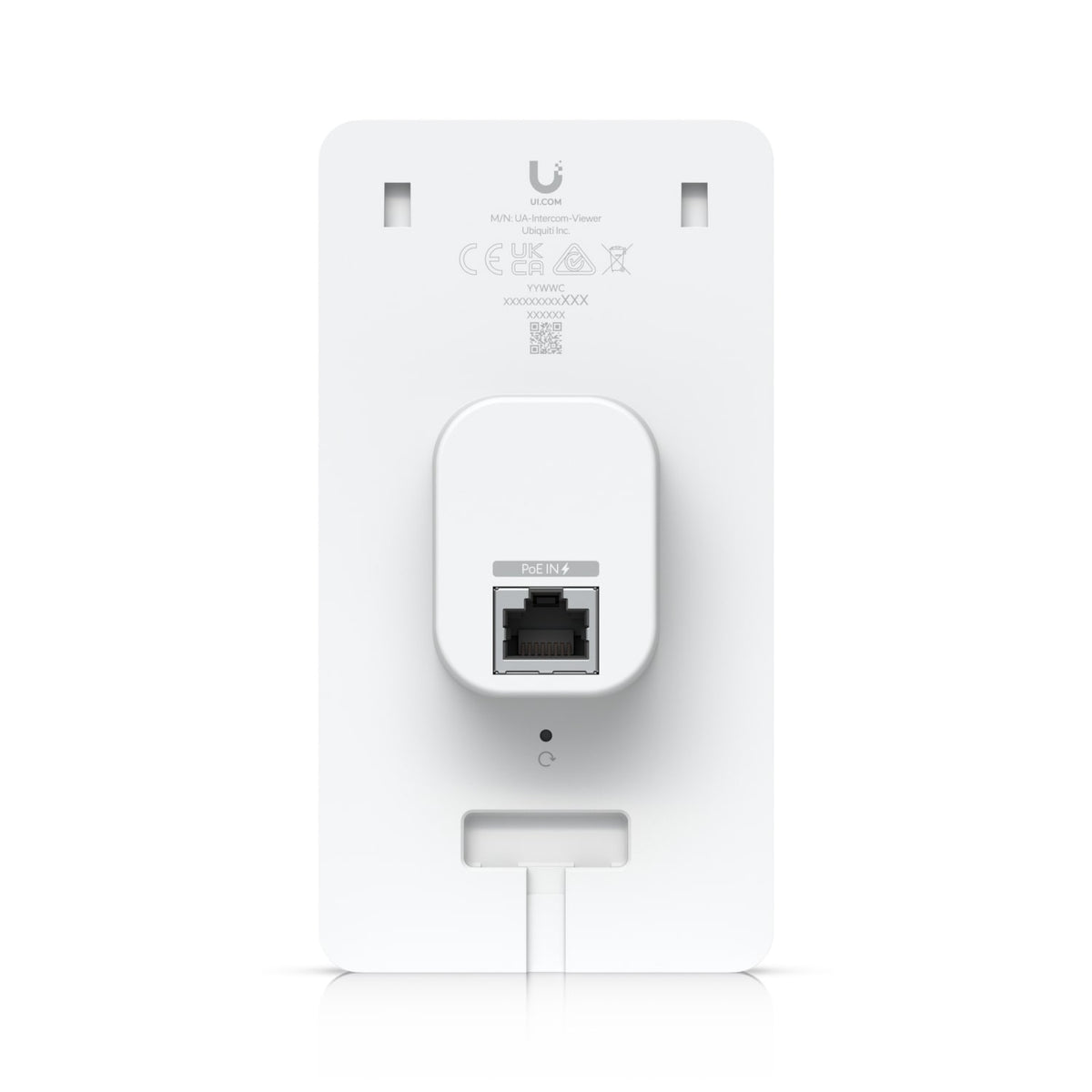

- Networking Interface: One 10/100 Mbps RJ45 port
- Connectivity: Ethernet
- Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Maximum Power Consumption: 5W
- Supported Voltage Range: 44–57V DC
- Display Size: 127 mm (5") diagonal
- Display Luminance: 300 nits (typical)
- Screen Orientation: Portrait
- Display Resolution: 1280 x 720 px
- Microphone: Yes
- Speaker: Yes
- Buttons: One factory reset
- PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended, matched to the transmission speed required at the installation site. Minimum conductor gauge is 26 AWG (0.13 mm²) for patch cords and 24 AWG (0.21 mm²) for horizontal or riser cable
- UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
- CAN/ULC-60839-11-1 Grade: Grade assignment I
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Management Application: Access
