Description:

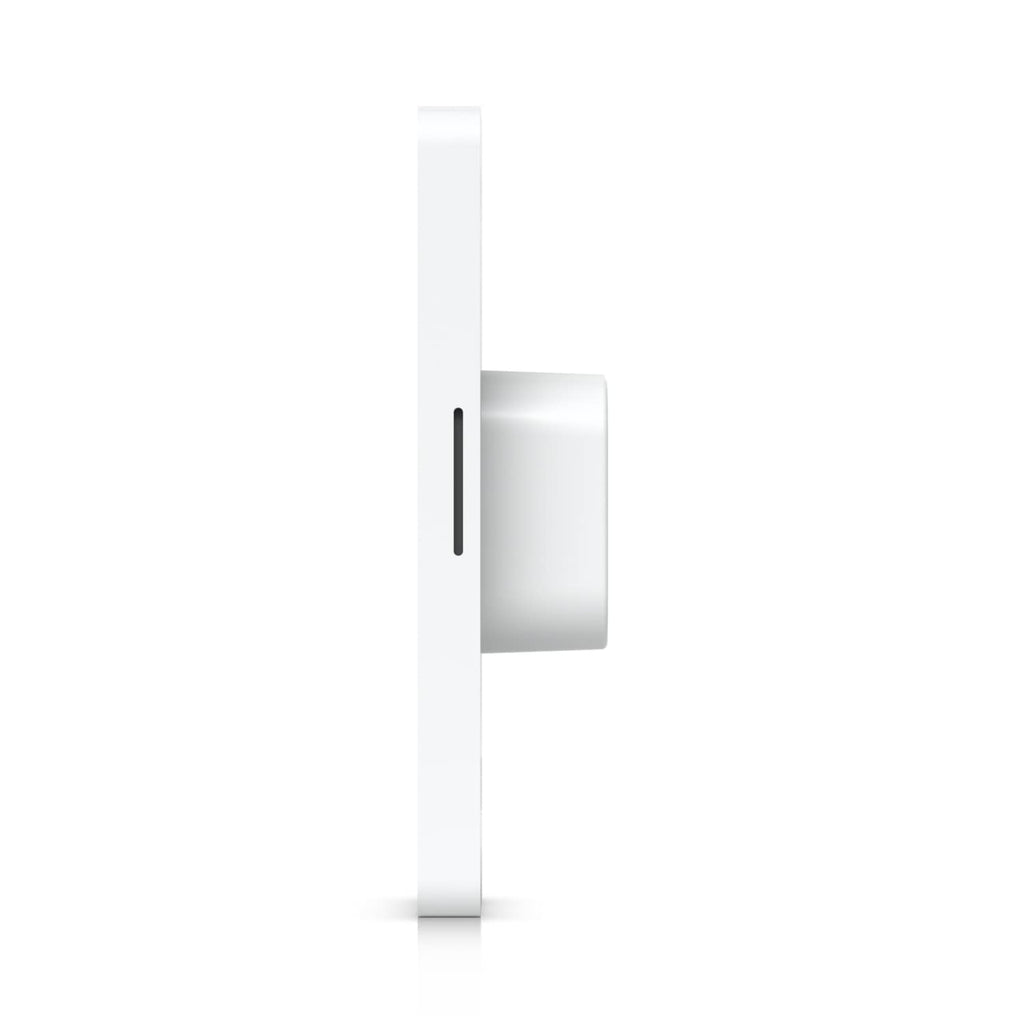

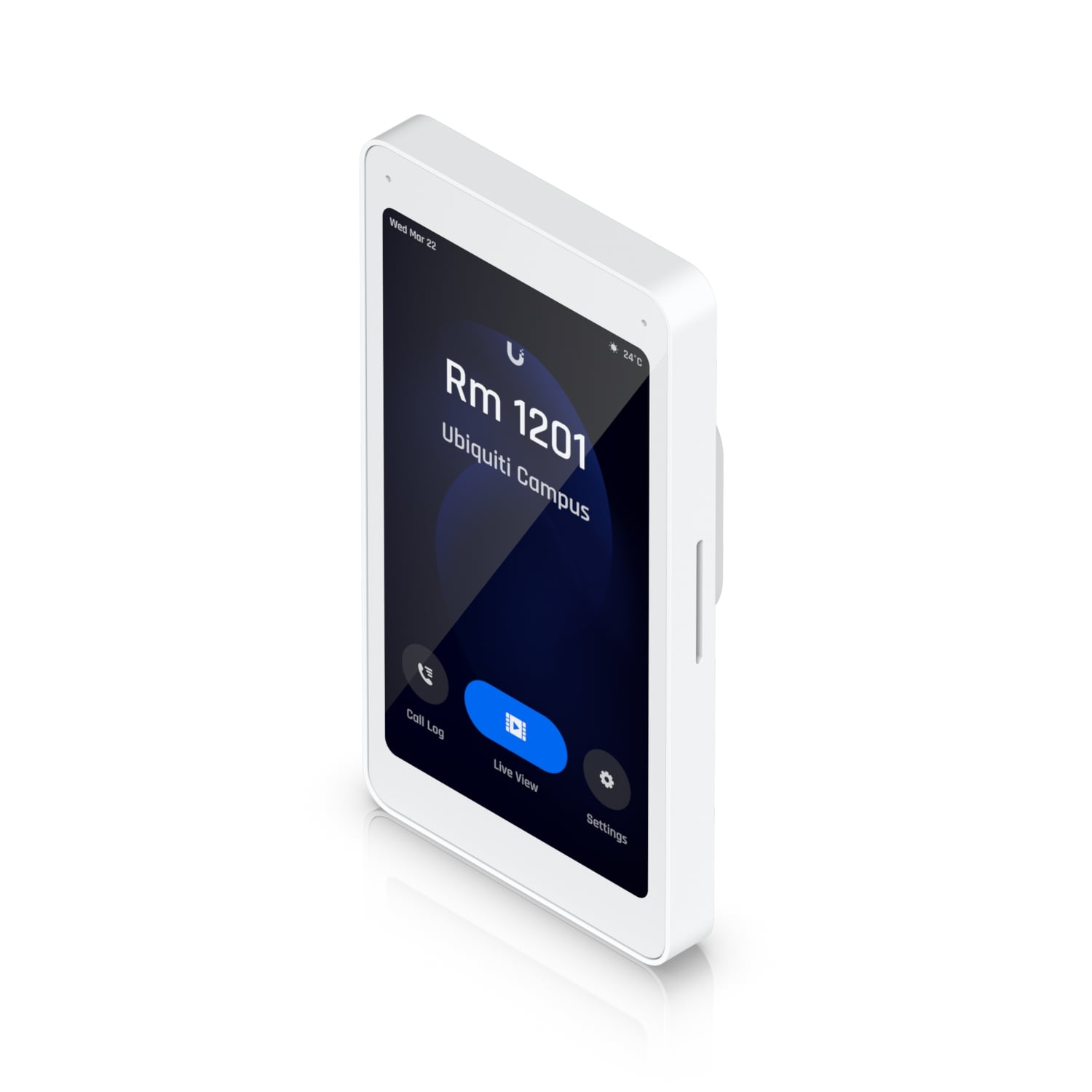

The Intercom Viewer is a display designed to work with Intercom and Reader Pro devices, enabling visitor screening and remote access control. It receives doorbell calls from one or more locations, offering two way audio and instant live view through its 5 inch touch display. Connected and powered using a PoE switch, it provides a convenient way to monitor and manage entry points across multiple areas of a facility.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Receives doorbell calls from one or more locations
- Two way audio
- Instant live view

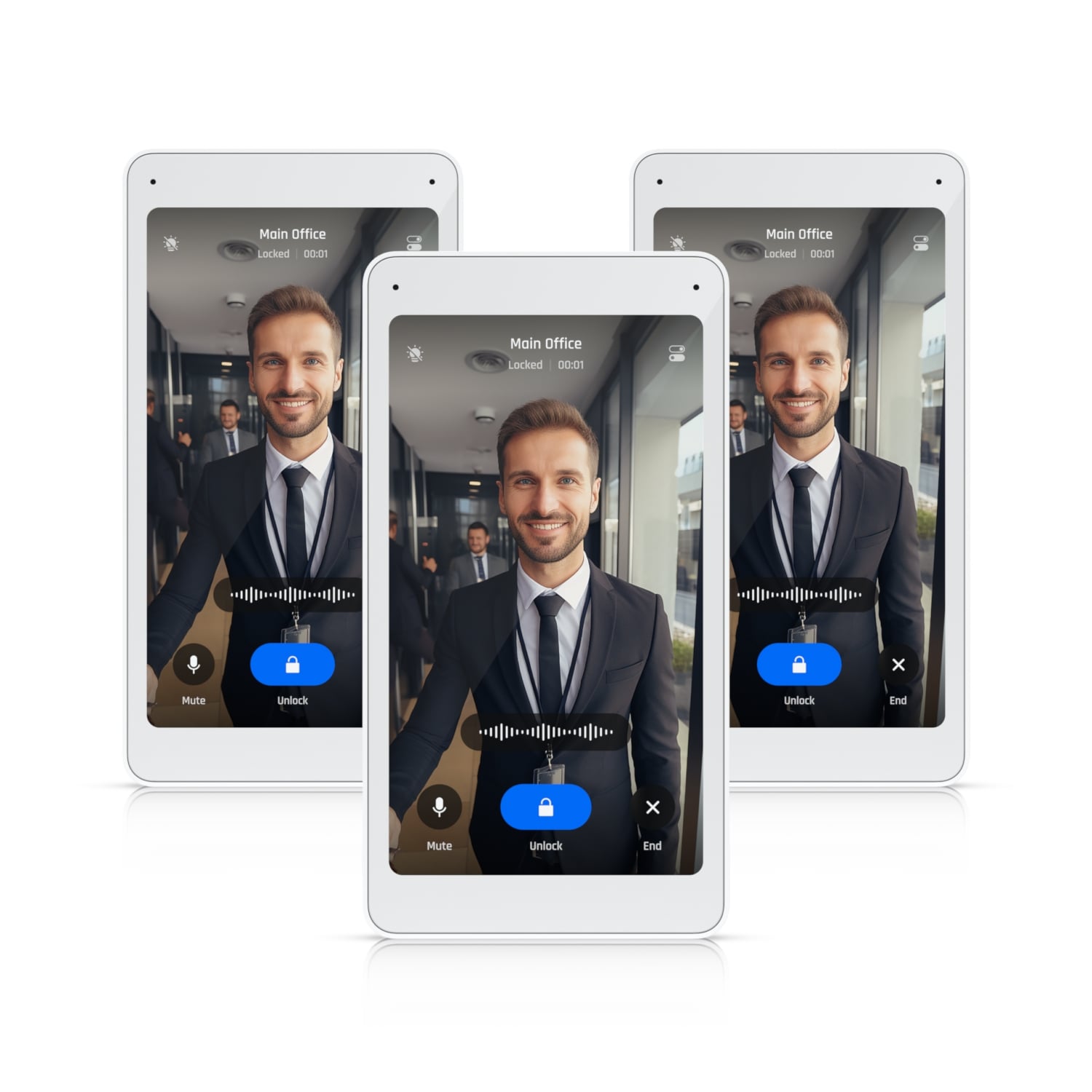

- 5 inch touch display

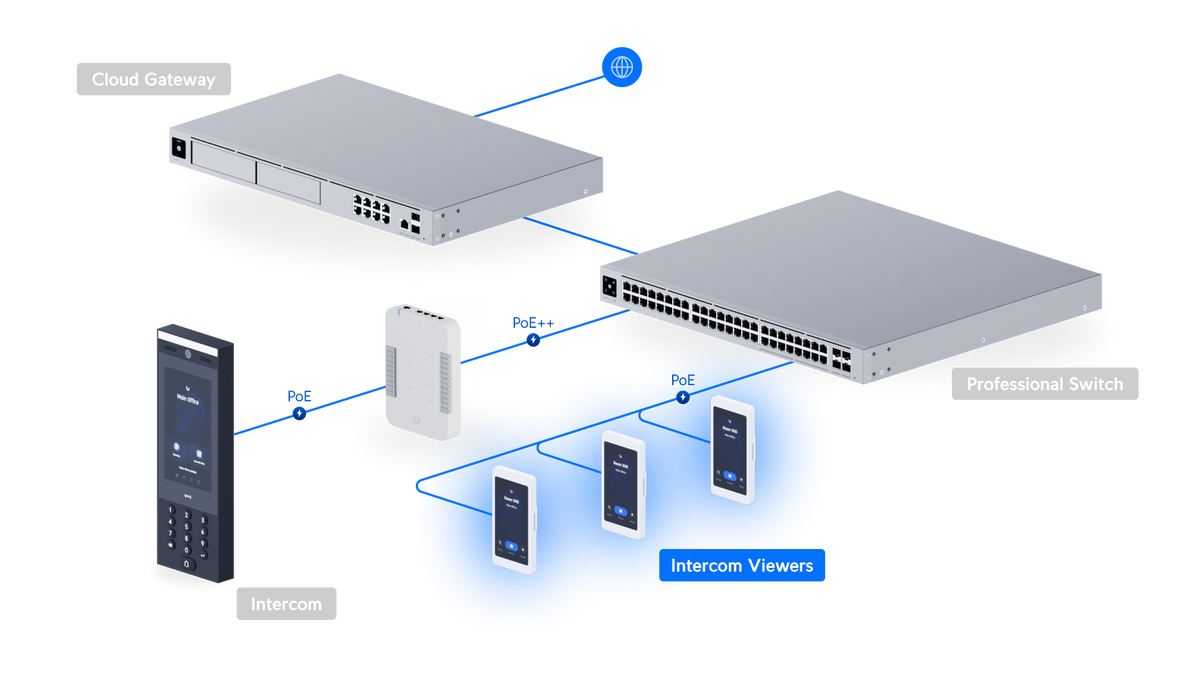

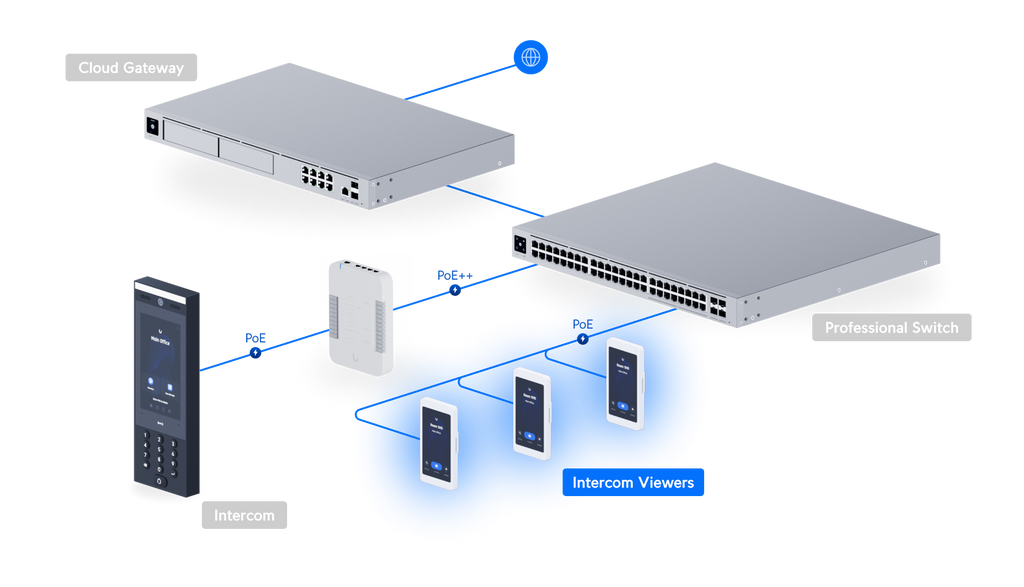

- Connect and power using a PoE switch
Specifications:
- Compatibility: UA-G3-Pro-B, UA-G3-Pro-W, UA-G2-Pro, UA-G2-Pro-Black, UA-Intercom

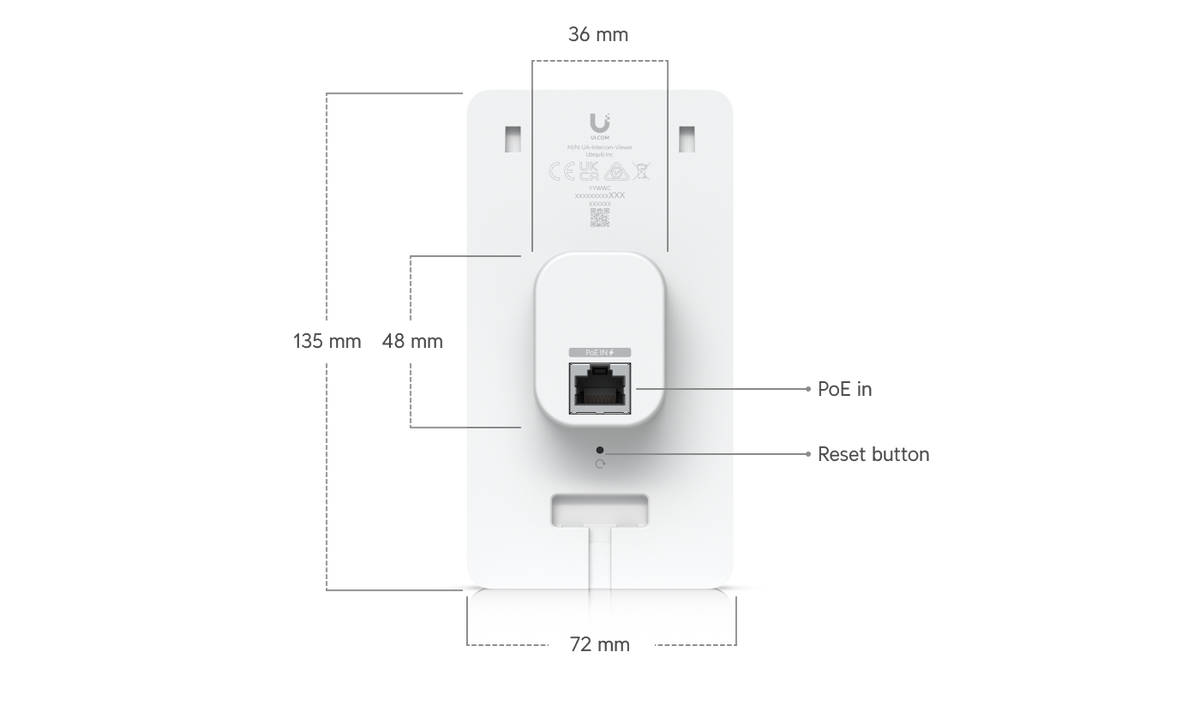

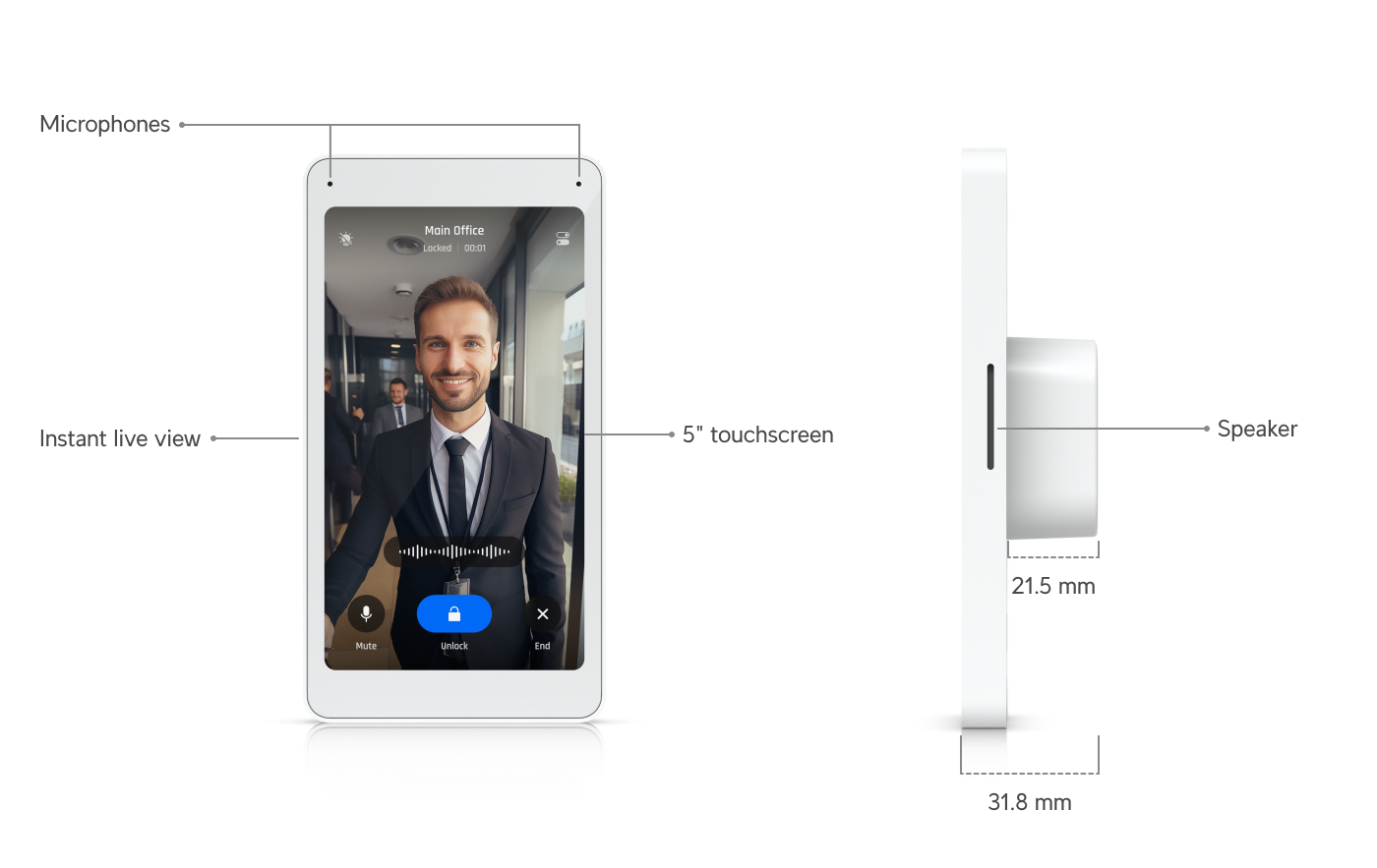

- Dimensions: 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3")
- Mobile Unlock: Yes
- NDAA Compliant: Yes
- UL 294 Level: Destructive attack Level I, Line security Level I, Endurance Level I, Standby power Level I
- Weight: 168 g (5.9 oz)
- Enclosure Material: Glass, polycarbonate
- Mount Material: Aluminum alloy
- Mounting: Wall (included), gang box mount (optional)
- Indoor and Outdoor Use: Indoor only

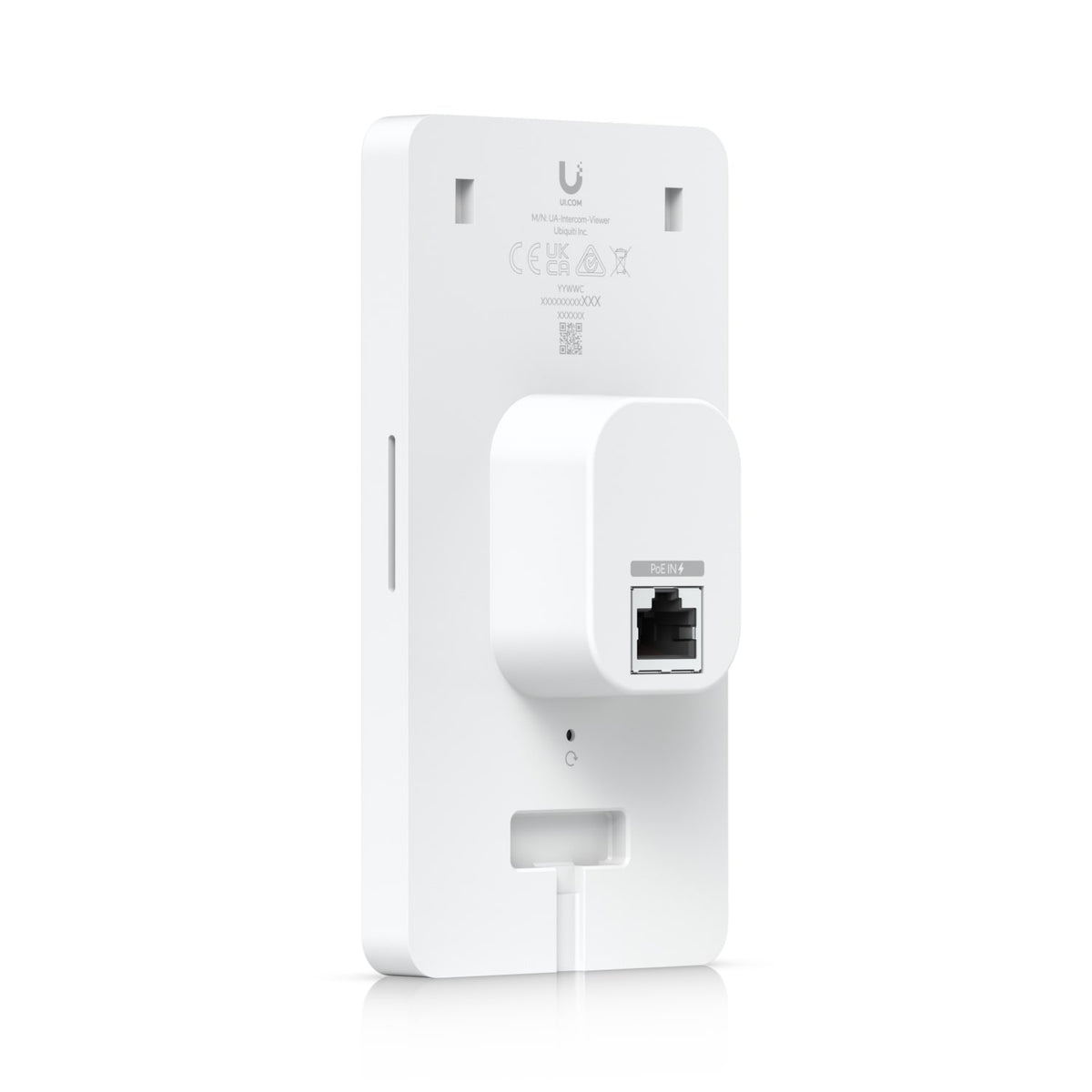

- Networking Interface: One 10/100 Mbps RJ45 port
- Connectivity: Ethernet
- Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Maximum Power Consumption: 5W
- Supported Voltage Range: 44–57V DC
- Display Size: 127 mm (5") diagonal
- Display Luminance: 300 nits (typical)
- Screen Orientation: Portrait
- Display Resolution: 1280 x 720 px
- Microphone: Yes
- Speaker: Yes
- Buttons: One factory reset
- PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended, matched to the transmission speed required at the installation site. Minimum conductor gauge is 26 AWG (0.13 mm²) for patch cords and 24 AWG (0.21 mm²) for horizontal or riser cable
- UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
- CAN/ULC-60839-11-1 Grade: Grade assignment I
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Management Application: Access
