Description:

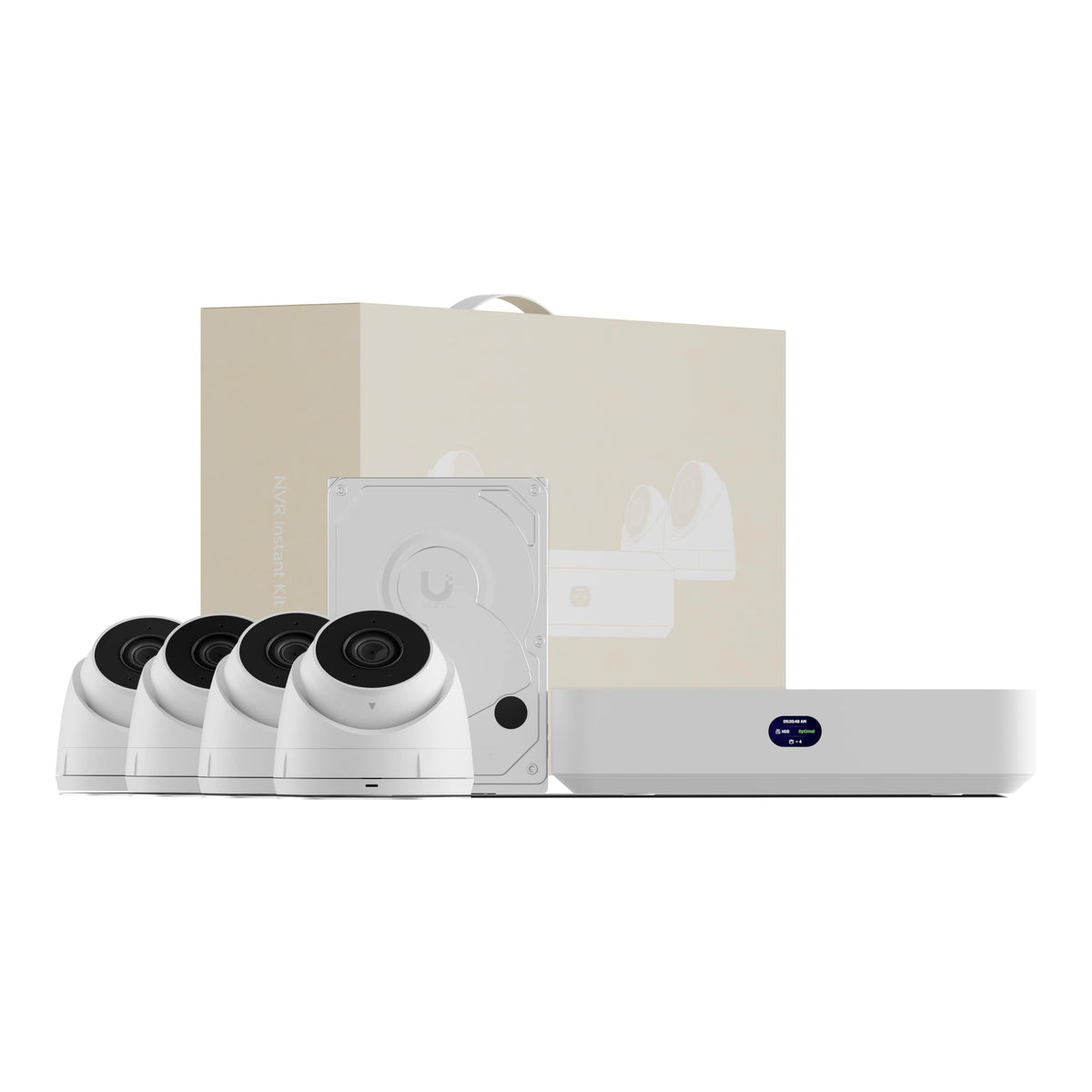

The Ubiquiti Network Video Recorder Instant Kit is a compact UniFi Protect NVR bundle that includes one UniFi Protect NVR Instant, four G5 Turret Ultra cameras, and one 1TB HDD, delivering an all-in-one solution for fast and effortless setup. The NVR Instant is equipped with a 3.5" HDD bay, an integrated 6-port PoE switch, and a ViewPort output for real-time monitoring, supporting up to 8 2K cameras or 6 4K cameras.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Includes (1) UniFi Protect NVR Instant, (4) G5 Turret Ultra cameras, and (1) 1TB HDD
- Built-in 6-port PoE switch for simple connectivity
- Vantage Point support
- Live monitoring via ViewPort output
- Quick installation for fast deployment
- Cloud-based management with no hidden costs
- Door access support
- Zero licensing fees
Specifications:

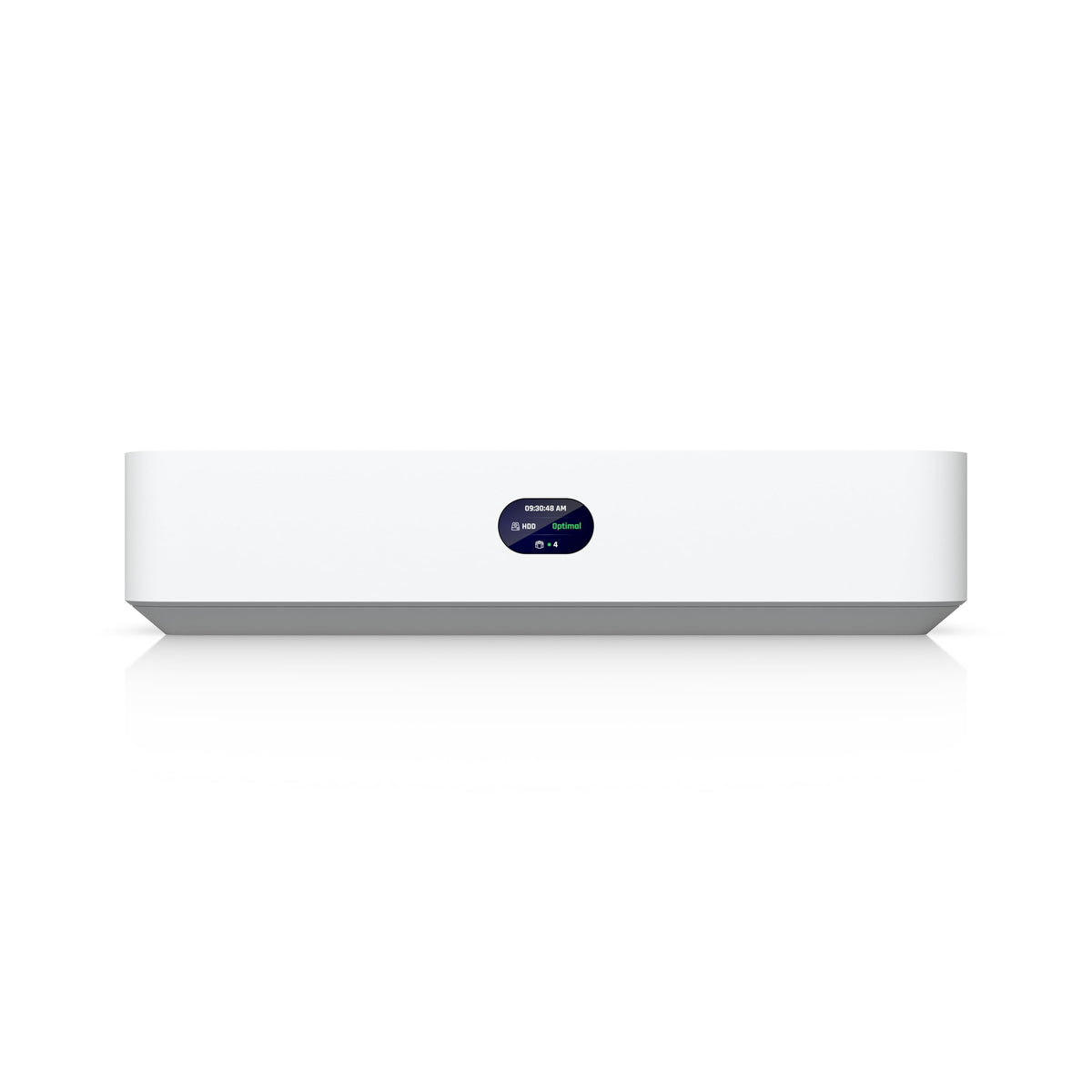

Network Video Recorder Instant:
- Dimensions: 220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
- UniFi Application Suite: Protect, Access
- Managed Cameras: 15 HD, 8 2K, 6 4K
- Managed Access Hubs: 50
- Storage Capacity: (1) 3.5" drive bay
- Data Protection: Yes
- Vantage Point: Yes
- Networking Interface: (1) GbE RJ45 uplink port, (6) GbE PoE RJ45 downlink ports, (1) HDMI port (ViewPort)
- Form Factor: Compact desktop
- Mounting: Wall, DIN rail mount included
- Door Access Support: Yes
- Hard Drive Capacity: (1) 3.5" HDD support
- Max Power Budget for Drives: 11W
- Max Power Consumption: 9W, excluding PoE output and HDD power consumption
- Power Method: Universal AC input, 100-240VAC, 1.5A max, 50/60 Hz
- Power Supply: AC/DC, internal, 60W
- PoE Budget: 40W
- Max PoE Wattage per Port by PSE: 15.4W
- Voltage Range PoE Mode: 44-57V
- Processor: Quad-core ARM Cortex-A55 at 1.7 GHz
- Memory: 4 GB
- Management: Ethernet, Bluetooth
- Display: 1.14" screen
- Weight: 1.04 kg (2.3 lb)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- LEDs: Ethernet, PoE
- Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- NDAA Compliant: Yes
- Certifications: FCC, IC, CE, Electrical Safety

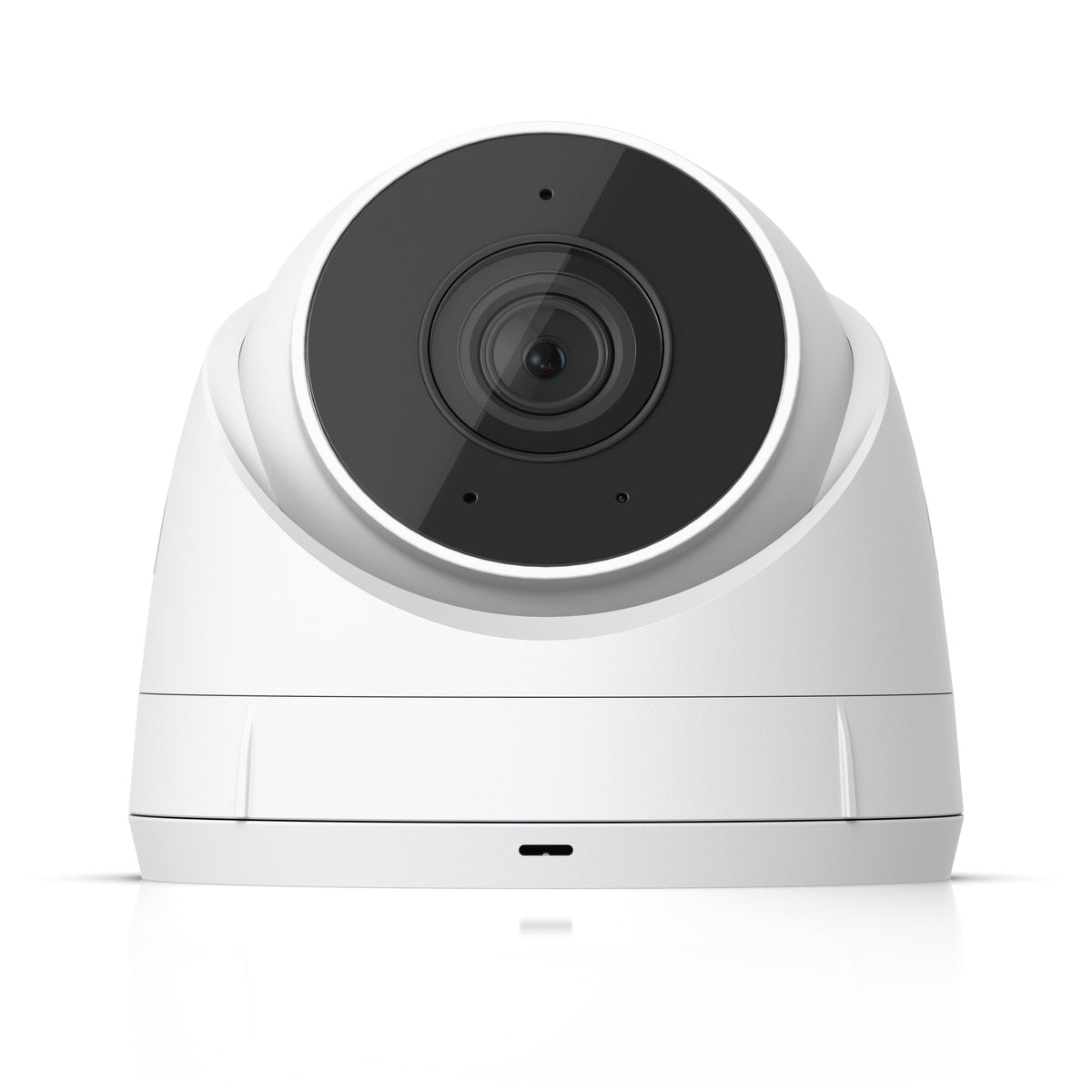

G5 Turret Ultra Camera:
- Dimensions: Ø90 x 71.2 mm (Ø3.5 x 2.8")
- IR Night Vision: 30 m (98 ft)
- Smart Detections: People, vehicles, animals
- Resolution: 2K
- Field of View: Horizontal 102.4°, Vertical 54.9°, Diagonal 120.6°
- Audio: Microphone
- Weatherproofing: IP66
- Tamper Resistance: IK04
- Mounting: Wall, ceiling mount included; junction box and arm mount sold separately
- Networking Interface: 10/100 MbE RJ45 port
- Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
- Max Frame Rate: 30 FPS
- Image Resolution: 4MP 2688 x 1512 (16:9)
- Sensor: 1/2.4" CMOS
- Lens: Fixed focal length
- Night Mode: Built-in IR LED illumination and IR cut filter
- Max Power Consumption: 4W
- Supported Voltage Range: 37-57V DC
- Power Method: PoE
- Processor: Dual-core Arm Cortex-A7 based chip
- Weight: 330 g (11.6 oz)
- Enclosure Material: Aluminium alloy, UV-stabilised polycarbonate
- Mount Material: Polycarbonate
- Button: (1) Factory reset
- Cable Connector Type: RJ45
- Cable Diameter: 5 mm (0.2")
- Cable Length: 30 cm (1 ft)
- Jacket Material: Polycarbonate
- Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8")
- Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber
- Ambient Operating Temperature: -30 to 50°C (-22 to 122°F)
- Ambient Operating Humidity: 0 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC

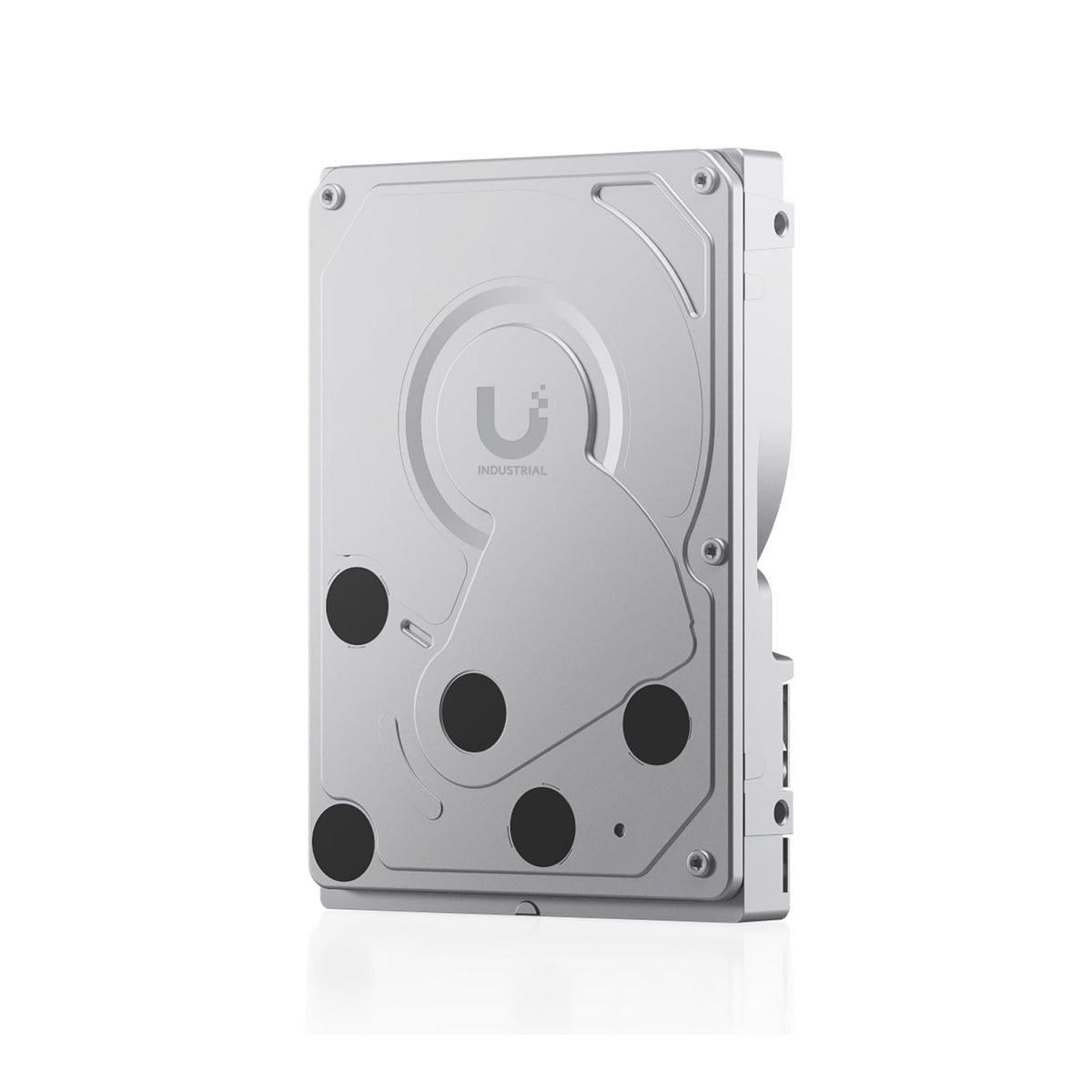

1TB HDD:
- Dimensions: 147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
- Hard Disk Form Factor: 3.5-inch
- Weight: 0.45 kg (0.99 lb)
- Storage Capacity: 1 TB
- Power Method: 5V/12V input
- Management Interface: SATA 6 Gb/s
- Rotation Speed: 5400 RPM
- Workload Rating: 180 TB/year
- Mean Time Between Failure (MTBF): 1,000,000 h
- Ambient Operating Temperature: 0 to 65°C (32 to 149°F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- NDAA Compliant: Yes
- Certifications: FCC, CE, TUV, RCM, KC, BSMI
