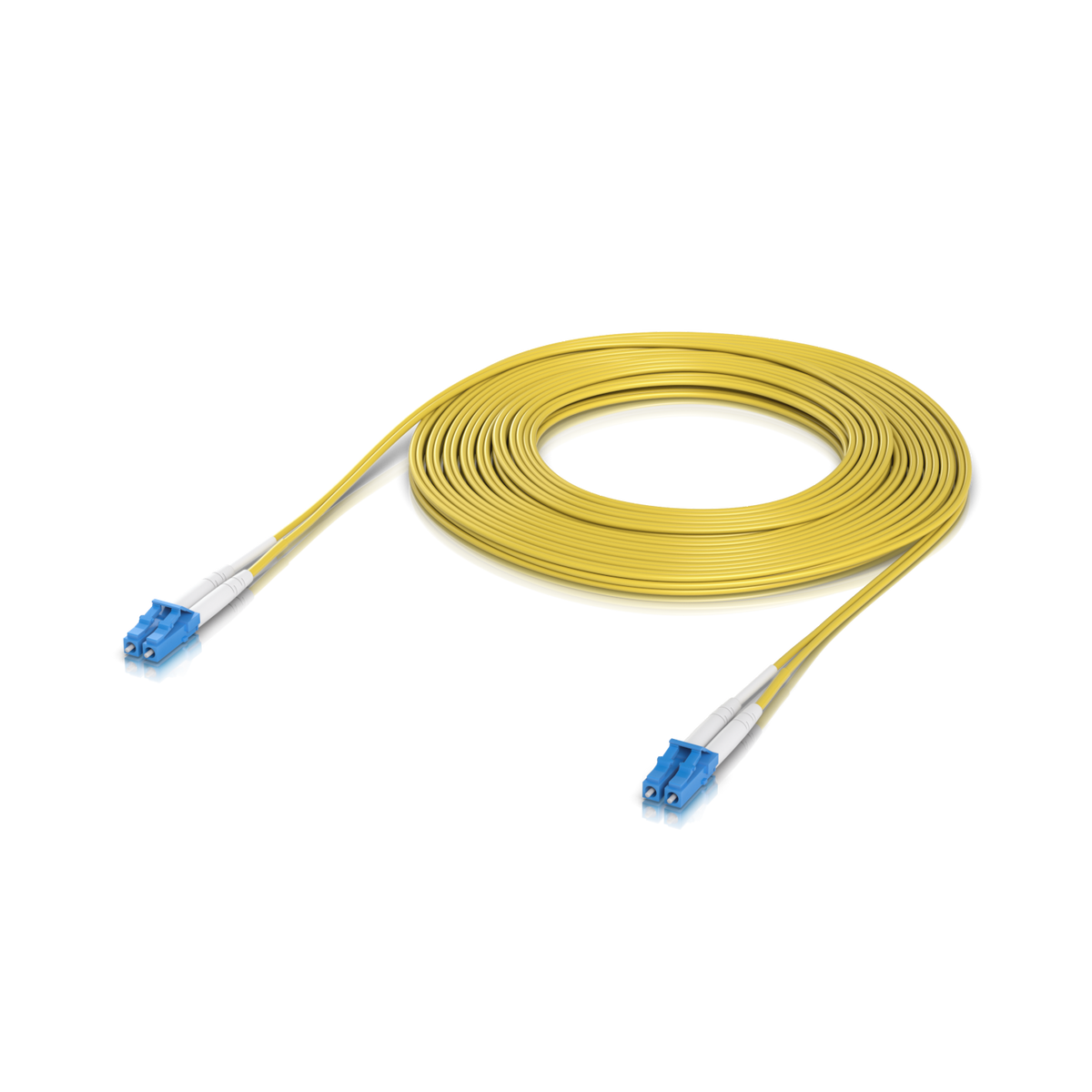

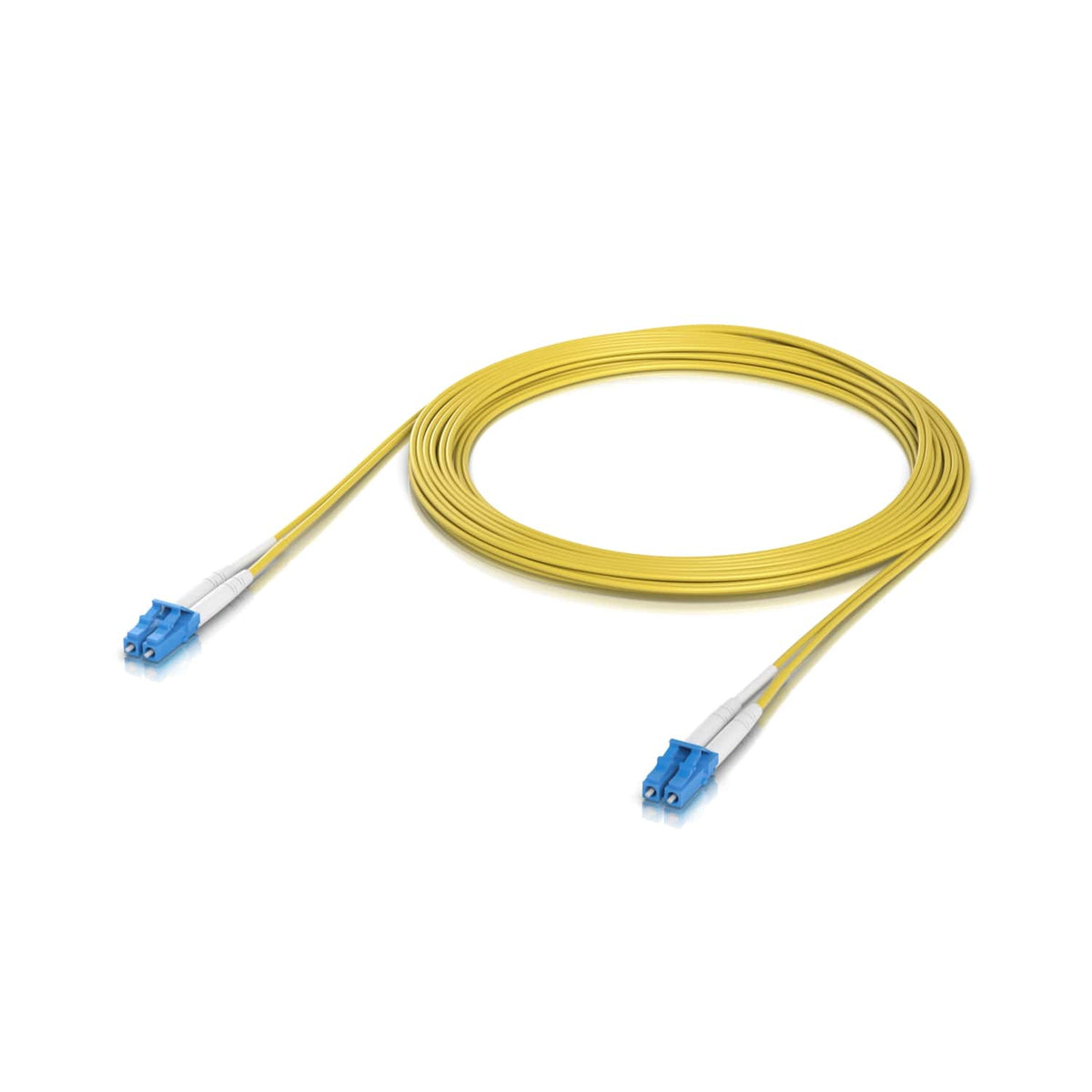

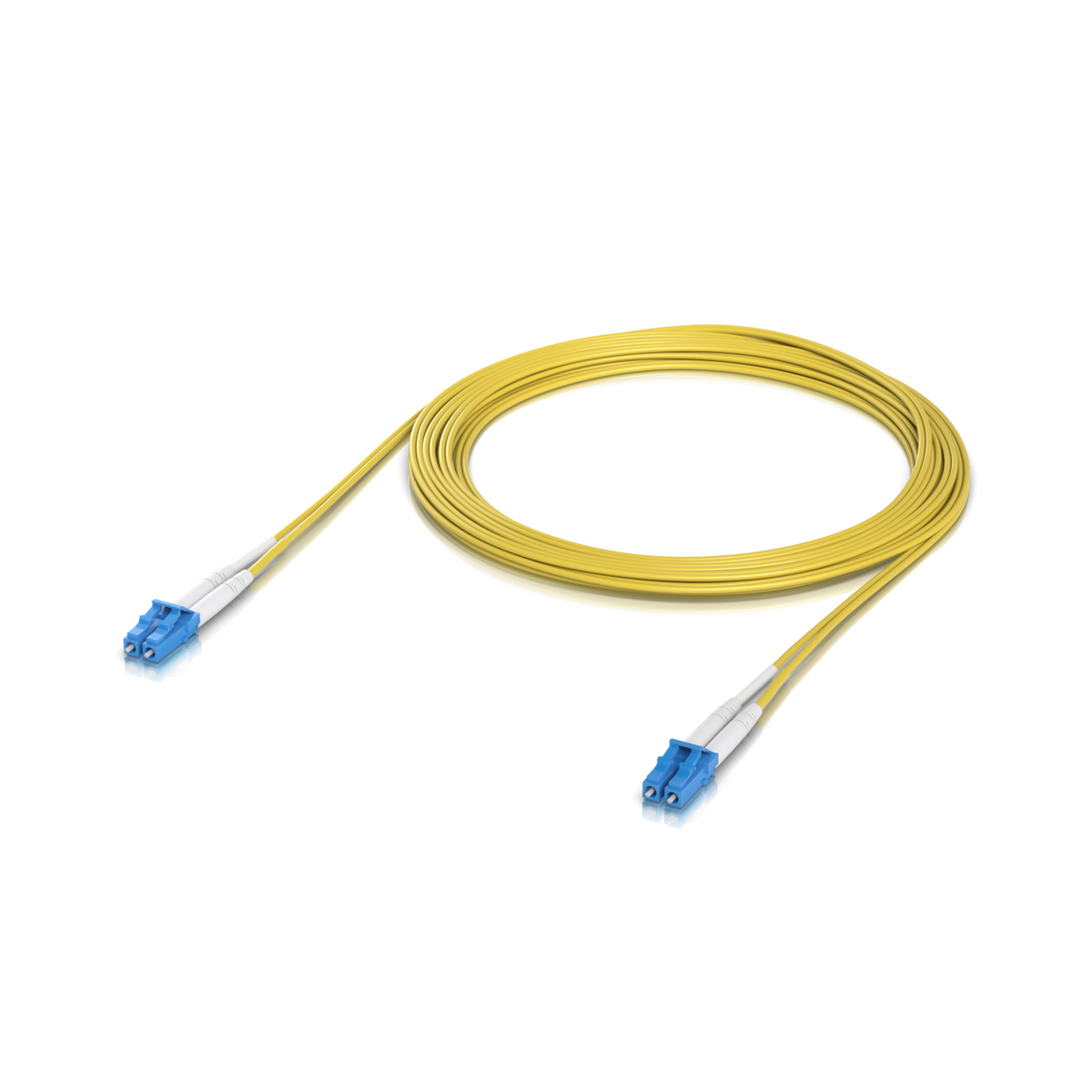

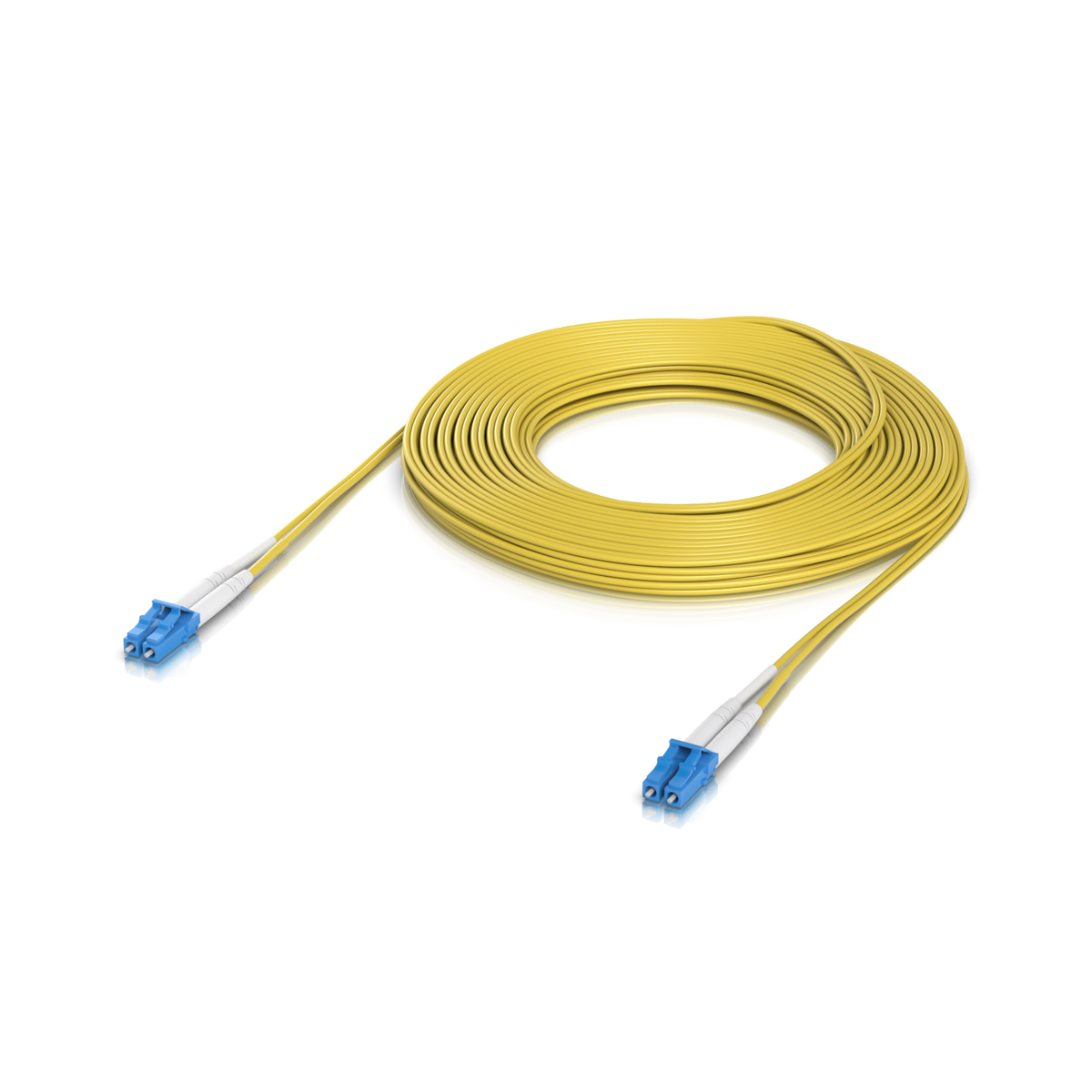

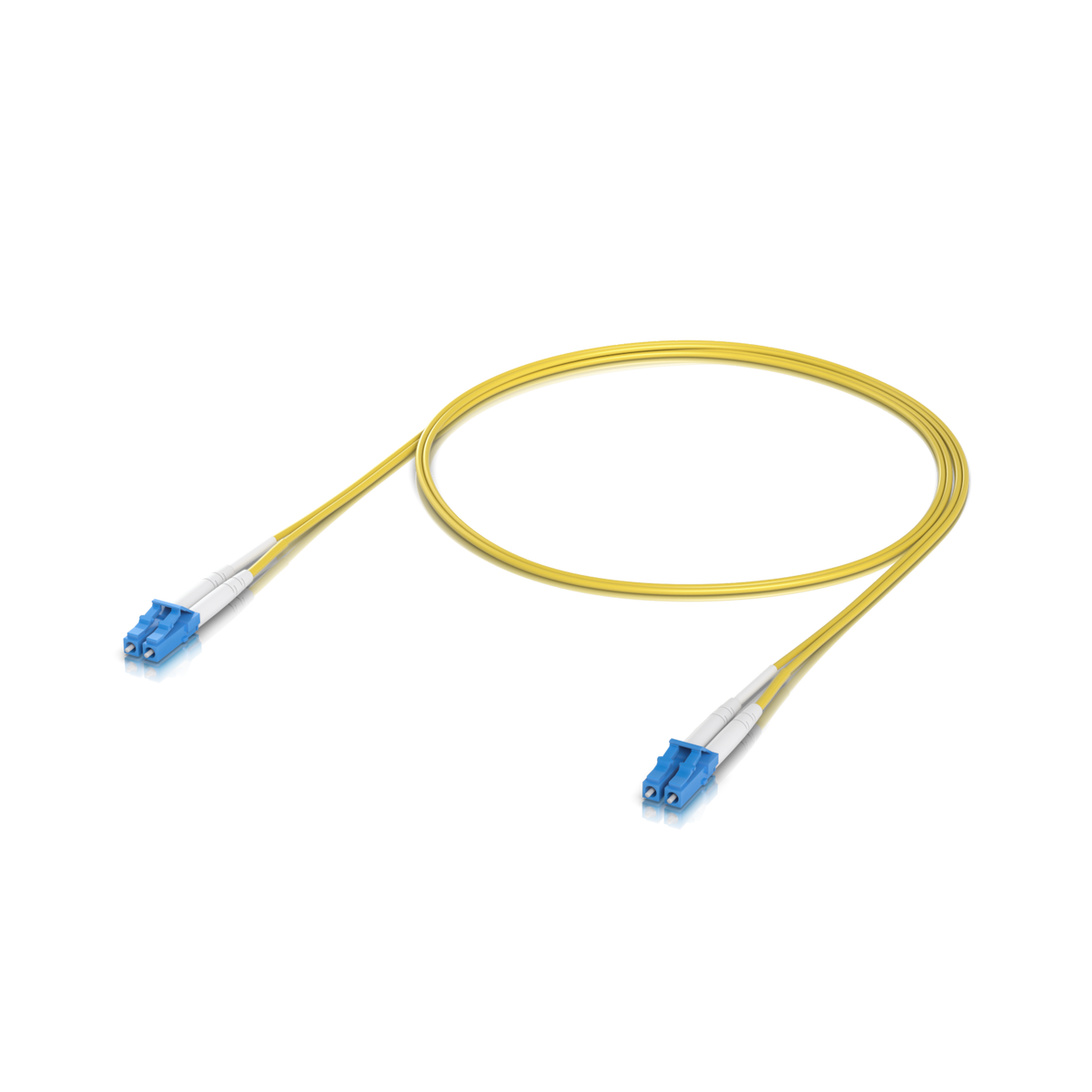

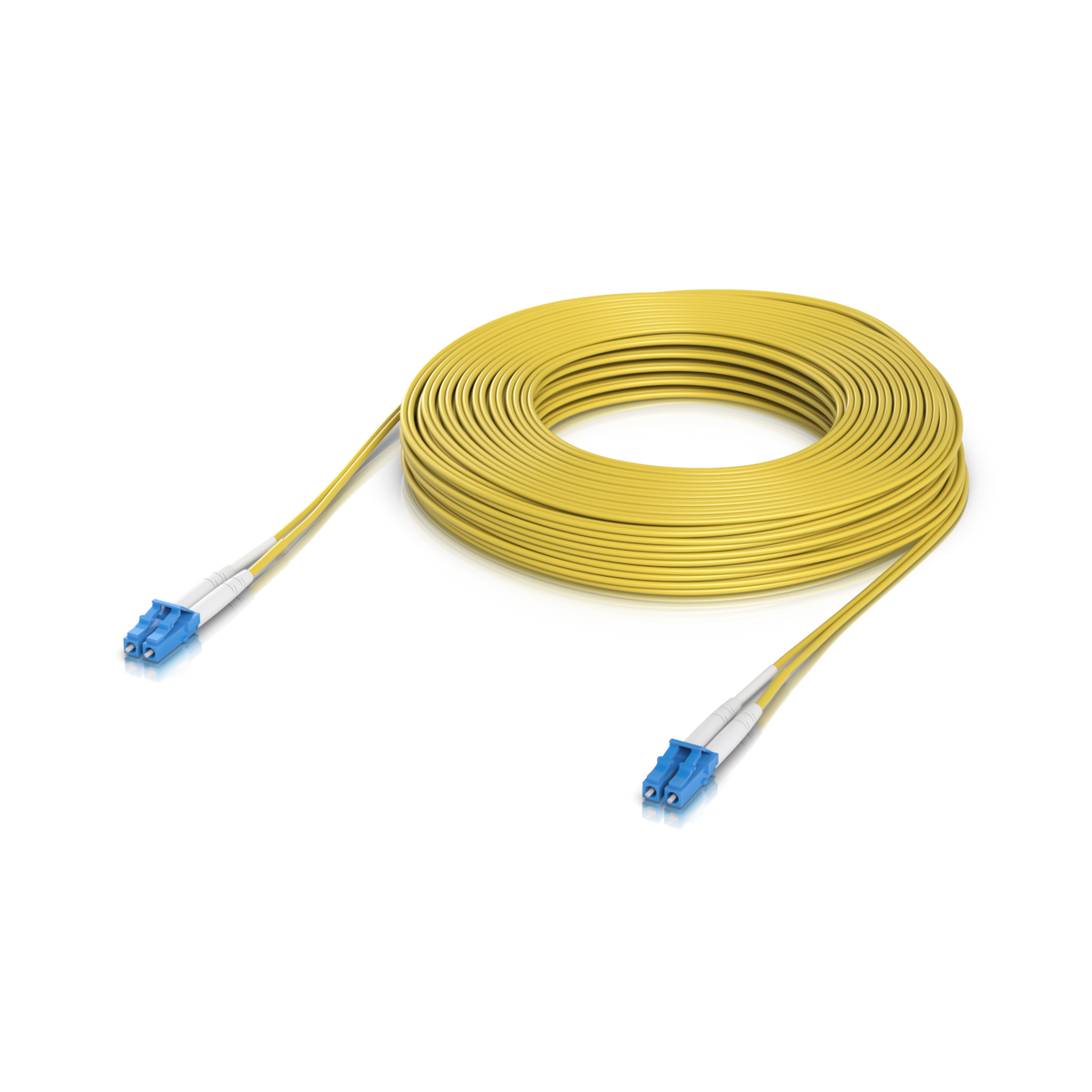

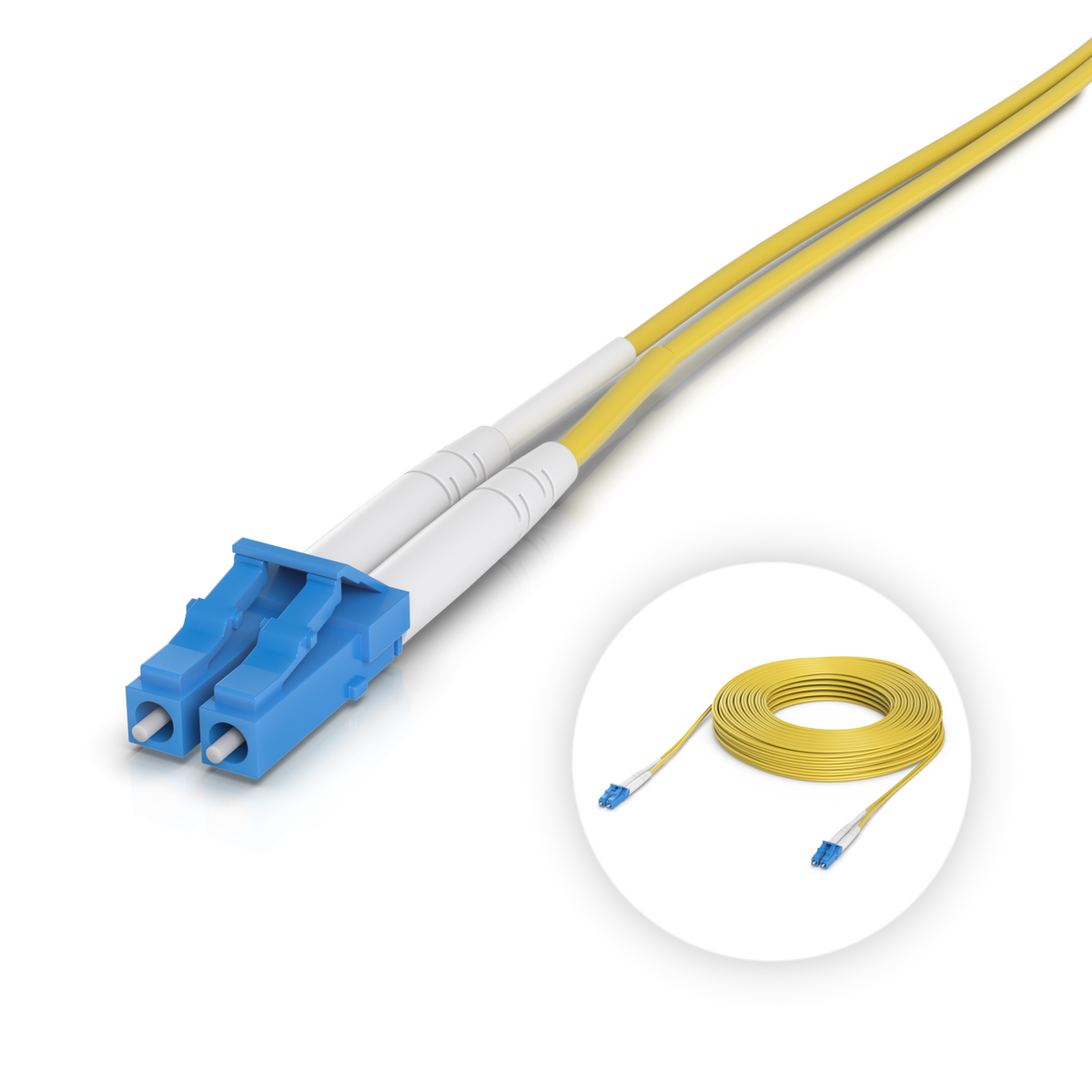

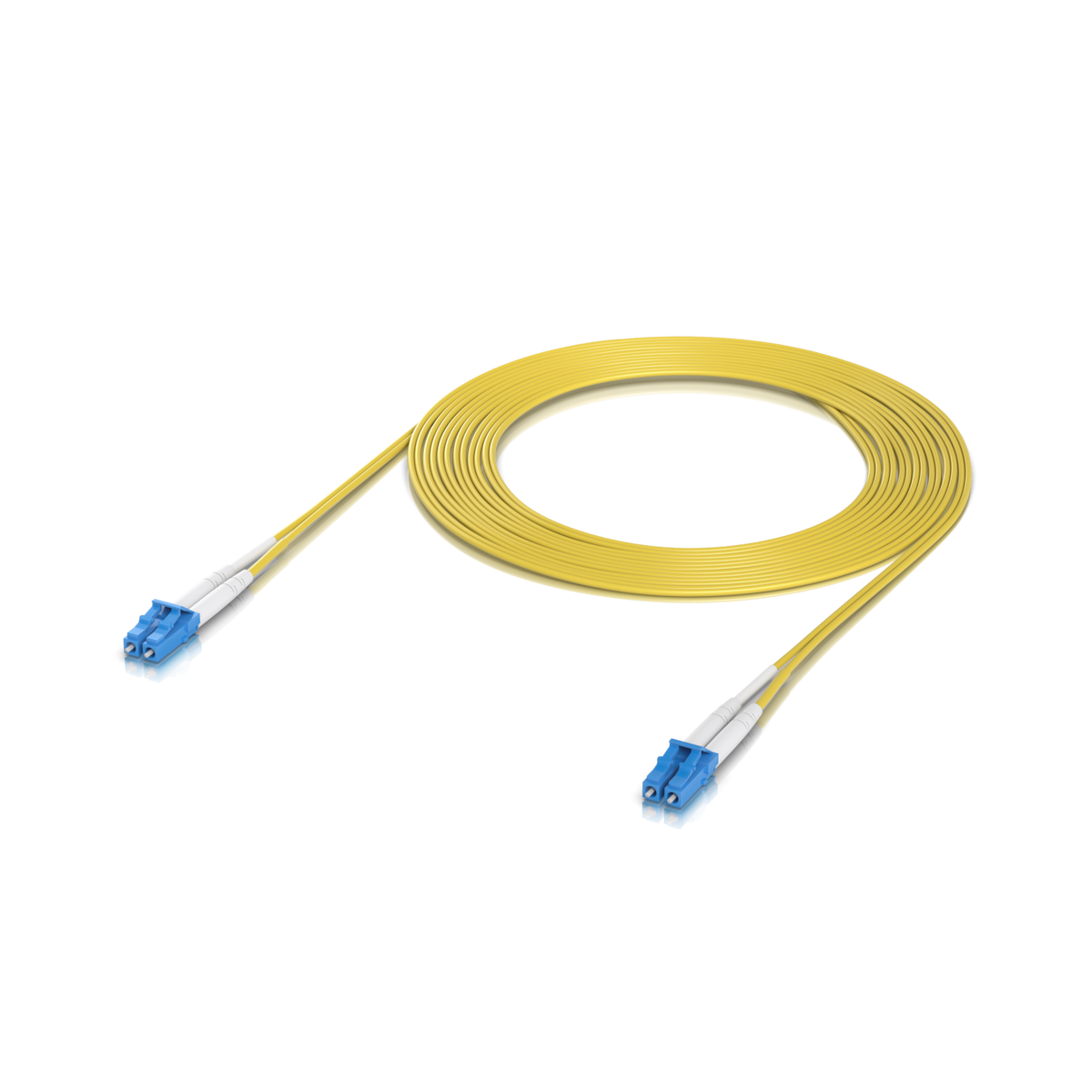

Ubiquiti OS2 Single Mode Indoor Fiber Patch Cable 5 Meter with Duplex LC UPC Connectors

Description

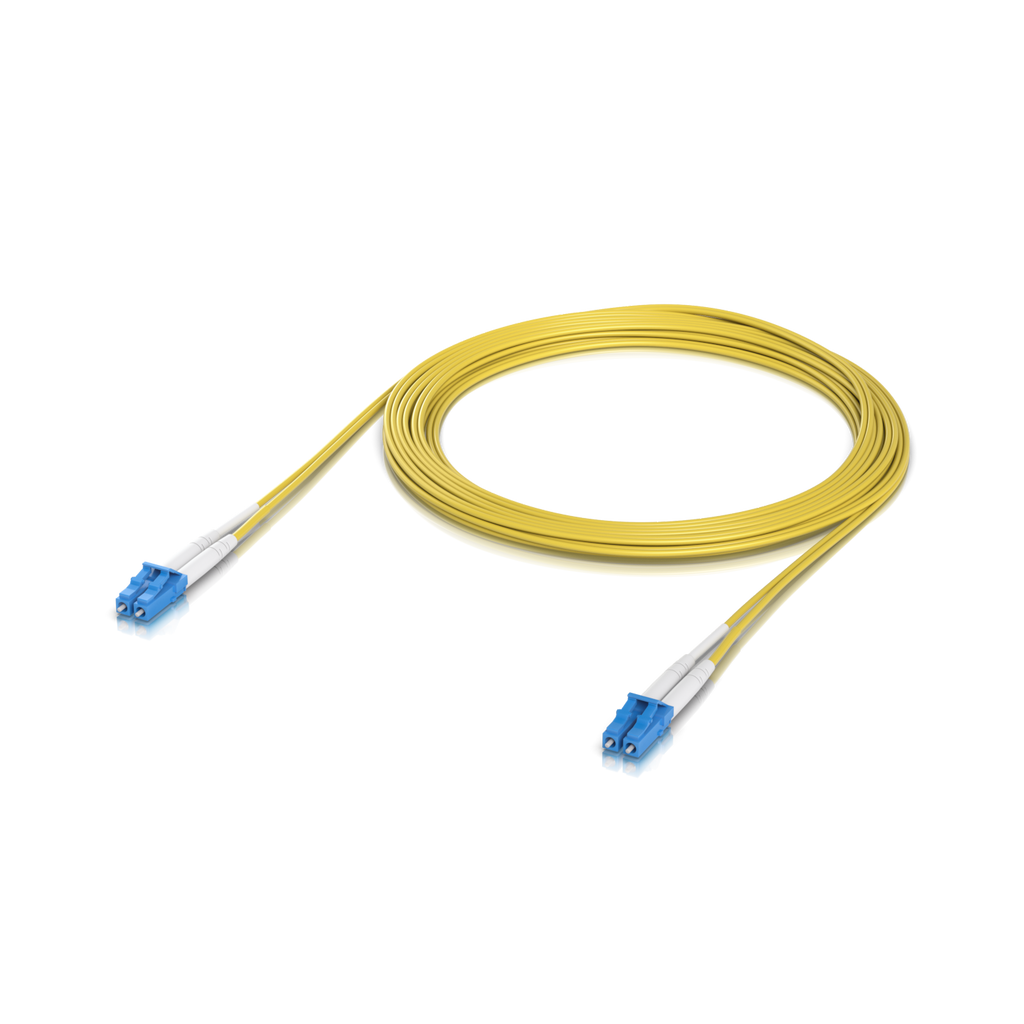

The Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable is a lightweight fiber patch cable for up to 100G connections. Featuring OS2 single mode fiber with duplex LC UPC connectors, this 5 m indoor cable has a low smoke zero halogen (LSZH) jacket in yellow with a slim 2 mm diameter, operating at 1310/1550 nm wavelengths with low insertion loss and high durability for reliable high speed fiber links.

Features

• OS2 single mode fiber

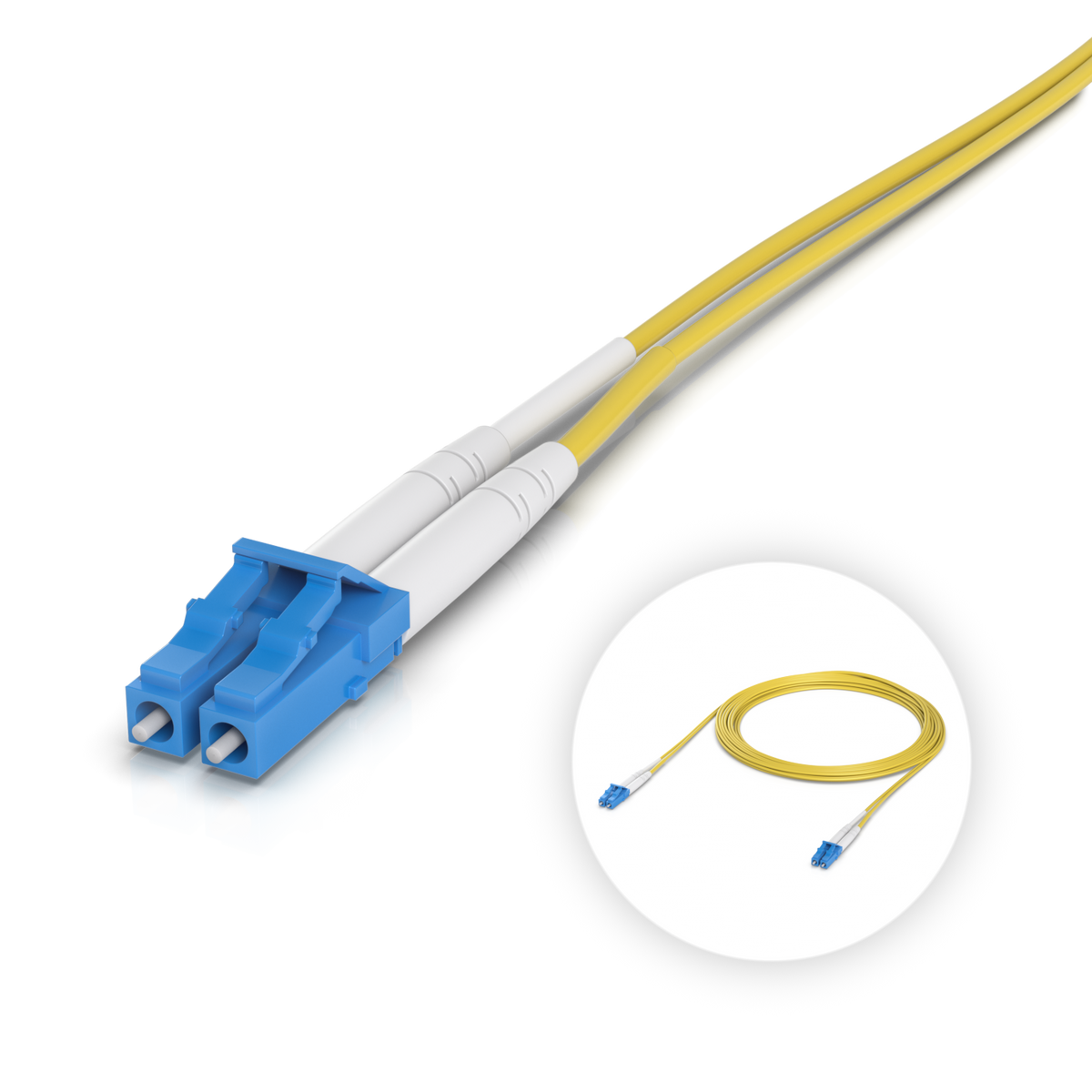

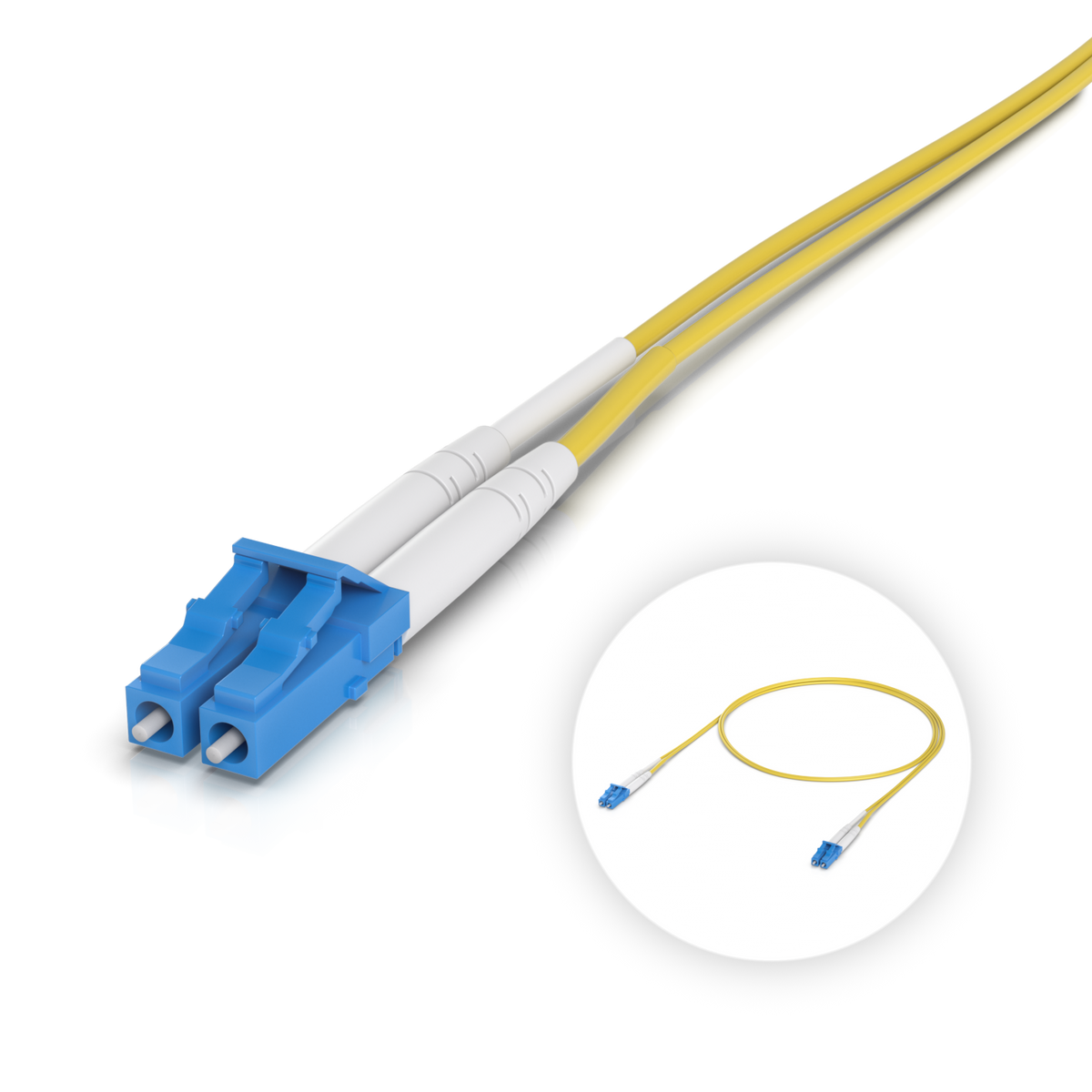

• Duplex LC UPC connectors
• Cable length 5 m
• Lightweight fiber patch cable for up to 100G connections

Specifications

• Connector: 2 x Duplex LC UPC
• Operating environment: Indoor
• Fiber mode: OS2
• Jacket diameter: 2 mm (0.08 inches)
• Jacket material: Low smoke zero halogen (LSZH)
• Jacket Colour: Yellow
• Wavelength: 1310/1550 nm
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Repeatability: ≤ 0.1 dB
• Durability: ≤ 0.2 dB (1,000 times mating)
• Ambient operating temperature: -40 to 75° C (-40 to 167° F)

Package Contents

• Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable
