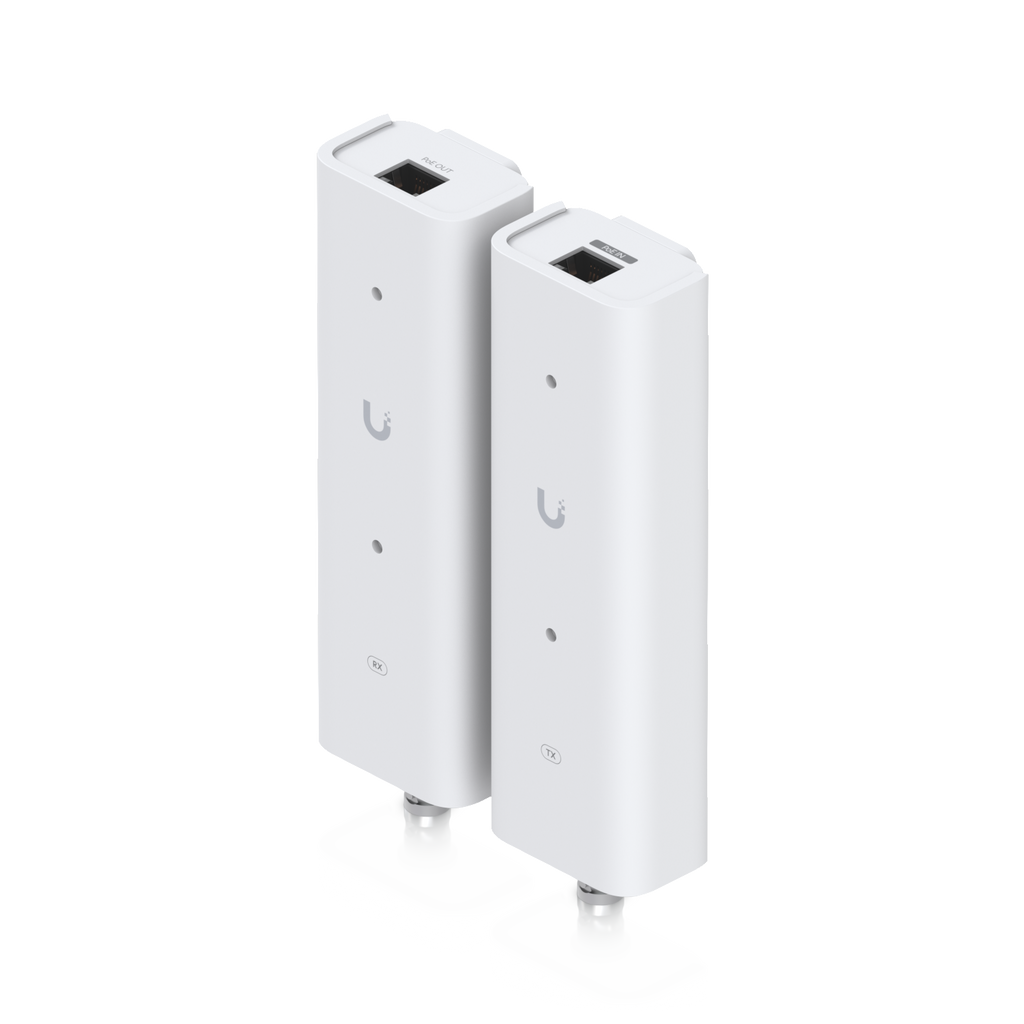

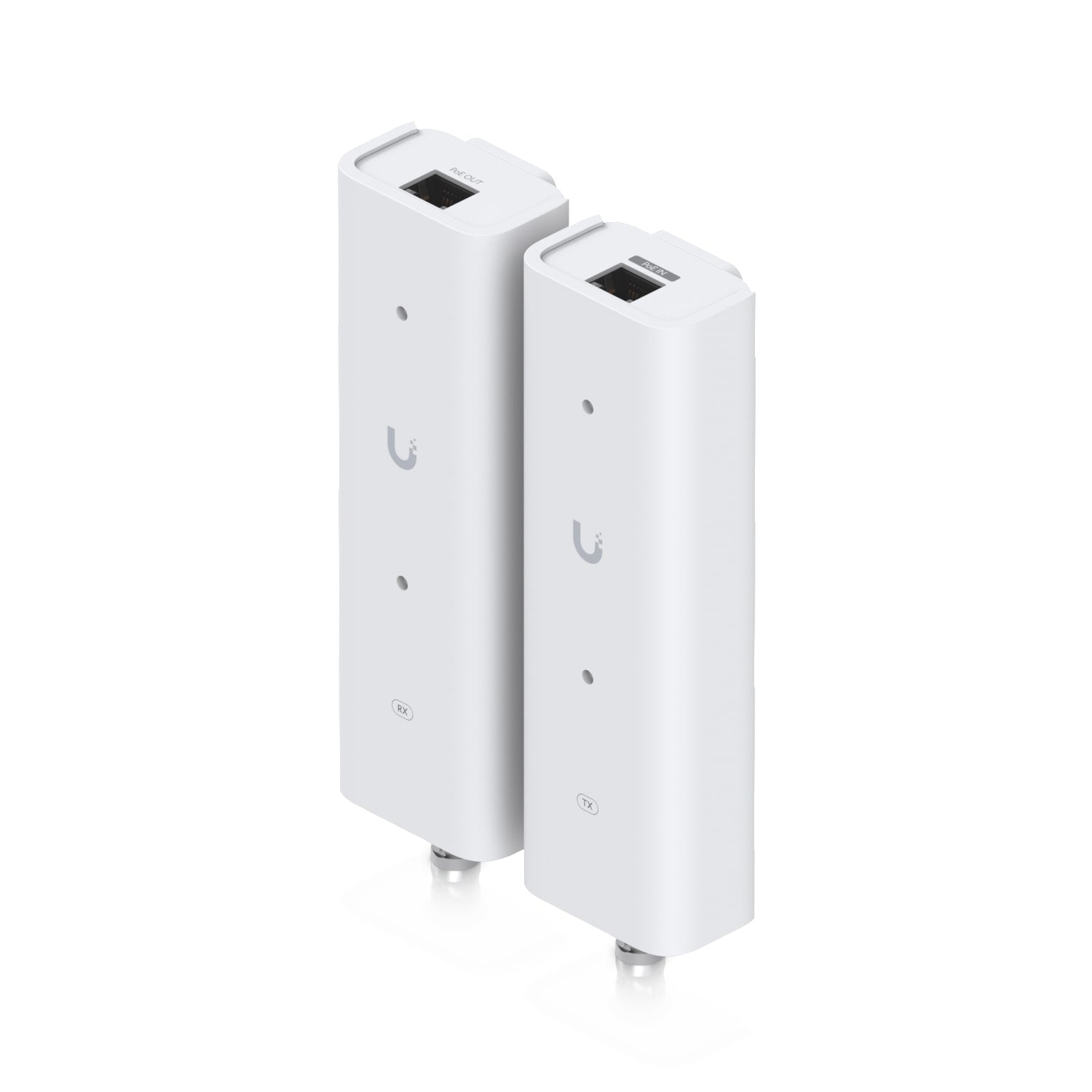

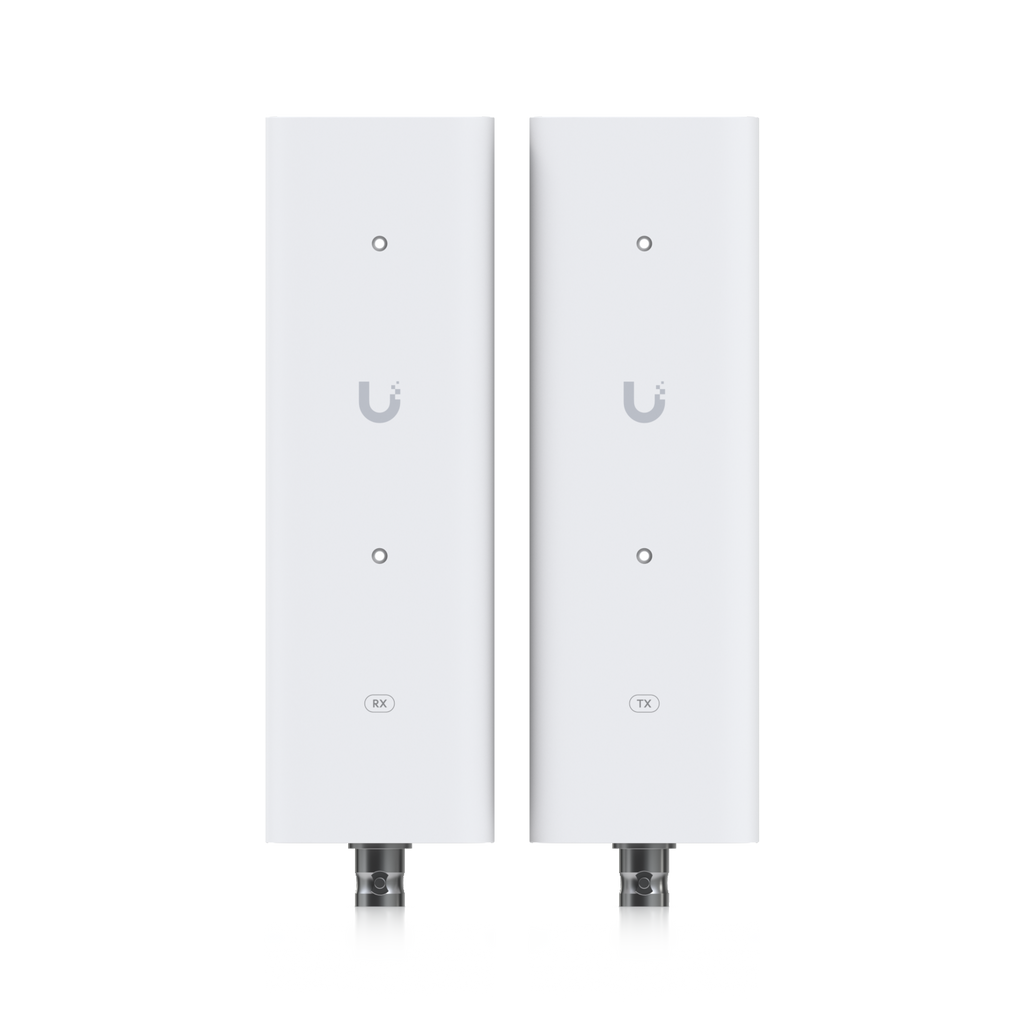

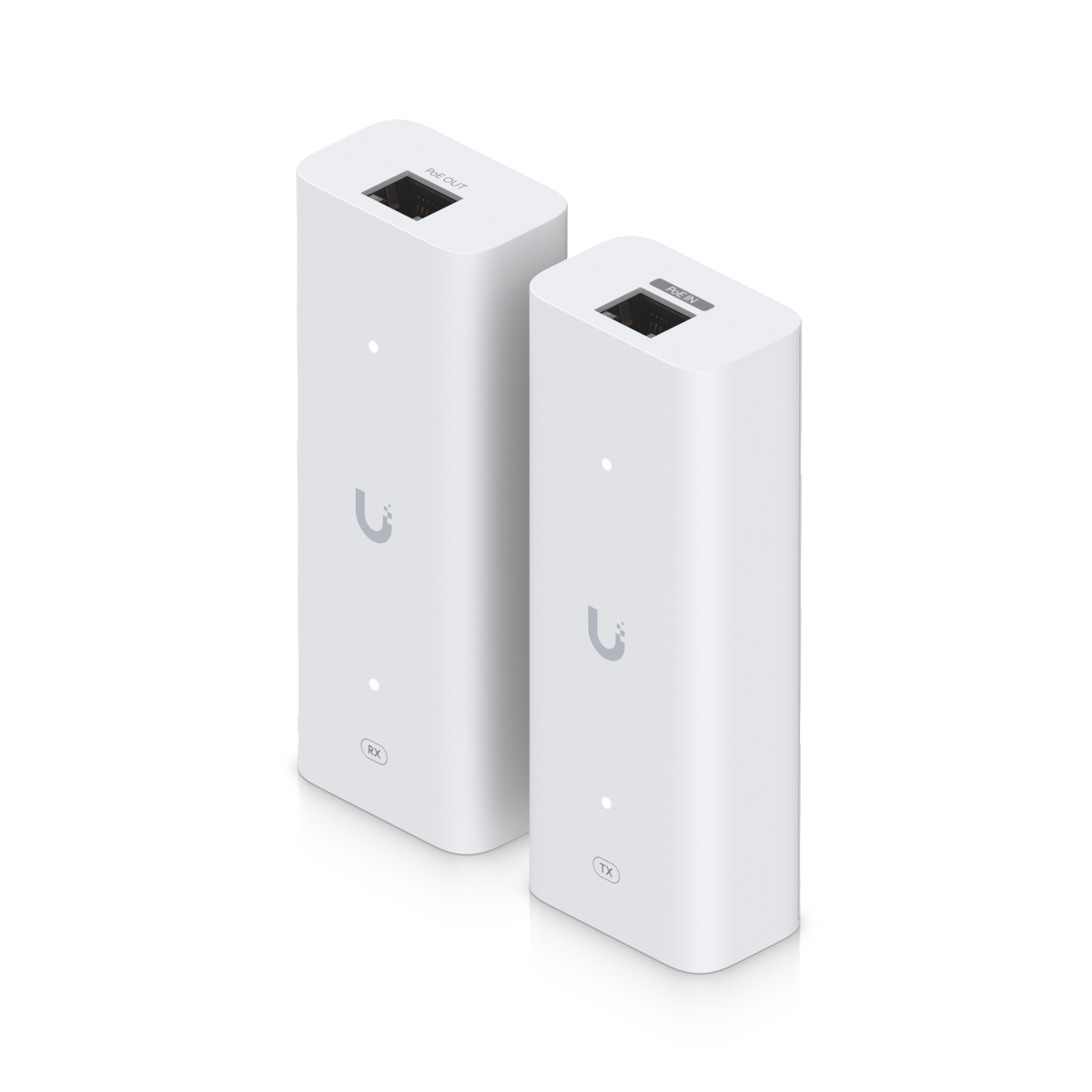

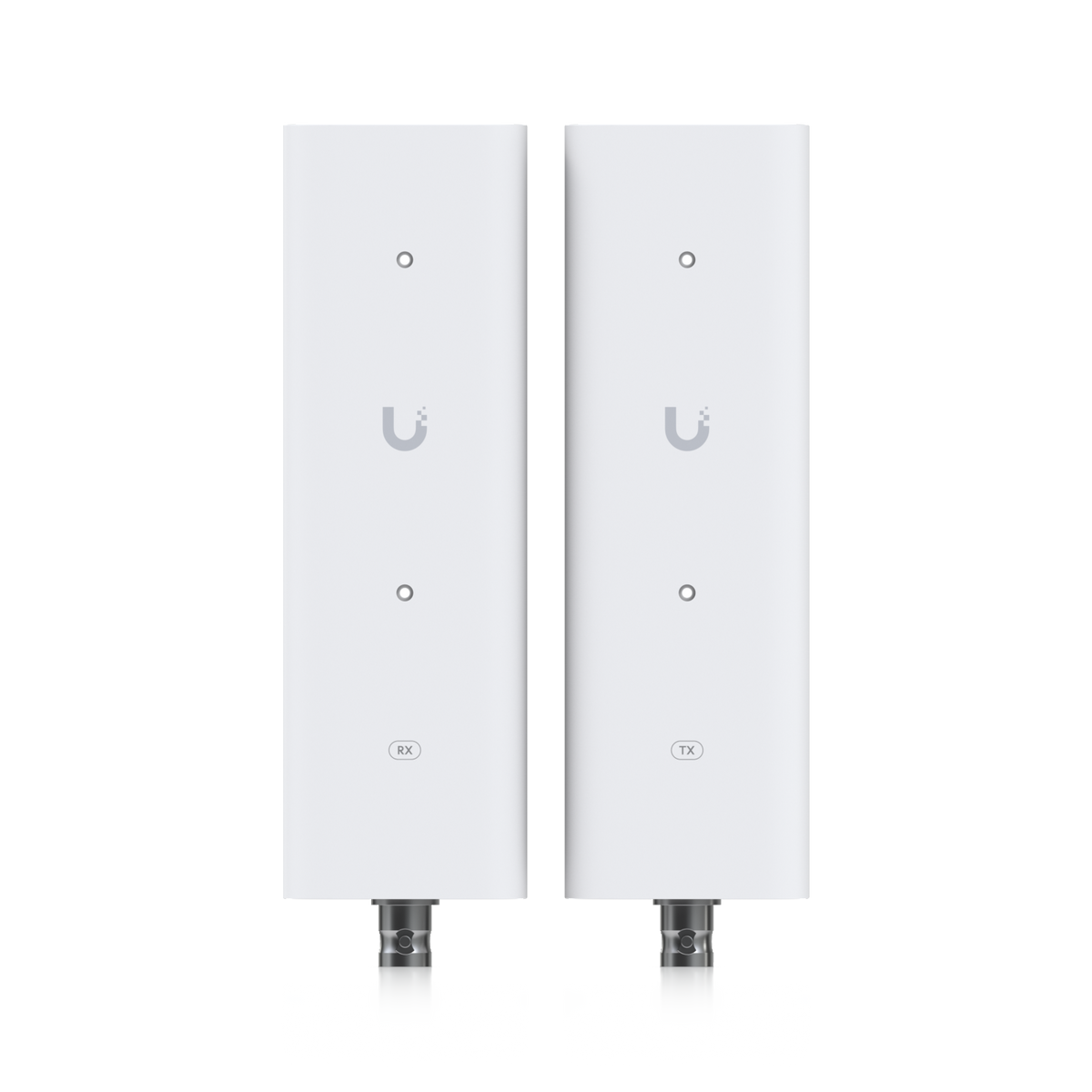

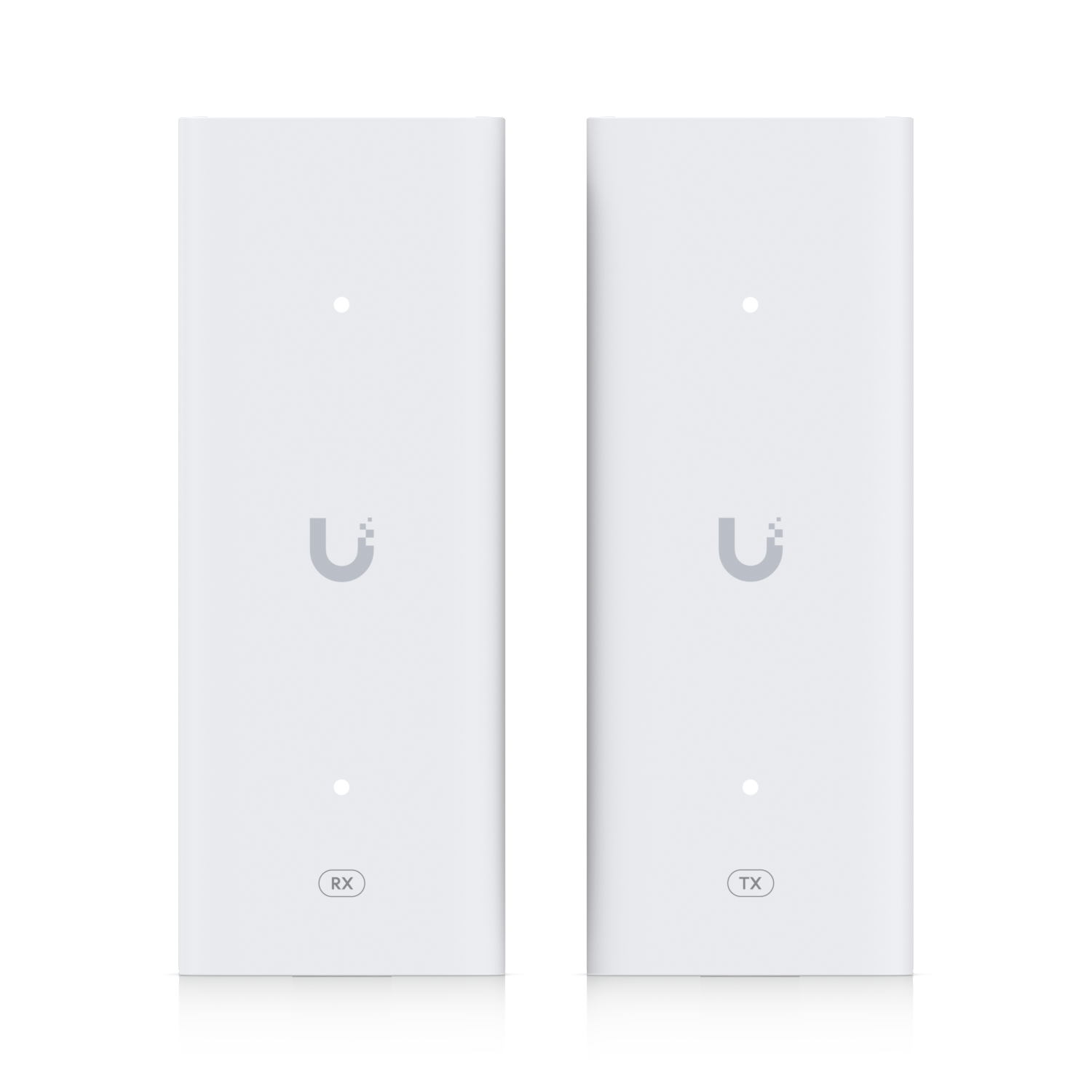

Ubiquiti PoE Extender Pair Extends Power Over 2 Wire or Coaxial Retrofit Setup

Description:

Deliver PoE connectivity where installing new cabling isn't practical with the Ubiquiti PoE Over 2-Wire Retrofit Extender. This pair of extenders transmits PoE over twisted-pair or coaxial cables, making it an excellent choice for retrofit scenarios where existing wiring can be repurposed. The transmitter accepts a PoE++ input and delivers a 2-wire output, while the receiver takes the 2-wire input and supplies a PoE/PoE+ output for your devices. Each unit comes with a 2-wire to BNC adapter, providing flexible deployment over legacy cable infrastructure with dependable performance across long cable runs.

Features:

• Extends PoE over twisted-pair or coaxial cables
• Ideal for retrofit scenarios using existing wiring

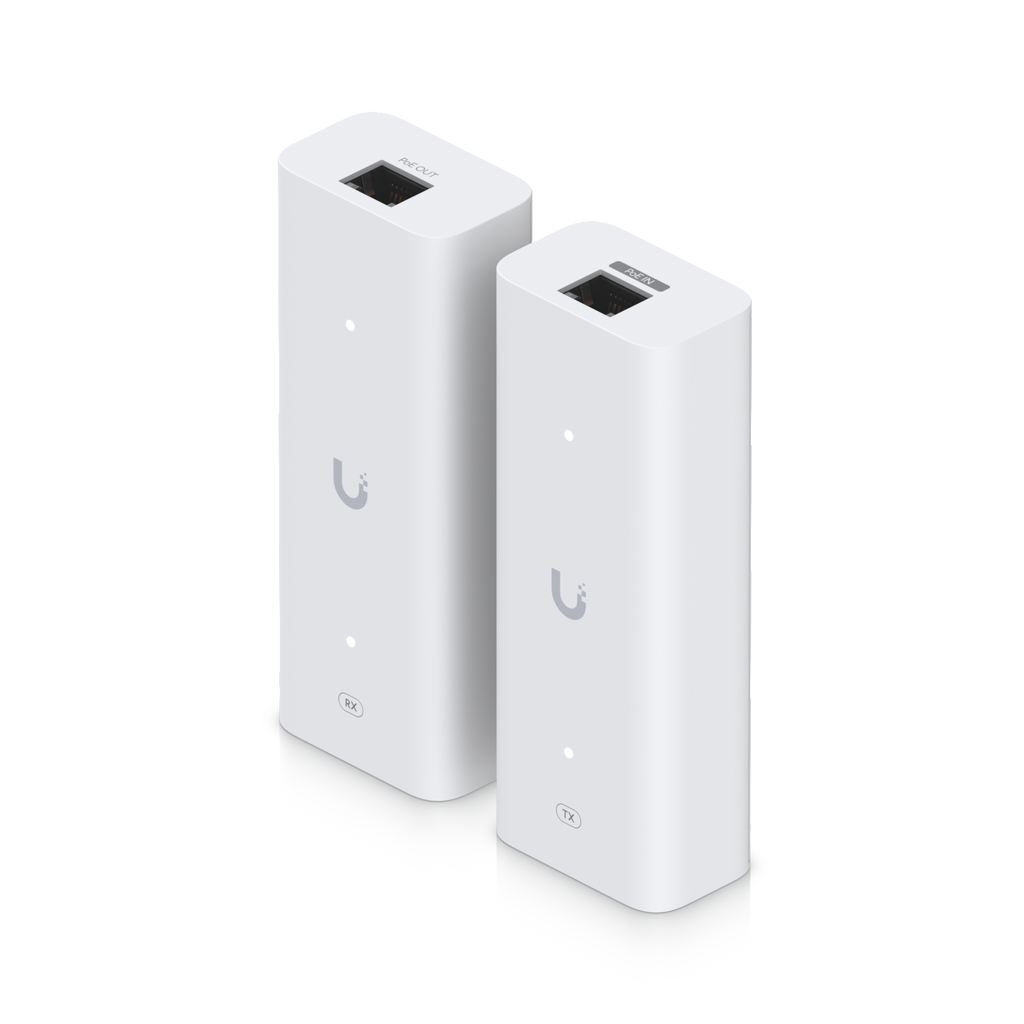

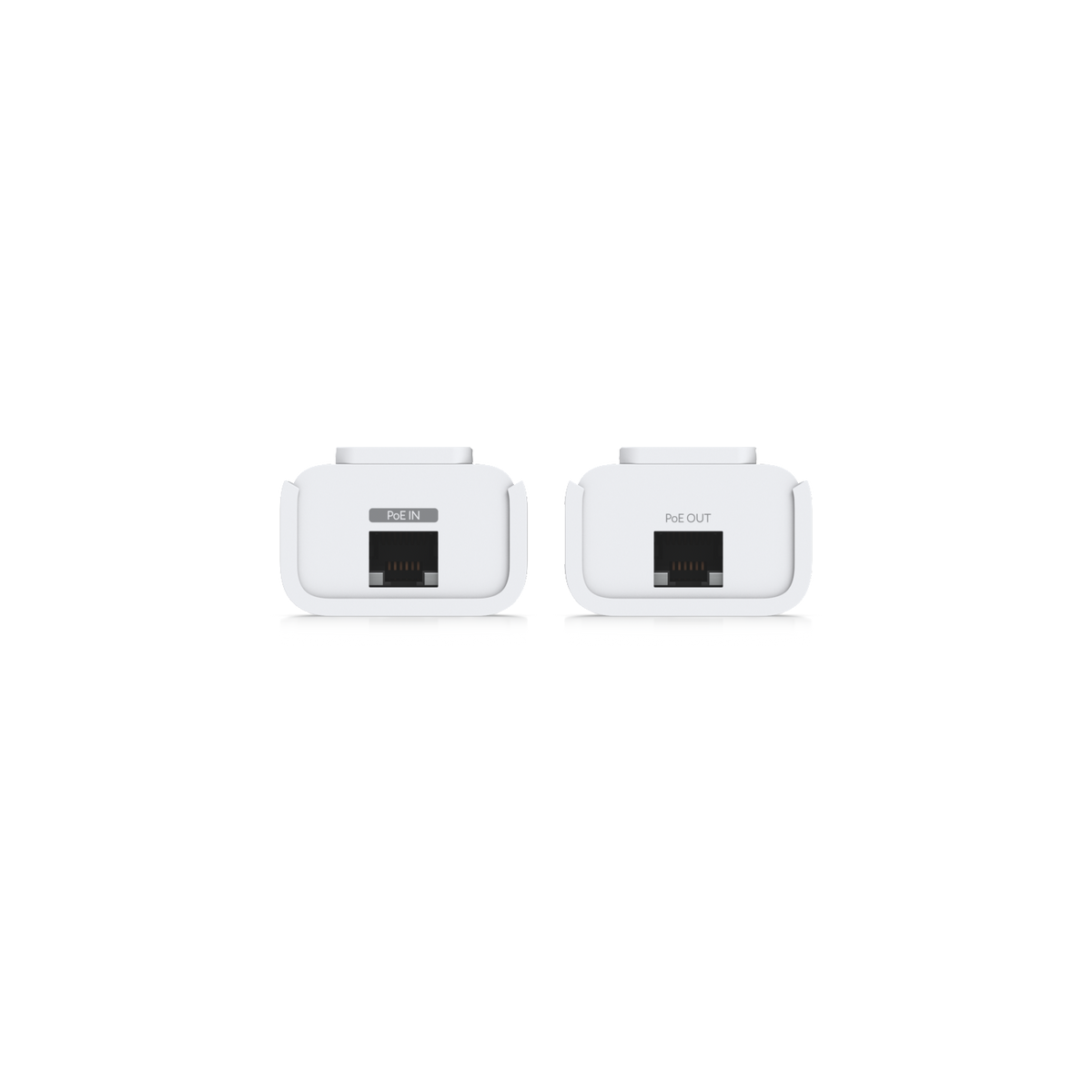

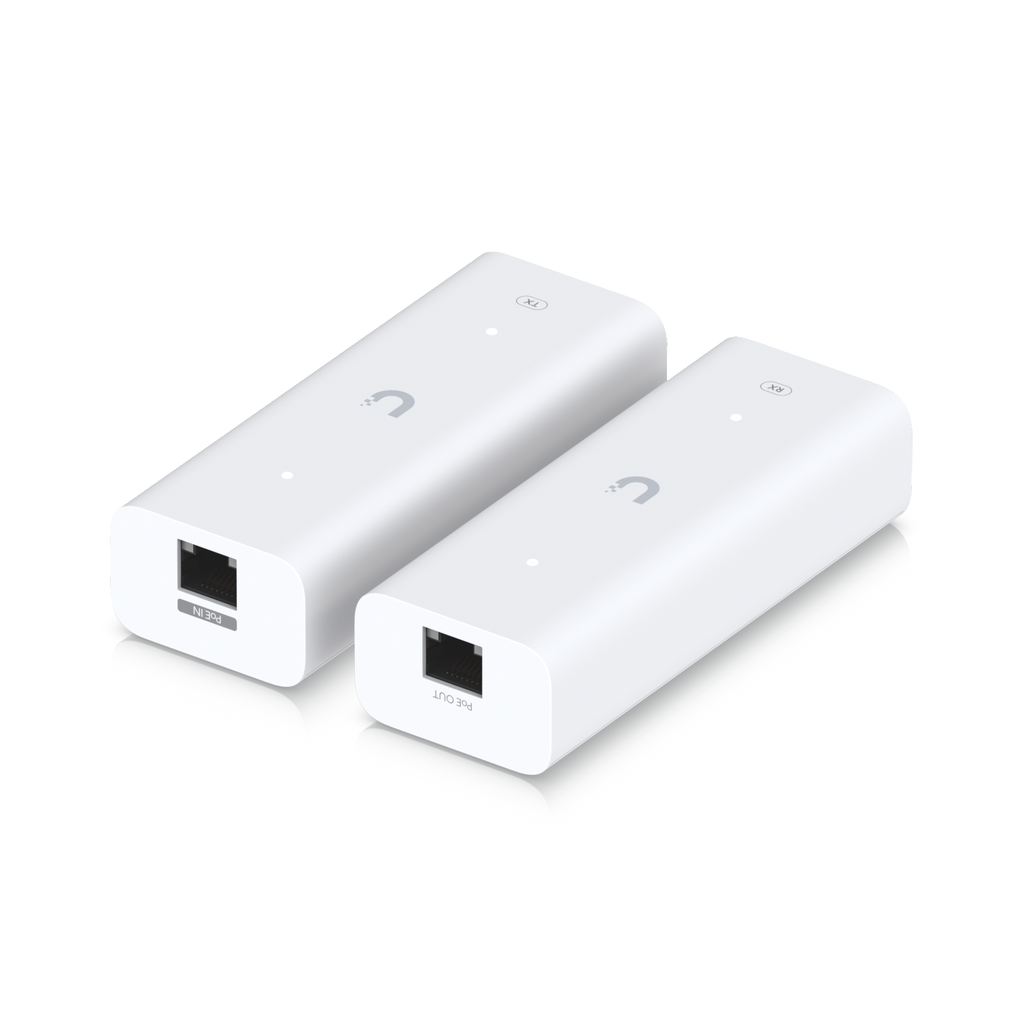

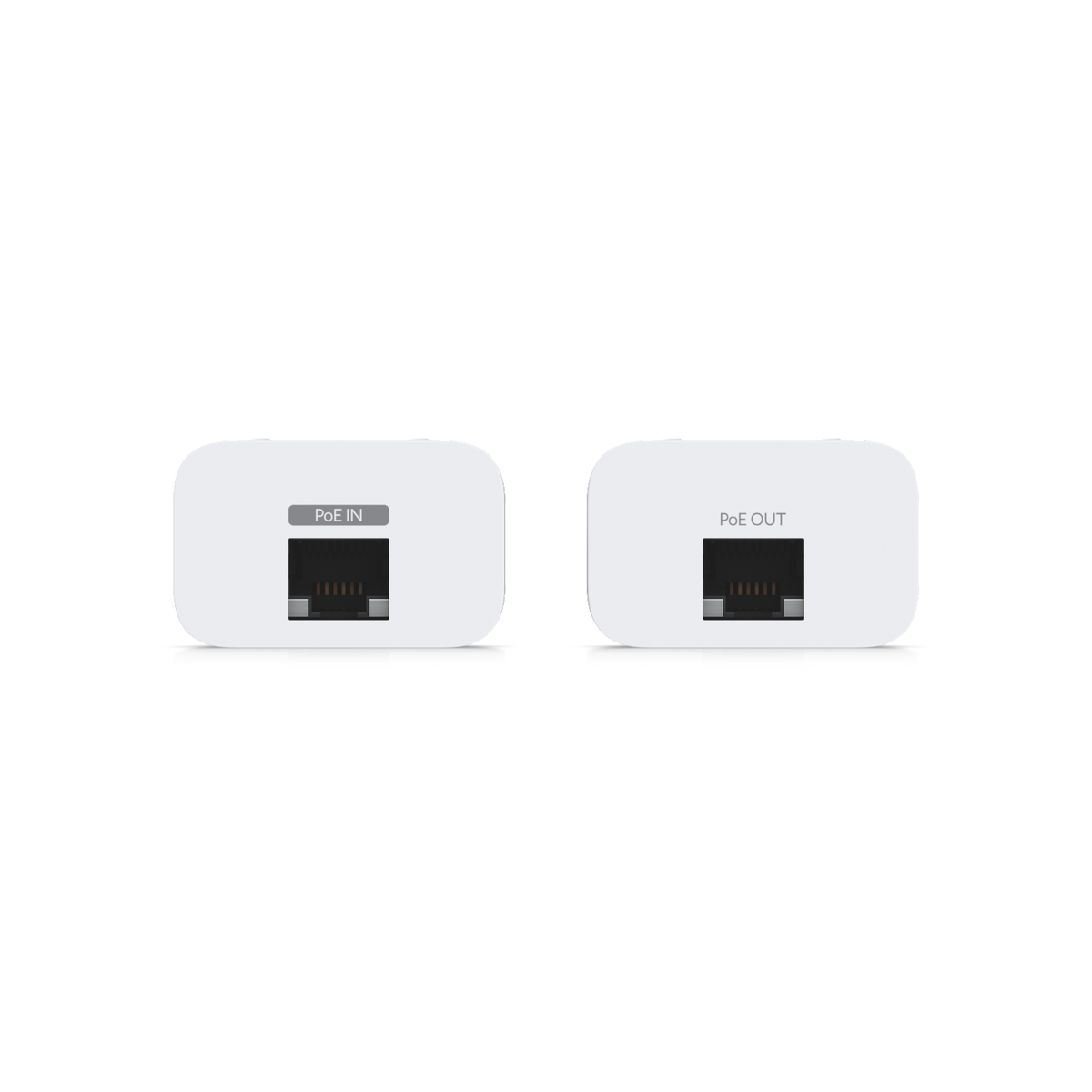

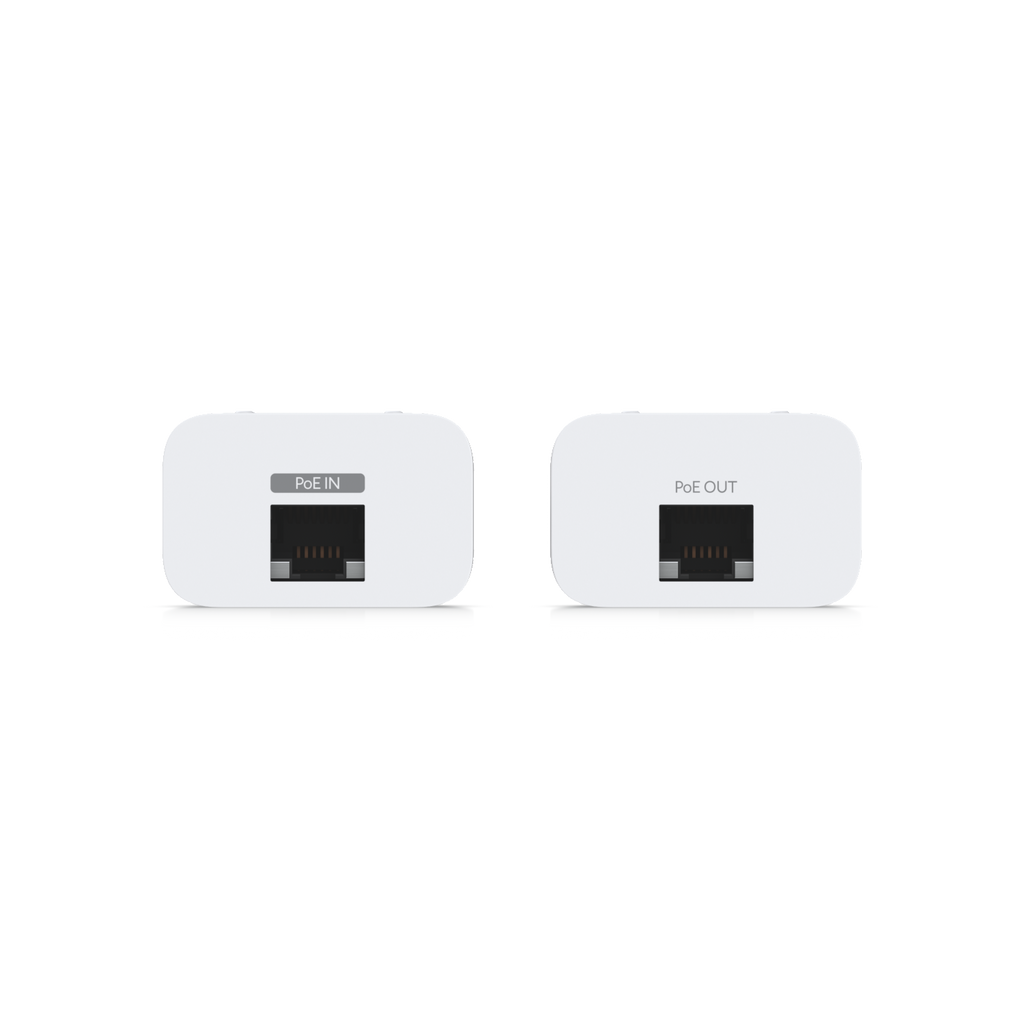

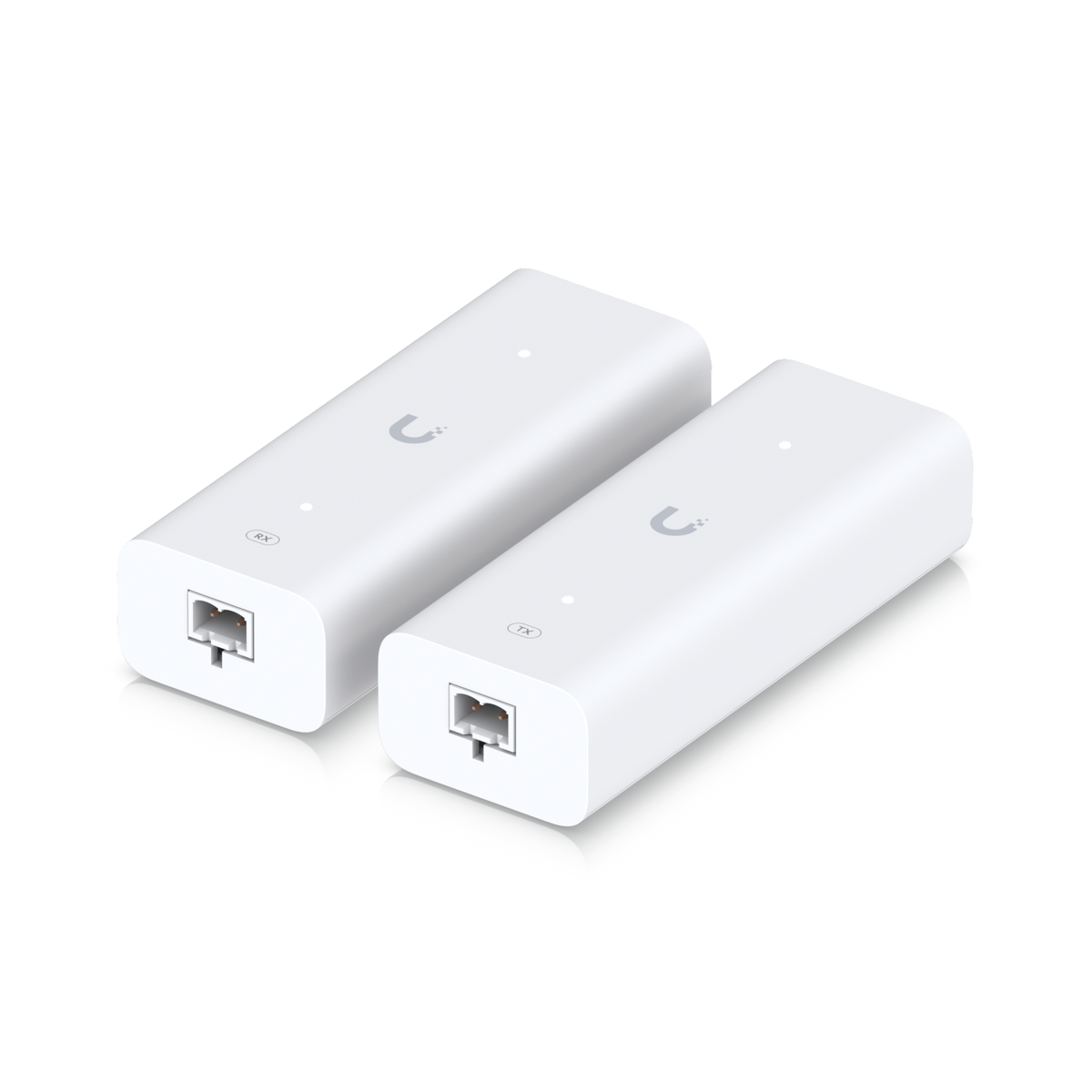

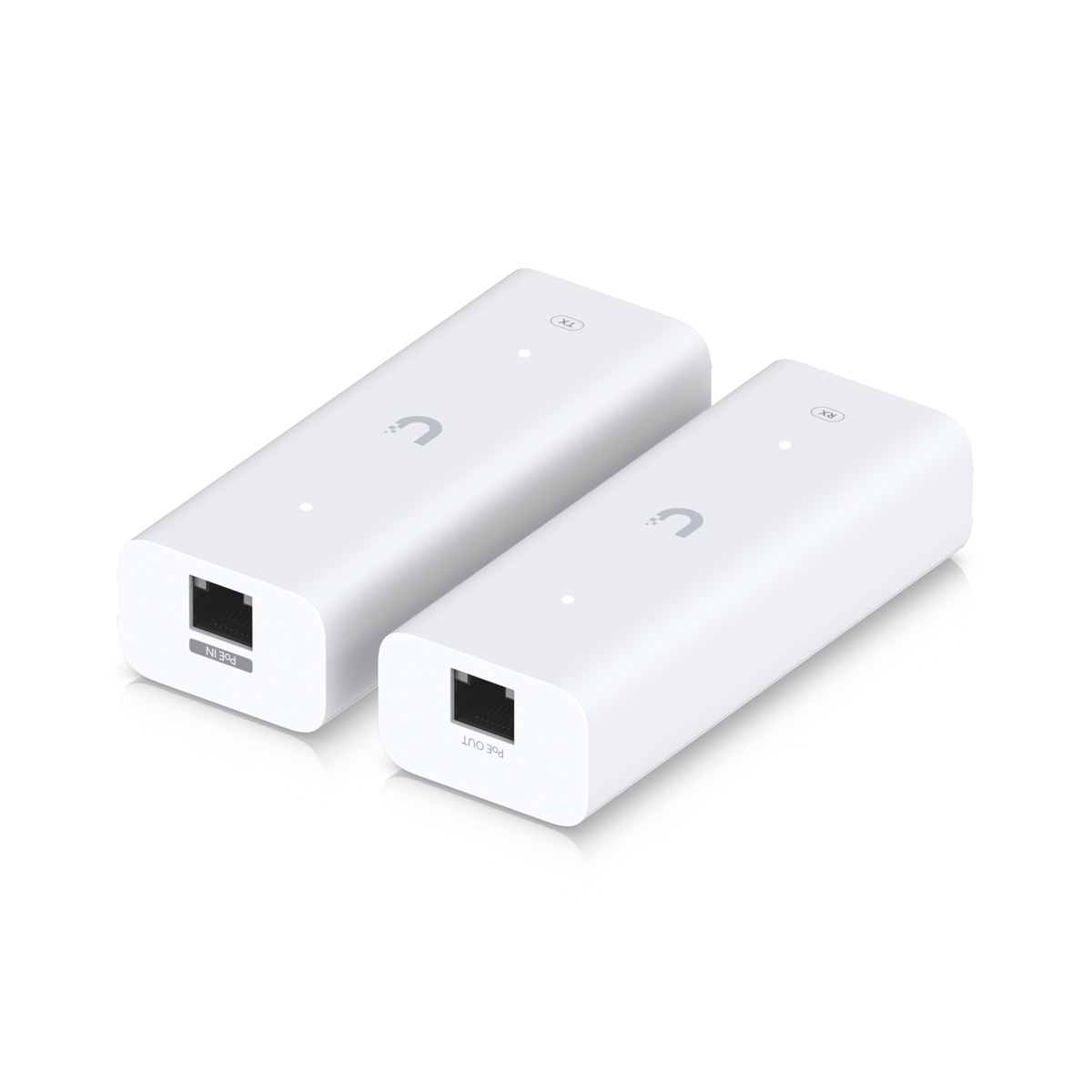

• Transmitter includes one PoE++ input and one 2-wire output
• Receiver includes one PoE/PoE+ output and one 2-wire input

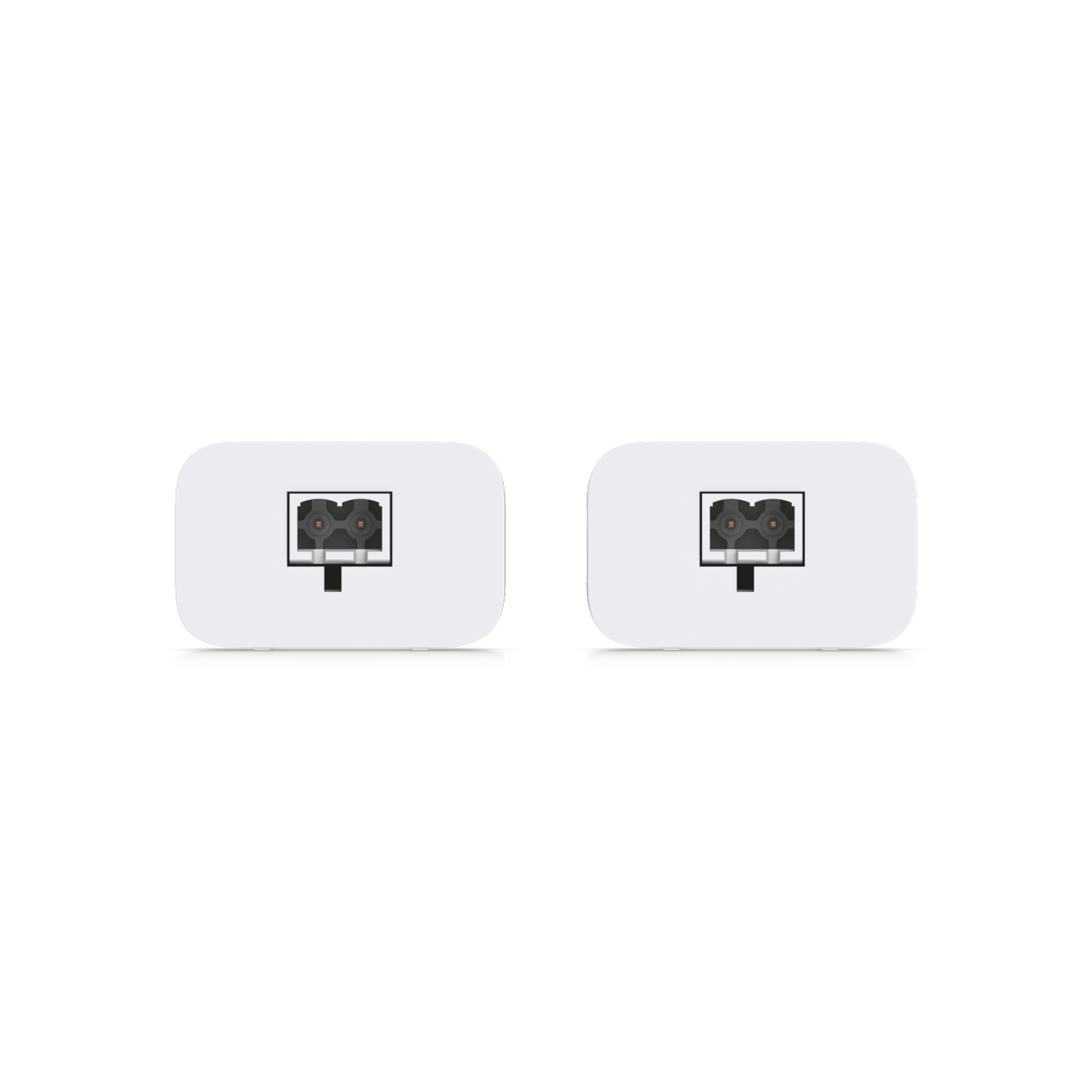

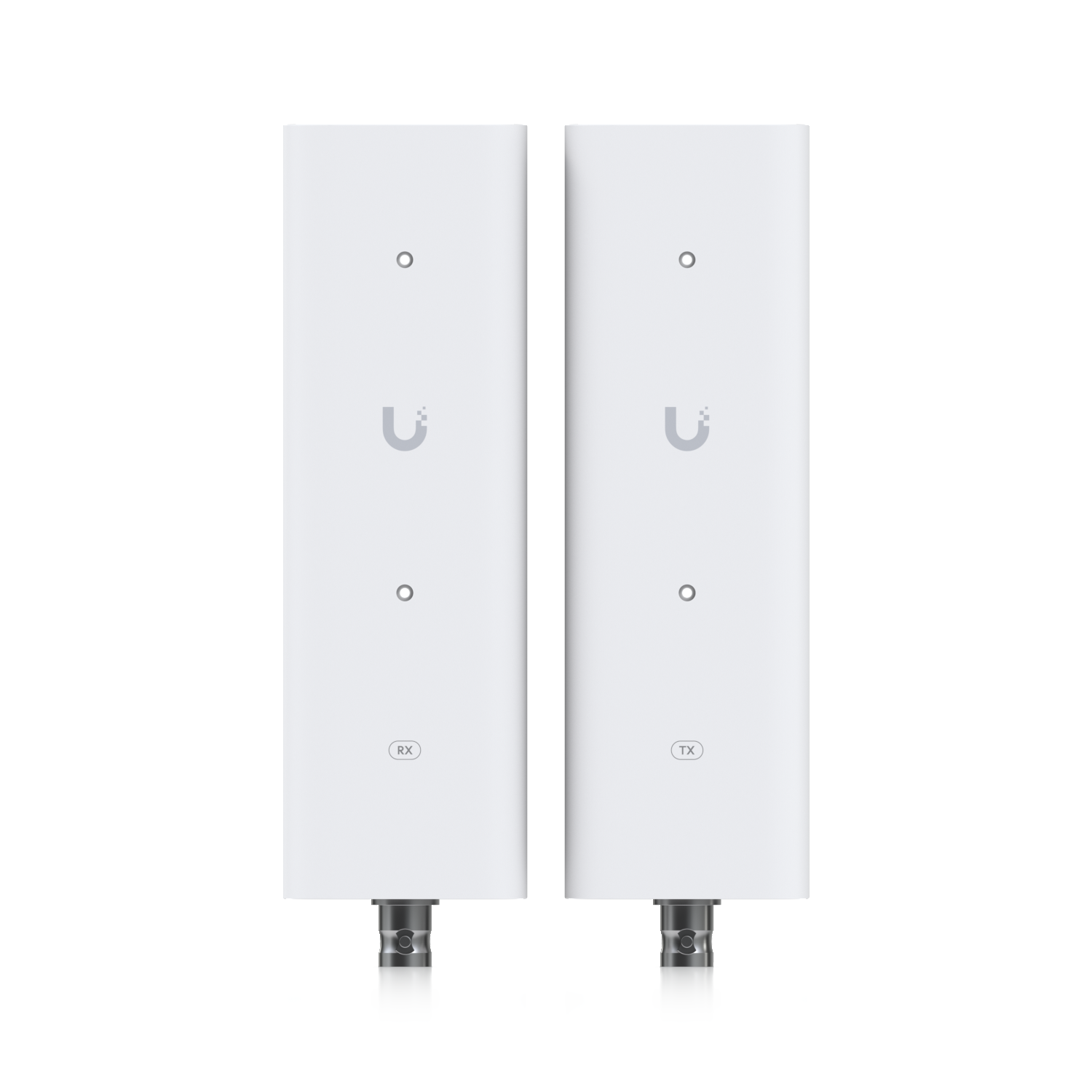

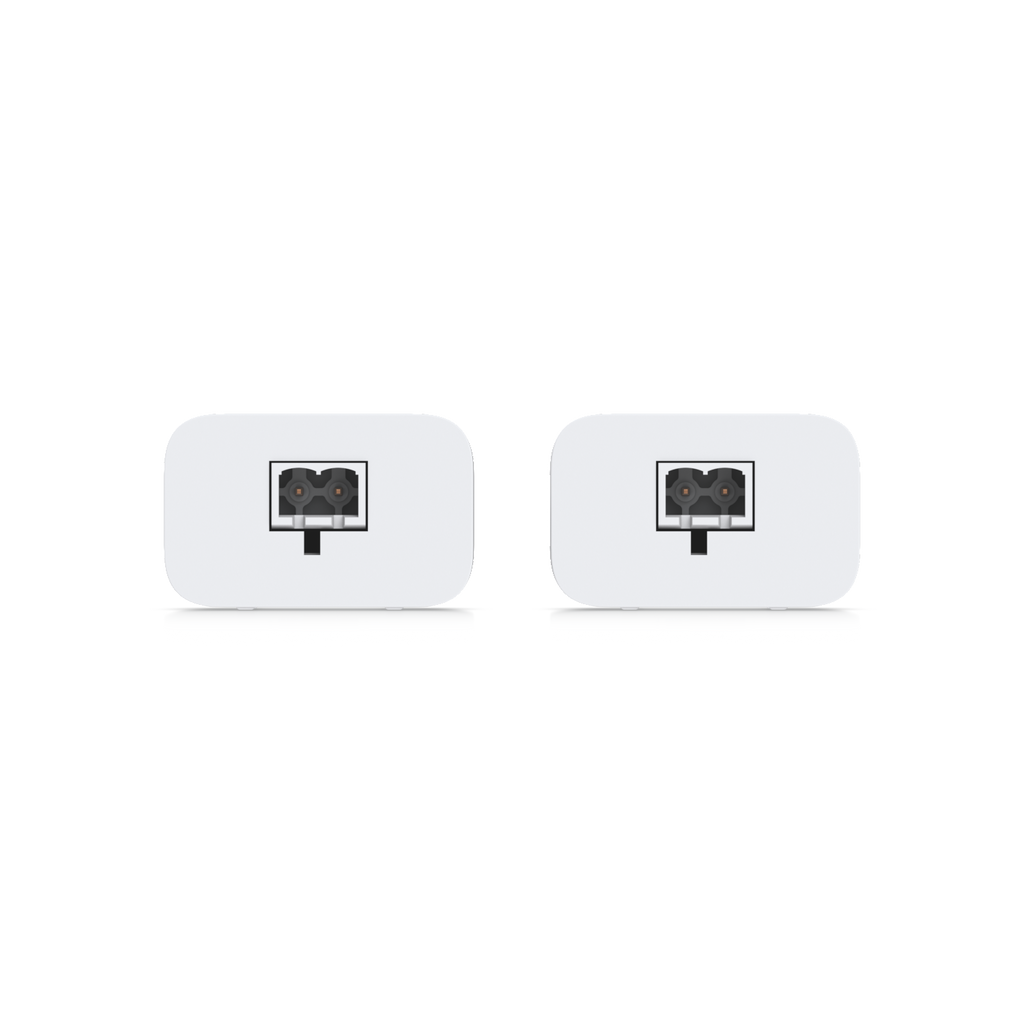

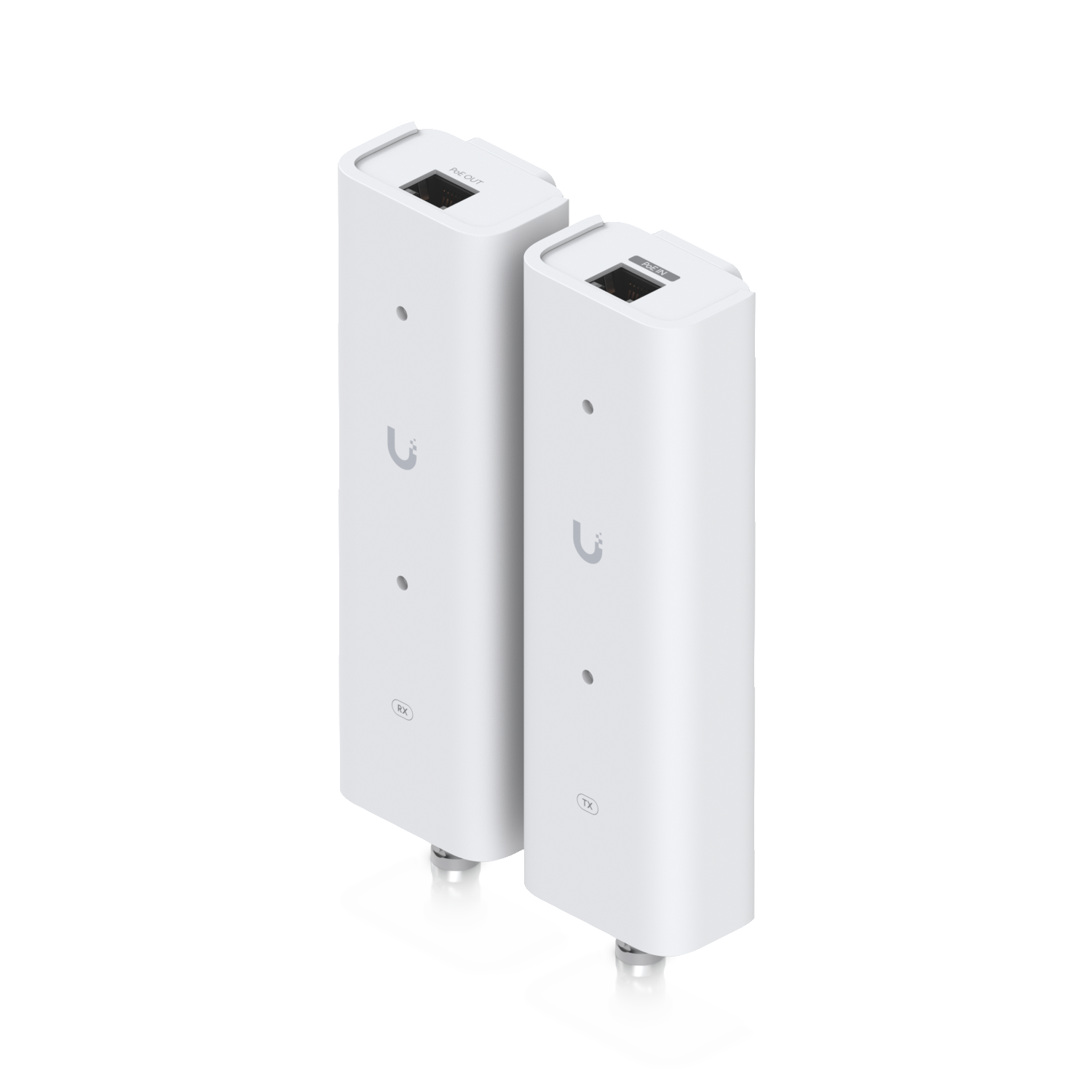

• Each unit comes with a 2-wire to BNC adapter
• Supports cable runs of up to 750 m over RG-6 coaxial

Specifications:

• Networking Interface: (1) 10/100 MbE, (1) Homeplug AV
• Power Method: PoE++
• PoE Input: (1) PoE++, 50V DC, 1.2A
• PoE Output: (1) PoE+, 48V DC, 0.6A
• Max. Power Consumption: 3W (without PoE output)
• ESD/EMP Protection: Air ±8kV, Contact ±4kV
• Recommended Max. Cable Length (UTP 24AWG, 0.18ohm/meter): 50m at 85Mbps with 25W output, 100m at 85Mbps with 13W, 150m at 85Mbps with 9W, 200m at 85Mbps with 6W, 250m at 80Mbps with 4W, 300m at 75Mbps with 3W, 350m at 70Mbps, 400m at 65Mbps, 450m at 60Mbps, 500m at 55Mbps, up to 550m at 50Mbps
• Recommended Max. Cable Length (RG-6, 0.14ohm/meter): 50m at 85Mbps with 25W output, 100m at 85Mbps with 20W, 150m at 85Mbps with 13W, 200m at 85Mbps with 9W, 250m at 85Mbps with 7W, 300m at 85Mbps with 6W, 350m at 85Mbps with 4W, 400m at 82Mbps with 3W, 450m at 80Mbps, 500m at 75Mbps, 550m at 70Mbps, 600m at 65Mbps, 650m at 60Mbps, 700m at 55Mbps, up to 750m at 50Mbps
• Dimensions (PoE in/out): 40 x 105 x 25 mm (1.6 x 4.1 x 1")
• Dimensions (Adapter): 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")
• Weight (PoE in): 77 g (2.7 oz)
• Weight (PoE out): 79 g (2.8 oz)
• Weight (Adapter): 140 g (4.9 oz)
• Enclosure Material: Polycarbonate

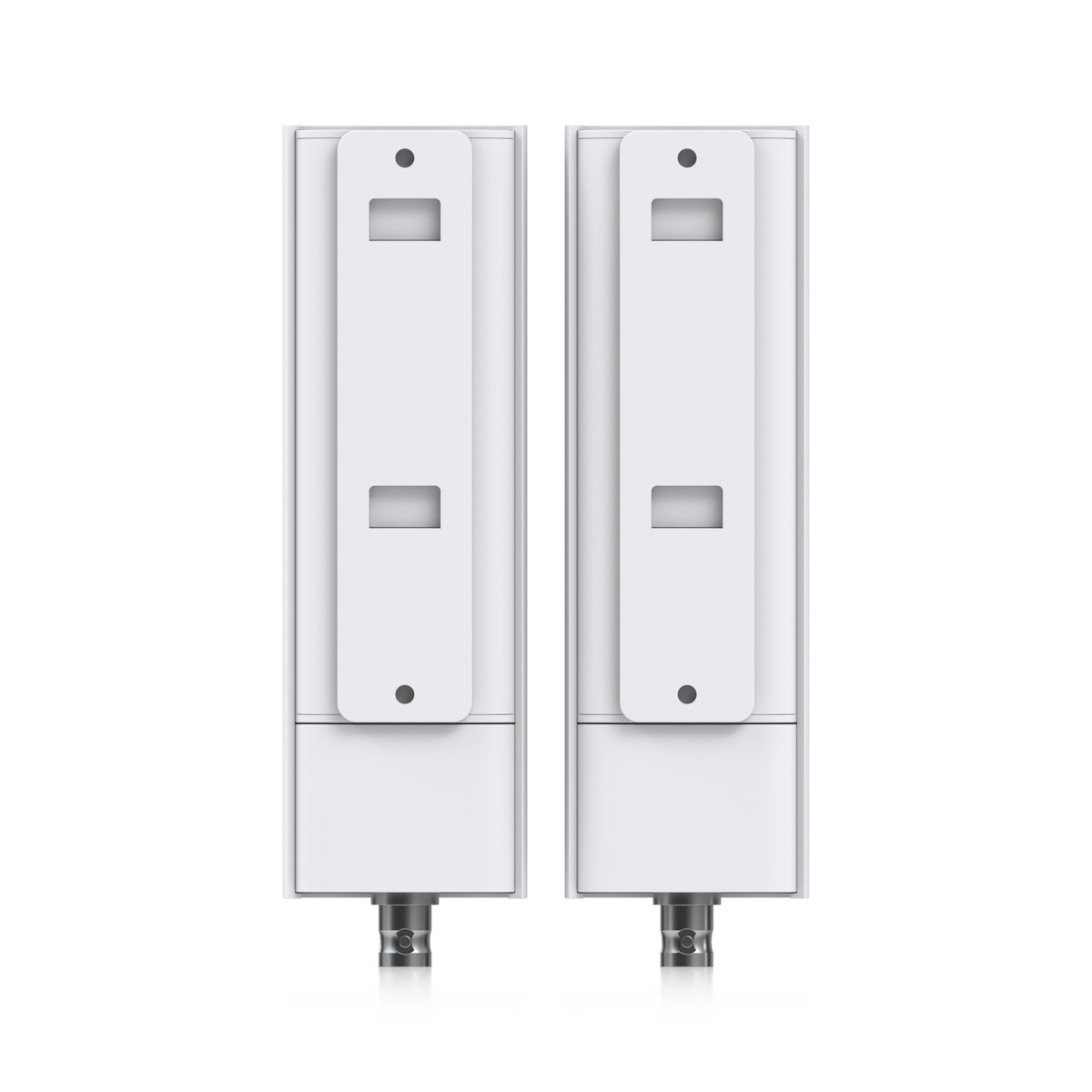

• Mounting Material: Polycarbonate

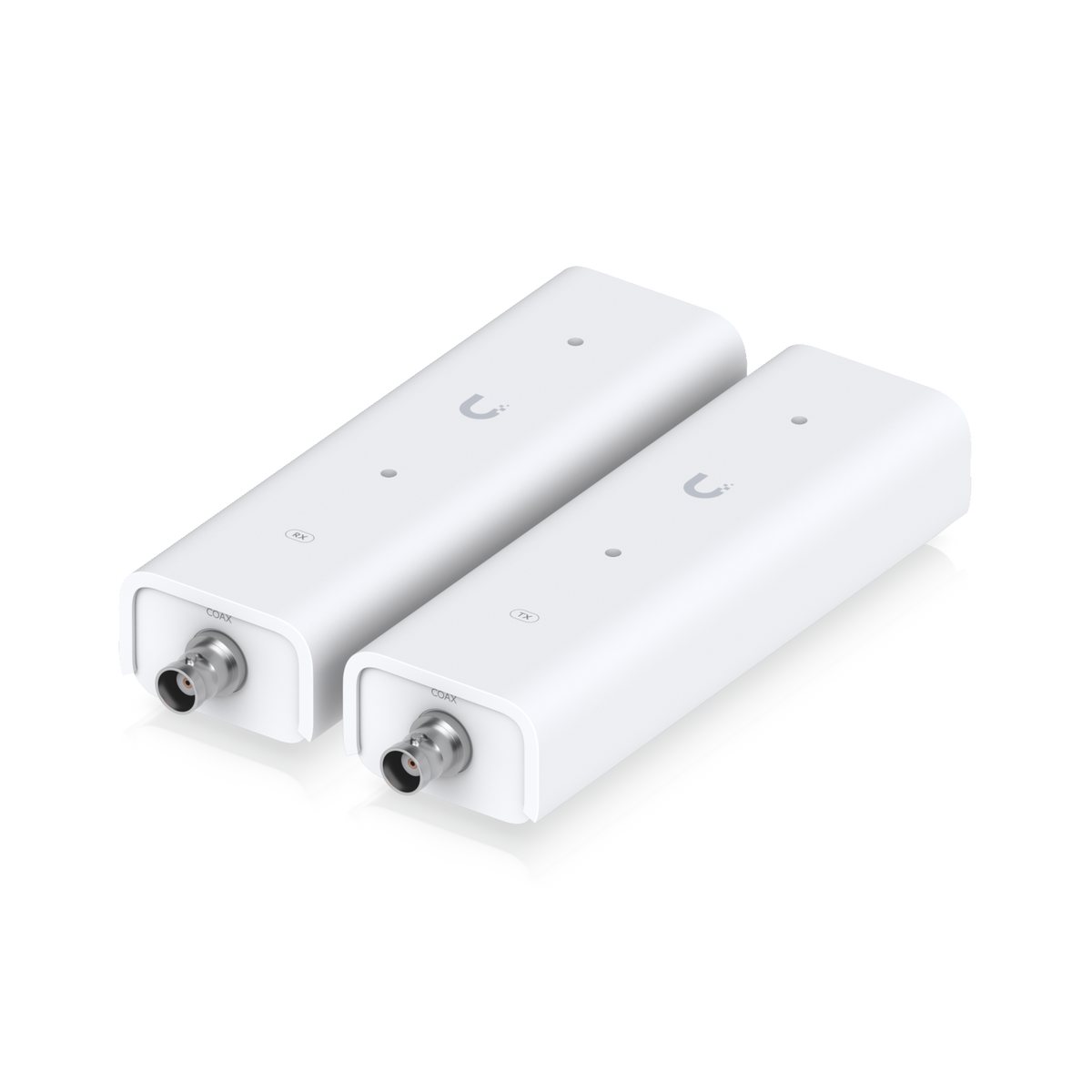

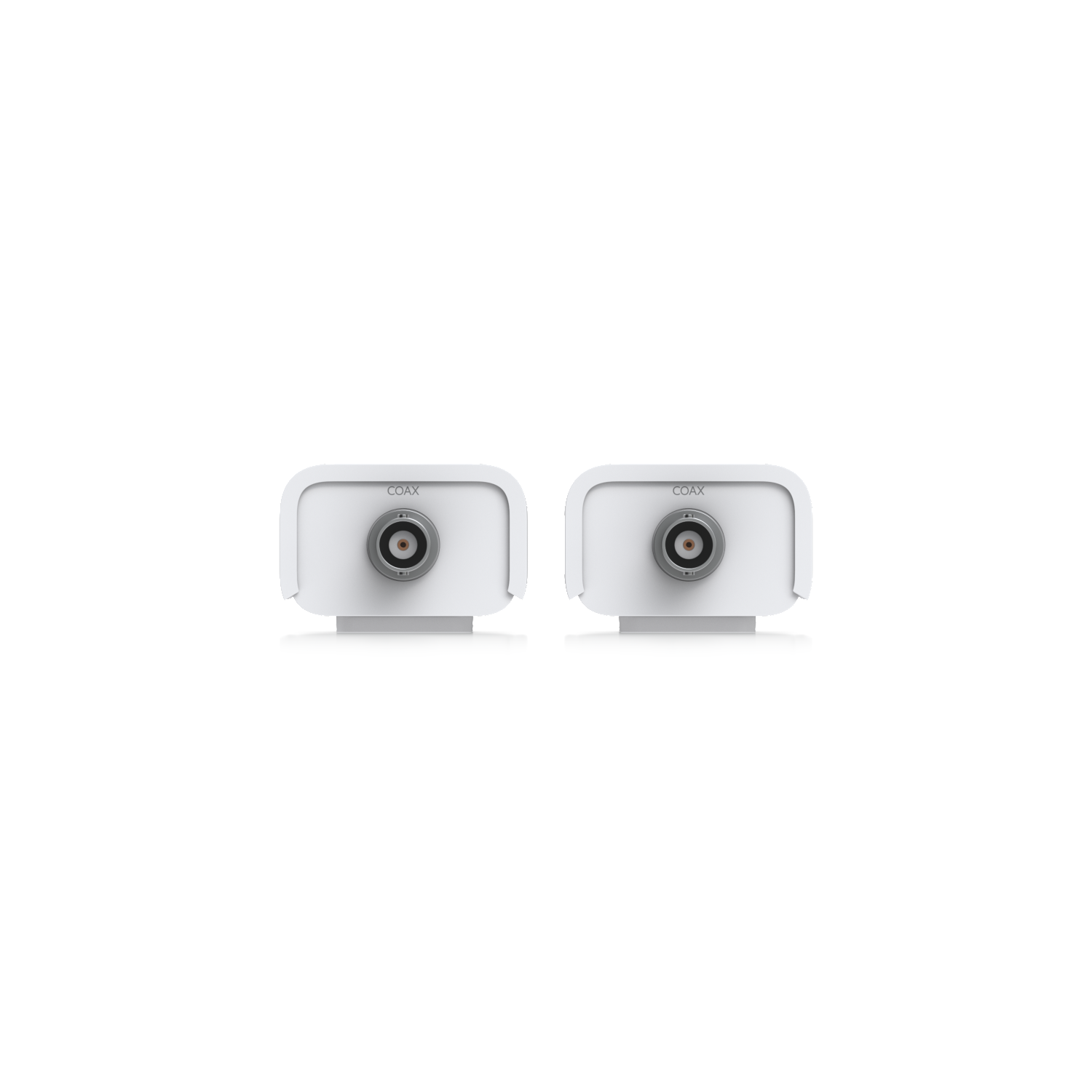

• Coaxial Connector: BNC female
• LED: White
• Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• Certifications: CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1
• Colour: White

Note: For installation assistance, you can contact us or reach out directly to the brand.

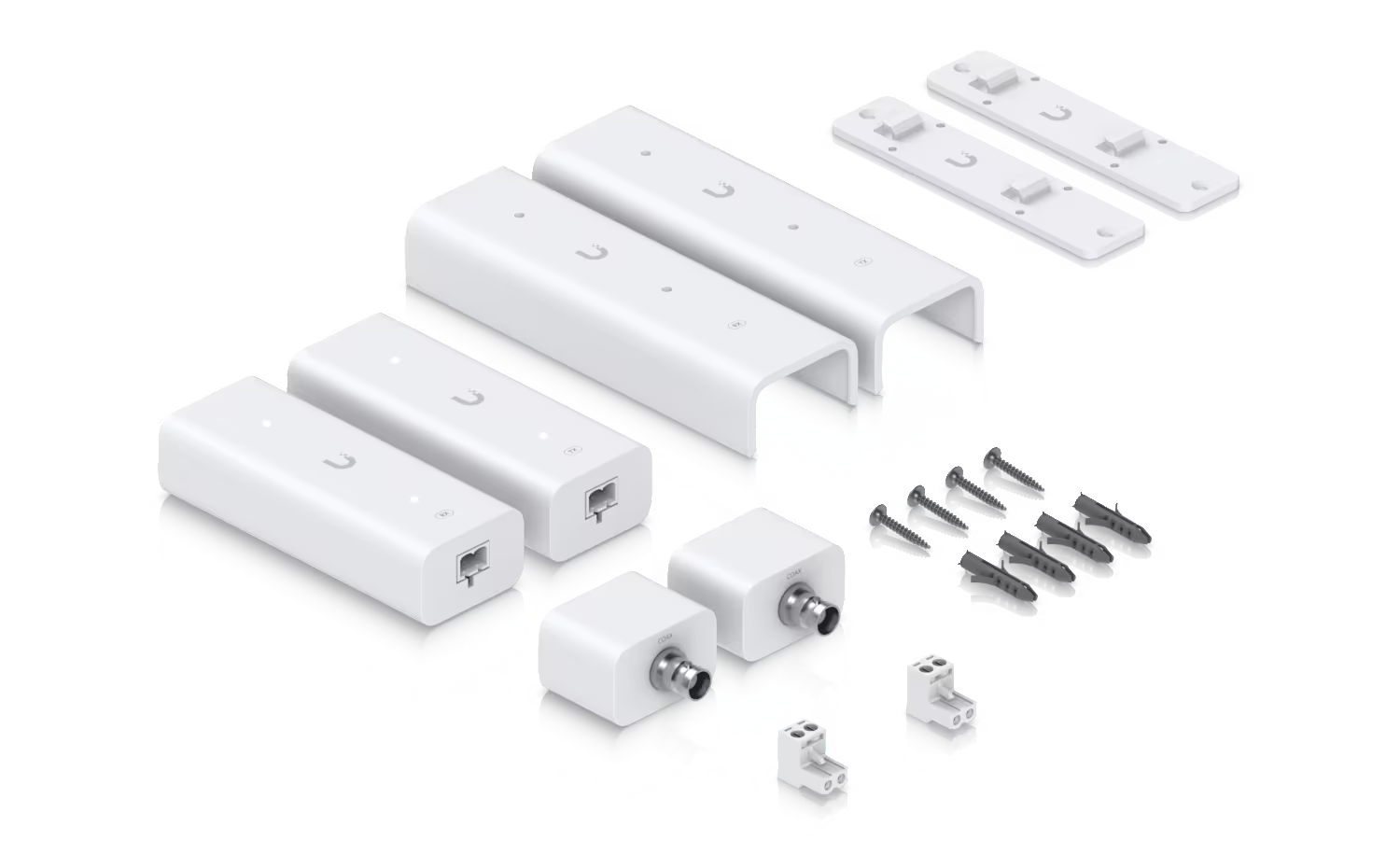

Package Contents:

1 x Transmitter
1 x Receiver
2 x 2-Wire to BNC Adapters
