Description

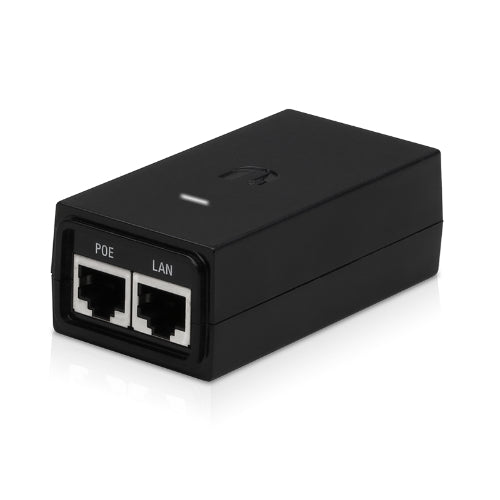

The Ubiquiti 24V DC PoE Adapter provides a variety of features to help protect your PoE devices. Electrostatic discharge (ESD) is the leading cause of outdoor device failures, and you can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable, and TOUGHCable Connectors. This adapter offers surge protection in both difference and common mode, clamping protection, maximum surge discharge, and peak pulse current handling, along with an AC cable with earth ground. A Gigabit LAN port, remote reset capability, reset button, and LED add convenience for reliable power delivery to connected devices.
Features
- Surge protection in difference and common mode
- Clamping protection
- Maximum surge discharge
- Peak pulse current handling
- AC cable with earth ground
- ESD protection and LED
- Gigabit LAN port with remote reset capability and reset button
Specifications
- Dimensions: 87 x 44 x 29 mm (3.4 x 1.7 x 1.1 inches)
- Weight: 99 g (3.5 oz)
- Output voltage: 24V DC @ 0.5A
- LAN activity indicator: No
- Gigabit LAN port: Yes
- Remote reset capability: Yes
- Reset button: Yes
- Rated voltage: 100 to 240V AC @ 50/60Hz
- Input current: 0.3A @ 120V AC, 0.2A @ 240V AC
- Inrush current: <30A peak @ 120V AC, <60A peak @ 230V AC
- Efficiency: 75+%
- Output ripple: 1% maximum
- Switching frequency: 50 kHz
- Line regulation: ≤ 3%
- Load regulation: ≤ 5%
- 2 pair powering: Pins 4, 5 (+) and pins 7, 8 (-)
- Storage temperature: -30 to 70° C (-22 to 158° F)
- Ambient operating temperature: 0 to 40° C (32 to 104° F)
- Ambient operating humidity: 35 to 95% noncondensing
- AC connector: IEC-320 C6
- Data IN / PoE: RJ45 shielded socket
- Surge protection: Difference and common mode
- Clamping protection: 11V data, 60V power
- Maximum surge discharge: 1500A (8/20 μs) power
- Peak pulse current: 36A (10/1000 μs) data
- Shunt capacitance: <5 pF data
- Response time: <1 ns
- Certifications: CE, FCC, IC, UL
- Colour: Black
Package Contents
- Ubiquiti PoE Adapter
- AC cable with earth ground
