Description:

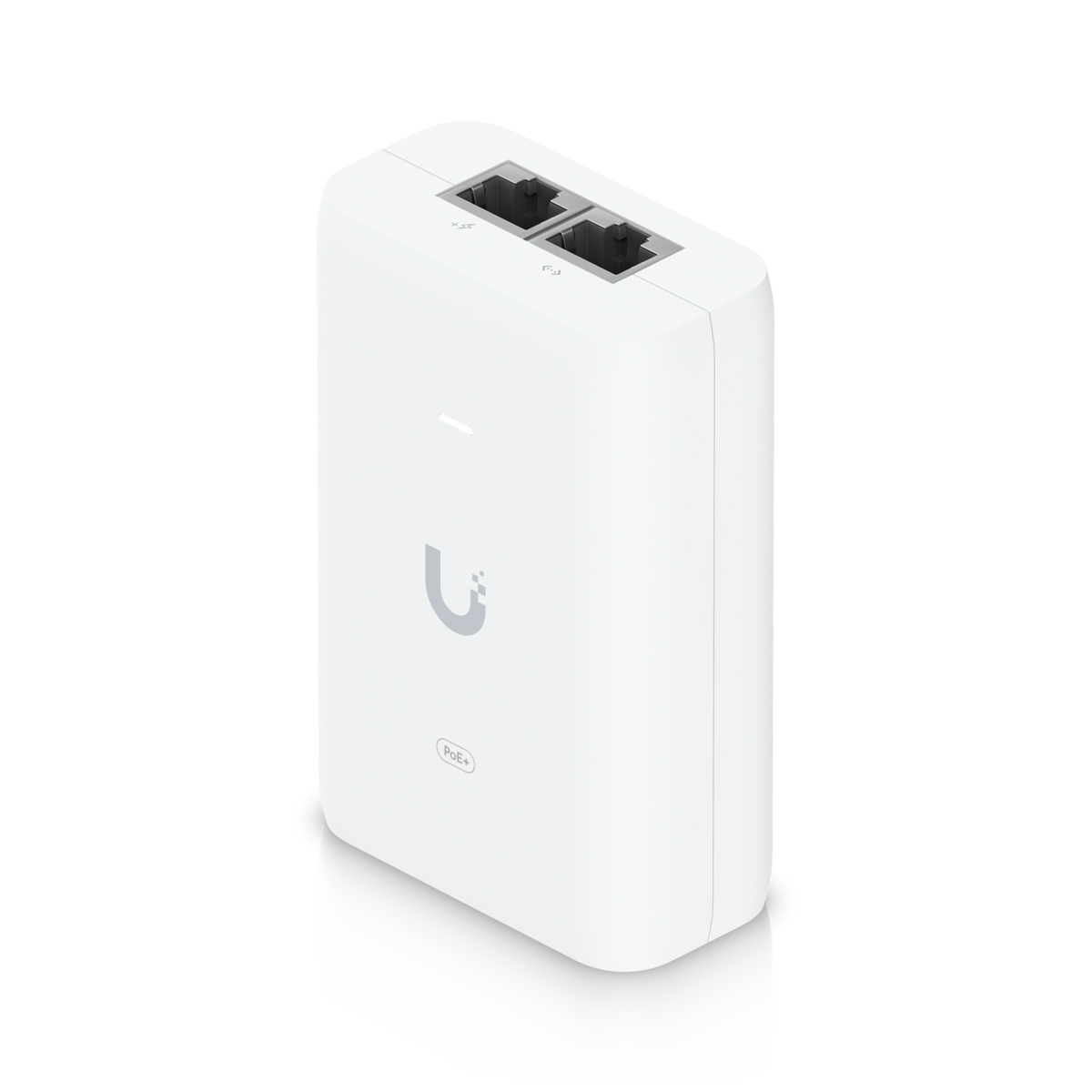

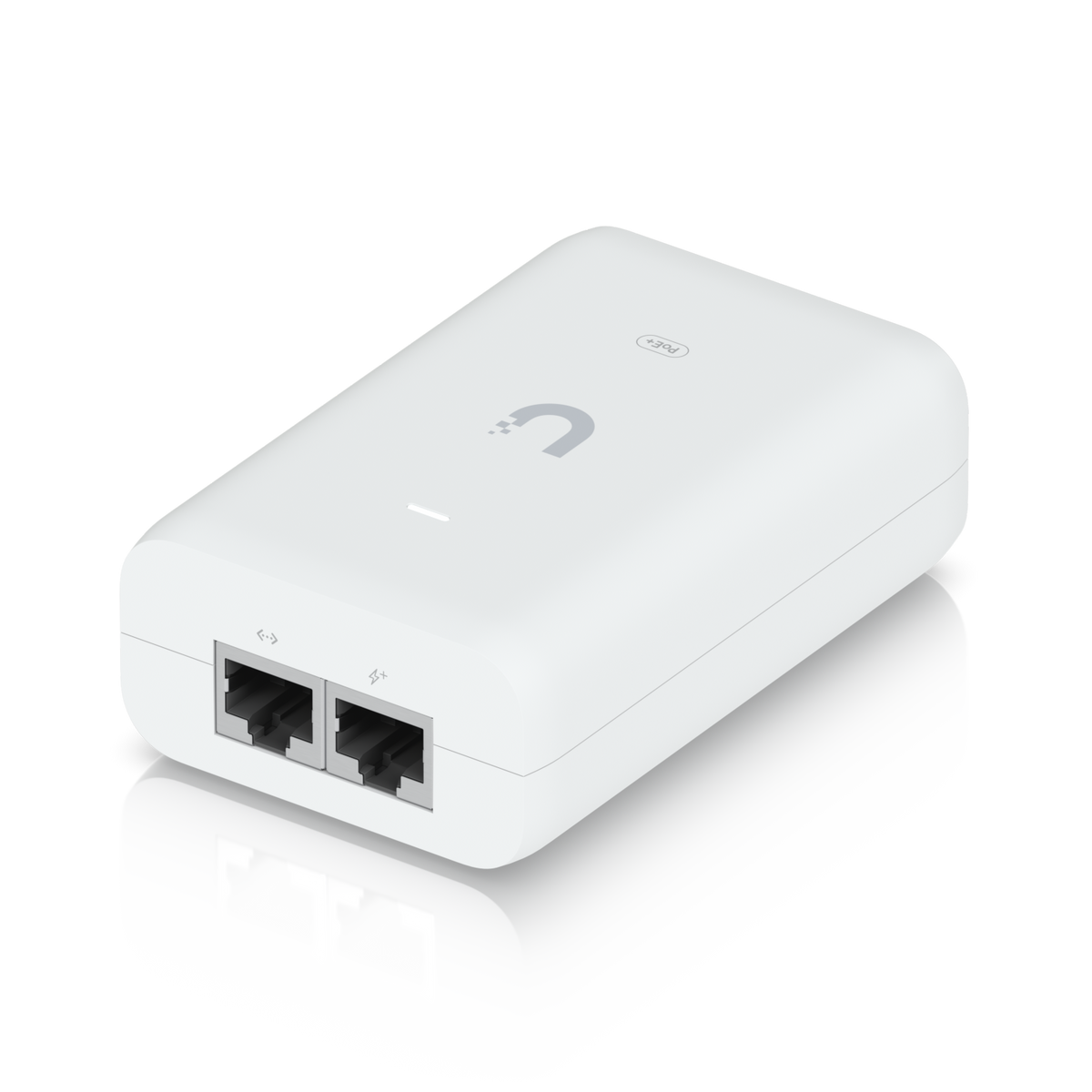

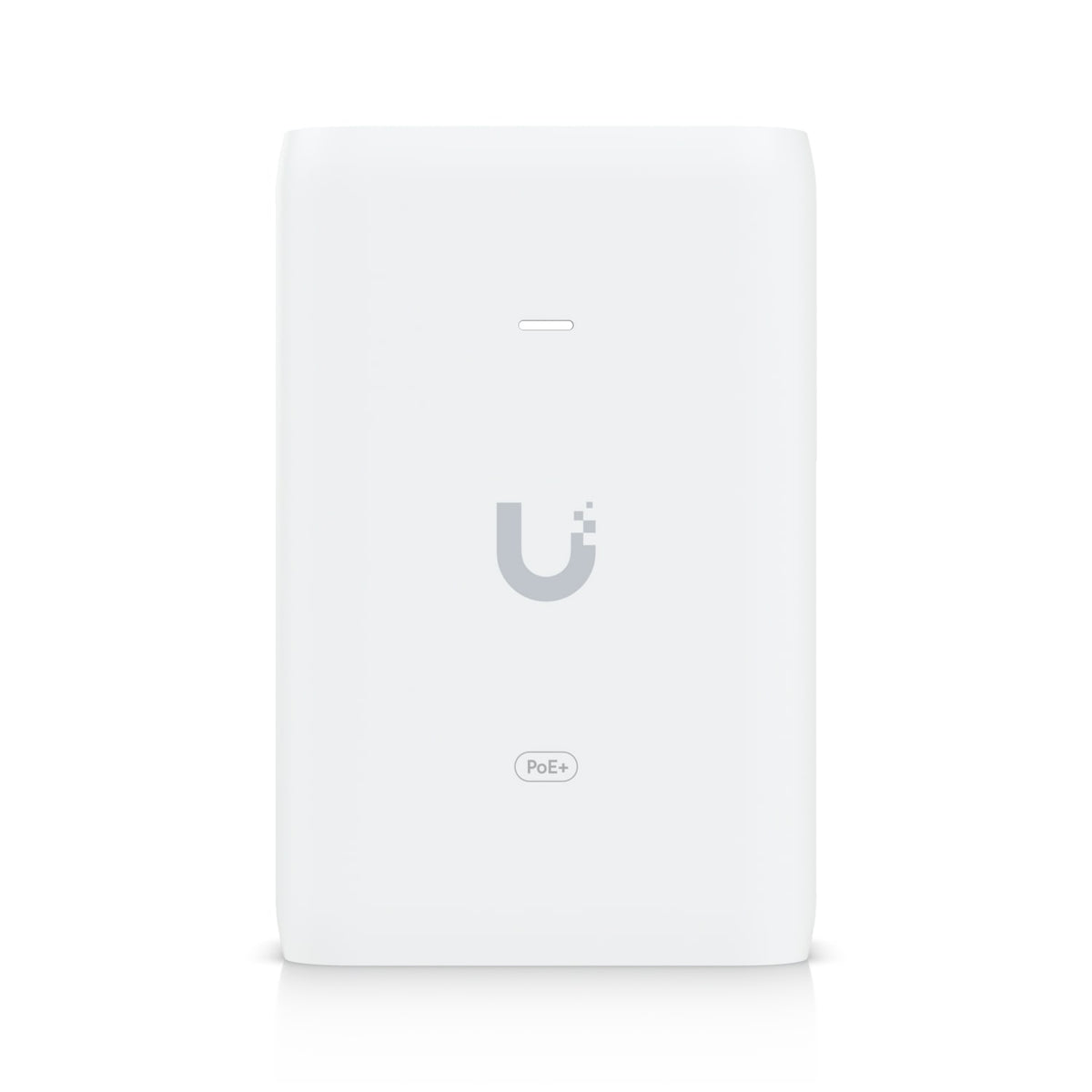

The PoE+ Adapter from Ubiquiti is designed to power UniFi PoE+ devices while reducing dependency on PoE switch power. It delivers up to 30W of PoE+ output and provides a Gigabit LAN connection, making it a practical solution for extending network power without needing a fully PoE capable switch. Built in surge, peak pulse, and overcurrent protection help safeguard connected equipment during power fluctuations.
Features:
- Delivers up to 30W of PoE+ output
- Provides a Gigabit LAN connection
- Surge, peak pulse, and overcurrent protection built in
- Includes RJ45 data input and AC cable with earth ground
- LED indicator for easy status monitoring
- Reduces dependency on PoE switch power
Specifications:
- Dimensions: 93 x 62 x 35 mm (3.7 x 2.4 x 1.4 inches)
- Weight: 156 g (5.5 oz)
- Power Cable: Included
- Output Voltage: 48V DC at 0.65A
- Rated Voltage: 100 to 240V AC at 50/60Hz
- Gigabit LAN Port: Yes
- 2 Pair Powering: Pins 4, 5 positive and 7, 8 negative

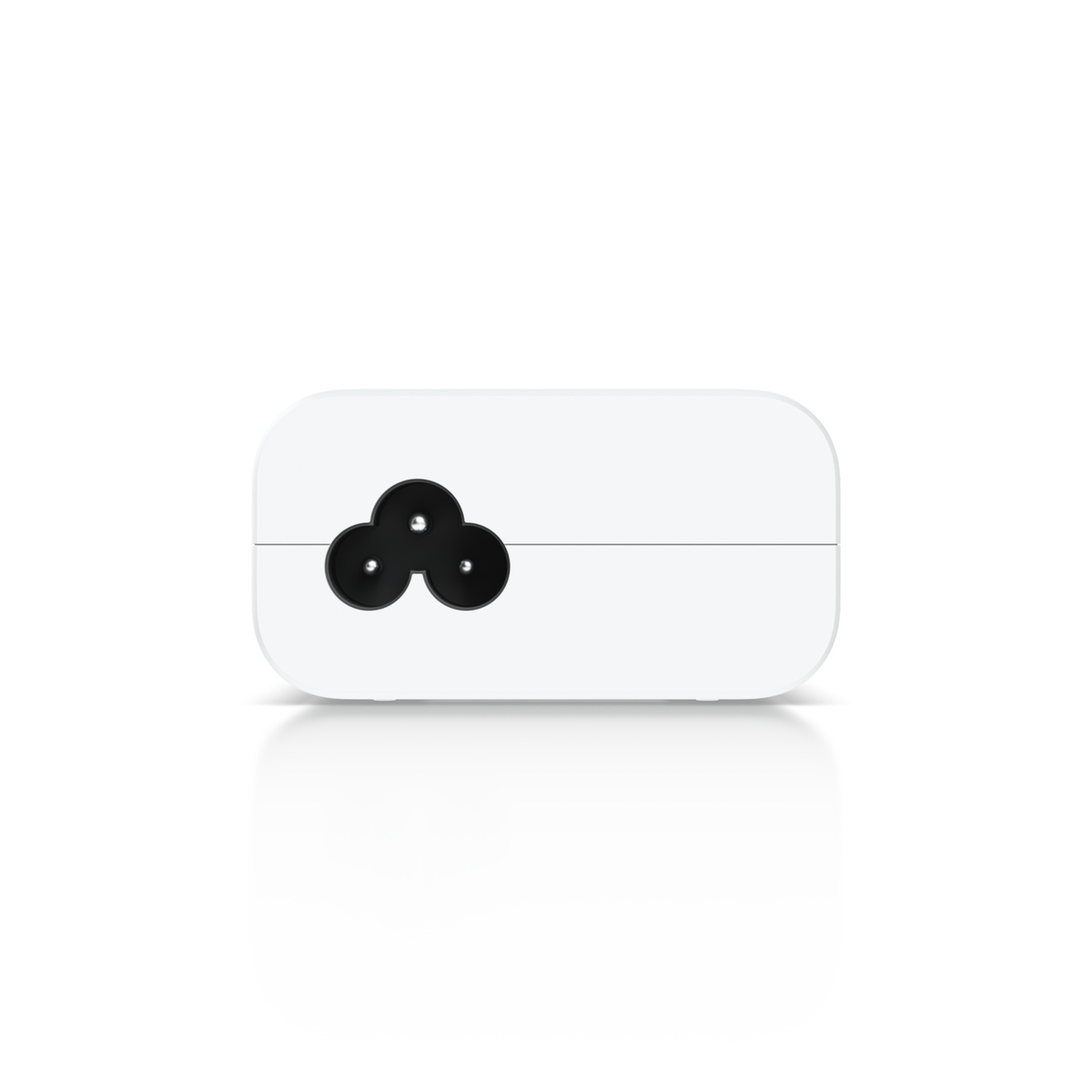

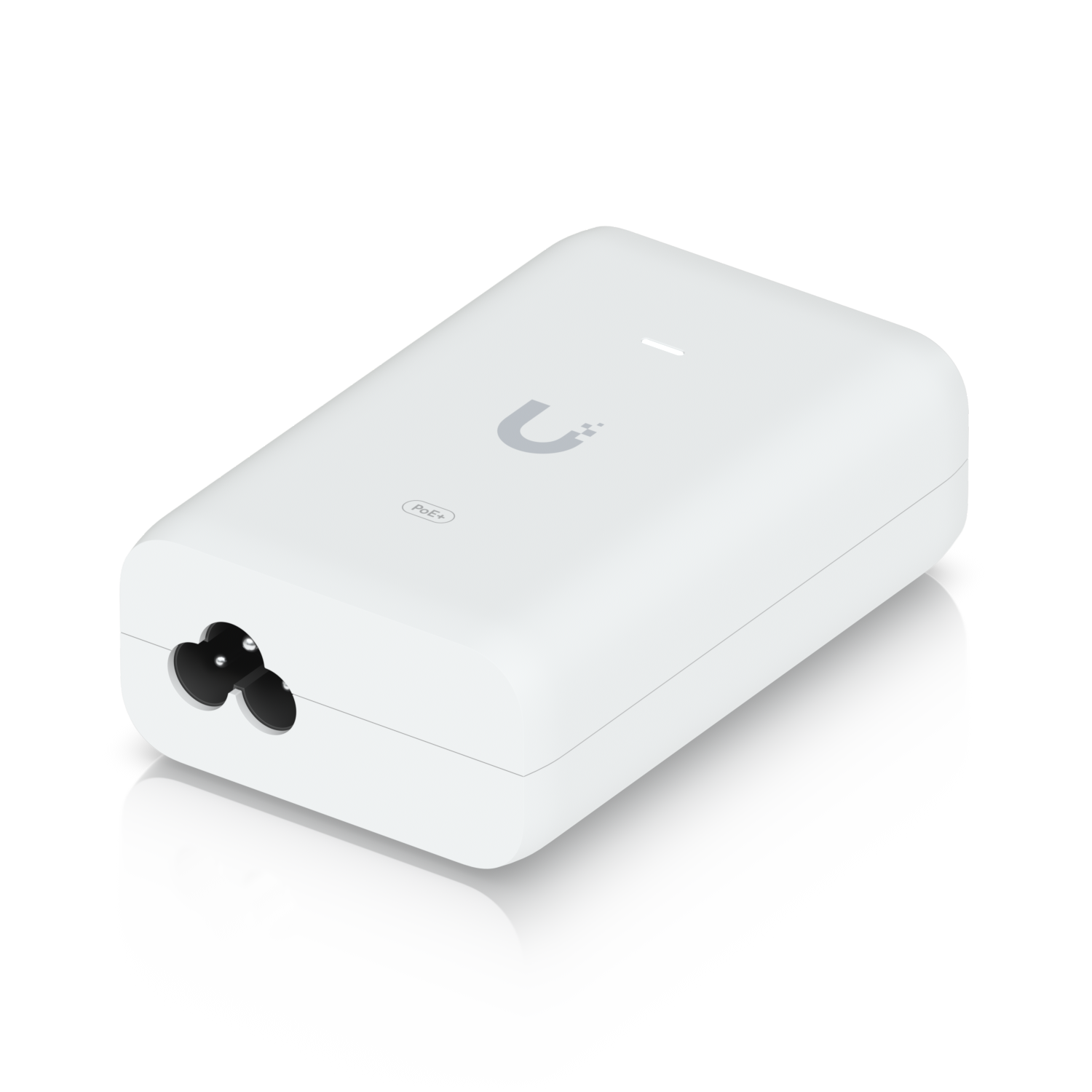

- AC Connector: IEC-320 C6
- Clamping Protection: 11V data, 60V power

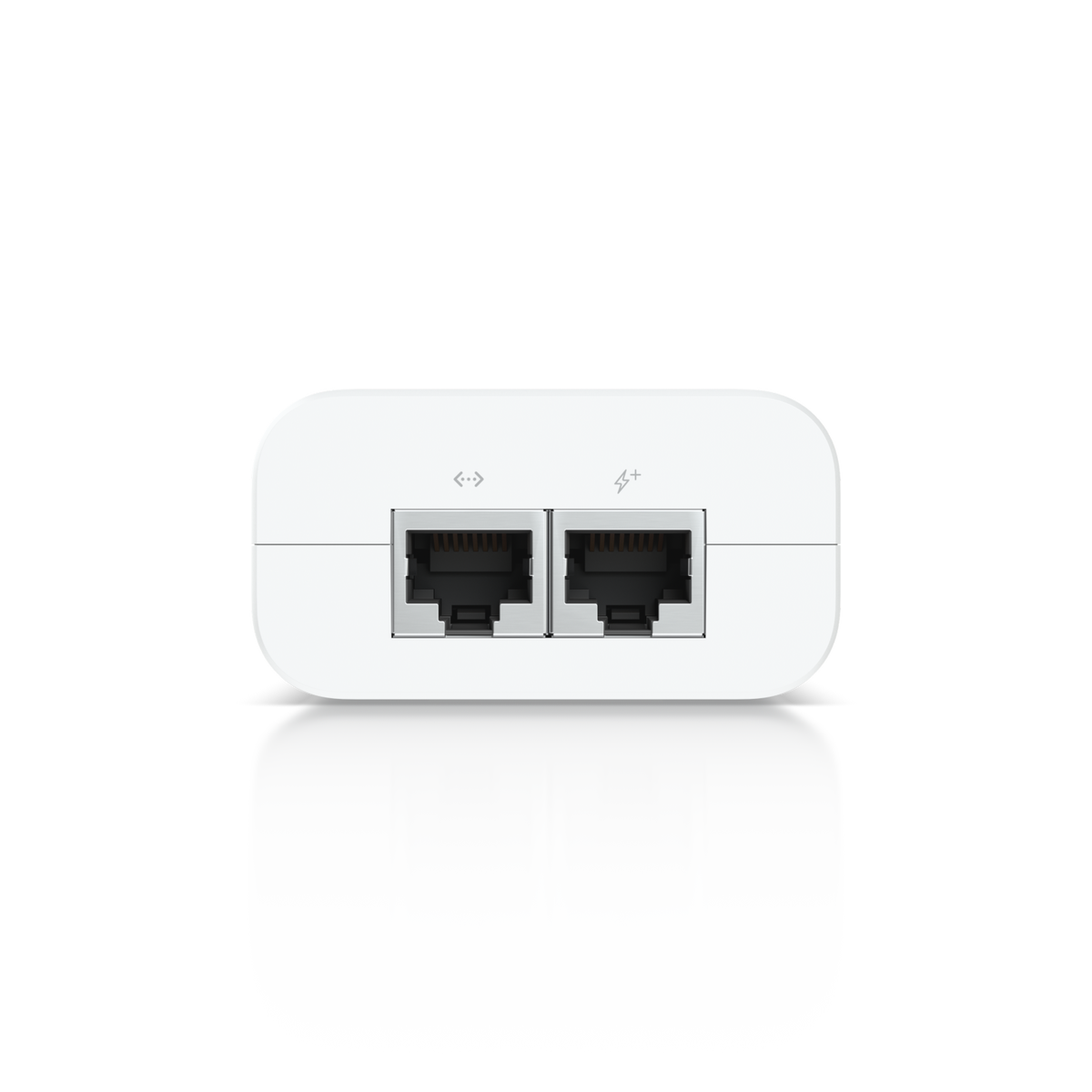

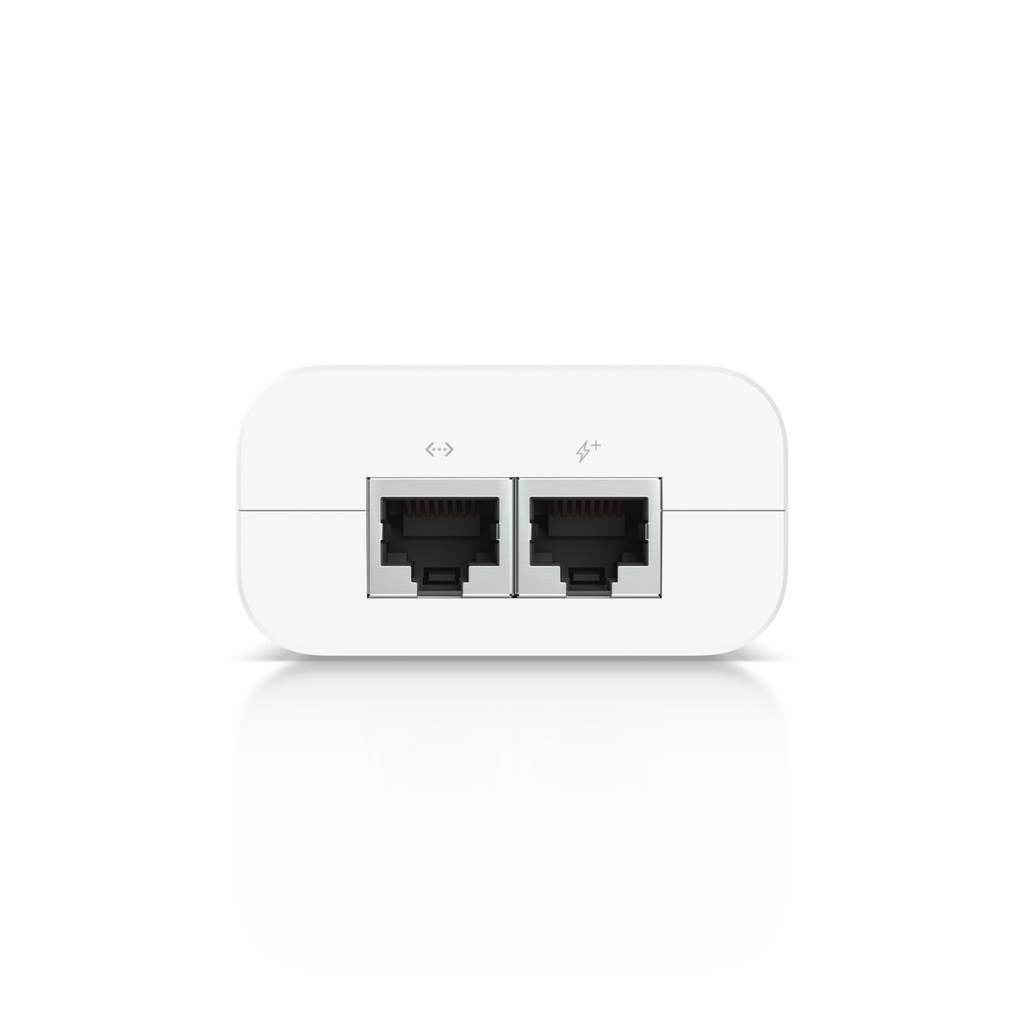

- Data In / PoE: RJ45 shielded socket
- Input Current: 0.75A maximum
- Inrush Current: Less than 100A peak at 26 degrees Celsius
- Efficiency: 87 percent
- Switching Frequency: 70 kHz maximum
- Output Ripple: 1 percent maximum
- Line Regulation: 3 percent or less
- Load Regulation: 5 percent or less
- Maximum Surge Discharge: 1500A (8/20 microseconds) power
- Peak Pulse Current: 36A (10/1000 microseconds) data
- Response Time: Less than 1 nanosecond
- Shunt Capacitance: Less than 5 pF data
- Surge Protection: Difference and common mode
- Storage Temperature Range: Minus 30 to 70 degrees Celsius (Minus 22 to 158 degrees Fahrenheit)
- Operating Temperature Range: 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit)
- Operating Humidity Range: 10 to 95 percent, noncondensing
- NDAA Compliance: Yes

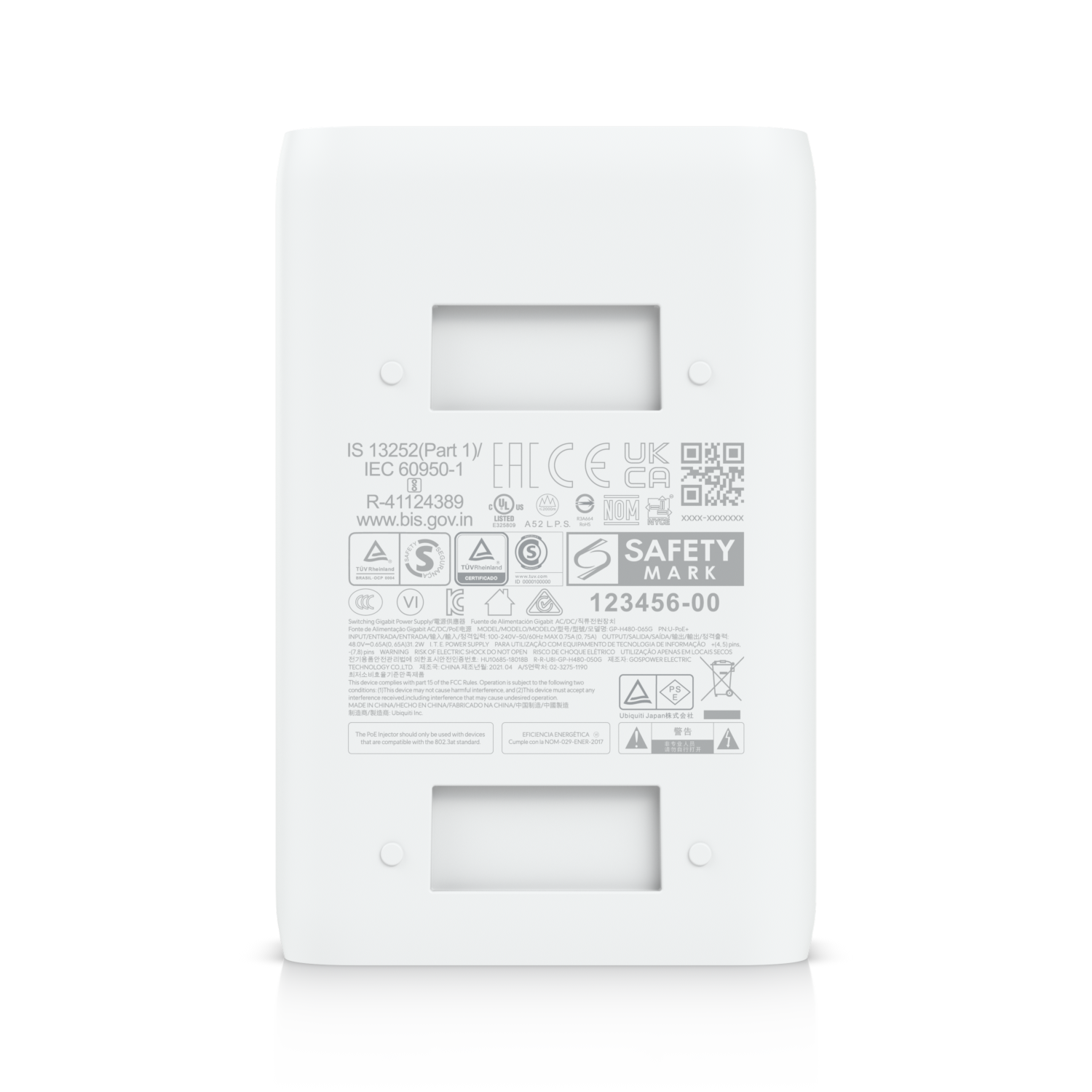

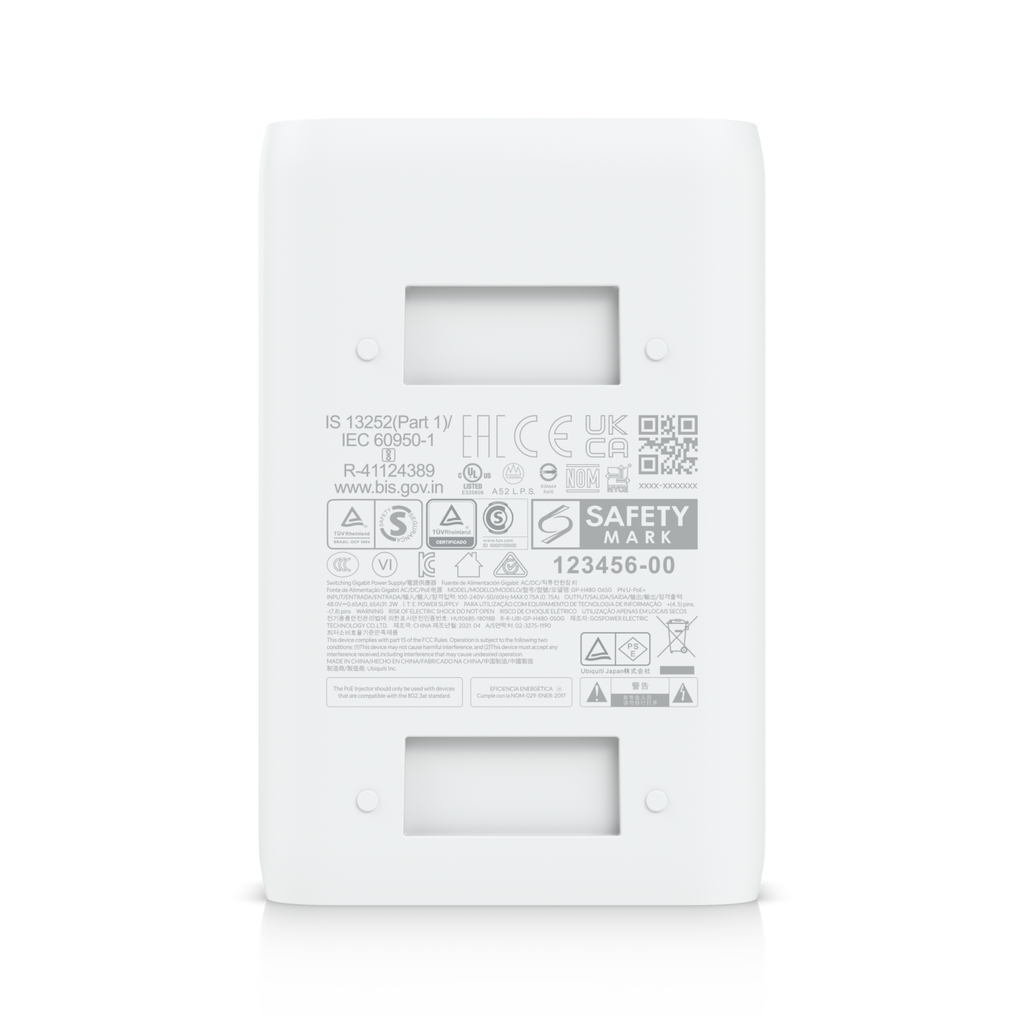

- Certifications: CE, FCC, IC, UL, CCC
