Description

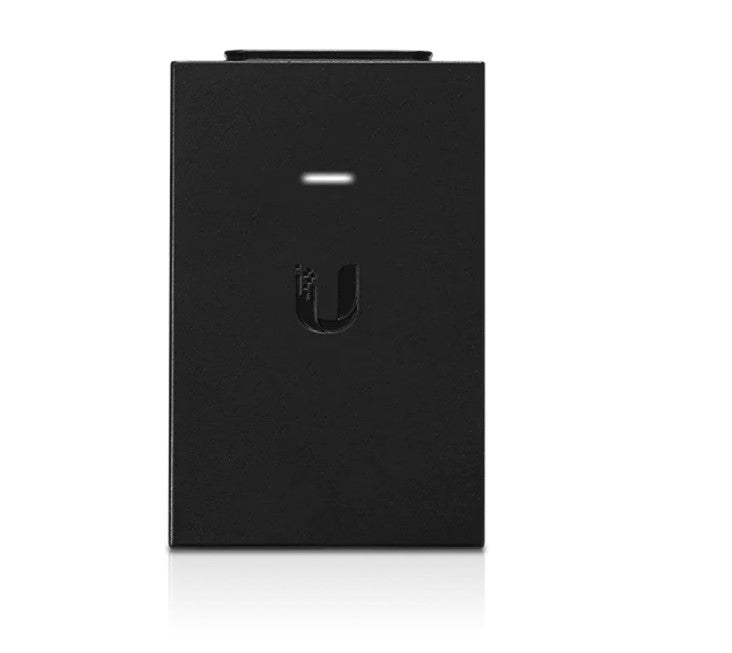

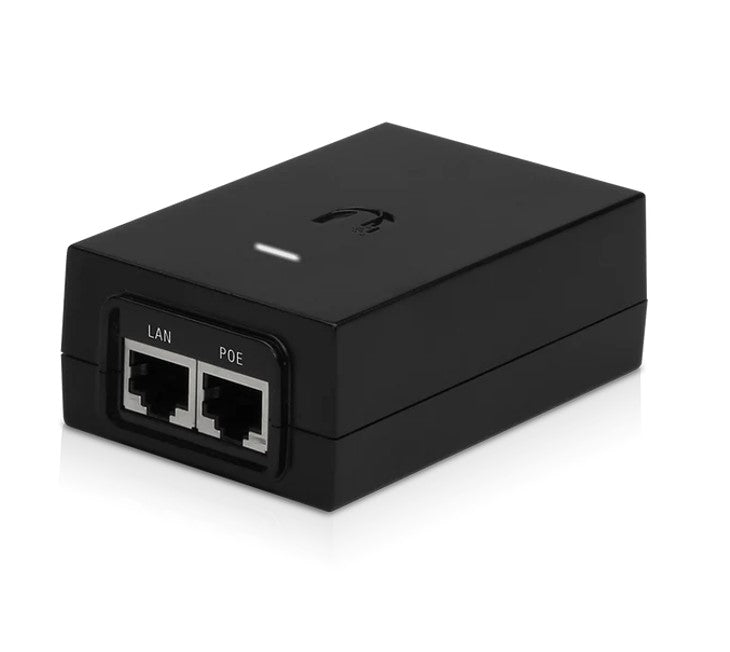

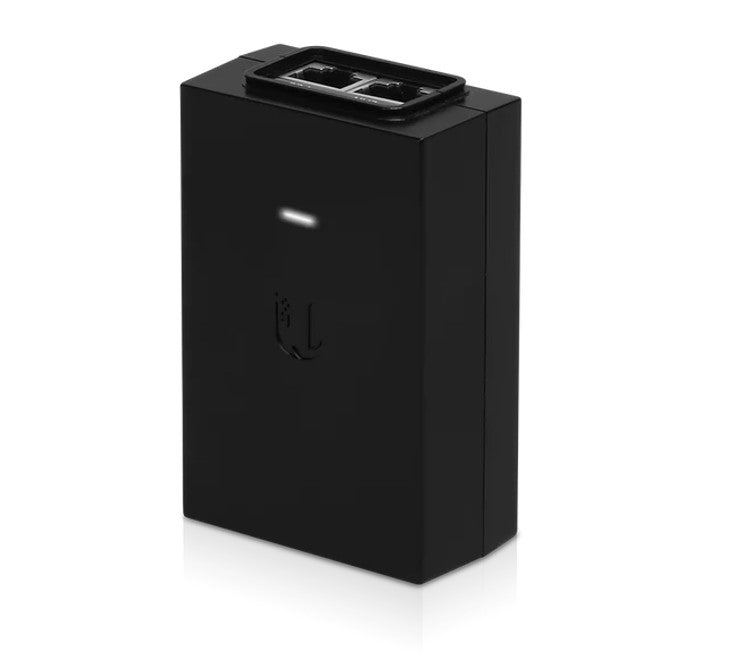

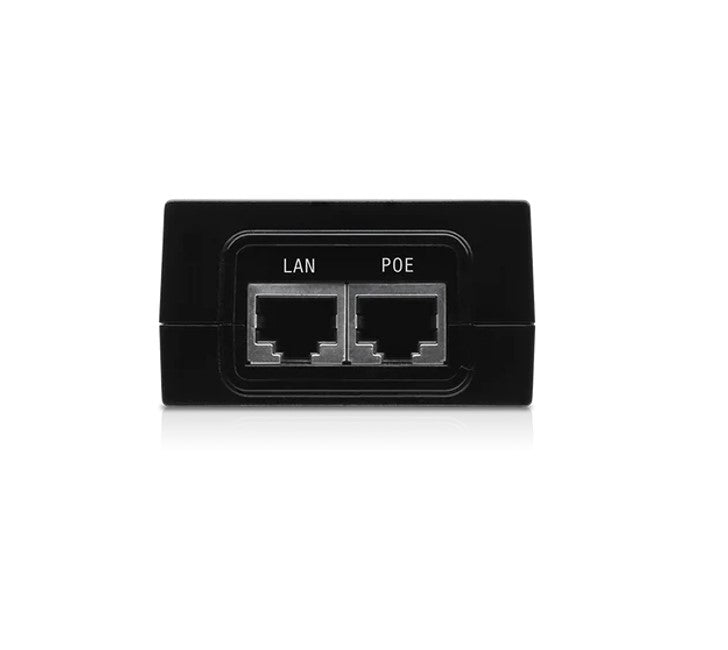

The Ubiquiti PoE Injector, 24VDC, 30W provides a variety of features to help protect your PoE devices. It offers surge and clamping protection in both difference and common mode, maximum surge discharge, and peak pulse current handling, along with an AC cable with earth ground for enhanced protection. A Gigabit LAN port, remote reset capability, and reset button add convenience, while high efficiency of over 80 percent ensures dependable power delivery to connected devices.
Features
- Surge and clamping protection
- Maximum surge discharge
- Peak pulse current handling
- AC cable with earth ground
- Gigabit LAN port with remote reset capability and reset button
Specifications
- Dimensions: 88 x 57 x 33 mm (3.5 x 2.2 x 1.3 inches)
- Weight: 159 g (5.6 oz)
- Output voltage: 24V DC @ 1.0A
- LAN activity indicator: No
- Gigabit LAN port: Yes
- Remote reset capability: Yes
- Reset button: Yes
- Rated voltage: 100 to 240V AC @ 50/60Hz
- Input current: 0.6A @ 120V AC, 0.4A @ 240V AC
- Inrush current: <60A peak @ 120V AC, <120A peak @ 230V AC
- Efficiency: 80+%
- Output ripple: 1% maximum
- Switching frequency: 65 kHz
- Line regulation: ≤ 3%
- Load regulation: ≤ 5%
- 2 pair powering: Pins 4, 5 (+) and pins 7, 8 (-)
- Storage temperature: -30 to 70° C (-22 to 158° F)
- Ambient operating temperature: 0 to 40° C (32 to 104° F)
- Ambient operating humidity: 35 to 95% noncondensing
- AC connector: IEC-320 C6
- Data IN / PoE: RJ45 shielded socket
- Surge protection: Difference and common mode
- Clamping protection: 11V data, 60V power
- Maximum surge discharge: 1500A (8/20 μs) power
- Peak pulse current: 36A (10/1000 μs) data
- Shunt capacitance: <5 pF data
- Response time: <1 ns
- Certifications: CE, FCC, IC, UL
- Colour: Black
Package Contents
- Ubiquiti PoE Injector
- AC cable with earth ground
