Description

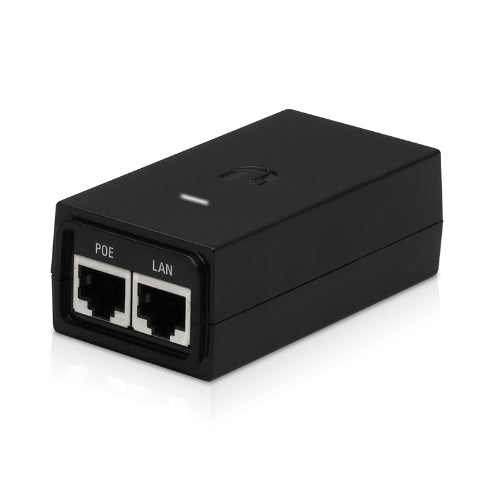

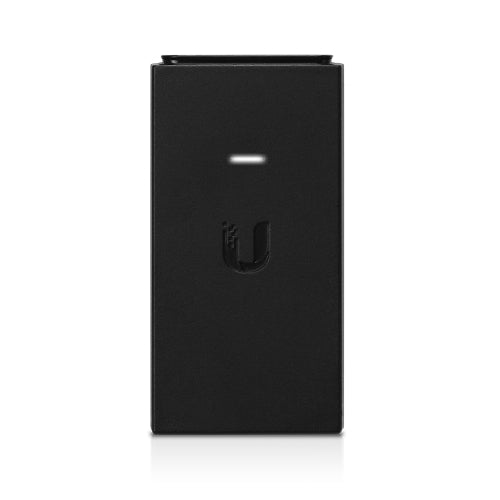

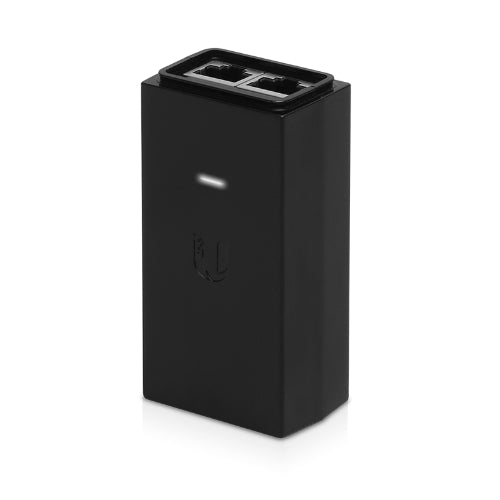

The Ubiquiti PoE Injector, 24VDC, 12W provides a variety of features to help protect your PoE devices. It offers surge protection in both difference and common mode, clamping protection, maximum surge discharge, and peak pulse current handling, along with an AC cable with earth ground for enhanced ESD protection. A Gigabit LAN port, remote reset capability, reset button, and power LED add convenience, while high efficiency of over 80 percent ensures dependable power delivery to connected devices.
Features
- Surge protection in difference and common mode
- Clamping protection
- Maximum surge discharge
- Peak pulse current handling
- AC cable with earth ground
- Earth grounding and ESD protection with power LED
- Gigabit LAN port with remote reset capability and reset button
Specifications
- Dimensions: 72 x 45 x 33 mm (2.8 x 1.8 x 1.3 inches)
- Weight: 72.1 g (2.5 oz)
- Output voltage: 24V DC @ 0.3A
- LAN activity indicator: No
- Gigabit LAN port: Yes
- Remote reset capability: Yes
- Reset button: Yes
- Rated voltage: 100 to 240V AC @ 50/60Hz
- Input current: 0.3A @ 120V AC, 0.2A @ 240V AC
- Inrush current: <40A peak @ 120V AC, <70A peak @ 230V AC
- Efficiency: 80+%
- Output ripple: 1% maximum
- Switching frequency: 65 kHz
- Line regulation: ≤ 3%
- Load regulation: ≤ 5%
- 2 pair powering: Pins 4, 5 (+) and pins 7, 8 (-)
- Storage temperature: -30 to 70° C (-22 to 158° F)
- Ambient operating temperature: 0 to 40° C (32 to 104° F)
- Operating humidity: 35 to 95% noncondensing
- AC connector: IEC-320 C6

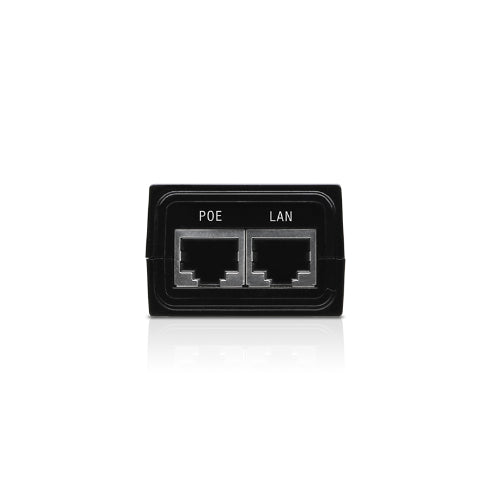

- Data IN / PoE: RJ45 shielded socket
- Surge protection: Difference and common mode
- Clamping protection: 11V data, 60V power
- Maximum surge discharge: 1500A (8/20 μs) power
- Peak pulse current: 36A (10/1000 μs) data
- Shunt capacitance: <5 pf data
- Response time: <1 ns
- Certifications: CE, FCC, IC, UL
- NDAA Compliant: Yes
- Colour: Black
Package Contents
- Ubiquiti PoE Injector
- AC cable with earth ground
