Description

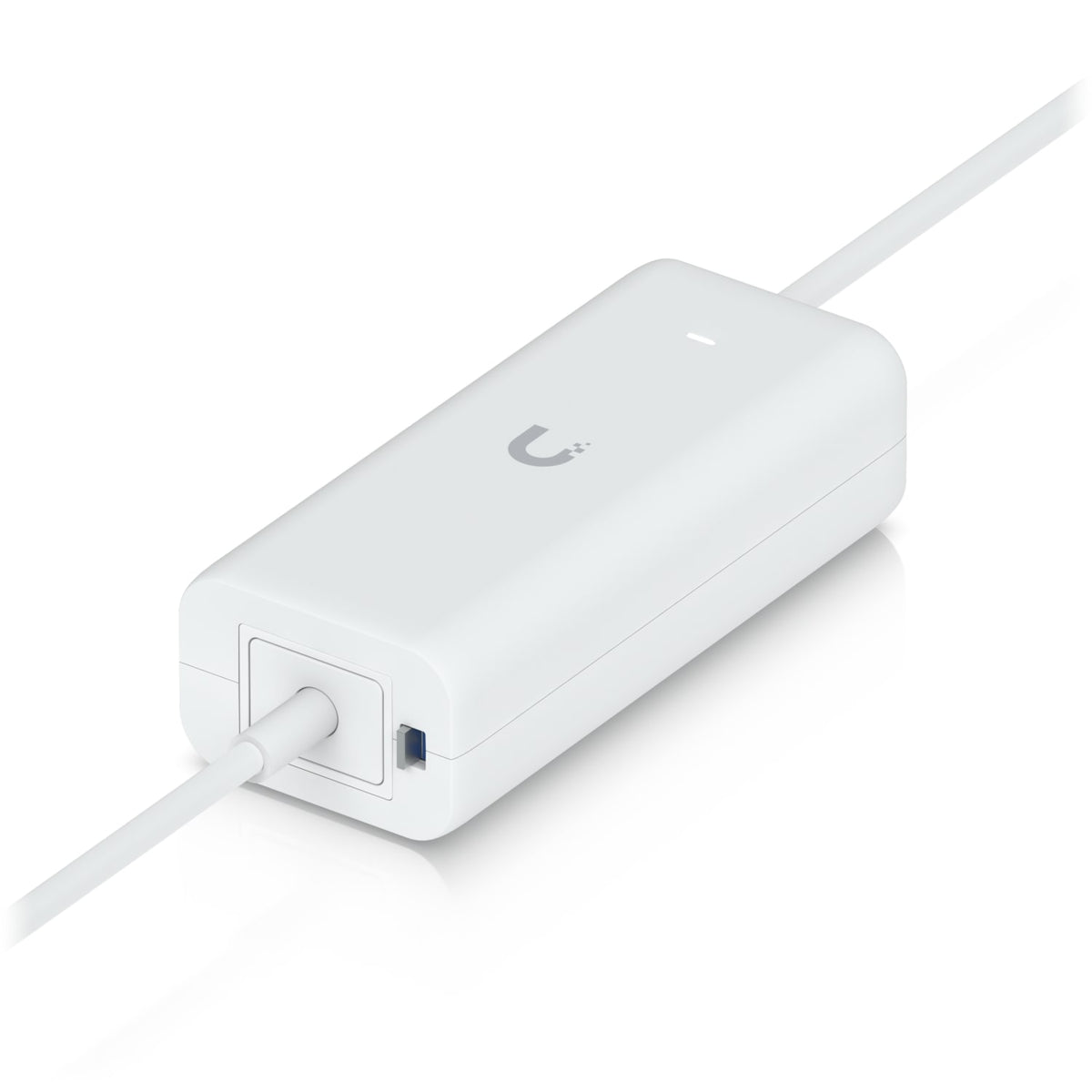

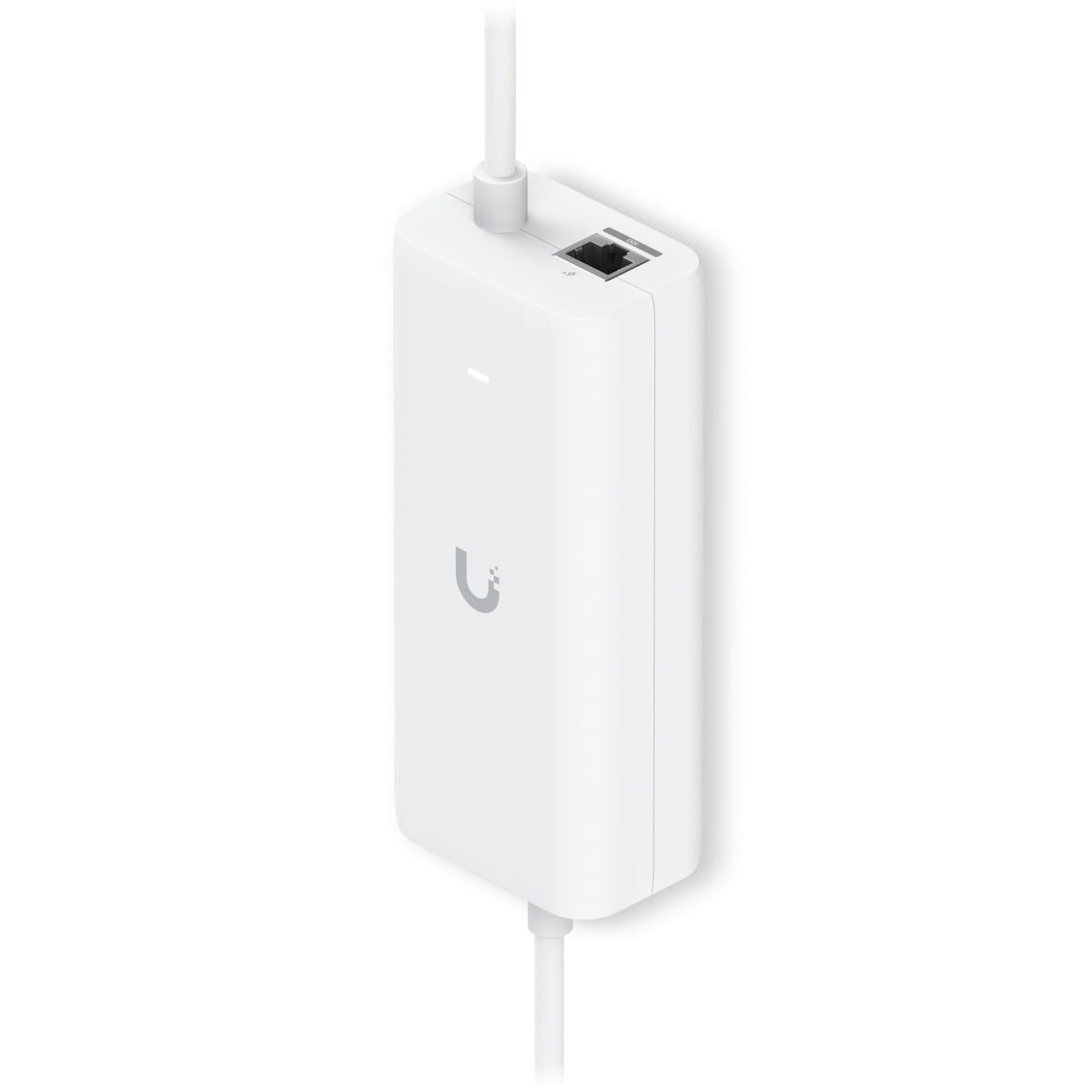

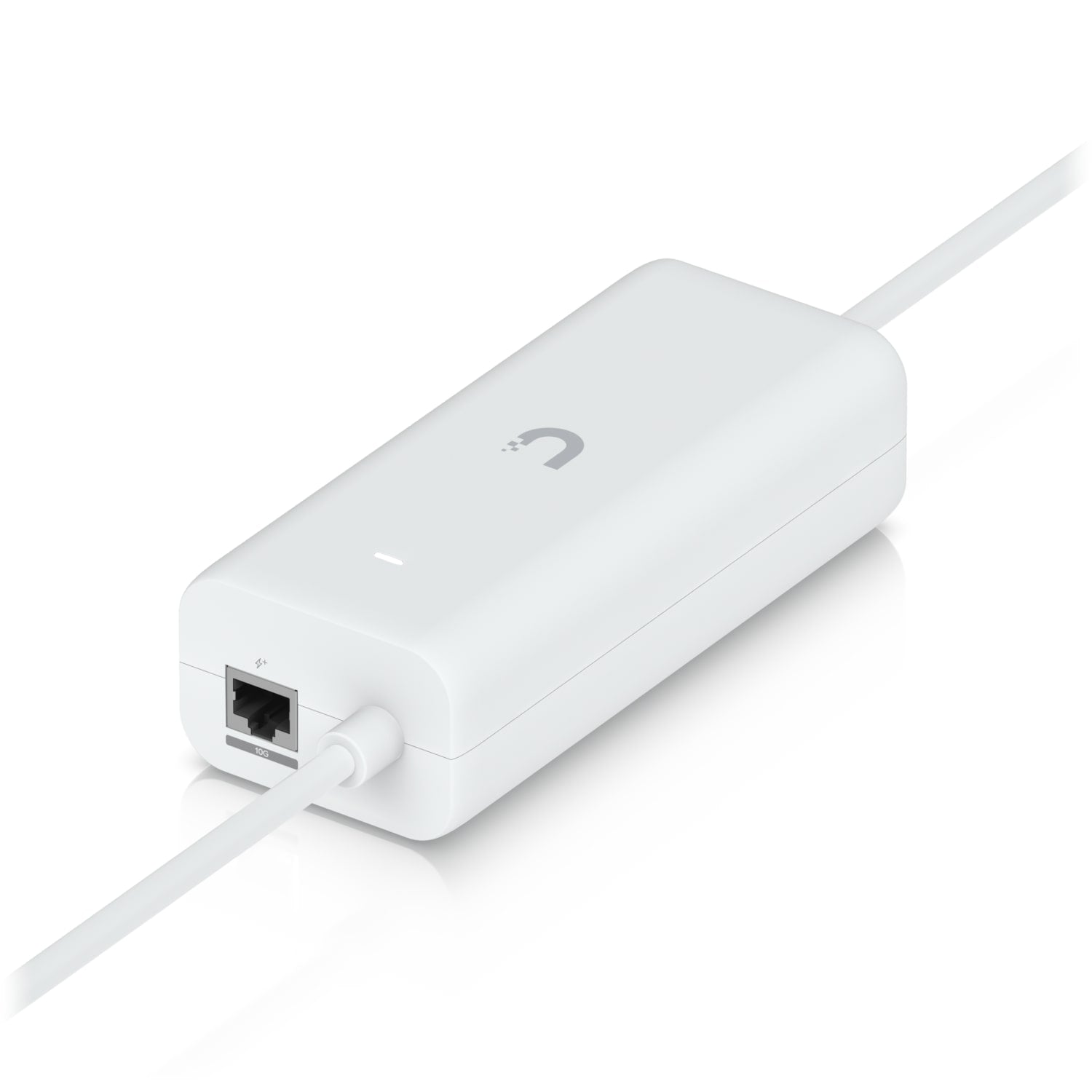

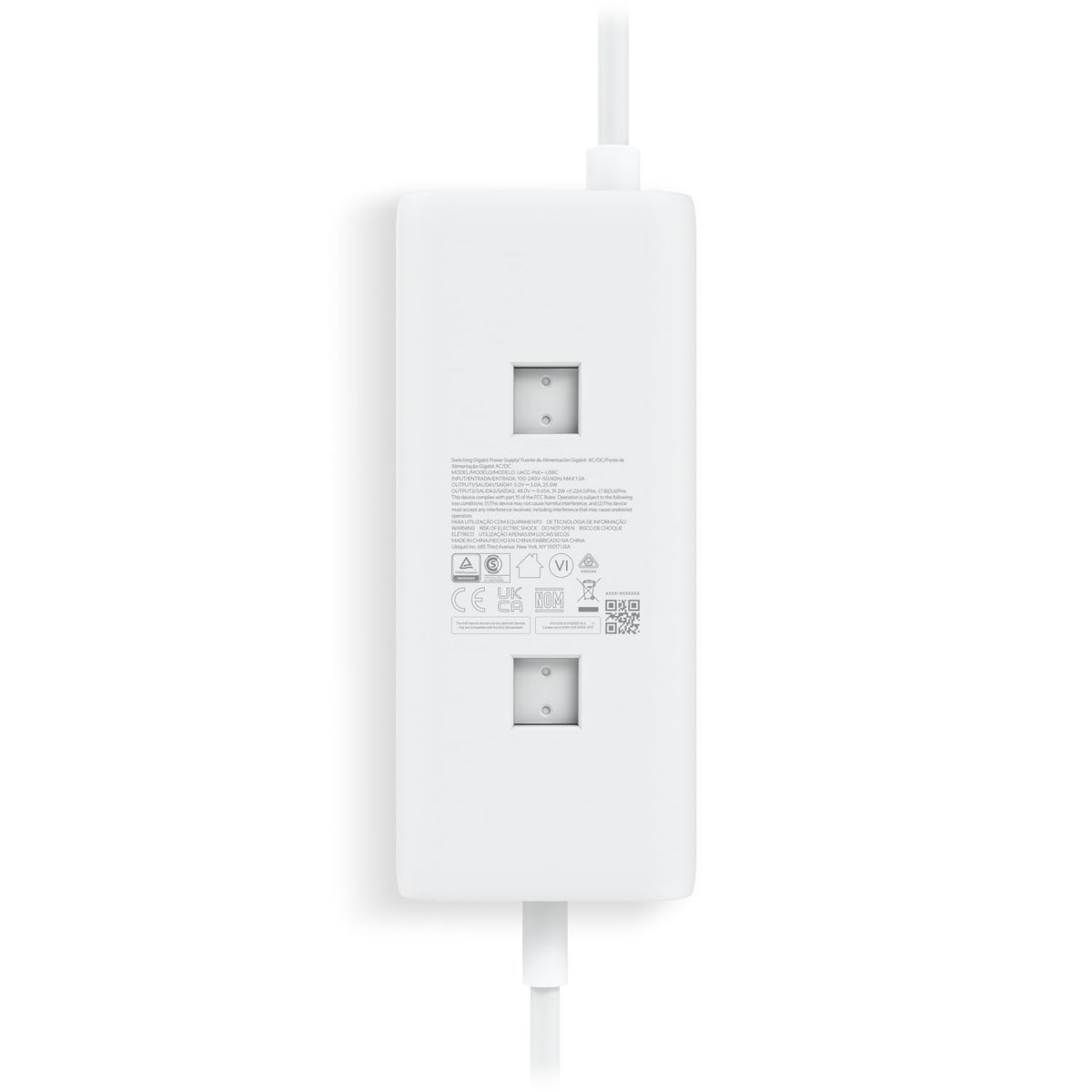

The Ubiquiti PoE Integrated AC Adapter is an AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port. Delivering up to 30W of PoE+, it supports wall mount, DIN rail, and floating mount installation options, and features a lockable latch designed for power cord security. With a Gigabit LAN port, 4 pair powering, and comprehensive surge and clamping protection, it provides a dependable power and connectivity solution.
Features
- Delivers up to 30W of PoE+
- Supports wall mount, DIN rail and floating mount
- Lockable latch designed for power cord security
- Enables UniFi Cloud Gateway device to support PoE output on a single port
Specifications
- Dimensions: 146 x 62 x 42 mm (5.7 x 2.4 x 1.7 inches)
- Weight: 358 g (12.6 oz)
- Length: Cable 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends; power cord 180 cm (5.9 ft)
- Output voltage: Type-C 5V @ 5A; PoE+ 48V @ 0.65A
- Rated voltage: 100 to 240V AC at 50/60Hz
- Gigabit LAN port: Yes
- 4 pair powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
- Clamping protection: 11V data, 60V power
- Data In / PoE: RJ45 shielded socket
- Input current: 1.5A maximum
- Inrush current: 120A
- Efficiency: 82%
- Switching frequency: 65 kHz
- Output ripple: 1% maximum
- Line regulation: ≤ 5%
- Load regulation: ≤ 5%
- Maximum surge discharge: 1500A (8/20 μs) power
- Peak pulse current: 36A (10/1000 μs) data
- Response time: <1 ns
- Shunt capacitance: <5 pF data
- Surge protection: Difference and common mode
- Ambient storage temperature: -30 to 70° C (-22 to 158° F)
- Ambient operating temperature: 0 to 40° C (32 to 104° F)
- Ambient operating humidity: 10 to 95% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, UL, UKCA, CCC, RoHS
Note: For installation assistance, you can contact us or reach out directly to the brand.
Package Contents
- Ubiquiti PoE Integrated AC Adapter
- Power cord
