Description:

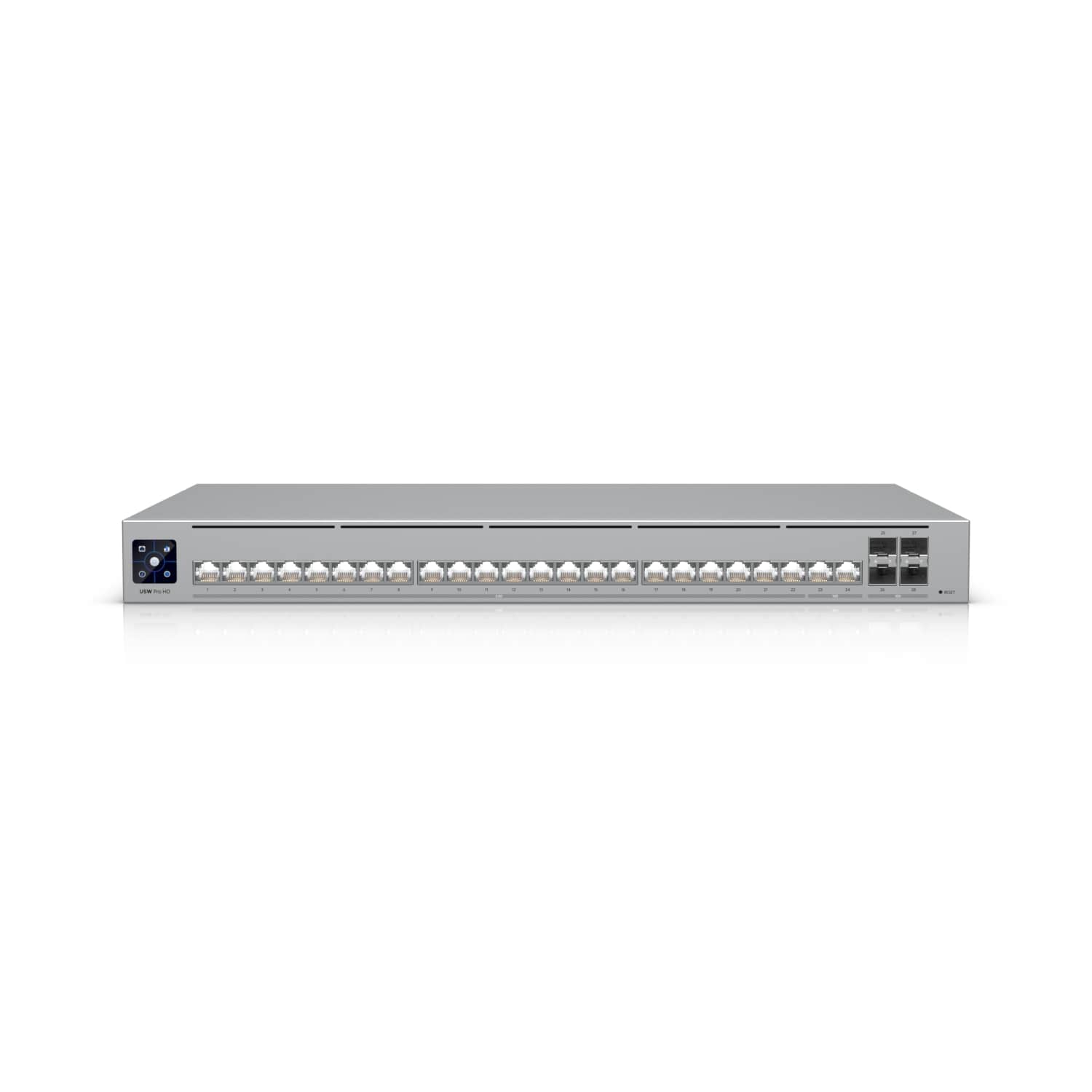

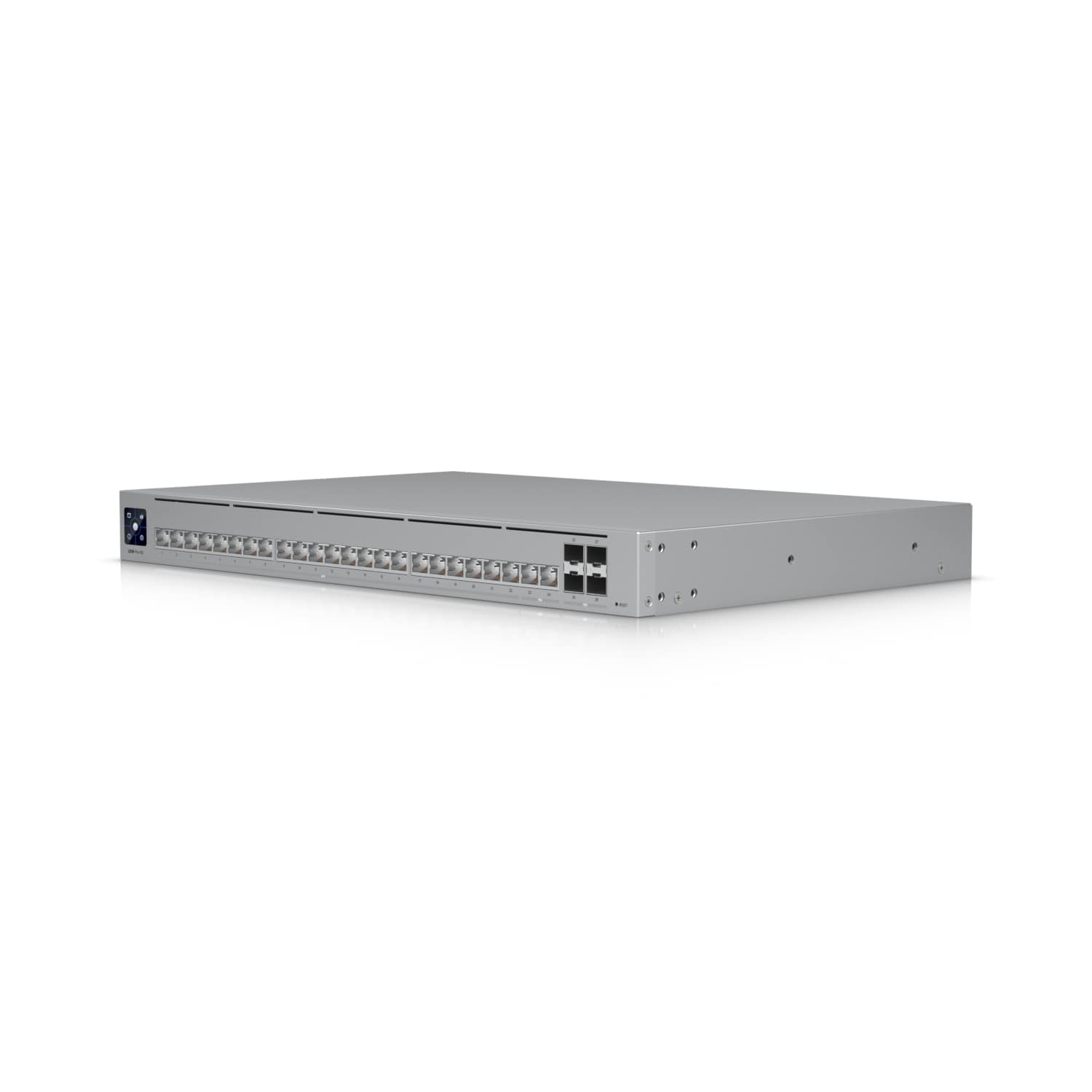

The Switch Pro HD 24 is a professional grade, Layer 3 Etherlighting switch designed for high throughput environments, offering 2 10 GbE ports, 22 2.5 GbE ports, and 4 10G SFP+ ports. It delivers advanced routing capabilities to efficiently manage complex network traffic, making it suitable for demanding network deployments.
Features:
- Layer 3 switching with advanced routing capabilities
- Etherlighting support across Ethernet and SFP+ ports
- Pro A/V support for professional audio visual environments
- DC power backup ready when used with UniFi RPS
- Centralized management through the UniFi Network Controller
- Durable SGCC steel enclosure supporting multiple rack depths
- DHCP server, DHCP relay, inter VLAN routing, and static routing support
- Pro AV profile support including Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron
- Advanced IGMP configuration and IGMP snooping
- 802.1X control and MAC based ACLs for network security
- Port mirroring, port isolation, and jumbo frame support
Specifications:
- Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7 inches)
- Port Layout: 22 2.5 GbE RJ45 ports at 2.5G/1G/100M/10M, 2 10 GbE RJ45 ports at 10G/5G/2.5G/1G/100M, 4 10G SFP+ ports at 10G/1G
- Redundancy: DC power backup with UniFi RPS
- Form Factor: Rack mount 1U
- Etherlighting Support: Yes
- Switching Capacity: 230 Gbps
- Total Non Blocking Throughput: 115 Gbps
- Forwarding Rate: 171.12 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- L3 Table Size: ARP entries 12,000, IPv4 routes 12,000
- Packet Buffer Size: 2 MB
- Layer 3 Features: DHCP server for local networks, DHCP relay, inter VLAN routing for local networks, static routing for local networks
- Layer 2 Features: LACP port aggregation, STP and RSTP, QoS with DSCP, Pro AV profiles including Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron, advanced IGMP configuration with querier, fast leave, and router port, IGMP snooping, 802.1X control, MAC based ACLs and device isolation, DHCP snooping and guarding, egress rate limit, flow control, storm control, multicast and broadcast rate limiting, MAC address blocking, IP based ACLs and network isolation, MAC based port restriction, port isolation, port mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection
- Maximum Power Consumption: 60W

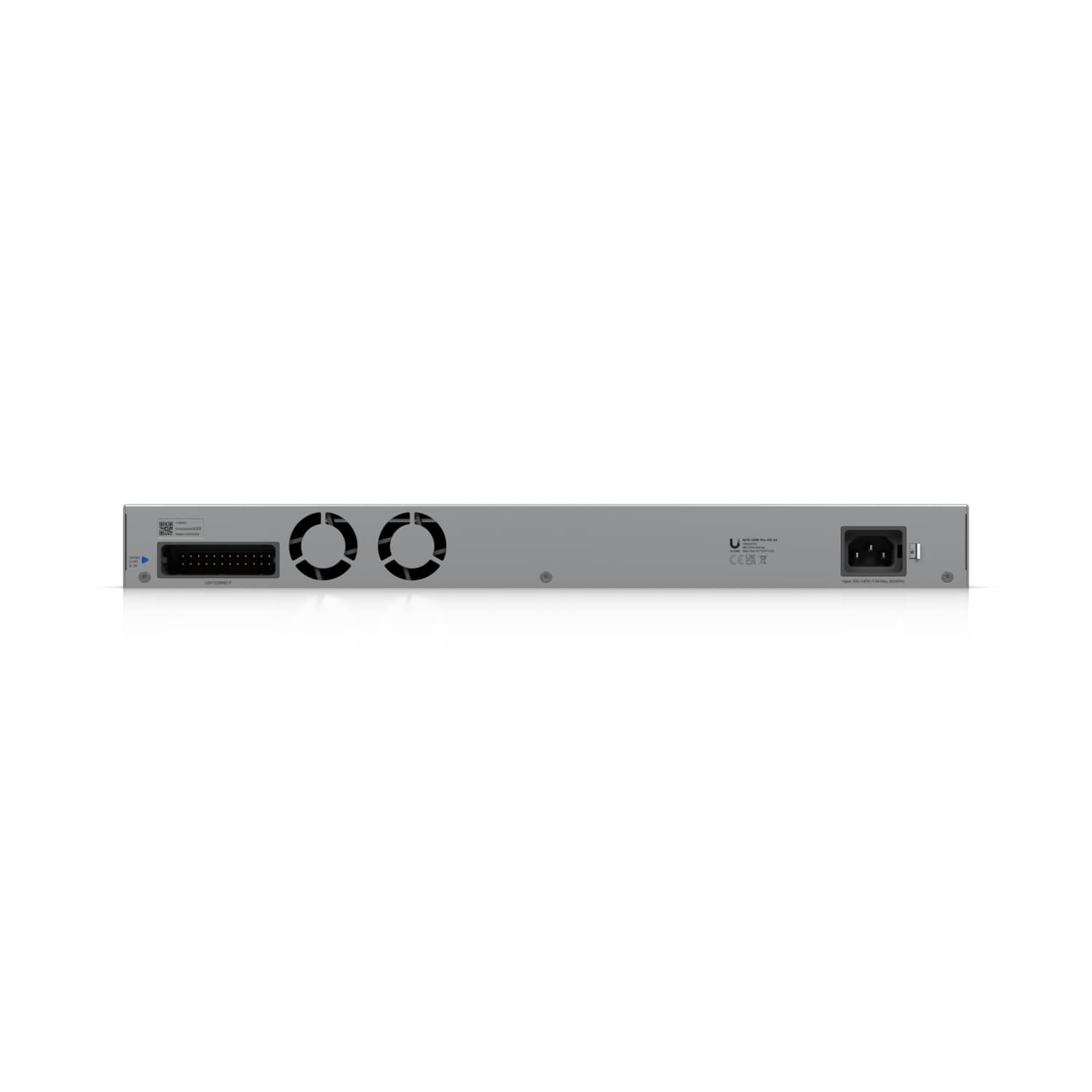

- Power Method: One universal input, 100 to 240V AC, 50/60 Hz; one USP RPS DC input
- Power Input Method: AC input
- Power Supply: AC/DC, internal, 60W
- Supported Voltage Range: 100 to 240V AC
- Management: Ethernet, AR
- Heat Dissipation Excluding PoE Output: 102.36 BTU/hr
- Weight Without Mounting Brackets: 4.2 kg (9.2 lb)
- Weight With Mounting Brackets: 4.3 kg (9.4 lb)
- Enclosure Material: SGCC steel
- Mount Material: SGCC steel

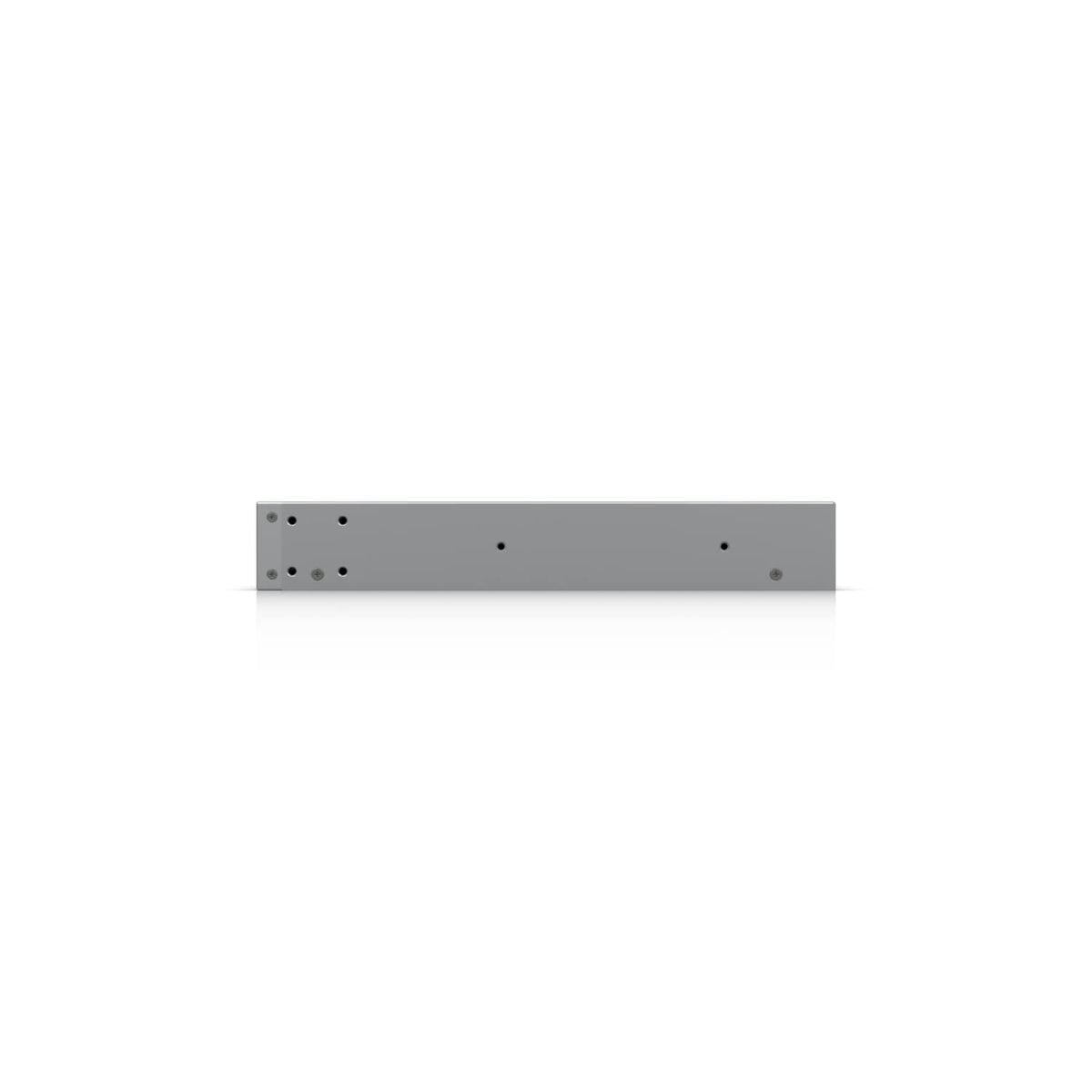

- Supported Rack Depth: 400 to 1200 mm (15.7 to 47.2 inches)
- LCM Display: 1.3 inch touchscreen
- Operating Temperature Range: Minus 5 to 40 degrees Celsius (23 to 104 degrees Fahrenheit)
- Operating Humidity Range: 10 to 90 percent, noncondensing
- Etherlighting Support, Ethernet: Yes
- Etherlighting Support, SFP+: Yes
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC
- Application Requirement: UniFi Network Version 9.0.114 and later
