Description:

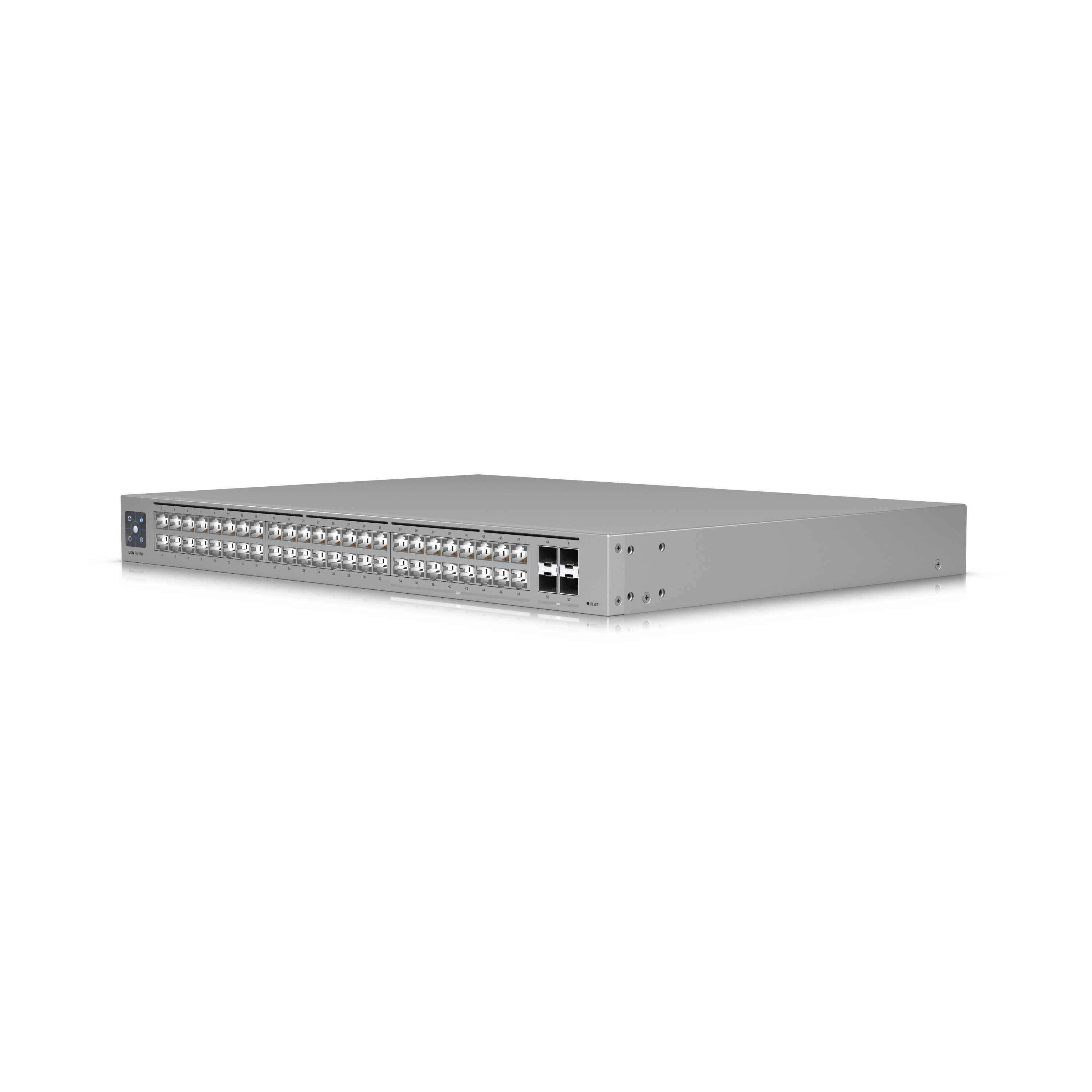

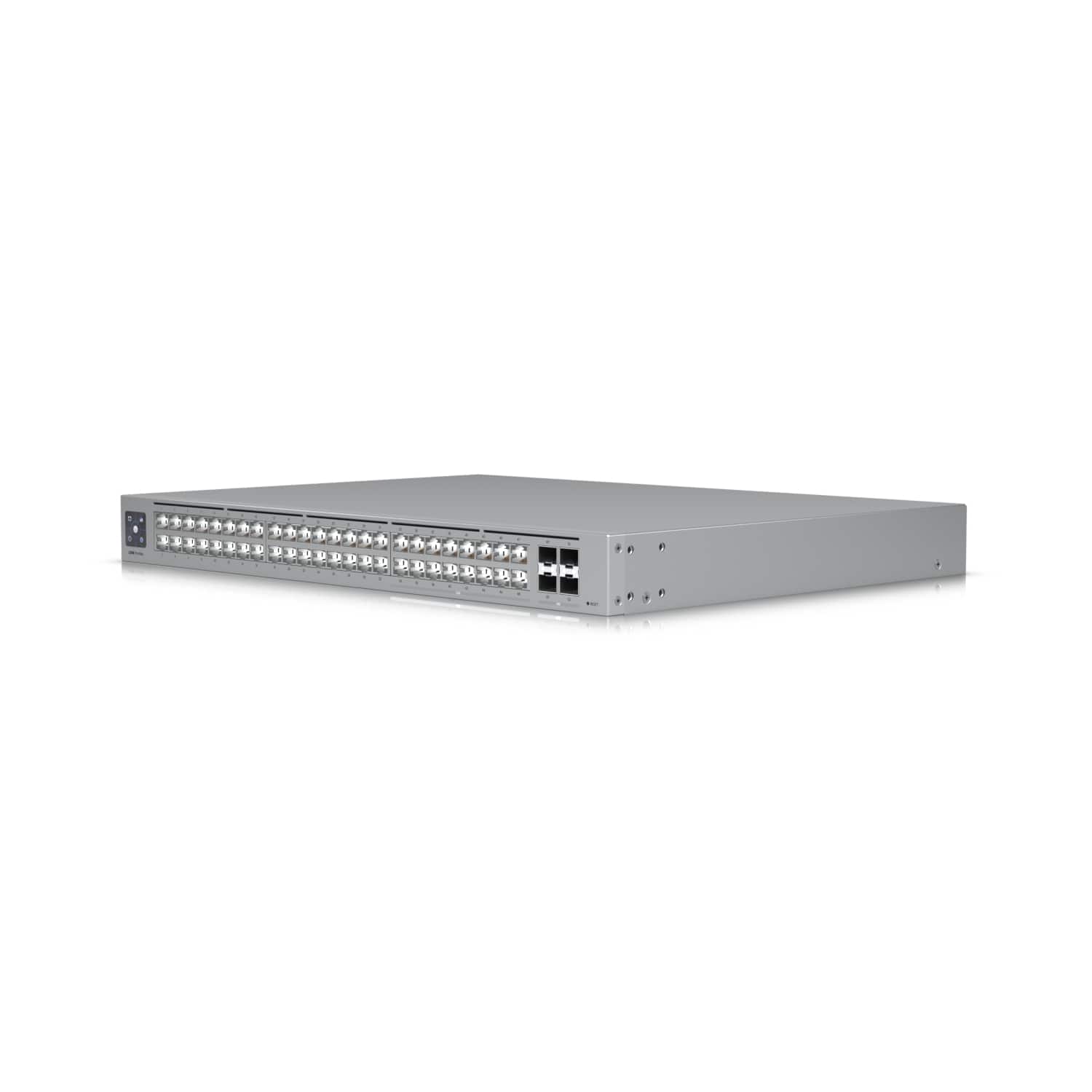

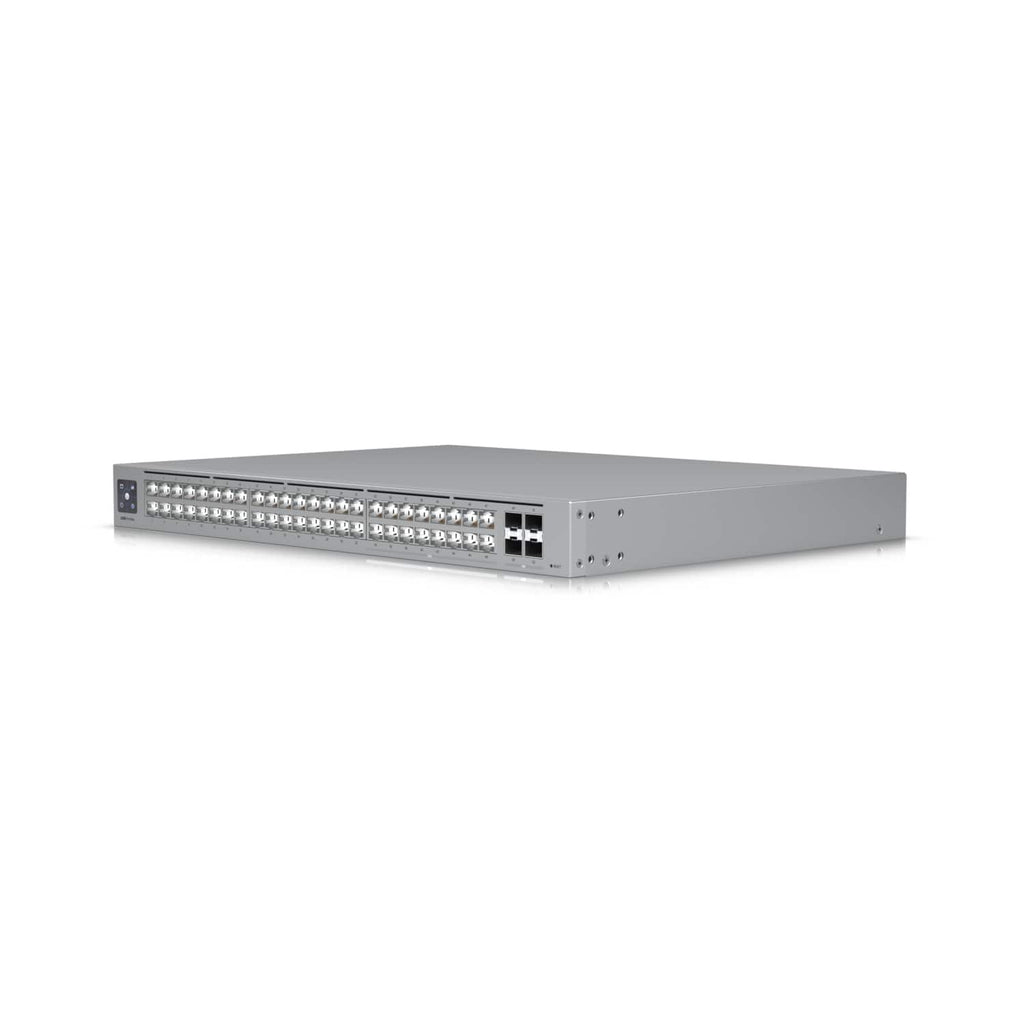

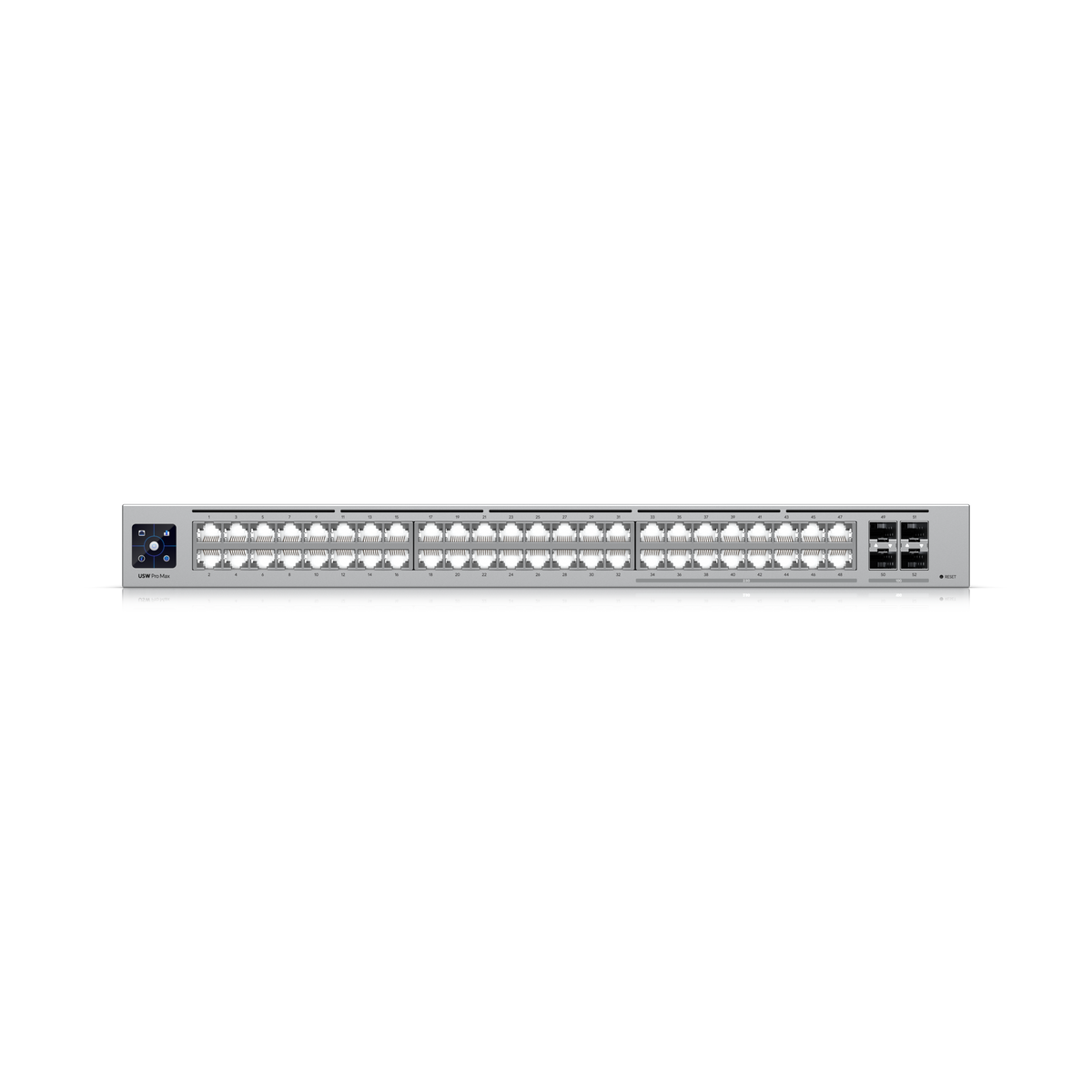

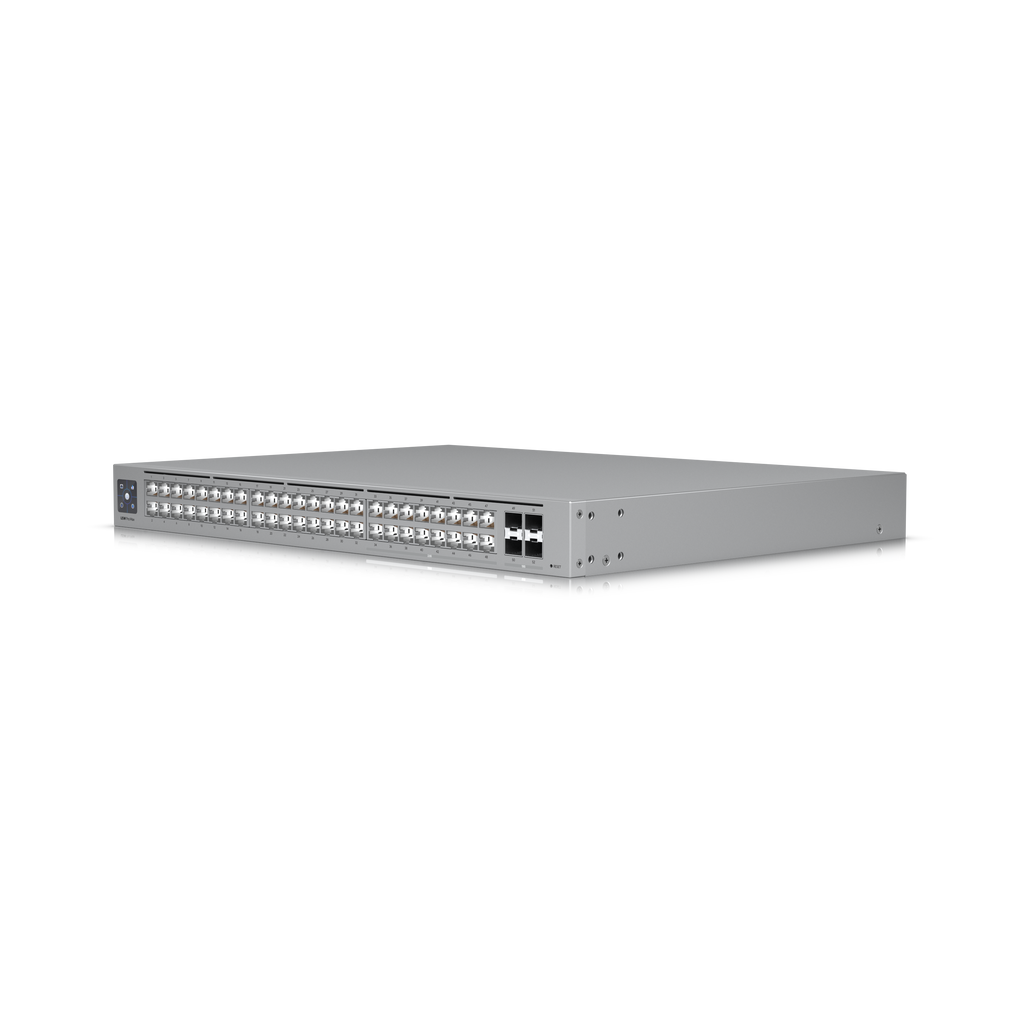

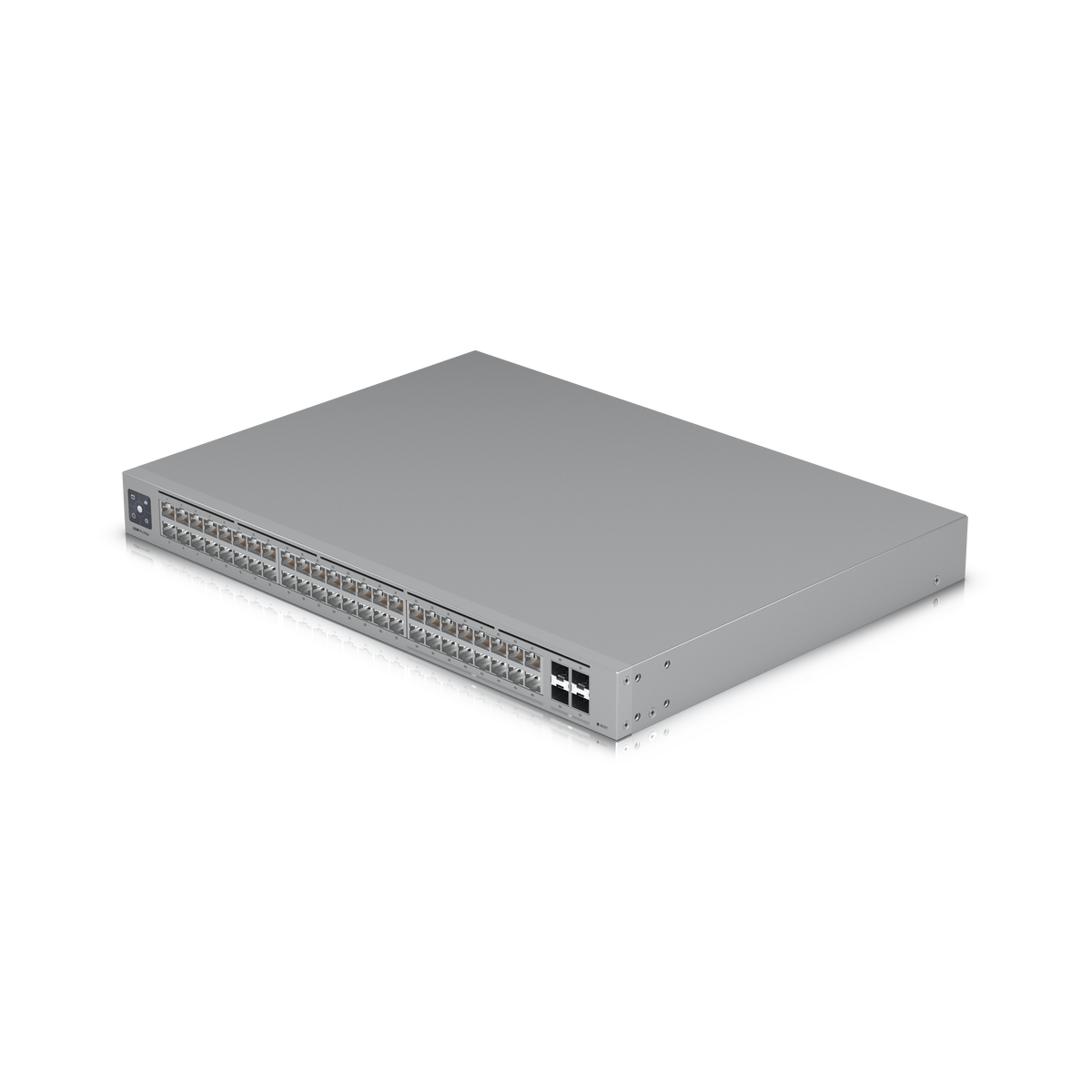

The Pro Max 48 is a 48 port, Layer 3 Etherlighting switch offering 16 2.5 GbE RJ45 ports, 32 GbE RJ45 ports, and 4 10G SFP+ ports for flexible high speed connectivity. Its Etherlighting ports illuminate to indicate port location, speed and link status, and native VLAN or network, simplifying cable management and troubleshooting, and reach optimal brightness when paired with UniFi Etherlighting Patch Cables.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- 4 10G SFP+ ports for high speed uplinks
- Etherlighting ports for visual port location, speed/link, and VLAN identification
- DC power backup ready for added resilience
- Layer 3 switching with inter VLAN routing and static routing support
- Switching capacity of 224 Gbps with 167 Mpps forwarding rate
- DHCP server and DHCP relay support for local networks
- Pro AV profile support including Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron
- Advanced IGMP configuration and IGMP snooping
- 802.1X control and MAC based ACLs for network security
- Managed through the UniFi Network application
Specifications:
- Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7 inches)

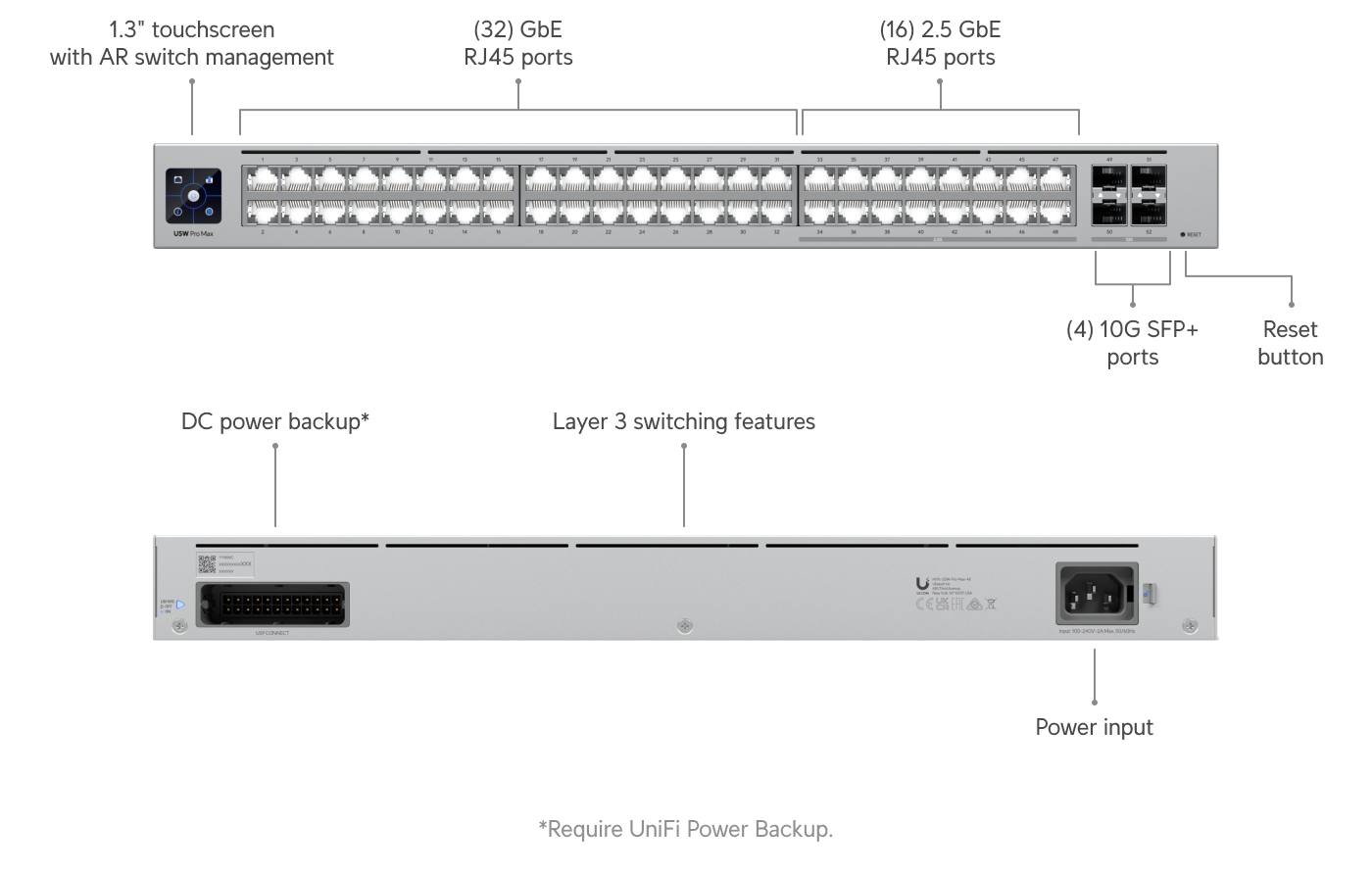

- Port Layout: 32 GbE RJ45 ports at 1G/100M/10M, 16 2.5 GbE RJ45 ports at 2.5G/1G/100M/10M, 4 10G SFP+ ports at 10G/1G
- Redundancy: DC power backup
- Layer 3 Support: Yes
- Form Factor: Rack mount 1U
- Etherlighting Support: Yes
- Switching Capacity: 224 Gbps
- Total Non Blocking Throughput: 112 Gbps
- Forwarding Rate: 167 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 2 MB
- Access Lists, IPv4: 128
- Access Lists, MAC: 128
- Layer 3 Features: DHCP server for local networks, DHCP relay, inter VLAN routing for local networks, static routing for local networks
- Layer 2 Features: LACP port aggregation, STP and RSTP, QoS with DSCP, Pro AV profiles including Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron, advanced IGMP configuration with querier, fast leave, and router port, IGMP snooping, 802.1X control, MAC based ACLs and device isolation, DHCP snooping and guarding, egress rate limit, flow control, storm control, multicast and broadcast rate limiting, MAC address blocking, IP based ACLs and network isolation, MAC based port restriction, port isolation, port mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection, virtual network override
- Maximum Power Consumption: 100W

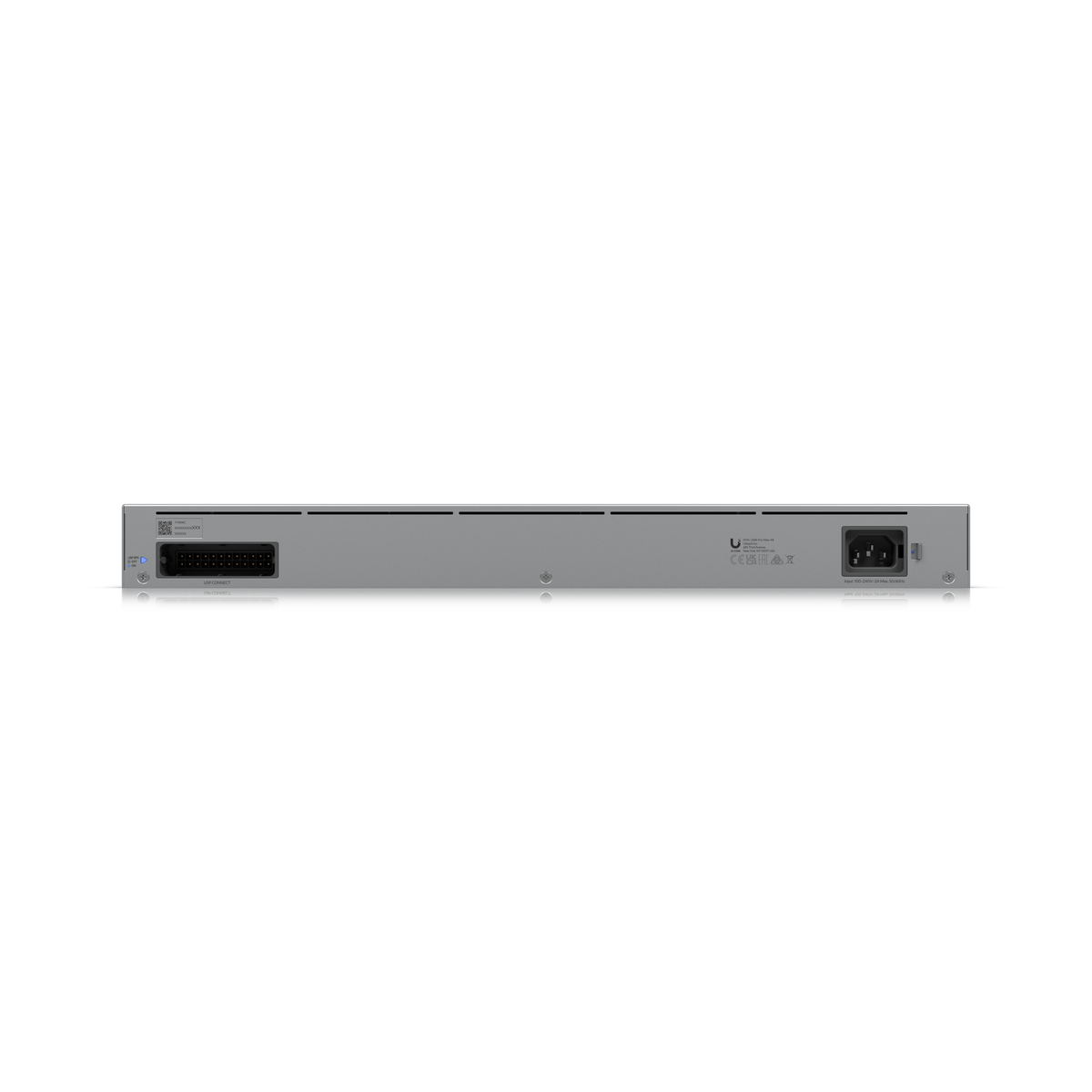

- Power Method: One universal input, 100 to 240V AC, 50/60 Hz; one USP RPS DC input
- Power Input Method: AC input
- Power Supply: AC/DC, internal, 100W
- Supported Voltage Range: 100 to 240V AC
- Management: Ethernet, AR
- Heat Dissipation: 341.2 BTU/hr
- Weight Without Mounting Brackets: 4.8 kg (10.6 lb)
- Weight With Mounting Brackets: 4.9 kg (10.8 lb)
- Enclosure Material: SGCC steel
- Mount Material: SGCC steel
- Supported Rack Depth: 400 to 1200 mm (15.7 to 47.2 inches)
- LCM Display: 1.3 inch touchscreen
- ESD Protection: Air plus or minus 16kV, Contact plus or minus 12kV
- Operating Temperature Range: Minus 5 to 40 degrees Celsius (23 to 104 degrees Fahrenheit)
- Operating Humidity Range: 10 to 90 percent, noncondensing
- Etherlighting Support, Ethernet: Yes
- Etherlighting Support, SFP+: Yes
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC, Anatel 06373-24-08356
- Application Requirement: UniFi Network Version 8.0.24 and later
