Description:

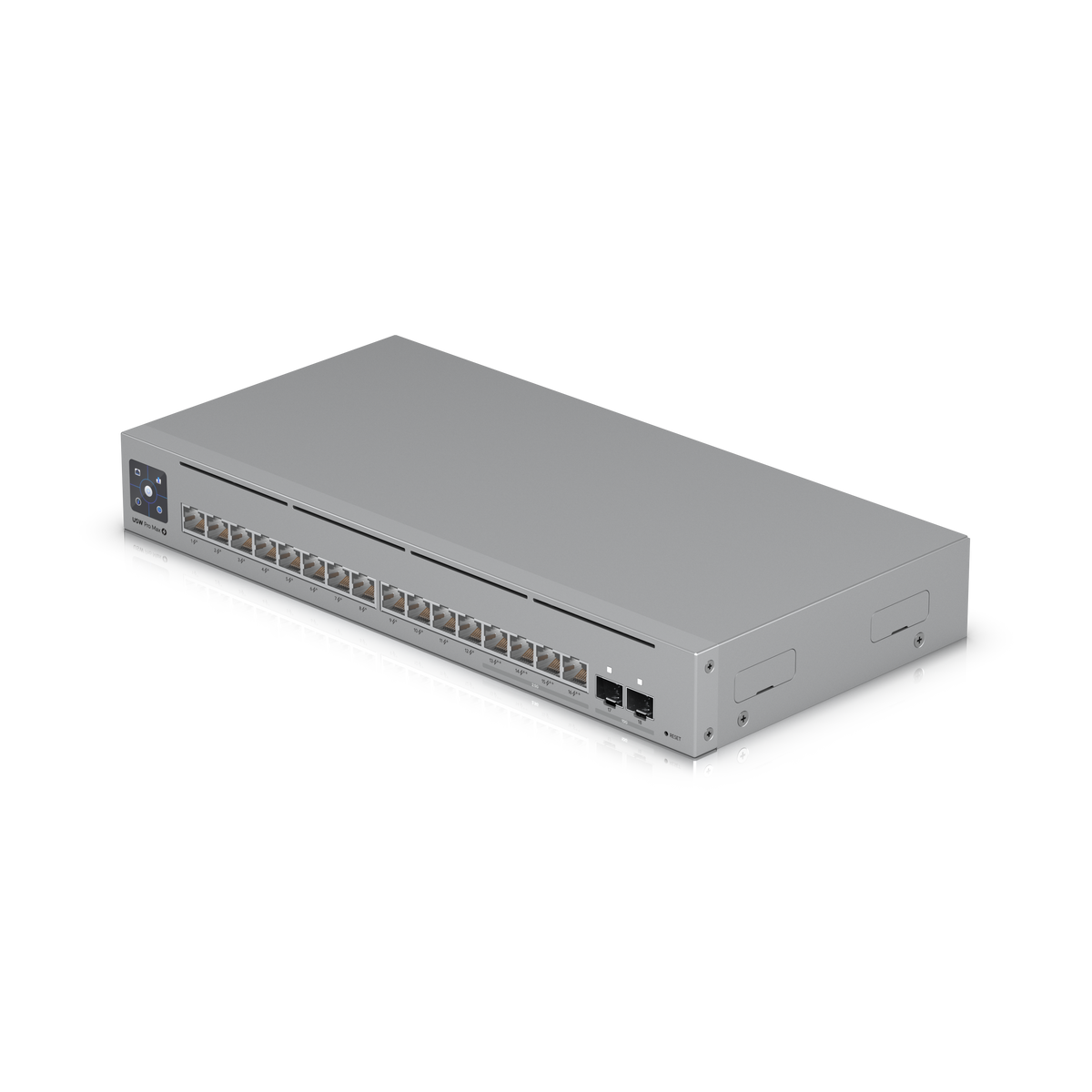

The Ubiquiti UniFi Network Pro Max 16 PoE Switch is a 16-port, Layer 3 Etherlighting switch featuring 2.5 GbE connectivity, PoE++ output, and versatile mounting options. Its Etherlighting ports illuminate to indicate port location, speed and link status, and native VLAN or network, offering enhanced visibility for network management.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:

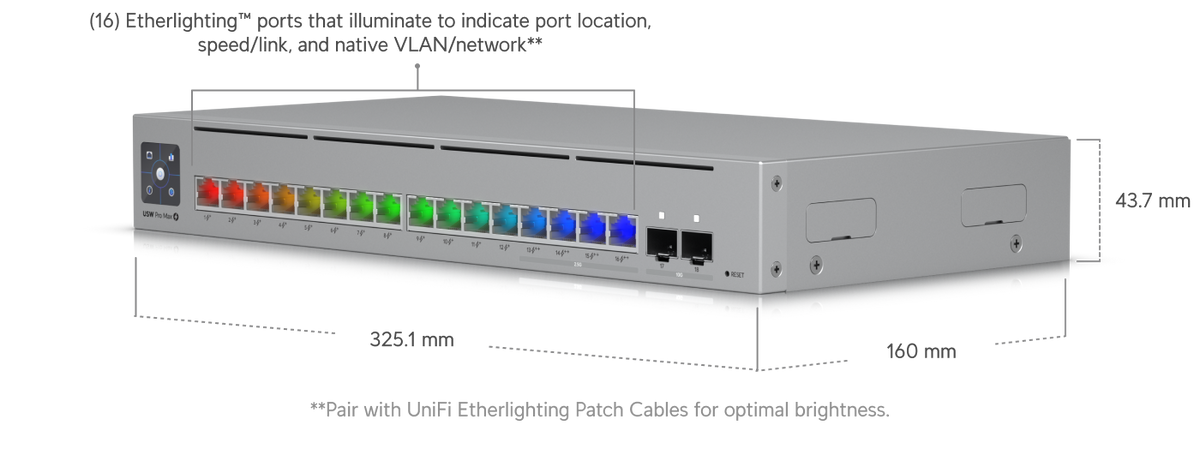

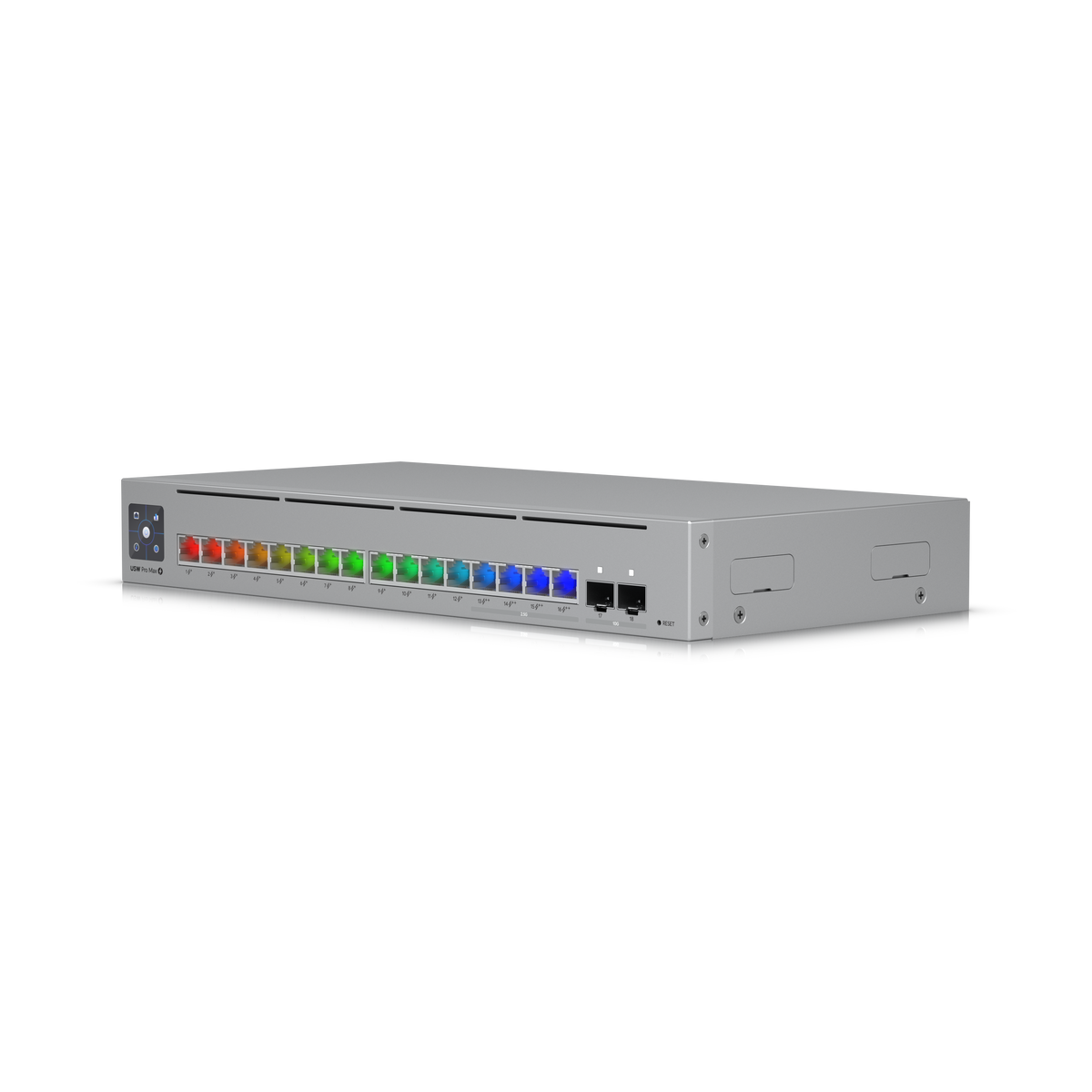

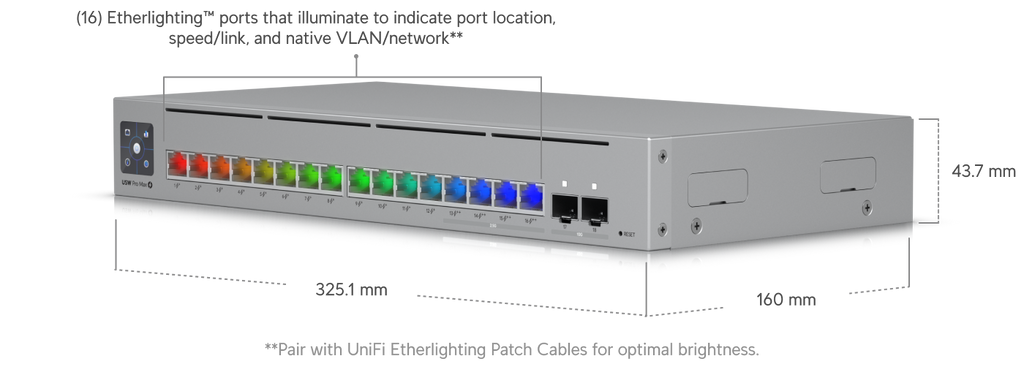

- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (4) 2.5 GbE PoE++ ports
- (12) GbE PoE+ ports
- (2) 10G SFP+ ports
- 180W total PoE availability
- Versatile desktop, wall, and rack mounting
- Silent, fanless cooling system
- Layer 3 switching
- DHCP server for local networks
- DHCP relay
- Inter-VLAN routing for local networks
- Static routing for local networks
- LACP port aggregation
- STP and RSTP support
- QoS (DSCP)
- Pro AV profiles supporting Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron
- Advanced IGMP configuration with querier, fast leave, and router port
- IGMP snooping
- 802.1X control
- MAC-based ACLs and device isolation
- DHCP snooping and guarding
- Egress rate limit
- Flow control
- Storm control
- Multicast and broadcast rate limiting
- MAC address blocking
- IP-based ACLs and network isolation
- MAC-based port restriction
- Port isolation
- Port mirroring
- Jumbo frames
- LLDP-MED
- Voice VLAN
- Loop protection
- Virtual network override
Specifications:
- Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

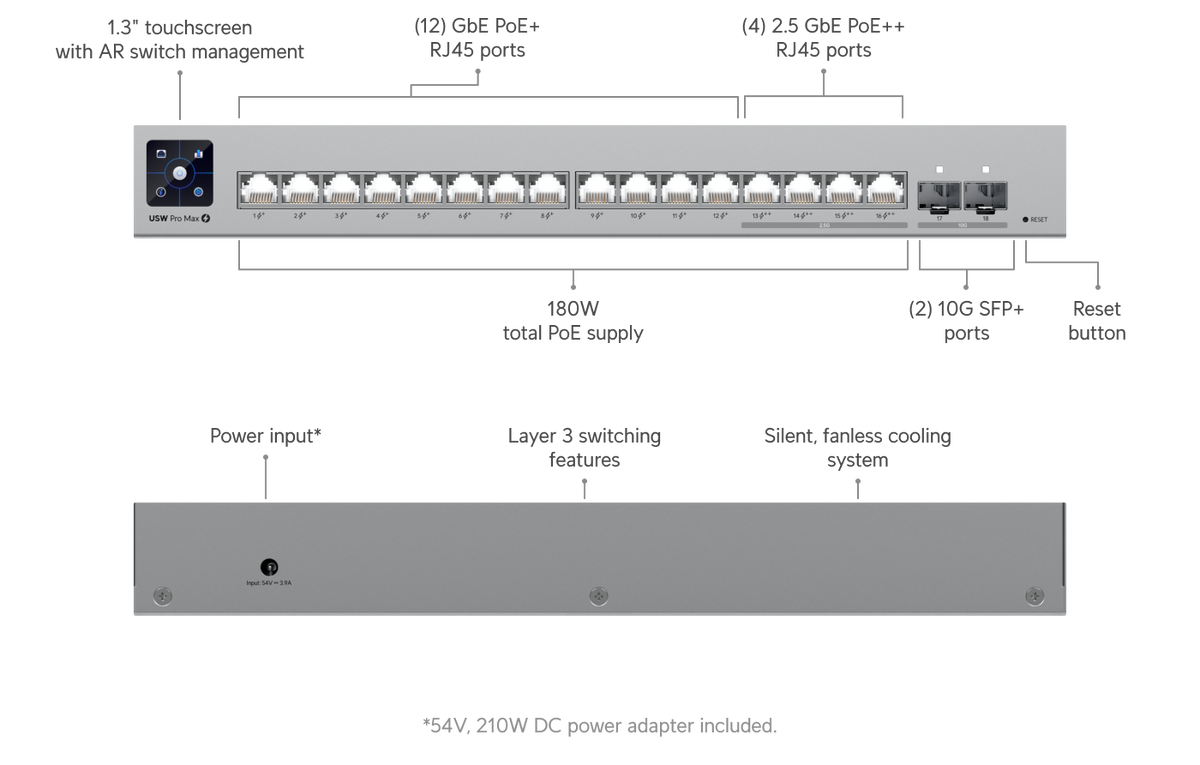

- Port Layout: 12x 1 GbE RJ45 (all PoE+), 1G/100M/10M; 4x 2.5 GbE RJ45 (all PoE++), 2.5G/1G/100M/10M; 2x 10G SFP+ (10G/1G)
- Max PoE Output: Up to PoE++
- Total PoE Availability: 180W
- Layer 3: Yes
- Form Factor: Rack mount (1U), desktop, wall
- Etherlighting: Yes
- Switching Capacity: 84 Gbps
- Total Non-Blocking Throughput: 42 Gbps
- Forwarding Rate: 62 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 1.5 MB
- Access Lists: IPv4 128, MAC 128
- PoE Ports: PoE+ 12, PoE++ 4
- Max PoE Wattage per Port by PSE: PoE 15.4W, PoE+ 32W, PoE++ 60W
- Max Power Consumption: 25W excluding PoE output, 210W including PoE output
- Power Method: AC adapter
- Power Input Method: AC input
- Power Supply: AC/DC, external, 210W
- Supported Voltage Range: 50-54V DC
- Management: Ethernet AR
- Heat Dissipation: 68 BTU/hr excluding PoE output
- Weight: 2.1 kg (4.6 lb)
- Enclosure Material: SGCC steel
- Mount Material: SGCC steel
- Supported Rack Depth: 400-1200 mm (15.7-47.2")
- LCM Display: 1.3" touchscreen
- Ambient Operating Temperature: -5 to 40°C (23 to 104°F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Etherlighting Ethernet: Yes
- Etherlighting SFP+: Yes
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel 08953-24-08356
- Application Requirements: UniFi Network version 8.1.127 and later
