Description:

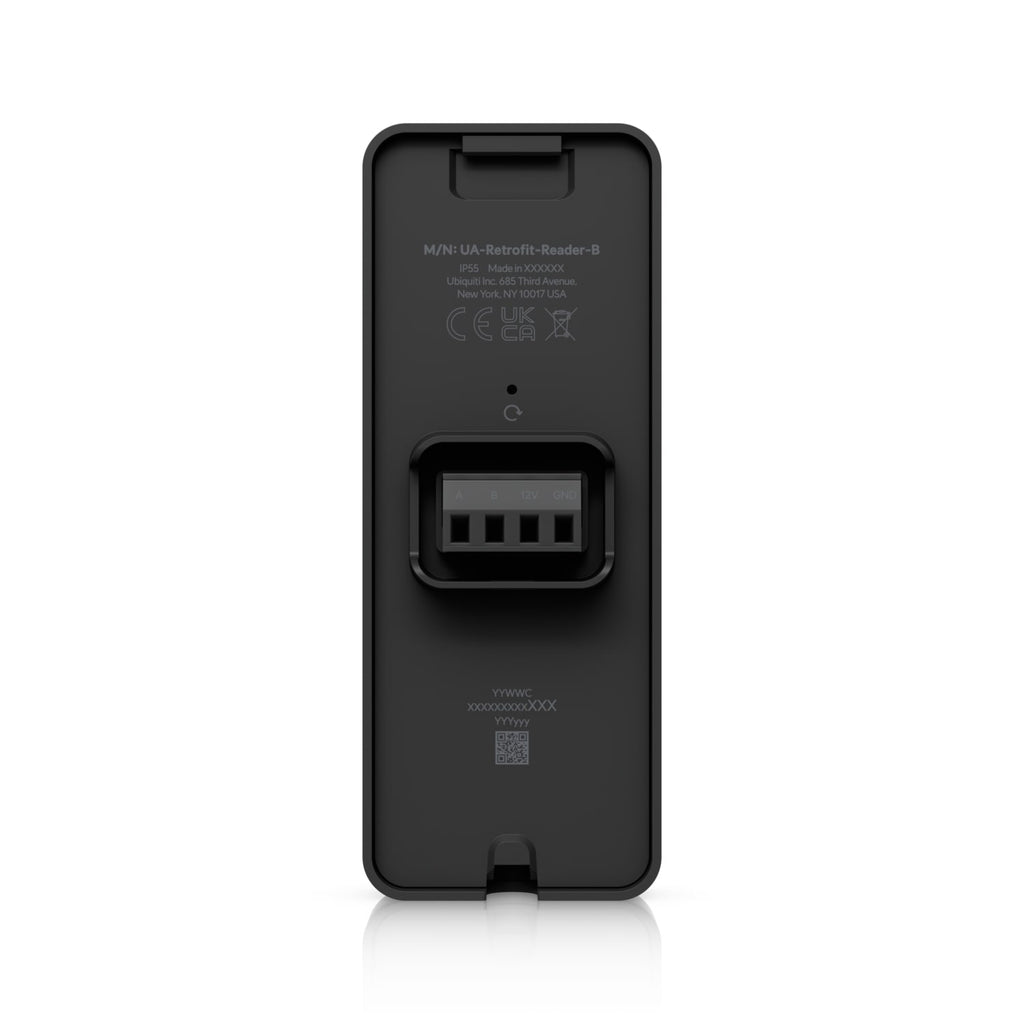

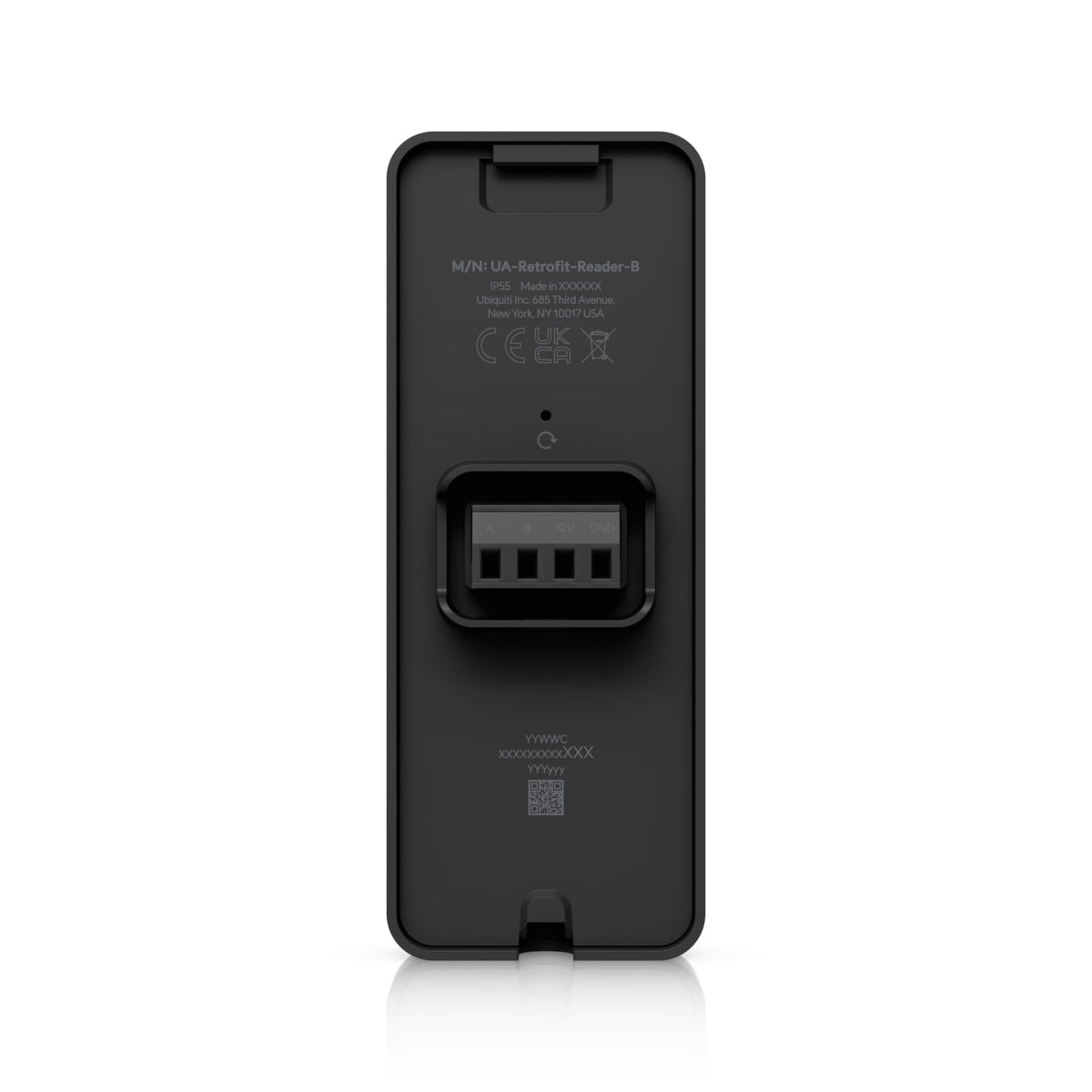

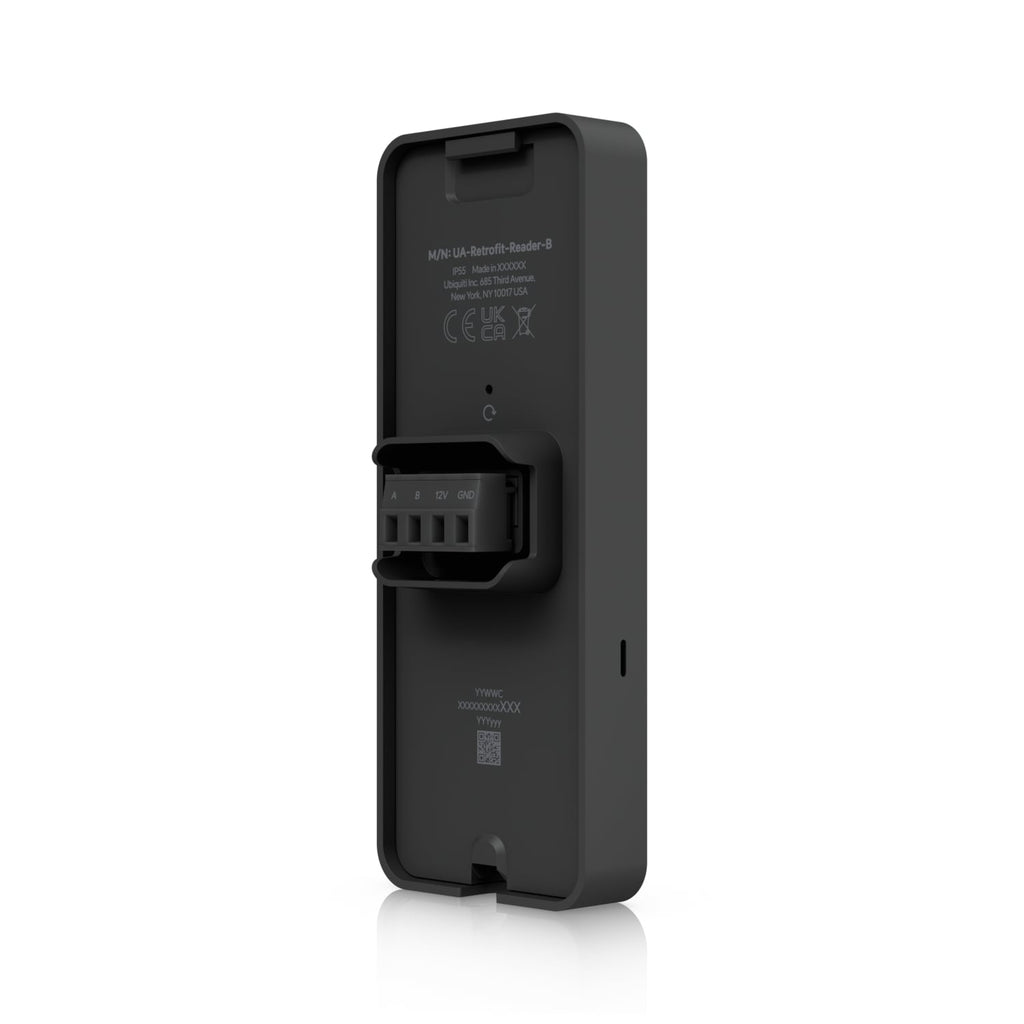

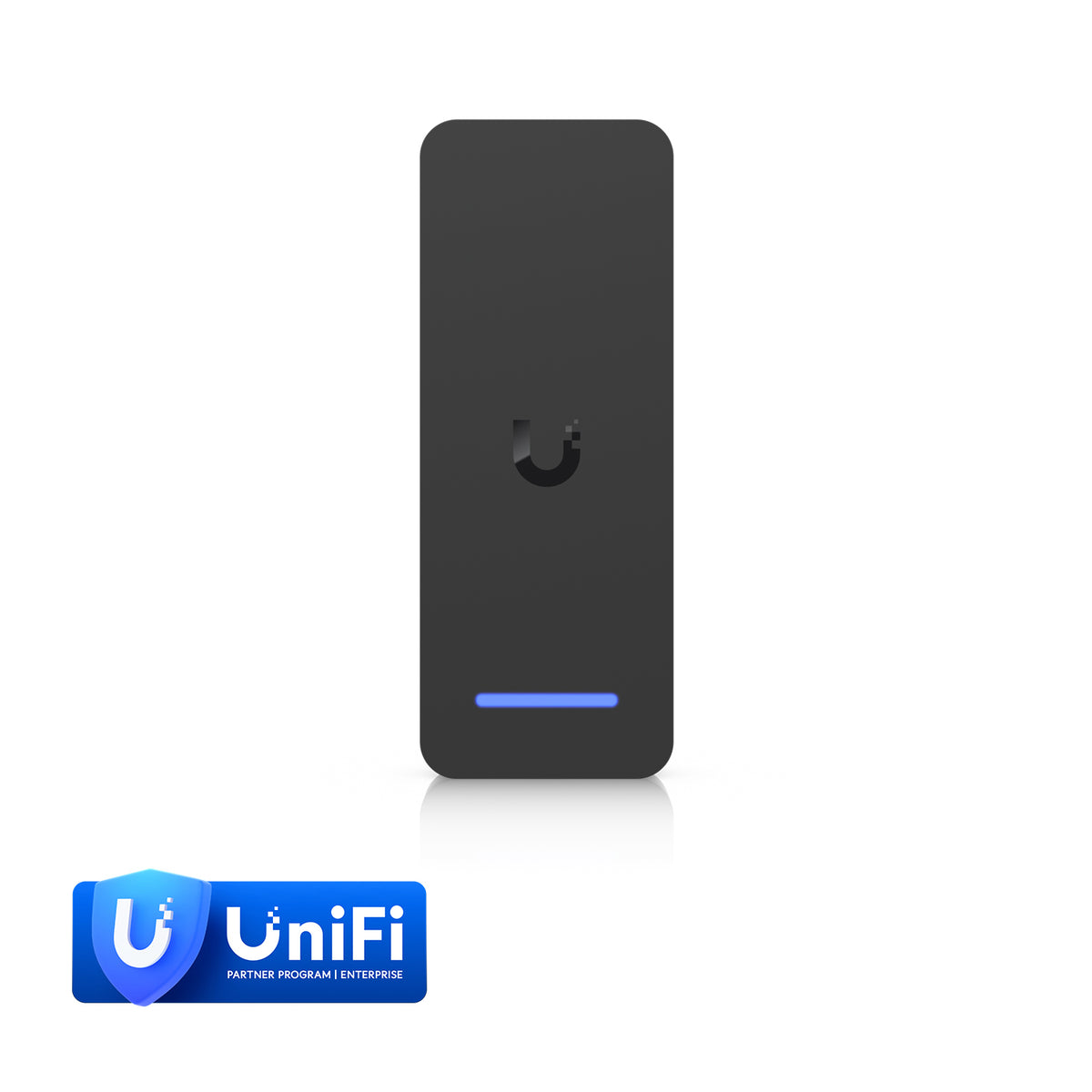

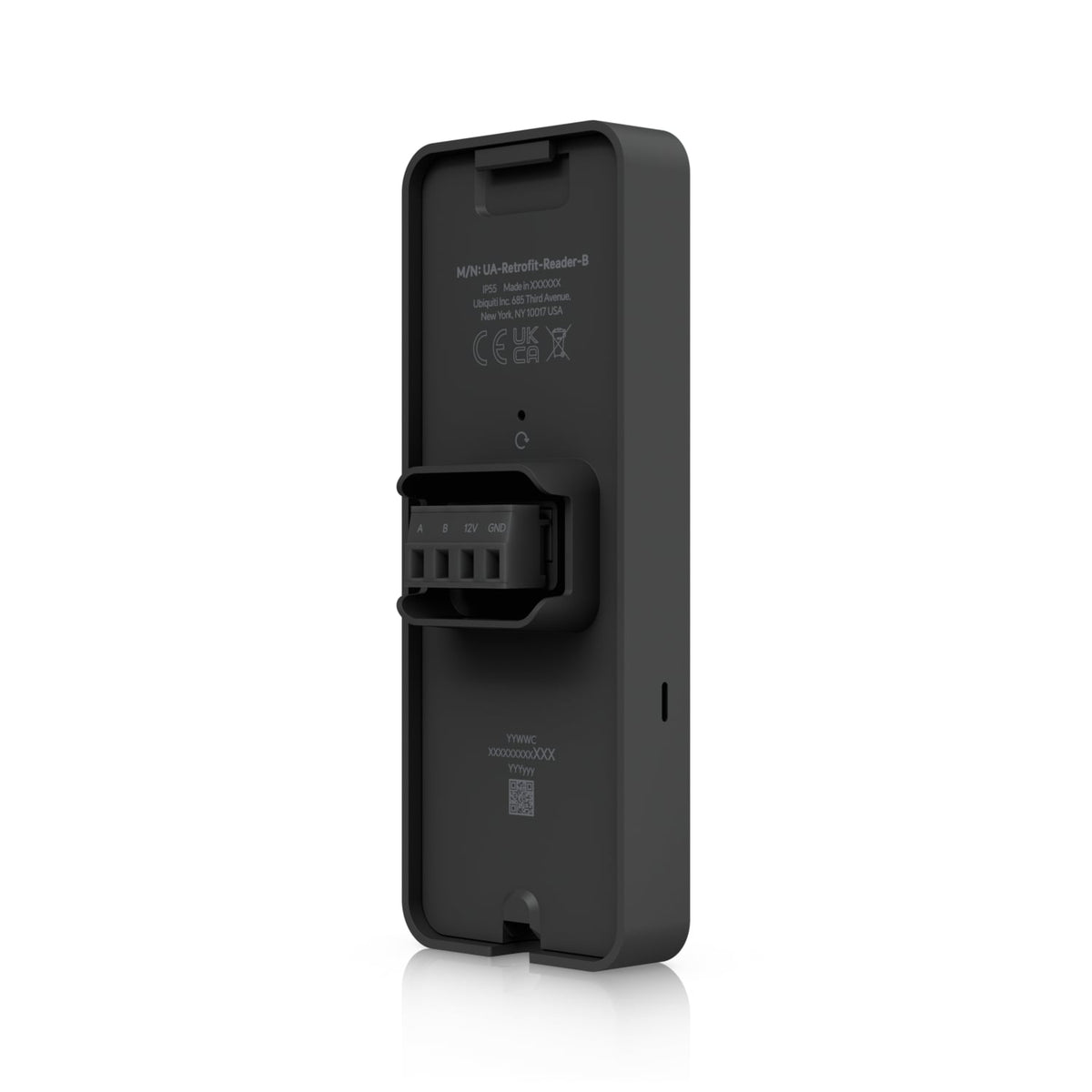

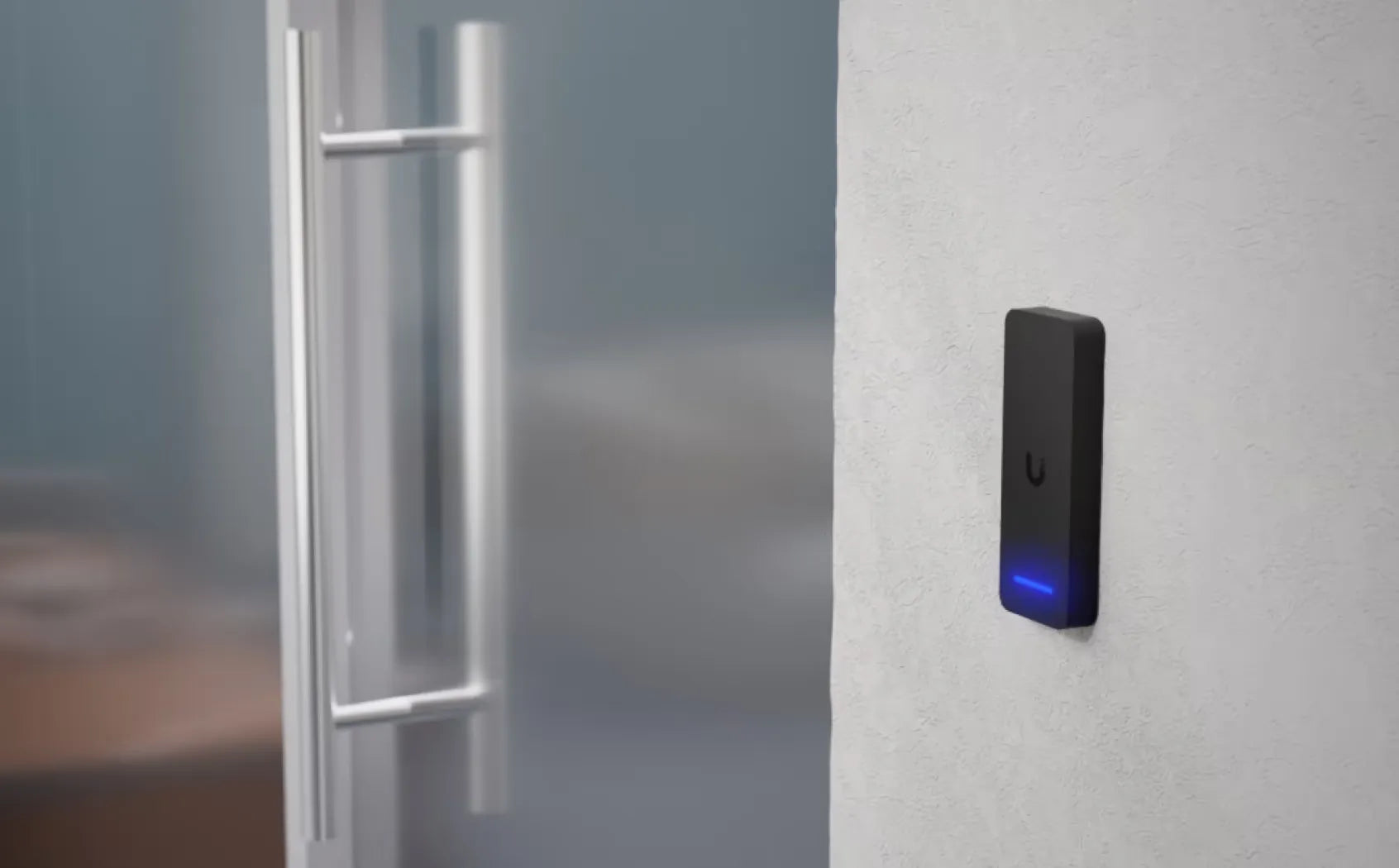

The Ubiquiti Retrofit Reader in Black is a versatile indoor and outdoor access control reader built on the OSDP v2 protocol. It supports NFC card and keyfob access along with Touch Pass functionality through Apple Wallet and Google Wallet, giving users multiple convenient ways to gain entry. The reader is compatible with the UniFi Retrofit Hub and can operate using existing cabling, making installation straightforward without the need for extensive rewiring. With IP55 rain resistance and a wide operating temperature range, this reader is designed to perform reliably in both indoor and outdoor environments.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Indoor and outdoor OSDP reader compatible with UniFi Retrofit Hub
- Works with existing cabling for simplified installation
- Touch Pass support through Apple Wallet and Google Wallet
- NFC card and keyfob access
- UniFi Identity Mobile Access support
- IP55 rain resistance rating
- Operates in temperatures from -30 to 45 degrees Celsius
- Powered via 12V DC
- NDAA compliant
Specifications:
- Dimensions: 117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5")
- Colour: Black
- Weight: 82 g (2.9 oz)
- Enclosure Material: Polycarbonate, aluminium alloy
- Mount Material: Stainless steel

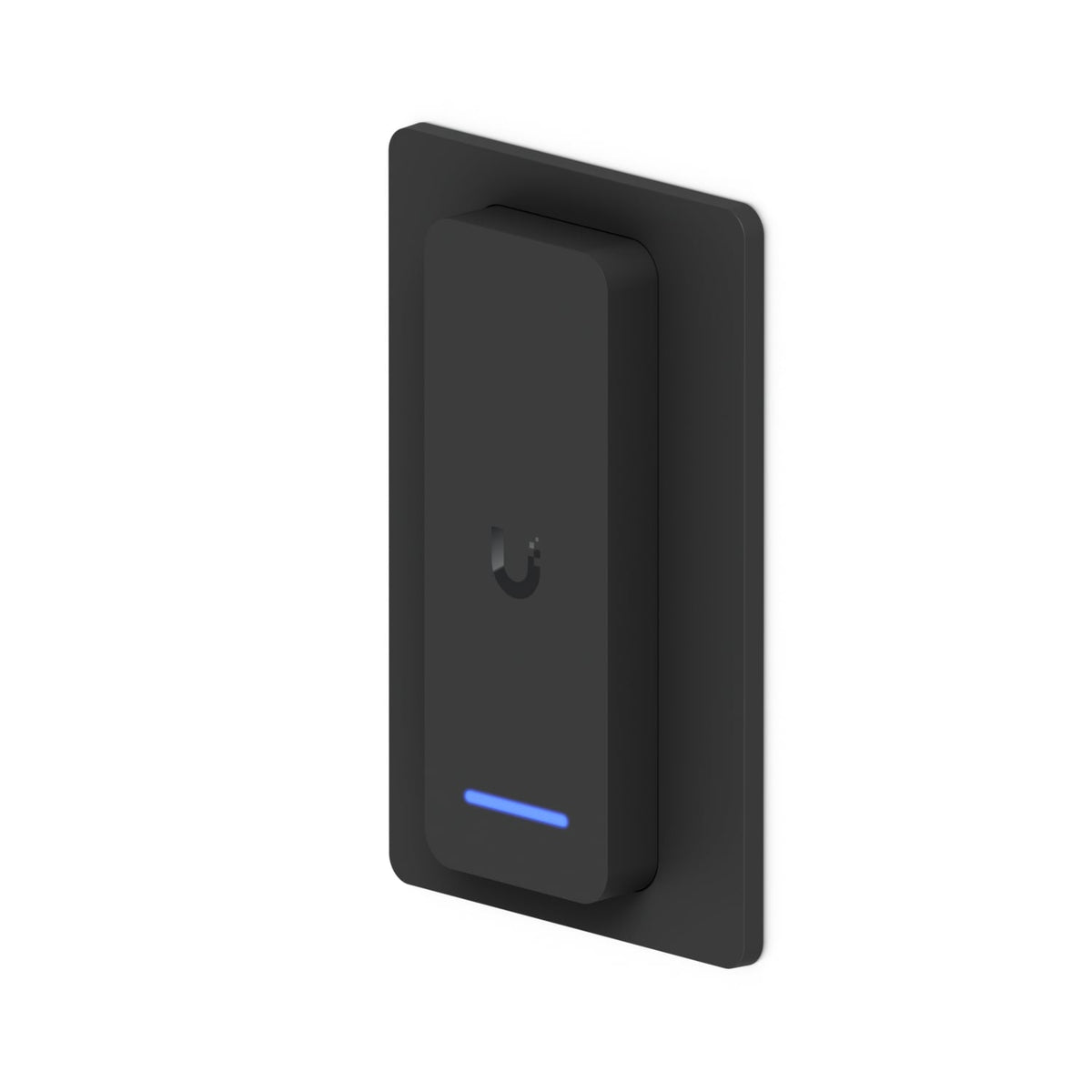

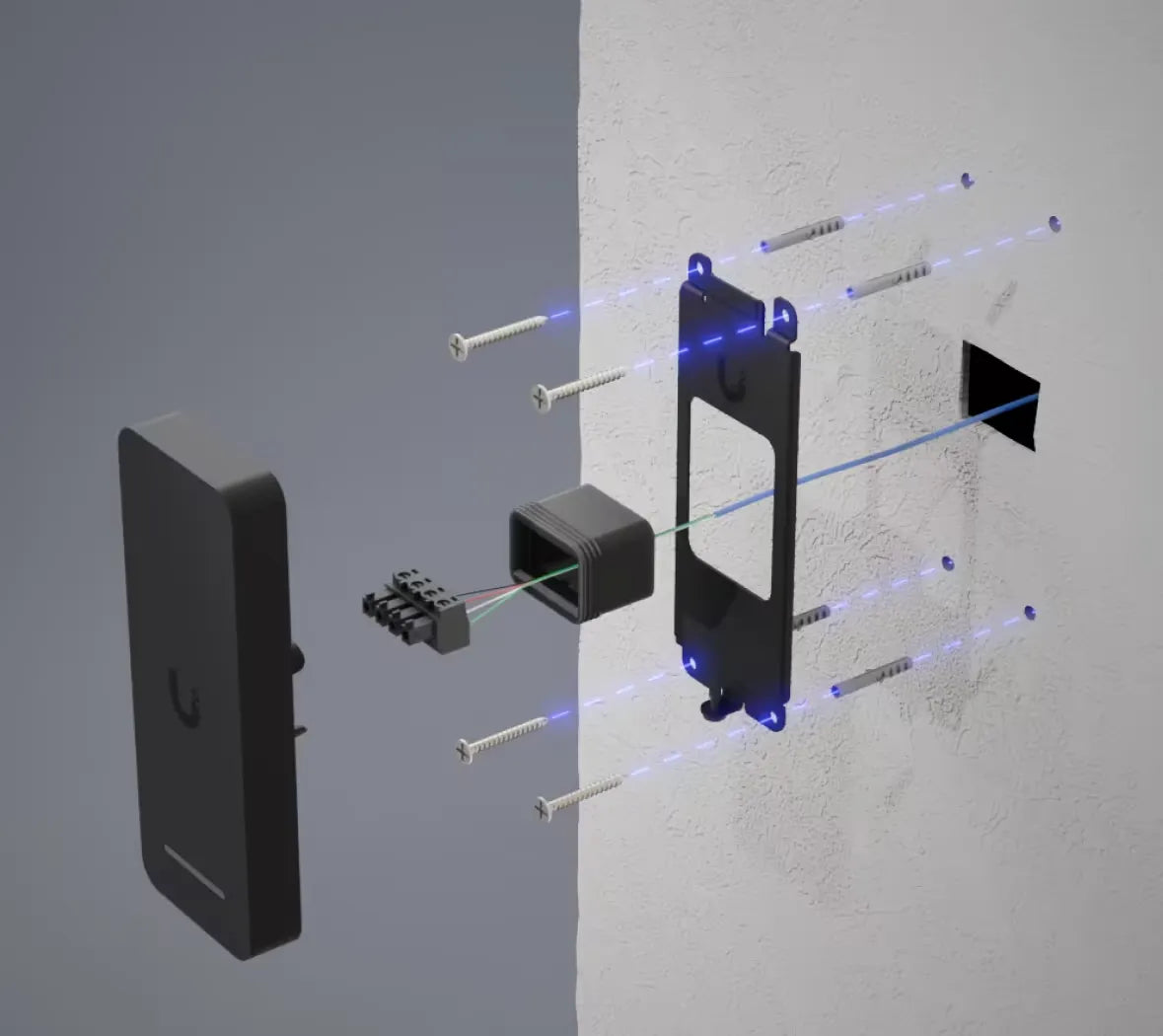

- Mounting: Wall, gang-box mount (included); junction box sold separately
- Indoor and Outdoor Use: Yes
- Connectivity: RS-485, BLE 4.1, NFC
- Security Protocol: OSDP v2
- Power Method: DC 12V
- Max Power Consumption: 2.5W
- Supported Voltage Range: 12V DC
- ESD/EMP Protection: Air ± 15 kV, contact ± 8 kV
- Speaker: 1x 0.7W
- LEDs: Red, Green, Blue, White
- Button: Factory reset
- NFC Frequency: 13.56 MHz
- NFC Read Range: Less than 30 mm (1.18")
- NFC Technology: ISO 14443A, 14443B, 15693
- Supported NFC Tags: MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire
- Certifications: CE, FCC, IC
- Ambient Operating Temperature: -30 to 50°C (-22 to 122°F)
- Ambient Operating Humidity: 5 to 90% noncondensing
- Management Application: UniFi Access
