Description:

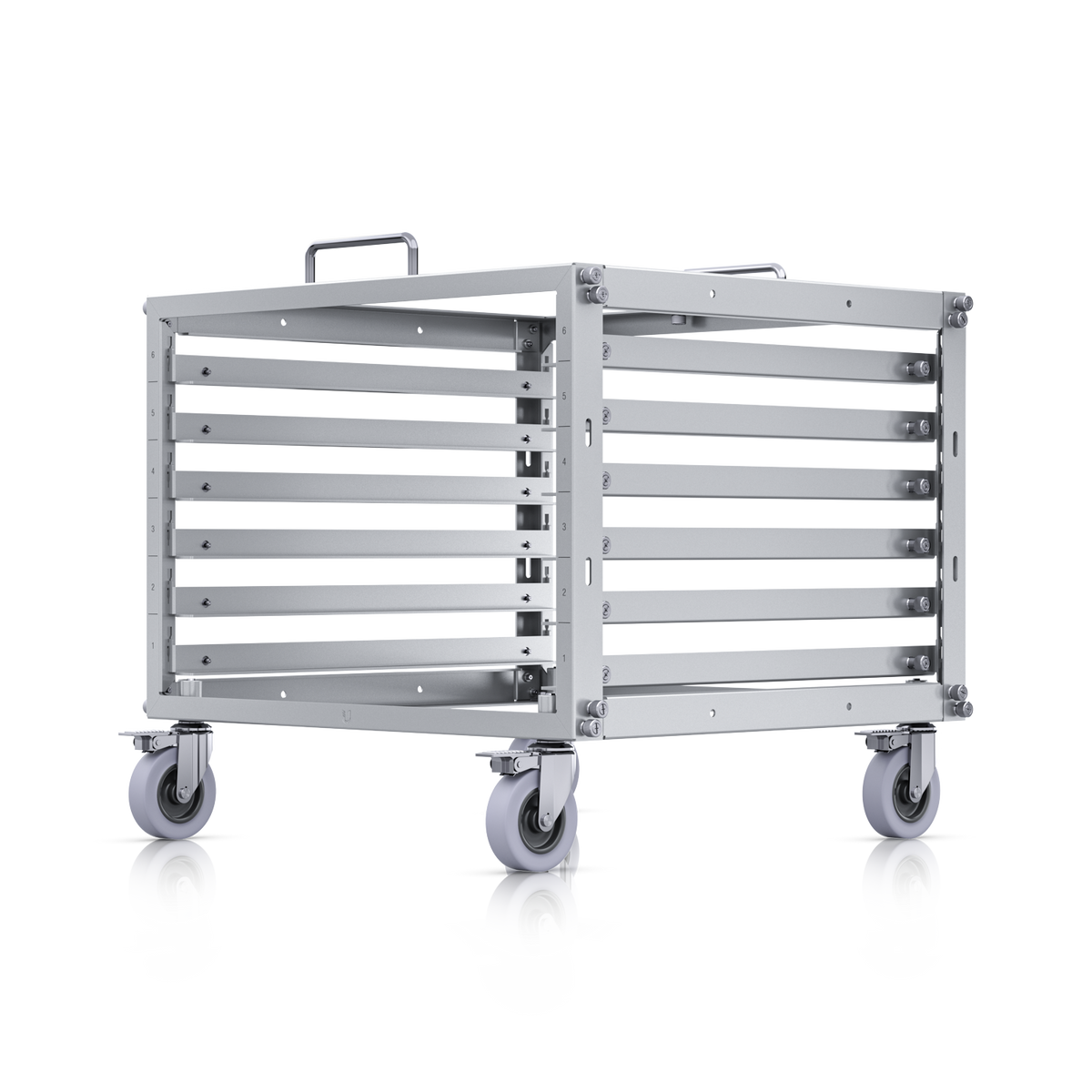

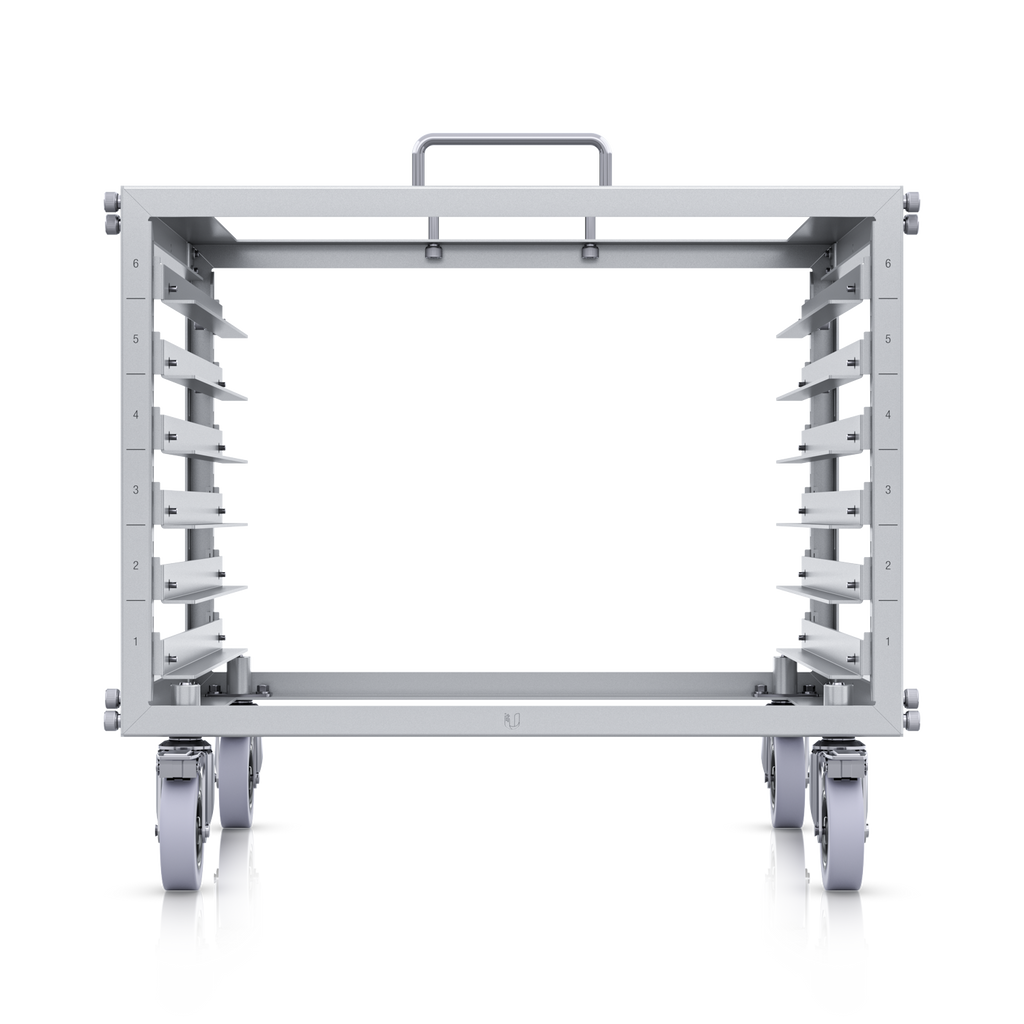

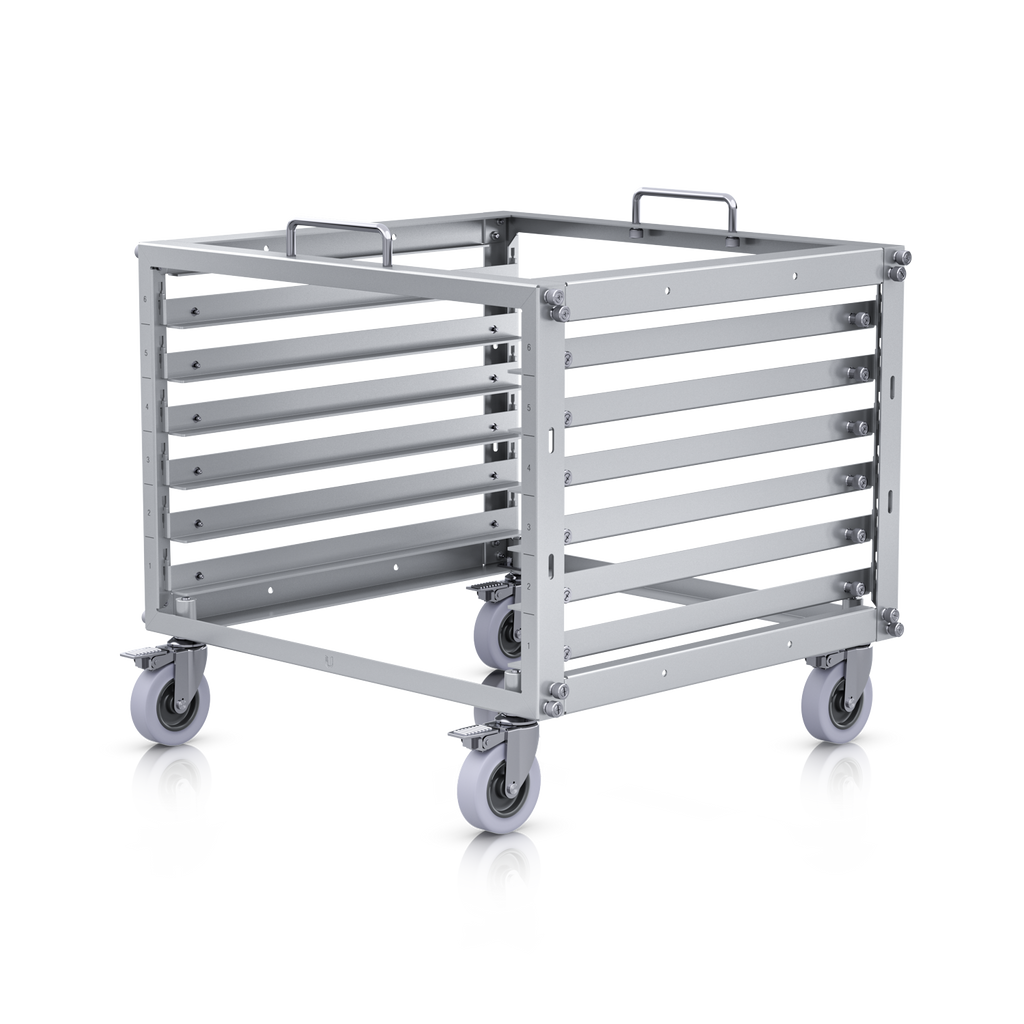

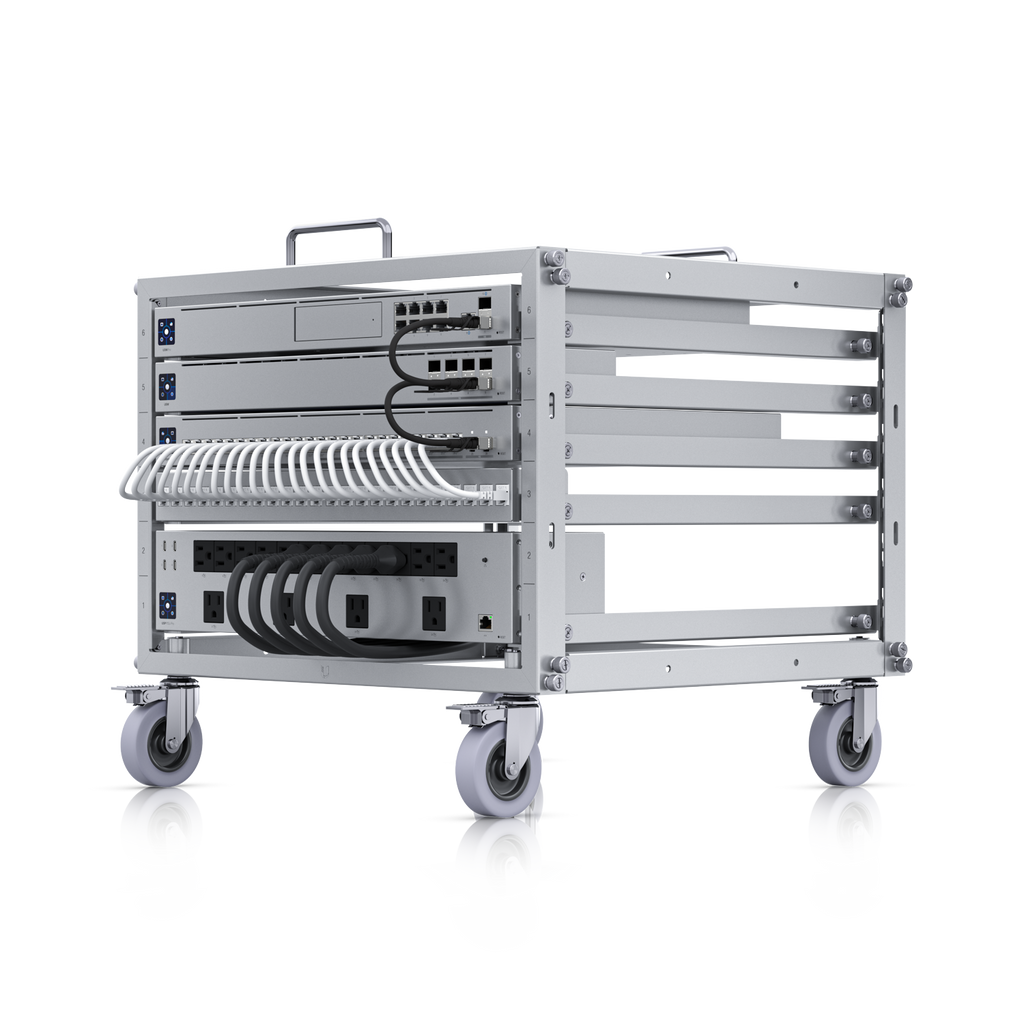

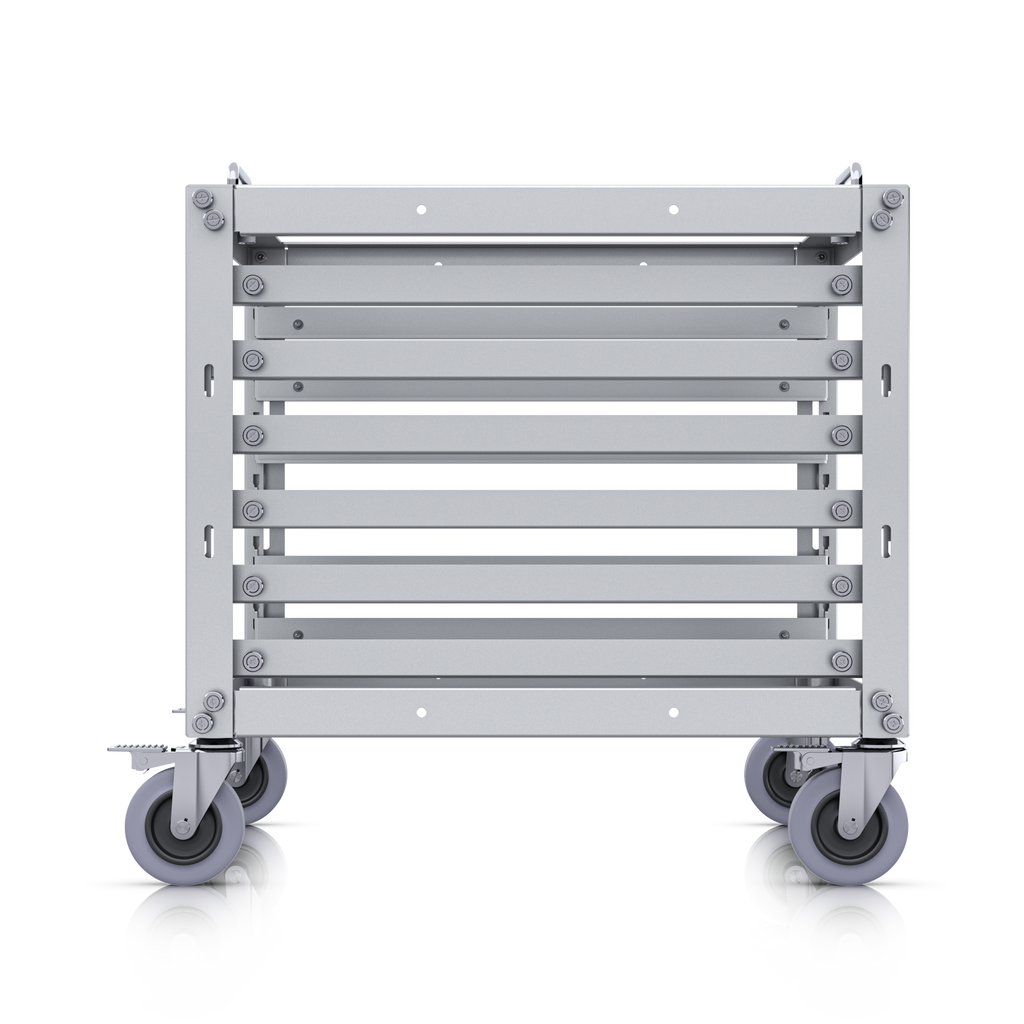

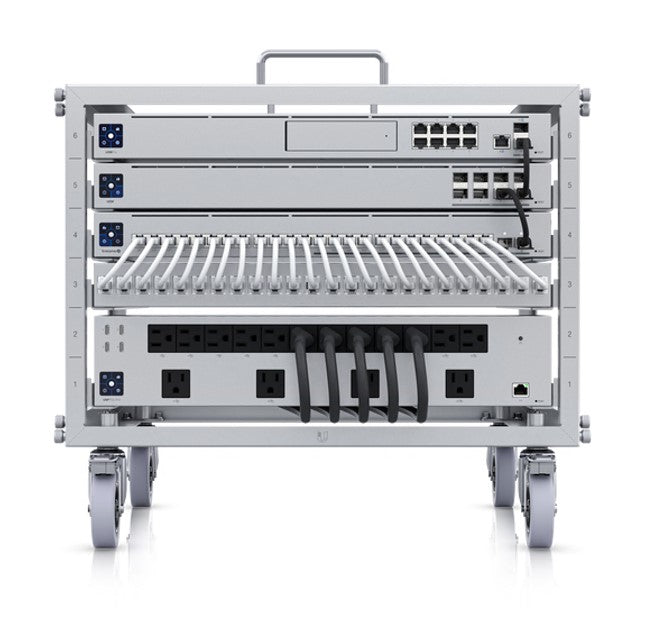

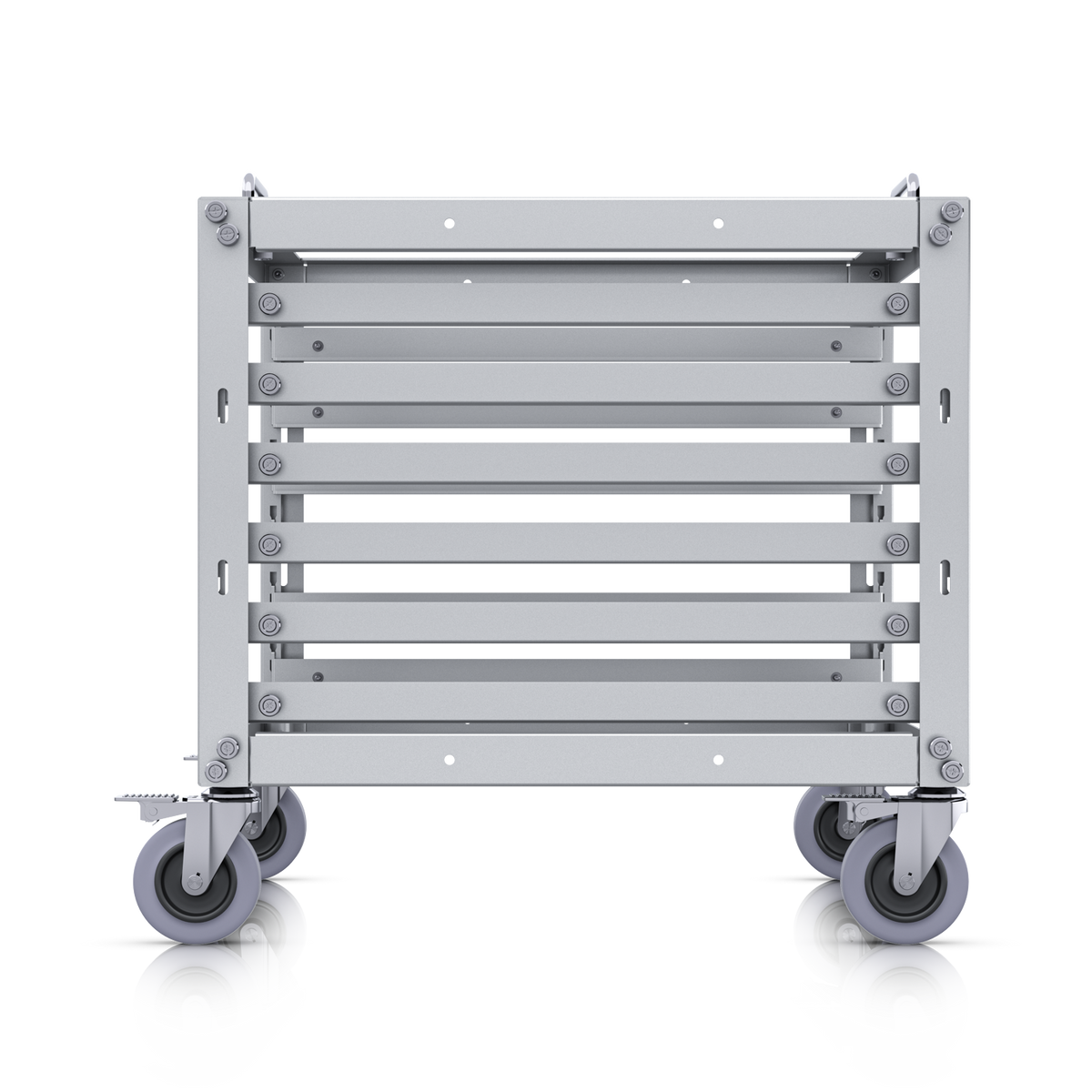

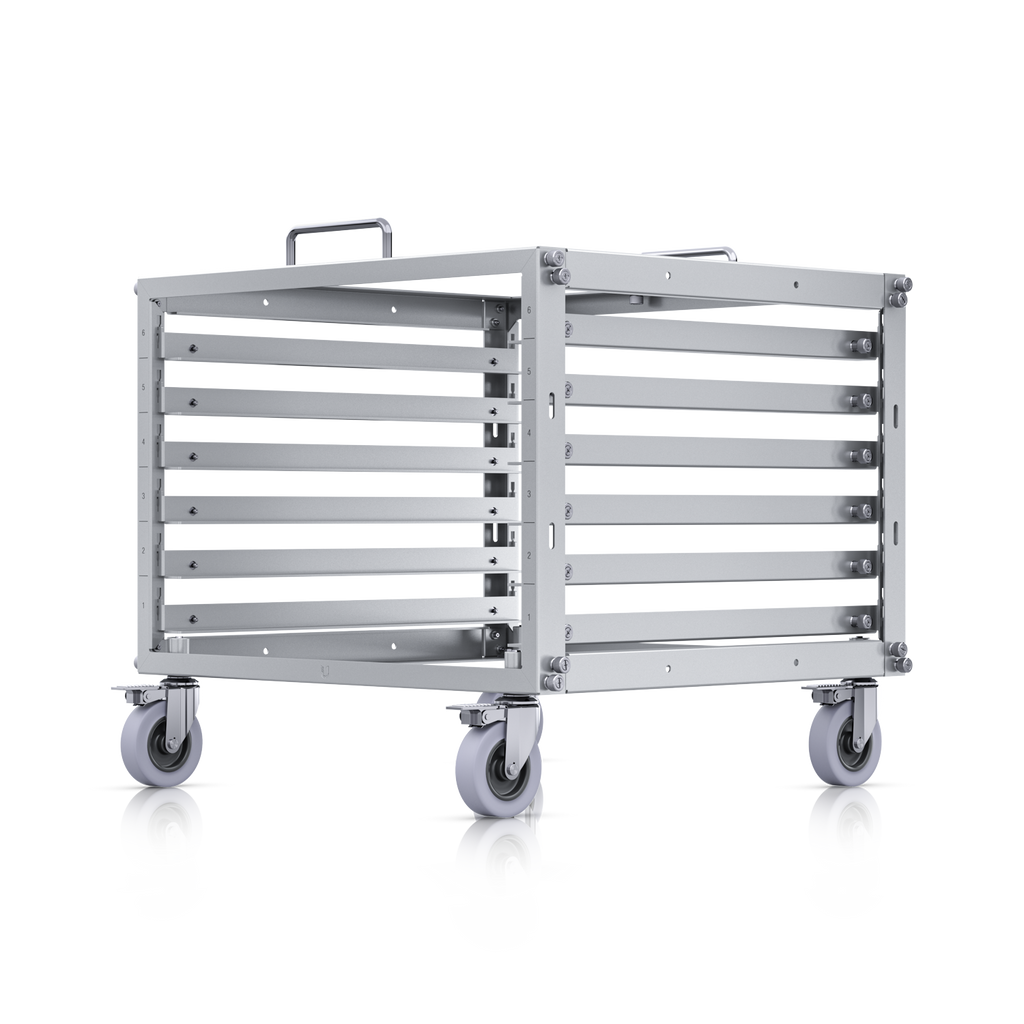

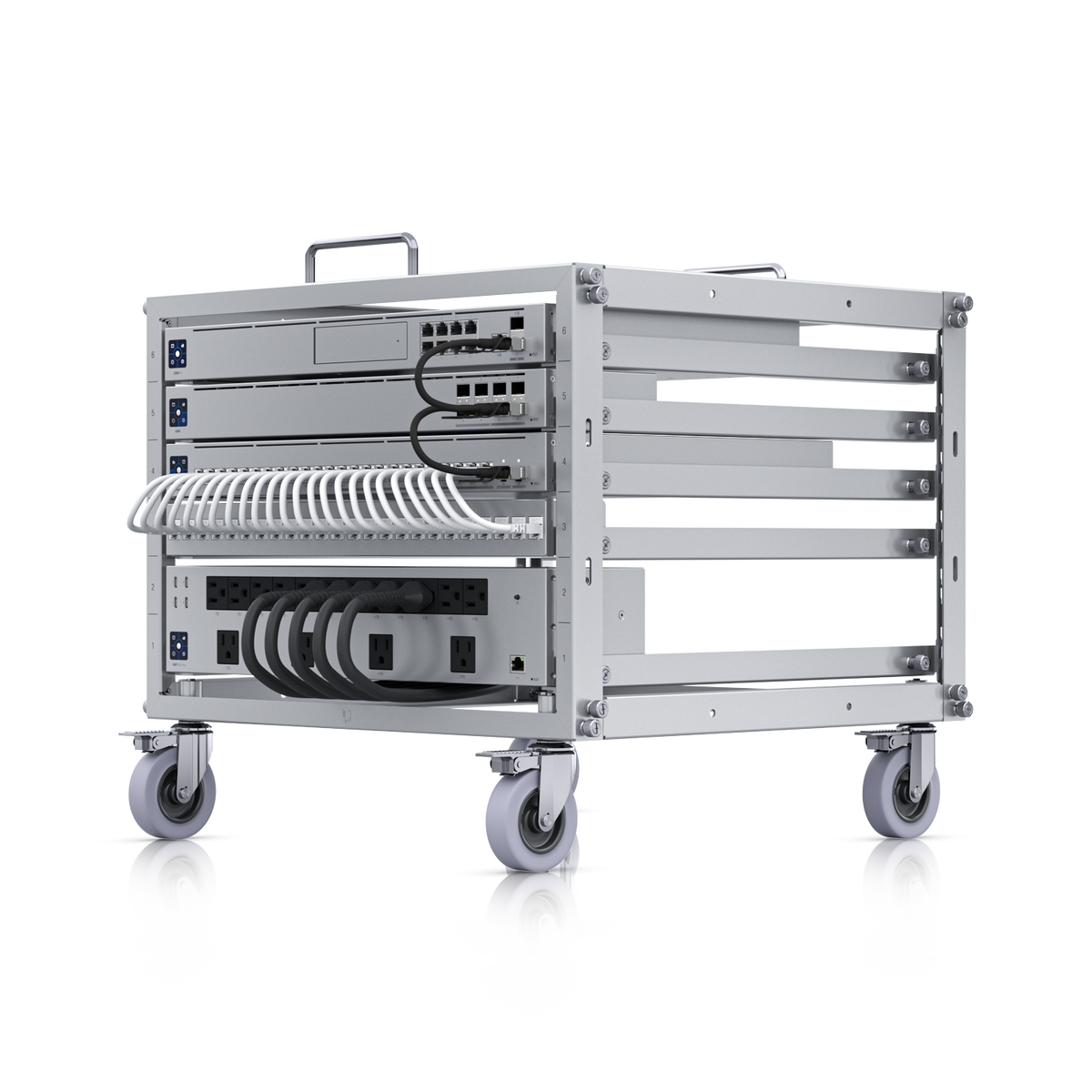

The Toolless Mini Rack from Ubiquiti is a compact, stackable, 6U open frame rack designed specifically for UniFi rack mount devices. It features toolless assembly and device mounting, allowing for quick setup without additional tools. Two units can be combined into a 12U rack using a separate stacking kit, offering scalability as networking needs grow.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Stackable design, combine two units into a 12U rack with a stacking kit
- Toolless assembly and toolless device mounting
- Lockable casters for secure and mobile positioning
- Floor stand mounting for stable placement
- Constructed from durable SPCC steel with a stainless steel handle
- Liquid coating treatment for enhanced durability
Specifications:
- Colour: Silver
- Dimensions With Handle and Caster: 519 x 460 x 485 mm (20.43 x 18.11 x 19.09 inches)
- Dimensions Without Handle and Caster: 519 x 460 x 351 mm (20.43 x 18.11 x 13.82 inches)
- Weight: 10.3 kg (22.7 lb)
- Maximum Weight Capacity, Single Rack Static: 80 kg (176 lb)
- Maximum Weight Capacity, Single Rack Rolling: 45 kg (99 lb)
- Maximum Weight Capacity, Double Rack with Stacking Kit Static: 70 kg (154 lb)
- Maximum Weight Capacity, Double Rack with Stacking Kit Rolling: 35 kg (77 lb)
- Enclosure Material, Frame/Bracket: SPCC steel
- Enclosure Material, Handle: Stainless steel
- Treatment: Liquid coating
- U Height: 6U
- Rack Type: Open frame
- Mounting: Floor stand
- Lockable Casters: Yes
- NDAA Compliance: Yes
- Incompatible Devices: UniFi Switch Gen1, US-24-250W, US-24-500W, US-48-500W, US-48-750W, USG, USG-Pro-4, EdgeSwitch ES-24-250W, ES-24-500W, ES-48-500W, ES-48-750W, EdgeRouter ER-8, CKG2-RM, ER-RMKIT, UACC-Pro-Max-16-RM
