Description

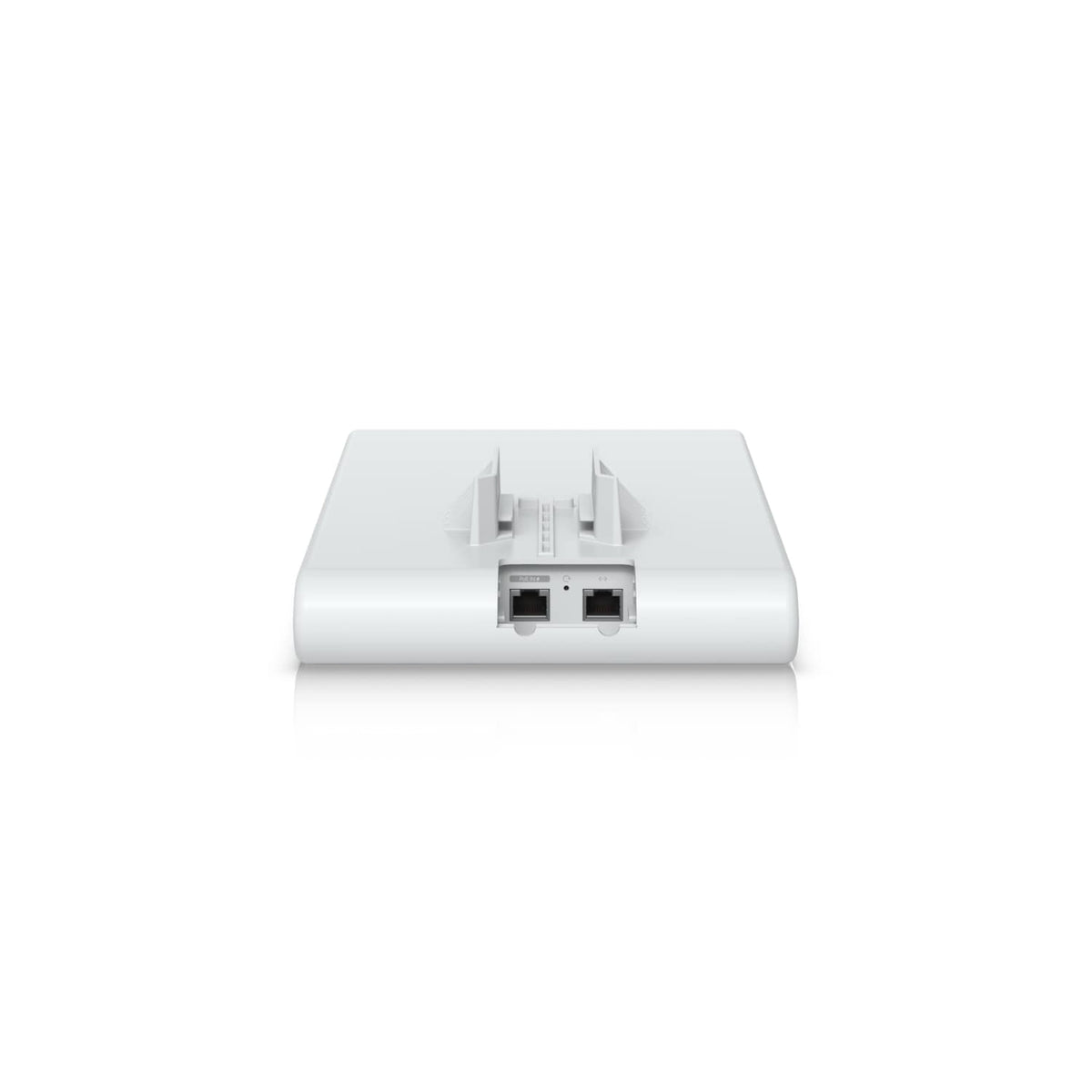

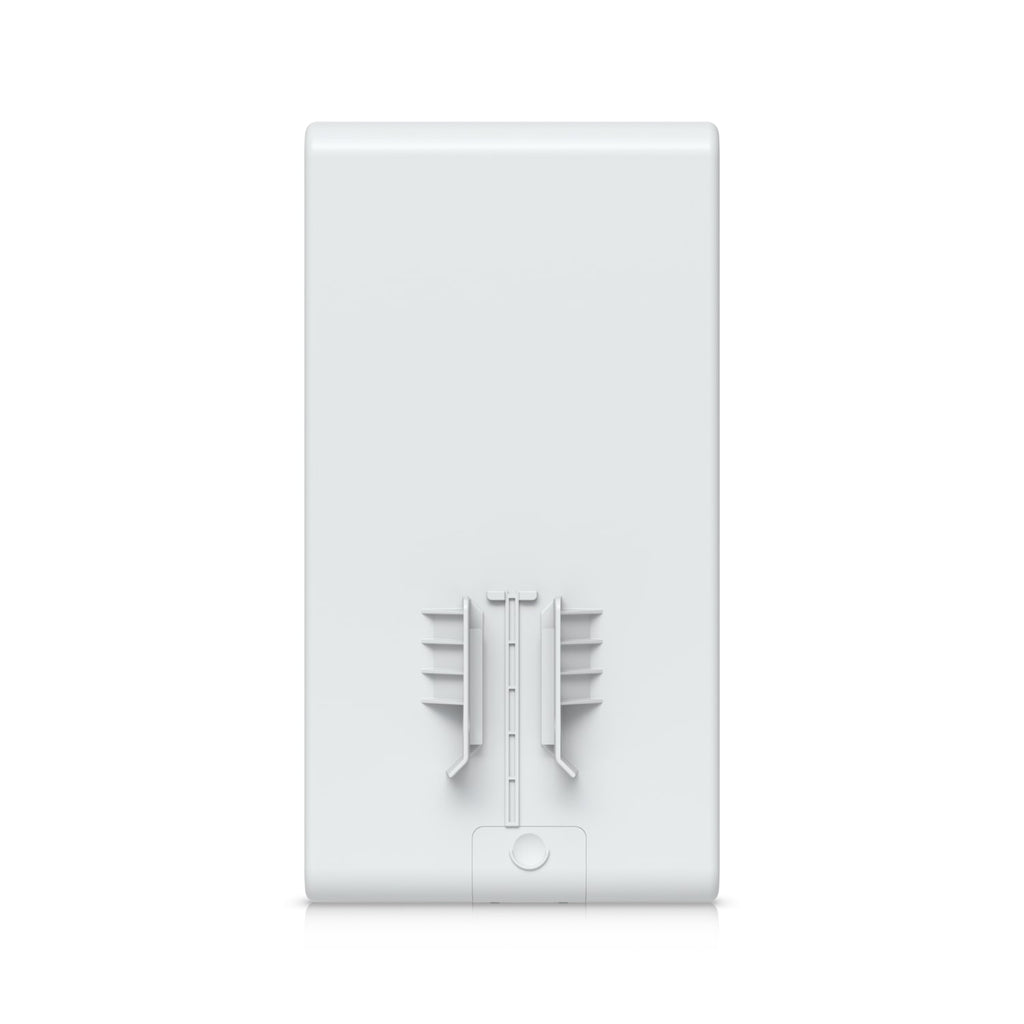

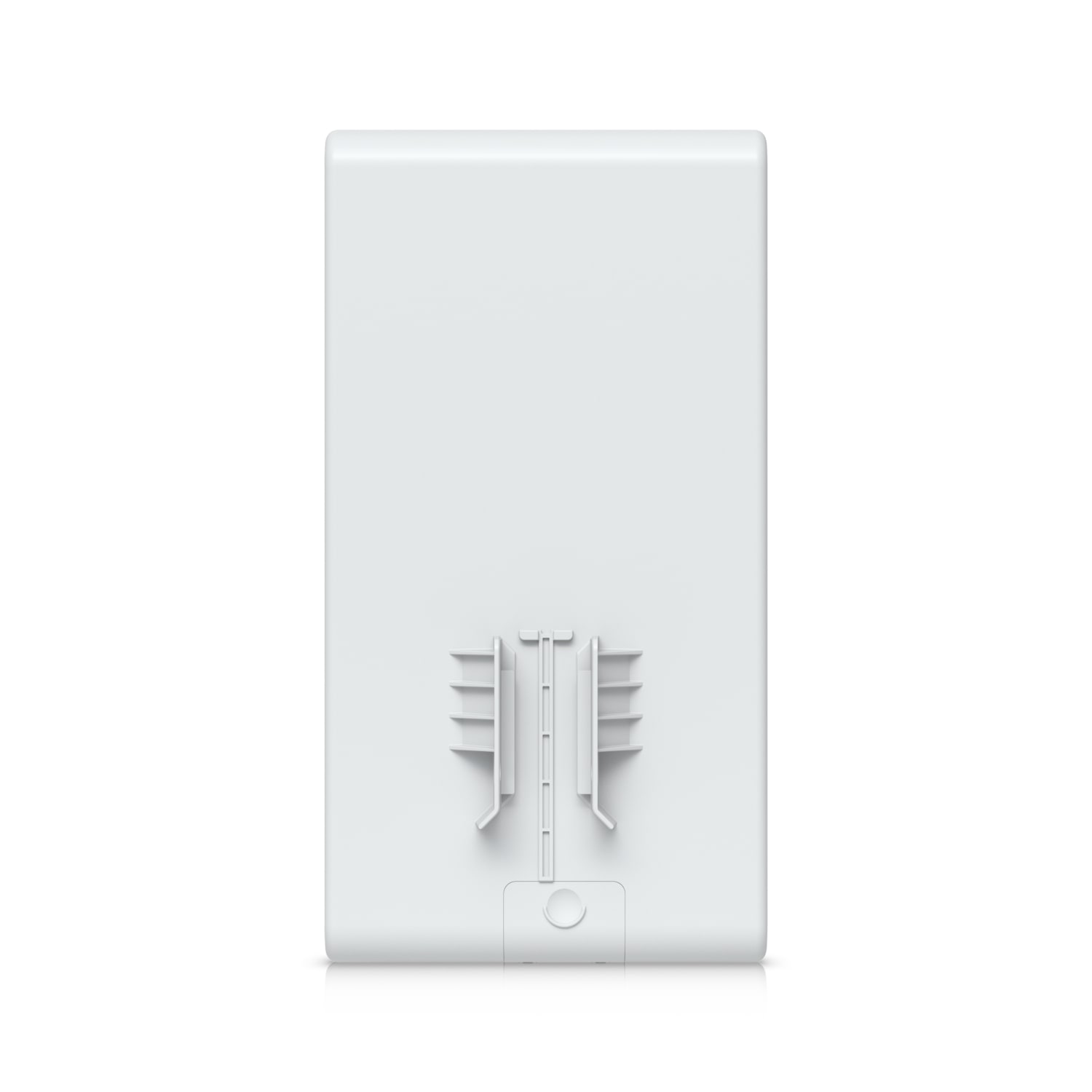

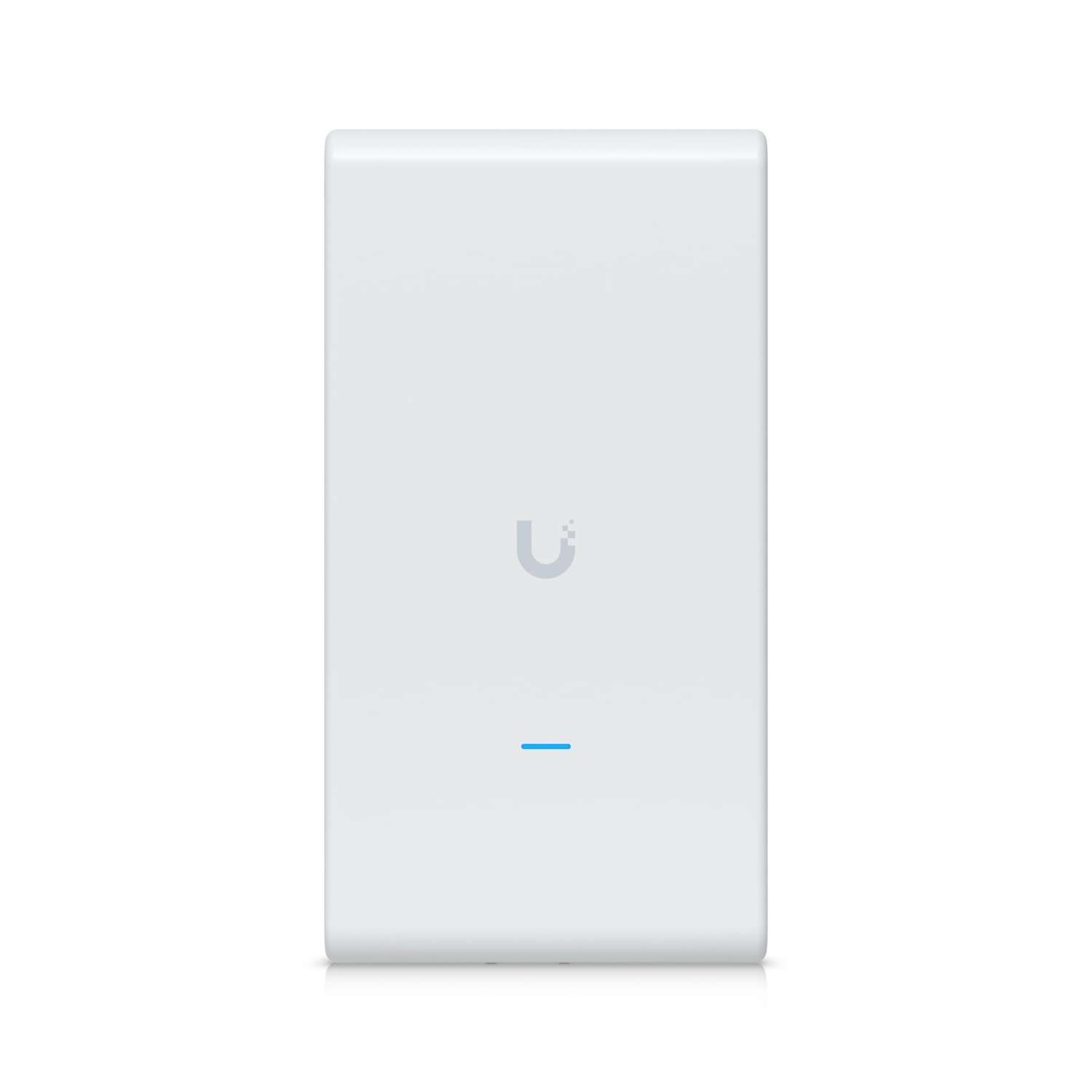

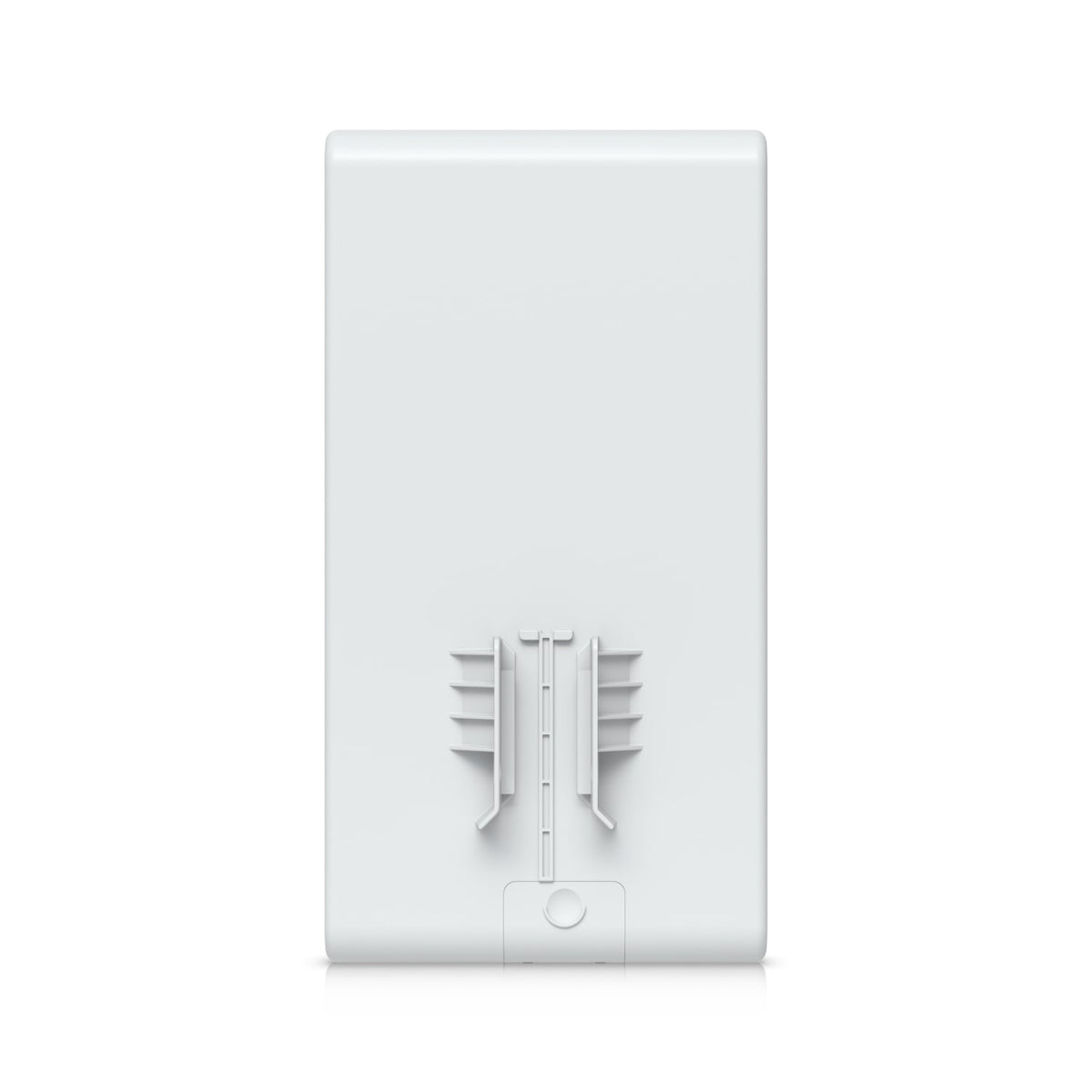

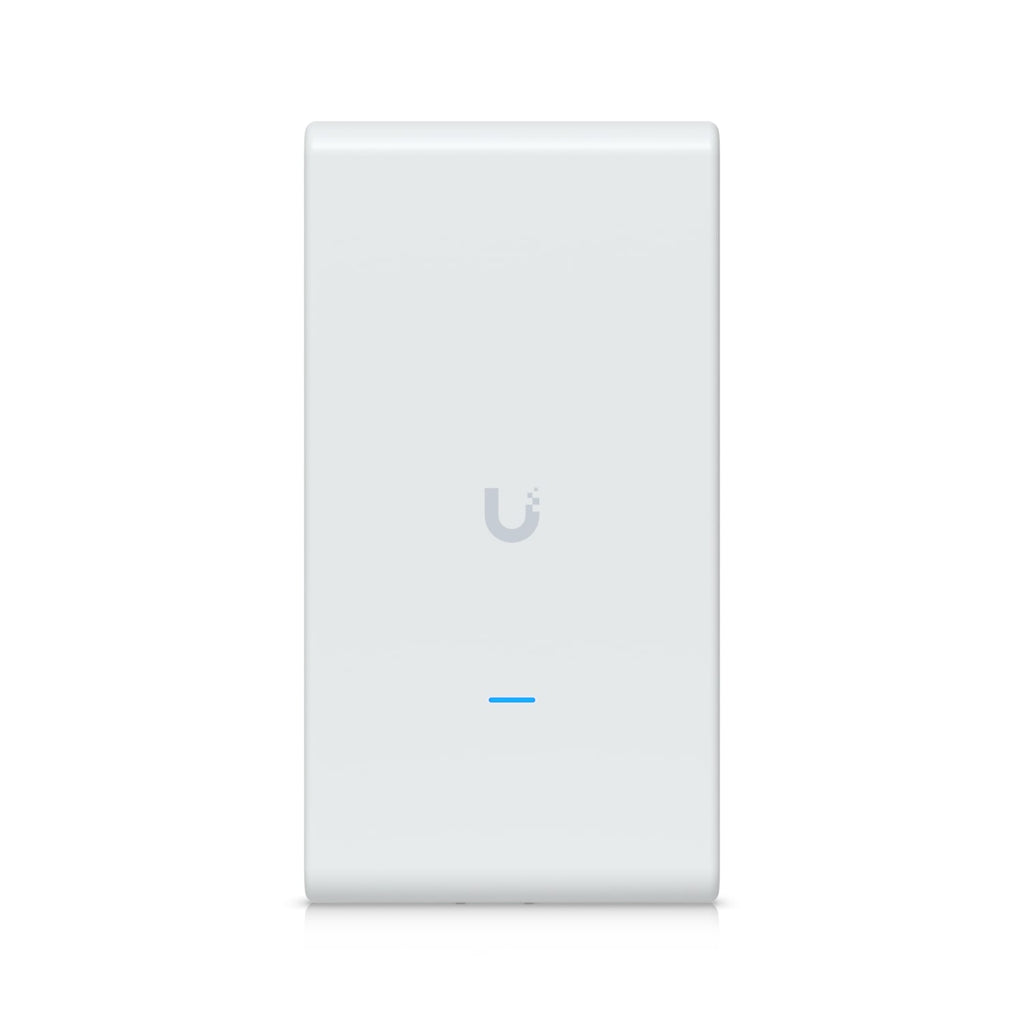

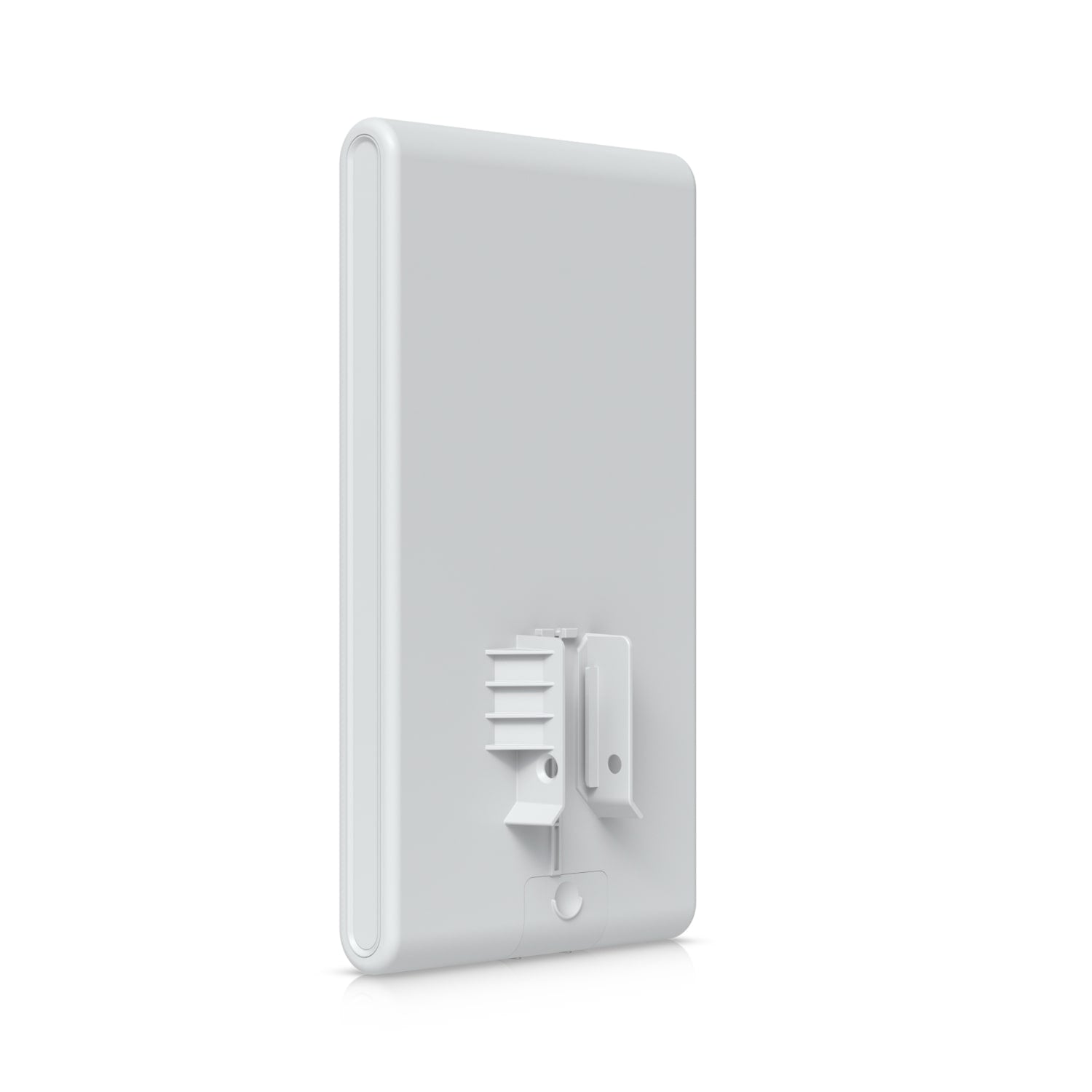

The Ubiquiti U6 Mesh Pro is an indoor/outdoor WiFi 6 access point with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port. The integrated omnidirectional super antenna delivers coverage of 185 m² (2,000 ft²), supporting over 350 connected devices with data rates of up to 2.4 Gbps on the 5 GHz band and 573.5 Mbps on the 2.4 GHz band. Powered using PoE with a GbE uplink and one GbE passthrough port, it offers versatile wall and pole mounting options with mounts included. Its IPX6 rated weatherproof, UV stabilized polycarbonate enclosure makes it suitable for outdoor exposed installations.
Features
- WiFi 6
- 4 spatial streams
- 185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
- 350+ connected devices
- Powered using PoE
- GbE uplink with 1 GbE passthrough port
- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
Specifications
- Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4 inches)
- WiFi standard: WiFi 6
- Spatial streams: 4
- Coverage area: 185 m² (2,000 ft²)
- Maximum client count: 250+
- Uplink: GbE
- Mounting: Wall, pole (mounts included)
- Weatherproofing: IPX6
- Power method: PoE
- MIMO: 5 GHz 2 x 2 (DL/UL MU-MIMO), 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
- Maximum data rate: 5 GHz 2.4 Gbps (BW160), 2.4 GHz 573.5 Mbps (BW40)
- Antenna gain: 5 GHz 8 dBi, 2.4 GHz 8 dBi
- Maximum TX power: 5 GHz 27 dBm, 2.4 GHz 22 dBm
- Maximum BSSIDs: 8 per radio
- Supported data rates: 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps, 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps, 802.11n 6.5 Mbps to 300 Mbps
- Features: Wireless meshing, band steering, 802.11v BSS transition management, 802.11r fast roaming, 802.11k radio resource management, advanced radio management, Passpoint (Hotspot 2.0), captive hotspot portal with custom branding landing page, voucher authentication, payment based authentication, external portal server support, password authentication, guest network isolation, private pre shared key (PPSK), WiFi speed limiting, client device isolation, WiFi schedules, RADIUS over TLS (RadSec), dynamic RADIUS assigned VLAN
- Maximum power consumption: 9W
- Includes PoE adapter: Yes
- Supported voltage range: 42.5 to 57V DC
- Networking interface: 2 GbE RJ45 ports
- Weight: 819 g (1.8 lb)
- Pole mount diameter: 25 to 63.5 mm (1 to 2.5 inches)
- Management: Ethernet, WiFi
- Enclosure material: UV stabilized polycarbonate
- Mount material: Aluminum alloy, steel
- LEDs: System white/blue
- Channel bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
- Operating frequency US/CA: 2400 to 2472 MHz, U-NII-1 5150 to 5250 MHz, U-NII-2A 5250 to 5350 MHz, U-NII-2C 5470 to 5725 MHz, U-NII-3 5725 to 5850 MHz
- Operating frequency worldwide: 2400 to 2483.5 MHz, 5150 to 5850 MHz
- Ambient operating temperature: -30 to 60° C (-22 to 140° F)
- Ambient operating humidity: 5 to 95% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 06377-24-08356
- Application requirements: UniFi Network version 8.1.127 and later
Note: For installation assistance, you can contact us or reach out directly to the brand.
Package Contents
- Ubiquiti U6 Mesh Pro Access Point
- PoE adapter
- Wall mount
- Pole mount
