Description

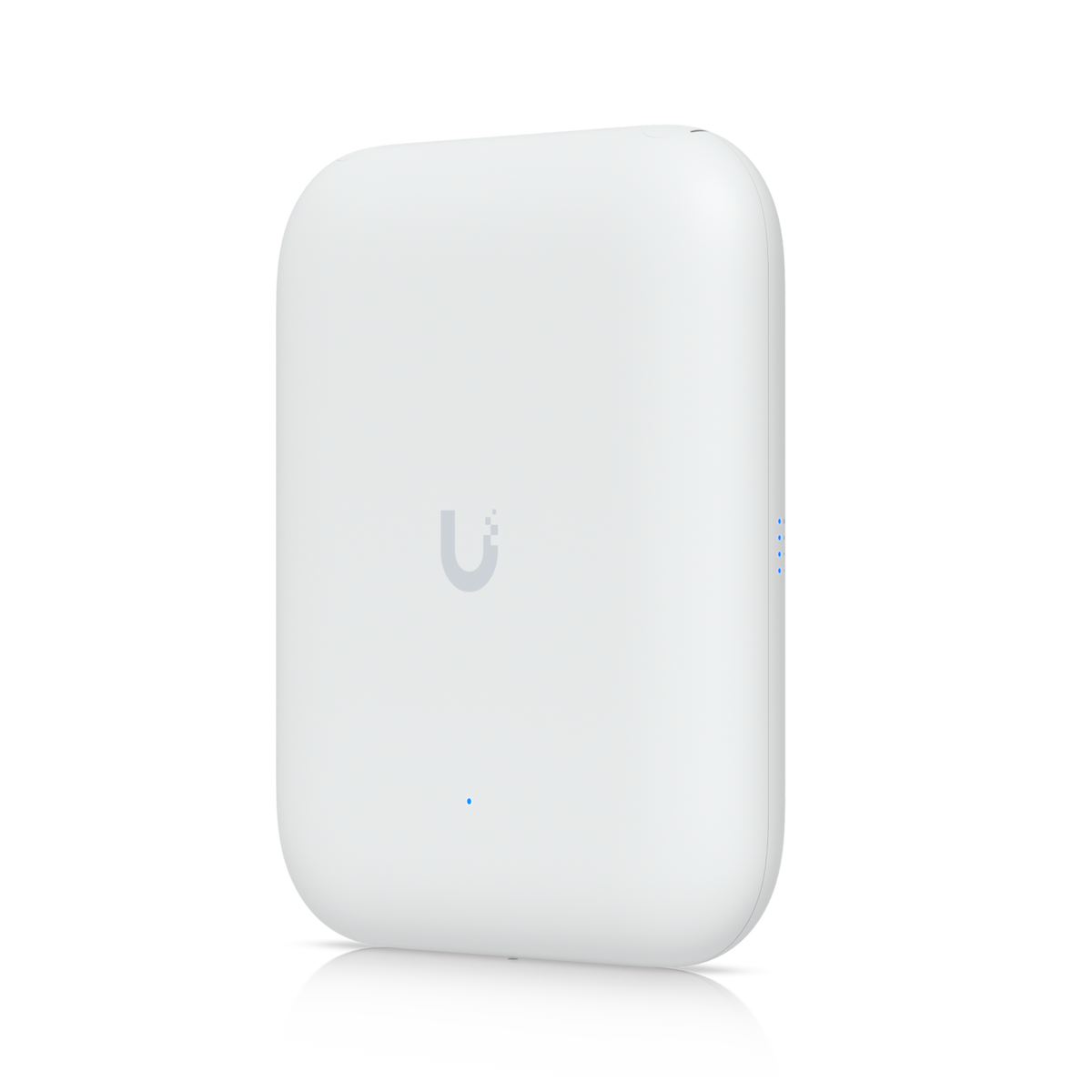

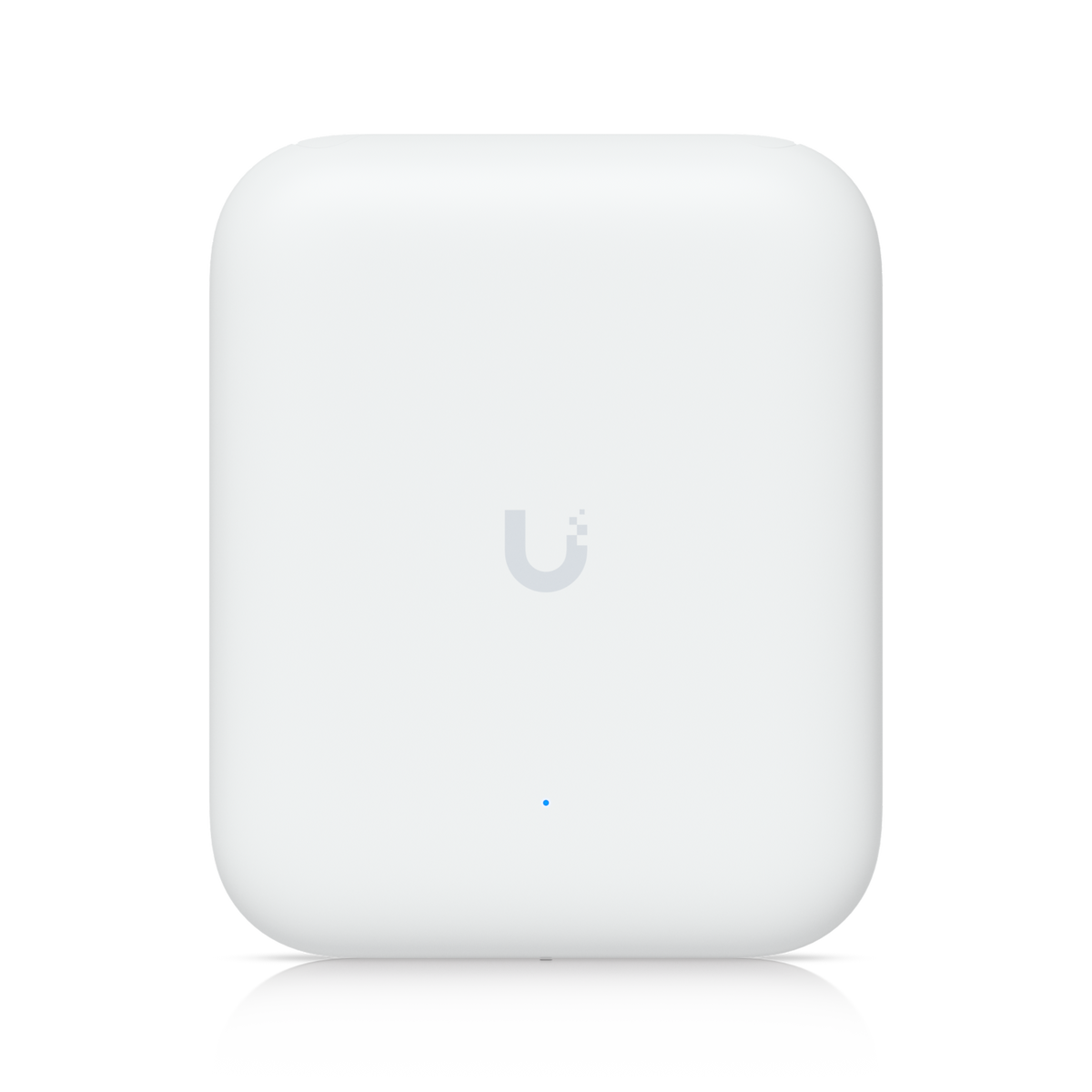

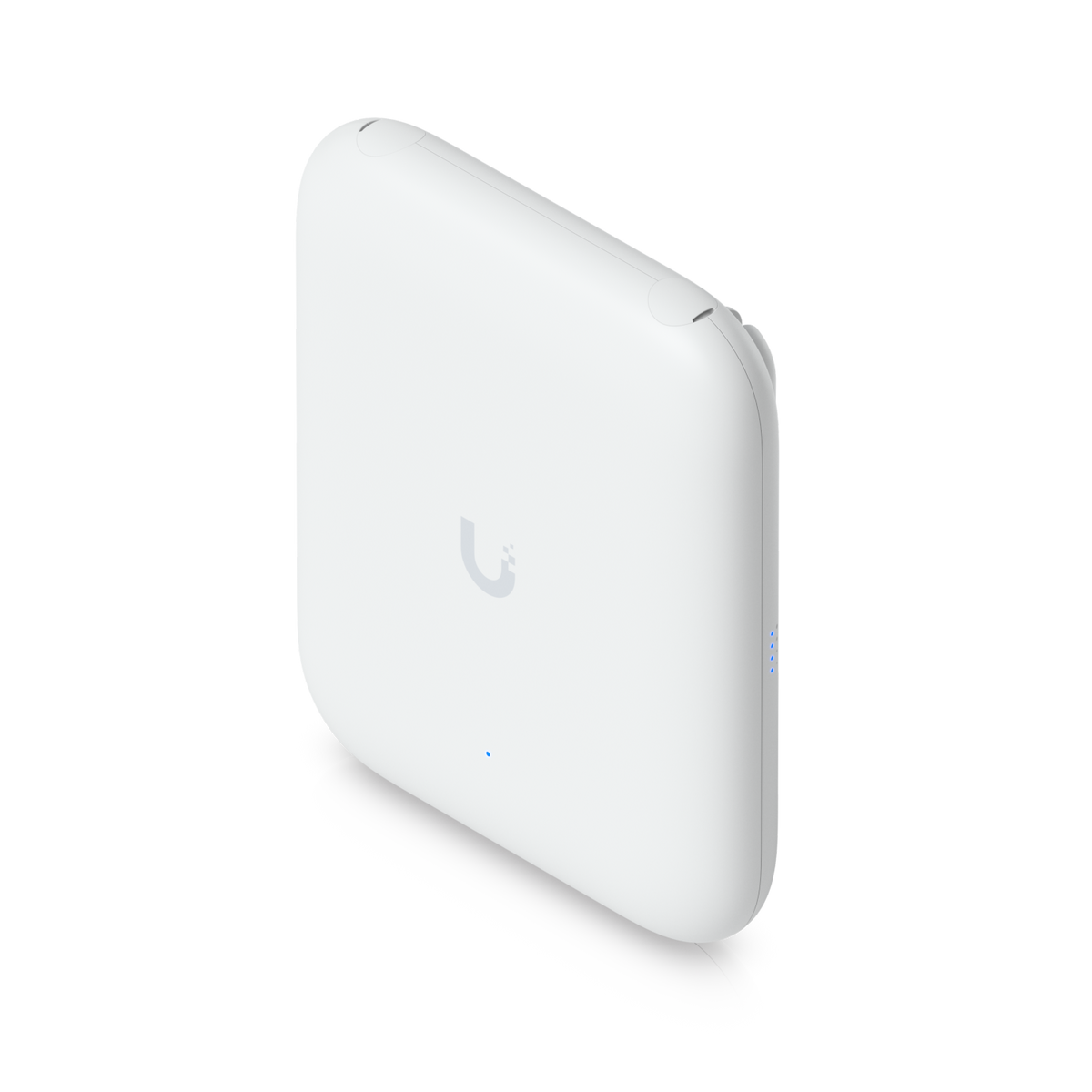

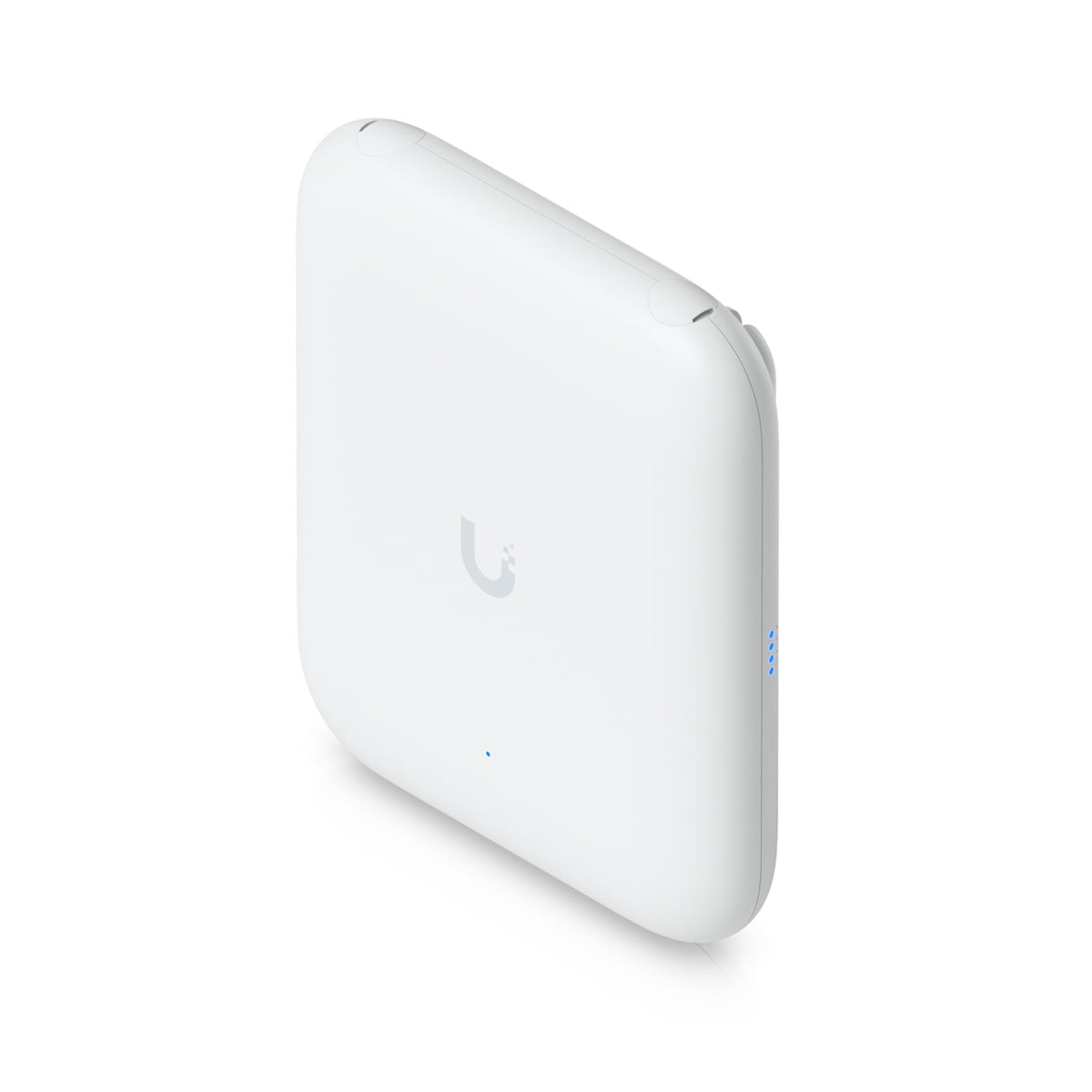

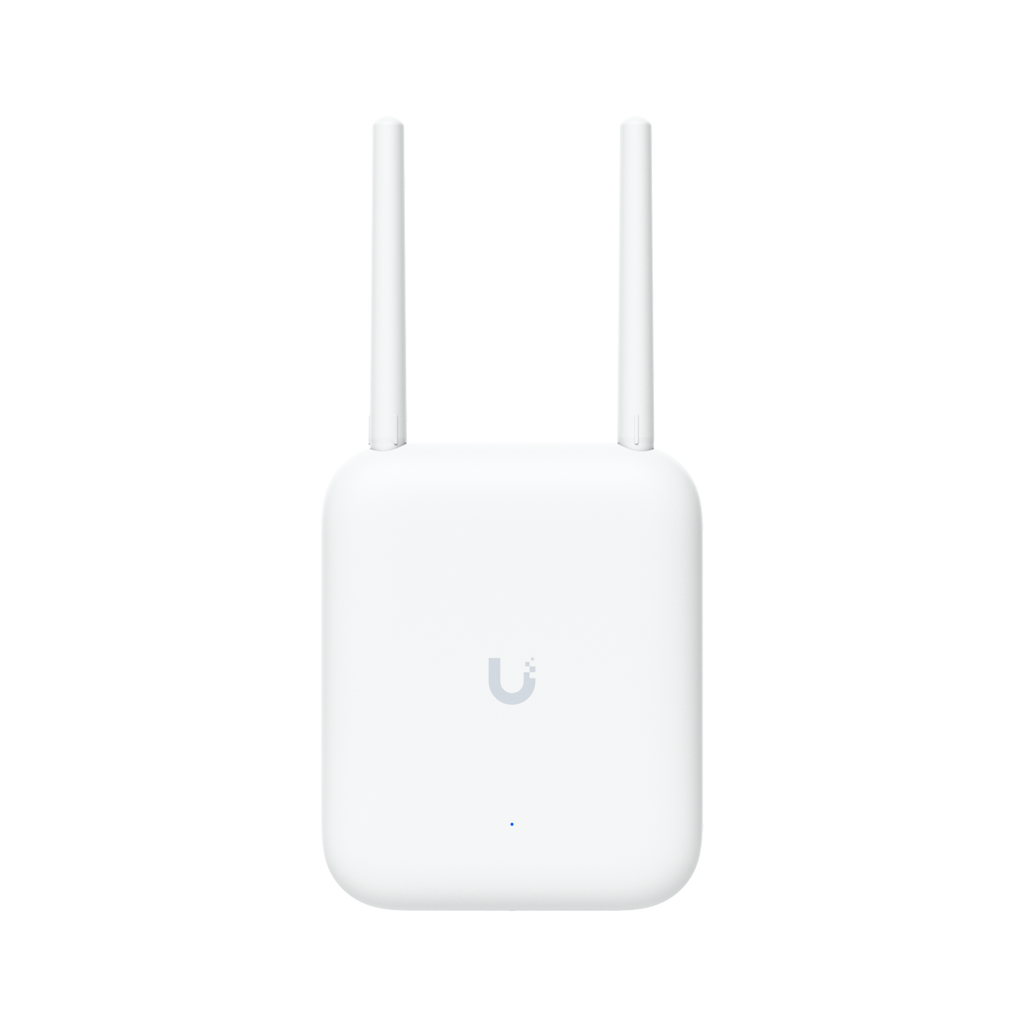

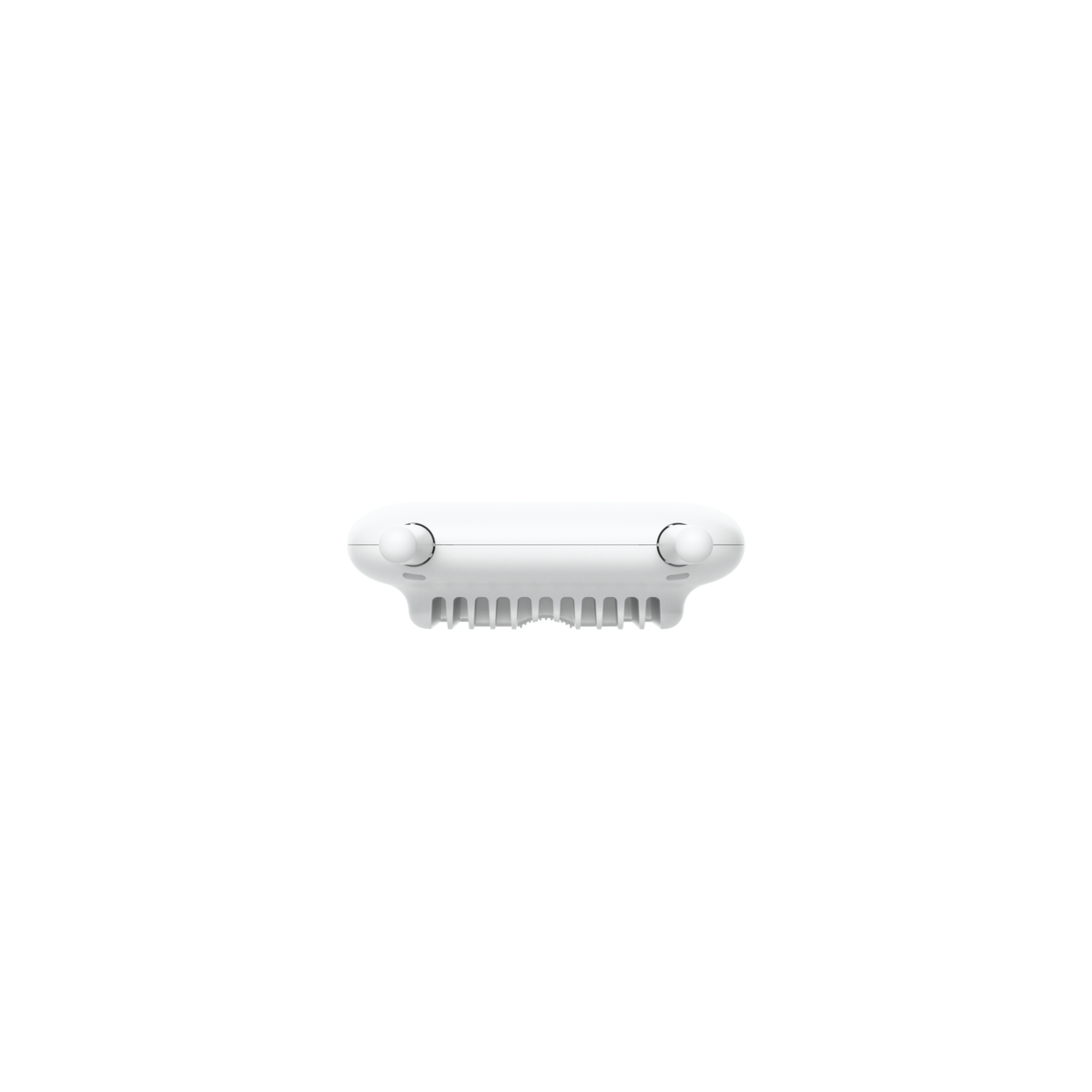

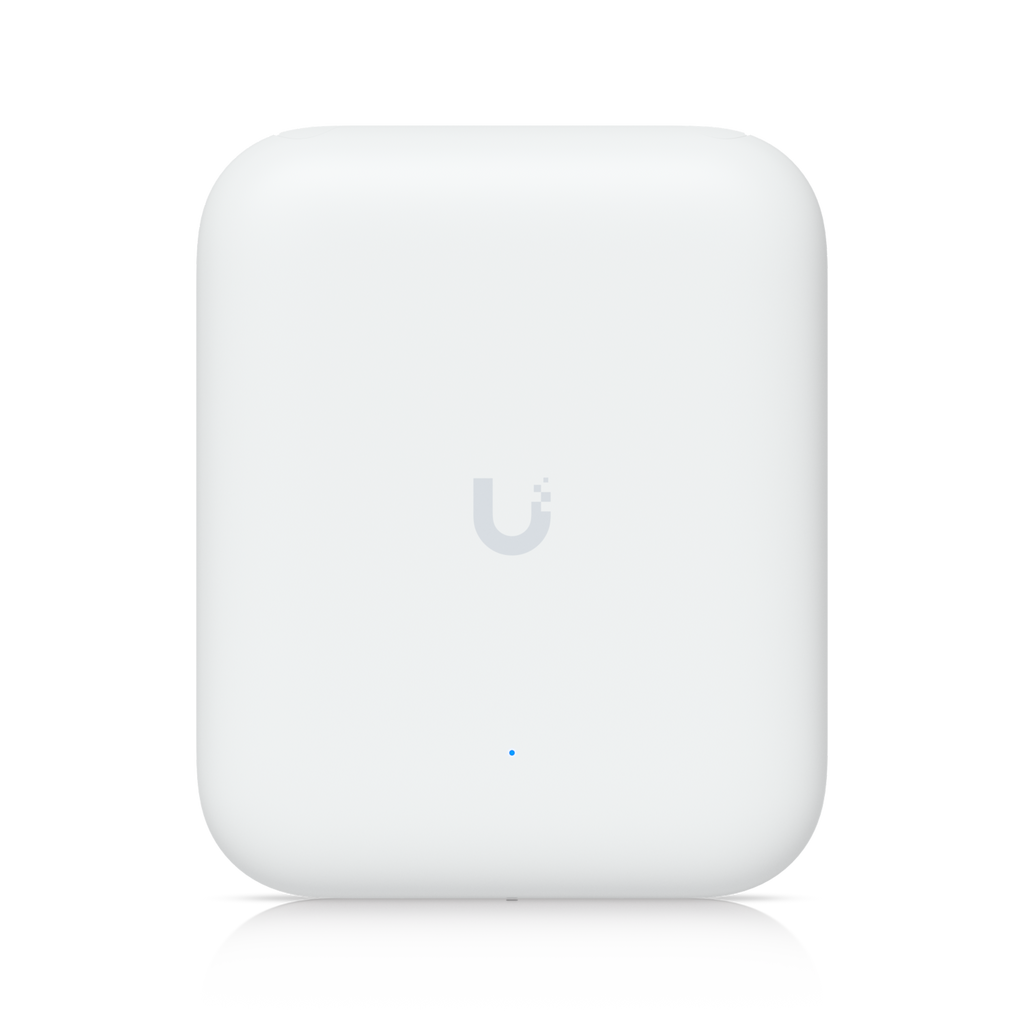

The Ubiquiti U7 Outdoor is an all weather WiFi 7 access point with 4 spatial streams, an integrated directional super antenna, and versatile mounting options. The integrated directional super antenna provides 465 m² (5,000 ft²) of open space coverage, while software adjustable antenna beamwidth enables balanced coverage with the included omni antennas. Supporting over 200 connected devices with data rates of up to 4.3 Gbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band, it is powered using PoE+ and connects via a 2.5 GbE uplink. Its IPX6 rated weatherproof enclosure of UV stabilized polycarbonate and aluminum alloy suits outdoor exposed installations, with versatile wall and pole mounting hardware included.
Features
- WiFi 7
- 4 spatial streams
- 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
- Software adjustable antenna beamwidth for balanced coverage with the included omni antennas
- 200+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
Specifications
- Dimensions: 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1 inches)
- WiFi standard: WiFi 7
- Spatial streams: 4
- Coverage area: 465 m² (5,000 ft²)
- Maximum client count: 250+
- Uplink: 2.5 GbE

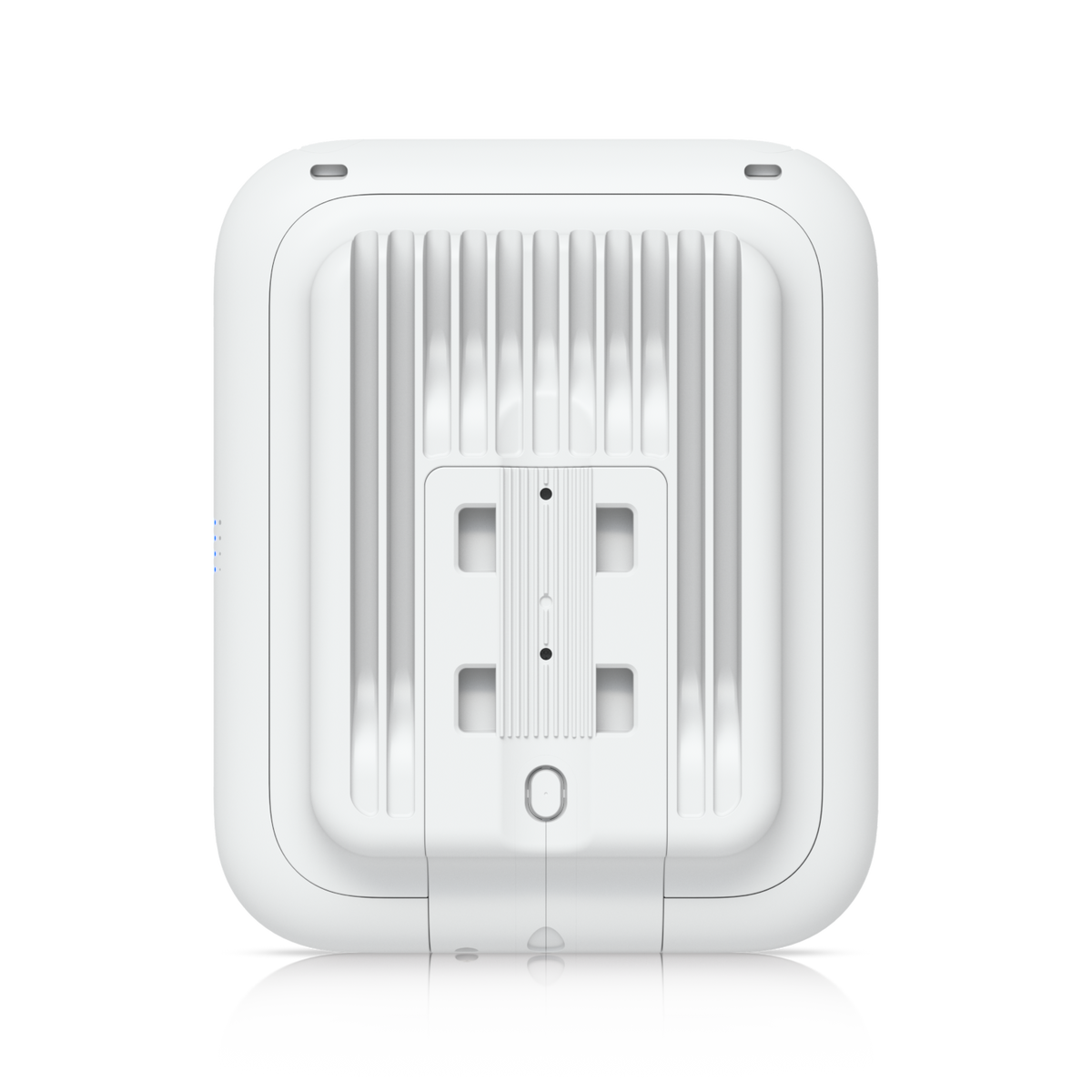

- Mounting: Wall, pole (mounts included)
- Weatherproofing: IPX6
- Power method: PoE+
- MIMO: 5 GHz 2 x 2 (DL/UL MU-MIMO), 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
- Maximum data rate: 5 GHz 4.3 Gbps (BW240), 2.4 GHz 688 Mbps (BW40)
- Antenna gain 5 GHz: Directional internal 12.5 dBi, 45° x 45°; external omni 4 dBi, 360° x 30°
- Antenna gain 2.4 GHz: Directional internal 8 dBi, 90° x 90°; external omni 3 dBi, 360° x 30°
- Maximum TX power: 5 GHz 26 dBm, 2.4 GHz 23 dBm
- Maximum BSSIDs: 8 per radio
- Supported data rates: 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps, 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps, 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps, 802.11n 6.5 Mbps to 300 Mbps
- Features: Wireless meshing, band steering, 802.11v BSS transition management, 802.11r fast roaming, 802.11k radio resource management, advanced radio management, Passpoint (Hotspot 2.0), captive hotspot portal with custom branding landing page, voucher authentication, payment based authentication, external portal server support, password authentication, guest network isolation, private pre shared key (PPSK), WiFi speed limiting, client device isolation, WiFi schedules, RADIUS over TLS (RadSec), dynamic RADIUS assigned VLAN
- Maximum power consumption: 19W
- Supported voltage range: 42.5 to 57V DC

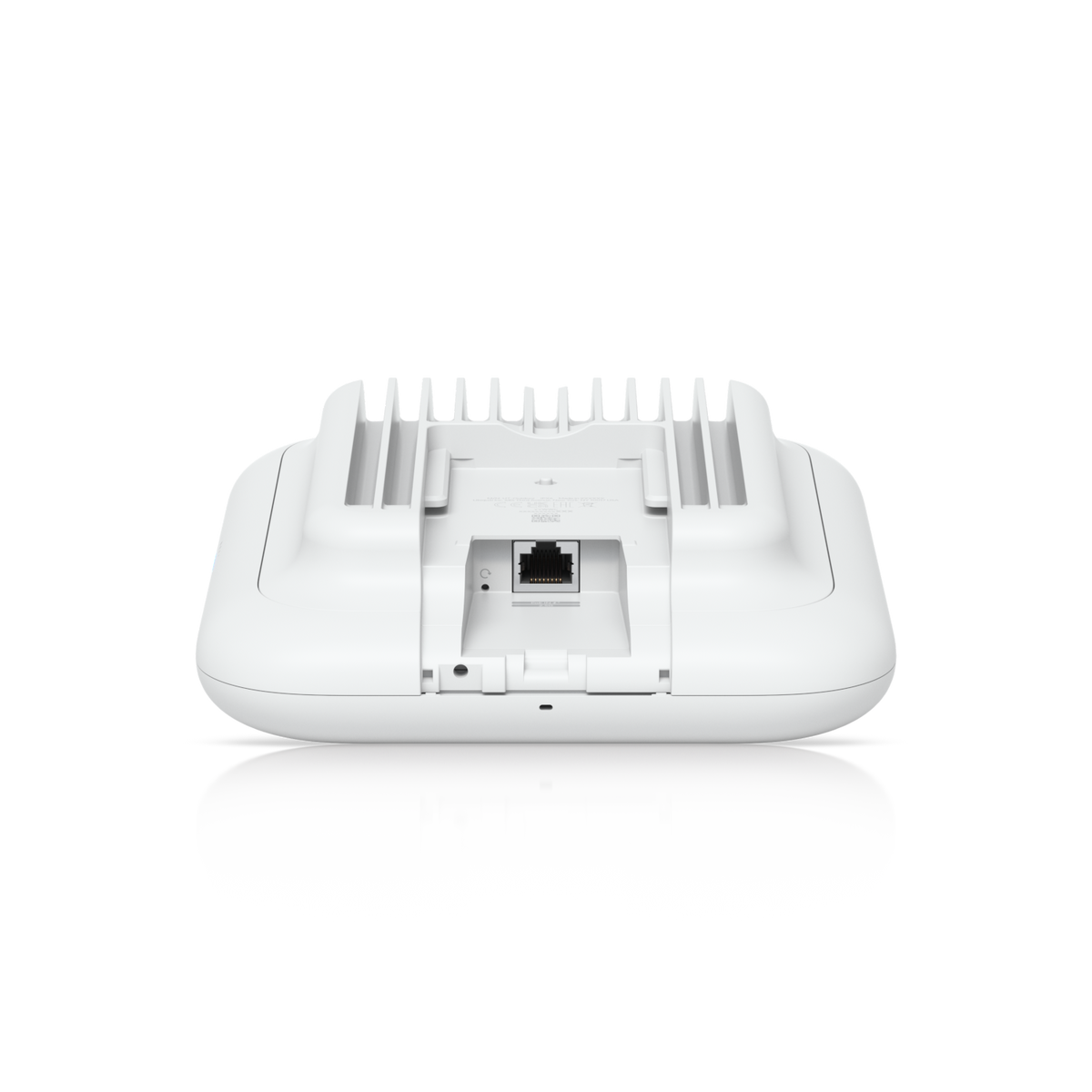

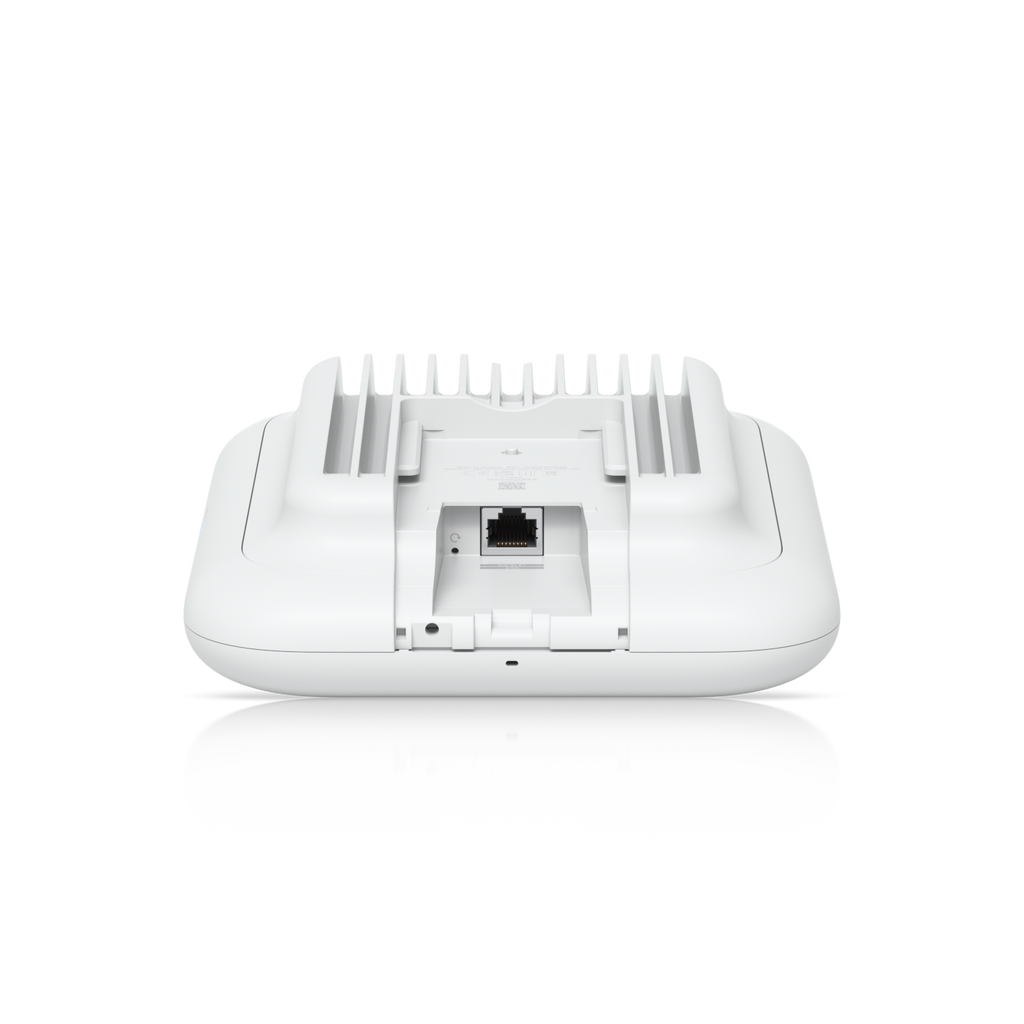

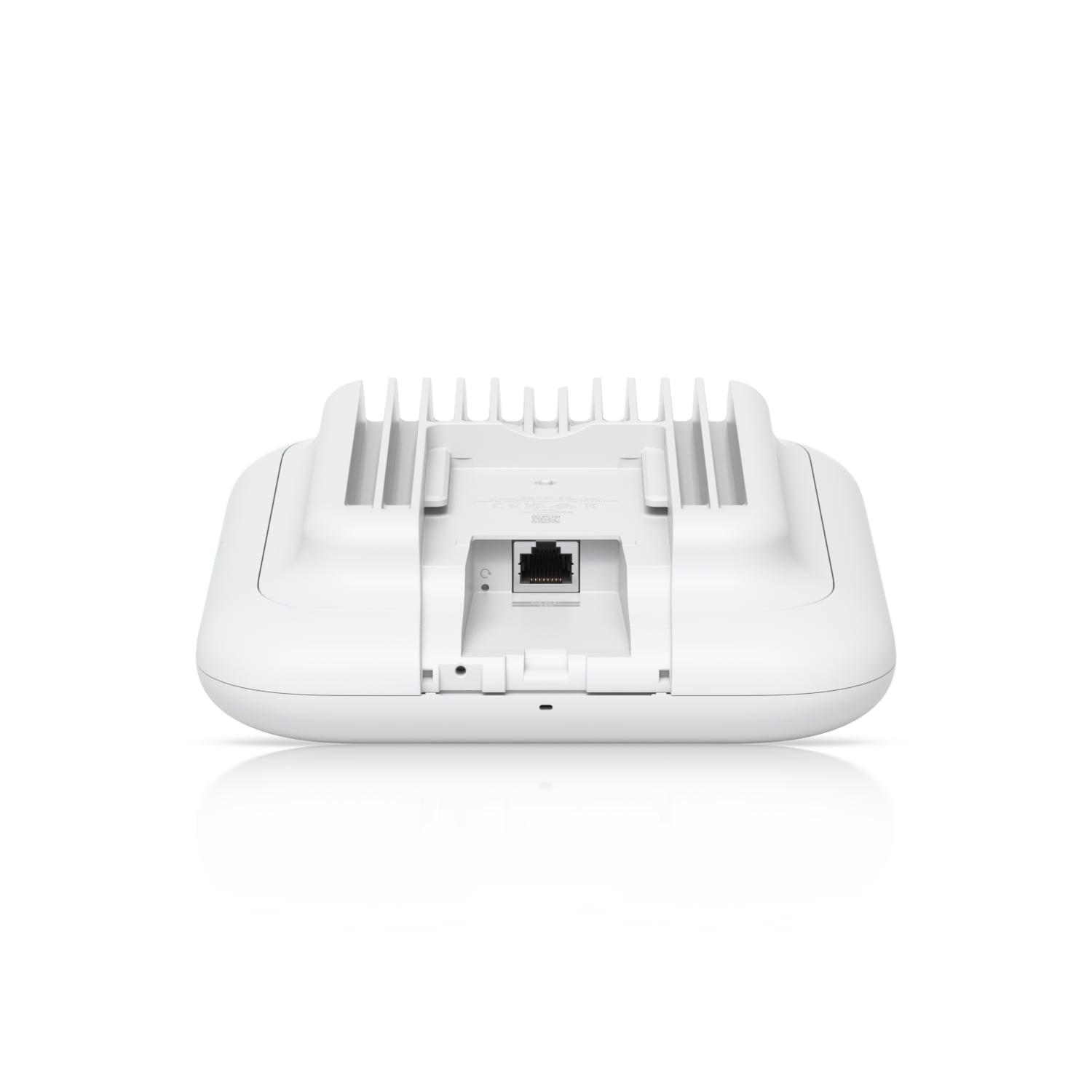

- Networking interface: 1 x 1/2.5 GbE RJ45 port
- Weight: 1.2 kg (2.6 lb)
- Wind loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
- Pole mount diameter: 25 to 60 mm (1 to 2.36 inches)

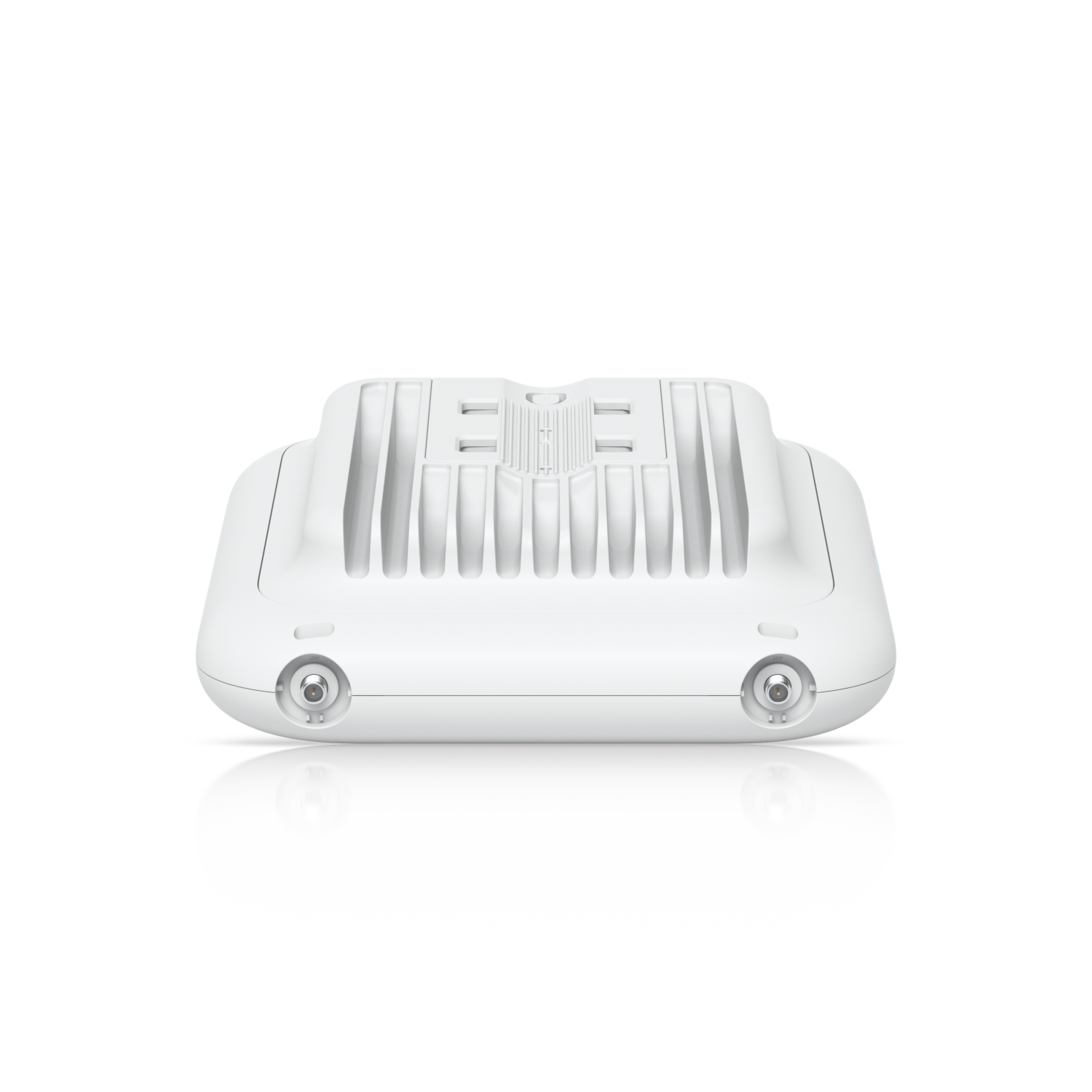

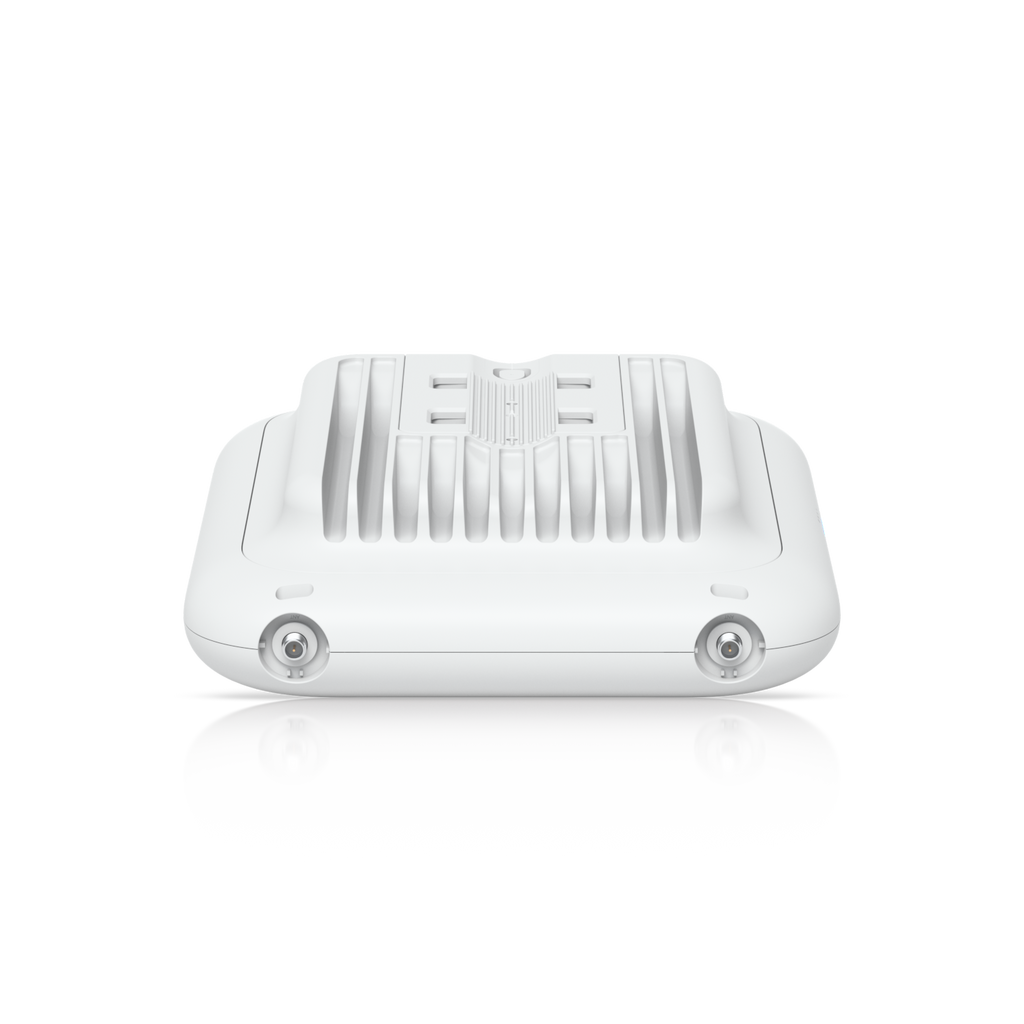

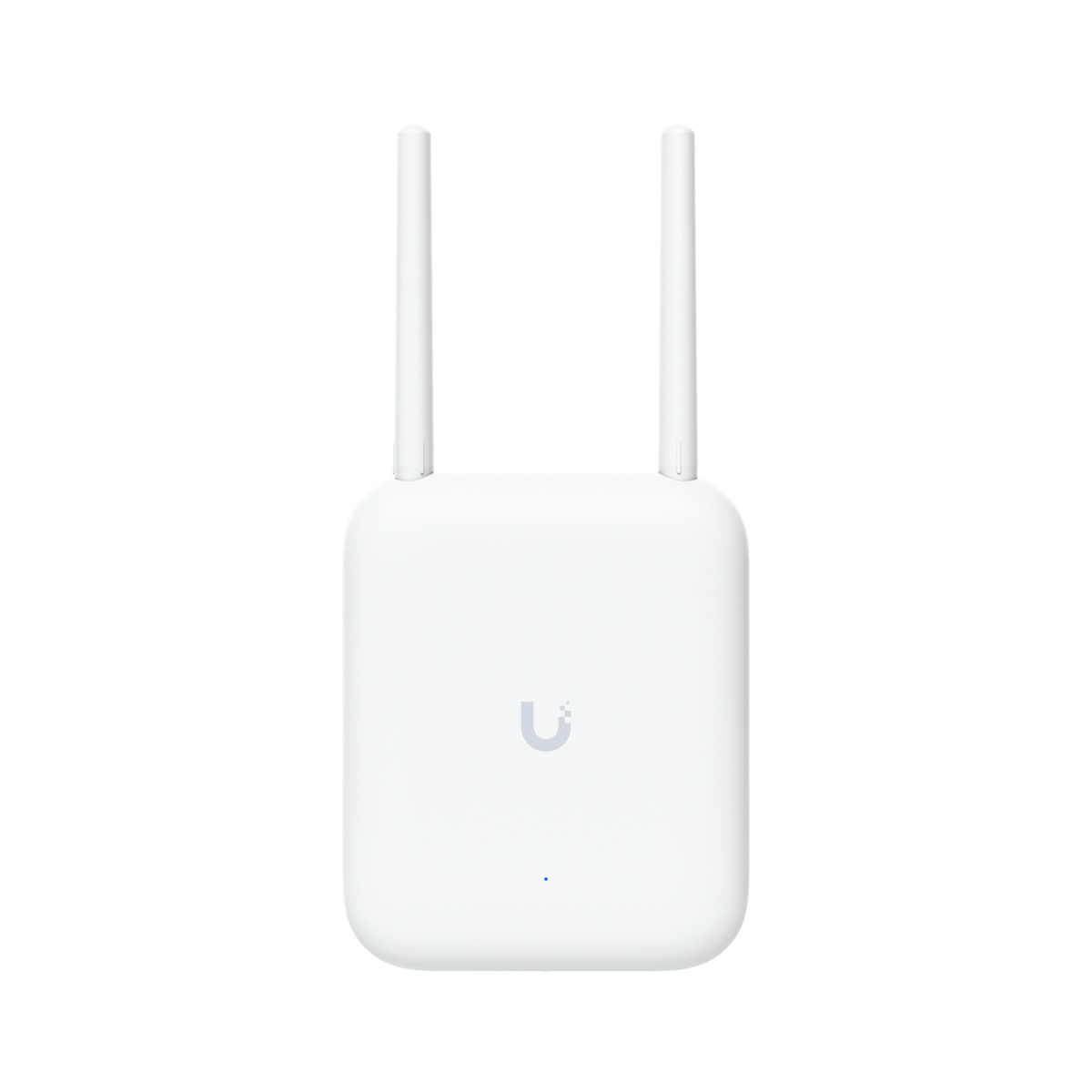

- Antennas: 1 directional internal antenna, 2 external omni antennas, 2 RP-SMA connectors for external antenna
- Antenna beamwidth: 5 GHz 45°, 2.4 GHz 90°
- Management: Ethernet
- Enclosure material: UV stabilized polycarbonate, aluminum alloy
- Mount material: Polycarbonate, SGCC steel

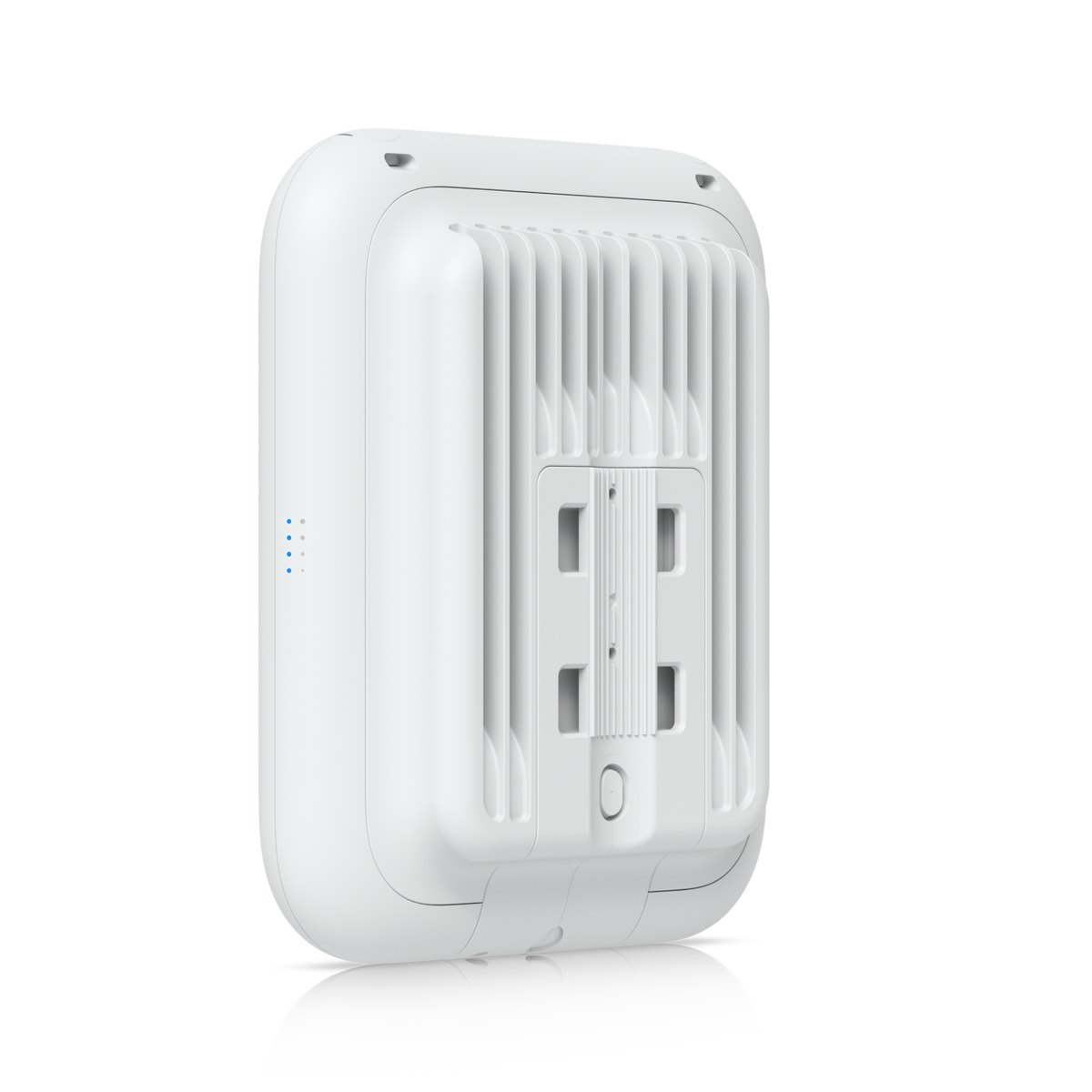

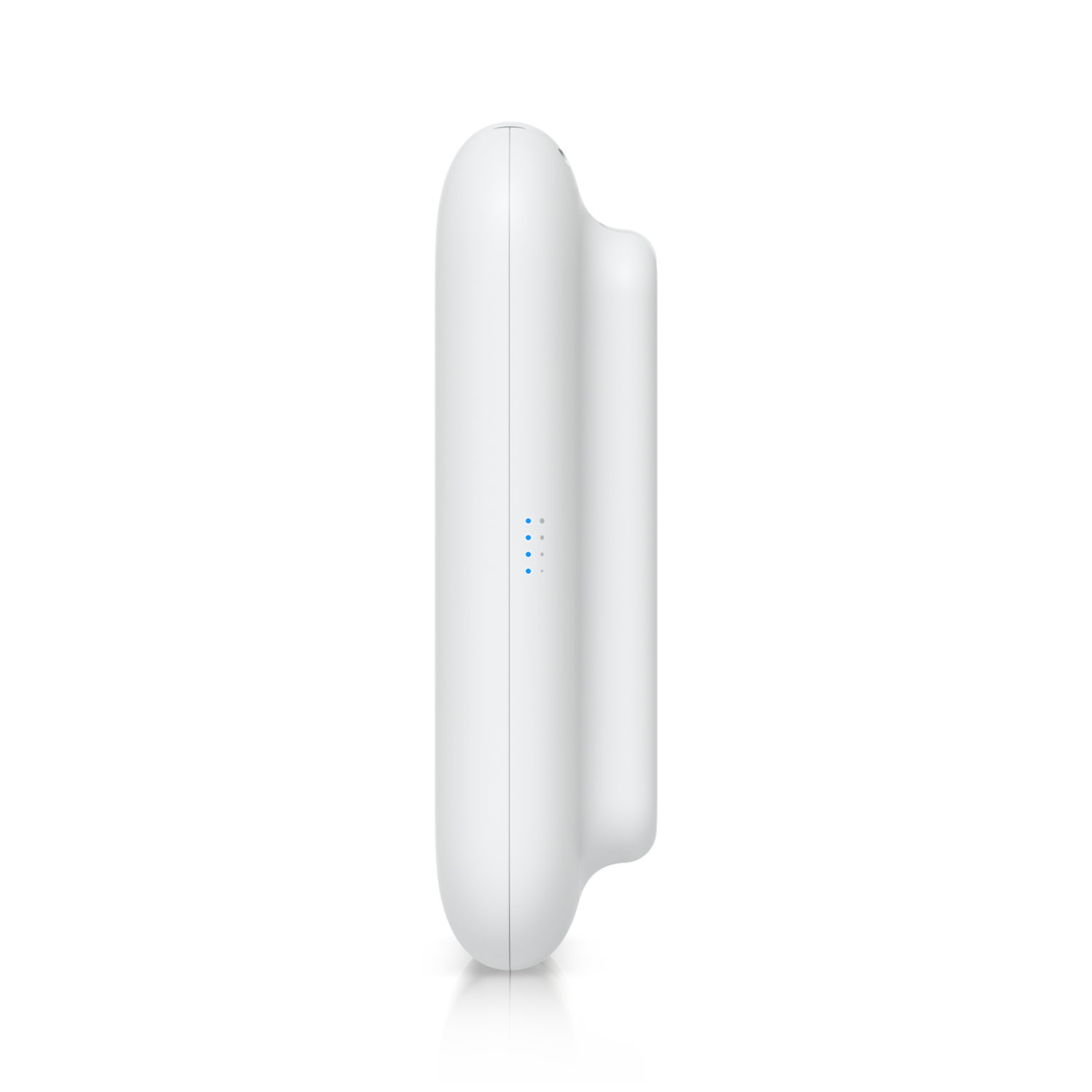

- LEDs: 1 power white/blue, 1 system white/blue, 4 mesh signal blue
- Channel bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
- Operating frequency US/CA: 2400 to 2472 MHz, U-NII-1 5150 to 5250 MHz, U-NII-2A 5250 to 5350 MHz, U-NII-2C 5470 to 5725 MHz, U-NII-3 5725 to 5850 MHz
- Operating frequency worldwide: 2400 to 2483.5 MHz, 5150 to 5850 MHz
- Ambient operating temperature: -30 to 60° C (-22 to 140° F)
- Ambient operating humidity: 5 to 95% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 08999-24-08356
- Application requirements: UniFi Network version 8.2.93 and later
Note: For installation assistance, you can contact us or reach out directly to the brand.

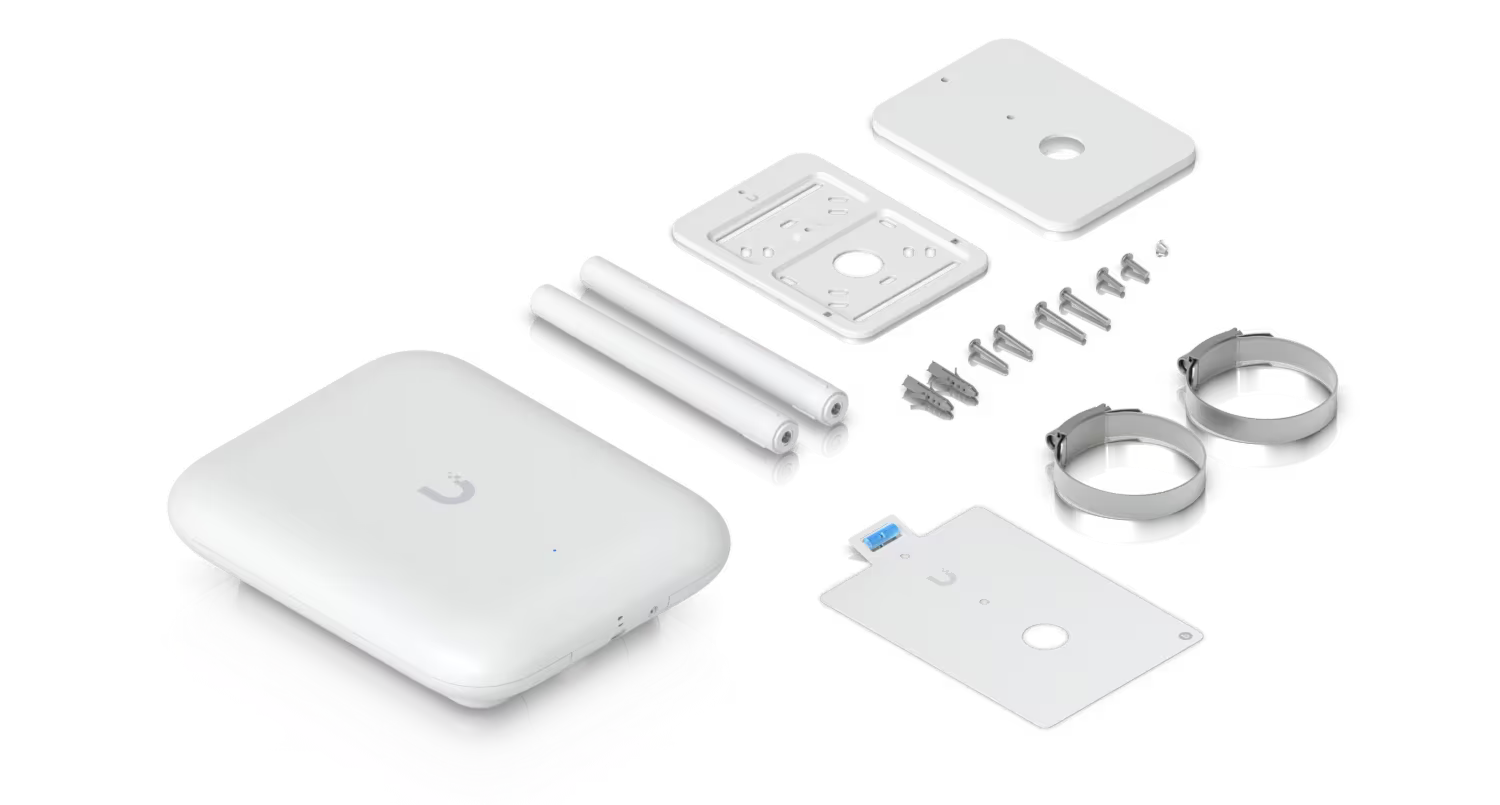

Package Contents
- 1 x Ubiquiti U7 Outdoor Access Point
- 1 x Wall mount plate
- 1 x Pole mount bracket
- 1 x Mounting backing plate
- 1 x Mount cover
- 2 x External omni antennas
- 2 x Wall anchors
- 2 x Wall screws
- 2 x Pole clamps
- 2 x Pole mount screws
- 2 x Bracket screws
- 1 x Screw kit
