Description
The Ubiquiti U7 Pro Outdoor is a high performance WiFi 7 access point designed for rugged outdoor environments, featuring an IP67 rated enclosure that ensures protection against dust, water, and harsh weather conditions. Supporting the latest WiFi 7 standard enables higher throughput, lower latency, and improved efficiency. The built in directional super antenna delivers focused signal transmission to extend coverage precisely where needed, providing up to 465 m² (5,000 ft²) of directional coverage and supporting over 300 connected devices. External omni antennas are included, and the access point connects via a 2.5 GbE PoE+ uplink. Featuring an articulation mounting bracket, the U7 Pro Outdoor allows for flexible and precise positioning during installation.
Features
- WiFi 7
- Up to 465 m² (5,000 ft²) directional coverage
- Up to 300+ connected devices
- Integrated directional super antenna
- Included external omni antennas
- 2.5 GbE PoE+ uplink
- IP67 rated enclosure for protection against dust, water, and harsh weather

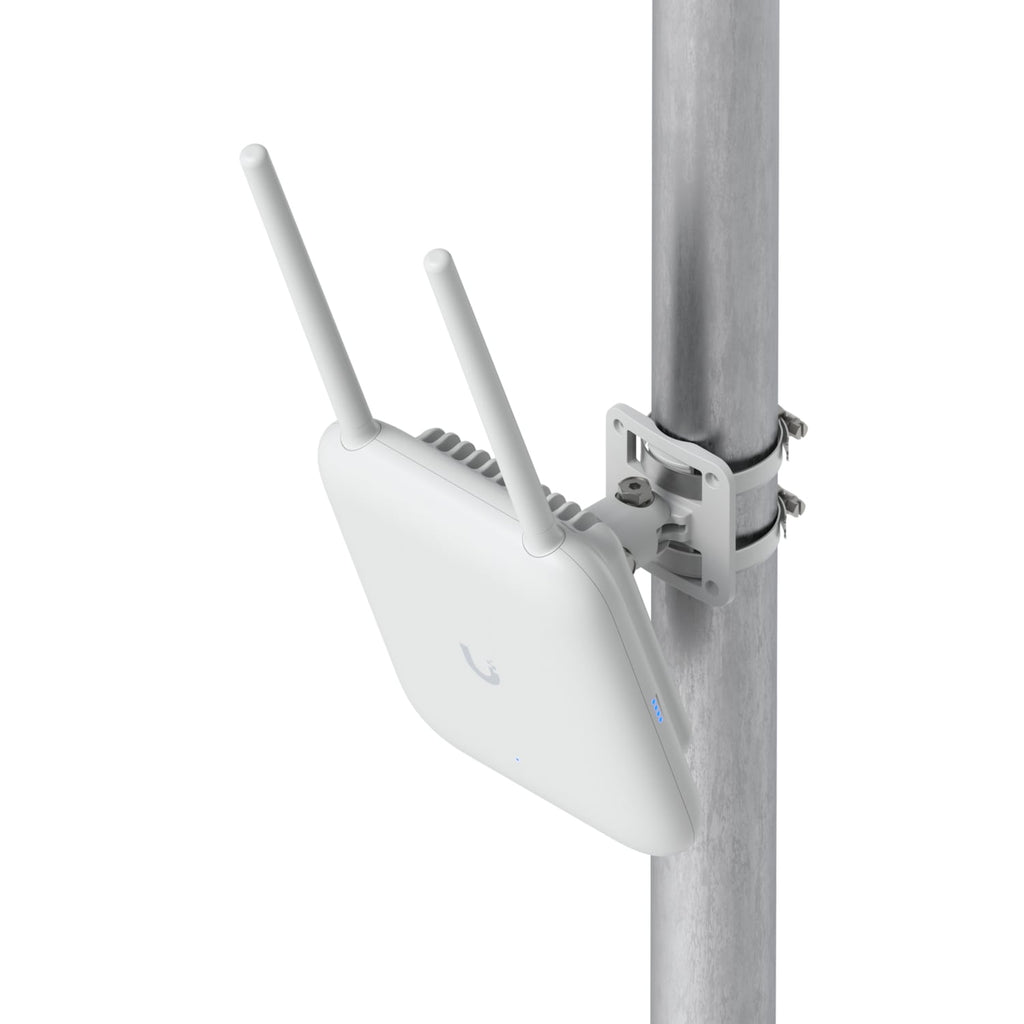

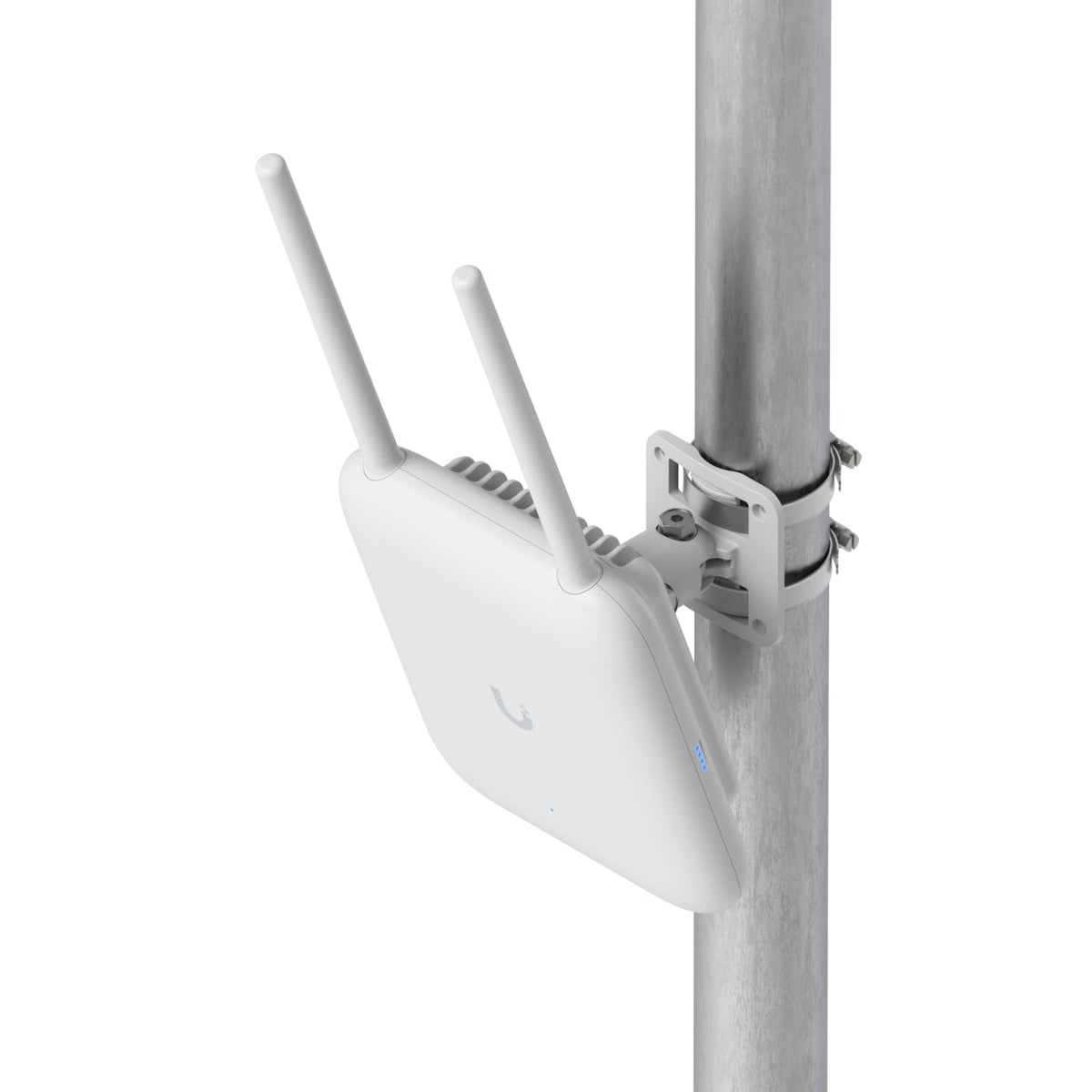

- Articulation mounting bracket for flexible and precise positioning
Specifications
- Dimensions without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6 inches)
- Dimensions with mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8 inches)
- WiFi standard: WiFi 7
- Coverage area: 465 m² (5,000 ft²)
- Maximum client count: 300+
- Uplink: 2.5 GbE
- Mounting: Wall, pole (mounts included)
- Weatherproofing: IPX6, IP67 (with cable gland door kit)
- Power method: PoE+
- MIMO: 5 GHz 2 x 2 (DL/UL MU-MIMO), 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
- Maximum data rate: 5 GHz 4.3 Gbps (BW240), 2.4 GHz 688 Mbps (BW40)
- Antenna gain 5 GHz: Directional internal 11 dBi, external omni 8 dBi
- Antenna gain 2.4 GHz: Directional internal 8 dBi, external omni 6 dBi
- Maximum TX power: 5 GHz 26 dBm, 2.4 GHz 23 dBm
- Maximum BSSIDs: 8 per radio
- Supported data rates: 802.11be (WiFi 7) 7.3 Mbps to 8.6 Gbps, 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps, 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps, 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps, 802.11n 6.5 Mbps to 300 Mbps
- Features: Wireless meshing, band steering, 802.11v BSS transition management, 802.11r fast roaming, 802.11k radio resource management, advanced radio management, Passpoint (Hotspot 2.0), captive hotspot portal with custom branding landing page, voucher authentication, payment based authentication, external portal server support, password authentication, guest network isolation, private pre shared key (PPSK), WiFi speed limiting, client device isolation, WiFi schedules, RADIUS over TLS (RadSec), dynamic RADIUS assigned VLAN
- Maximum power consumption: 21W
- Supported voltage range: 42.5 to 57V DC
- Networking interface: 1 x 1/2.5 GbE RJ45 port
- Weight: Device 1.2 kg (2.6 lb), with mount 1.33 kg (2.9 lb)
- Wind loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
- Pole mount diameter: 25 to 63.5 mm (1 to 2.5 inches)
- Management: Ethernet
- Enclosure material: UV stabilised polycarbonate, aluminium alloy
- Mount material: UV stabilised polycarbonate
- LEDs: 1 power white/blue, 4 mesh signal blue
- Certifications: FCC, IC
- NDAA Compliant: Yes
- Ambient operating temperature: -30 to 60° C (-22 to 140° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Application requirements: UniFi Network version 9.0.114 and later, UniFi OS iOS version 10.20.2 and later, Android version 10.21.7 and later
Note: For installation assistance, you can contact us or reach out directly to the brand.
Package Contents
- Ubiquiti U7 Pro Outdoor Access Point
- External omni antennas
- Wall mount
- Pole mount
