Description

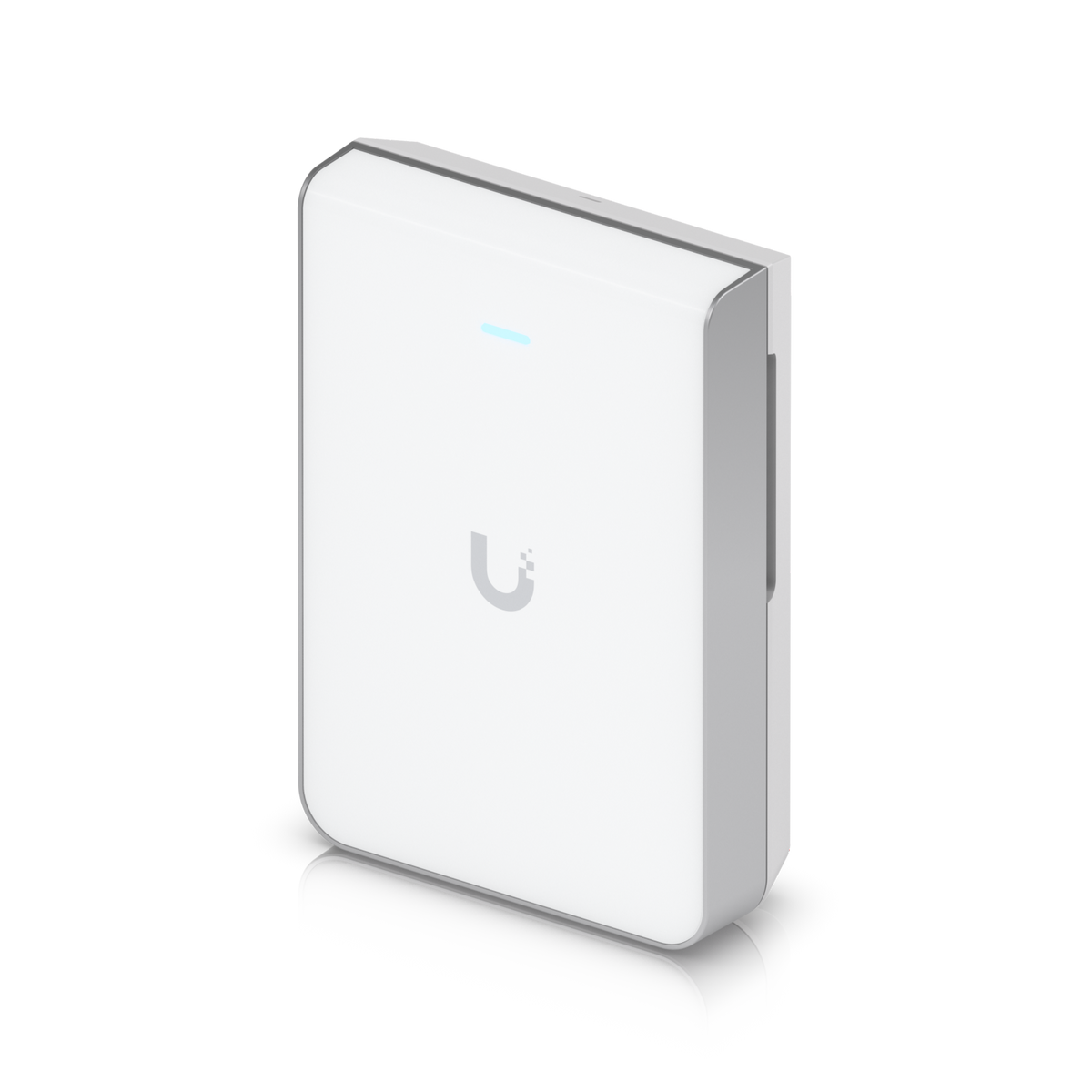

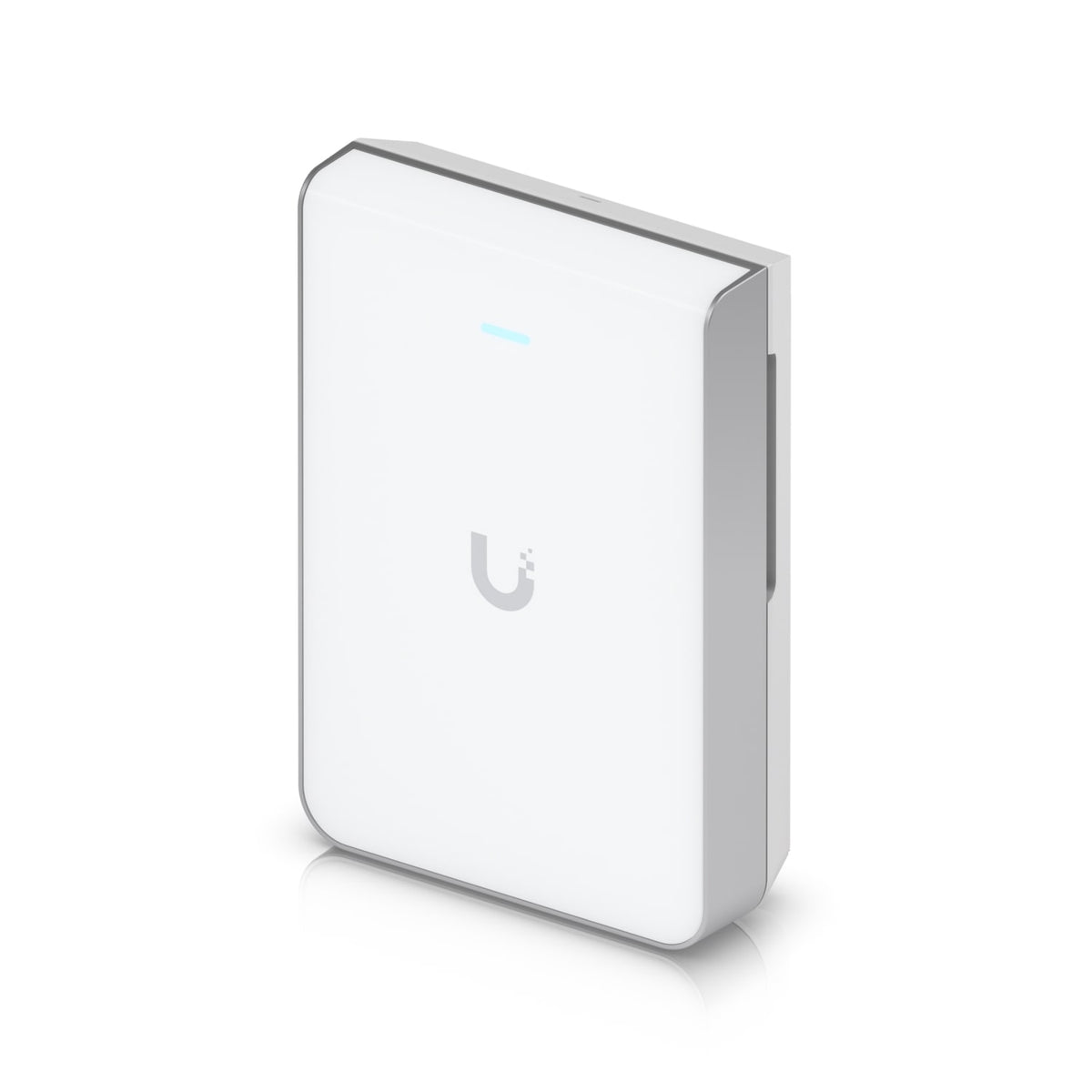

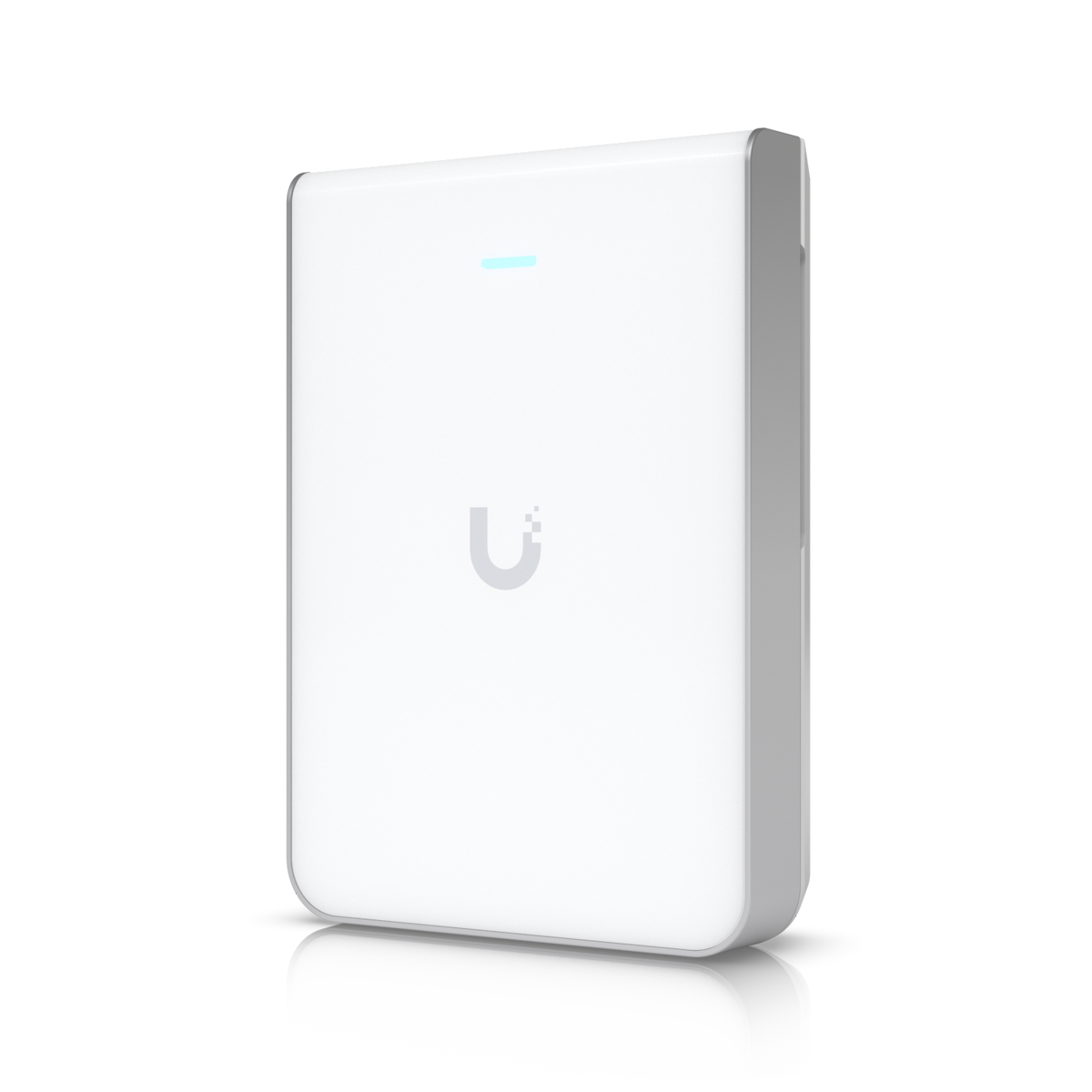

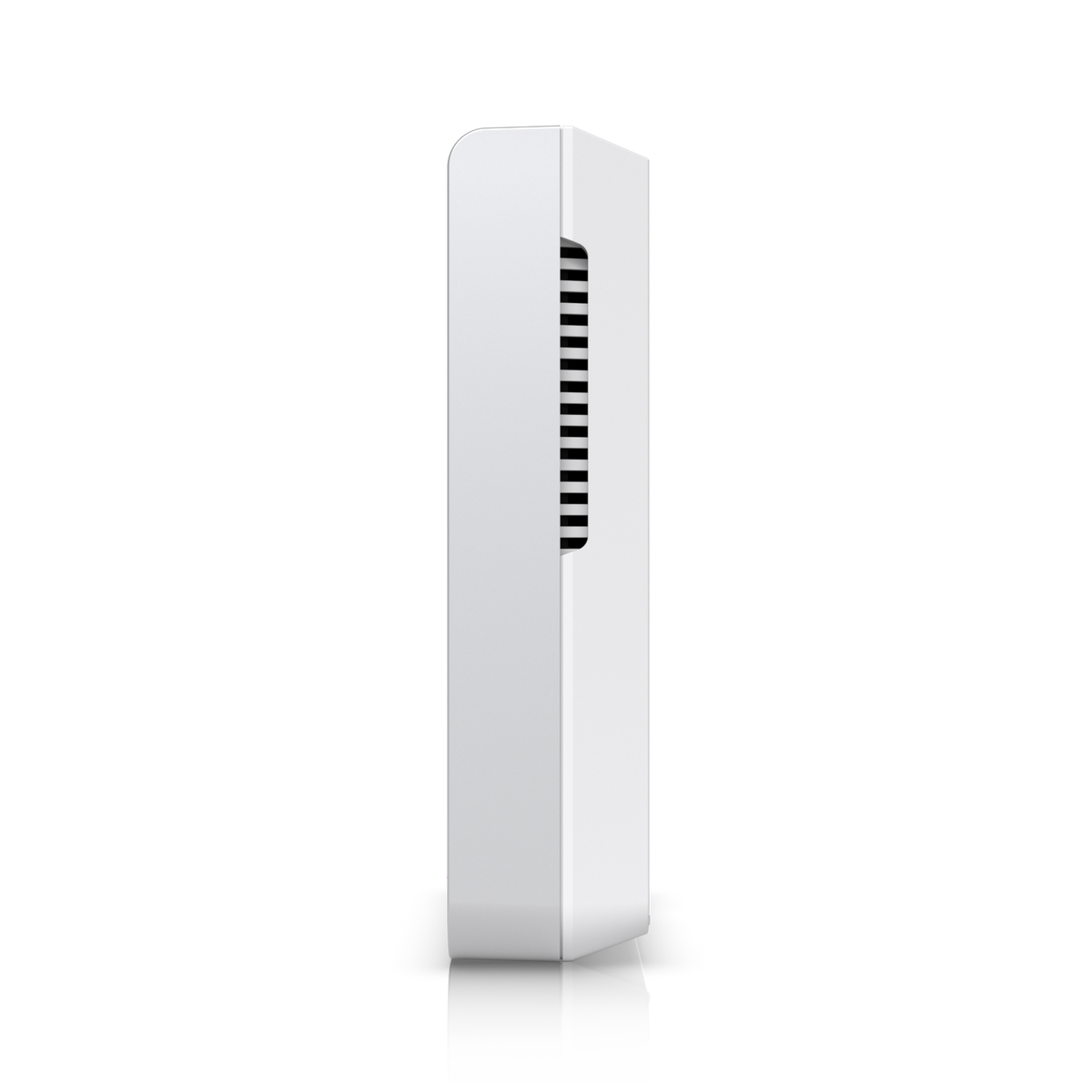

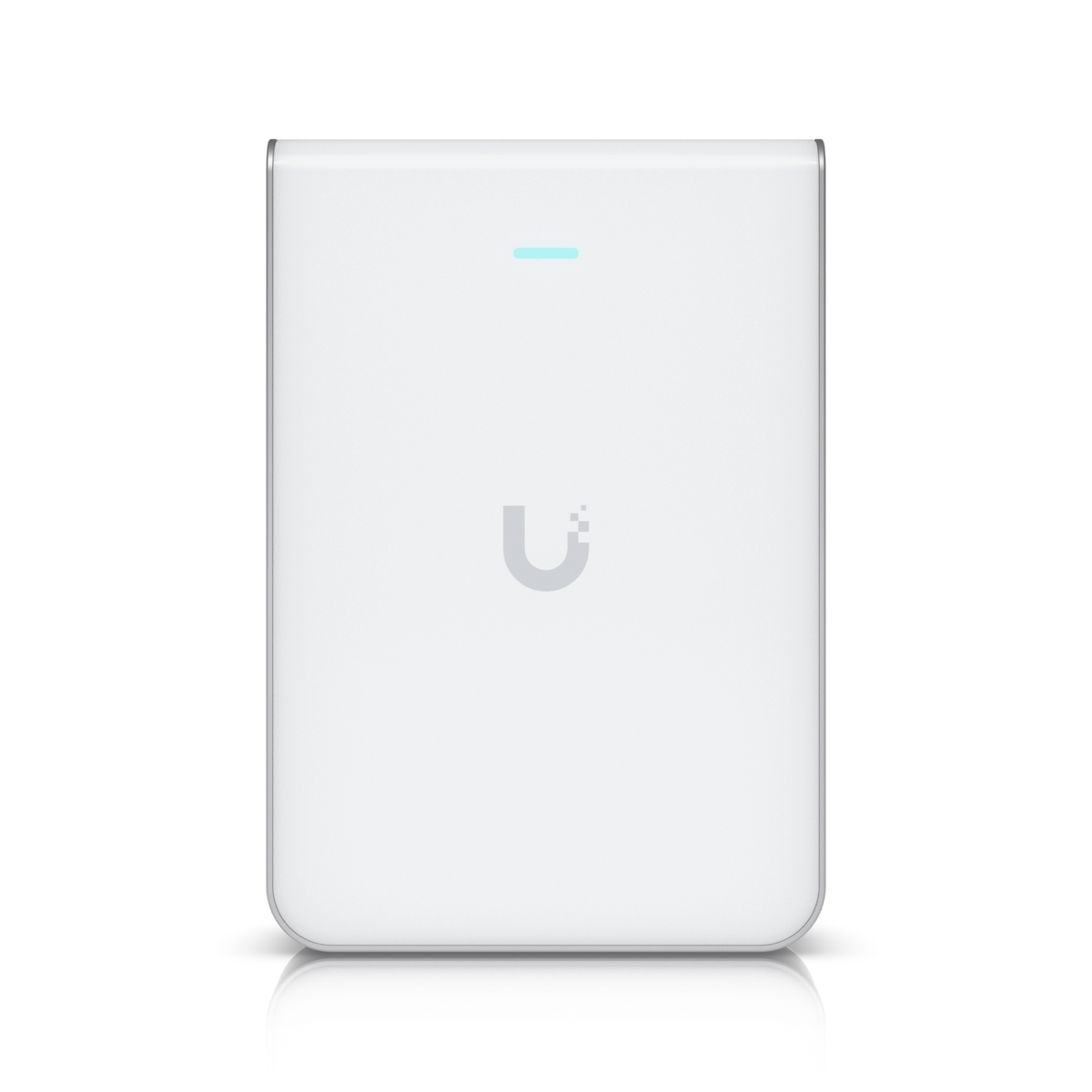

The Ubiquiti U7 Pro Wall is a wall mounted WiFi 7 access point with 6 spatial streams and 6 GHz support, tailored for home builders with seamless installation options. Delivering data rates of up to 5.8 Gbps on the 6 GHz band, 4.3 Gbps on the 5 GHz band, and 688 Mbps on the 2.4 GHz band, it covers an area of 140 m² (1,500 ft²) while supporting over 300 connected devices. Powered using PoE+ with a 2.5 GbE uplink, it offers versatile deployment with optional Flush Mount and Table Stand accessories, and a wall mount is included for clean installation.
Features
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Versatile deployment with optional Flush Mount and Table Stand accessories
Specifications
- Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4 inches)
- WiFi standard: WiFi 7
- Spatial streams: 6
- Coverage area: 140 m² (1,500 ft²)
- Maximum client count: 300+
- Uplink: 2.5 GbE

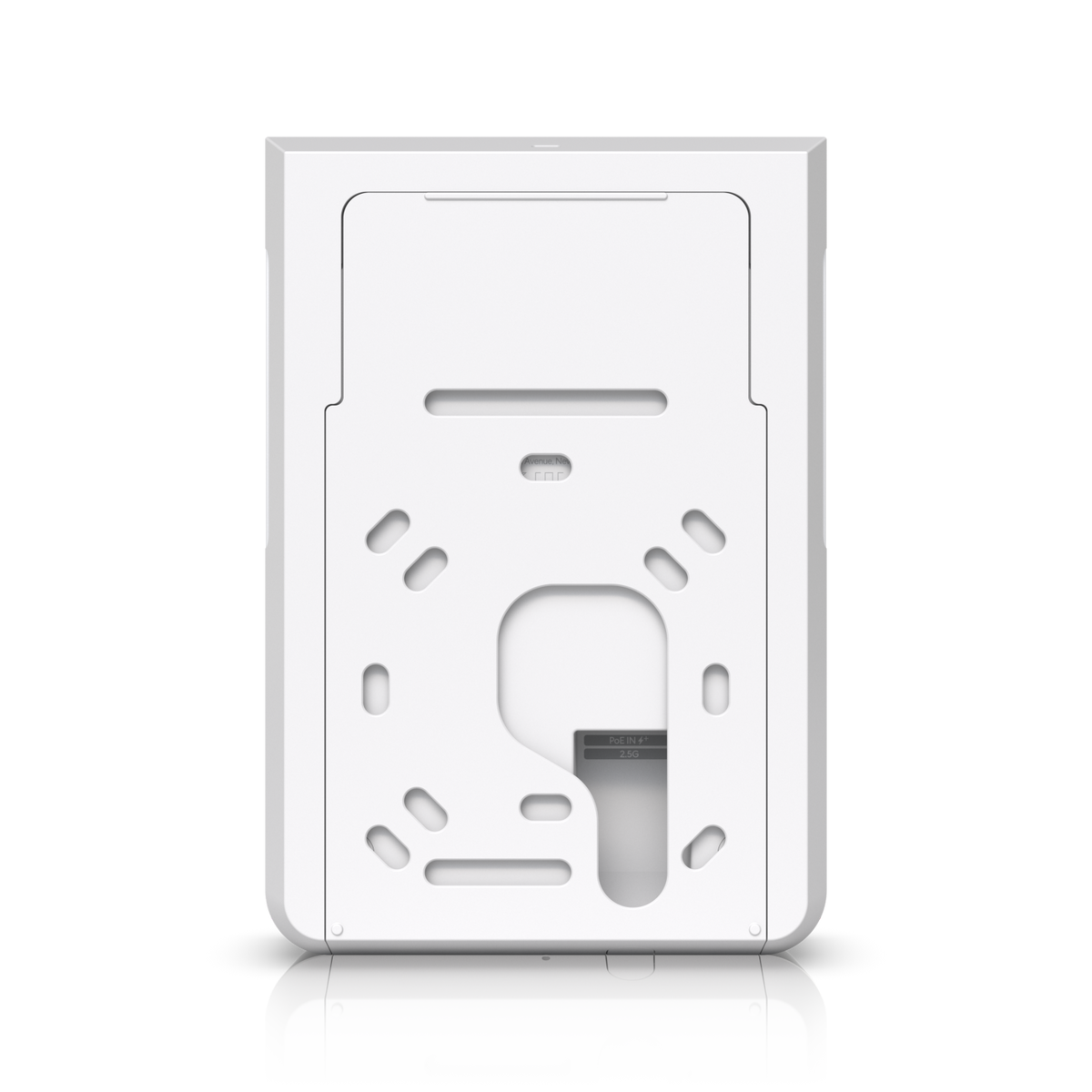

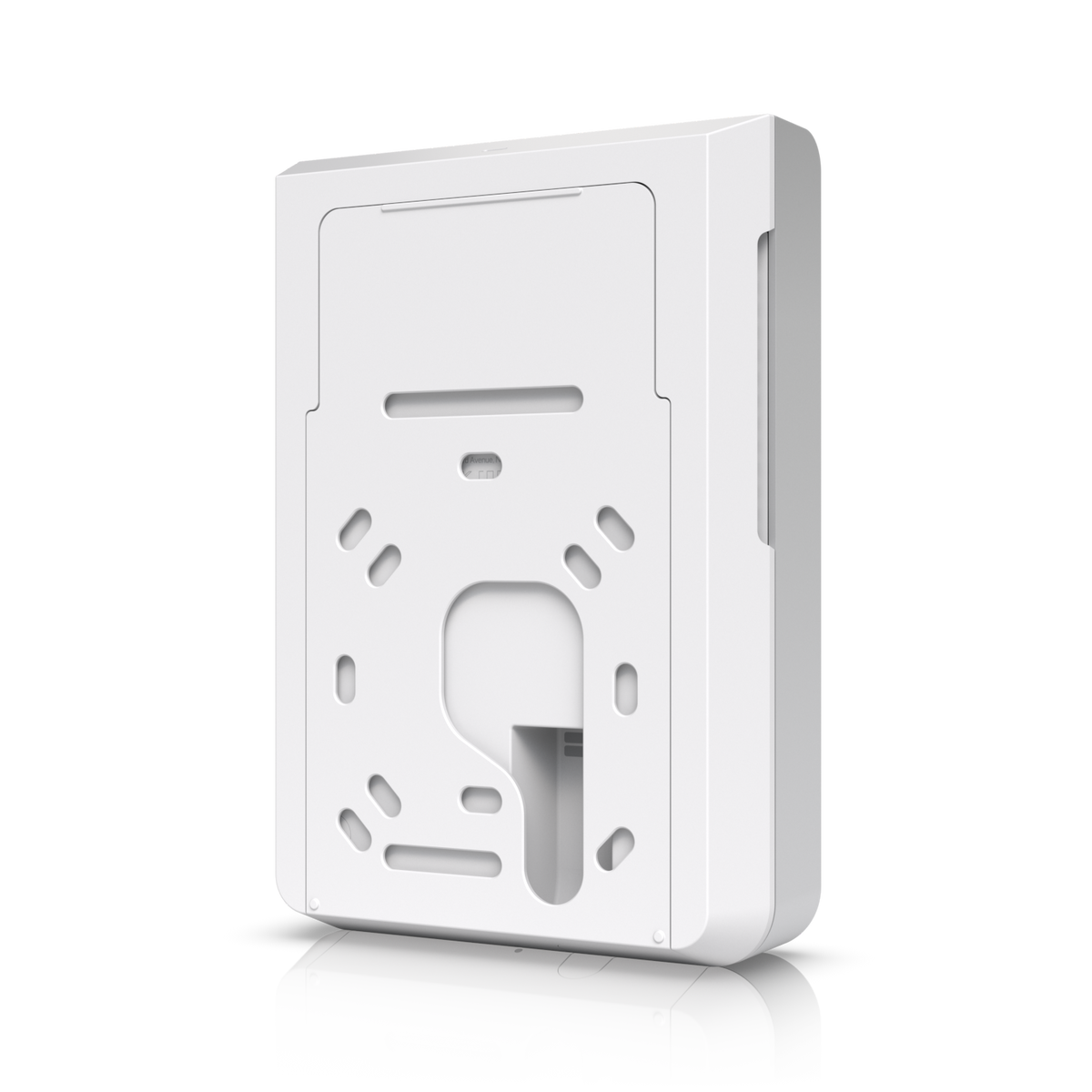

- Mounting: Wall (mount included)
- Power method: PoE+
- MIMO: 6 GHz 2 x 2 (DL/UL MU-MIMO), 5 GHz 2 x 2 (DL/UL MU-MIMO), 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
- Maximum data rate: 6 GHz 5.8 Gbps (BW320), 5 GHz 4.3 Gbps (BW240), 2.4 GHz 688 Mbps (BW40)
- Antenna gain: 6 GHz 6 dBi, 5 GHz 5 dBi, 2.4 GHz 4 dBi
- Maximum TX power: 6 GHz 23 dBm, 5 GHz 26 dBm, 2.4 GHz 22 dBm
- Maximum BSSIDs: 8 per radio
- Supported data rates: 802.11be (WiFi 7) 7.3 Mbps to 5.8 Gbps, 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps, 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps, 802.11n 6.5 Mbps to 300 Mbps
- Features: Wireless meshing, band steering, 802.11v BSS transition management, 802.11r fast roaming, 802.11k radio resource management, advanced radio management, Passpoint (Hotspot 2.0), captive hotspot portal with custom branding landing page, voucher authentication, payment based authentication, external portal server support, password authentication, guest network isolation, private pre shared key (PPSK), WiFi speed limiting, client device isolation, WiFi schedules, RADIUS over TLS (RadSec), dynamic RADIUS assigned VLAN
- Maximum power consumption: 22W
- Supported voltage range: 44 to 57V DC

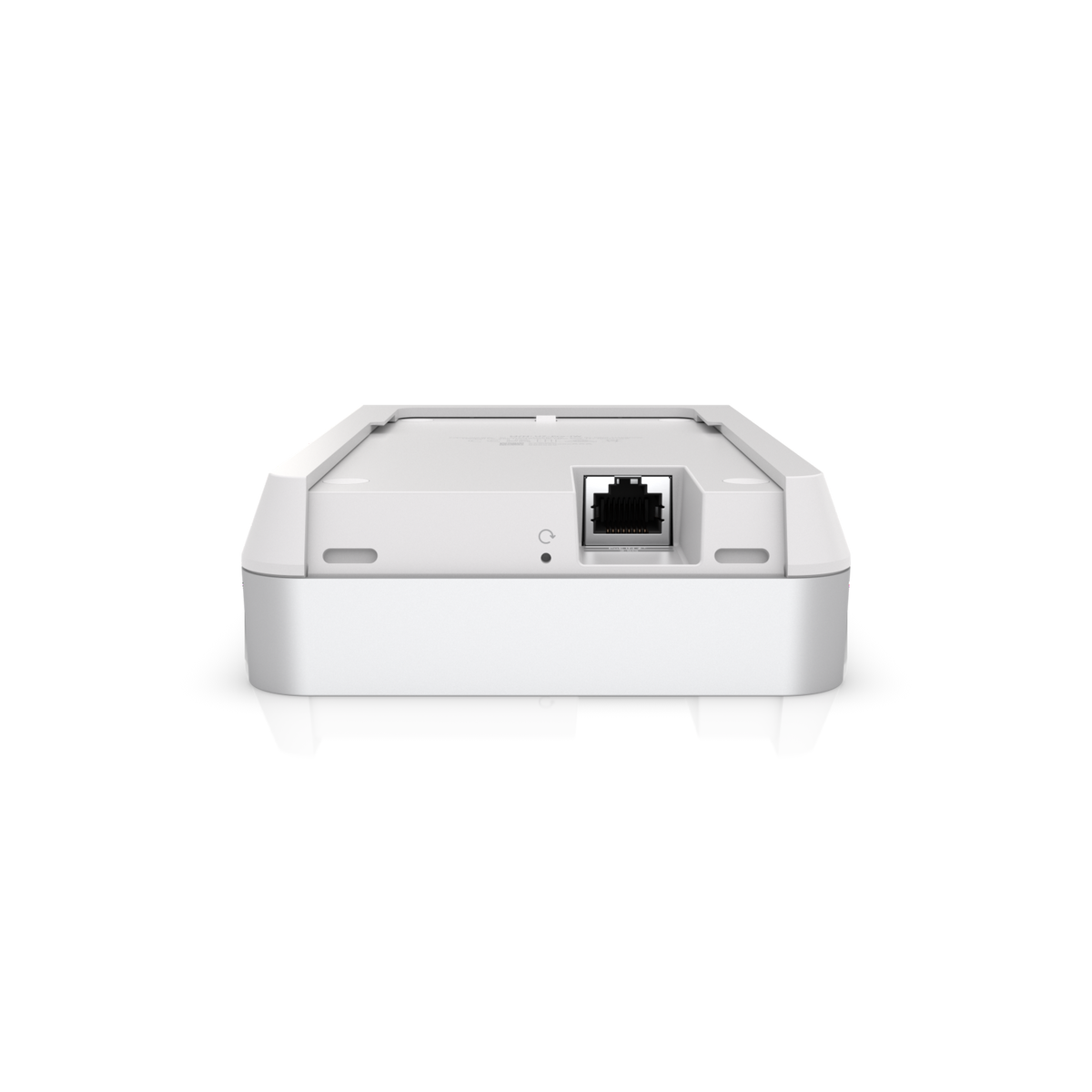

- Networking interface: 1 x 1/2.5 GbE RJ45 port
- Weight: 580 g (1.3 lb)
- Management: Ethernet
- Enclosure material: Polycarbonate, aluminum
- Mount material: Aluminum
- LEDs: System white/blue
- Channel bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- Operating frequency US/CA: 2400 to 2472 MHz, U-NII-1 5150 to 5250 MHz, U-NII-2A 5250 to 5350 MHz, U-NII-2C 5470 to 5725 MHz, U-NII-3 5725 to 5850 MHz, U-NII-5 to U-NII-8 5925 to 7125 MHz
- Operating frequency worldwide: 2400 to 2483.5 MHz, 5150 to 5850 MHz, 5925 to 7125 MHz
- Ambient operating temperature: -30 to 60° C (-22 to 140° F)
- Ambient operating humidity: 5 to 95% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 10022-24-08356
- Application requirements: UniFi Network version 8.1.113 and later
Note: For installation assistance, you can contact us or reach out directly to the brand.

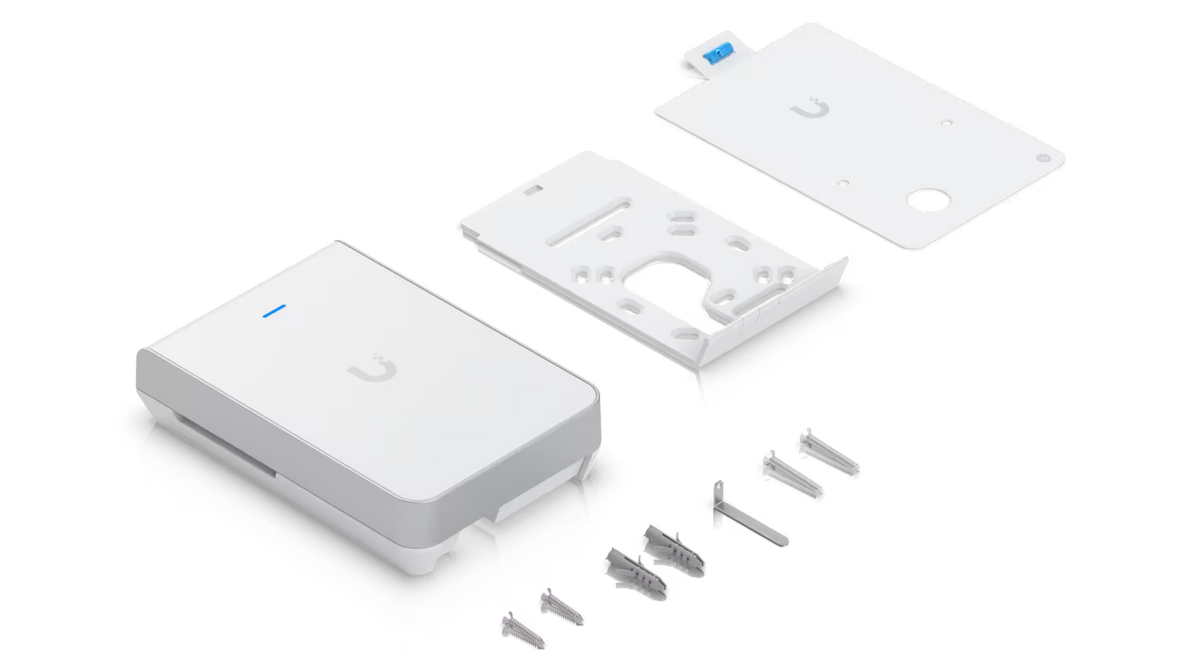

Package Contents
- Ubiquiti U7 Pro Wall Access Point

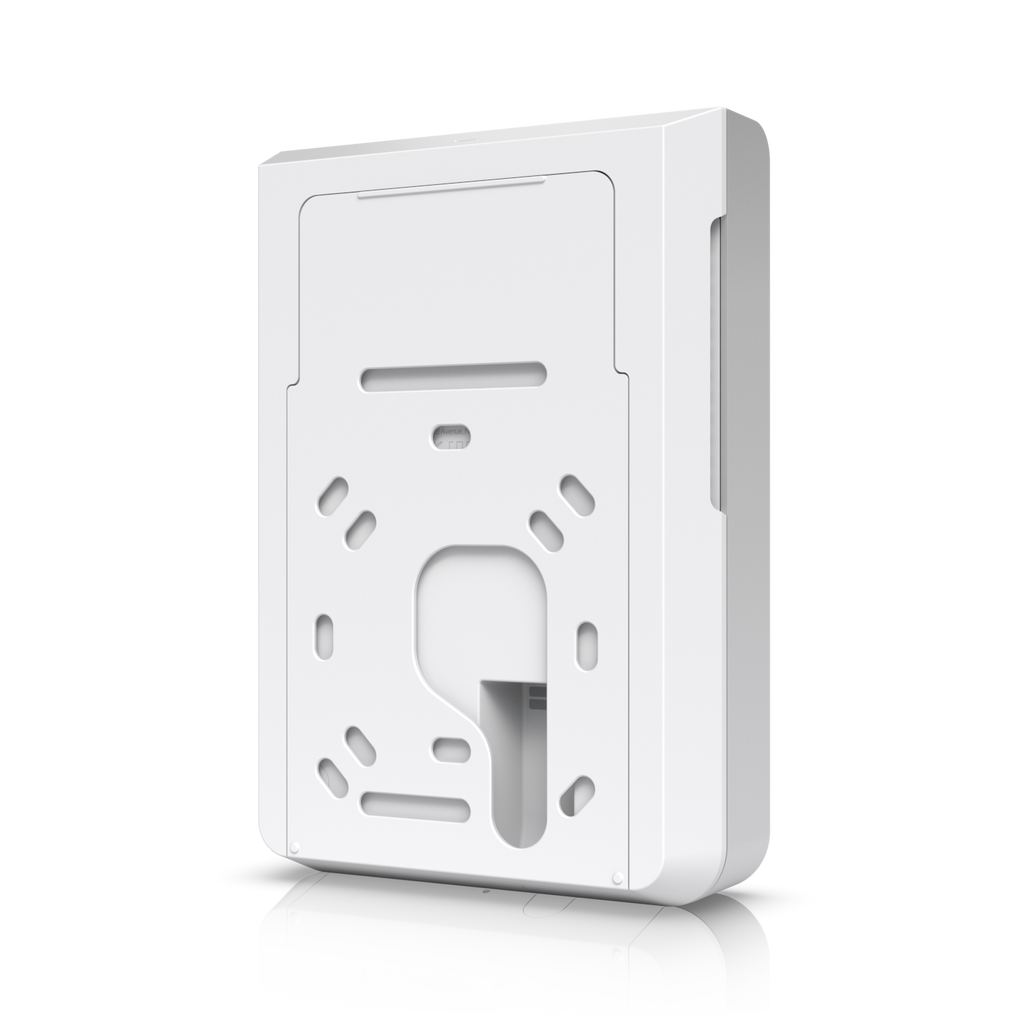

- Wall mount
