Description

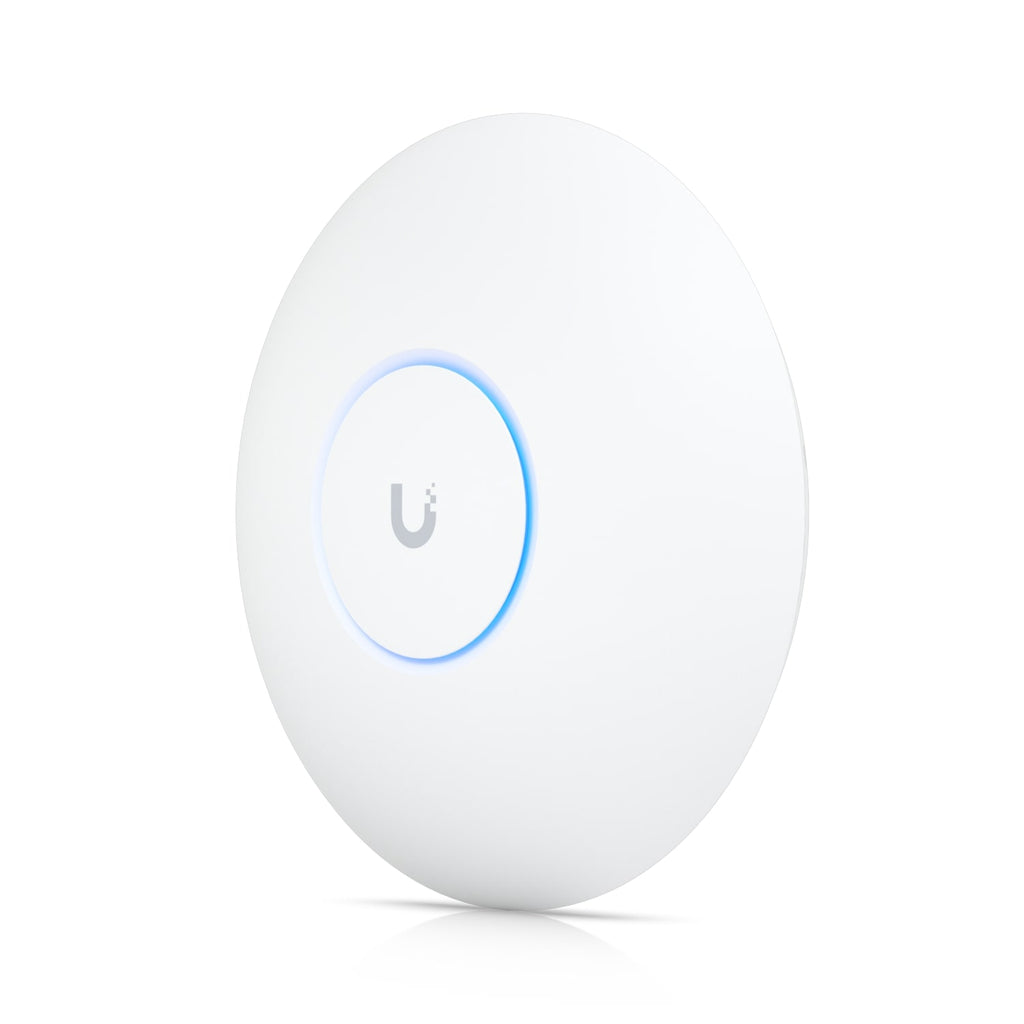

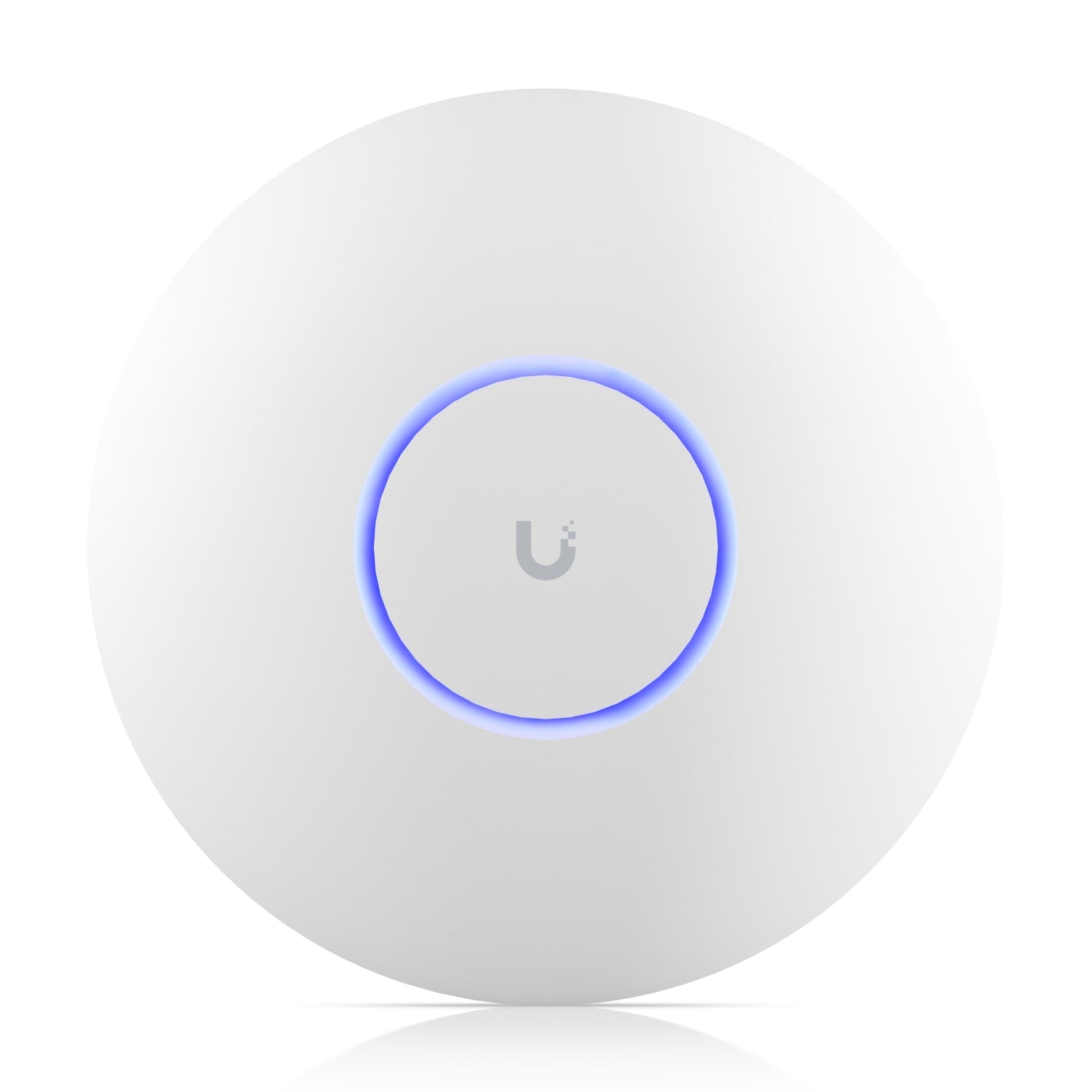

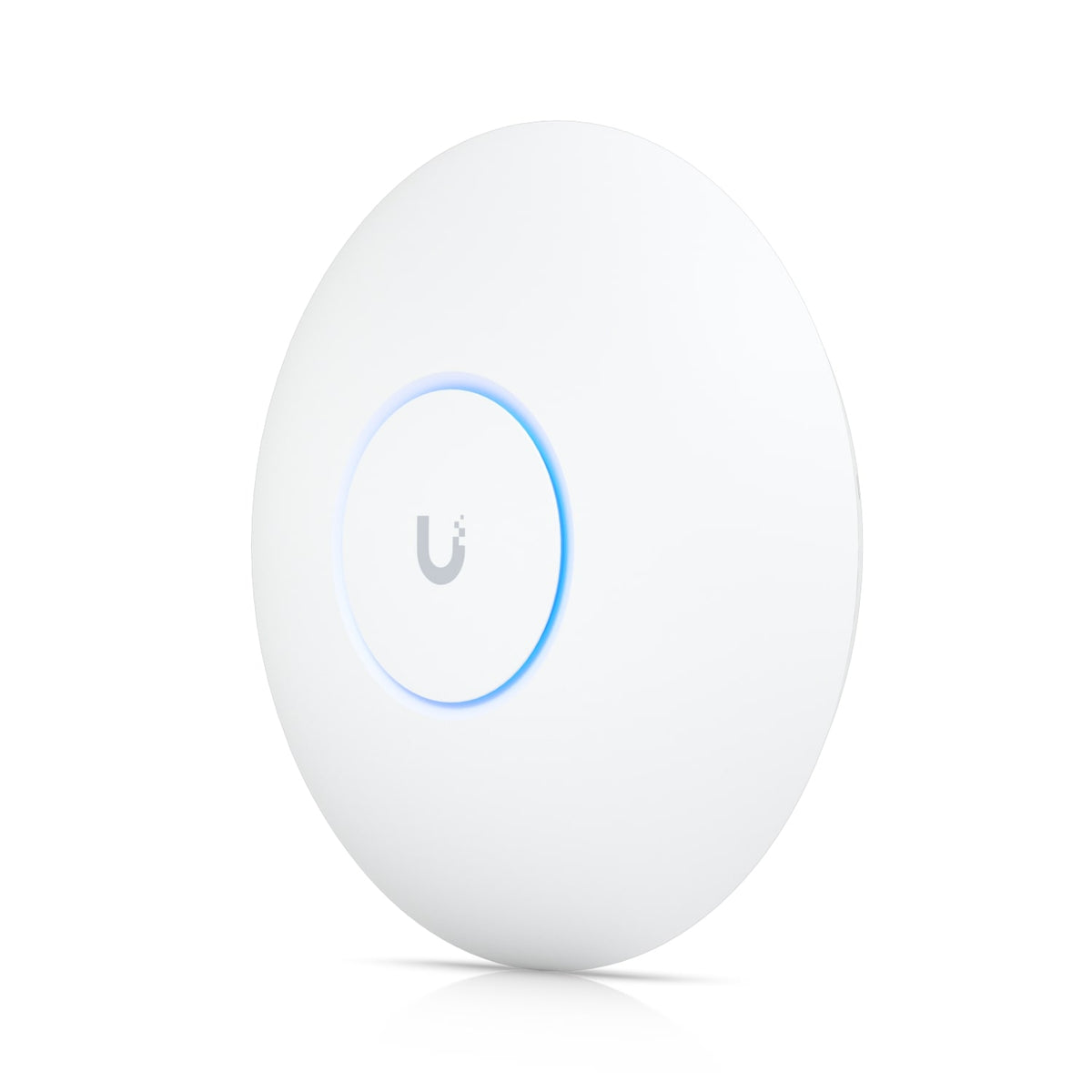

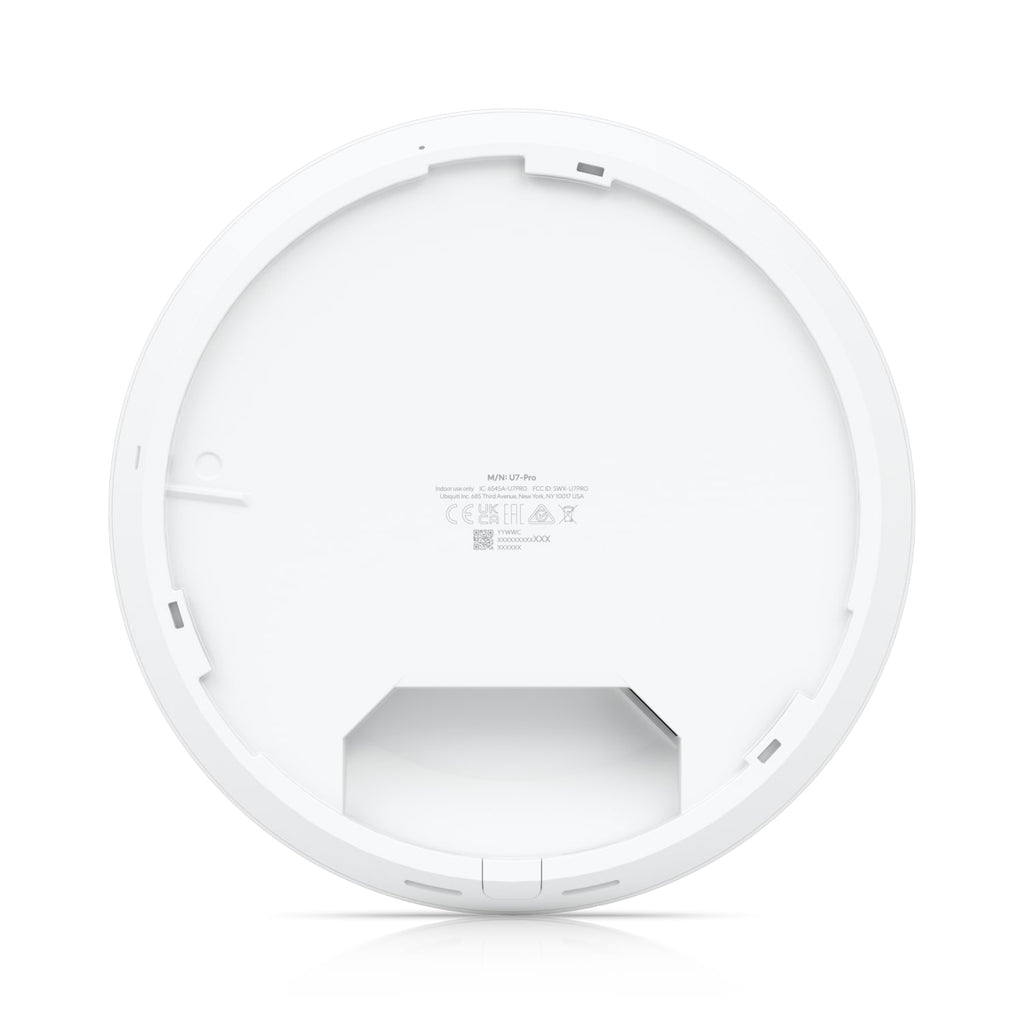

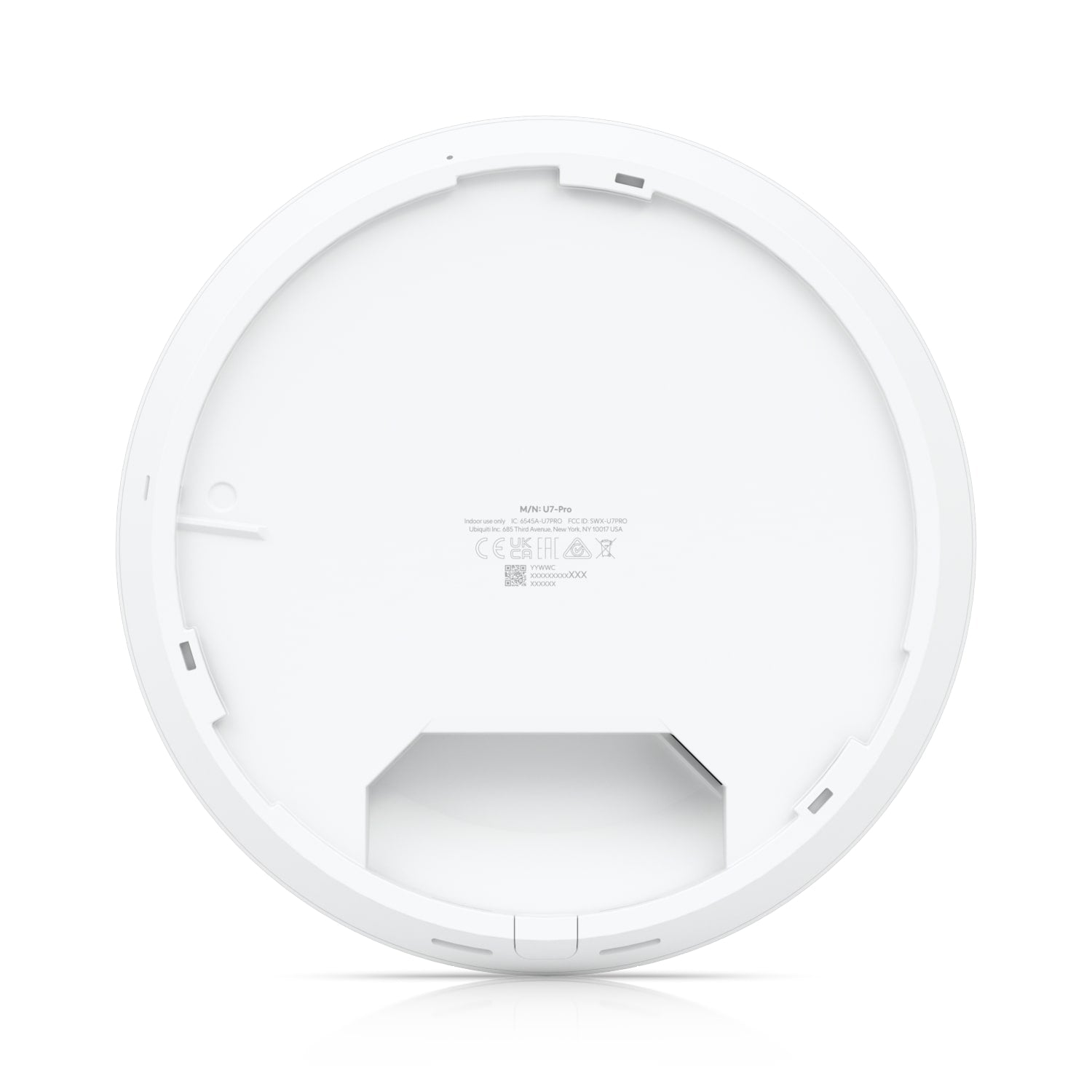

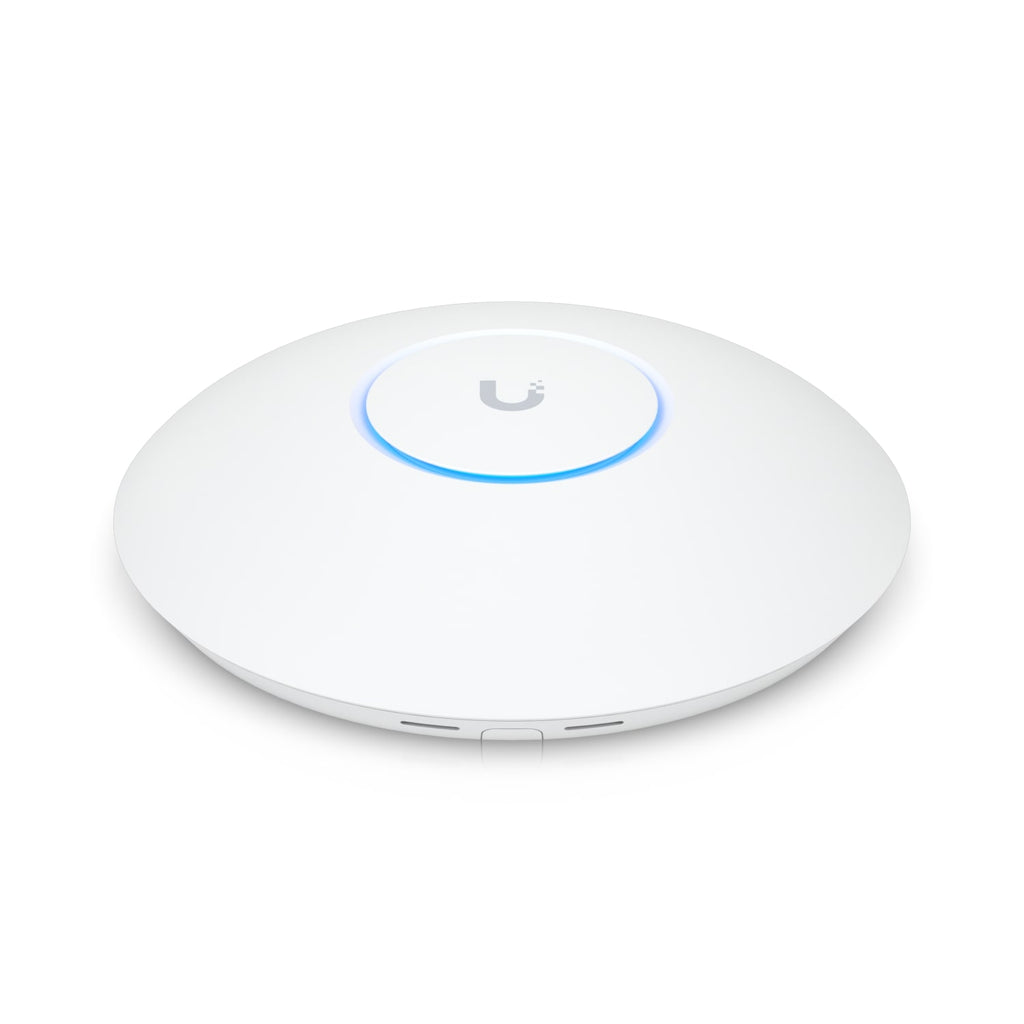

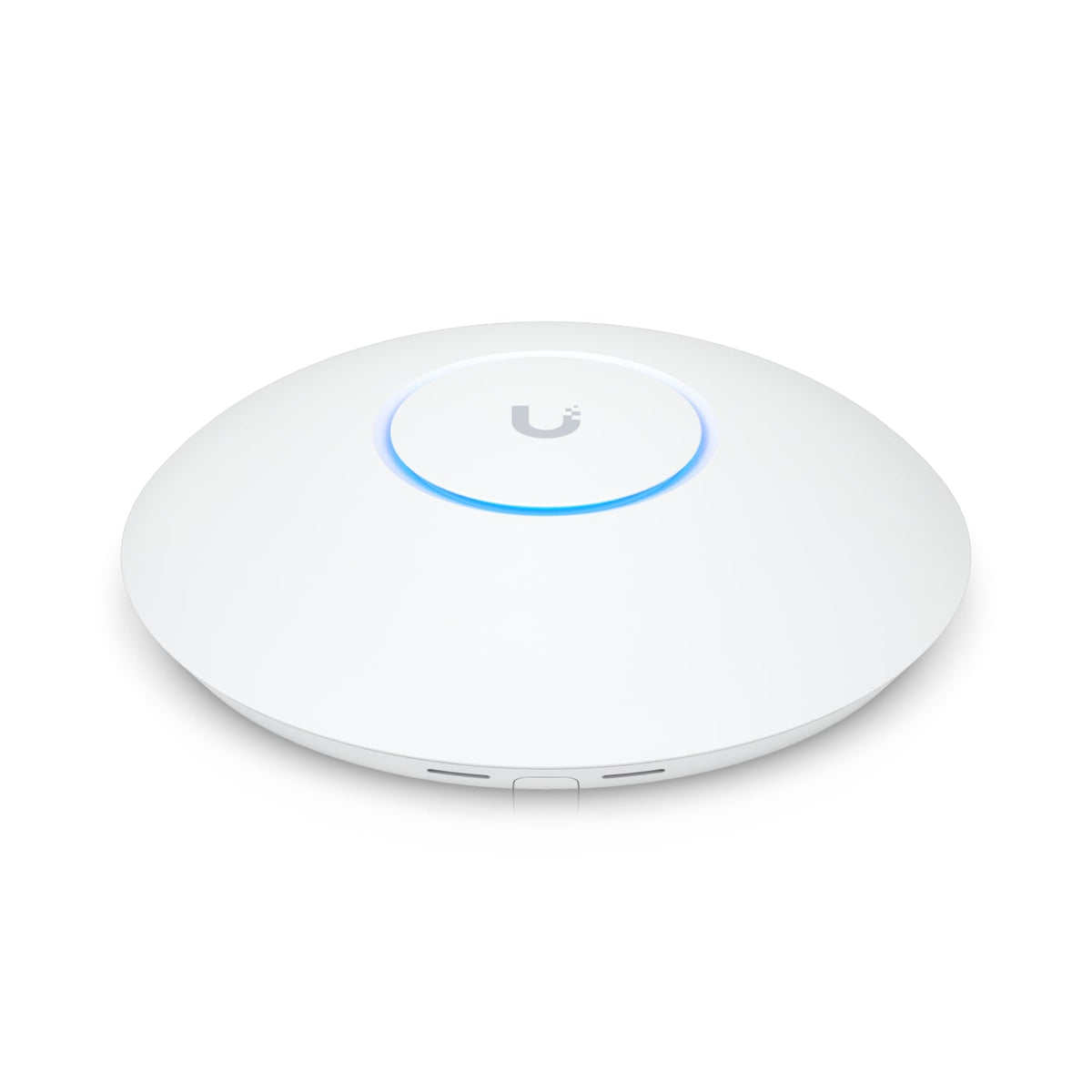

The Ubiquiti U7 Pro is a ceiling mounted WiFi 7 access point with 6 spatial streams and 6 GHz support for interference free WiFi in demanding, large scale environments. Built for scalability, the U7 Pro can accommodate over 300 devices, making it ideal for environments with heavy traffic such as offices or campuses, while its 2.5 Gbps uplink and PoE+ power support ensure it can handle significant network demands efficiently and cost effectively. Delivering data rates of up to 5.7 Gbps on the 6 GHz band, 4.3 Gbps on the 5 GHz band, and 688 Mbps on the 2.4 GHz band, it covers an area of 140 m² (1,500 ft²). Thoughtfully designed for effortless installation with premium surface mounting, the U7 Pro is compatible with existing UniFi ecosystems, making it a smooth upgrade for current users and a long term investment for businesses aiming to future proof their infrastructure. Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.
Features
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- 9.3 Gbps over the air speed
- Seamless integration with the UniFi ecosystem
- Multi-Link Operation (MLO) capability coming soon via software update
Specifications
- Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8 inches)
- Weight: 680 g (1.5 lb)
- Enclosure material: Polycarbonate, metal
- Mount material: Stainless steel (SUS304), galvanised steel (SGCC)
- Networking interface: 1 x 1/2.5 GbE RJ45 port
- Management interface: Ethernet
- Power method: PoE+
- Power supply: UniFi PoE switch
- Supported voltage range: 44 to 57V DC
- Maximum power consumption: 21W
- Maximum TX power: 2.4 GHz 22 dBm, 5 GHz 26 dBm, 6 GHz 23 dBm
- MIMO: 2.4 GHz 2 x 2 (DL/UL MU-MIMO), 5 GHz 2 x 2 (DL/UL MU-MIMO), 6 GHz 2 x 2 (DL/UL MU-MIMO)
- Maximum data rate: 2.4 GHz 688 Mbps (BW40), 5 GHz 4.3 Gbps (BW240), 6 GHz 5.7 Gbps (BW320)
- Antenna gain: 2.4 GHz 4 dBi, 5 GHz 6 dBi, 6 GHz 5.8 dBi
- LEDs: White/blue
- Button: Factory reset
- Mounting: Wall/ceiling (included)
- Ambient operating temperature: -30 to 60° C (-22 to 140° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
- WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 300+
- Supported data rates: 802.11a 6 to 54 Mbps, 802.11b 1 to 11 Mbps, 802.11g 6 to 54 Mbps, 802.11n 6.5 Mbps to 300 Mbps, 802.11ac 6.5 Mbps to 1.7 Gbps, 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps, 802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps
- Application requirements: UniFi Network version 8.0.26 and later, UniFi OS version 3.2 and later
Note: For installation assistance, you can contact us or reach out directly to the brand.
Package Contents
- Ubiquiti U7 Pro Access Point
- Wall/ceiling mount
