Description
The Ubiquiti U7 Pro XG Wall is a wall mounted, 6 GHz ready WiFi 7 access point with 1/2.5/10 GbE support. From the inside out, every mechanical and electronic detail has been meticulously shaped to strike the perfect balance between aesthetics and performance, with a new thermal architecture enabling the sleekest form factor ever while preserving the timeless look that UniFi fans know and love. Featuring tri radio operation across the 2.4, 5, and 6 GHz bands with 6 spatial streams and an omnidirectional antenna, it is ideal for most network environments, delivering robust performance with the latest WiFi 7 capabilities including MLO and 3+ Gbps client performance. Equipped with a 10 GbE port to expose the performance potential of WiFi 7, it supports single clients capable of 3+ Gbps throughput. Covering 140 m² (1,500 ft²) and supporting over 300 connected devices, it is powered using PoE+. By choosing UniFi, you are tapping into a long term ecosystem of innovation, with UniFi Network advancements continuing to roll out, bringing next level networking features, intelligence, and analytics to every UniFi deployment.
Features
- WiFi 7 with tri radio 2.4 / 5 / 6 GHz and 6 spatial streams
- 6 GHz radio
- Omnidirectional antenna type
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 10 GbE uplink
- Latest WiFi 7 capabilities including MLO and 3+ Gbps client performance
Specifications
- Dimensions: 155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3 inches)
- WiFi standard: WiFi 7
- Spatial streams: 6
- Coverage area: 140 m² (1,500 ft²)
- Maximum client count: 300+
- Uplink: 10 GbE
- Mounting: Wall
- Power method: PoE+
- MIMO: 6 GHz 2 x 2 (DL/UL MU-MIMO), 5 GHz 2 x 2 (DL/UL MU-MIMO), 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
- Maximum data rate: 6 GHz 5.8 Gbps (BW320), 5 GHz 4.3 Gbps (BW240), 2.4 GHz 688 Mbps (BW40)
- Antenna gain: 6 GHz 6 dBi, 5 GHz 6 dBi, 2.4 GHz 4 dBi
- Maximum TX power: 6 GHz 24 dBm, 5 GHz 26 dBm, 2.4 GHz 23 dBm
- Maximum BSSIDs: 8 per radio
- Supported data rates: 802.11be (WiFi 7) 6 GHz 7.3 Mbps to 5.8 Gbps, 5 GHz 7.3 Mbps to 4.3 Gbps; 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps; 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps; 802.11n 6.5 Mbps to 300 Mbps
- Features: Wireless meshing, band steering, 802.11v BSS transition management, 802.11r fast roaming, 802.11k radio resource management, advanced radio management, Passpoint (Hotspot 2.0), captive hotspot portal with custom branding landing page, voucher authentication, payment based authentication, external portal server support, password authentication, guest network isolation, private pre shared key (PPSK), WiFi speed limiting, client device isolation, WiFi schedules, RADIUS over TLS (RadSec), dynamic RADIUS assigned VLAN
- Maximum power consumption: 22W
- Supported voltage range: 42.5 to 57V DC

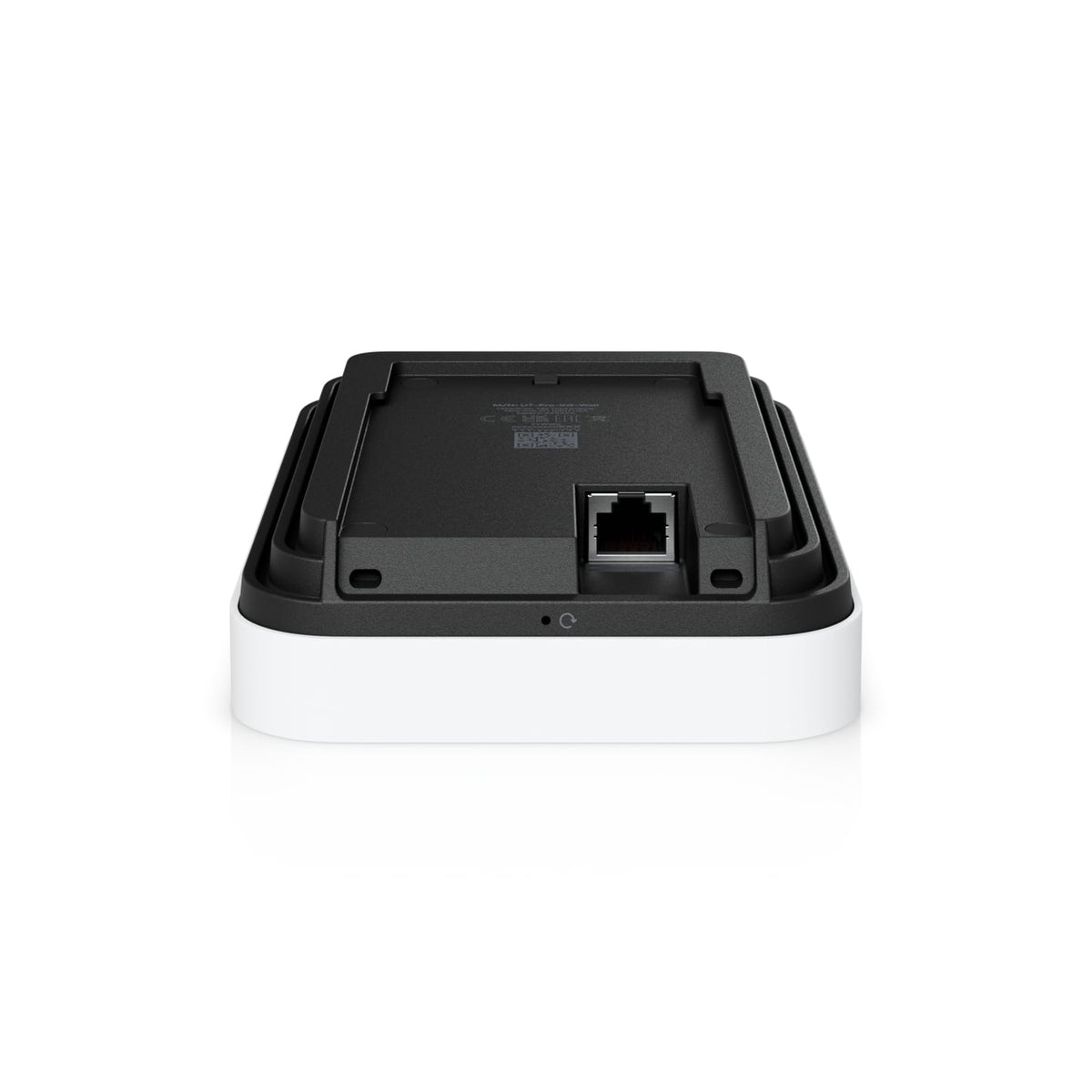

- Networking interface: 1 x 10 GbE RJ45 port
- Weight: 505 g (1.1 lb)
- Management: Ethernet
- Enclosure material: Polycarbonate, aluminium alloy
- Mount material: Aluminium alloy
- LEDs: System white/blue
- Channel bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC
- Ambient operating temperature: -30 to 40° C (-22 to 104° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Application requirements: UniFi Network version 10.0 and later, mobile app iOS version 10.29.3 and later, Android version 10.31.1 and later
Package Contents
- Ubiquiti U7 Pro XG Wall Access Point
