Description

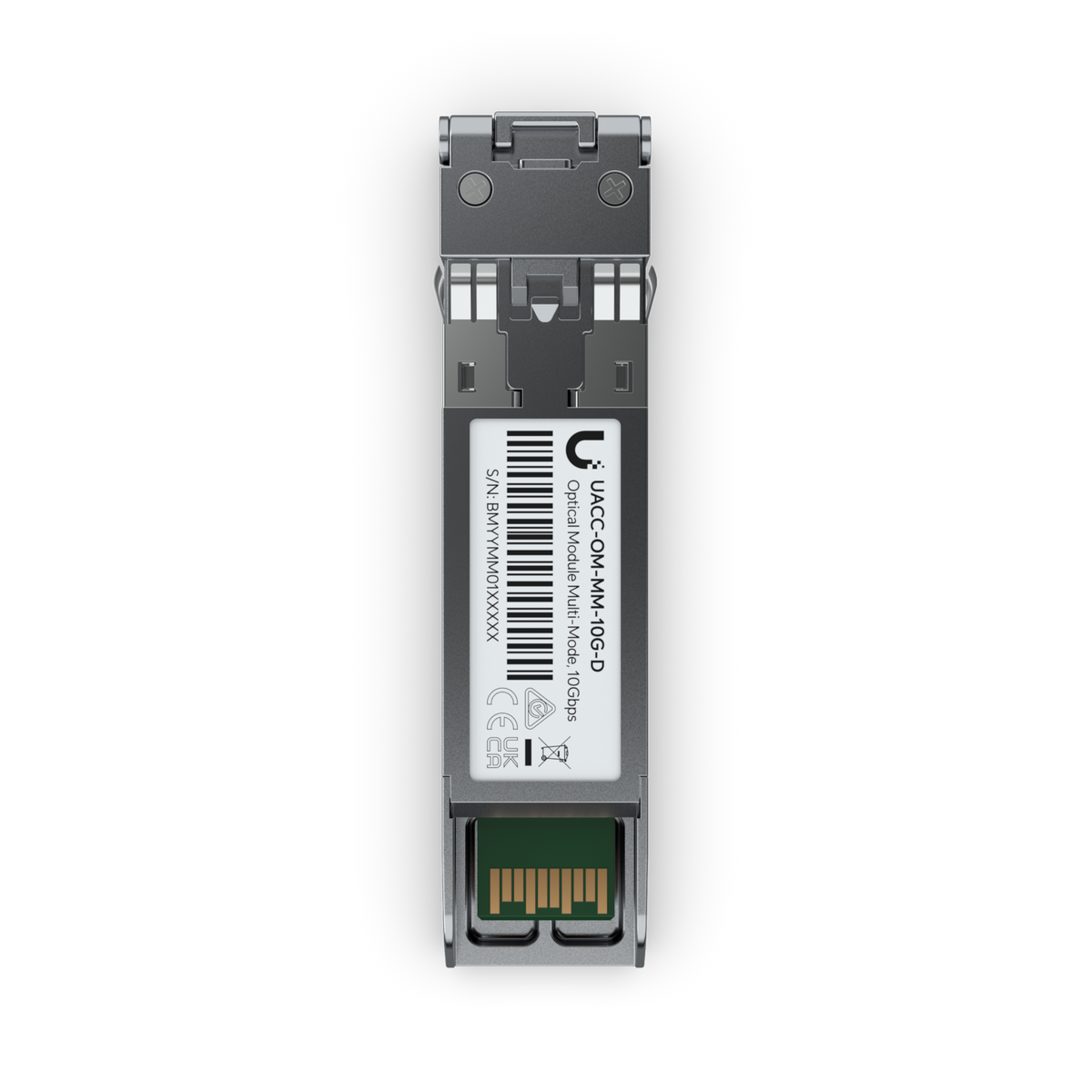

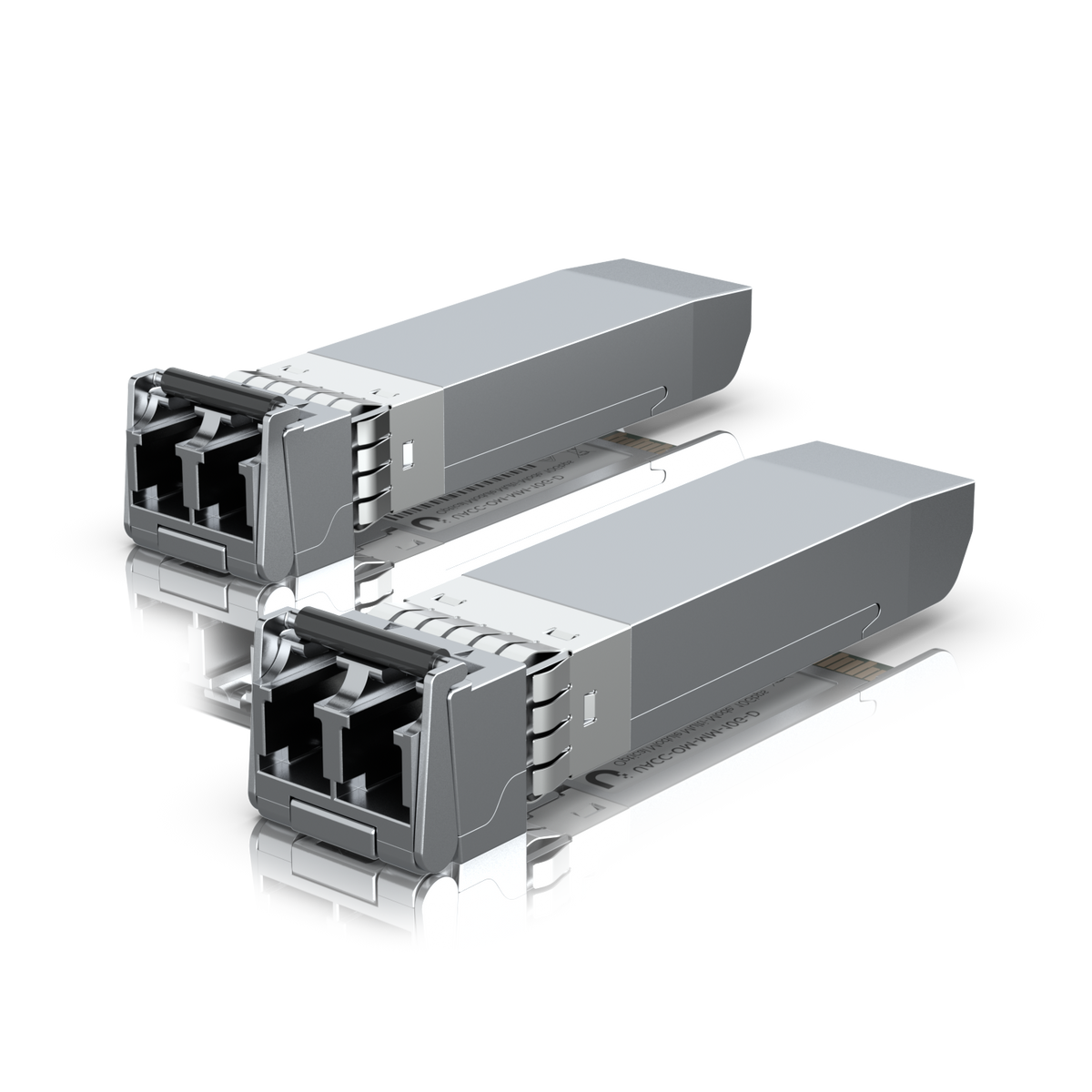

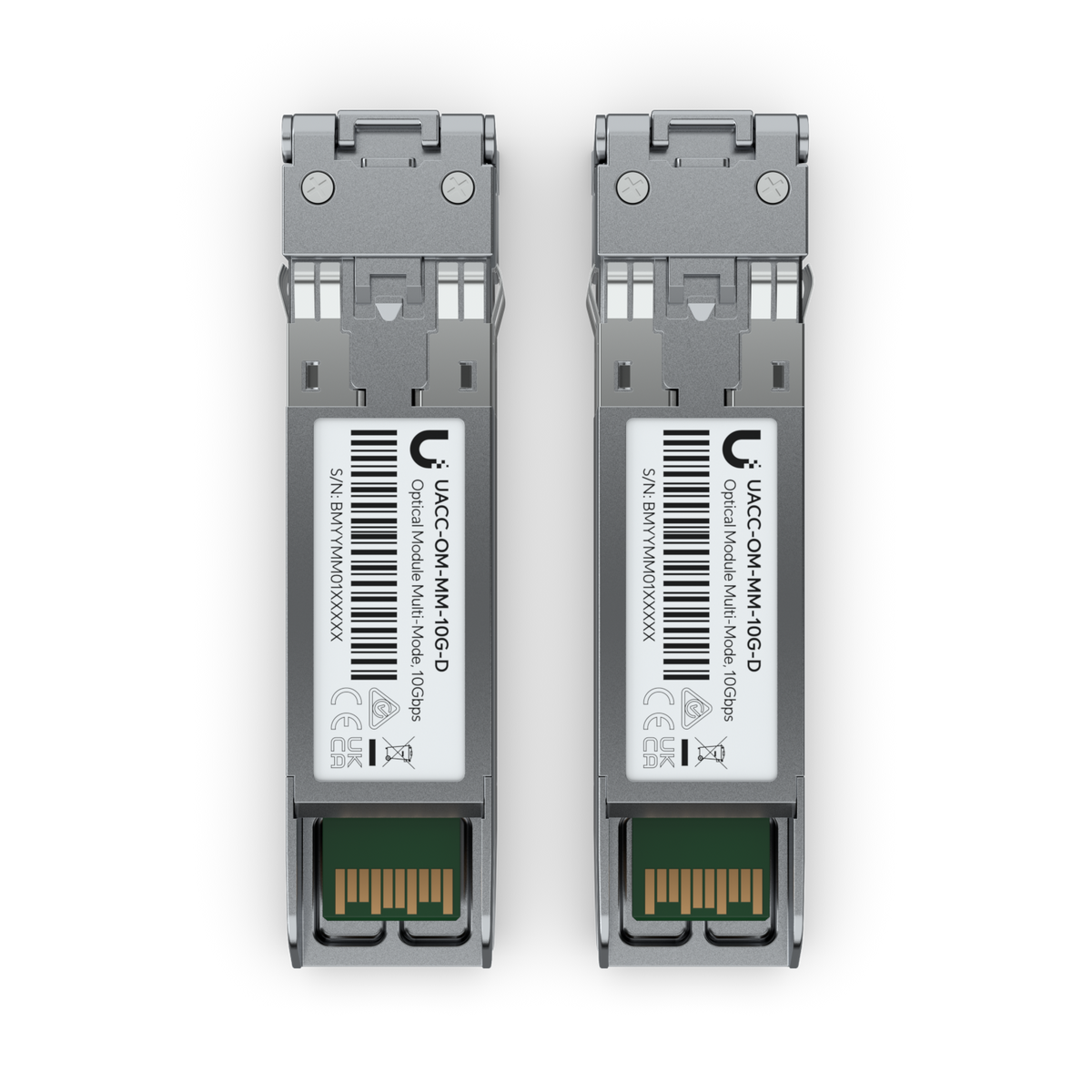

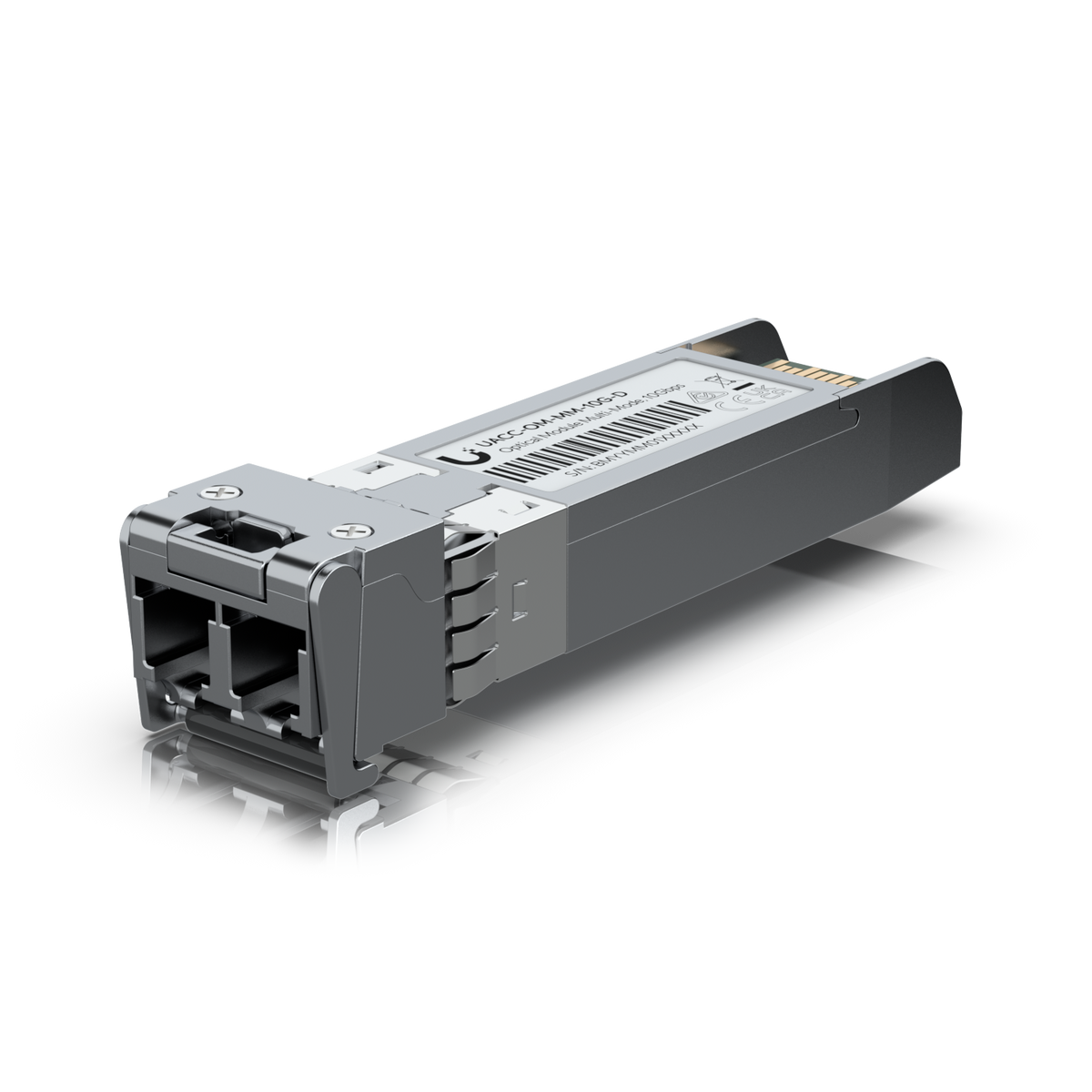

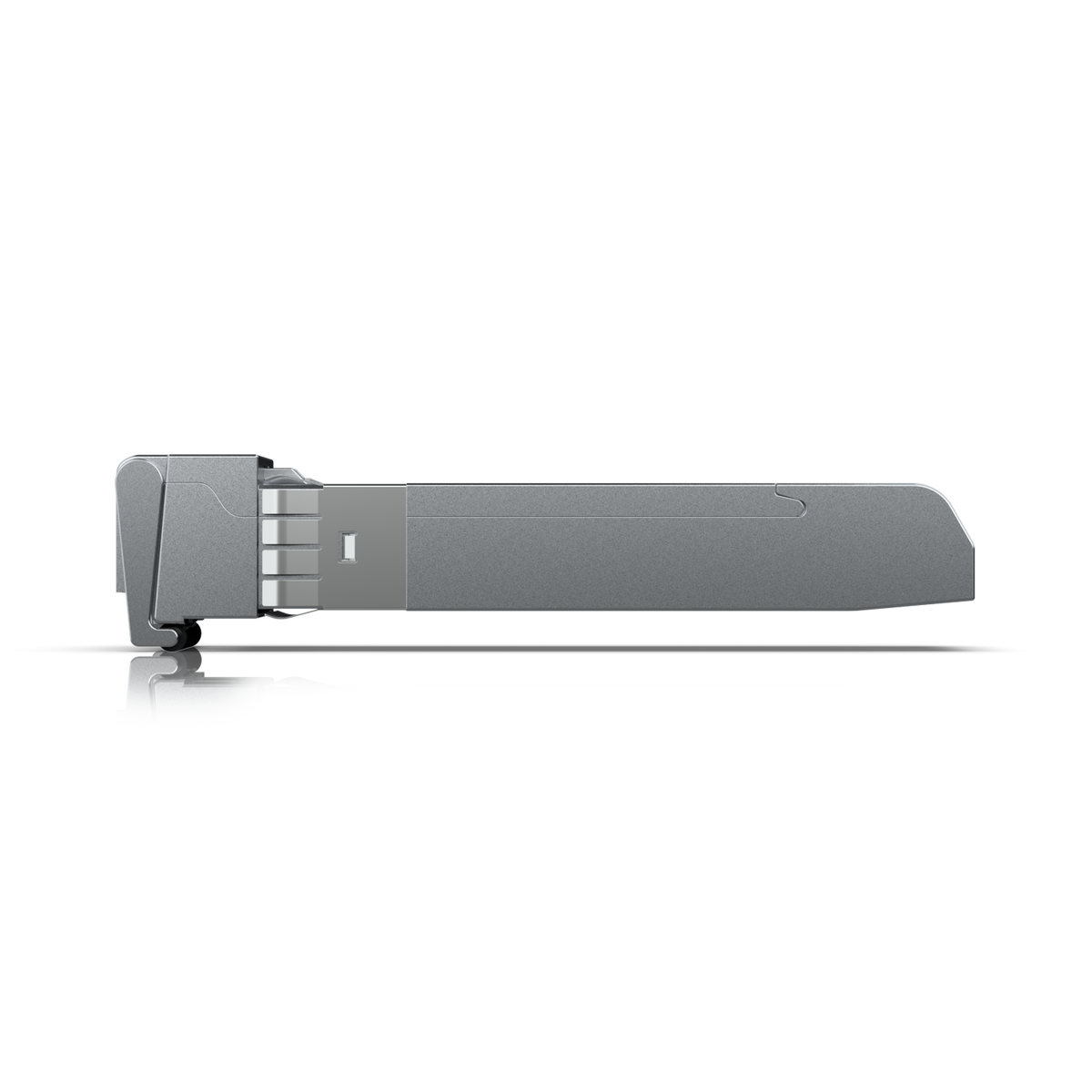

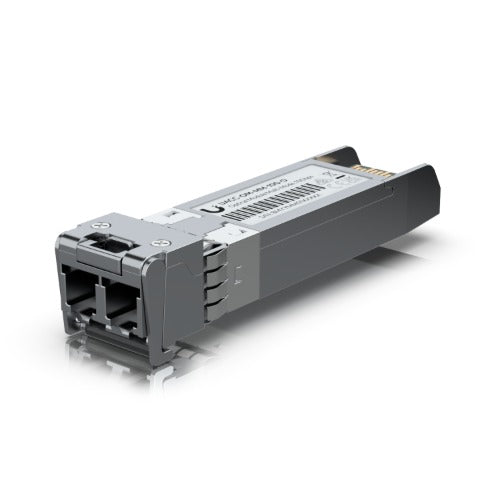

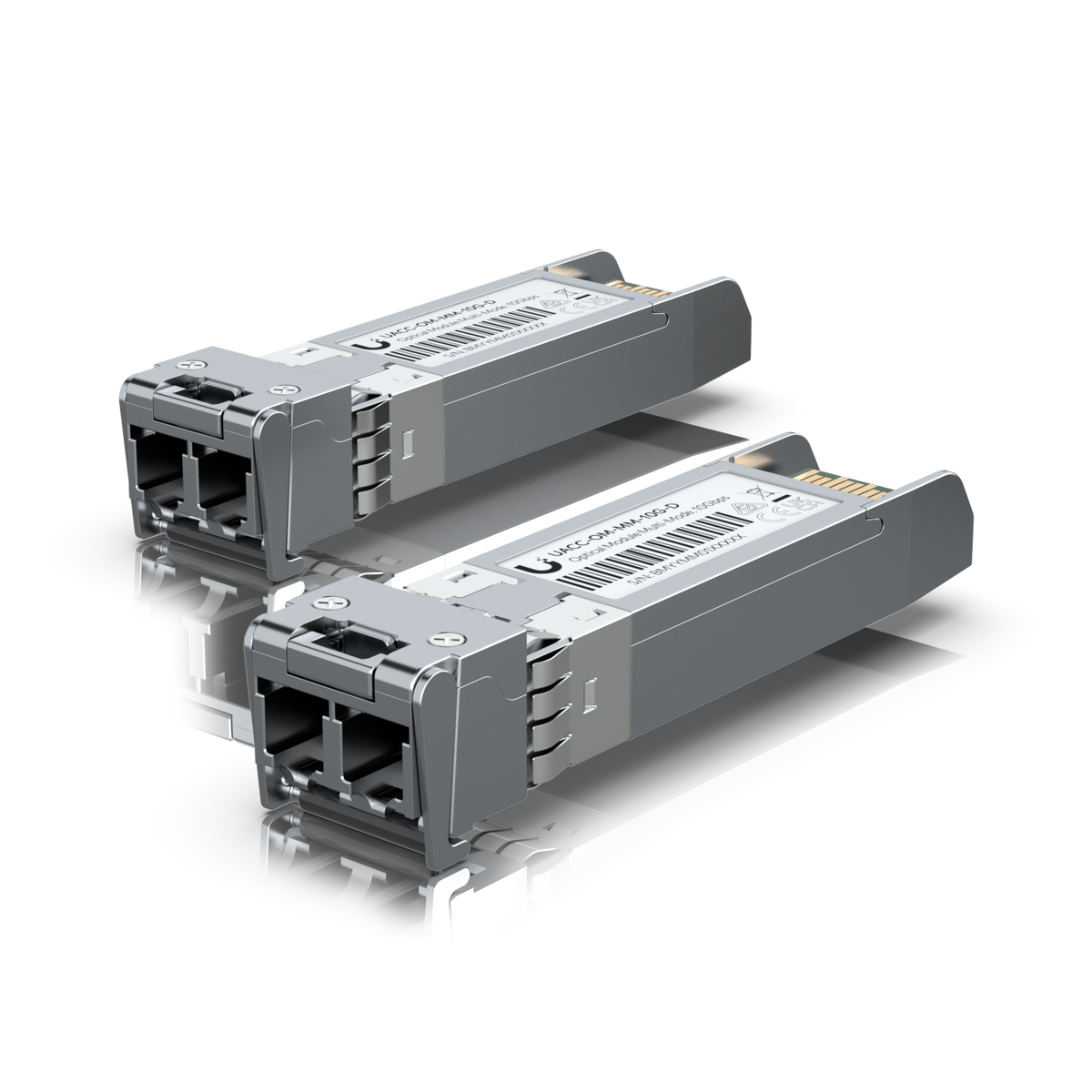

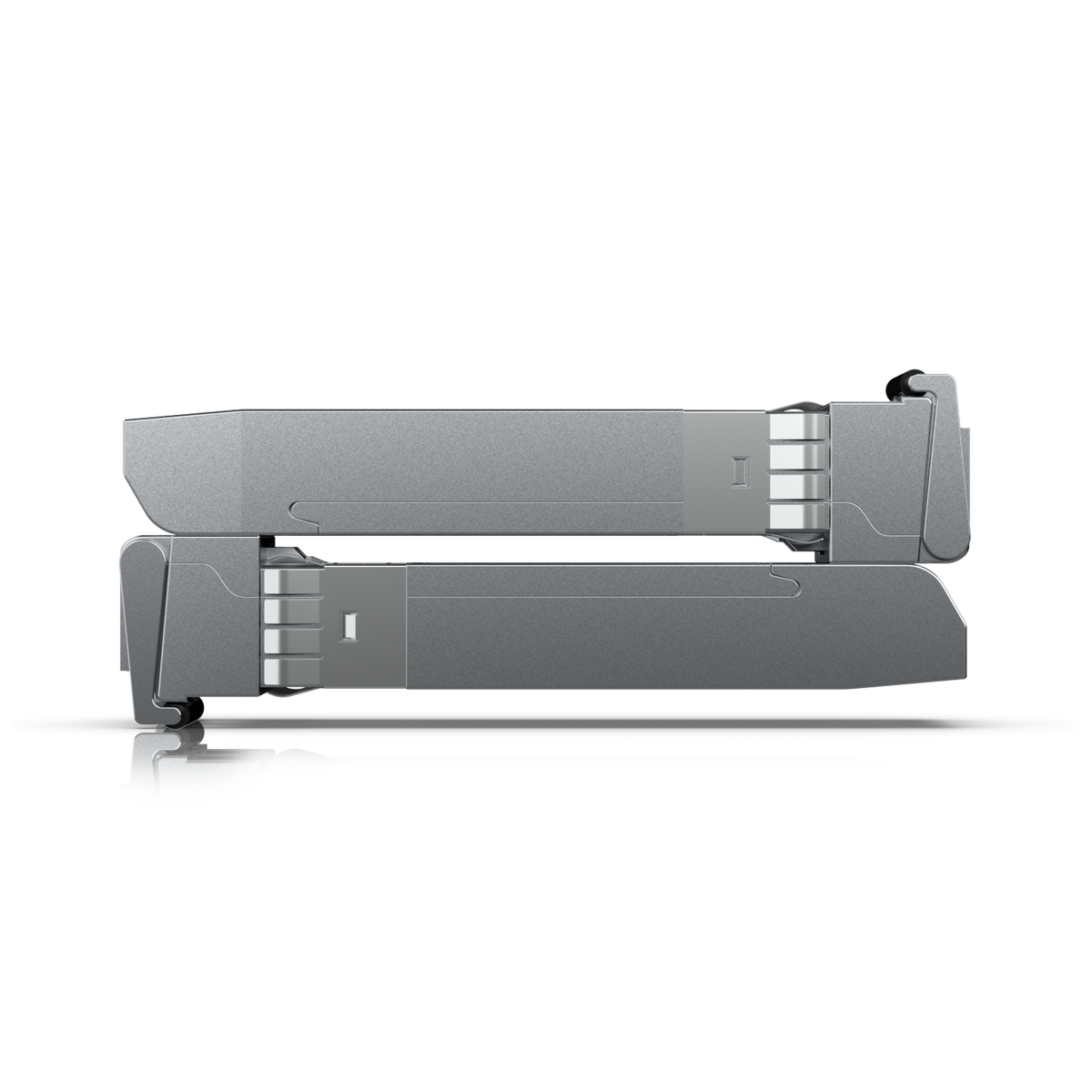

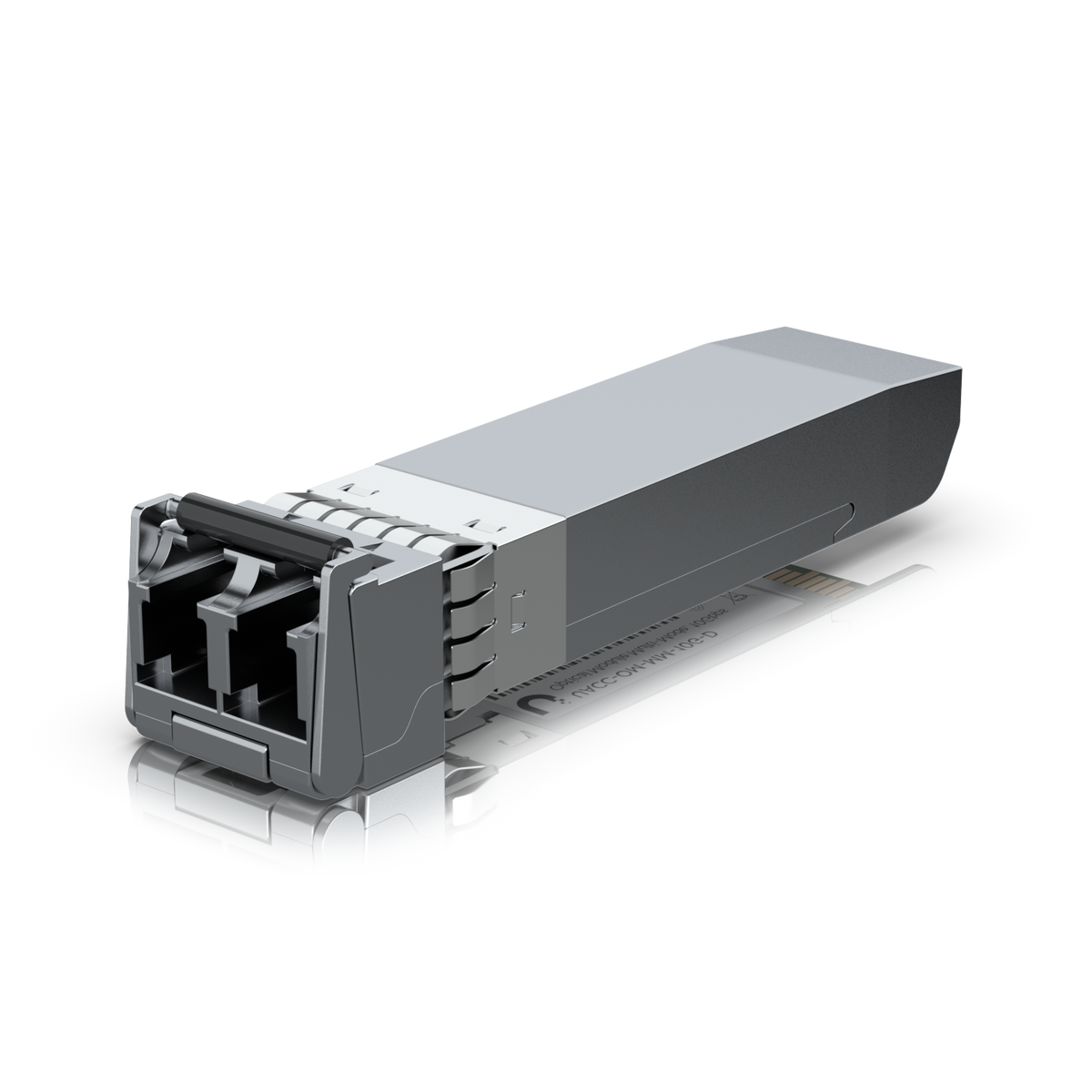

The Ubiquiti UFiber 10Gbps Multi-Mode Optical Module is an SFP+ transceiver that supports 10G connections up to 300 m using multi mode fiber with a duplex LC UPC connector. With a maximum data rate of 10 Gbps, it is compatible with SFP+ and SFP interfaces and supports cable distances of up to 400 m over OM4 and 300 m over OM3 fiber. Operating at an 850 nm wavelength with a maximum power consumption of just 0.8W, this single pack module provides an efficient high speed fiber connectivity solution. Please note this is a Class 1 laser product per IEC/EN 60825-1:2014; do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Features
- Maximum data rate: 10 Gbps
- Compatible with SFP+ and SFP interfaces
- Duplex LC UPC connector
- Supports multi mode fiber connections up to 300 m
- Single pack
Specifications
- Form factor: SFP+
- Connector: Duplex LC UPC
- Supported media: Multi mode fiber
- TX wavelength: 850 nm
- RX wavelength: 850 nm
- Supported data rate: 1 / 10 Gbps
- Supported cable distance: OM4 400 m (1312 ft), OM3 300 m (984 ft)
- Maximum power consumption: 0.8W
- Pack options: Single unit, 2 pack, 20 pack
- Ambient operating temperature: 0 to 70° C (32 to 158° F)
- Laser safety: Class 1 laser product, IEC/EN 60825-1:2014
Package Contents
- Ubiquiti UFiber 10Gbps Multi-Mode Optical Module
