Description

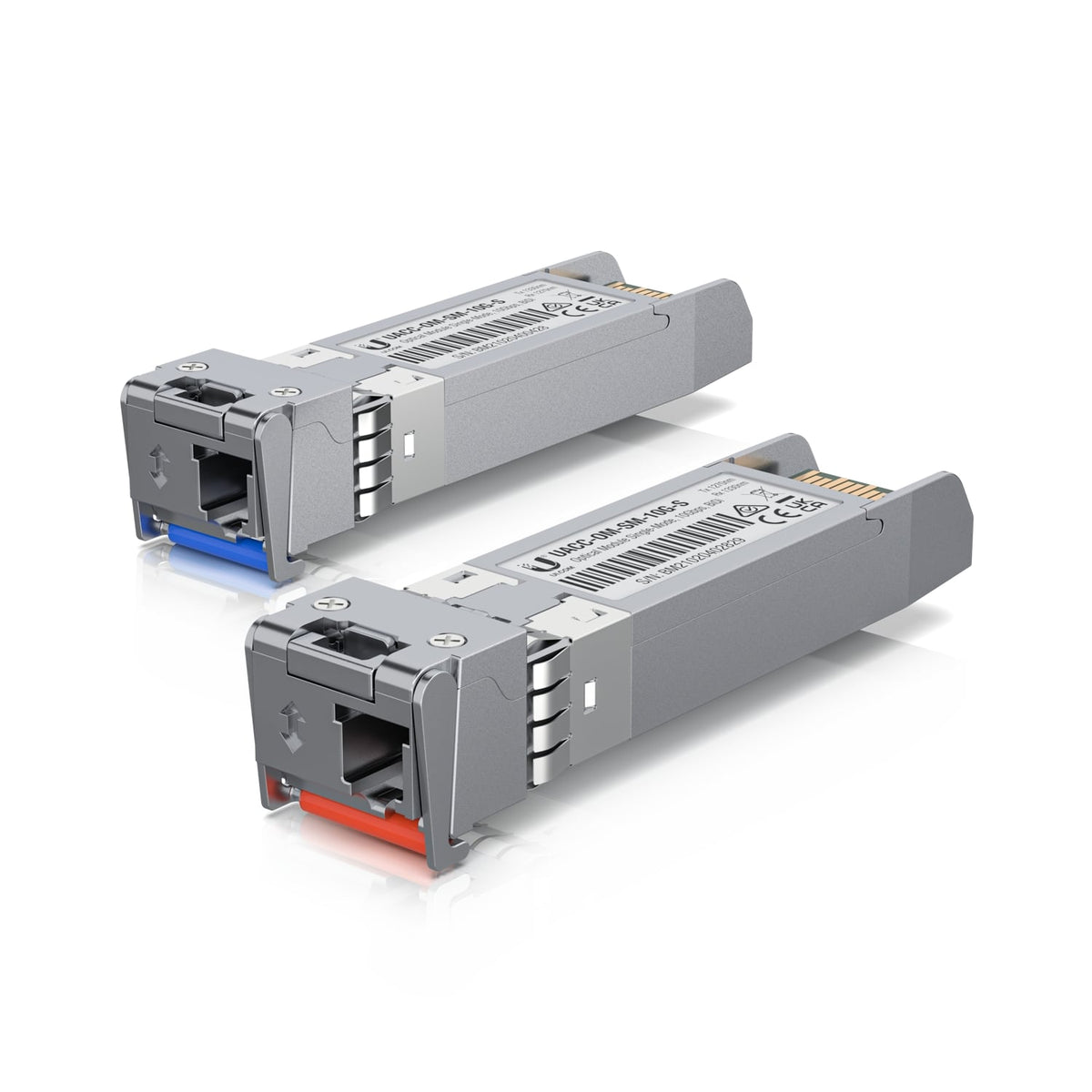

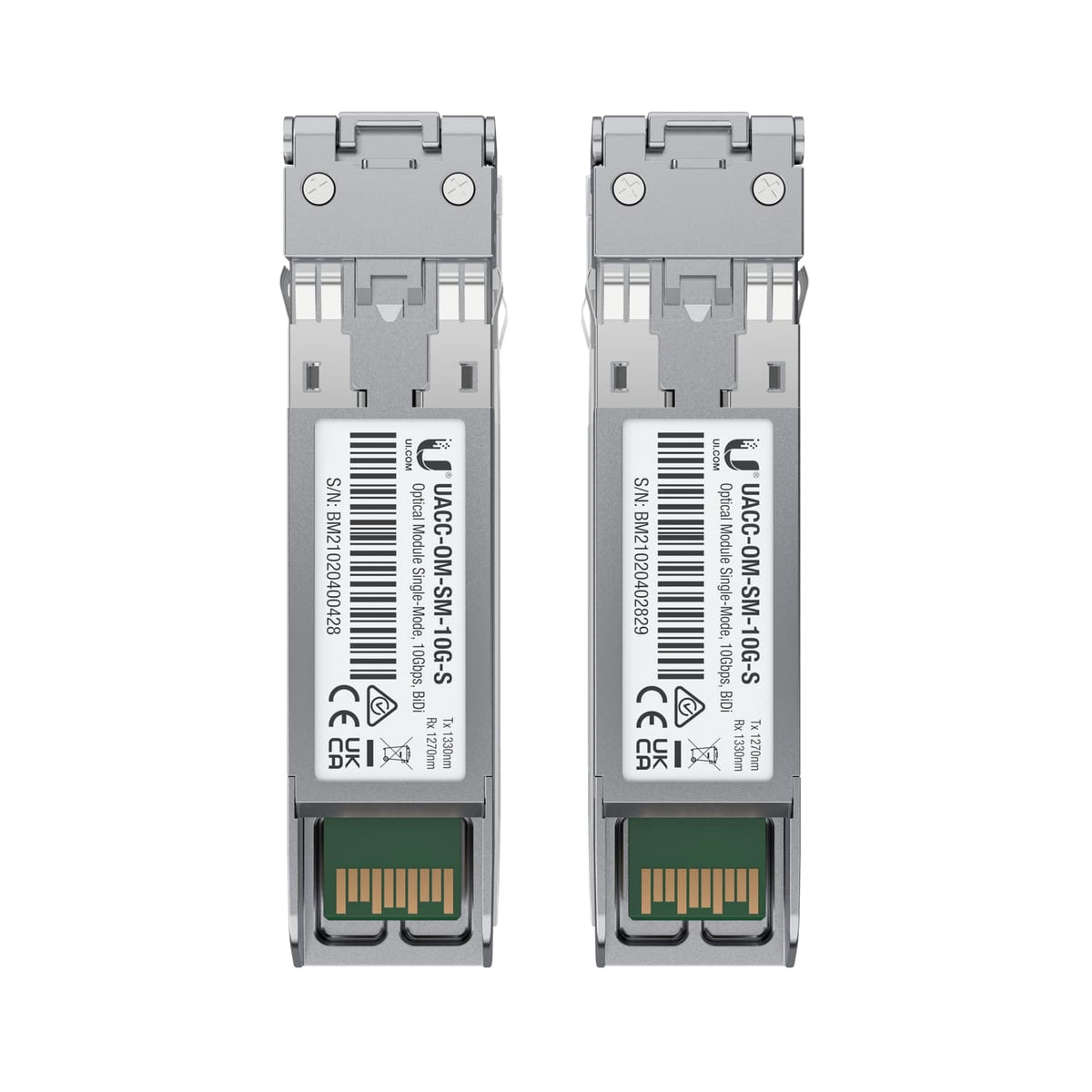

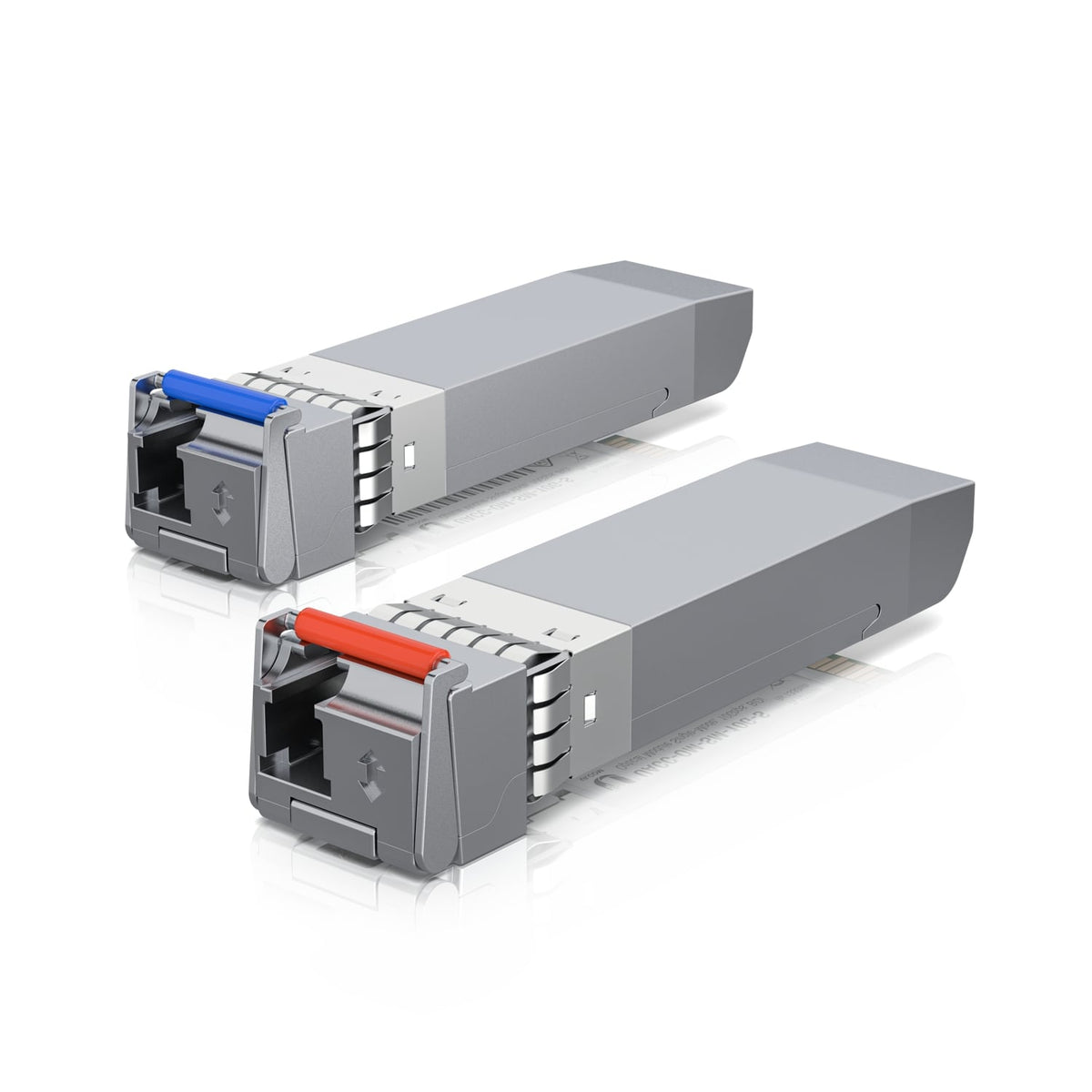

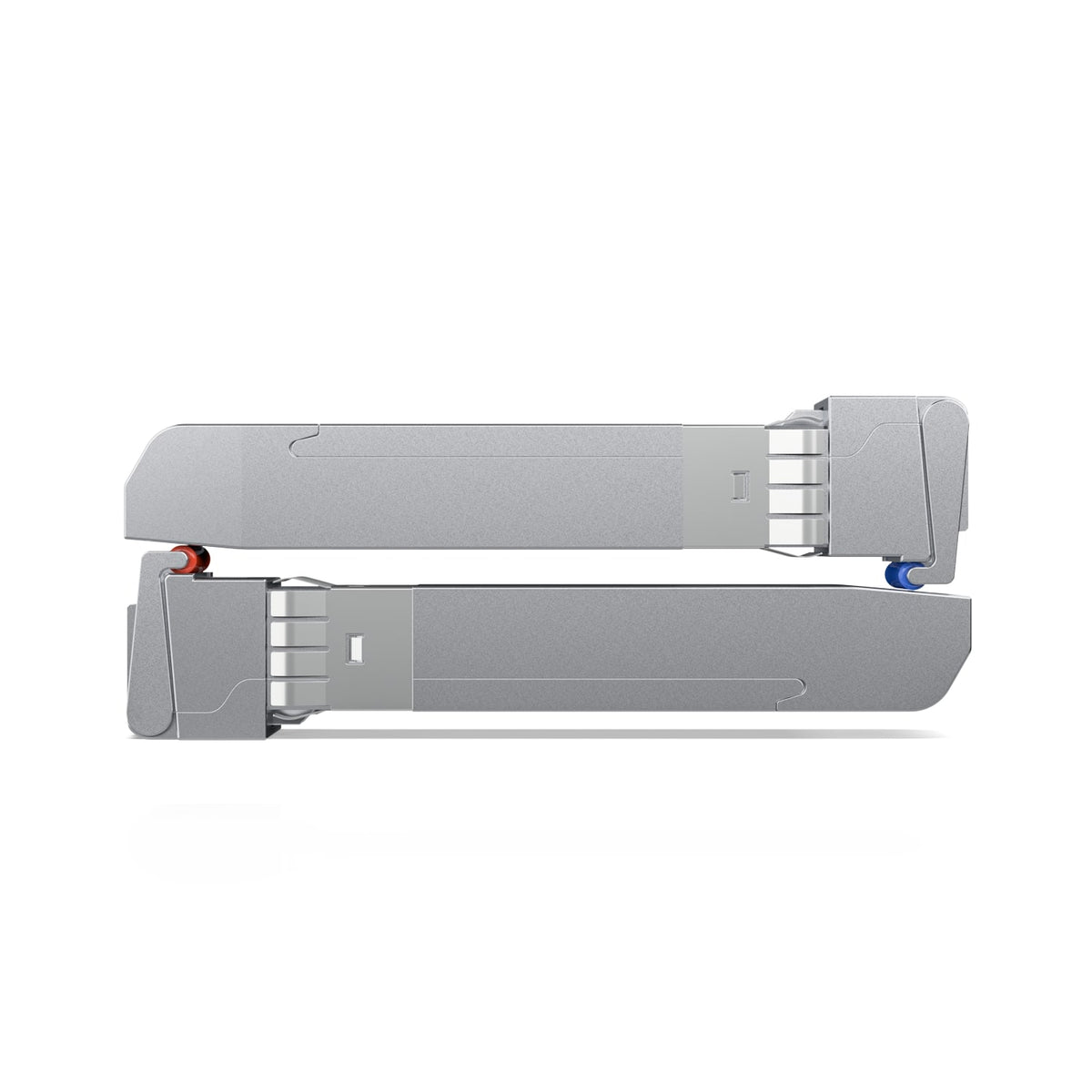

The Ubiquiti 10 Gbps Bidirectional Single-Mode Optical Module is an SFP+ transceiver delivering 10 Gbps throughput over a single strand of fiber with a simplex LC UPC connector, meaning less cable is required for the same 10 Gbps speed. Supplied as a 2 pack with bidirectional (BiDi) operation at 1270/1330 nm TX and 1330/1270 nm RX wavelengths, it supports single mode fiber connections of up to 10 km with a maximum power consumption of just 1W per module.
Features
- 10 Gbps throughput
- Simplex LC connector
- Supports connections up to 10 km
- 2 pack
- Bidirectional operation over a single strand requiring less cable
Specifications
- Form factor: SFP+
- Connector: Simplex LC UPC
- Supported media: Single mode fiber
- BiDi: Yes
- TX wavelength: 1270 / 1330 nm
- RX wavelength: 1330 / 1270 nm
- Supported data rate: 1 / 10 Gbps
- Supported cable distance: 10 km (6.2 mi)
- Maximum power consumption: 1W
- Pack options: 2 pack, 20 pack
- Ambient operating temperature: 0 to 70° C (32 to 158° F)
WARNING
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Package Contents
- 2 x Ubiquiti 10 Gbps Bidirectional Single-Mode Optical Modules
