Description:

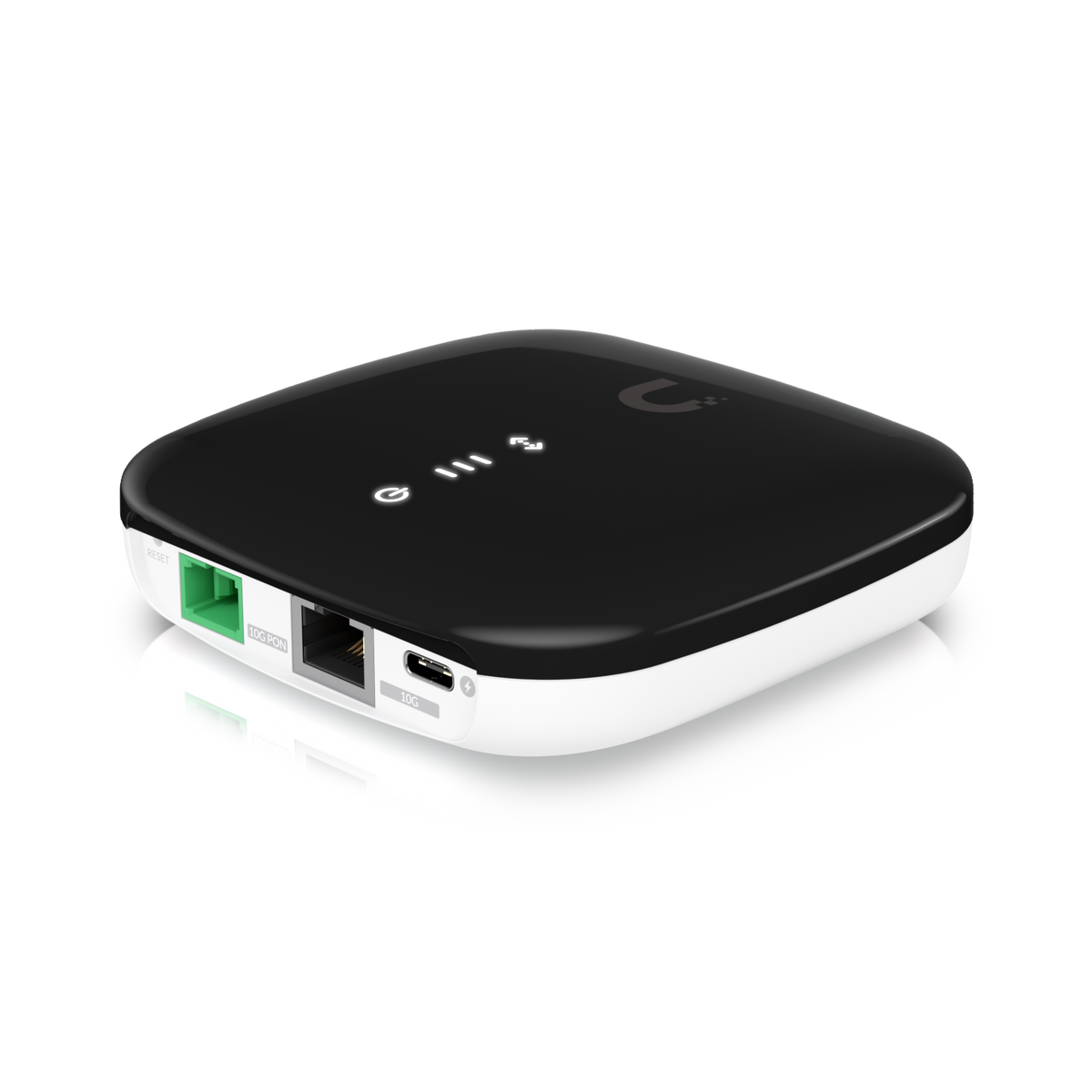

The Ubiquiti UISP Fiber XG-PON CPE is an optical network unit capable of delivering 2.5Gbps uplink and 10Gbps downlink speeds over distances up to 20 km. It features an XG-PON optic SC/APC port and a 2.5GbE RJ45 LAN port that supports 24V passive PoE, with both Bridge and Router Mode support available.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Delivers 2.5Gbps uplink and 10Gbps downlink speeds

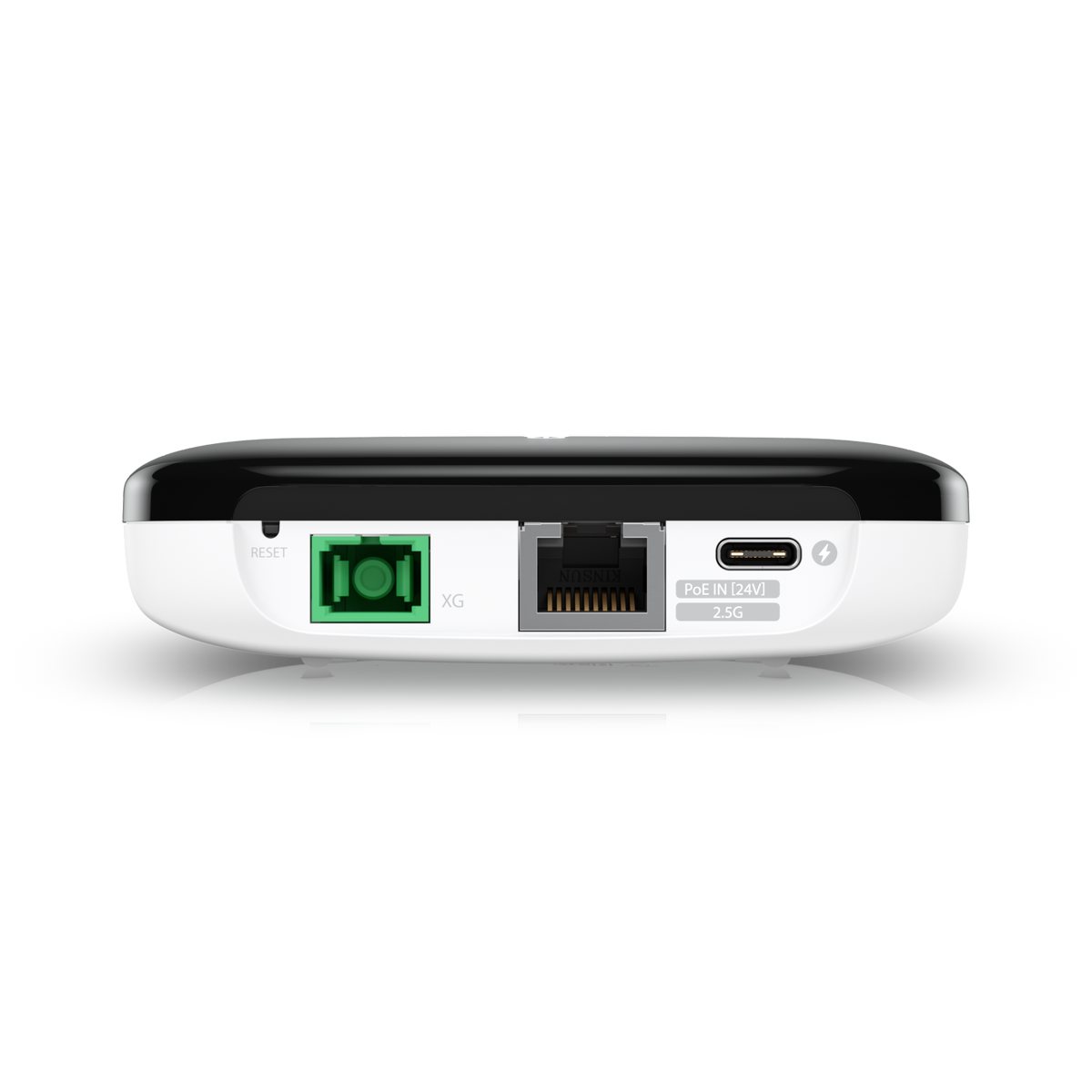

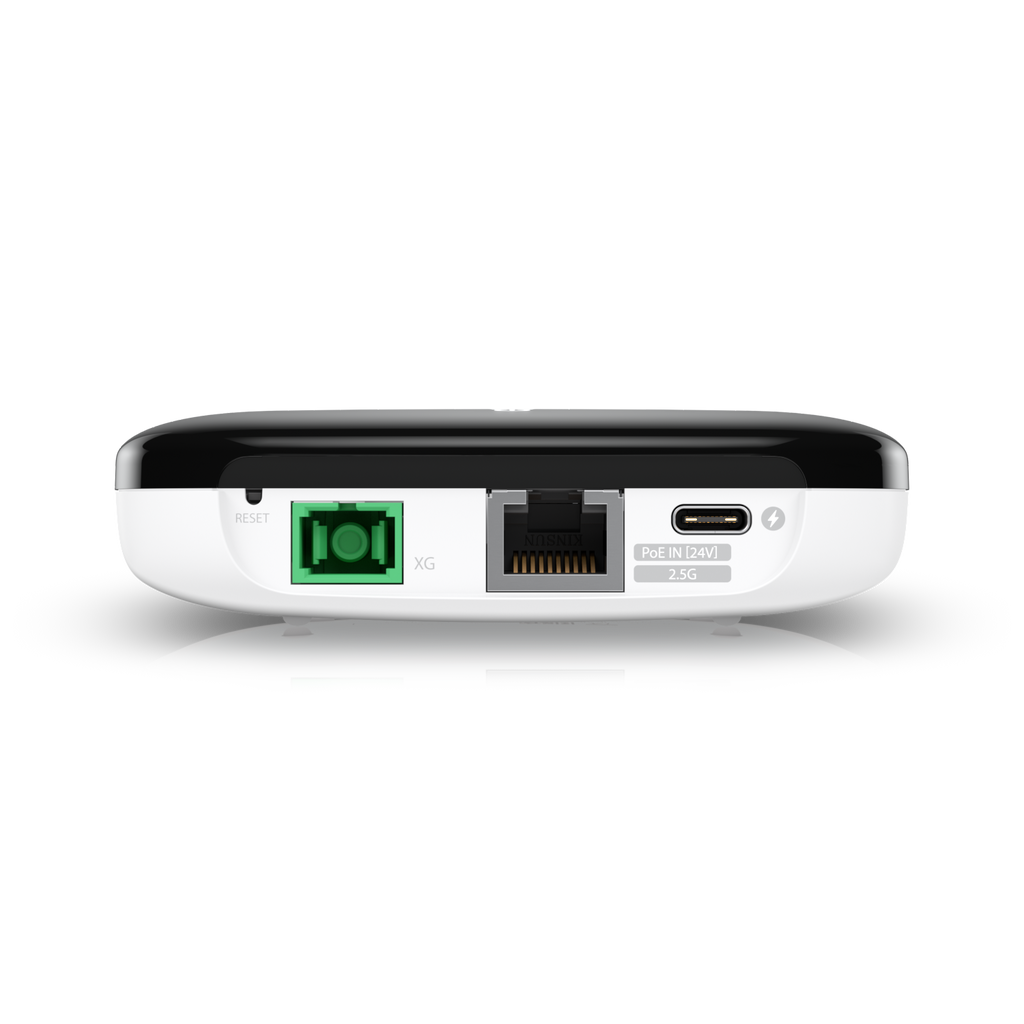

- (1) XG-PON optic SC/APC port
- (1) 2.5GbE RJ45 LAN port supporting 24V passive PoE
- Bridge and Router Mode support
- Compatible only with UISP Fiber XGS OLT
Specifications:
- Dimensions: 100 x 100 x 27 mm (3.9 x 3.9 x 1.1")
- Weight: 220 g (0.49 lb)
- Enclosure Material: UV-stabilized polycarbonate
- Networking Interface: (1) SC/APC ITU-G.987 XGPON WAN port, (1) 100/1,000/2,500 MbE RJ45 LAN port
- Management Interface: Ethernet in-band, PON
- PoE Interface: (1) PoE in, 24V DC passive PoE
- Memory: 256 MB DDR
- Onboard Flash Storage: 32 MB NOR
- Max Power Consumption: 6W
- Power Method: USB-C 5V DC 3A, 24V DC passive PoE
- Power Supply: 5V DC, 3A power adapter, passive PoE 2-pair (4,5+; 7,8-)
- Supported Voltage Range: 5V DC adapter, 10-30V DC passive PoE
- Total Non-Blocking Line Rate: Downstream 9.95 Gbit/s, upstream 2.44 Gbit/s
- Normal TX Range of Optical Module: 2 to 7dBm
- Normal RX Range of Optical Module: -9 to -27dBm
- Button: (1) Factory reset
- Ambient Operating Temperature: -15 to 45°C (5 to 113°F)
- Ambient Operating Humidity: 10 to 95% non-condensing
- Certifications: CE, FCC, IC
- Operating Wavelength: TX 1,270nm, RX 1,577nm
- Line Code: Scrambled NRZ
- Physical Reach: 20 km

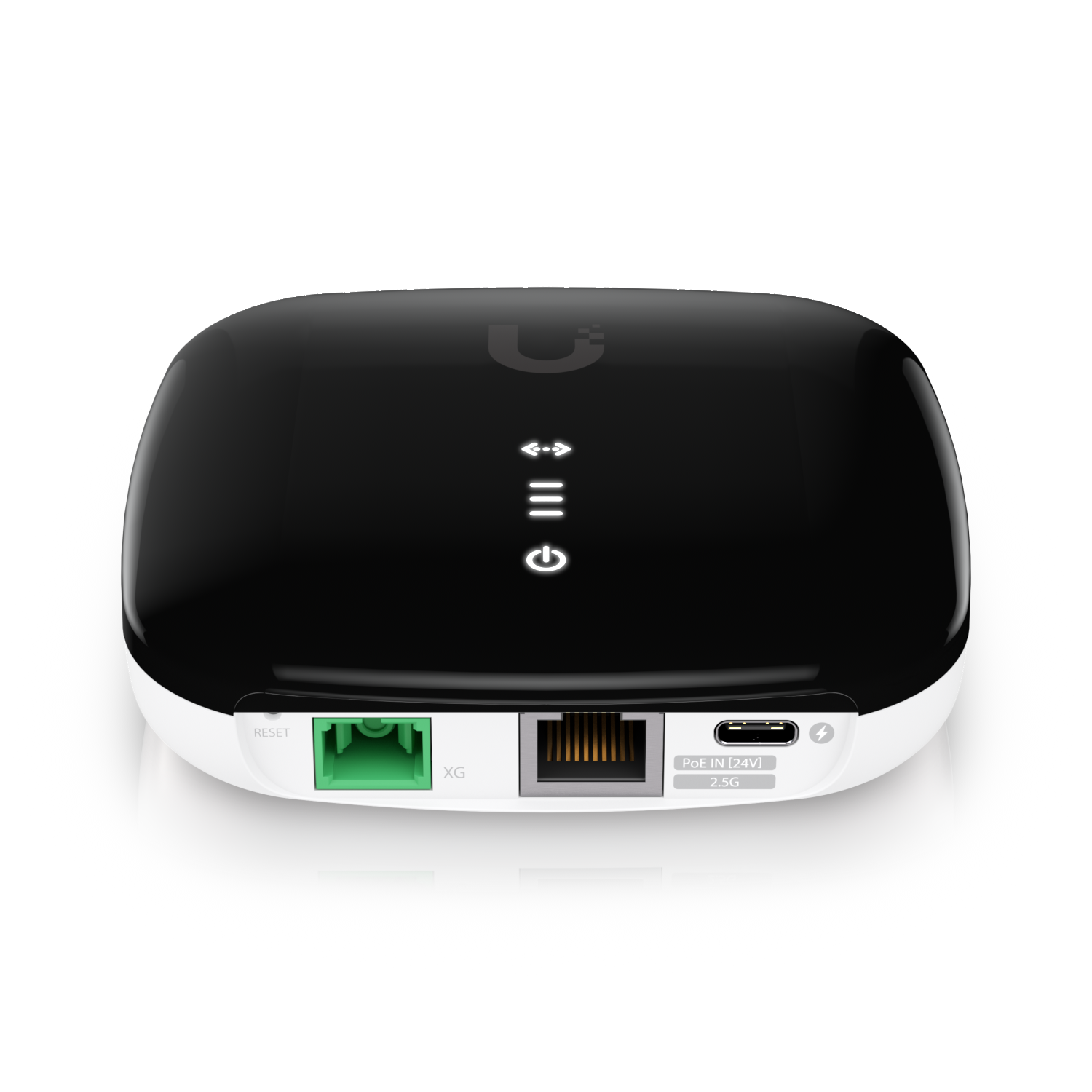

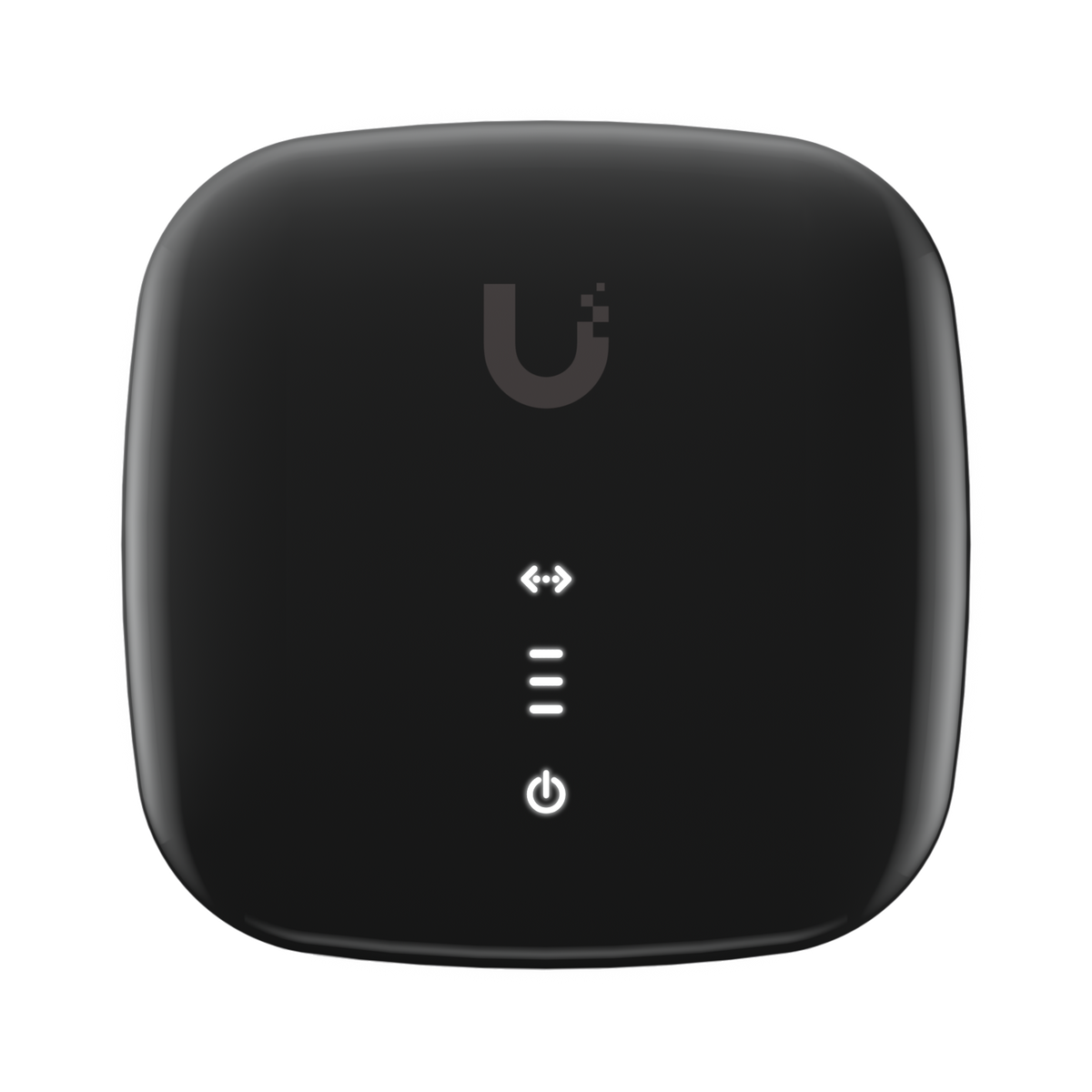

- LEDs: Power white on; Ethernet steady white for link up, blinking white for activity, off for link down; PON status with (3) signal LEDs indicating signal strength from too low to too strong, no signal, or no authority
- NDAA Compliant: Yes
