Description:

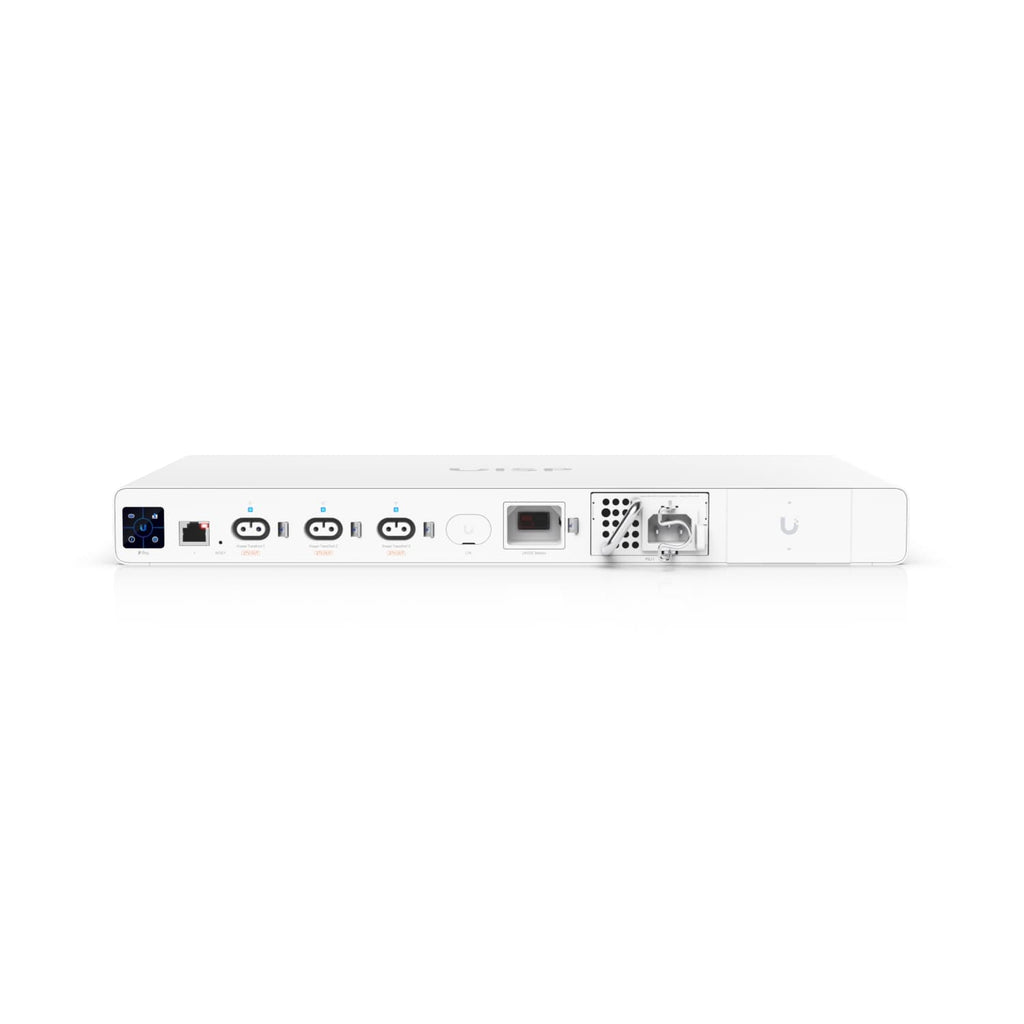

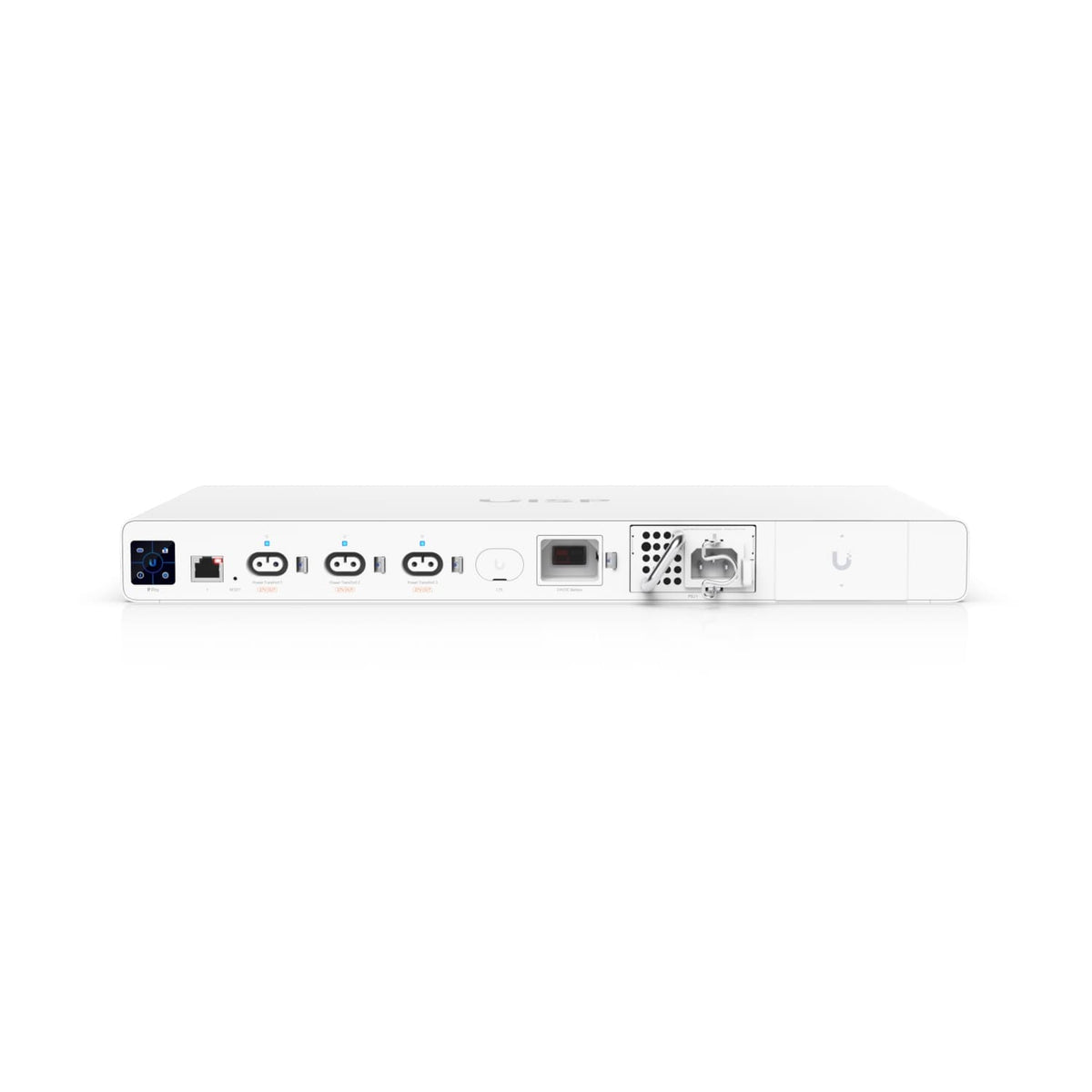

The Ubiquiti UISP Power Professional is an uninterruptible power management system designed to support high-capacity WISP deployment sites. It delivers up to 480W (27V DC) to supported UISP devices through three Power TransPort outputs, with two PSU bays and one 250W AC/DC power supply included.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- (3) Power TransPort outputs
- Delivers up to 480W (27V DC) to supported UISP devices
- (2) PSU bays with (1) 250W AC/DC power supply included
- (1) DC battery port for an external 24V lead-acid battery (not included)
- Supports SMS-over-LTE (Cat M1) notification
- Compatible with UISP Console, UISP Router (installed with UISP Box), UISP Router Pro, UISP Switch (installed with UISP Box), and UISP Switch Pro
Specifications:
- Dimensions: 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")
- Weight: 4.16 kg (9.2 lb)
- Enclosure Materials: SGCC steel, polycarbonate/ABS
- Networking Interface: (1) 10/100 MbE RJ45 LAN port
- Management Interface: Ethernet in-band, Bluetooth
- Power TransPort Interface: (3) Power TransPort ports, up to 250W (27V DC) output each; total output 240W (27V DC) with 1 PSU, 480W (27V DC) with 2 PSUs
- Primary Power: (2) Universal AC inputs (100-240V AC, 3.5A max, 50/60Hz), (1) PSU included, additional modules sold separately
- Backup Power: (1) 24V DC, 20.83A lead-acid battery input, battery not included; connect to a lead-acid battery only, as other battery types could be hazardous
- Supported Voltage Range: 100 to 240V AC
- Max Power Consumption: 3W, excludes Power TransPort output and battery charger
- ESD/EMP Protection: Air ±15 kV, contact ±8 kV
- LCM Display: 1.3" touchscreen
- Ambient Operating Temperature: -10 to 50°C (14 to 122°F)
- Ambient Operating Humidity: 5 to 95% non-condensing
- Certifications: CE, FCC, IC, PTCRB, AT&T
- LTE Antenna: External, included
- SIM: Nano-SIM
- LTE Category: Cat M1
- LTE Bands: US/Canada FDD-LTE Bands 2, 4, 12, 13 (AT&T Network-Ready); EU FDD-LTE Bands 1, 3, 8, 20, 28
- Notification Type: SMS, requires a nano-SIM card from a Cat M1 SMS provider
- Input Rating: 5V DC, 0.5A
- LEDs: System status, RJ45 data ports link/activity, Power TransPort on/off
- Supported Models: UISP Console, UISP Router (installed with UISP Box), UISP Router Pro, UISP Switch (installed with UISP Box), UISP Switch Pro
- Management Application: UISP version 1.4.8 and later
