Description:
The Ubiquiti UISP Router Professional is a multi-WAN 10GbE router designed for ISP applications. It combines 9 GbE RJ45 ports and 4 10G SFP+ ports with an integrated Layer 2 switch, delivering up to 9,500 Mbps NAT throughput. The router includes traffic shaping functionality with automated customer suspension, along with firewall and OSPF routing capabilities, and offers an additional Power TransPort input for DC redundancy.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Integrated Layer 2 switch, with ports 1-8 and 10-13 configurable for line-rate Layer 2 switching
- Up to 9,500 Mbps NAT throughput, up to 2,250 Mbps with QoS enabled, and up to 7,500 Mbps with IP Accounting enabled
- Traffic shaping functionality and automated customer suspension
- Firewall and OSPF routing
- Additional Power TransPort input for DC redundancy
Specifications:
- Dimensions: 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7")
- Weight: 3.3 kg (7.2 lb)
- Enclosure Materials: SGCC steel, polycarbonate/ABS
- Processor: Quad-core ARM Cortex-A57 at 1.7 GHz
- Memory: 4 GB DDR4
- Onboard Storage: 16 GB eMMC
- Networking Interface: (8) GbE RJ45 LAN ports, (1) GbE RJ45 WAN port, (4) 1/10G SFP+ ports
- Management Interface: Ethernet, Bluetooth

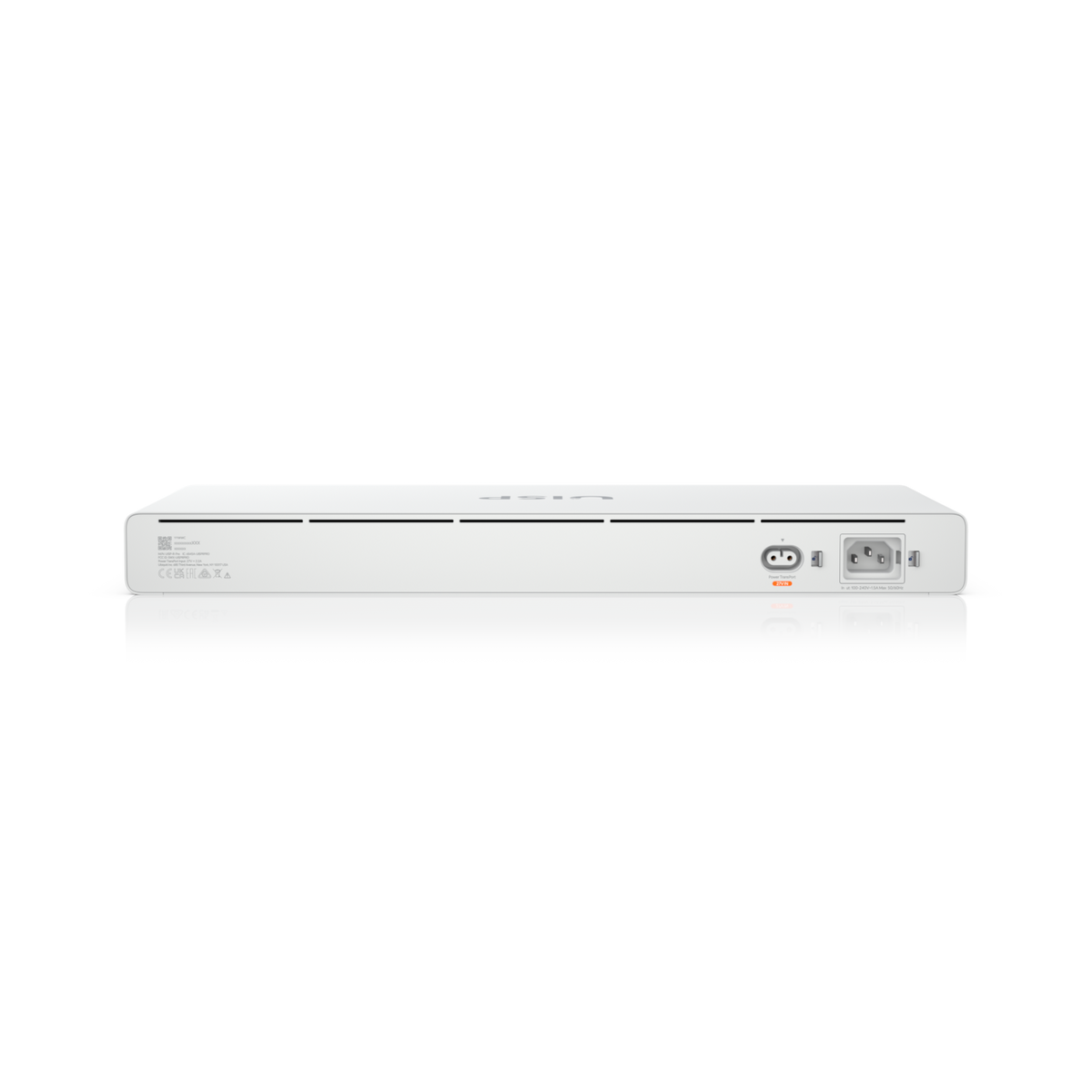

- Power Method: (1) Universal AC input 100-240V AC, 1.5A max, 50/60 Hz; (1) Power TransPort DC input 27V DC, 2.2A
- Power Supply: AC/DC, internal, 60W
- Supported Voltage Range: 100-240V AC
- Max Power Consumption: 50W
- ESD/EMP Protection: Air ±15kV, contact ±8kV
- LCM Display: (1) 1.3" touchscreen
- Ambient Operating Temperature: -10 to 50°C (14 to 122°F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
- LEDs: RJ45 data ports speed/link/activity, SFP+ data ports speed/link/activity
- Management Application: UISP version 1.4.5 and later
- NDAA Compliant: Yes
