Description:

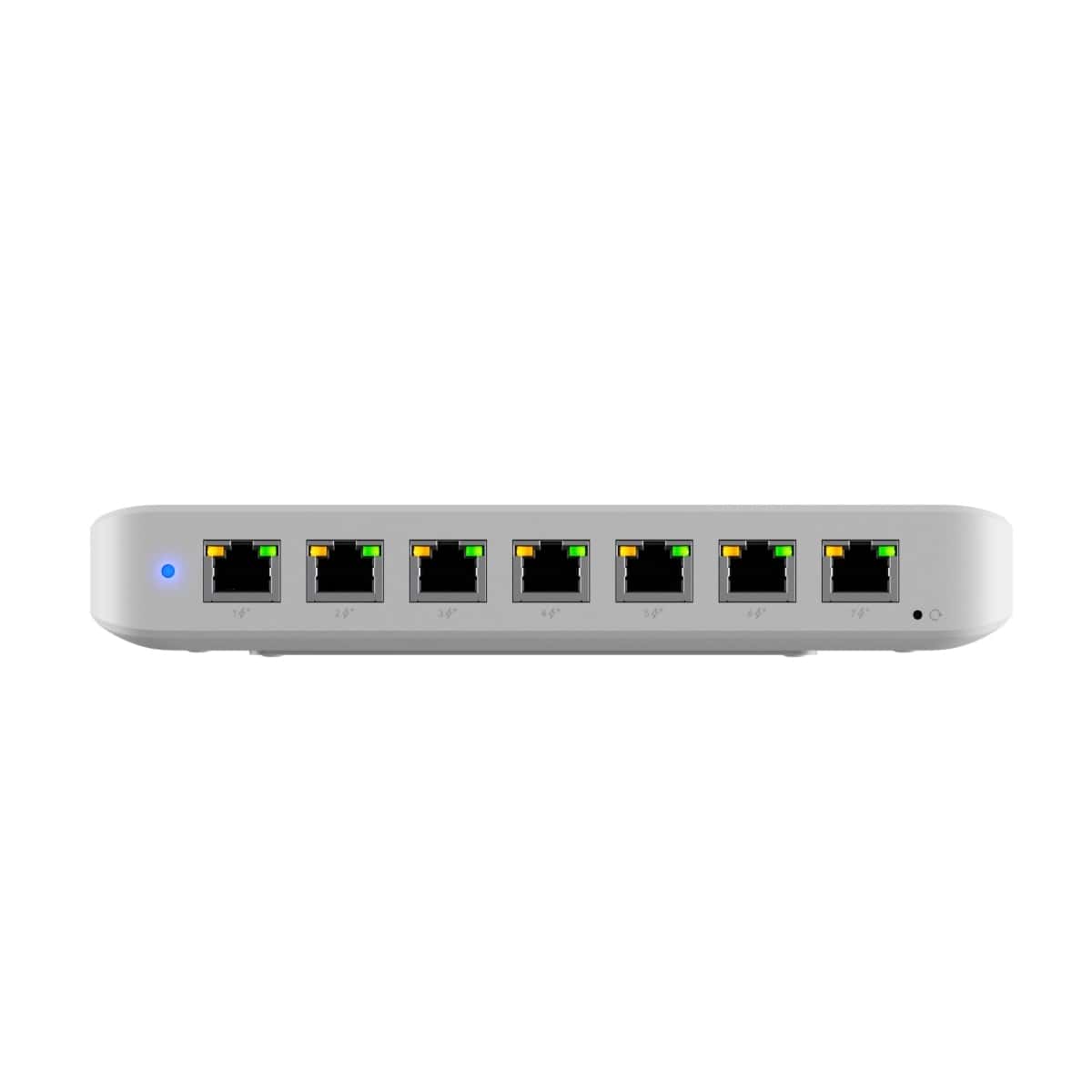

The Ultra 210W is a compact, 8 port, Layer 2 GbE PoE switch designed with versatile mounting options for flexible installation. It features 7 GbE PoE+ output ports along with 1 GbE port supporting optional PoE++ input, giving it a range of powering options depending on the setup.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Up to 42W of PoE availability with PoE++ input
- Up to 17W of PoE availability with PoE+ input
- Up to 8W of PoE availability with standard PoE input
- Versatile mounting including desktop, wall, and magnetic options
- STP and RSTP, storm control, and loop protection support
- Port isolation and port mirroring for network management
- Managed through the UniFi Network application
Specifications:
- Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3 inches)
- Port Layout: 8 GbE RJ45 ports, 7 PoE+ and 1 PoE++ input, at 1G/100M/10M
- Maximum PoE Output: Up to PoE+
- Total PoE Availability: PoE++ input 42W, PoE+ input 16W, 60W PoE adapter input 42W, 60W AC adapter input 52W, 210W AC adapter input 202W
- Form Factor: Compact desktop, wall, magnetic
- Switching Capacity: 16 Gbps
- Total Non Blocking Throughput: 8 Gbps
- Forwarding Rate: 12 Mpps
- Supported VLANs: 256
- MAC Address Table Size: 4,000
- Layer 2 Features: STP and RSTP, egress rate limit, flow control, storm control, multicast and broadcast rate limiting, port isolation, port mirroring, jumbo frames, loop protection
- PoE Ports: 7 PoE+ ports, 1 PoE++ port
- Maximum PoE Wattage per Port: PoE+ 30W
- Maximum Power Consumption: 9W excluding PoE output with PoE input, 8W excluding PoE output with adapter input, 210W including PoE output with 210W AC adapter input
- Power Method: One AC/DC adapter, included; one PoE++
- Power Input Method: DC input, PoE
- Power Supply: AC/DC, external, 210W
- Supported Voltage Range: 50 to 57V DC/PoE
- Management: Ethernet
- Heat Dissipation Excluding PoE Output: 31 BTU/hr
- Weight, Device: 320 g (11.3 oz)
- Weight, Wall Mount: 45 g (1.6 oz)
- Weight, Adapter: 770 g (1.7 lb)
- Enclosure Material: Polycarbonate
- Operating Temperature Range, PoE++ Input: Minus 30 to 60 degrees Celsius (Minus 22 to 140 degrees Fahrenheit)
- Operating Temperature Range, 210W AC Adapter Input: Minus 20 to 60 degrees Celsius (Minus 4 to 140 degrees Fahrenheit)
- Operating Humidity Range: 10 to 90 percent, noncondensing
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC, Anatel 06367-24-08356
- Application Requirement: UniFi Network Version 8.0.7 and later
