Description:

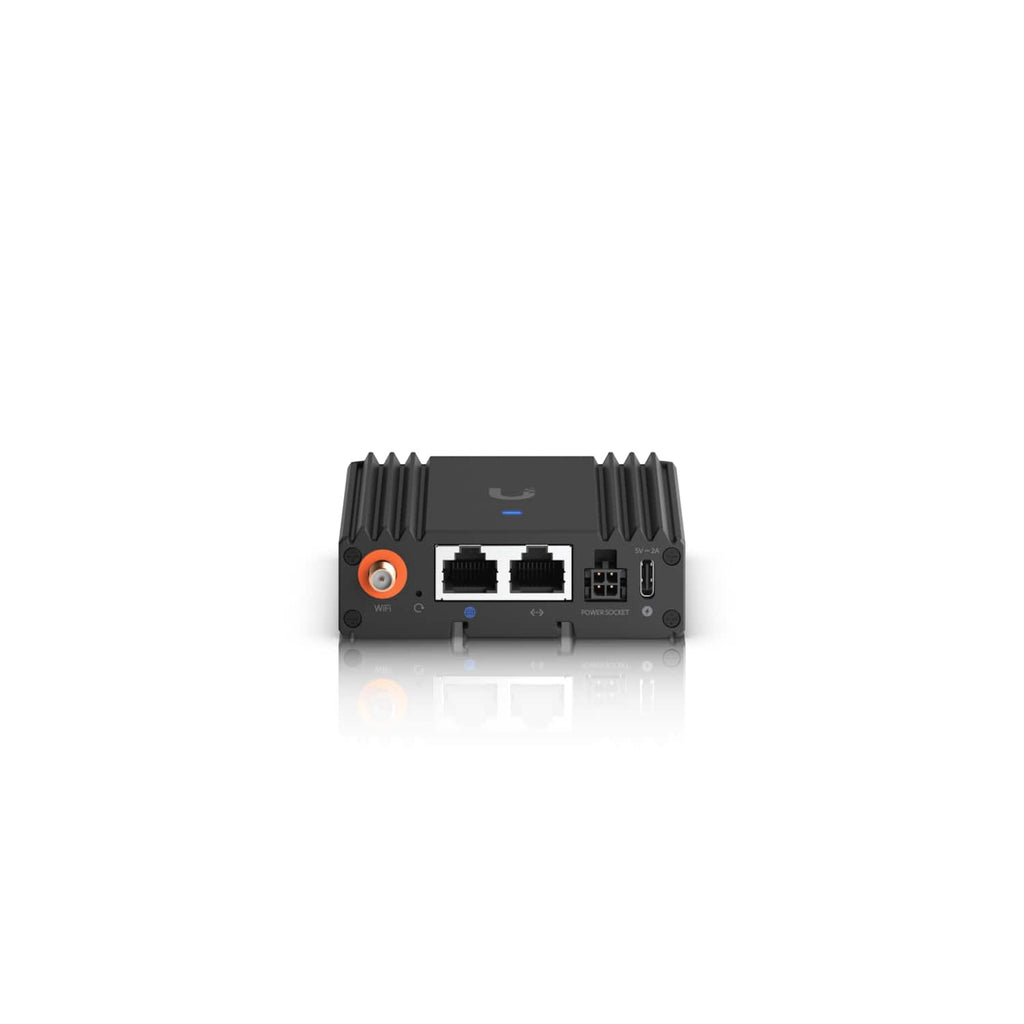

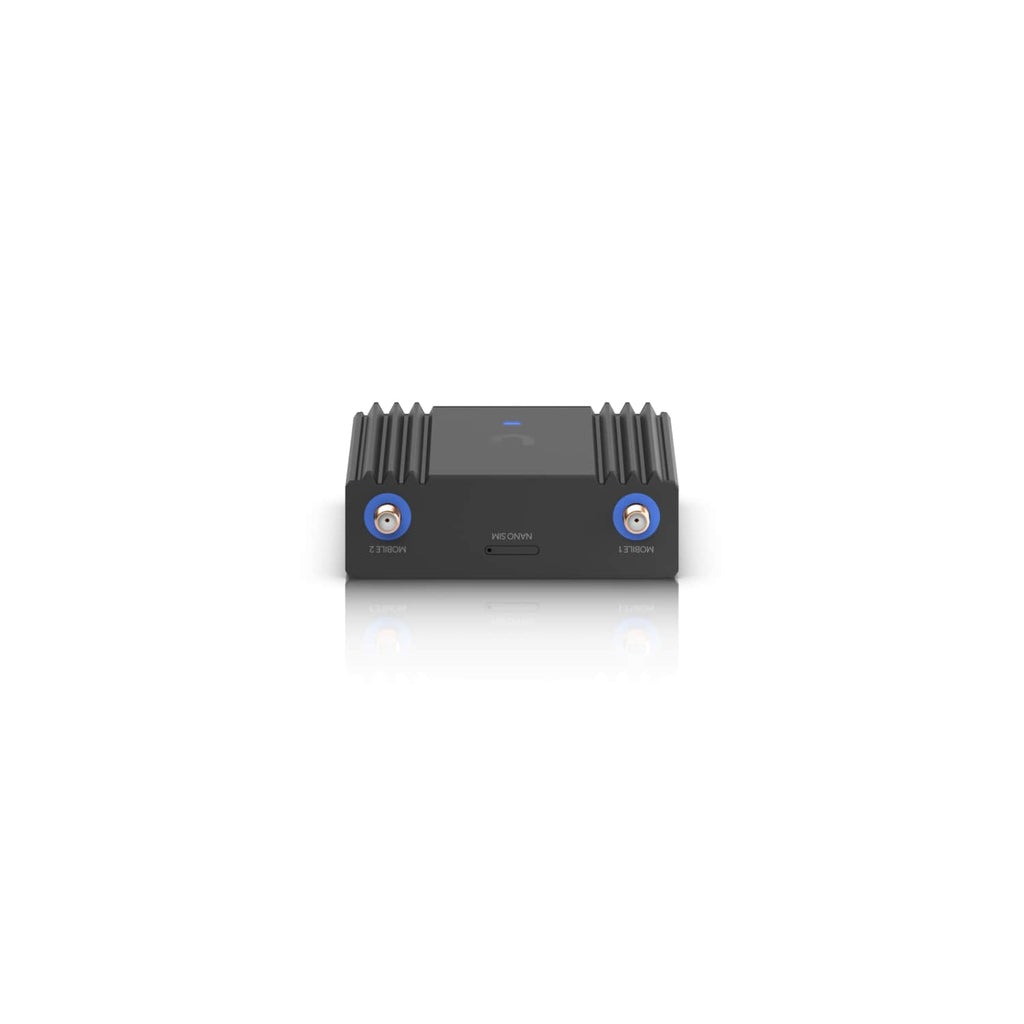

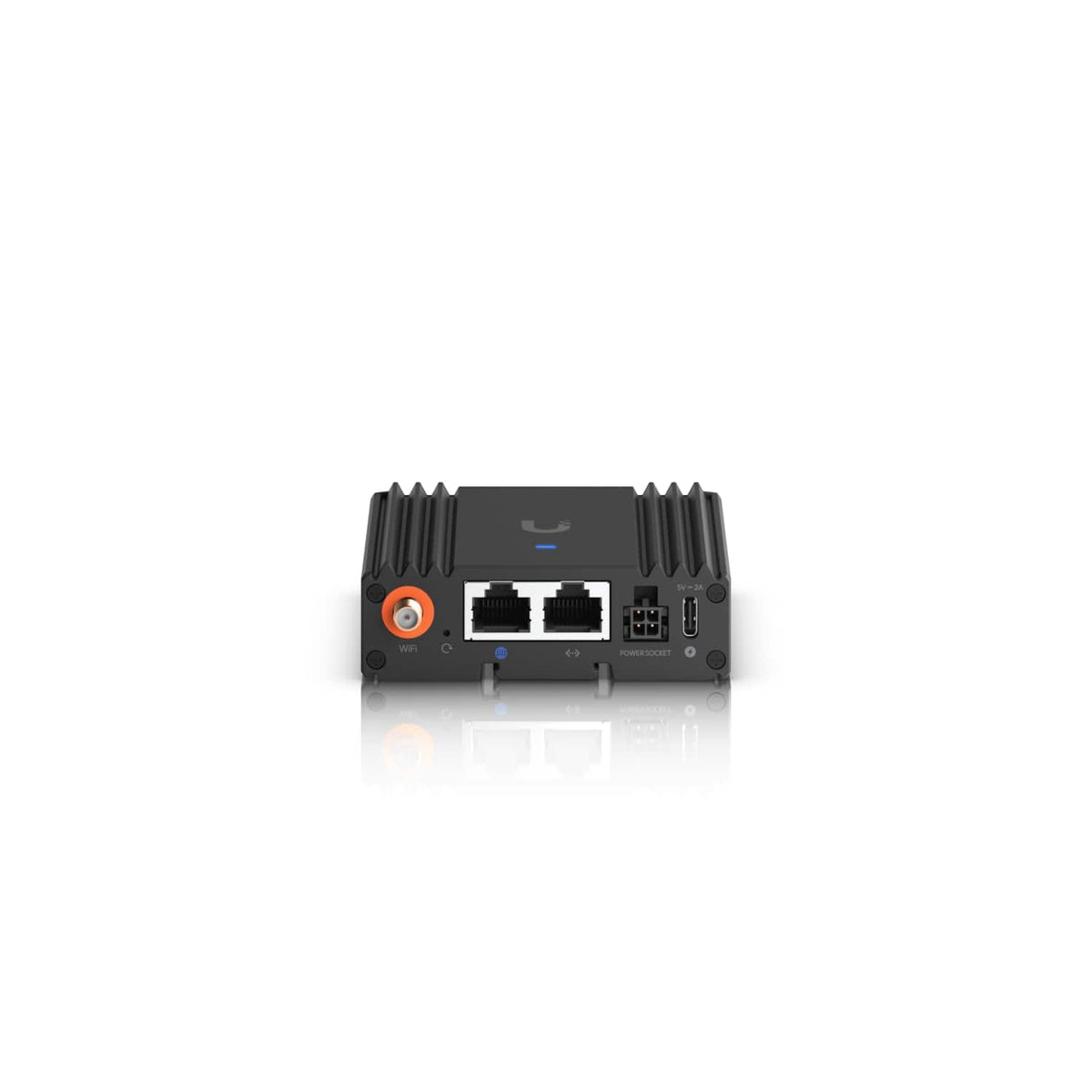

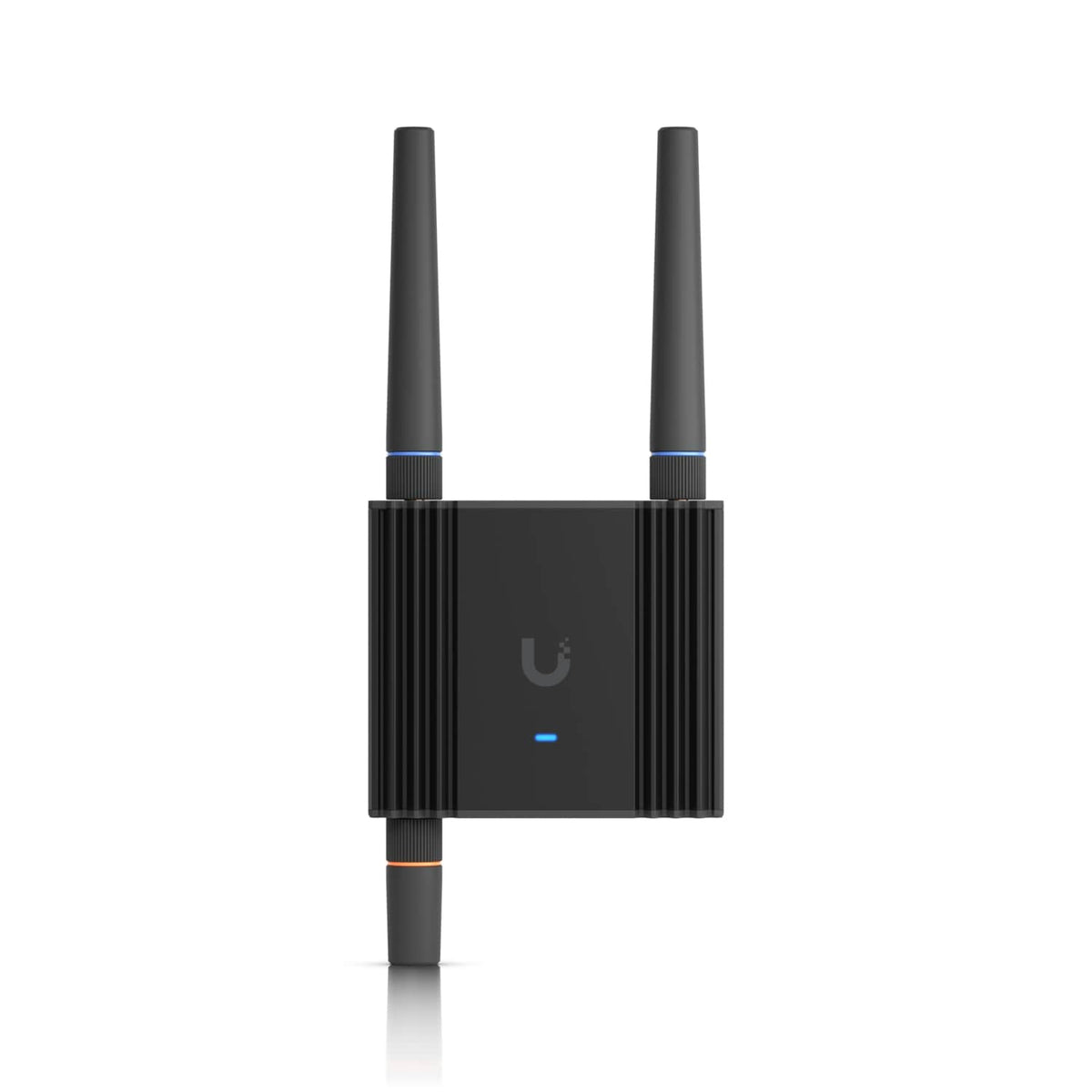

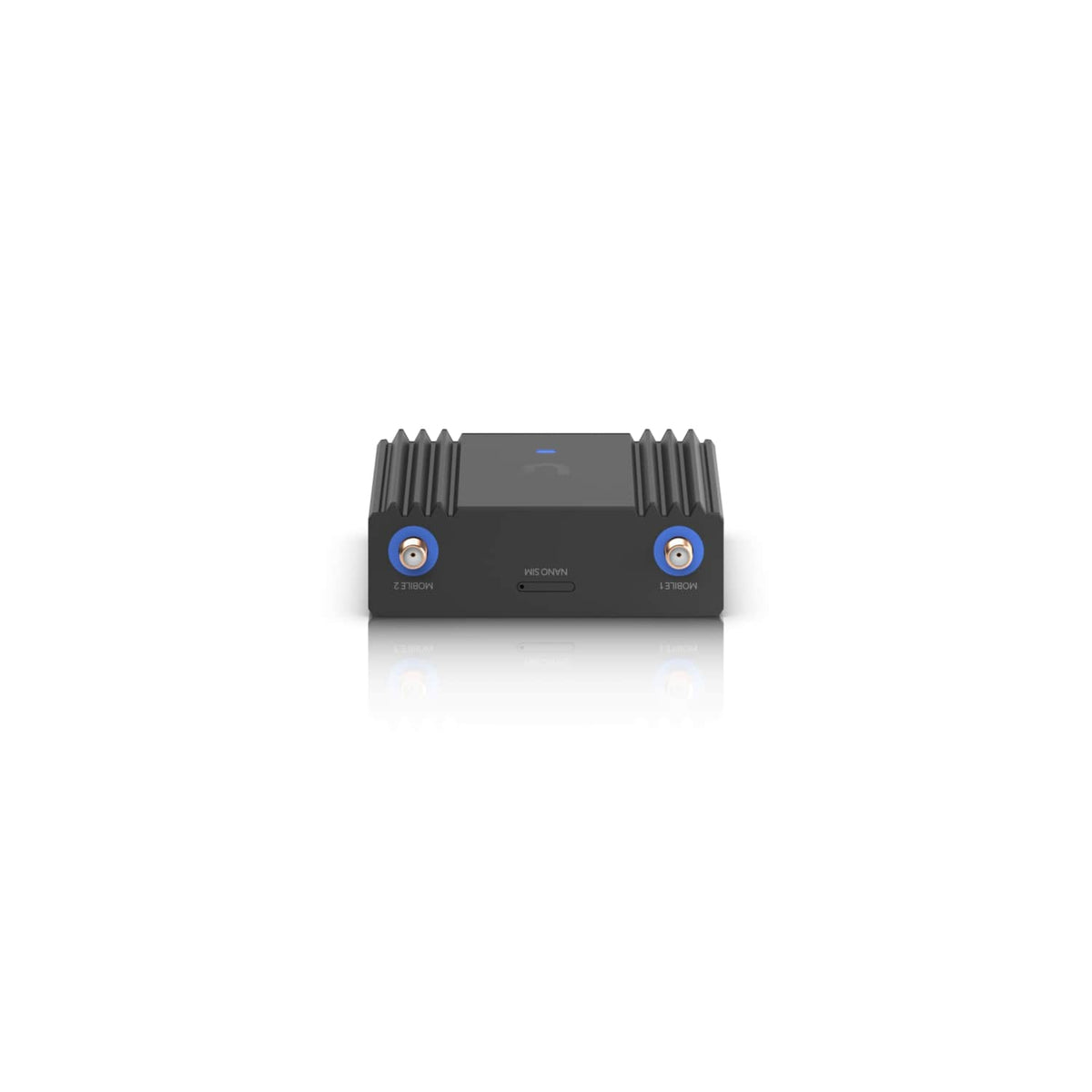

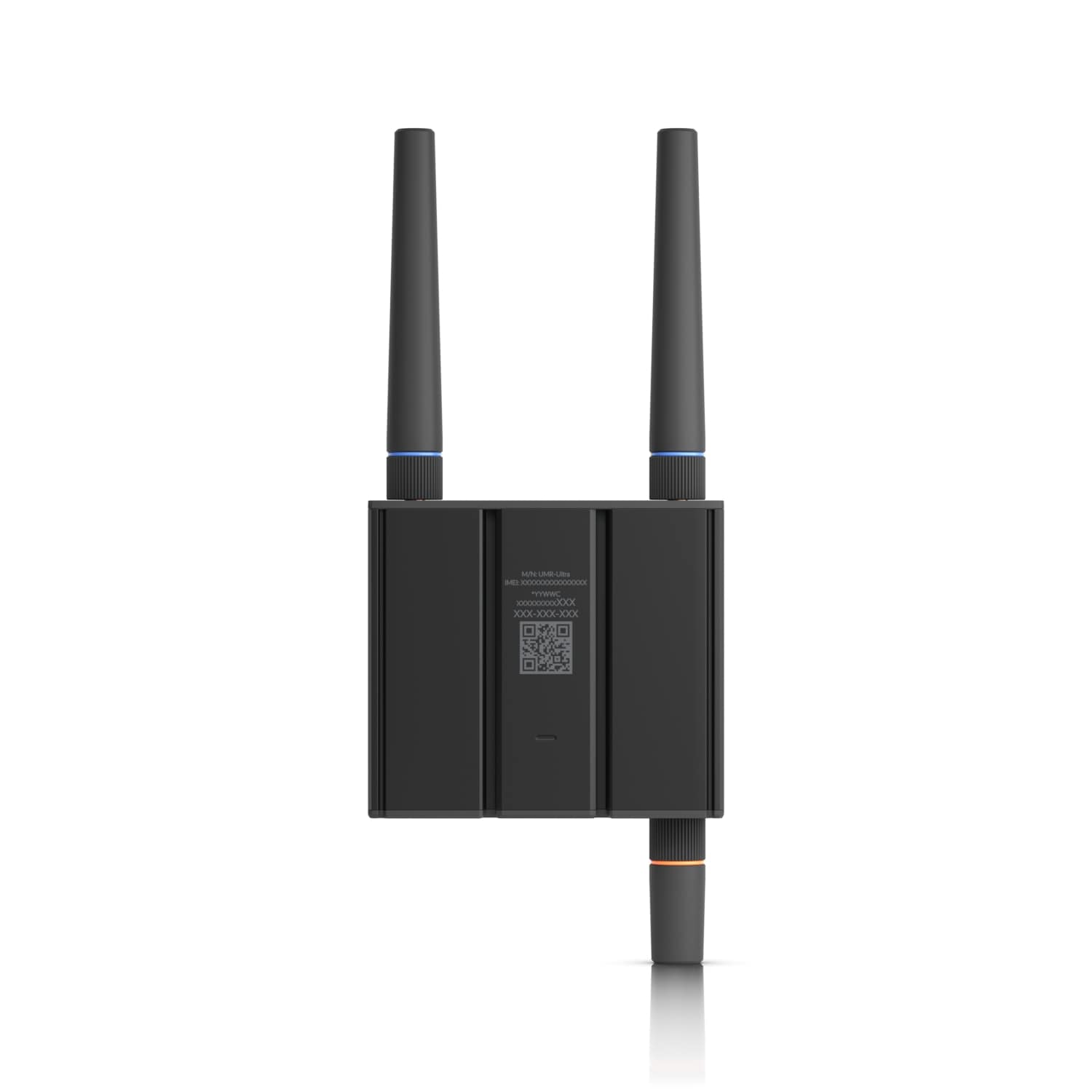

The Ubiquiti Mobile Router Ultra is an ultra-compact managed LTE mobile router built for IoT applications, featuring integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.
Features:
- Site-to-site VPN and VPN client routing
- Powered via USB Type-C or 4-pin DC power socket
- Flexible wall and DIN rail mounting
- Mobility Cloud subscription
- Plug-and-play reliable networking for any environment
- Automatic WAN failover
Specifications:
- Dimensions Without Antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1")
- Dimensions With Antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1")
- Weight Device: 200 g (7.1 oz)
- Weight DIN Rail/Wall Mounts: 20 g (0.7 oz)
- Enclosure Material: Polycarbonate, aluminium alloy
- Mount Material: Polycarbonate
- Management Interface: Ethernet, WiFi
- Networking Interface: (2) FE RJ45 ports, LTE Category 4 radio, WiFi 4
- Power Supply: USB Type-C (5V DC/2A), 4-pin ATX DC power socket (9-30V DC)
- Max Power Consumption: 5.7W
- SIM: Nano SIM
- LTE Bands: B1 (2100), B3 (1800), B7 (2600), B8 (900), B28 (700), Australian 4G frequency bands supported
- LTE Throughput Speed: Download 150 Mbps, upload 50 Mbps, depending on network coverage and performance at the device location
- Max WiFi TX Power: 17 dBm
- Antenna SMA Ports: (1) Mobile 1 SMA female connector supporting 1Rx only, (1) Mobile 2 SMA female connector supporting 1Tx and 1Rx, (1) WiFi RP-SMA female connector
- External Antennas: (2) Mobile/LTE antennas with SMA male connectors, (1) WiFi antenna with RP-SMA male connector
- LED: Status blue/white
- Button: Factory reset
- Mounting: DIN rail/wall mount included
- Ambient Operating Temperature: -30 to 70°C (-22 to 158°F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Certifications: FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance
- NDAA Compliant: Yes
- Supported WiFi Data Rates: 802.11b 1-11 Mbps; 802.11g 6-54 Mbps; 802.11n (WiFi 4) 6.5 Mbps to 150 Mbps (MCS0-MCS7, HT 20/40)
