Description:

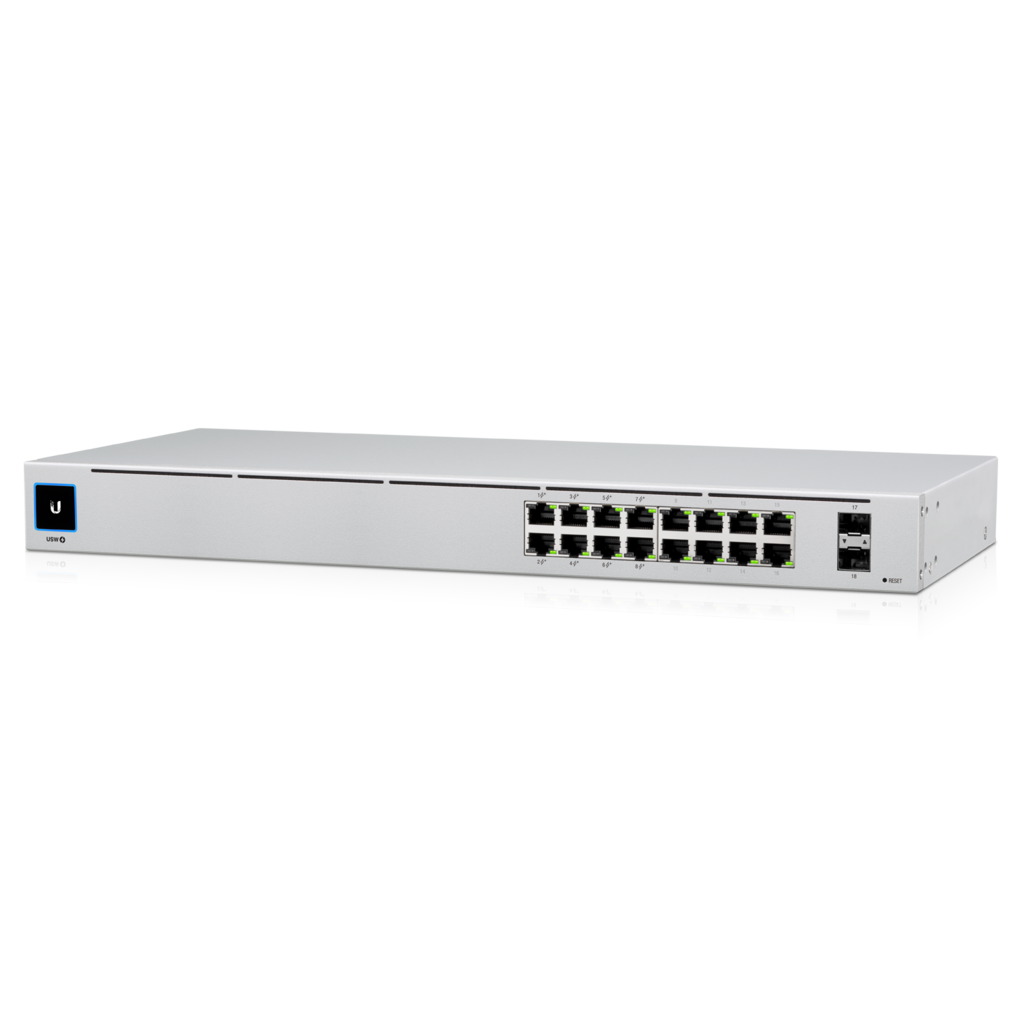

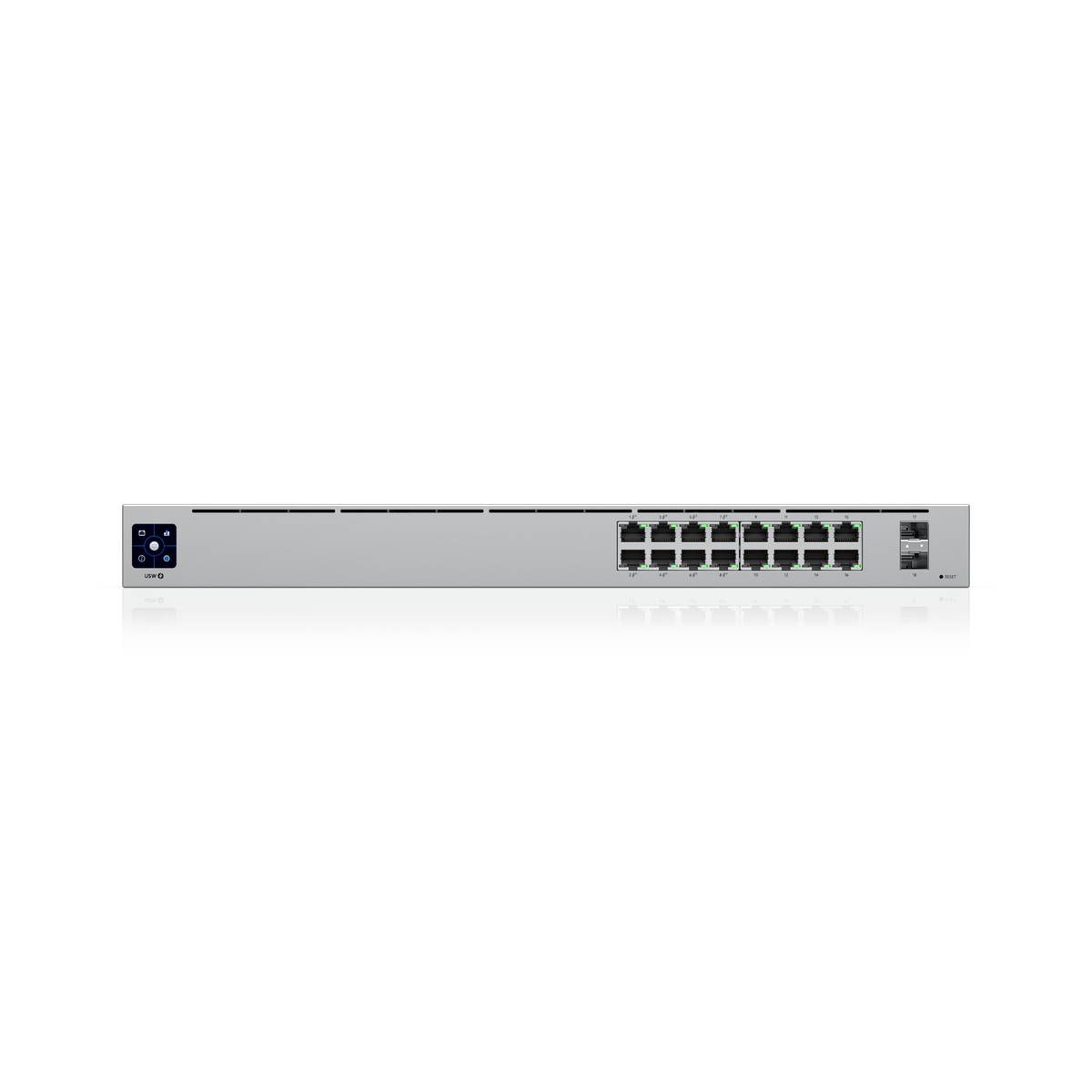

This UniFi switch is a 16 port, Layer 2 PoE managed switch built with a silent, fanless cooling system for quiet operation in any environment. It offers 8 GbE PoE+ ports alongside 8 additional GbE ports, along with 2 1G SFP ports for fibre connectivity, providing flexibility for a wide range of network setups.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- 8 GbE PoE+ ports and 8 additional GbE ports for flexible connectivity
- 42W total PoE availability for connected devices
- Fanless, silent cooling for quiet operation
- 1U rack mountable form factor
- Supports LACP port aggregation, STP and RSTP
- Advanced IGMP configuration including querier, fast leave, and router port
- 802.1X control and MAC based ACLs for network security
- DHCP snooping and guarding for added protection
- Port mirroring, port isolation, and jumbo frame support
- Managed through the UniFi Network application
Specifications:

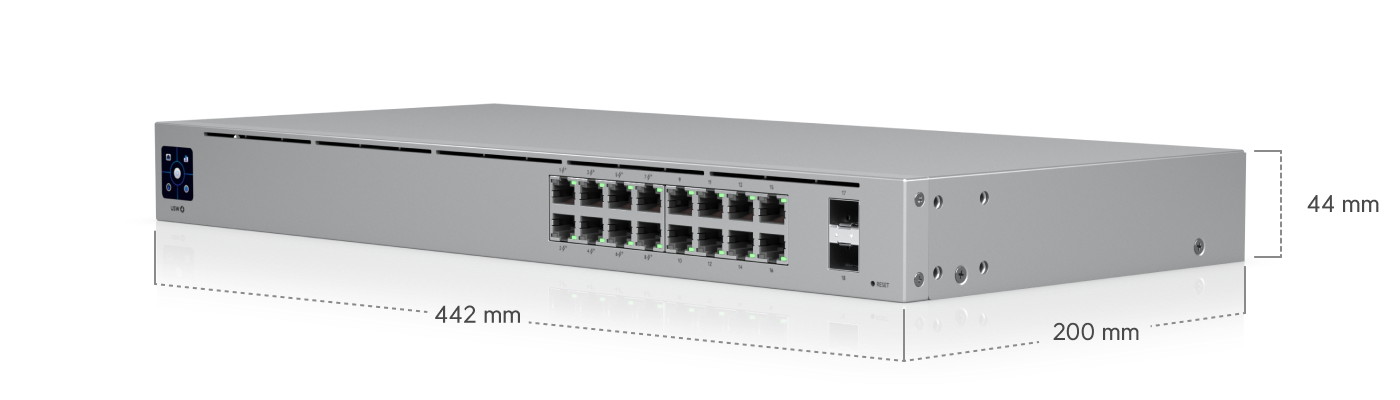

- Dimensions: 442 x 200 x 44 mm (17.4 x 7.9 x 1.7 inches)

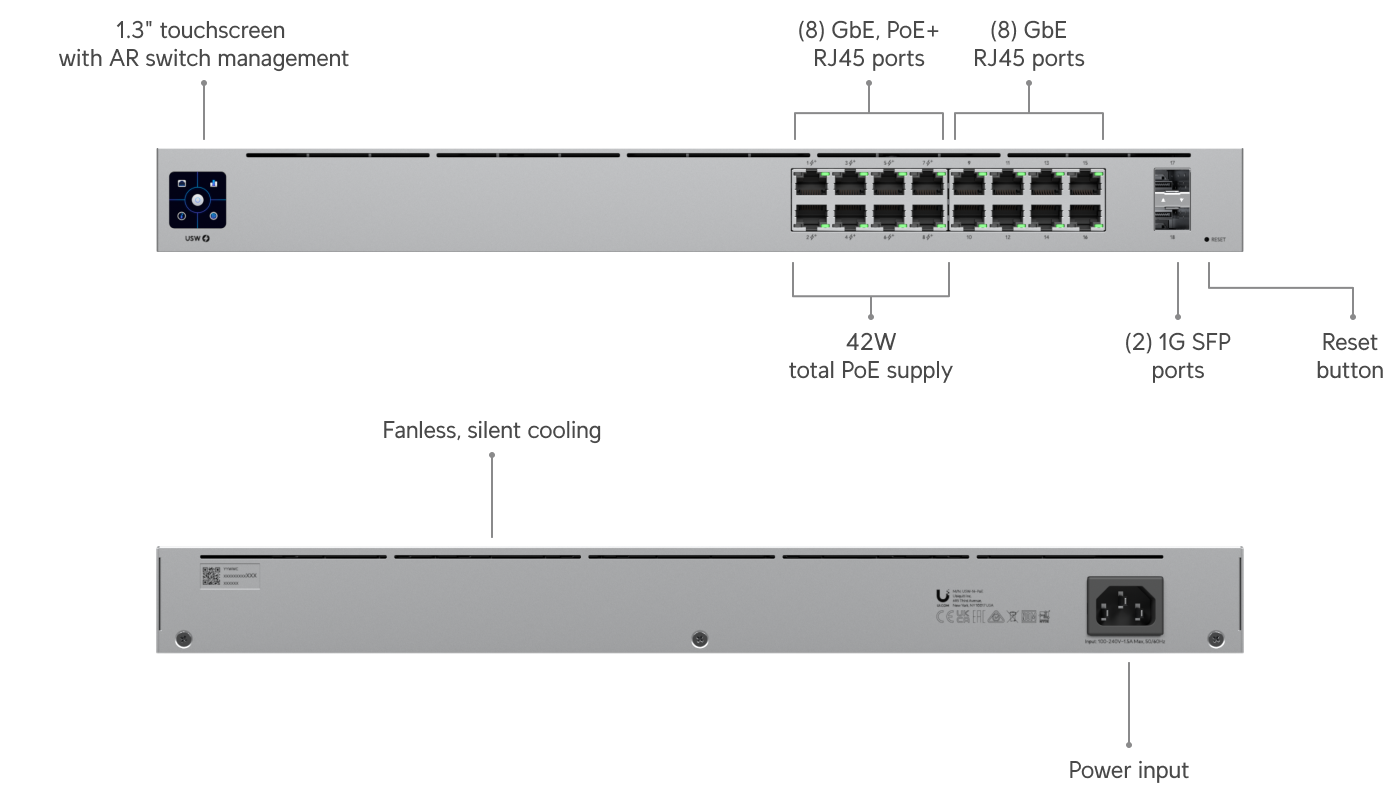

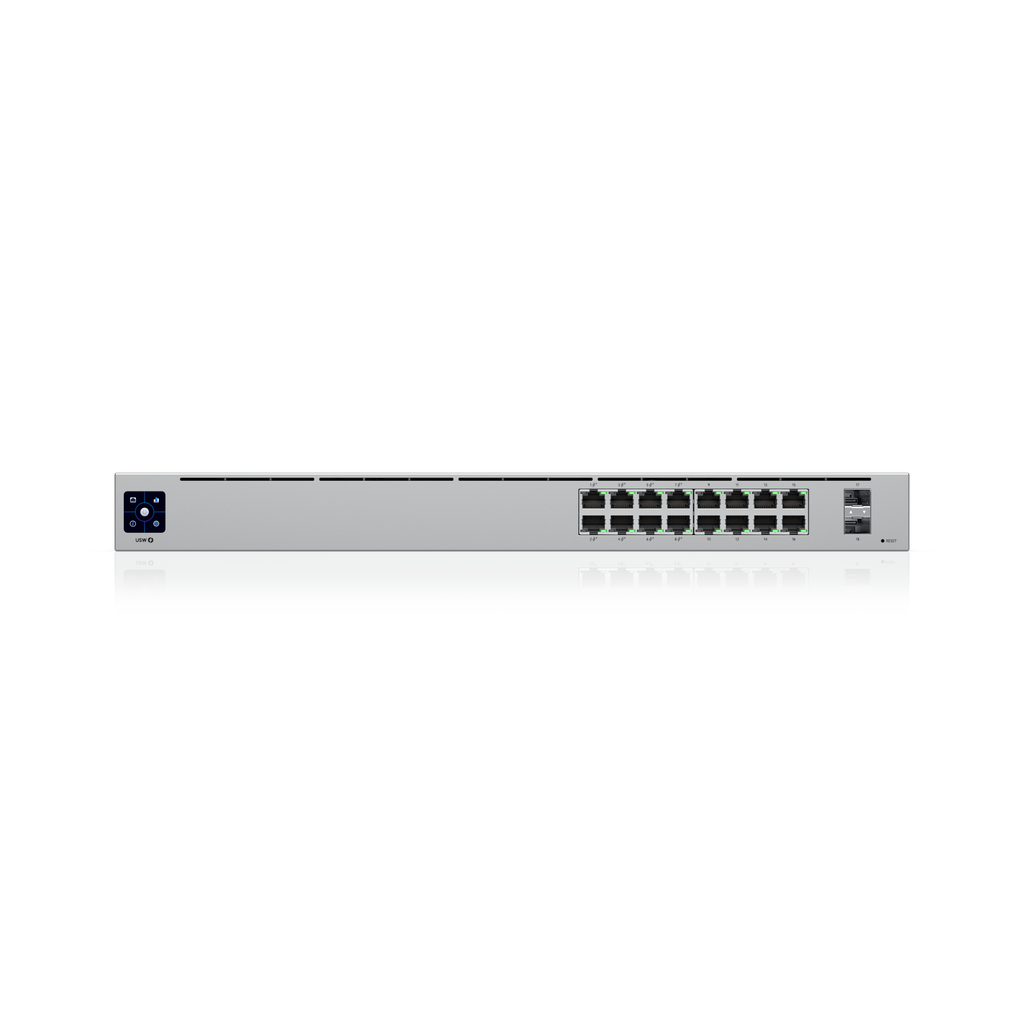

- Port Layout: 16 GbE RJ45 ports including 8 PoE+ at 1G/100M/10M, 2 1G SFP ports
- Maximum PoE Output: Up to PoE+
- Total PoE Availability: 42W
- Form Factor: Rack mount 1U
- Switching Capacity: 36 Gbps
- Total Non Blocking Throughput: 18 Gbps
- Forwarding Rate: 27 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 8,000
- Packet Buffer Size: 0.5 MB
- Access Lists, IPv4: 128
- Access Lists, MAC: 128
- Layer 2 Features: LACP port aggregation, STP and RSTP, advanced IGMP configuration with querier, fast leave, and router port, IGMP snooping, 802.1X control, MAC based ACLs and device isolation, DHCP snooping and guarding, egress rate limit, flow control, storm control, multicast and broadcast rate limiting, MAC address blocking, IP based ACLs and network isolation, MAC based port restriction, port isolation, port mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection, virtual network override
- PoE Ports: 8 PoE+ ports
- Maximum PoE Wattage per Port: PoE 15.4W, PoE+ 32W
- Maximum Power Consumption: 18W excluding PoE output, 60W including PoE output
- Power Method: Universal input, 100 to 240V AC, 50/60 Hz
- Power Input Method: AC input
- Power Supply: AC/DC, internal, 60W
- Supported Voltage Range: 100 to 240V AC
- Management: Ethernet
- Heat Dissipation: 61.4 BTU/hr
- Weight Without Mounting Brackets: 2.8 kg (6.2 lb)
- Weight With Mounting Brackets: 2.9 kg (6.4 lb)
- Enclosure Material: SGCC steel
- Mount Material: SGCC steel
- Supported Rack Depth: 400 to 1200 mm (15.7 to 47.2 inches)
- LCM Display: 1.3 inch touchscreen
- ESD Protection: Air plus or minus 16kV, Contact plus or minus 12kV
- Operating Temperature Range: Minus 5 to 40 degrees Celsius (23 to 104 degrees Fahrenheit)
- Operating Humidity Range: 10 to 90 percent, noncondensing
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC, Anatel 00593-21-08356
- Application Requirement: UniFi Network Version 7.2.94 and later
