Description:

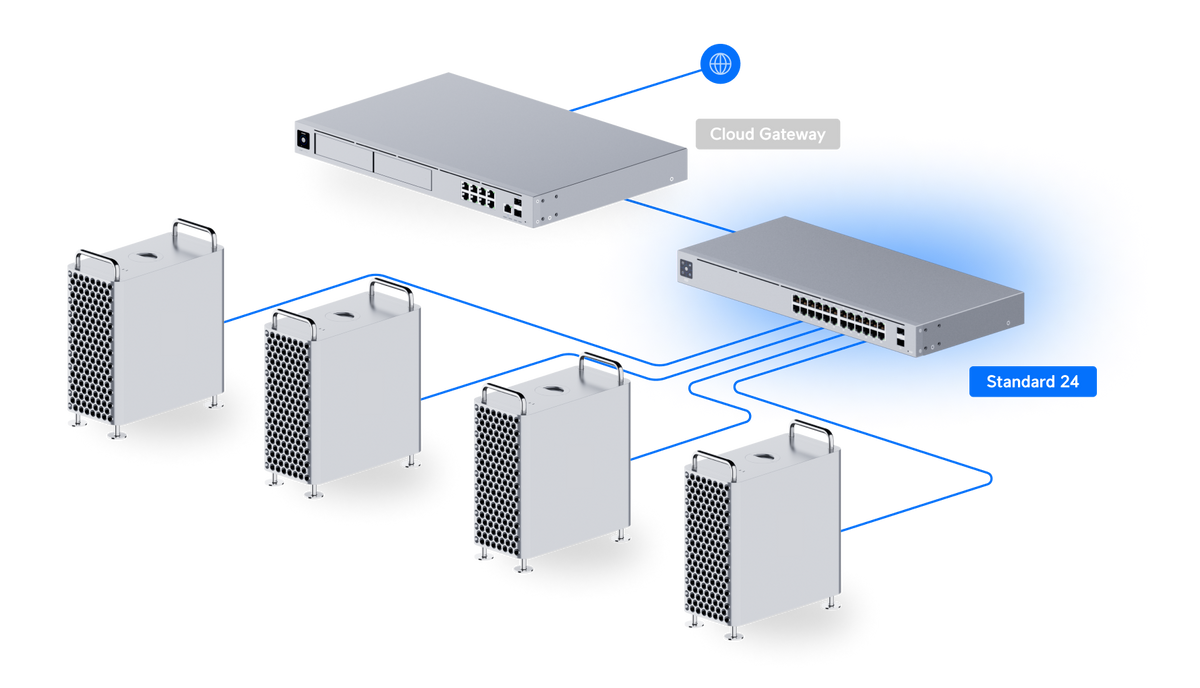

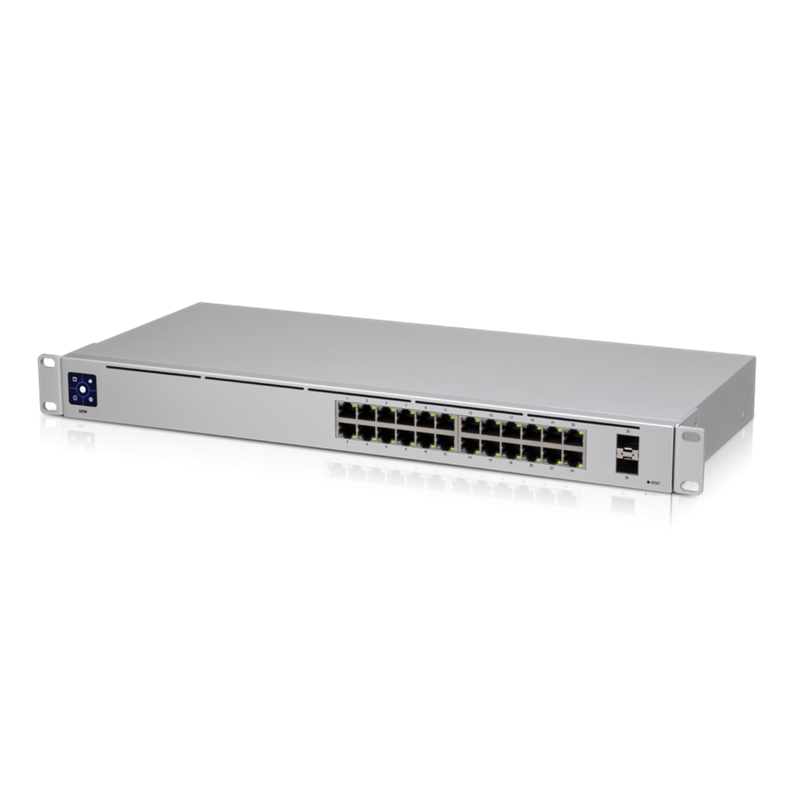

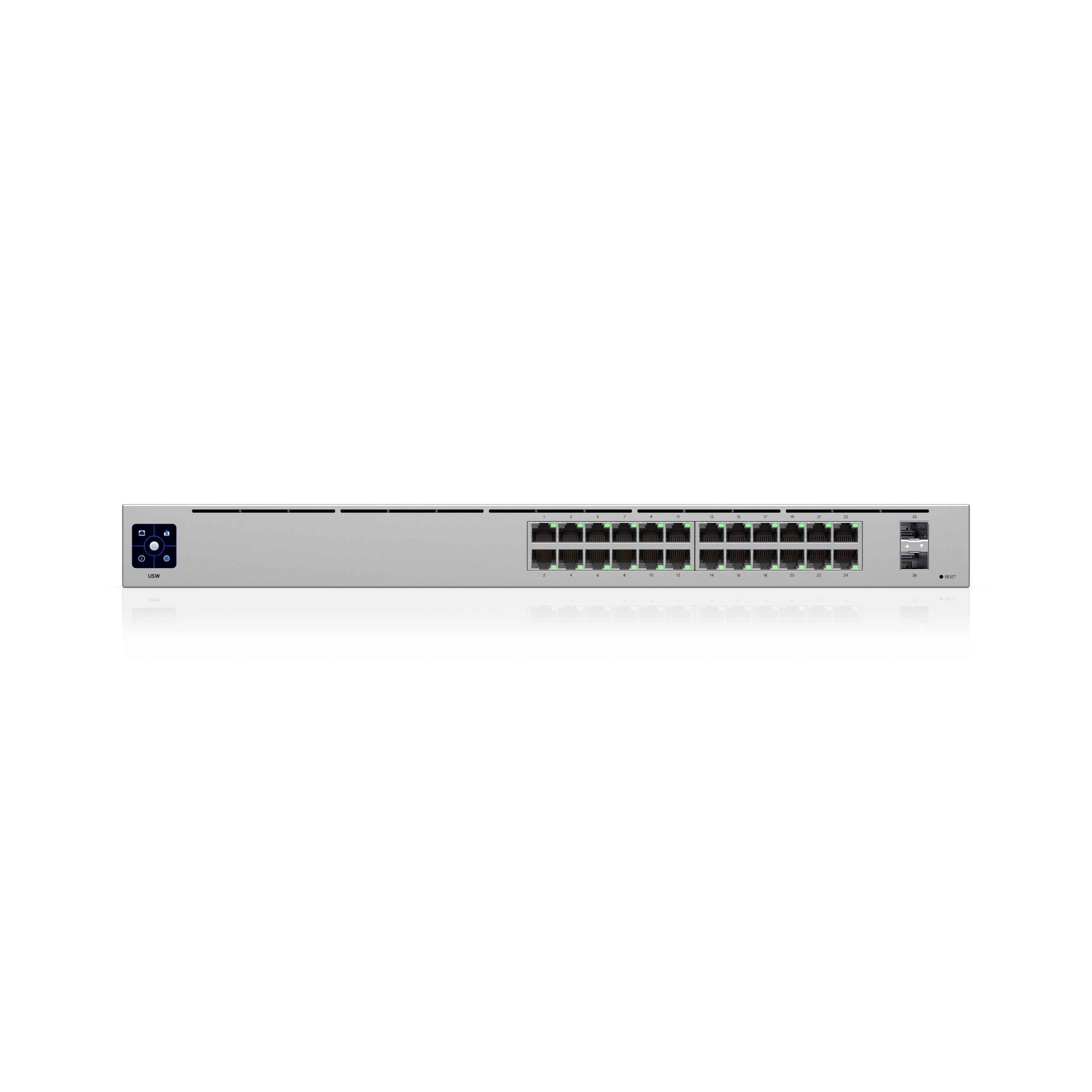

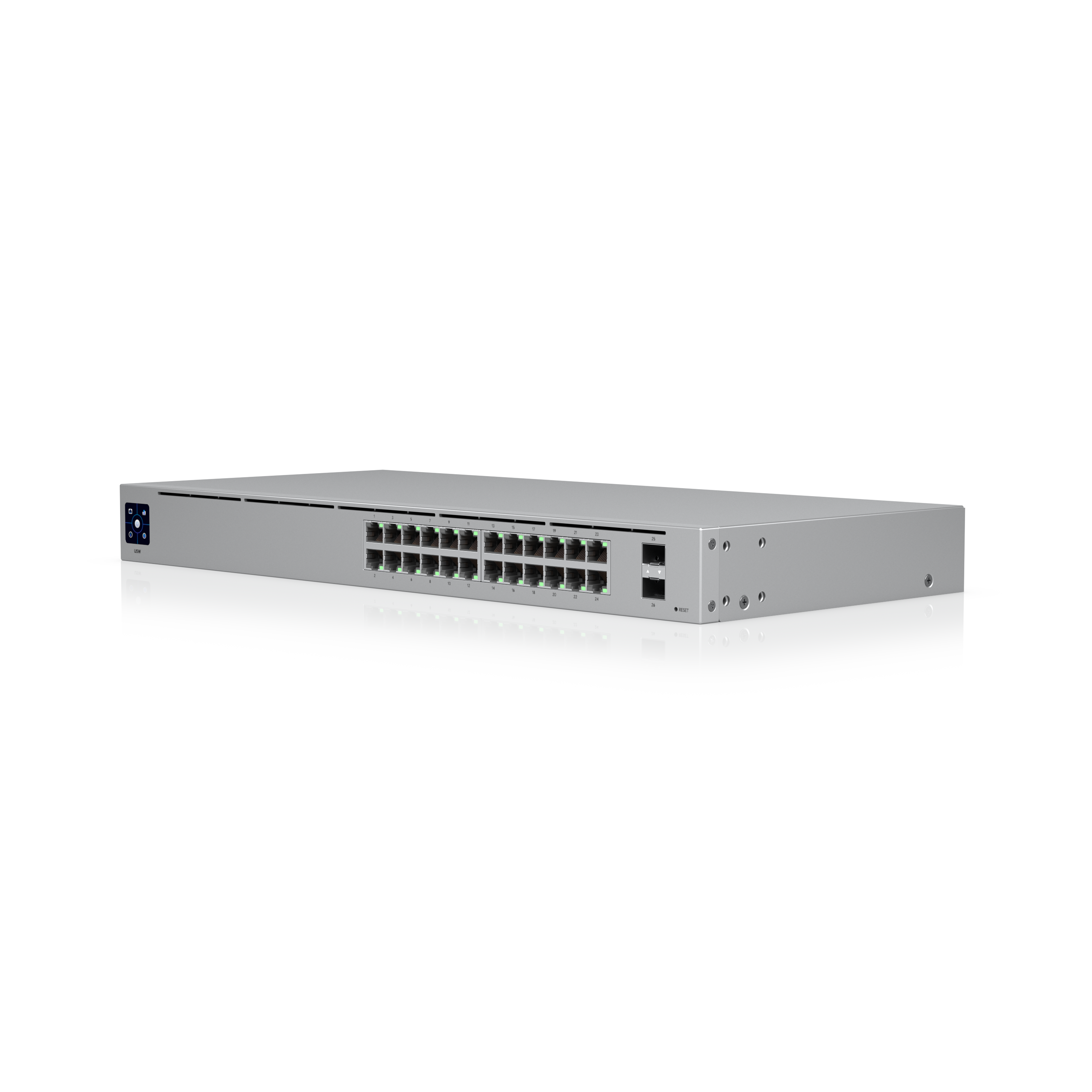

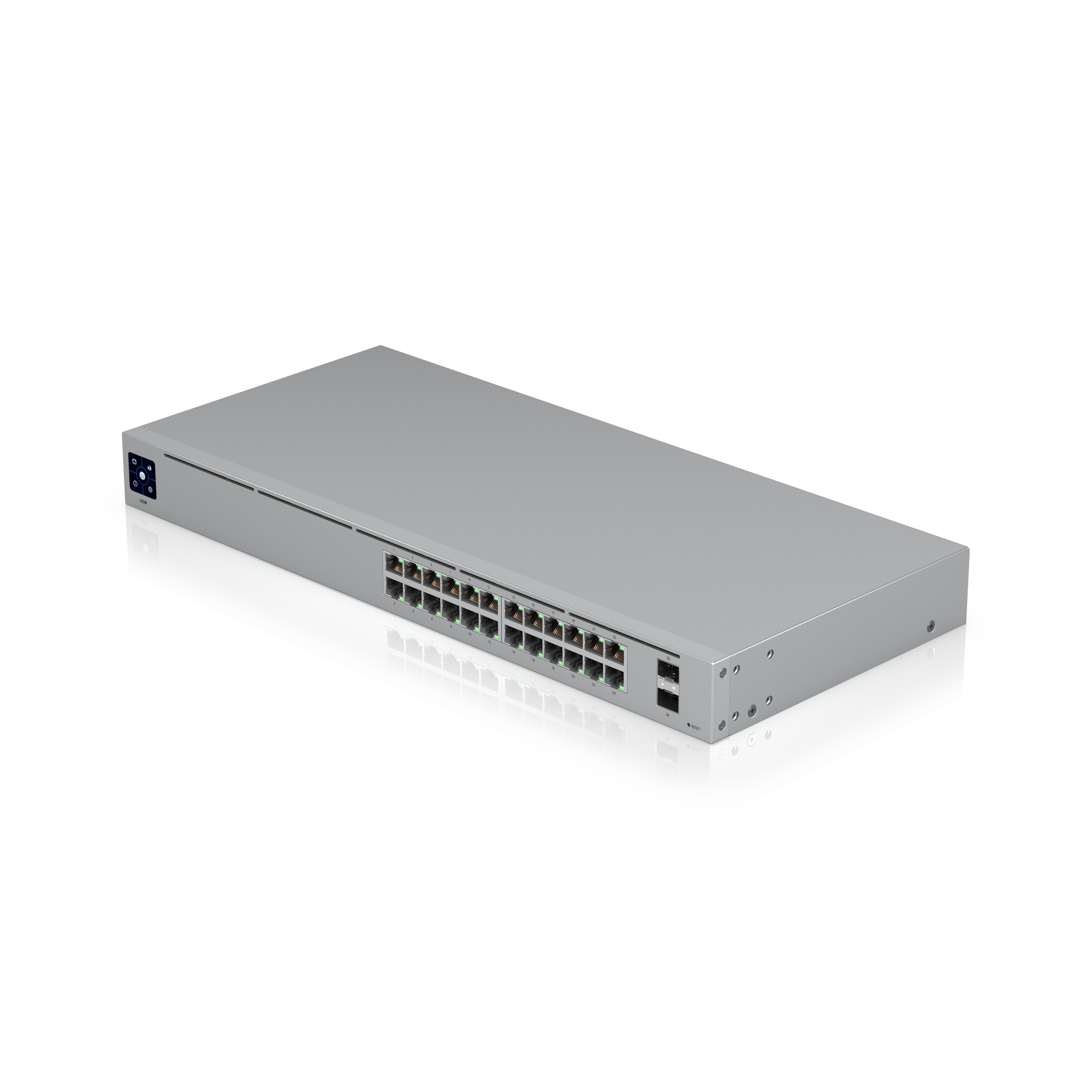

The UniFi 24 port switch is a configurable Layer 2 switch offering 24 Gigabit Ethernet ports along with 2 SFP ports for 1 Gbps fibre uplink connectivity within an enterprise network. It features a compact, fanless design with a 1.3 inch touchscreen that displays real time switch status for quick diagnosis.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Fanless, silent cooling design
- Managed through the UniFi Network Controller with mobile app support
- Configurable operating mode per port for switching, mirroring, or aggregation
- Supports LACP port aggregation, STP and RSTP
- Advanced IGMP configuration including querier, fast leave, and router port
- 802.1X control and MAC based ACLs for network security
- DHCP snooping and guarding for added protection
- Port mirroring, port isolation, and jumbo frame support
Specifications:

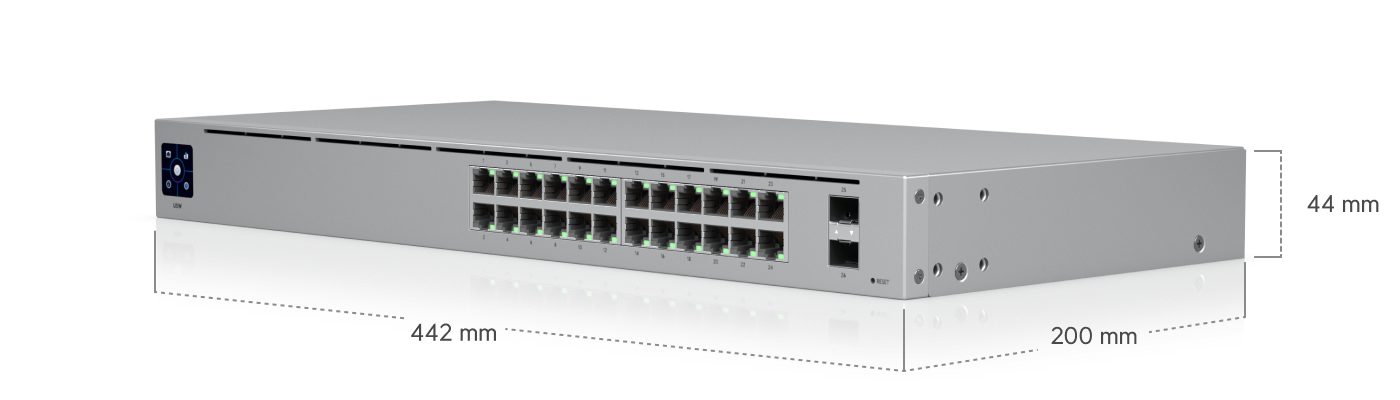

- Dimensions: 442 x 200 x 44 mm (17.4 x 7.9 x 1.7 inches)
- Port Layout: 24 GbE RJ45 ports at 1G/100M/10M, 2 1G SFP ports
- Form Factor: Rack mount 1U
- Switching Capacity: 52 Gbps
- Total Non Blocking Throughput: 26 Gbps
- Forwarding Rate: 39 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 8,000
- Packet Buffer Size: 0.5 MB
- Access Lists, IPv4: 128
- Access Lists, MAC: 128
- Layer 2 Features: LACP port aggregation, STP and RSTP, advanced IGMP configuration with querier, fast leave, and router port, IGMP snooping, 802.1X control, MAC based ACLs and device isolation, DHCP snooping and guarding, egress rate limit, flow control, storm control, multicast and broadcast rate limiting, MAC address blocking, IP based ACLs and network isolation, MAC based port restriction, port isolation, port mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection, virtual network override
- Maximum Power Consumption: 25W
- Power Method: Universal input, 100 to 240V AC, 50/60 Hz
- Power Input Method: AC input
- Power Supply: AC/DC, internal, 36W
- Supported Voltage Range: 100 to 240V AC
- Management: Ethernet
- Heat Dissipation: 85.3 BTU/hr
- Weight Without Mounting Brackets: 2.7 kg (6 lb)
- Weight With Mounting Brackets: 2.8 kg (6.2 lb)
- Enclosure Material: SGCC steel
- Mount Material: SGCC steel
- Supported Rack Depth: 400 to 1200 mm (15.7 to 47.2 inches)
- LCM Display: 1.3 inch touchscreen
- Operating Temperature Range: Minus 5 to 45 degrees Celsius (23 to 113 degrees Fahrenheit)
- Operating Humidity Range: 10 to 90 percent, noncondensing
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC, Anatel 17193-20-08356
- Application Requirement: UniFi Network Version 7.2.94 and later
