Description:

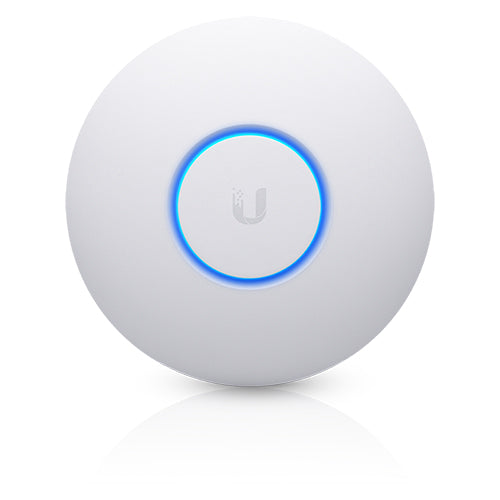

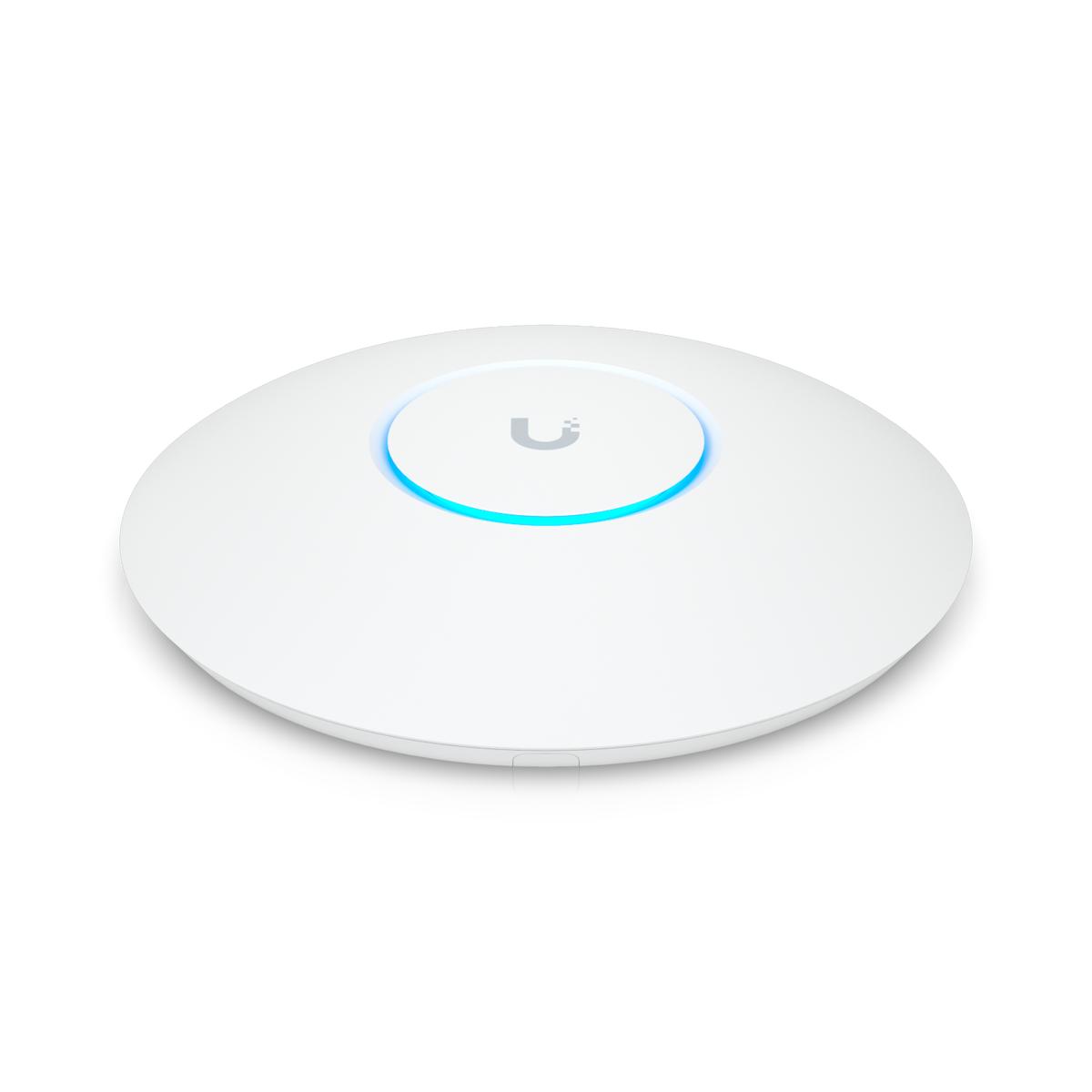

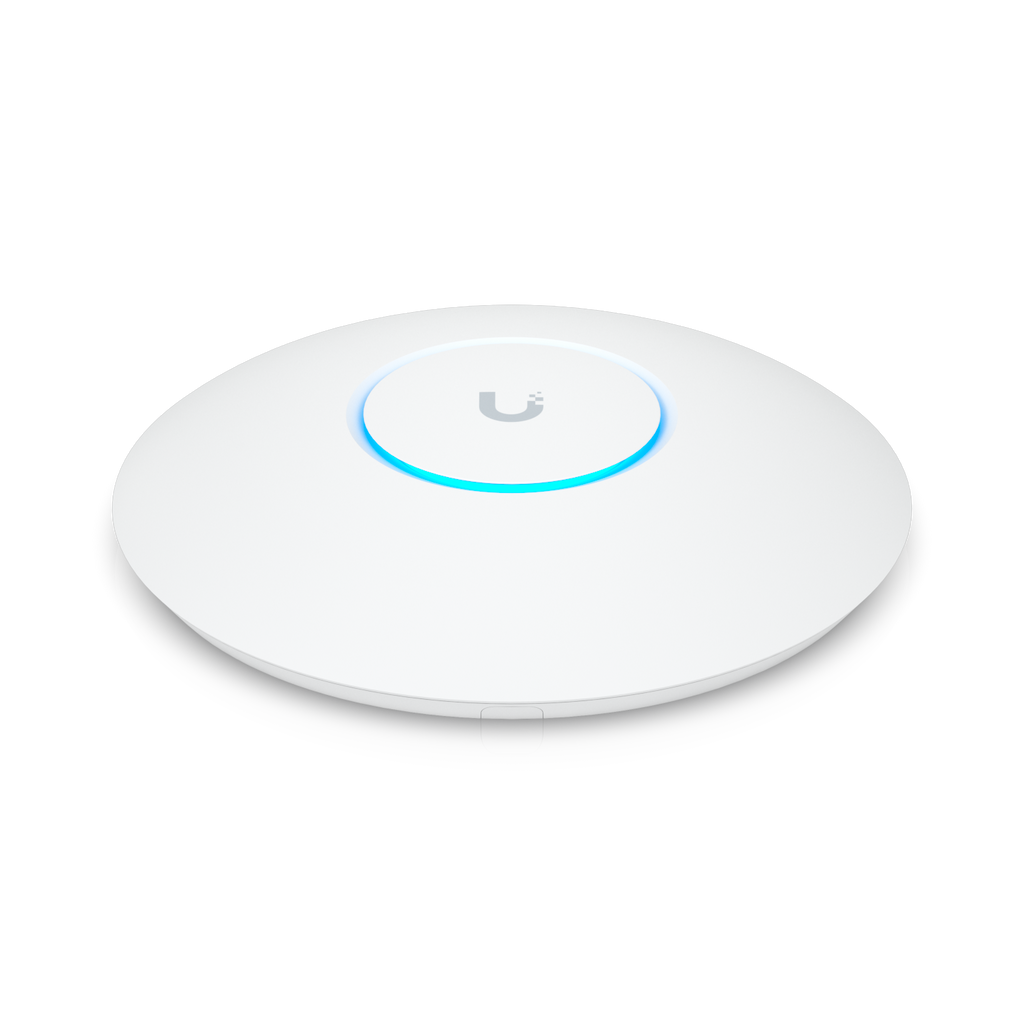

The UniFi AC Pro V2 is a dual-band WiFi 5 access point designed to support high-density networks and critical system applications. It covers up to 140 m² (1,500 ft²) and can handle 250 or more connected devices, making it well suited for demanding indoor and outdoor deployments.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- WiFi 5 with 3x3 MIMO
- Powered using PoE
Specifications:
- Dimensions: ⌀196.7 x 35 mm (⌀7.7 x 1.4")
- WiFi Standard: WiFi 5
- Spatial Streams: 6
- Coverage Area: 140 m² (1,500 ft²)
- Maximum Client Count: 250+
- Uplink: GbE

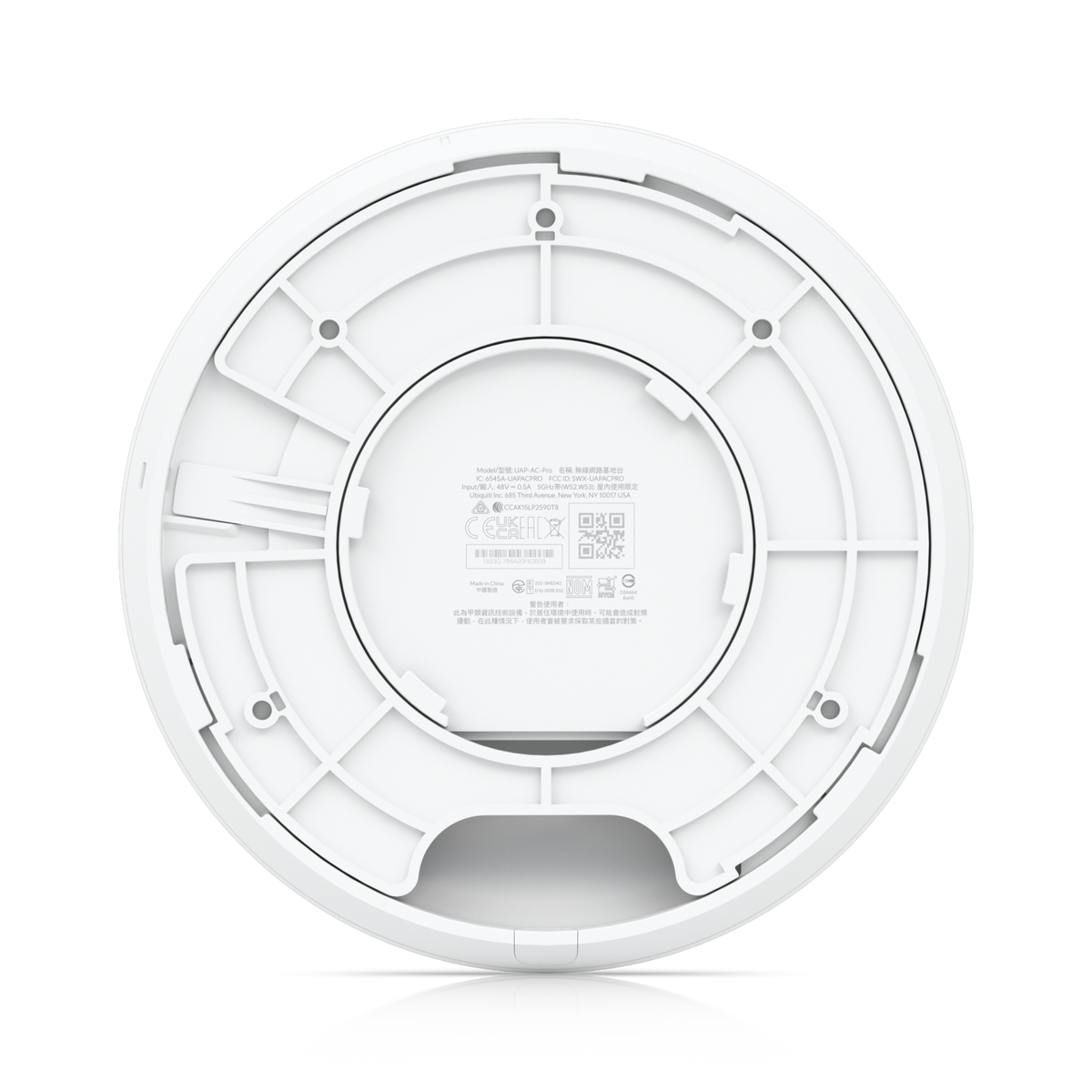

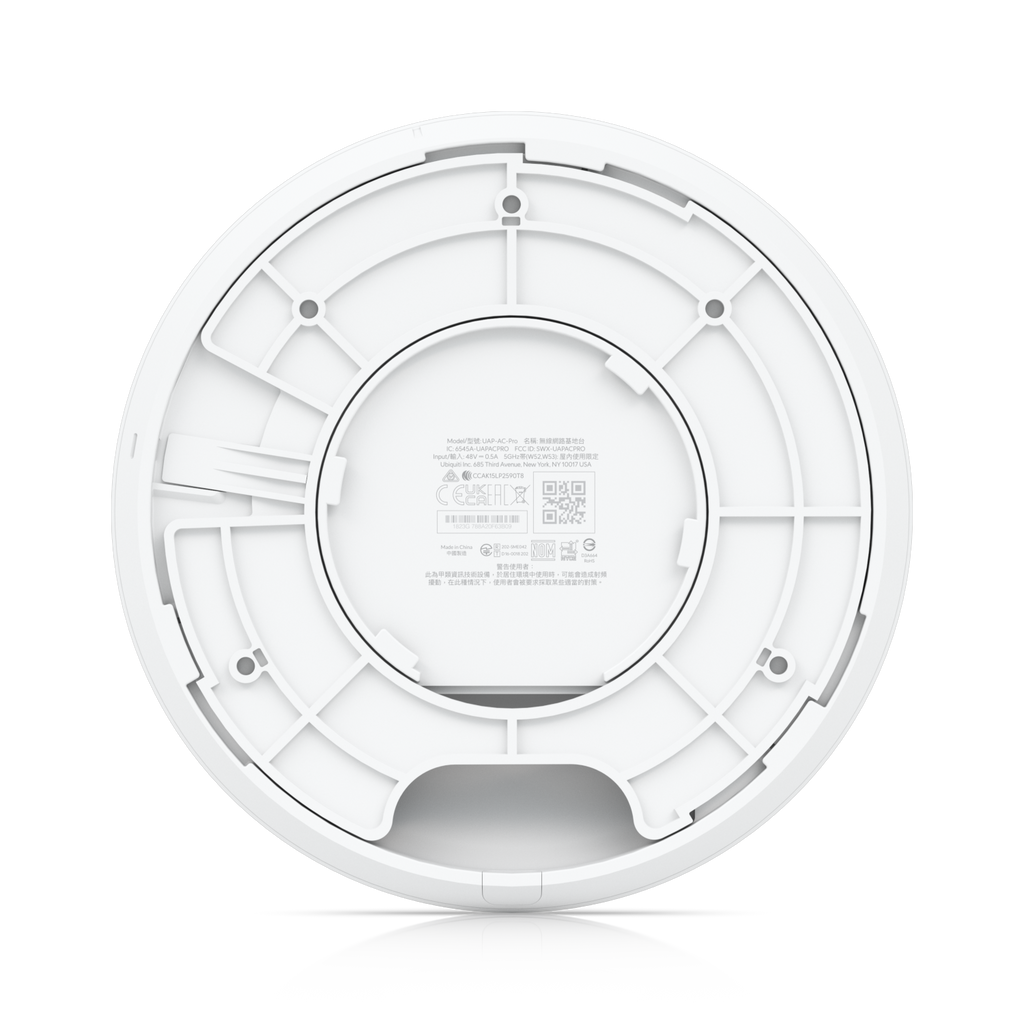

- Mounting: Ceiling, wall (Pro Mount supported)

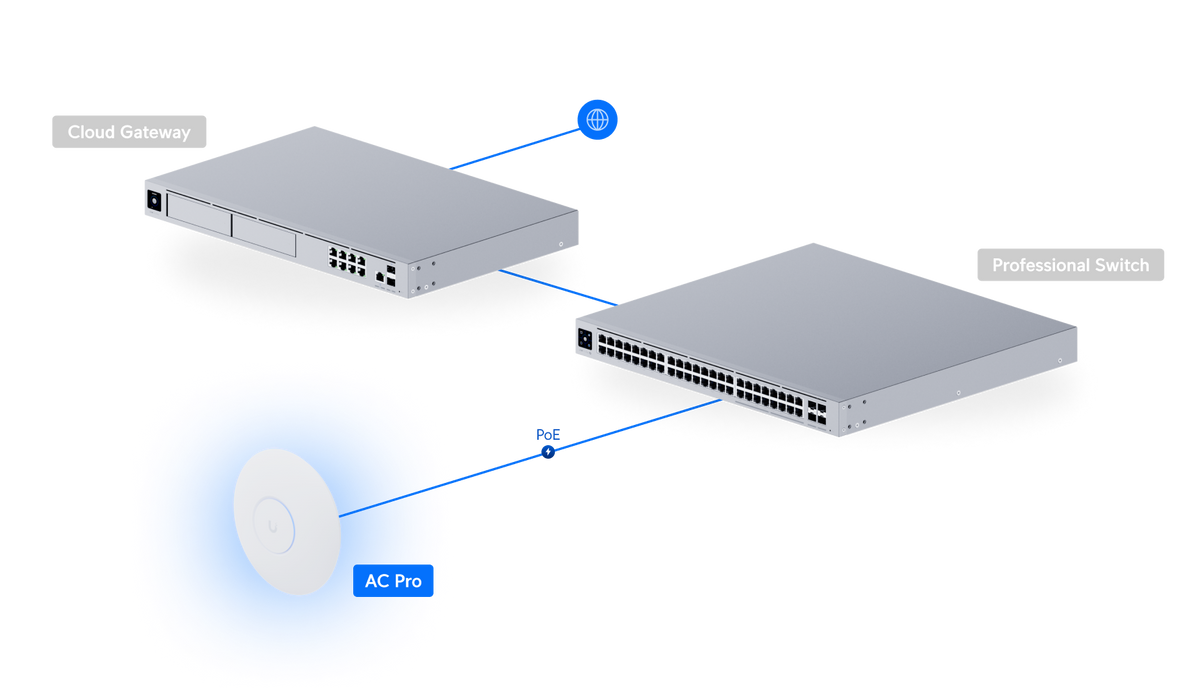

- Power Method: PoE
- MIMO (5 GHz): 3 x 3 (DL MU-MIMO)
- MIMO (2.4 GHz): 3 x 3 (DL MU-MIMO)
- Max. Data Rate (5 GHz): 1.3 Gbps (BW80)
- Max. Data Rate (2.4 GHz): 450 Mbps (BW40)
- Antenna Gain (5 GHz): 3 dBi
- Antenna Gain (2.4 GHz): 3 dBi
- Max. TX Power (5 GHz): 22 dBm
- Max. TX Power (2.4 GHz): 22 dBm
- Max. BSSIDs: 8 per radio
- Supported Data Rates (802.11ac/WiFi 5): 6.5 Mbps to 1.3 Gbps (MCS0-MCS9 NSS1/2/3, VHT 20/40/80)
- Supported Data Rates (802.11n): 6.5 Mbps to 450 Mbps (MCS0-MCS23, HT 20/40)
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal: Custom branding landing page, voucher authentication, payment-based authentication, external portal server support, password authentication
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Maximum Power Consumption: 9W
- Includes PoE Adapter: Yes
- Supported Voltage Range: 44–57V DC

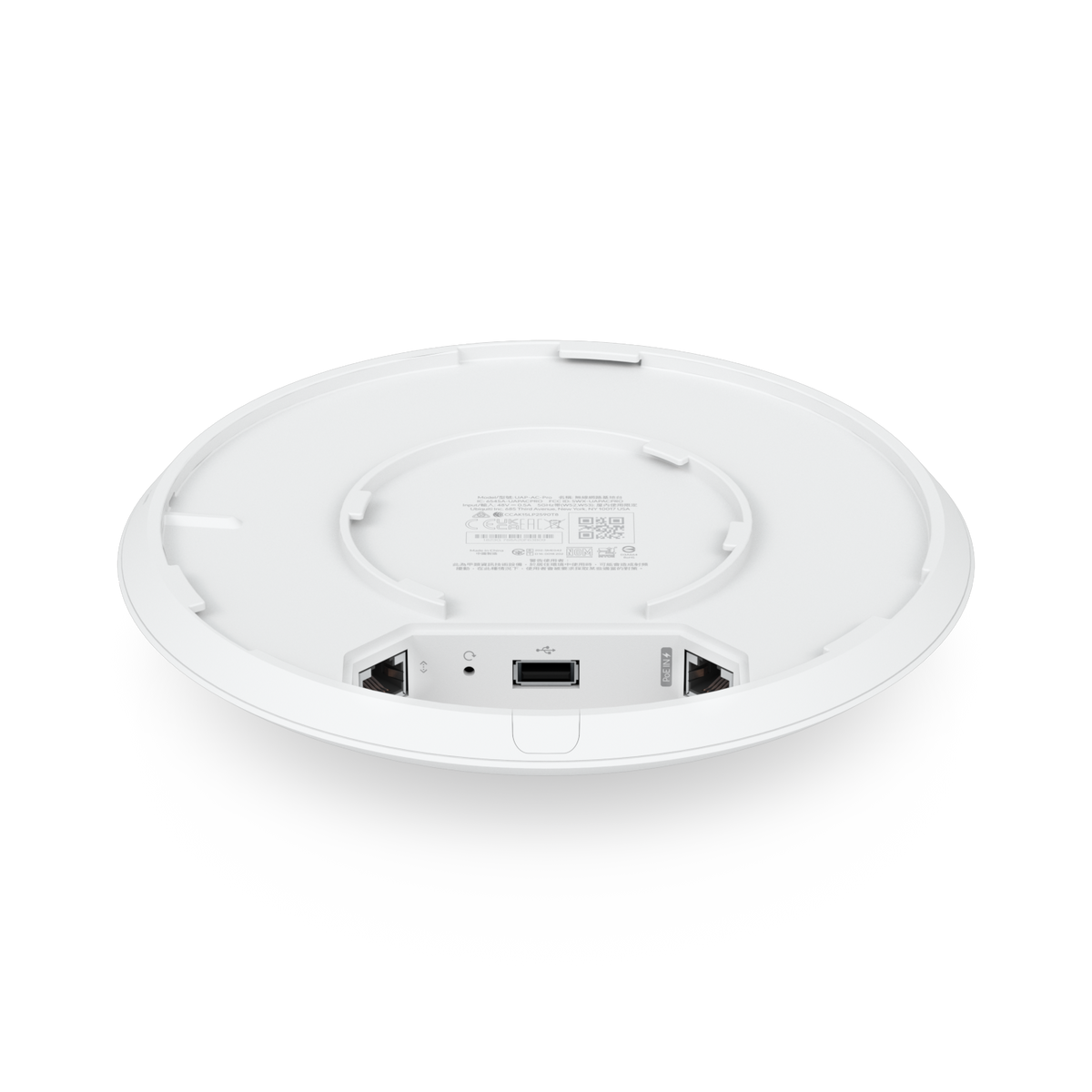

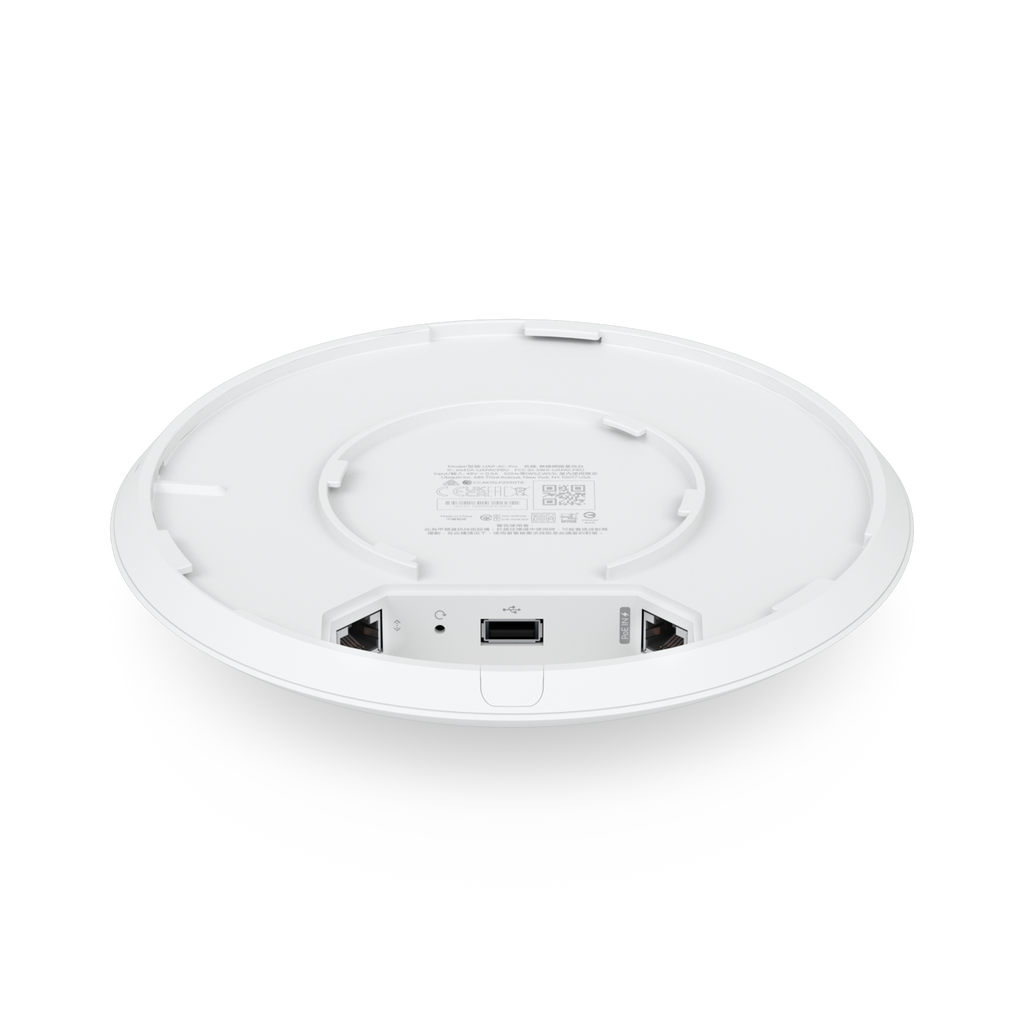

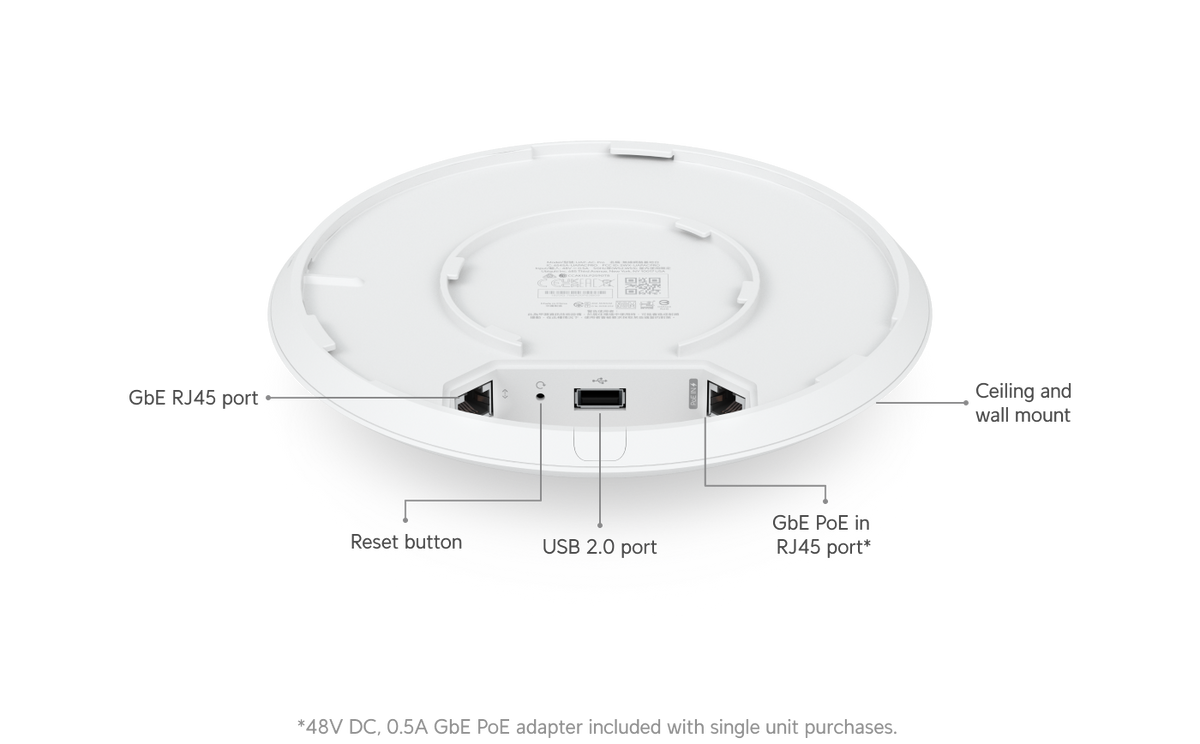

- Networking Interface: Two GbE RJ45 ports
- Weight (Device): 350 g (12.4 oz)
- Weight (With Mount): 450 g (15.9 oz)
- Management: Ethernet
- Enclosure Material: Polycarbonate
- LEDs: System status
- Channel Bandwidth: HT 20/40, VHT 20/40/80 (MHz)
- Operating Frequency (US/CA): 2400–2472 MHz, U-NII-1 5150–5250 MHz, U-NII-2A 5250–5350 MHz, U-NII-2C 5470–5725 MHz, U-NII-3 5725–5850 MHz
- Operating Frequency (Worldwide): 2400–2483.5 MHz, 5150–5850 MHz
- Ambient Operating Temperature: -10 to 70°C (14 to 158°F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel 01943-16-08356
