Description

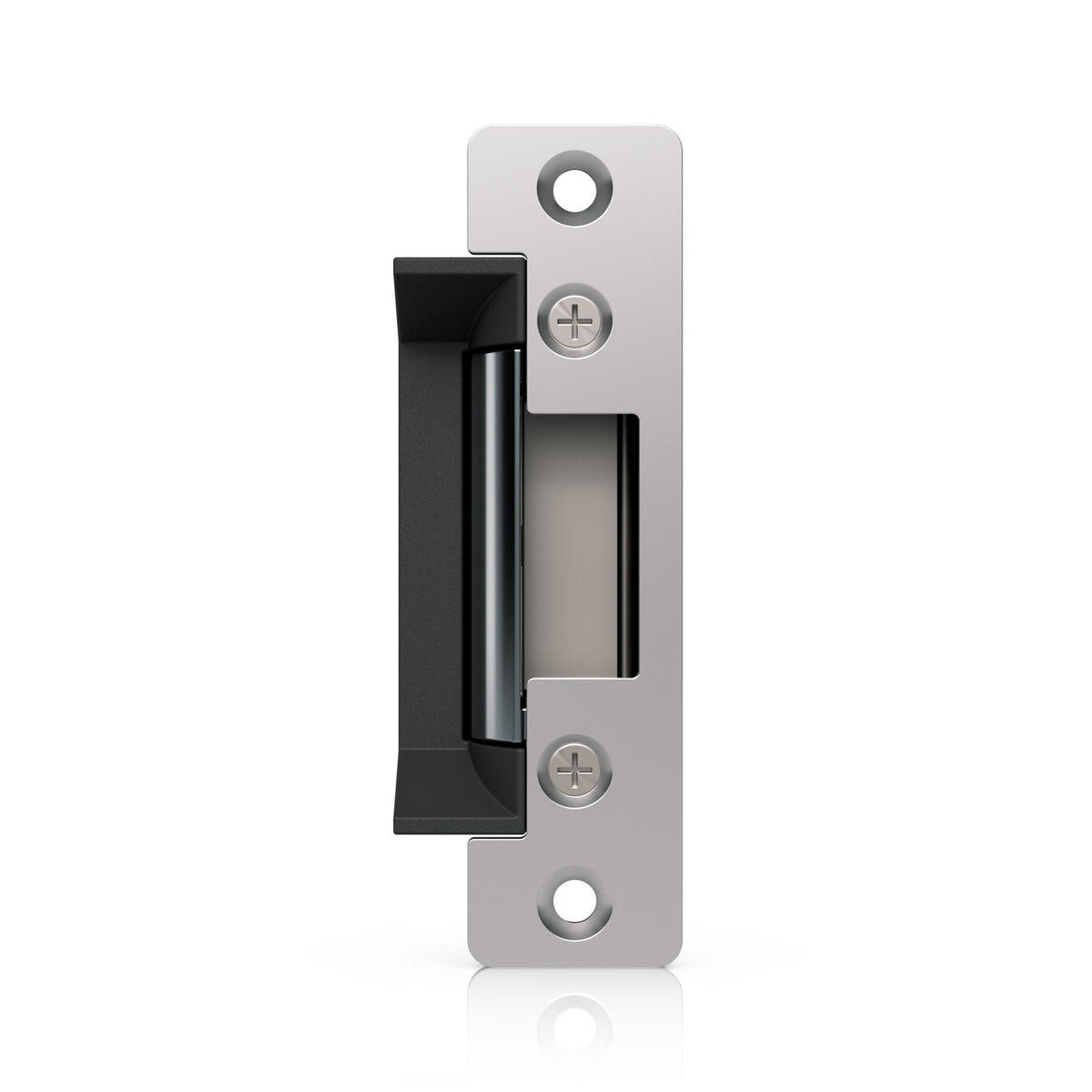

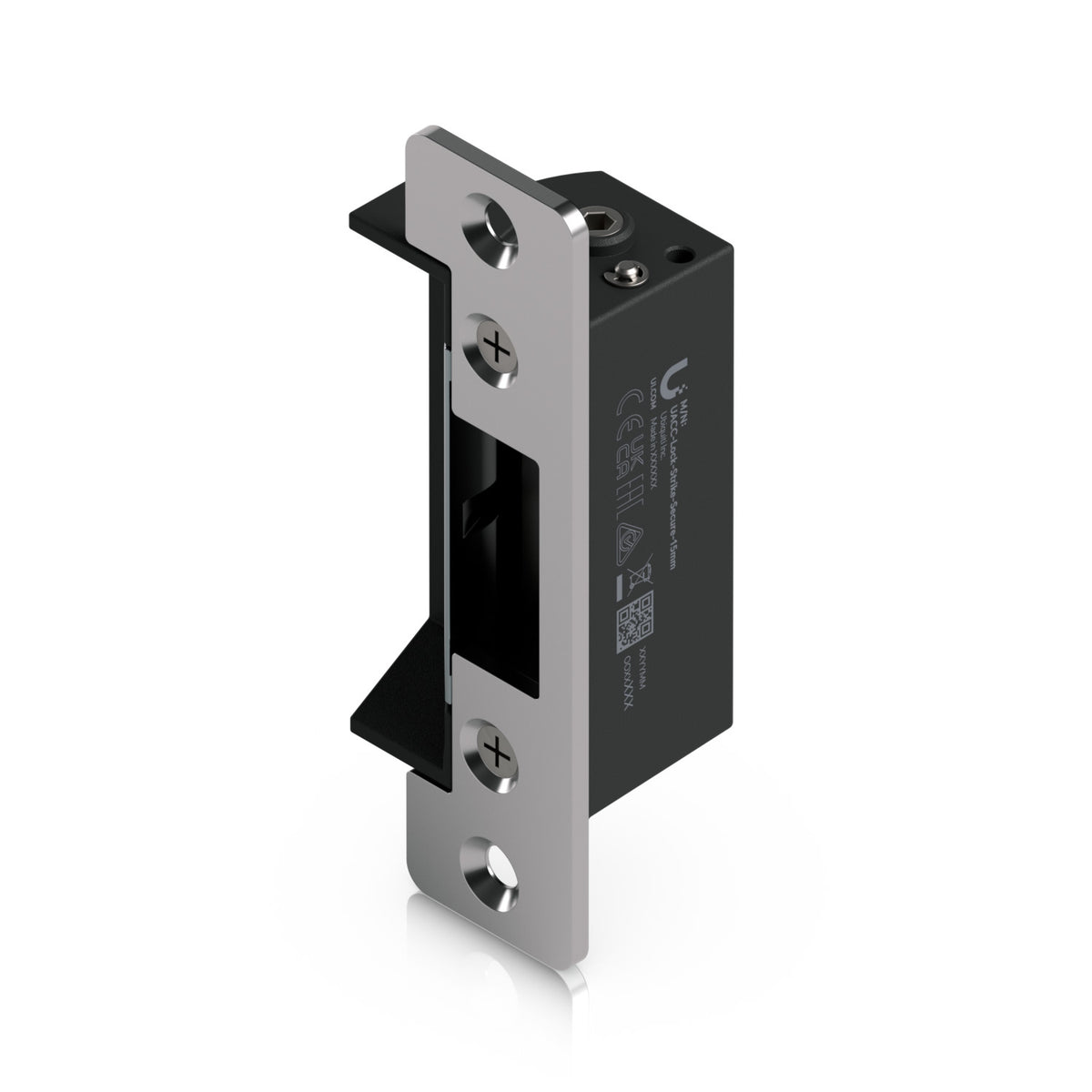

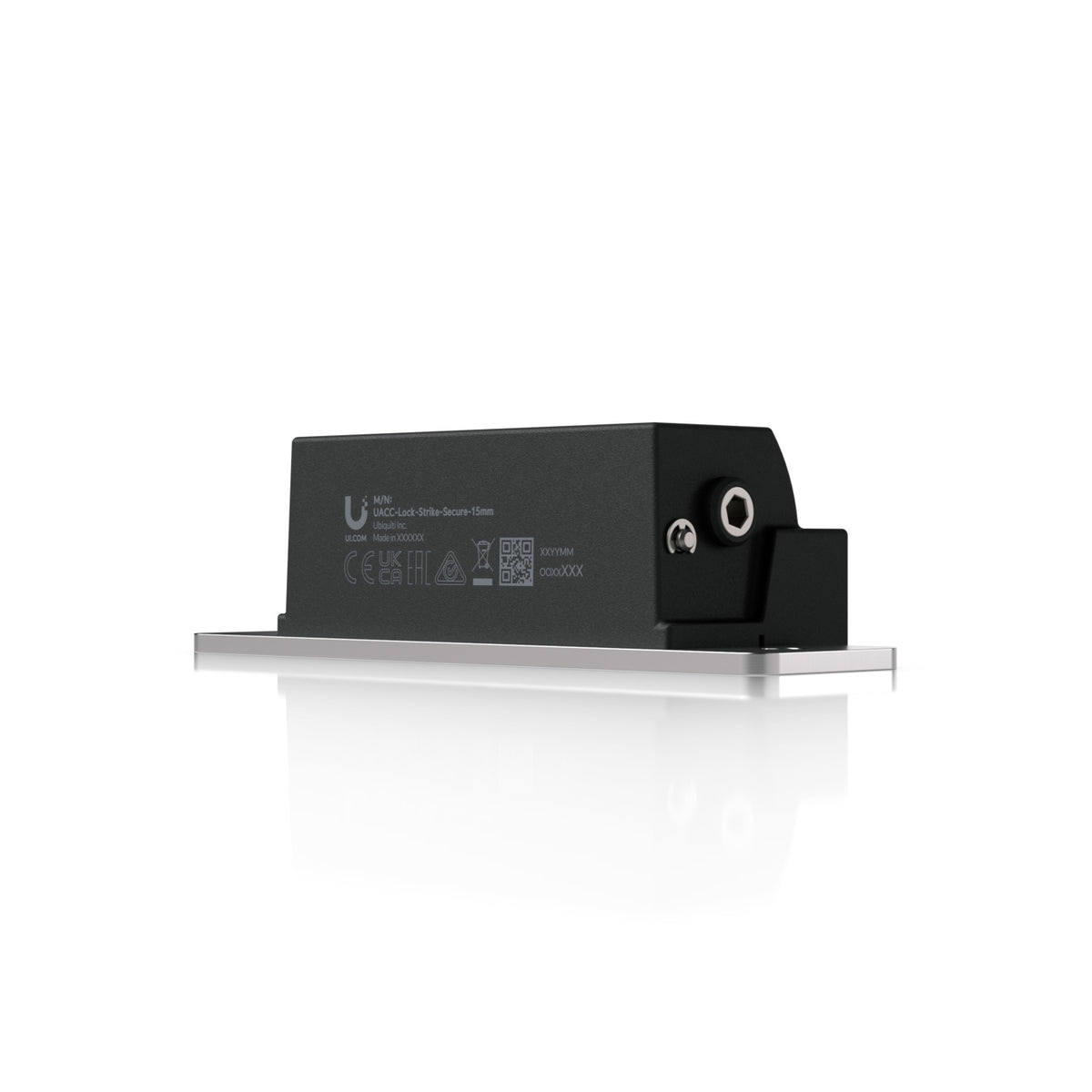

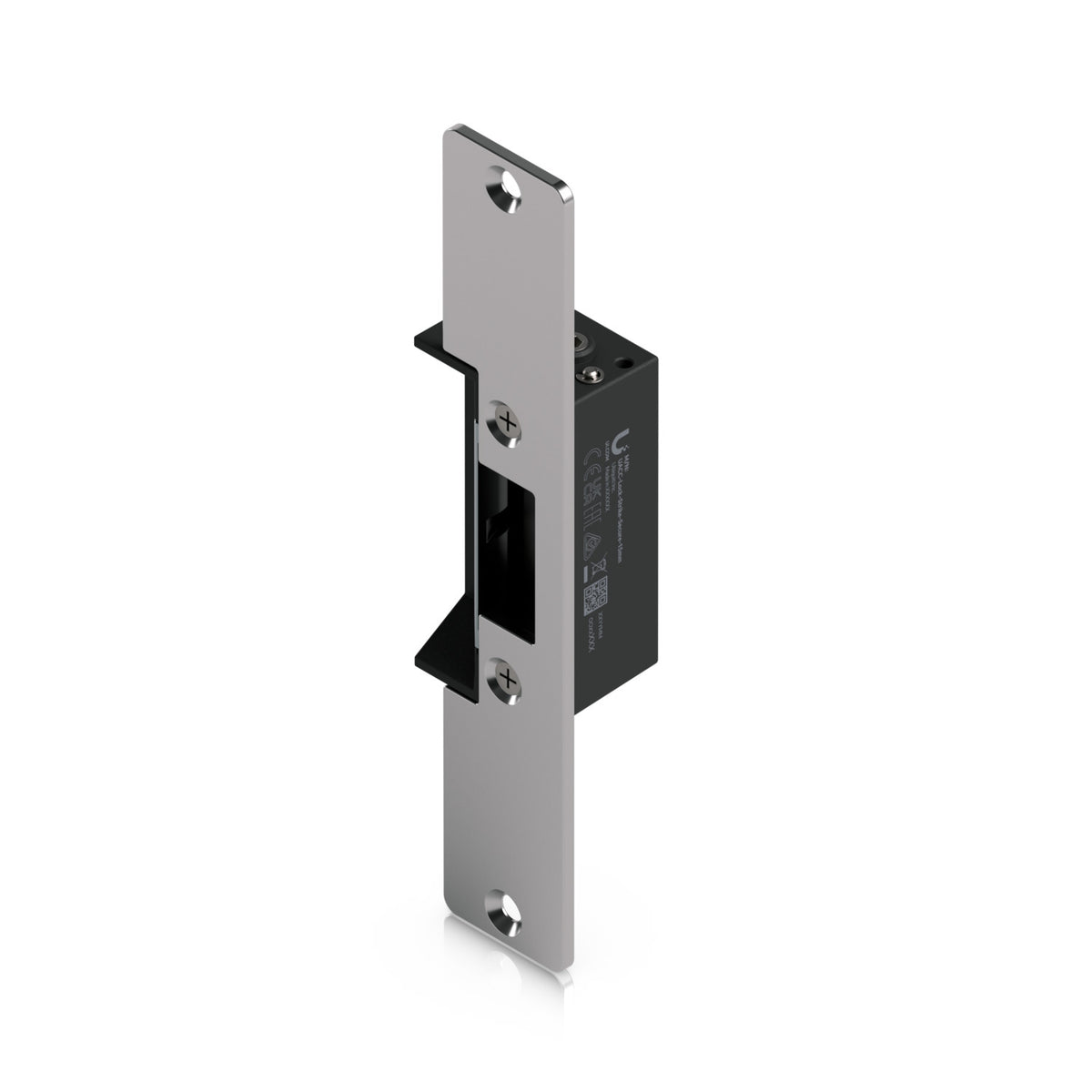

The Ubiquiti Access Lock Electric is a fail secure electric strike lock that connects to a UniFi Access Hub (UA Hub). It holds up to 1,200 kg (2,645 lb) and can be installed on an aluminum, steel, or wooden door frame with an ANSI compliant design. The lock is compatible with the EAH-8, UA-Hub-Gate, UA-Ultra, UA-Hub-Door, and UA-Hub-Door-Mini. Please note this product is identical to the model UA-Lock-Electric, but has been updated with a new name.
Features
- Holds up to 1,200 kg (2,645 lb)
- Can be installed on an aluminum, steel, or wooden door frame
- ANSI compliant design
- Fail secure electric strike lock that connects to a UniFi Access Hub
- Compatibility: EAH-8, UA-Hub-Gate, UA-Ultra, UA-Hub-Door, UA-Hub-Door-Mini
Specifications
- Dimensions: Lock body 80 x 40 x 35 mm (3.2 x 1.6 x 1.4 inches); short front plate 124 x 32 x 3 mm (4.9 x 1.3 x 0.1 inches); long front plate 202 x 36 x 3 mm (7.9 x 1.4 x 0.1 inches)
- Weight: Lock body 185 g (6.5 oz); short front plate 50 g (1.8 oz); long front plate 130 g (4.6 oz)
- Enclosure material: Lock body zinc alloy; front plate/latches stainless steel
- Lock type: Fail secure
- Support door type: Single door (wooden/metal)
- Holding force: 1,200 kg (2,645 lb)
- Current power: 400mA ±10%
- Support voltage range: 12V DC ±10%
- Wiring: 1 x Lock 12V/NO (red), 1 x Lock 12V/COM (black)
- Mounting: Door frame recess mount
- Door status contact type: Dry contact
- Door status contact logic: Door open DPS/+ & DPS/- = open; door close DPS/+ & DPS/- = short
- Door status contact rating: Max. 30V DC, 0.1A
- Ambient storage temperature: -20 to 70° C (-4 to 158° F)
- Ambient operating temperature: -10 to 60° C (14 to 140° F)
- Ambient operating humidity: 5 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: FCC, IC, CE
Note: For installation assistance, you can contact us or reach out directly to the brand.
Package Contents
- Ubiquiti Access Lock Electric
- Short front plate
- Long front plate
