Description:
The UniFi Access Reader G2 empowers employees with a wide variety of unlock options suitable for any weather conditions. It supports NFC card or UniFi Identity mobile app unlocking, along with handwave functionality for added convenience.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Unlock using an NFC card or UniFi Identity mobile app
- Additional handwave unlock functionality
- Entry and exit greeting messages
- Connects to UniFi Access Hub using PoE
Specifications:

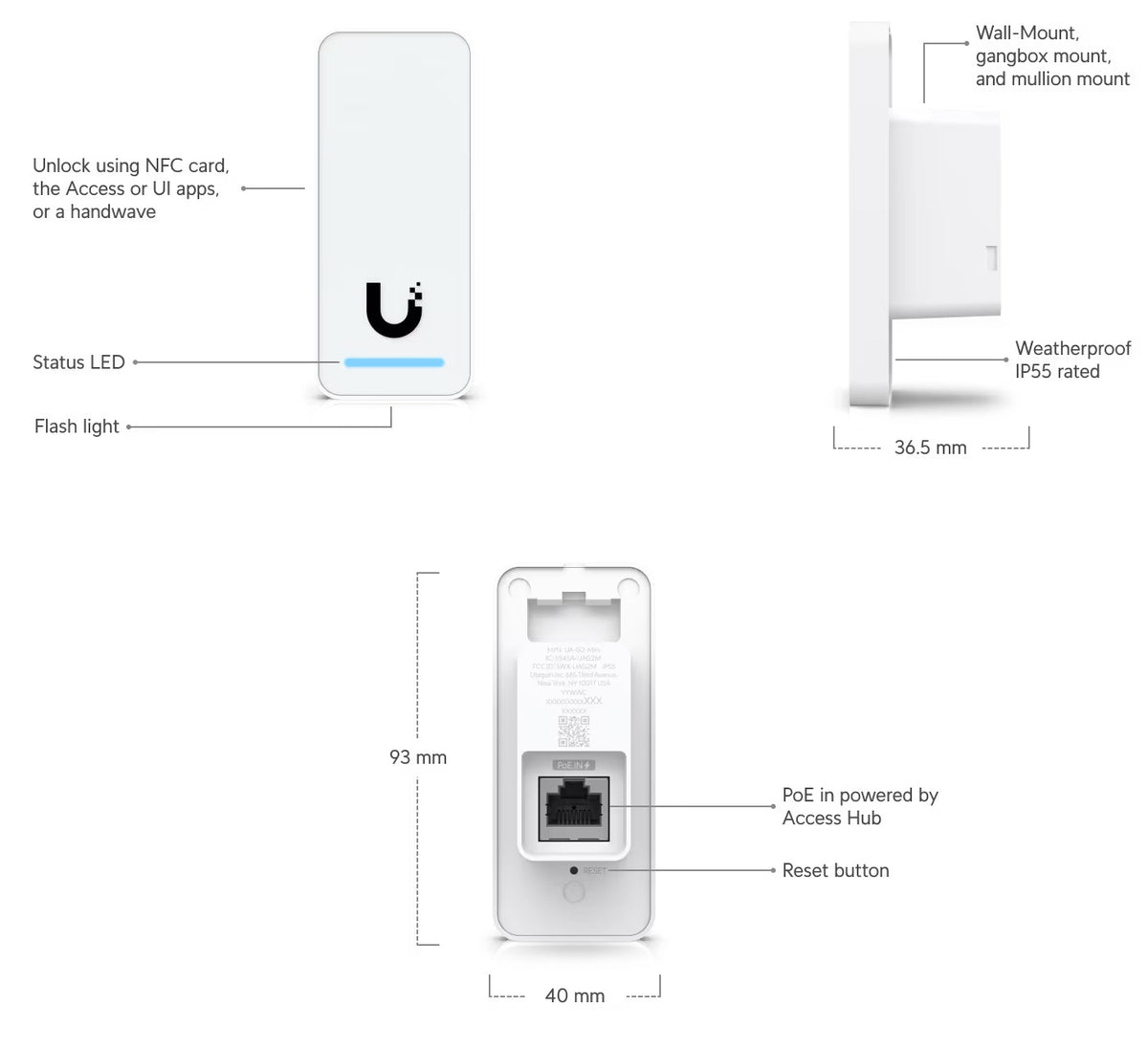

- Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- UniFi Application Suite: Access
- NFC Card and Keyfob Access: Yes
- Mobile Unlock: Yes
- Handwave Request to Exit: Yes
- Weatherproofing: IP55
- UL 294 Level: Destructive attack Level I, Line security Level I, Endurance Level I, Standby power Level I
- NDAA Compliant: Yes
- Weight: 82 g (2.9 oz)
- Enclosure Material: Polycarbonate, glass
- Mount Material: Aluminum alloy
- Mounting: In-wall, gang box (included), junction box (optional)
- Indoor and Outdoor Use: Yes
- Networking Interface: One 10/100 MbE RJ45 port
- Connectivity: BLE 4.1, NFC
- Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Maximum Power Consumption: 5W
- Supported Voltage Range: 48V DC
- ESD/EMP Protection: Air ± 15kV, contact ± 8kV
- Sensors: Proximity sensor
- Speaker: Yes
- LEDs: R/G/B/W
- Button: One factory reset button
- NFC Frequency: 13.56 MHz
- NFC Read Range: Less than 30 mm (1.18")
- NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic, MIFARE DESFIRE, Sony FeliCa (ID only), NFC Forum tags T1T, T2T, T3T, T4T and T5T
- PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended, matched to the transmission speed required at the installation site. Minimum conductor gauge is 26 AWG (0.13 mm²) for patch cords and 24 AWG (0.21 mm²) for horizontal or riser cable
- UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
- CAN/ULC-60839-11-1 Grade: Grade assignment I
- Certifications: CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
- Ambient Operating Temperature: -30 to 45°C (-22 to 113°F)
- Ambient Operating Humidity: 5 to 90% noncondensing
- Management Application: Access
