Description:
The UniFi Access Reader Lite is a convenient door access scanner supporting NFC reader and handwave door unlocking. It allows unlocking using an NFC card or the UniFi Identity mobile app, along with additional handwave functionality for hands-free access.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Unlock using an NFC card or UniFi Identity mobile app
- Additional handwave unlock functionality

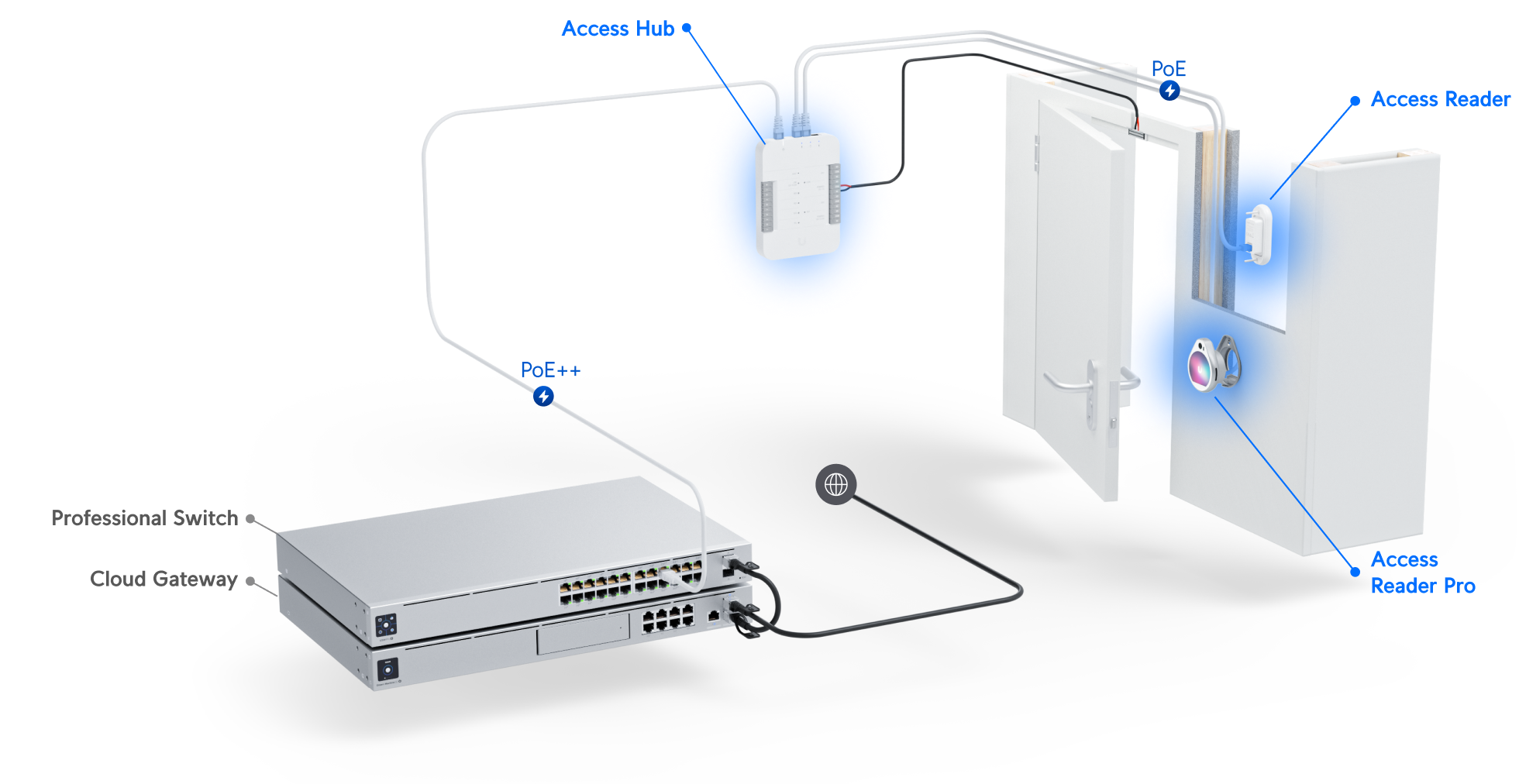

- Connects to UniFi Access Hub using PoE
Specifications:

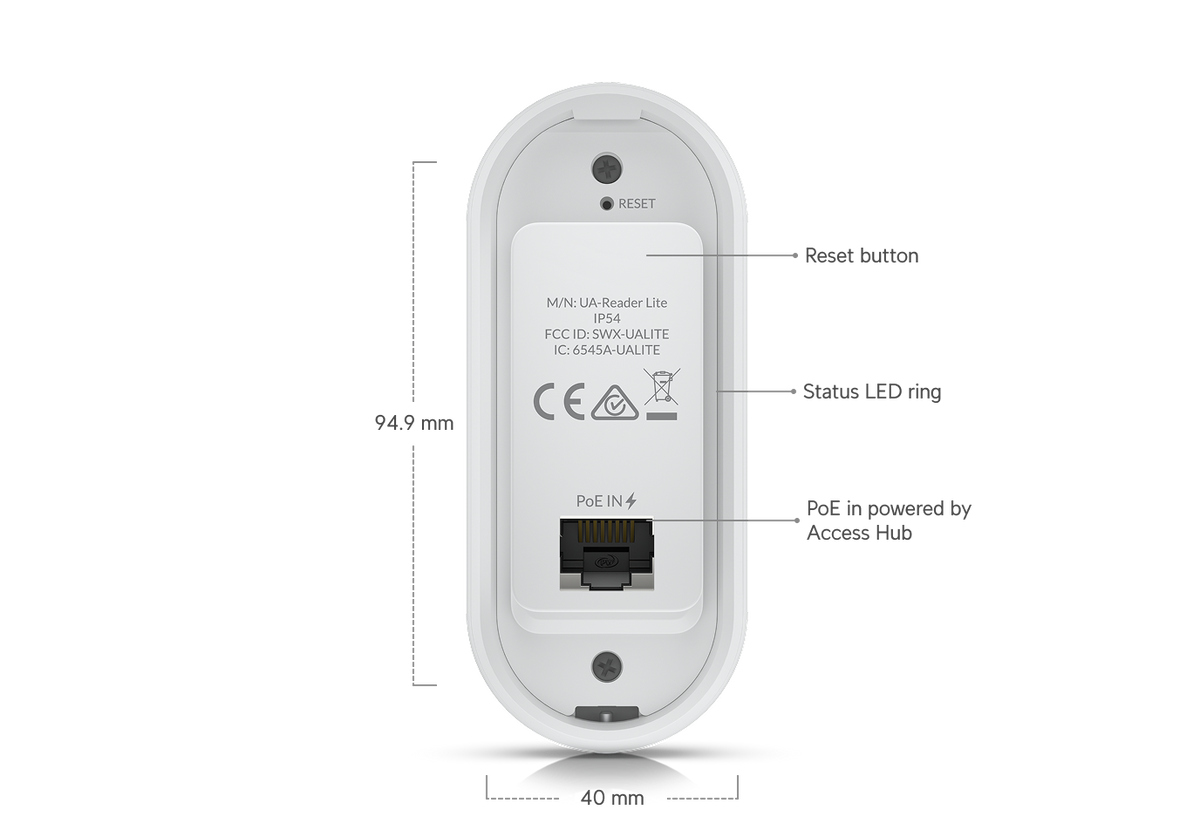

- Dimensions: 94.9 x 40 x 31.1 mm (3.7 x 1.6 x 1.2")
- UniFi Application Suite: Access
- NFC Card and Keyfob Access: Yes
- Mobile Unlock: Yes
- Handwave Request to Exit: Yes
- Weatherproofing: IP54
- UL 294 Level: Destructive attack Level I, Line security Level I, Endurance Level I, Standby power Level I
- NDAA Compliant: Yes
- Weight: 67 g (2.4 oz)
- Enclosure Material: Polycarbonate
- Mounting: Wall-mount, gang box mount (included)
- Indoor and Outdoor Use: Yes
- Networking Interface: One 10/100 MbE port
- Connectivity: BLE 4.1, Ethernet
- Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Maximum Power Consumption: 6W
- Supported Voltage Range: 44–57V DC
- LEDs: Bicolour (B/W)
- Button: One factory reset
- NFC Frequency: 13.56 MHz
- NFC Read Range: Less than 30 mm (1.18")
- NFC Technology: ISO 14443A, 14443B, 15693, NFC Tag 1, 2, 3, 4, 5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire
- PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended, matched to the transmission speed required at the installation site. Minimum conductor gauge is 26 AWG (0.13 mm²) for patch cords and 24 AWG (0.21 mm²) for horizontal or riser cable
- UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
- CAN/ULC-60839-11-1 Grade: Grade assignment I
- Certifications: CE, FCC, IC, Anatel, SRRC, UL 294, CAN/ULC-60839-11-1
- Ambient Operating Temperature: -20 to 40°C (-4 to 104°F)
- Ambient Operating Humidity: 5 to 90% noncondensing
- Management Application: Access
