Description

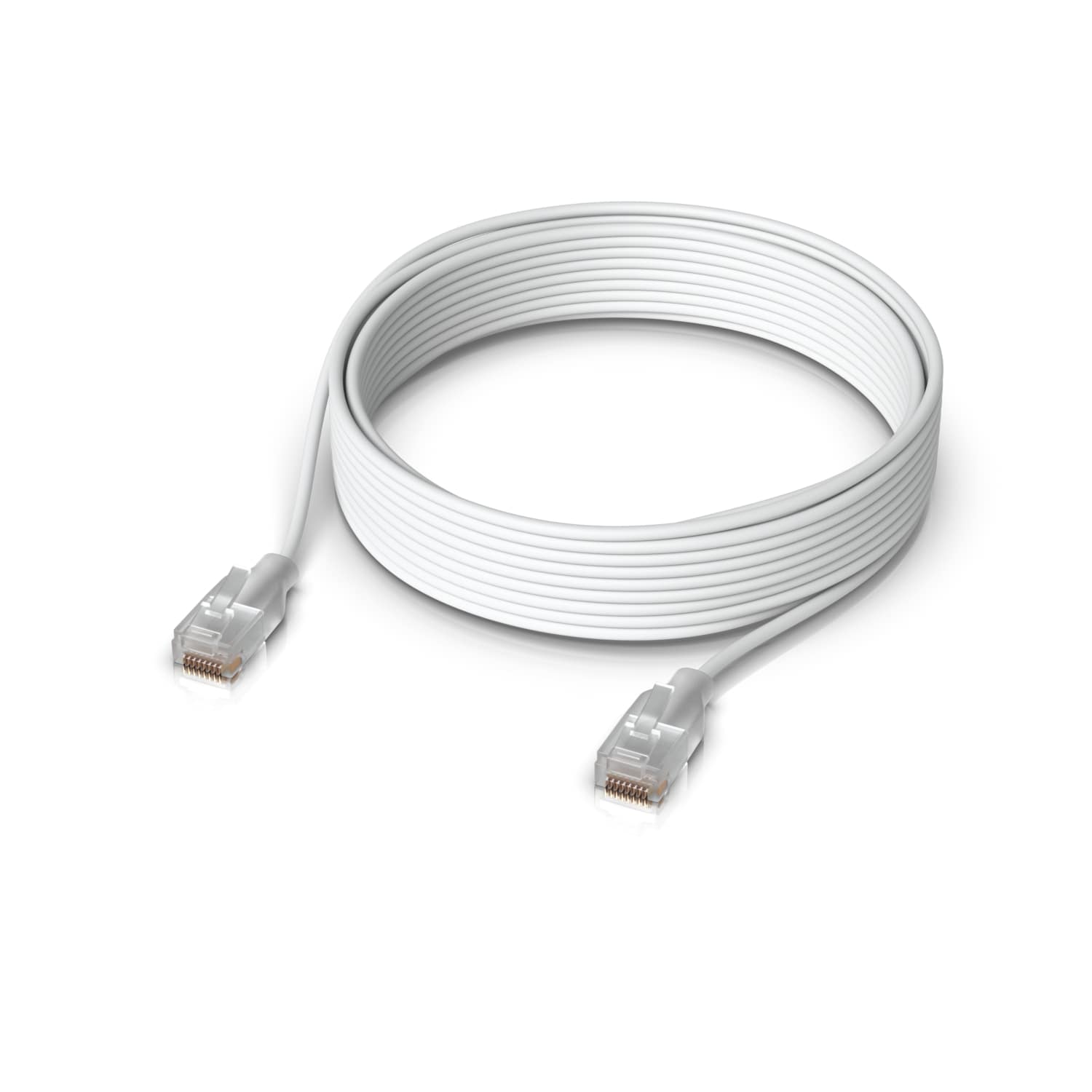

The Ubiquiti UniFi Etherlighting Patch Cable is a nano thin patch cable with 10 GbE support, designed to showcase Etherlighting effects. The cable includes translucent booted RJ45 connectors that enhance the visibility and brightness of lighting features, with a slim 2.9 mm outer diameter for this 12 m length. Built with a thermoplastic elastomer jacket and stranded copper conductors, this indoor cable supports data rates up to 10G and PoE types up to PoE+++.
Features
- Nano thin patch cable with 10 GbE support

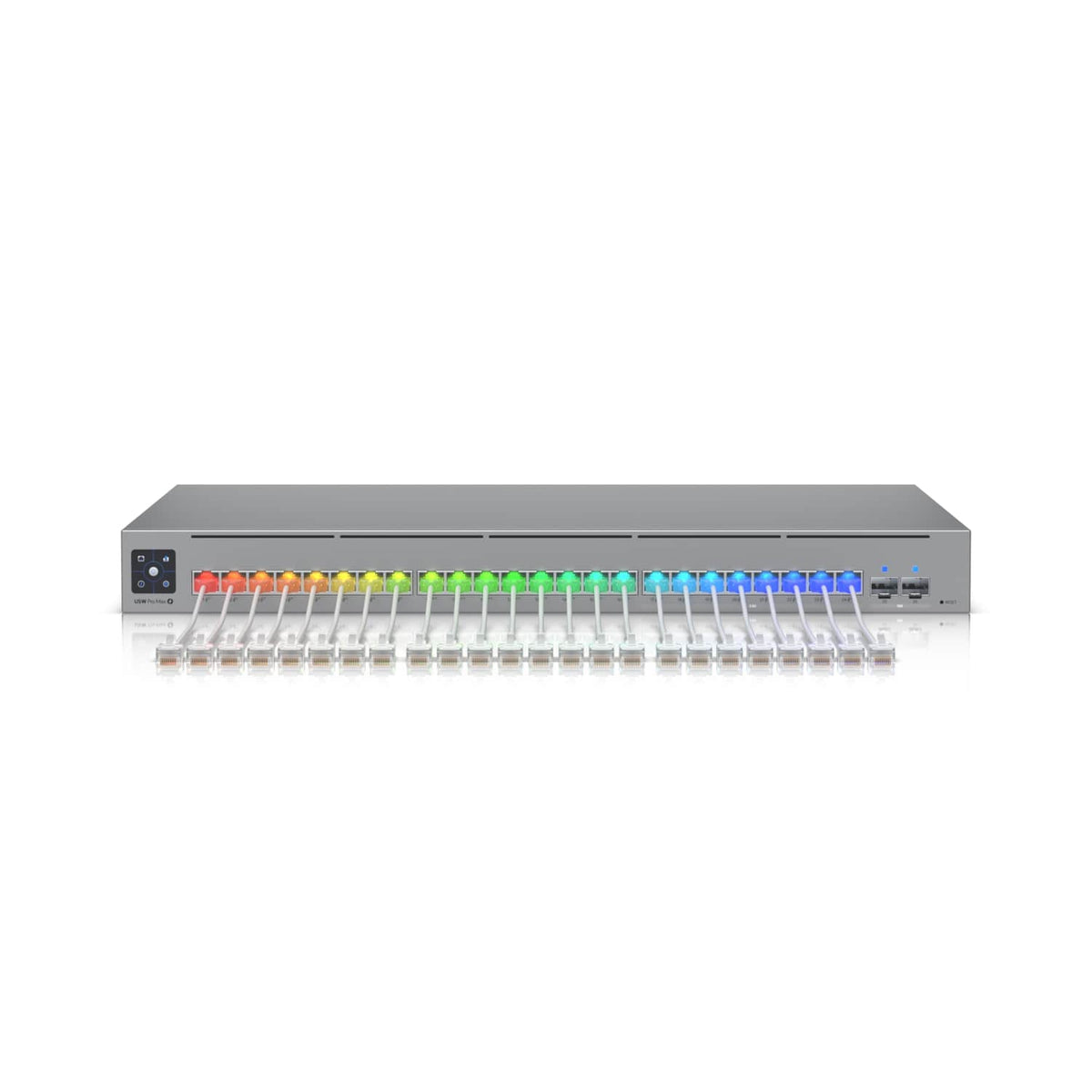

- Designed to showcase Etherlighting effects

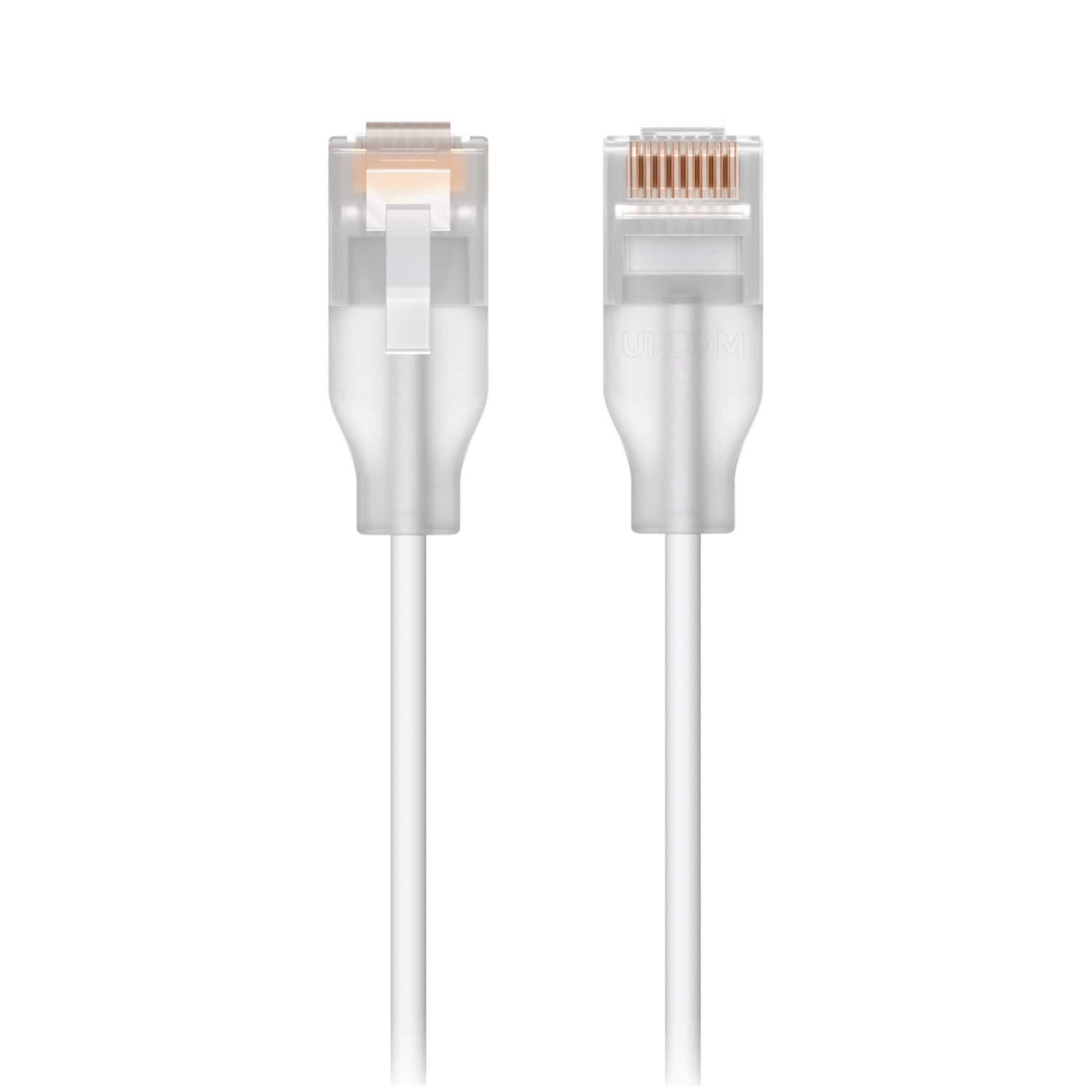

- Translucent booted RJ45 connectors for optimal Etherlighting brightness
- 2.9 mm outer diameter
- Length: 12 m
- Supports up to PoE+++
Specifications

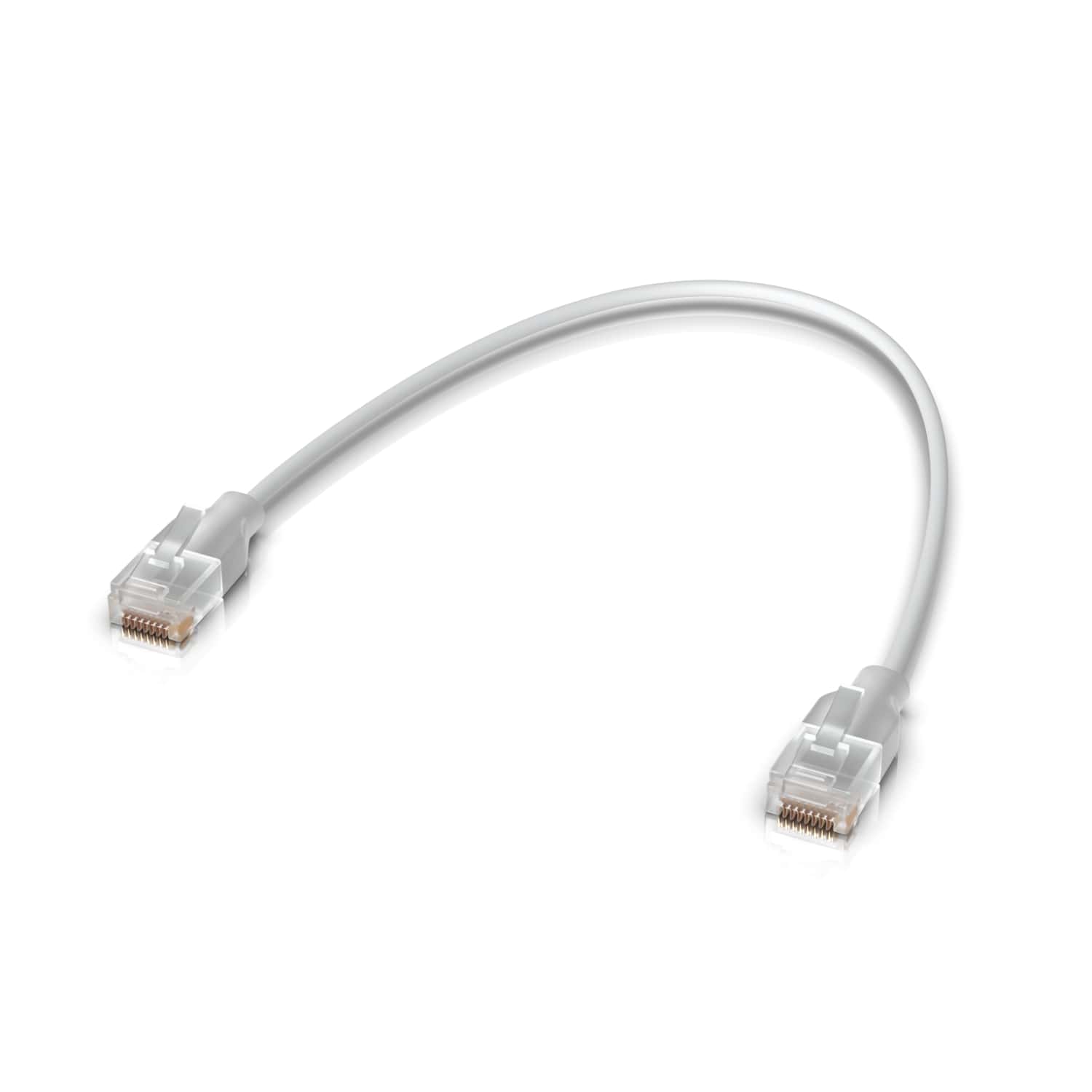

- Available lengths end to end: 0.15, 0.3, 1, 2, 3, 5, 8, 12, 15 m (0.5, 1, 3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft)
- Available Colours: White
- Pack options: Single unit, 24 pack (0.15 m)
- Supported data rate: 10G
- Supported PoE type: Up to PoE+++
- Connector: 2 translucent booted RJ45
- Operating environment: Indoor
- Jacket diameter: 0.15 to 8 m: 2.5 mm (0.1 inches); 12 to 15 m: 2.9 mm (0.11 inches)
- Jacket material: Thermoplastic elastomer (TPE)
- Shielding type: UTP
- Conductor type: Stranded copper
- Conductor wire gauge: 1 to 8 m (3 to 26 ft) 34 AWG; 12 to 15 m (39 to 49 ft) 32 AWG
- Bend radius: 1 to 8 m minimum 21 mm (0.83 inches); 12 to 15 m minimum 24 mm (0.94 inches)
- Flame rating: VW-1 (UL1581)
- Standards: TIA/EIA-568-B.2, ISO/IEC 11801
- Installation temperature: -20 to 60° C (-4 to 140° F)
- Ambient storage temperature: -20 to 75° C (-4 to 167° F)
- Ambient operating temperature: -20 to 60° C (-4 to 140° F)
Package Contents
- Ubiquiti UniFi Etherlighting Patch Cable
