Description:
The Ubiquiti UniFi Network 8-Port Switch is a managed Gigabit Layer 3 switch offering both PoE+ and PoE++ output for flexible device powering. It combines 6 GbE PoE+ ports and 2 GbE PoE++ ports with 2 10G SFP+ ports, delivering a total PoE availability of 120W to support a wide range of connected devices.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- 120W total PoE availability
- Layer 3 switching
- DHCP server for local networks
- DHCP relay
- Inter-VLAN routing for local networks
- Static routing for local networks
- LACP port aggregation
- STP and RSTP support
- Advanced IGMP configuration with querier, fast leave, and router port
- IGMP snooping
- 802.1X control
- MAC-based ACLs and device isolation
- DHCP snooping and guarding
- Egress rate limit
- Flow control
- Storm control
- Multicast and broadcast rate limiting
- MAC address blocking
- IP-based ACLs and network isolation
- MAC-based port restriction
- Port isolation
- Port mirroring
- Jumbo frames
- LLDP-MED
- Voice VLAN
- Loop protection
- Virtual network override
Specifications:

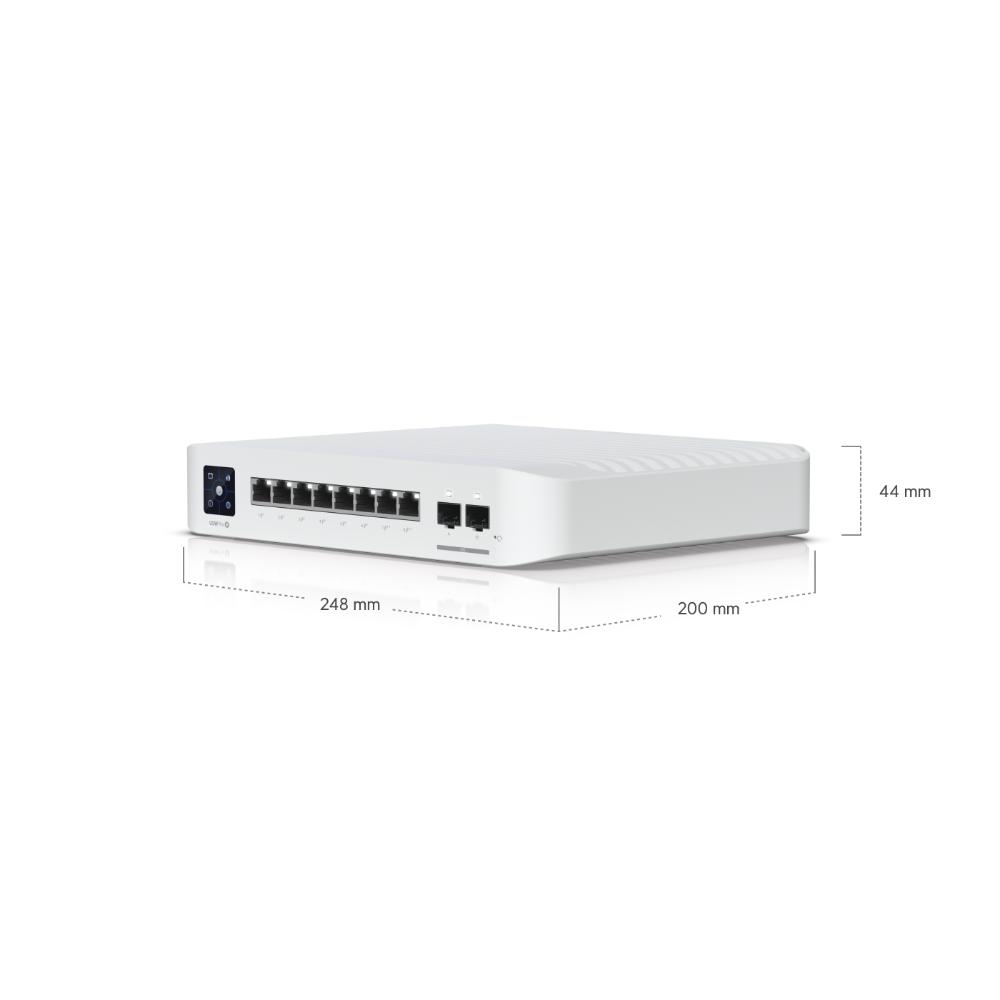

- Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")

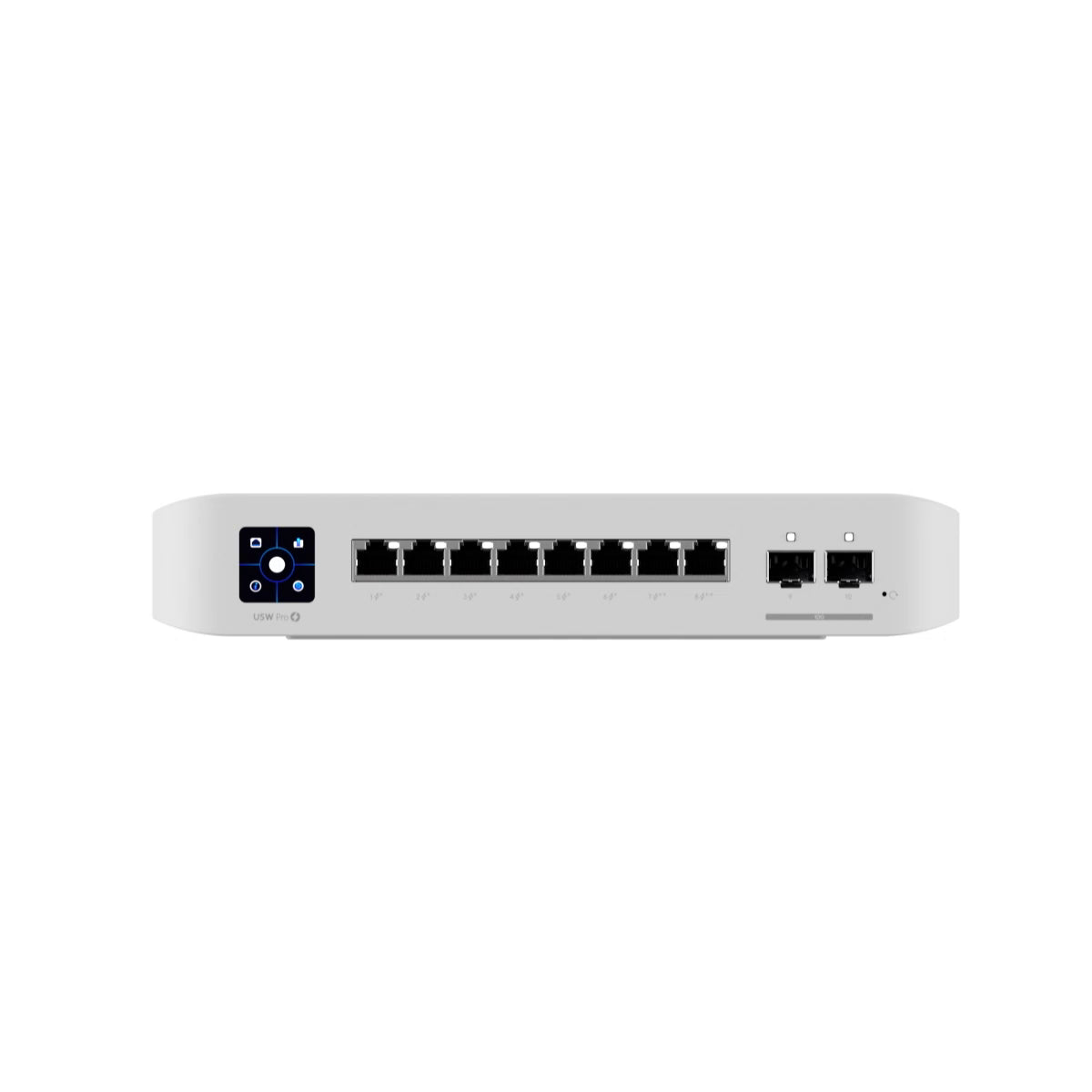

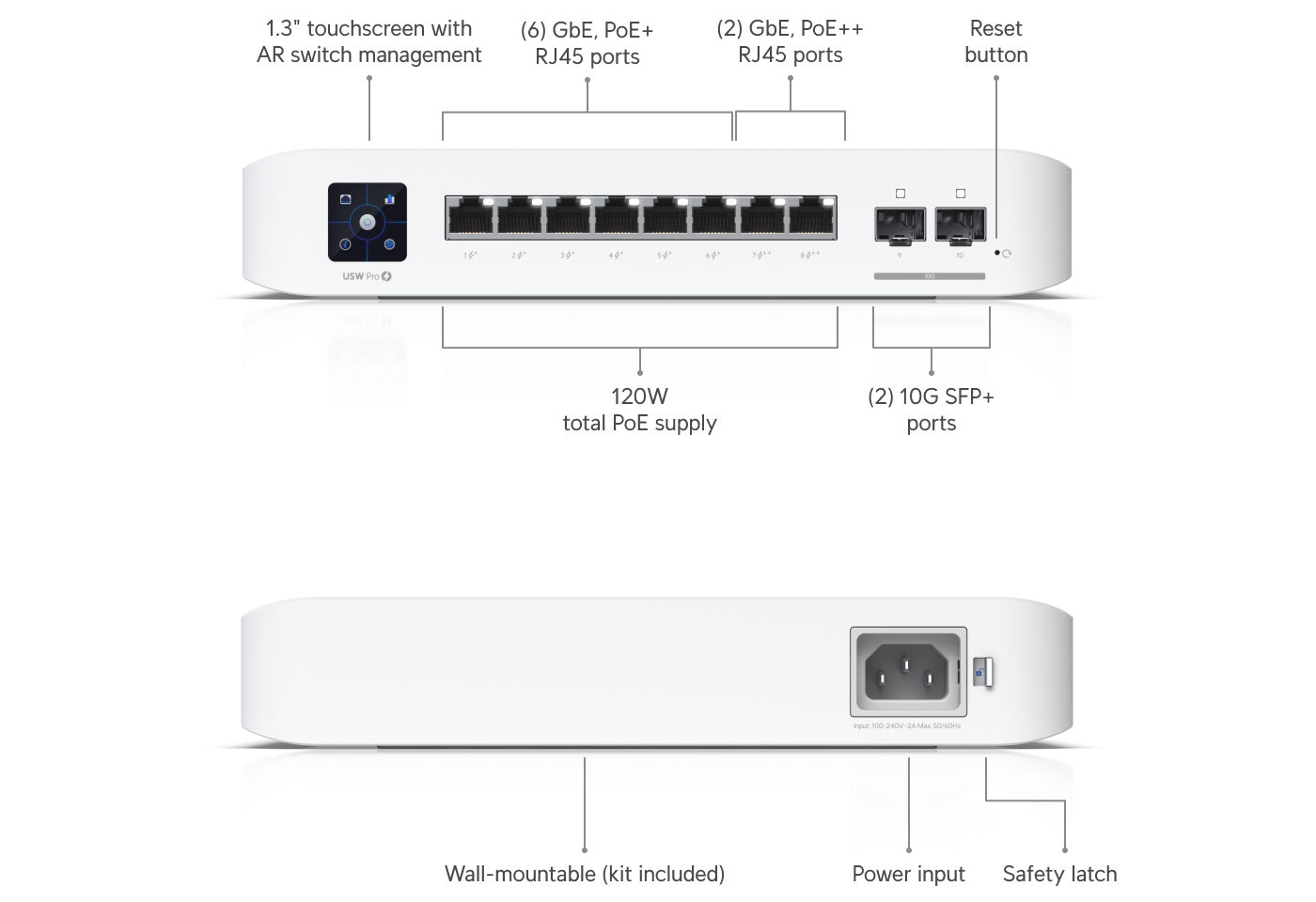

- Port Layout: 8x 1 GbE RJ45 (6 PoE+, 2 PoE++), 1G/100M/10M; 2x 10G SFP+ (10G/1G)
- Max PoE Output: Up to PoE++
- Total PoE Availability: 120W
- Layer 3: Yes
- Form Factor: Compact desktop, wall
- Switching Capacity: 56 Gbps
- Total Non-Blocking Throughput: 28 Gbps
- Forwarding Rate: 42 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 1.5 MB
- Access Lists: IPv4 128, MAC 128
- PoE Ports: PoE+ 6, PoE++ 2
- Max PoE Wattage per Port by PSE: PoE 15.4W, PoE+ 32W, PoE++ 64W
- Max Power Consumption: 30W excluding PoE output, 150W including PoE output

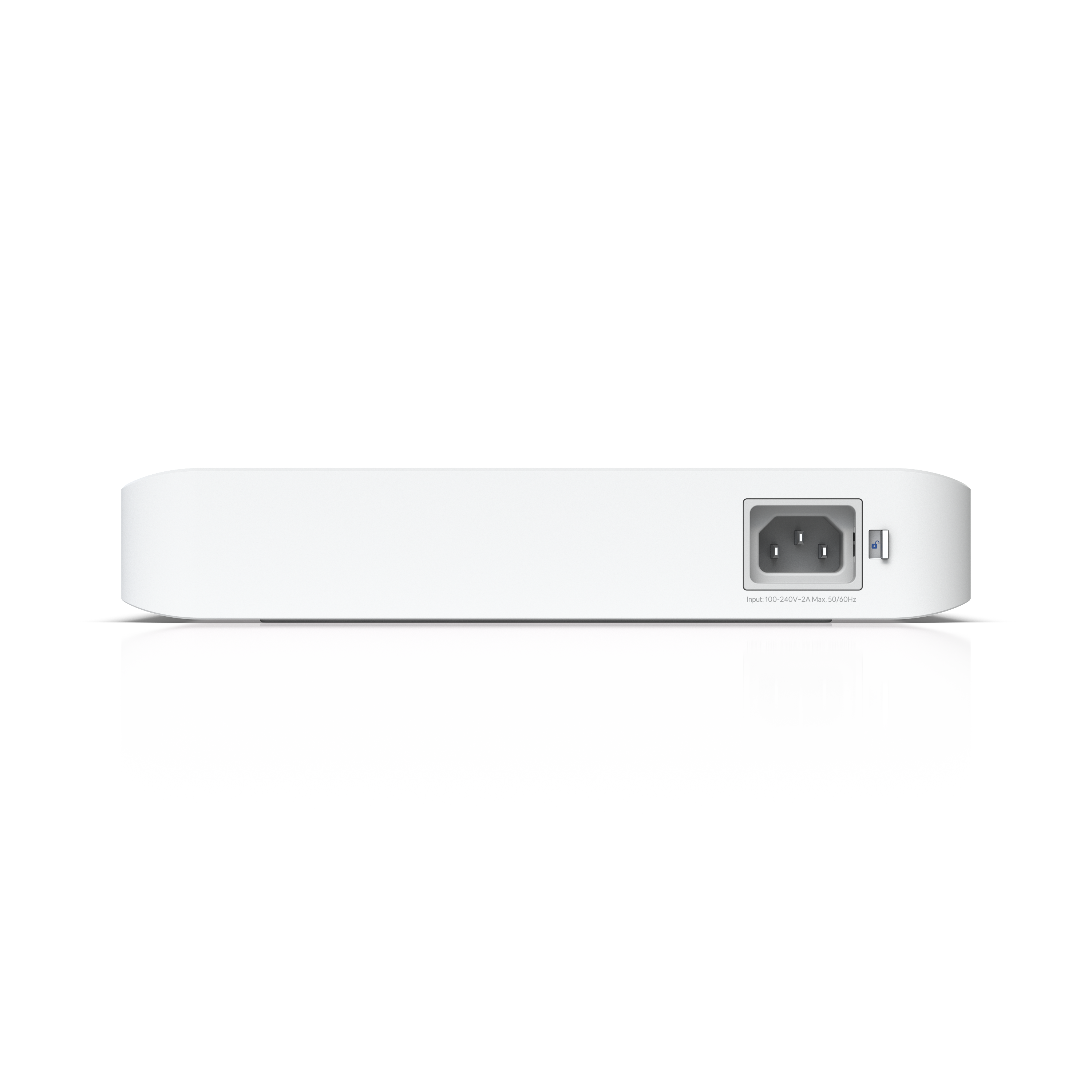

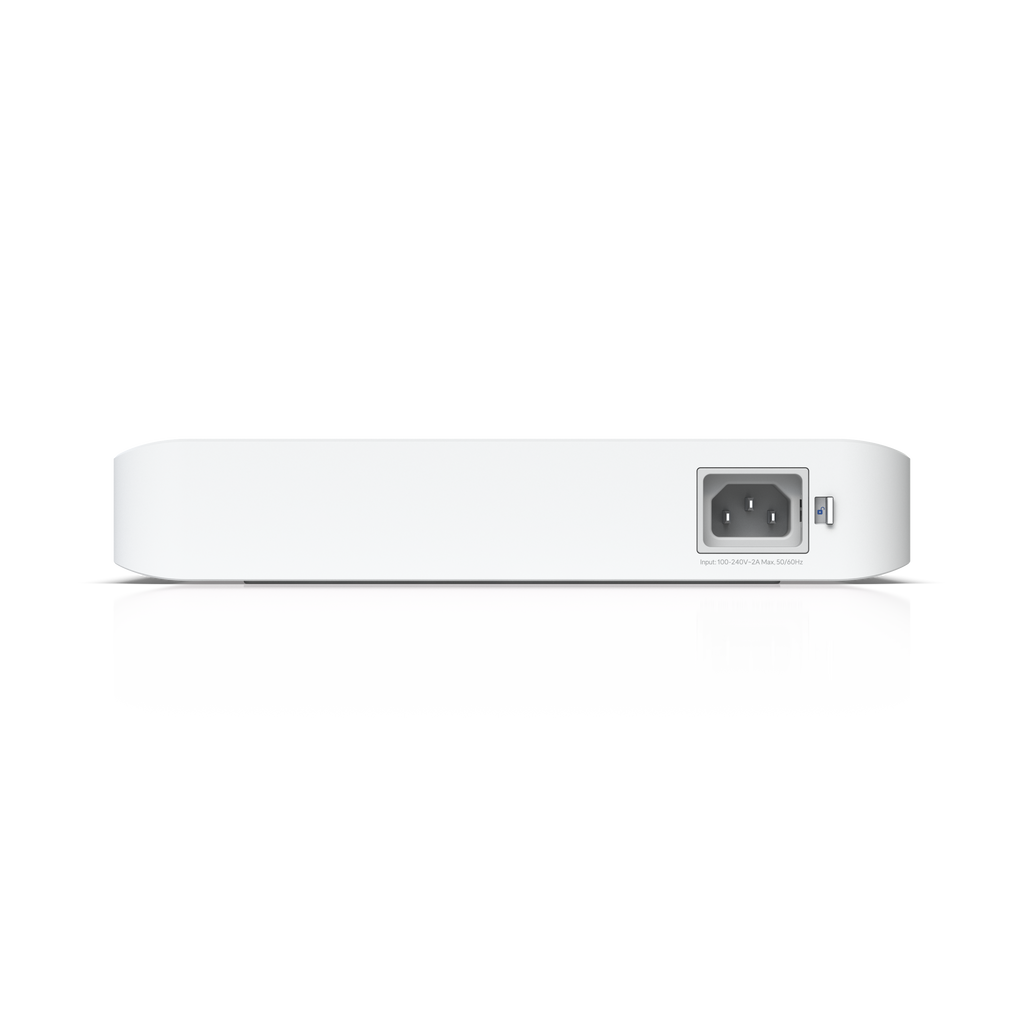

- Power Method: Universal input, 100-240V AC, 50/60 Hz
- Power Input Method: AC input
- Power Supply: AC/DC, internal, 150W
- Supported Voltage Range: 100-240V AC
- Management: Ethernet AR
- Heat Dissipation: 102.4 BTU/hr excluding PoE output
- Weight: 2.1 kg (4.6 lb)
- Enclosure Material: Polycarbonate, metal
- Mount Material: Polycarbonate
- Supported Rack Depth: 400-1200 mm (15.7-47.2")
- LCM Display: 1.3" touchscreen
- Ambient Operating Temperature: -5 to 45°C (23 to 113°F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel 05214-24-08356
- Application Requirements: UniFi Network version 7.5.176 and later
