Description

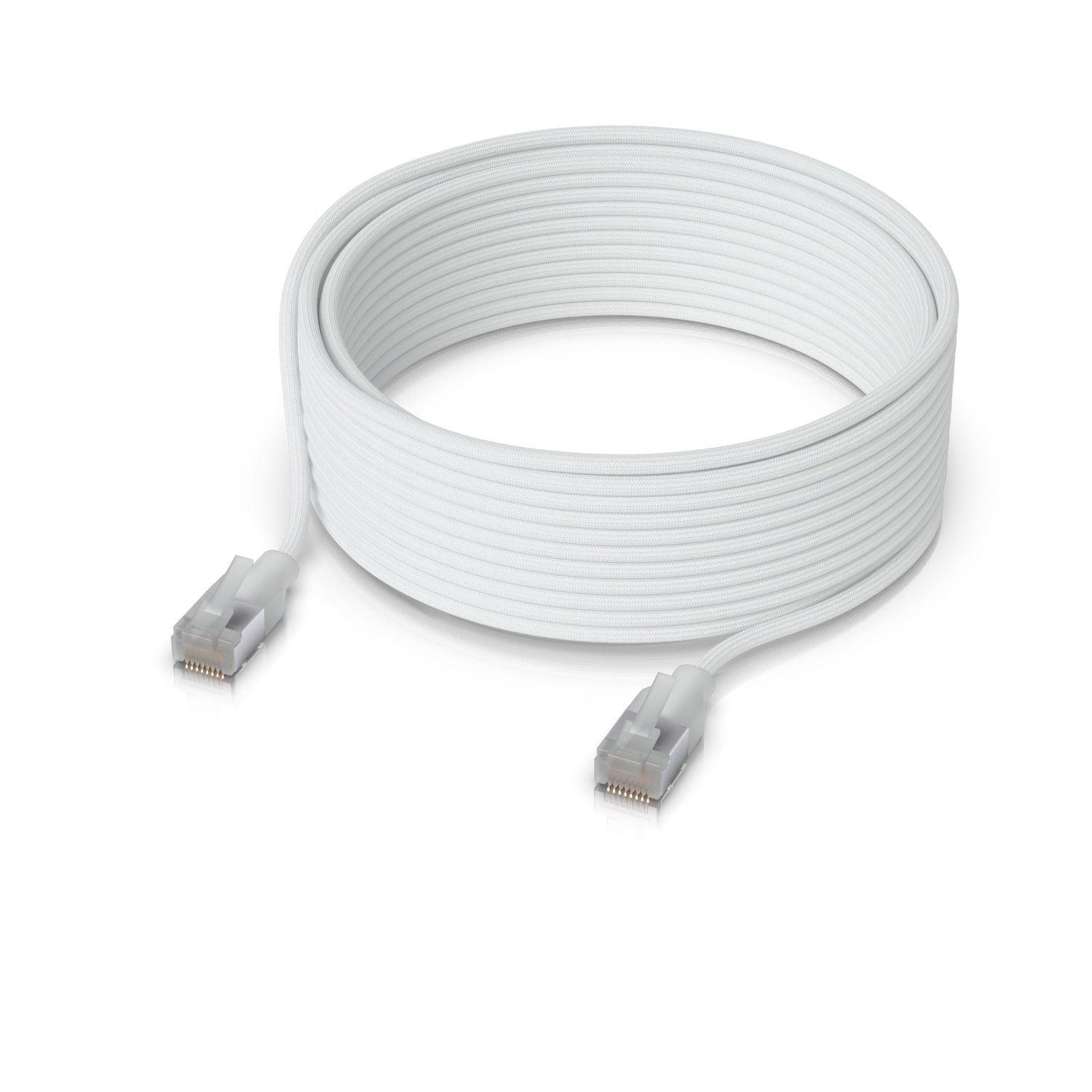

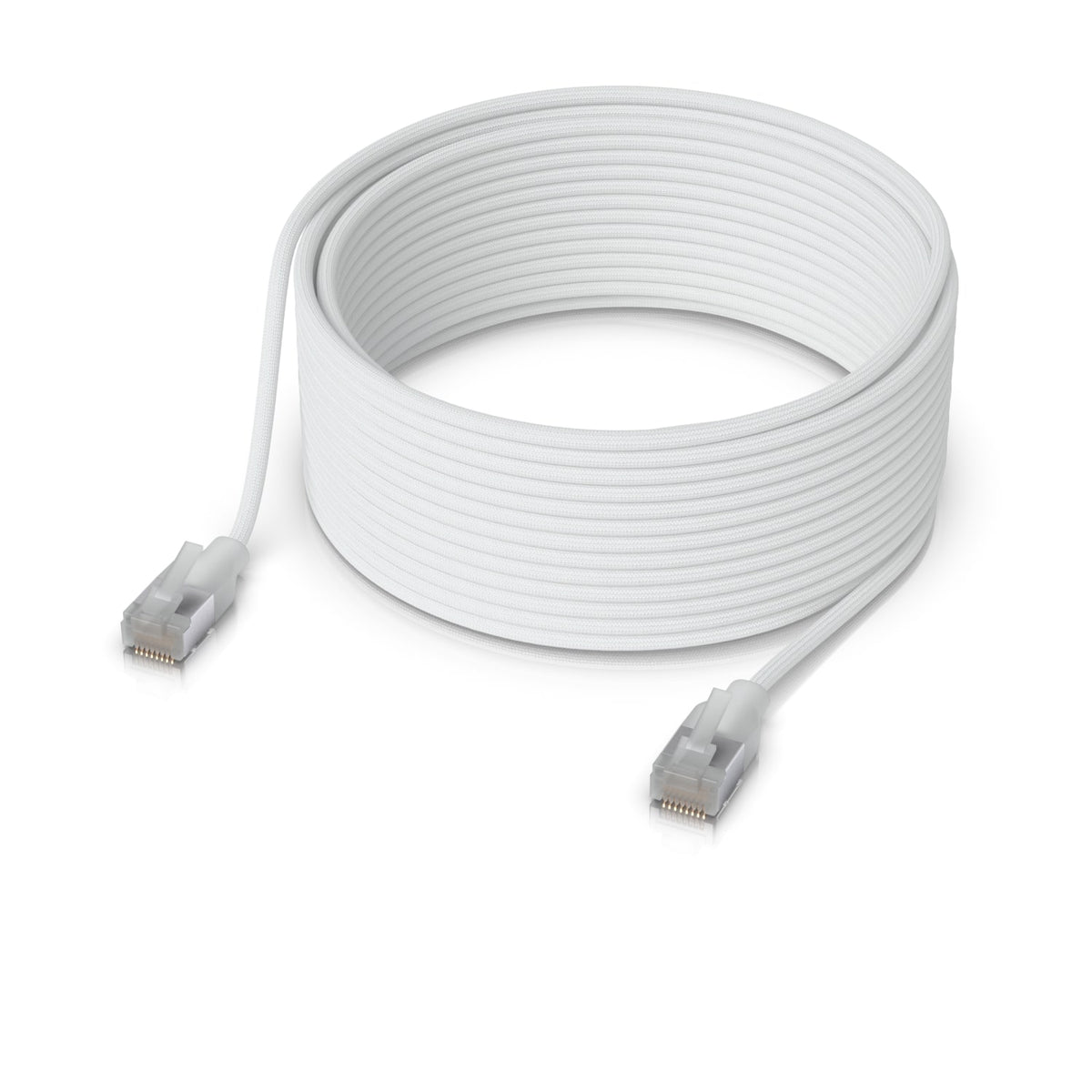

The Ubiquiti UniFi Premium Patch Cable is an ultra thin braided patch cable, designed and optimized for 10 GbE networking. The cable includes translucent booted and shielding RJ45 connectors for optimal Etherlighting brightness, with a slim 3 mm outer diameter. Built with a thermoplastic elastomer braided jacket and stranded copper conductors, this 3 m indoor cable supports data rates up to 10G and PoE types up to PoE+++.
Features
- Ultra thin braided patch cable designed and optimized for 10 GbE networking
- Translucent booted RJ45 for optimal Etherlighting brightness
- 3 mm outer diameter
- Length: 3 m
- Supports up to PoE+++
Specifications
- Available lengths end to end: 0.15, 0.3, 1, 2, 3, 5, 8, 12, 15 m (0.5, 1, 3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft)
- Available Colours: White
- Pack options: Single unit, 24 pack (0.15 m)
- Supported data rate: 10G
- Supported PoE type: Up to PoE+++

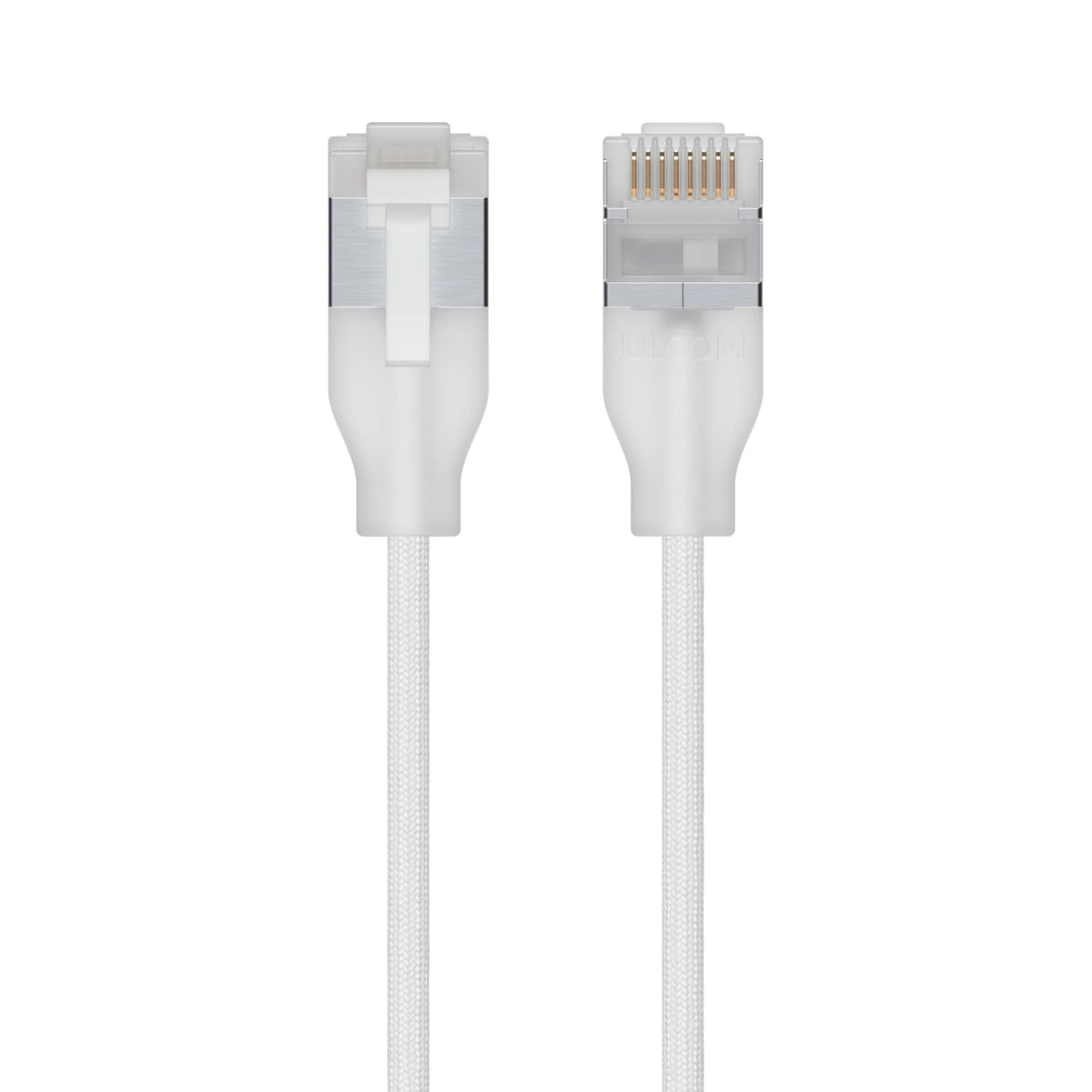

- Connector: 2 translucent booted and shielding RJ45
- Operating environment: Indoor
- Jacket diameter: 0.15 to 8 m: 3 mm (0.11 inches); 12 to 15 m: 3.3 mm (0.13 inches)
- Jacket material: Thermoplastic elastomer (TPE) and braided
- Shielding type: UTP
- Conductor type: Stranded copper
- Conductor wire gauge: 0.15 to 8 m (0.5 to 26 ft) 34 AWG; 12 to 15 m (39 to 49 ft) 32 AWG
- Bend radius: 0.15 to 8 m minimum 24 mm (0.94 inches); 12 to 15 m minimum 27 mm (1.06 inches)
- Flame rating: VW-1 (UL1581)
- Standards: TIA/EIA-568-B.2, ISO/IEC 11801
- Installation temperature: -20 to 60° C (-4 to 140° F)
- Ambient storage temperature: -20 to 75° C (-4 to 167° F)
- Ambient operating temperature: -20 to 60° C (-4 to 140° F)
Package Contents
- Ubiquiti UniFi Premium Patch Cable
