Description:

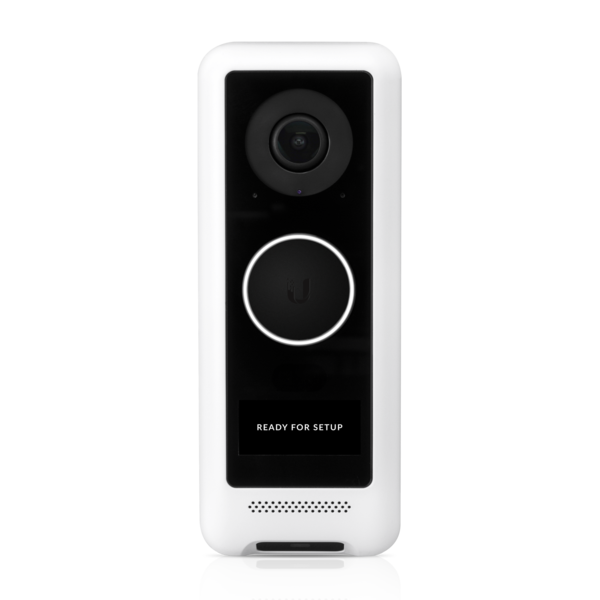

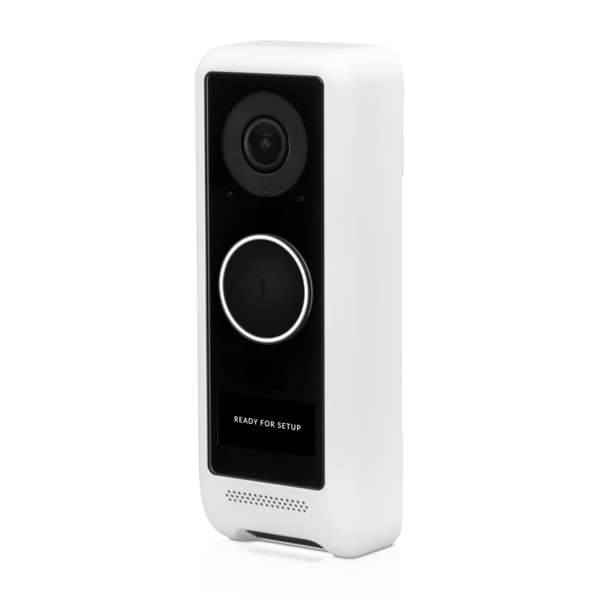

The Ubiquiti UniFi Protect G4 Doorbell is a WiFi video doorbell featuring a built in display and real time two way audio communication. Equipped with a high quality 5MP sensor and enhanced night vision, it streams images at up to 1600 x 1200 (2MP) HD resolution at 30 FPS. A built in PIR sensor delivers instant motion detection alerts, while integration with UniFi Protect provides a simple, easy to use interface.
Features:
- Integrated entrance lighting for instant visitor identification
- Real time two way audio with echo cancellation
- Built in display for welcome messages and access statuses
- Dual band 802.11ac WiFi
- PIR motion detection sensor with email and push notification alerts
- Weather resistant construction
- UniFi Protect integration
- Simple mounting using existing doorbell wiring
Specifications:
- Dimensions: 118.3 x 46.8 x 25.8 mm
- Weight Without Mount: 130 g (4.59 oz)
- Weight With Flat Wall Mount: 178 g (6.28 oz)
- Weight With 20 Degree Wedge Mount: 200 g (7.05 oz)
- Enclosure Material: Polycarbonate
- Mount Material Flat Wall Mount: Aluminium alloy
- Mount Material 20 Degree Wedge Mount: Polycarbonate
- Weatherproofing: IPX4
- Sensor: 5MP CMOS sensor
- Lens: Fixed focal length
- View Angle: Horizontal 138 degree, Vertical 114 degree, Diagonal 155 degree
- Night Mode: Built in IR LED illumination and IR cut filter
- Video Compression: H.264
- Video Resolution: 1600 x 1200 (4:3)
- Maximum Frame Rate: 30 FPS
- Processor: Quad core Arm Cortex A53 based chip
- Memory: 512 MB
- Management Interface: UniFi Protect
- Networking Interface: 802.11ac WiFi
- Flash Memory Support: 256 MB
- Max Power Consumption: 12VA
- Power Requirements: 16 to 24VAC, 20VA
- Link/Activity LED: Yes
- Button: Factory reset

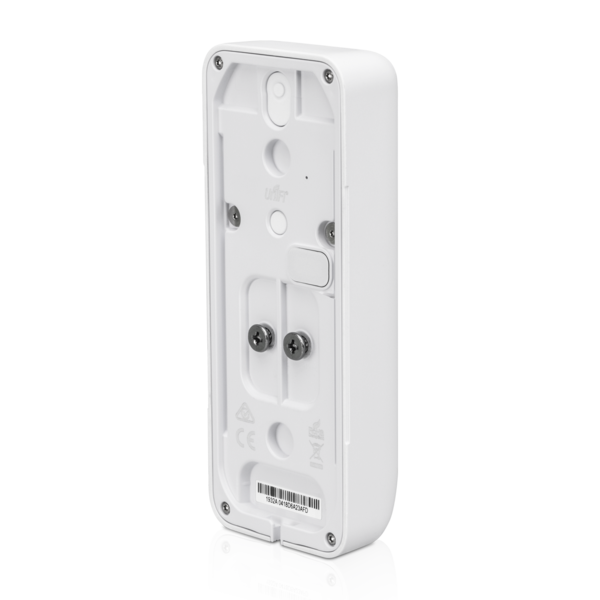

- Mounting: Flat wall or 20 degree wedge kits included
- Operating Temperature: -10 to 40 degree C
- Operating Humidity: 0 to 90 percent noncondensing
- Certifications: FCC, IC, CE
- Microphone: Yes, can be disabled in software
- Speaker: Yes
- Software: UniFi OS application, UniFi Protect, mobile app for iOS and Android
- Compatible Mechanical Chimes: Broan NuTone LA126WH, Broan NuTone LA11WH, Heath Zenith SL-2735, Craftmade CTPW-RG, Broan NuTone LA39WH, Newhouse Hardware CHM3D
- Compatible Digital Chimes: Broan NuTone LA600WH, IQ AMERICA DW-2850, IQ AMERICA DW-2840
Package Contents:
- 1 x Ubiquiti UniFi Protect G4 Doorbell
- 1 x Flat Wall Mount
- 1 x 20 Degree Wedge Mount
