Description:

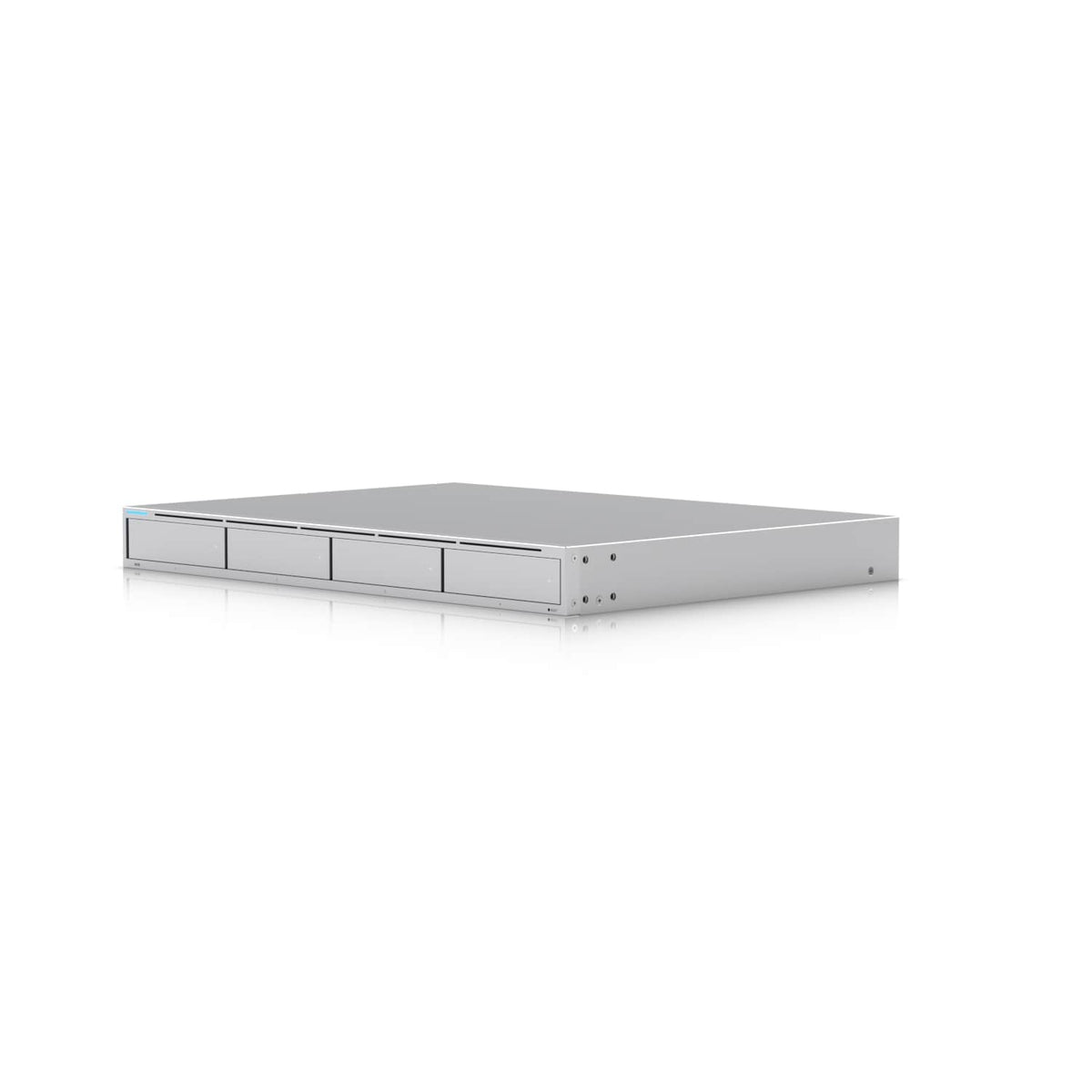

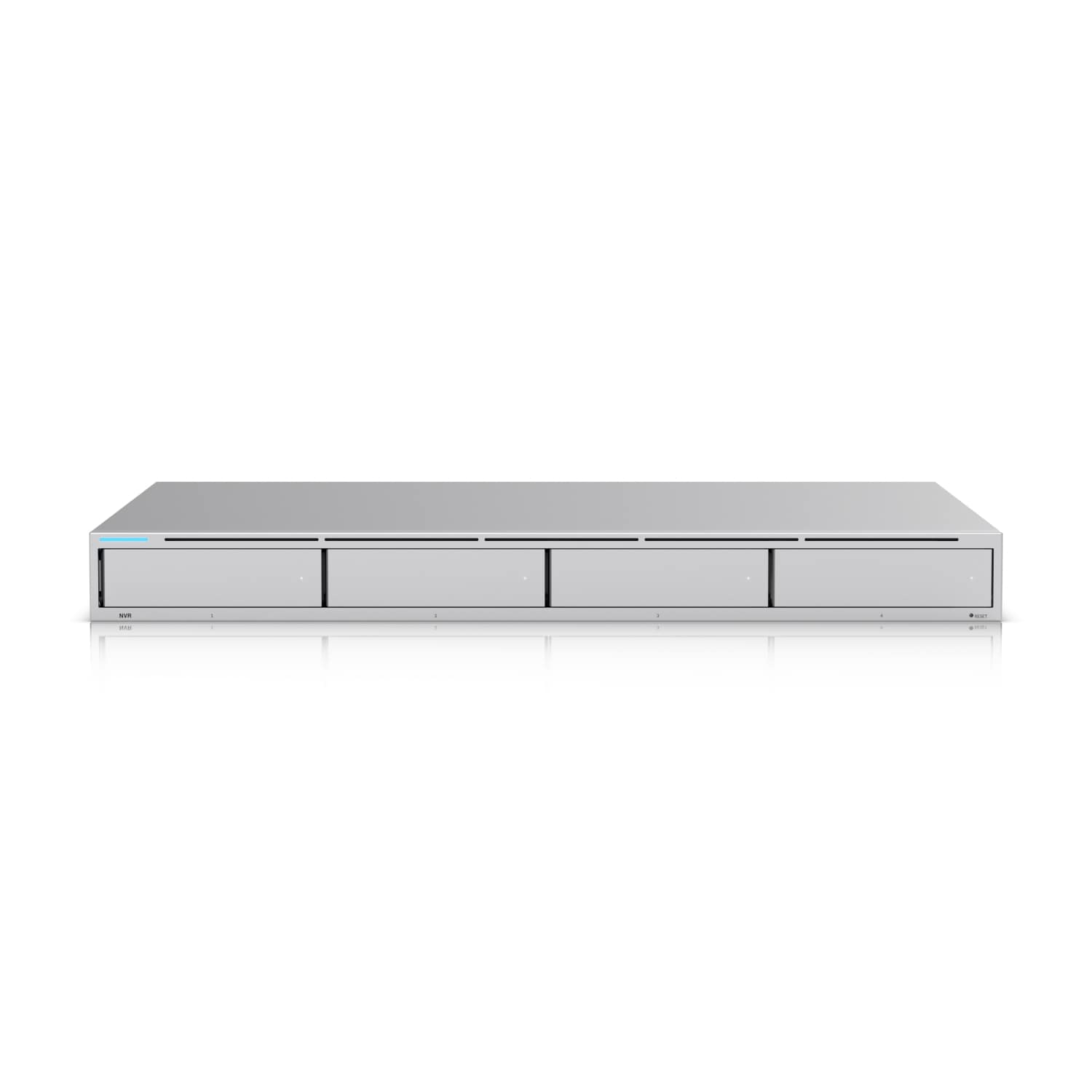

The Ubiquiti UniFi Protect Network Video Recorder is a business-grade NVR that provides data redundancy and long-term storage capabilities. It integrates an NVR, the UniFi Protect software, and a 4-drive bay in a single unit, unifying enterprise-class data protection and scalable storage with simple plug and play integration through the intuitive UniFi Protect software.
Features:
- (4) 2.5"/3.5" HDD bays
- (1) 10G SFP+ port
- (1) GbE RJ45 port
- 1U-sized, rack-mountable console with kit included
- Pre-installed UniFi Protect application
- Automated RAID 1 or RAID 5 HDD configuration
- Connect a SmartPower Redundant Power System to create an uninterruptible network
- Allows easy scaling of deployment by connecting additional UniFi devices
- Up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras
- Redundant power support
Specifications:
- Dimensions: 442.4 x 325 x 43.7 mm
- Weight Without Rackmount Brackets: 5.11 kg
- Weight With Rackmount Brackets: 5.20 kg
- Enclosure Material: SGCC steel
- Processor: Quad-Core ARM Cortex-A57 at 1.7 GHz
- System Memory: 4 GB
- On-Board Flash Storage: 8 GB
- Max Power Consumption: 100W
- Max Power Budget for Drives: 75W
- Power Method: (1) Universal AC input 100-240VAC, 2A max, 50/60 Hz; (1) USP-RPS DC input 11.5VDC, 10.43A
- Power Supply: AC/DC, internal, 120W
- Networking Interfaces: (1) 10/100/1000 Mbps RJ45 Ethernet, (1) 1/10 Gbps SFP+ Ethernet
- Management Interface: Ethernet in-band management
- ESD/EMP Protection: Air ±12kV, contact ±8kV
- Operating Temperature: -5 to 40°C
- Operating Humidity: 5-95% noncondensing
- Certifications: FCC, CE, IC
- LEDs: System power blue/white with bootup and firmware states; Ethernet green 1000 Mbps/amber 10-100 Mbps; SFP+ white 10 Gbps/green 1 Gbps; HDD amber disk error/white disk detected; RPS blue ready
