Description:

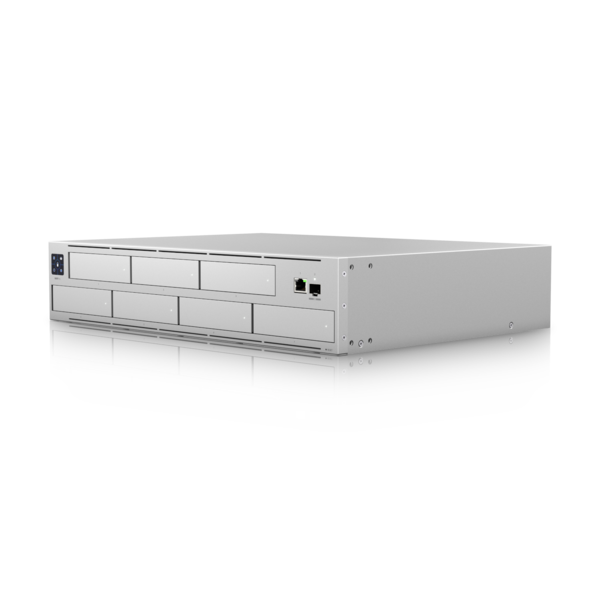

The Ubiquiti UniFi Protect Network Video Recorder Pro offers expanded RAID configuration options for enhanced data protection, applying RAID 1, 5, or 10 based on the number of HDDs installed. It is equipped with a 1.3" touchscreen display for concise, convenient video event previewing, and is designed to support the most demanding multi-camera systems.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- (7) 2.5"/3.5" HDD bays
- (1) 10G SFP+ port
- (1) GbE RJ45 port
- 2U-sized, rack-mountable console with kit included
- 1.3" touchscreen with video event previewing
- Pre-installed UniFi Protect application
- Simple, Bluetooth-powered setup via the UniFi Protect mobile app
- Automated RAID 1, 5, or 10 HDD configuration
- Connect a SmartPower Redundant Power System to create an uninterruptible network
- Fast fiber connectivity for high-speed connections to Protect cameras and UniFi devices
- Plug and play design for instant UniFi Protect operation
- Reliable backup power support
Specifications:

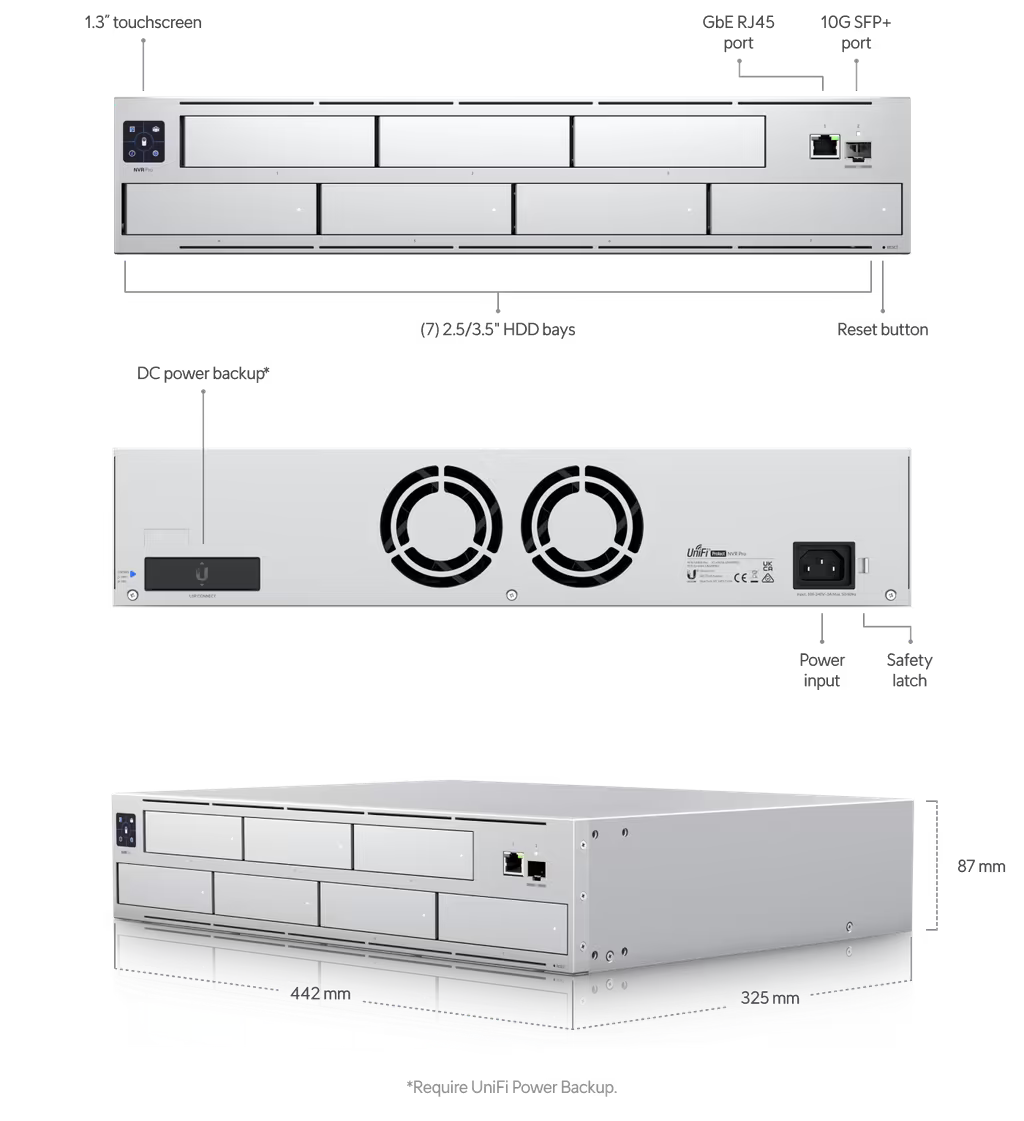

- Dimensions: 442 x 325 x 87 mm
- Weight Without Rackmount Brackets: 9.2 kg
- Weight With Rackmount Brackets: 9.45 kg
- Enclosure Material: SGCC steel
- Mount Materials: SGCC steel
- Max Power Consumption: 160W
- Max Power Budget for Drives: 135W
- Power Method: (1) Universal AC input 100-240VAC, 3A max, 50/60 Hz; (1) USP-RPS DC input 11.5VDC, 13.91A
- Power Supply: AC/DC, internal, 200W
- Networking Interfaces: (1) 10/100/1000 Mbps RJ45 Ethernet, (1) 1/10 Gbps SFP+ Ethernet
- RF Interface: (1) Bluetooth v4.1
- LCM Display: (1) 1.3" touchscreen with bootup animation, firmware upgrade icon, steady white for factory defaults awaiting adoption, and steady blue for adopted device
- Management Interface: Ethernet in-band management
- ESD/EMP Protection: Air ±12kV, contact ±8kV
- Operating Temperature: -5 to 40°C
- Operating Humidity: 5-95% noncondensing
- Certifications: FCC, CE, IC
- LEDs: Ethernet white 10/100/1000 Mbps; SFP+ white 1/10 Gbps; HDD amber disk error/white disk detected; RPS blue ready
