Description:

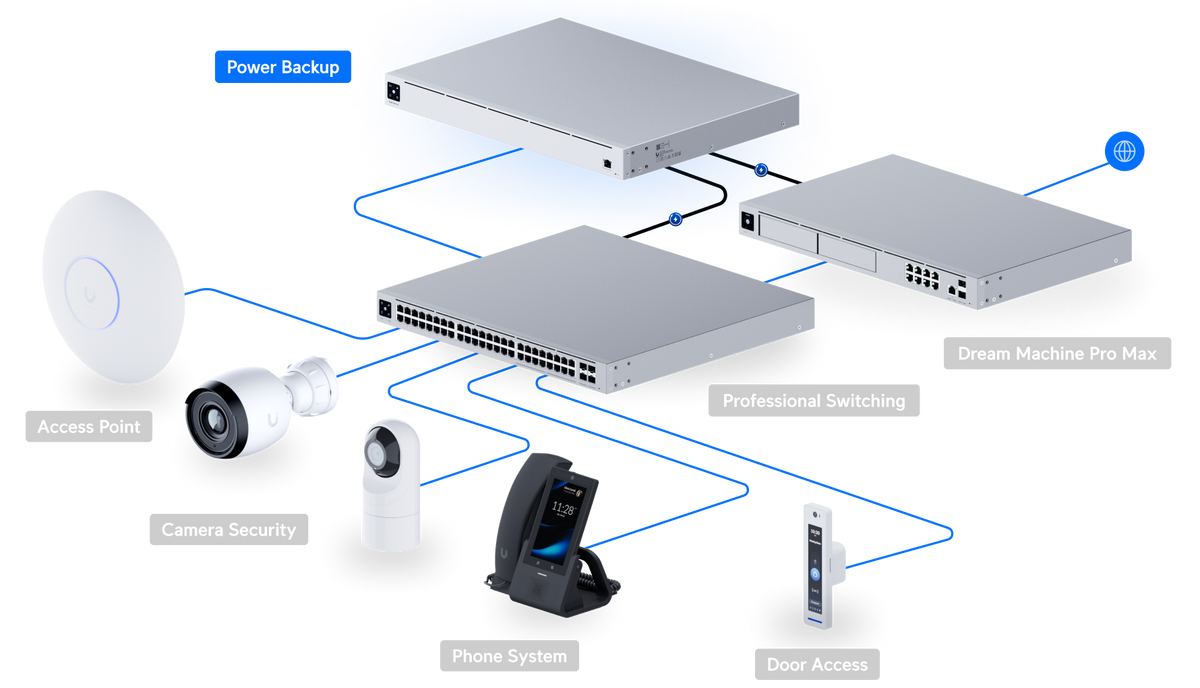

The UniFi Redundant Power System is a 950W backup power unit designed to provide full redundancy for rack mounted UniFi devices. It continually monitors all connected equipment, and in the event of an internal AC/DC power supply failure, failover happens automatically so the network continues operating without interruption.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:

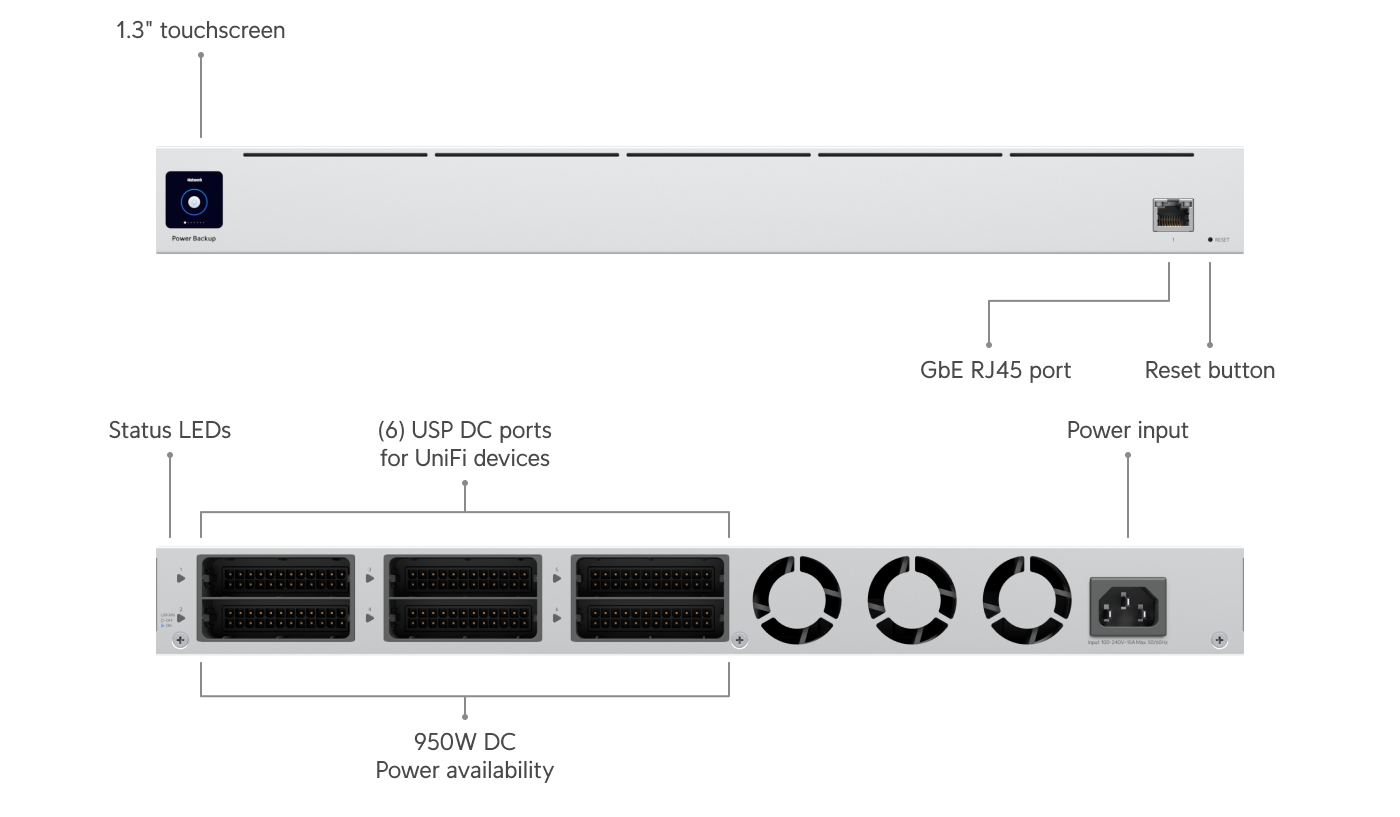

- Six USP DC output ports for connected devices
- Automatic failover in the event of internal power supply failure
- Continuous monitoring of all attached devices

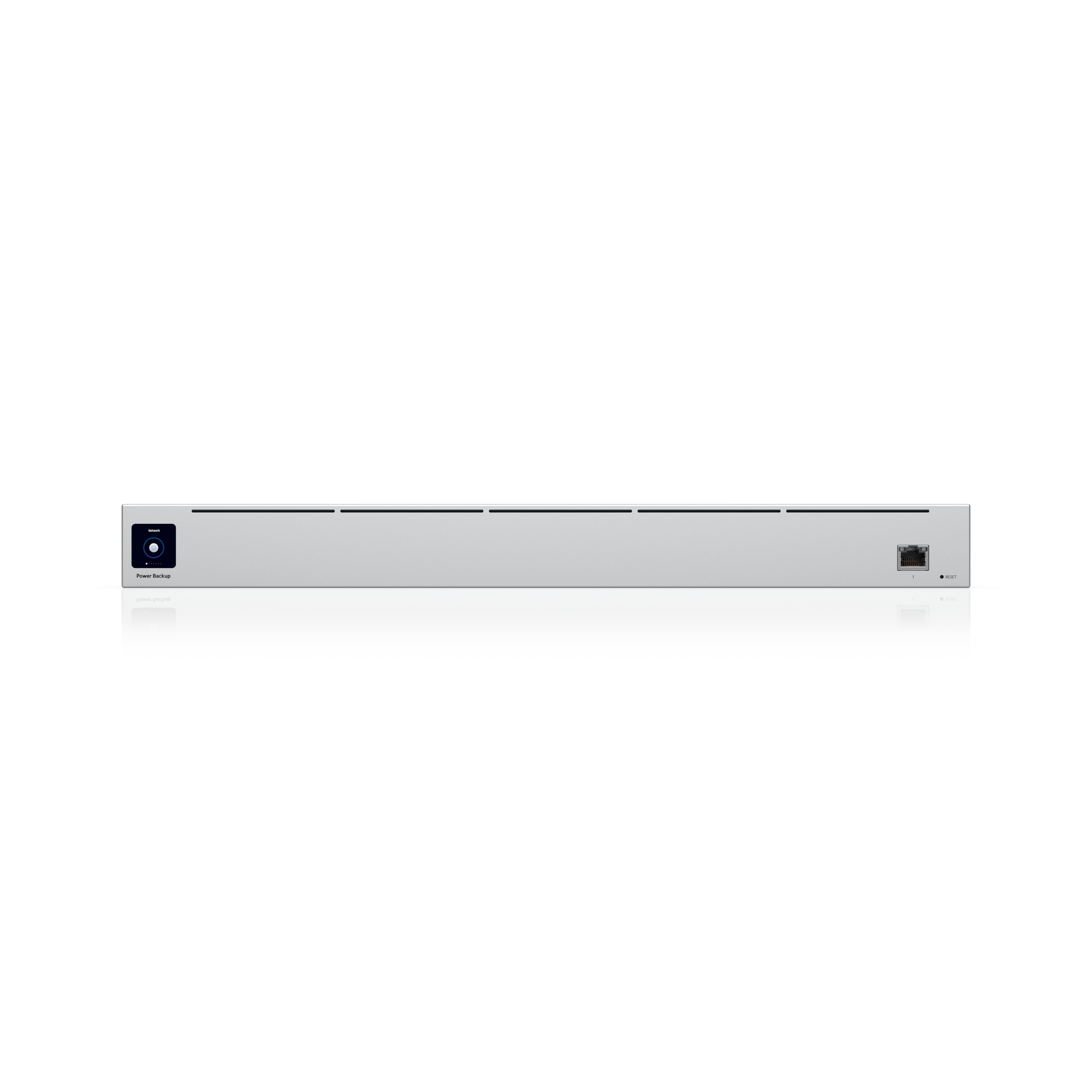

- Integrated 1.3 inch touchscreen display with system status information

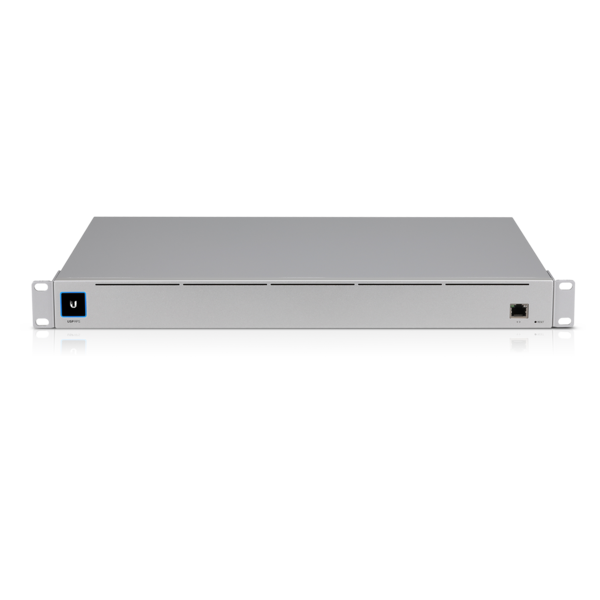

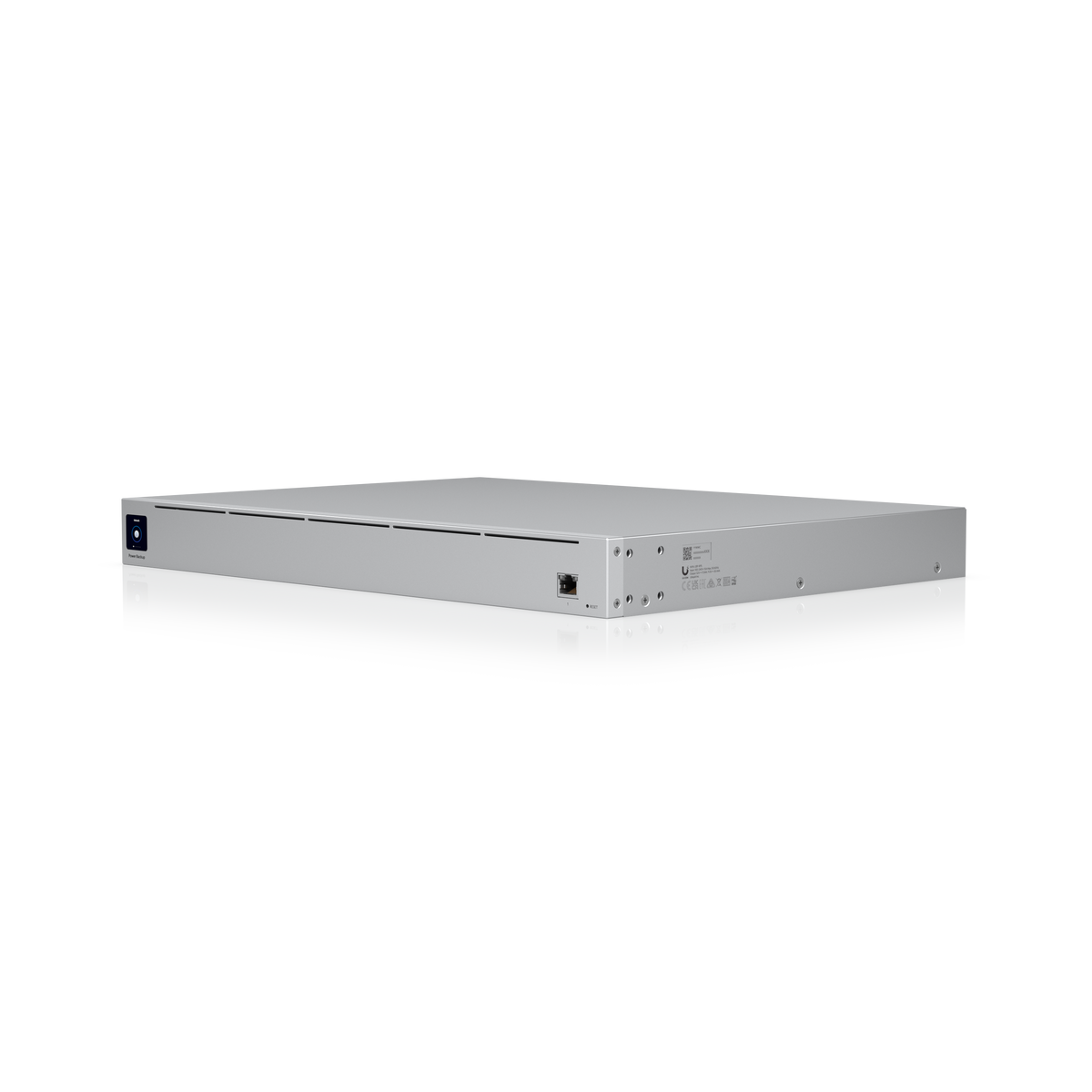

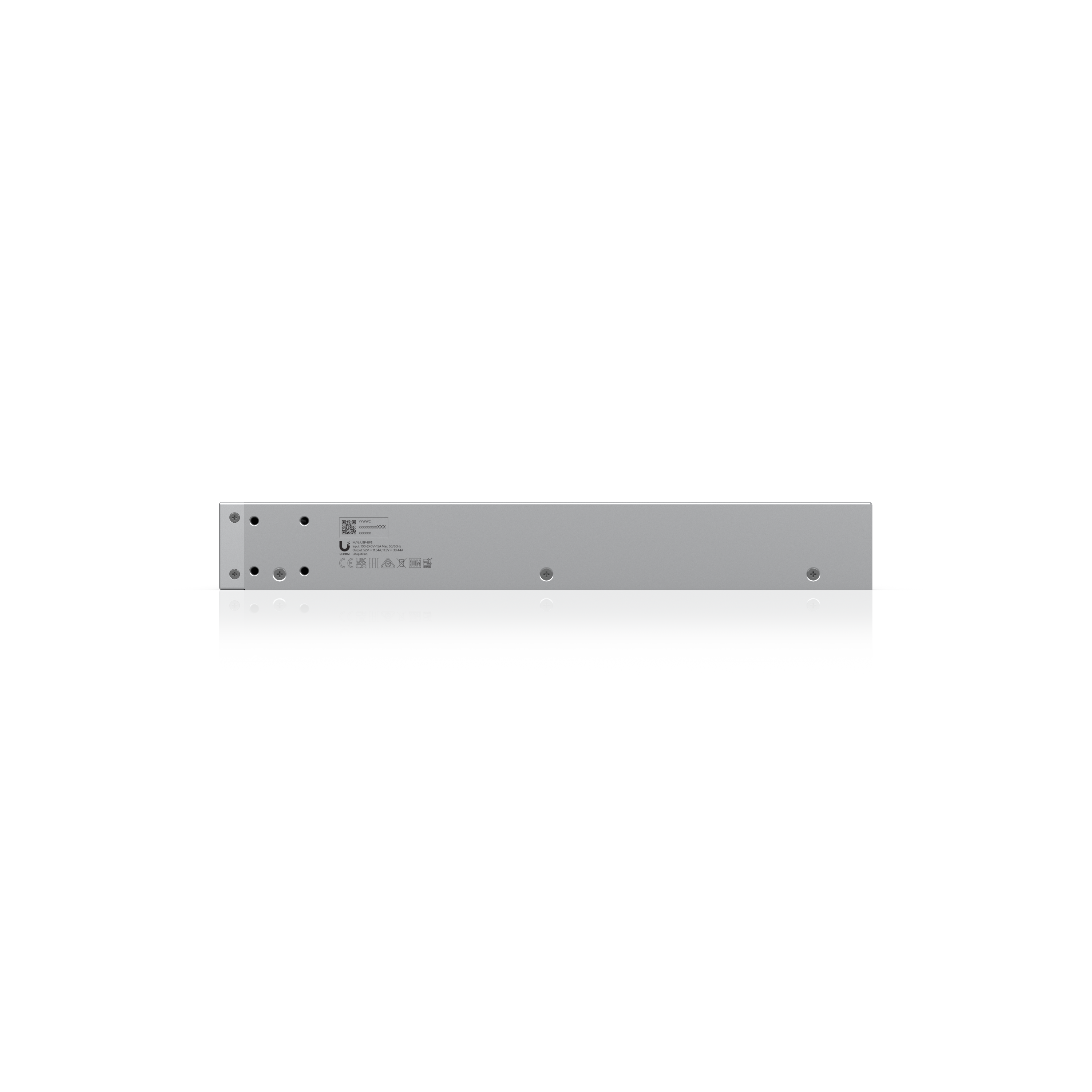

- 1U rack mountable with included mounting kit
- One Ethernet port for network management
- Managed through UniFi Network Controller version 5.12.11 or later
Specifications:

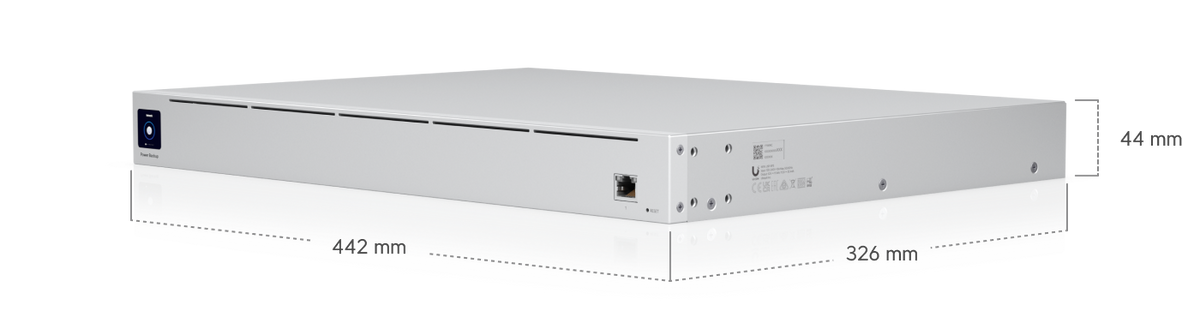

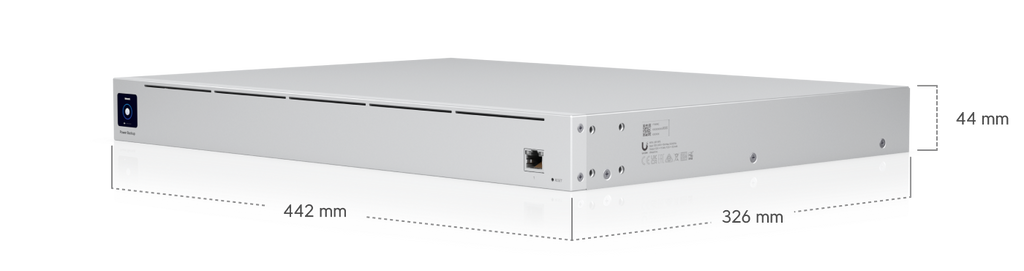

- Dimensions: 442.4 x 325.6 x 43.7 mm (17.4 x 12.8 x 1.7 inches)
- Weight Without Mount Brackets: 5.5 kg (12.1 lb)
- Weight With Mount Brackets: 5.6 kg (12.3 lb)
- Enclosure Material: SGCC steel
- Management Interface: Ethernet
- Networking Interface: One GbE RJ45 port
- Power Method: One universal AC input, 100 to 240V AC
- Power Supply: 54V DC output, internal AC/DC, 645W; 12V DC output, internal AC/DC, 350W
- Supported Voltage Range: 100 to 240V AC
- Maximum Power Consumption: 995W

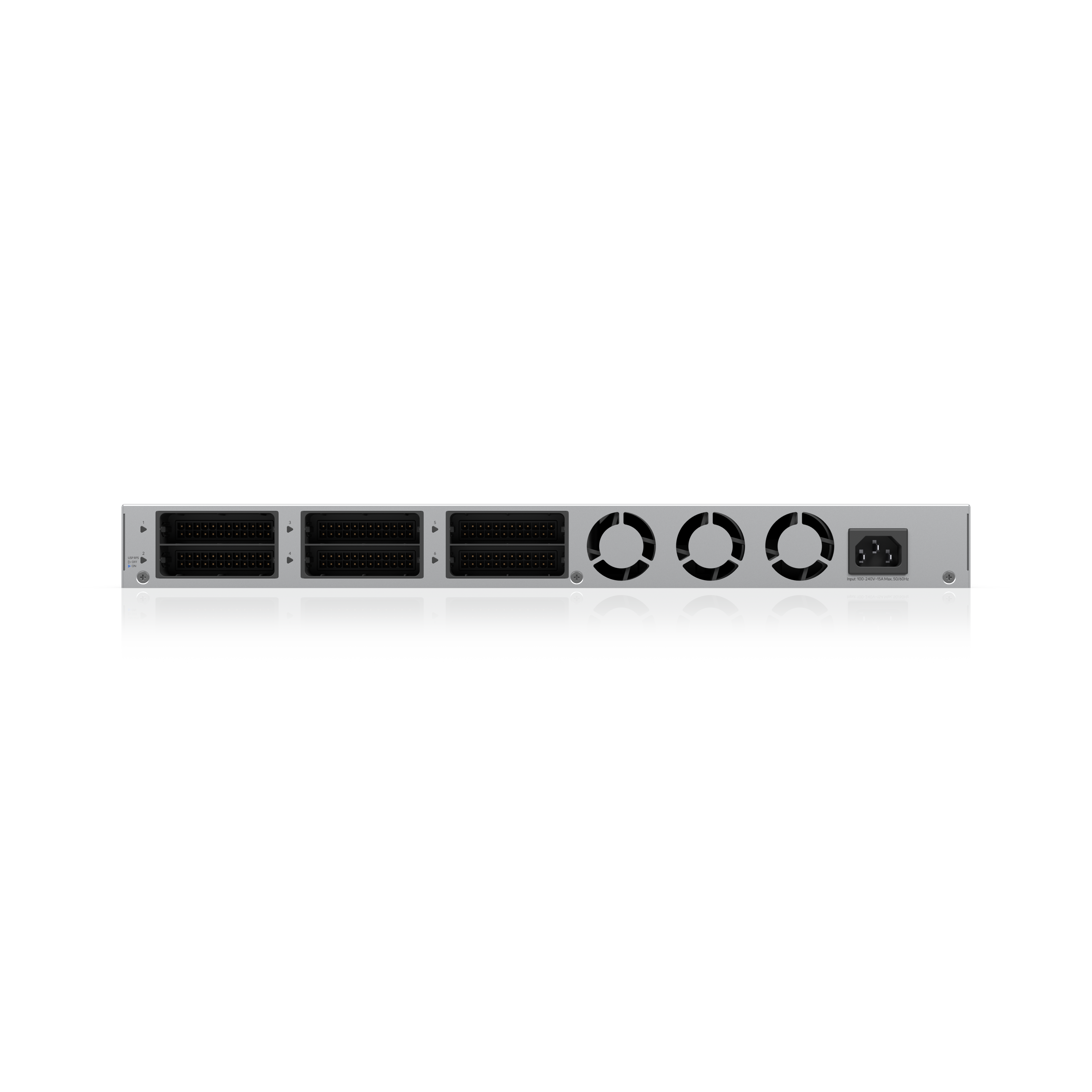

- Power Output: Six RPS DC ports
- Maximum Power Output: 52V DC at 11.54A (600W), 11.5V DC at 30.44A (350W)
- Maximum Output Power per RPS Port: 52V DC at 11.54A (600W), 11.5V DC at 30.44A (350W)
- ESD/EMP Protection: Air plus or minus 16kV, Contact plus or minus 12kV
- Display: 1.3 inch touchscreen
- Buttons: One factory reset button
- LEDs: System, Status, USP RPS, Activity
- Operating Temperature Range: Minus 5 to 45 degrees Celsius (23 to 113 degrees Fahrenheit)
- Operating Humidity Range: 10 to 90 percent, noncondensing
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC
