Description:

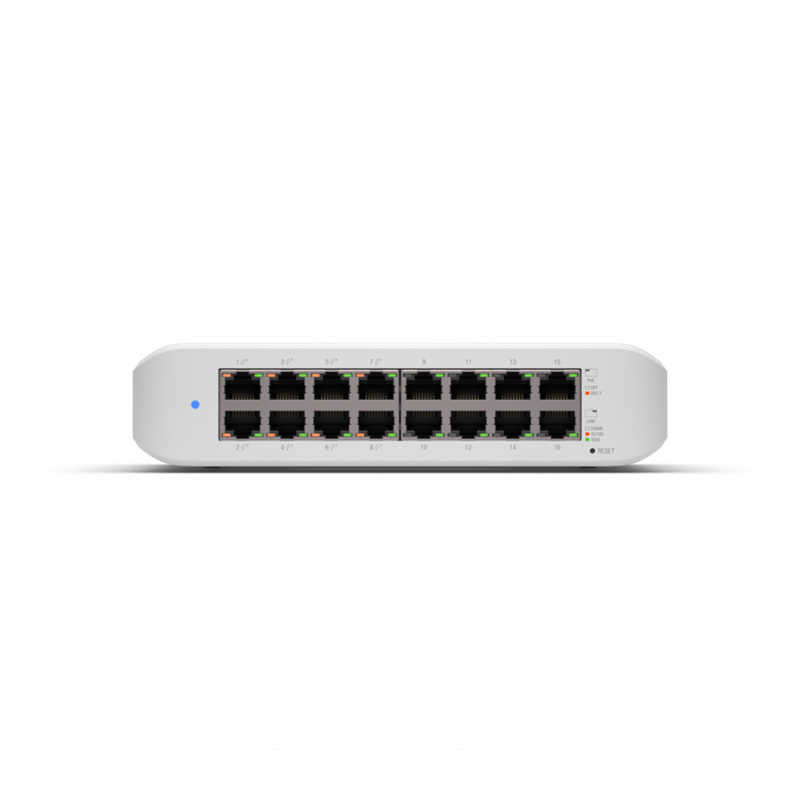

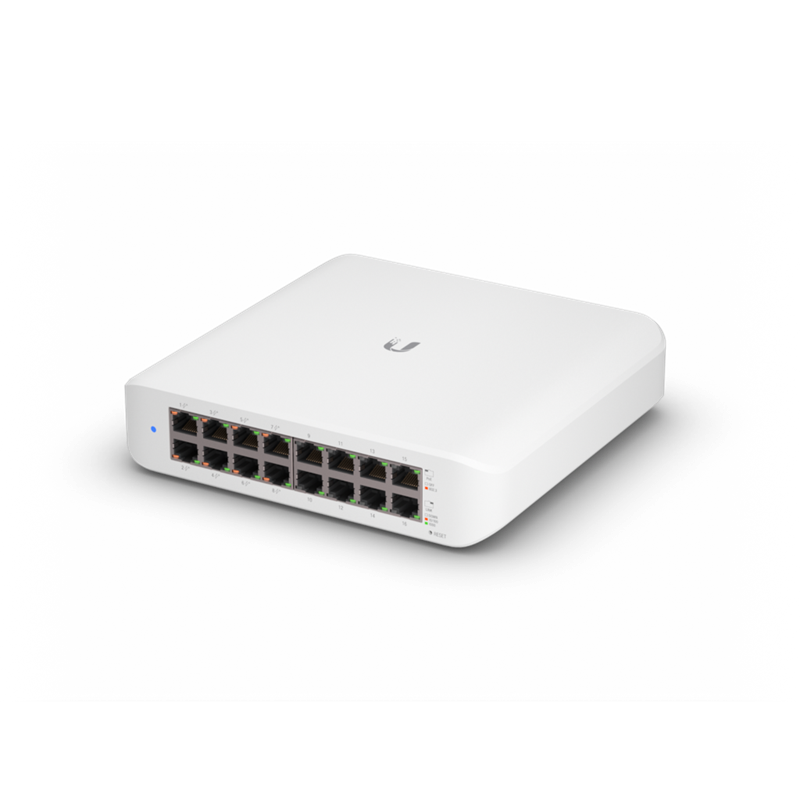

The Switch Lite 16 PoE is a fully managed, wall mountable, 16 port, Layer 2 PoE switch built with a fanless cooling system for quiet operation. It features 8 GbE PoE+ ports along with 8 additional GbE ports, delivering a 45W total PoE supply for powering UniFi access points and other PoE enabled devices. This makes it easy to integrate devices such as access points and IP cameras into a network without additional wiring. The switch supports an extensive suite of Layer 2 switching protocols and can be monitored or configured remotely through the UniFi Network web application and mobile app. Its compact, wall mountable design allows for flexible installation across a range of settings.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- 8 GbE PoE+ ports and 8 additional GbE ports for versatile connectivity
- 45W total PoE availability for connected devices
- Fully managed switch with extensive Layer 2 switching protocols
- Fanless cooling system for silent operation

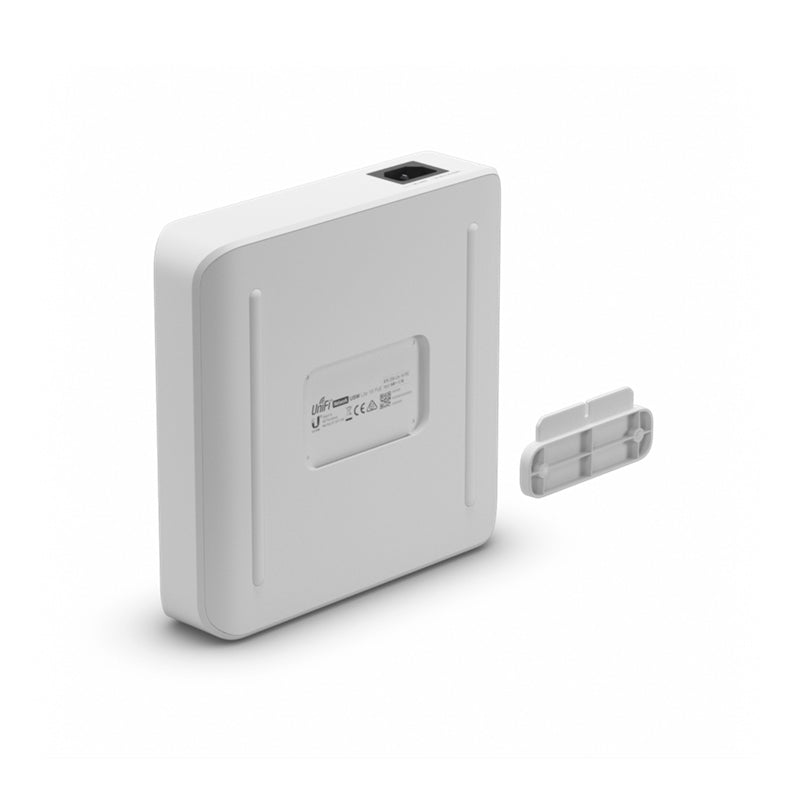

- Wall mountable design for flexible installation
- Managed through the UniFi Network web application and mobile app
- IGMP snooping, STP and RSTP with port level disable
- LACP port aggregation and storm control support
- DHCP snooping and guarding for added protection
- Port mirroring, port isolation, and jumbo frame support
Specifications:
- Dimensions: 192 x 185 x 44 mm (7.6 x 7.3 x 1.7 inches)
- Weight: 1.2 kg (2.6 lb)
- Enclosure Material: Polycarbonate
- Management Interface: Ethernet in band
- Networking Interface: 16 GbE RJ45 ports
- PoE Interface: 8 PoE/PoE+ ports, pins 1, 2 positive and 3, 6 negative
- Total Non Blocking Throughput: 16 Gbps
- Switching Capacity: 32 Gbps
- Forwarding Rate: 23.808 Mpps

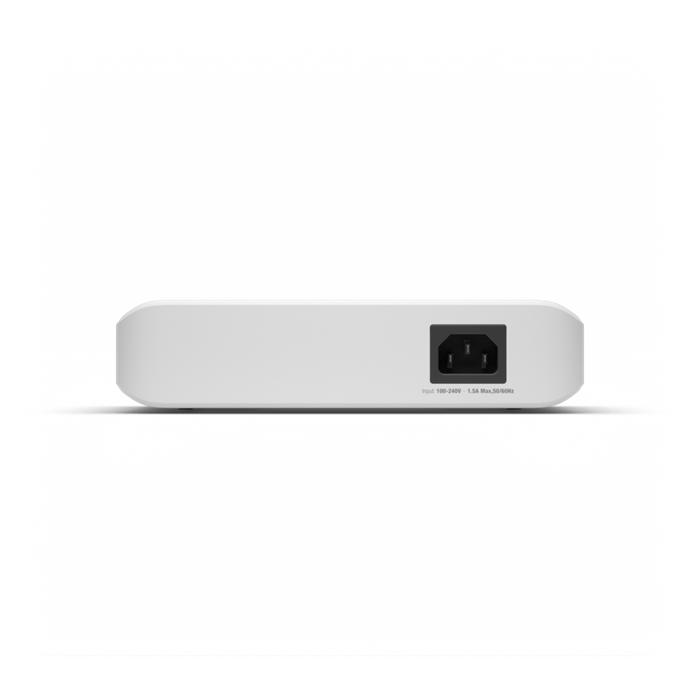

- Power Method: Universal input, 100 to 240V AC
- Power Supply: AC/DC, internal, 60W
- Maximum Power Consumption: 15W, excluding PoE output
- Total Available PoE: 45W
- Maximum PoE Wattage per Port: PoE+ 30W
- Button: Factory reset
- Operating Temperature Range: Minus 15 to 40 degrees Celsius (5 to 104 degrees Fahrenheit)
- Operating Humidity Range: 10 to 90 percent, noncondensing
- Certifications: CE, FCC, IC
- Layer 2 Features: IGMP snooping, STP/RSTP with priorities and port level disable, port isolation, storm control, voice VLAN, port mirroring, LACP port aggregation, multicast/broadcast rate limiting, MAC address blocking, flow control, 802.1X control, jumbo frames, proprietary loop protection, DHCP snooping/guarding, egress rate limit, LLDP-MED, port restricted by MAC, device isolation with ACLs
- Layer 3 Features: Not supported
- LEDs: System status, Ethernet speed/link/activity, PoE link/activity
- Application Requirement: UniFi Network Version 7.2.94 and later
