Description:

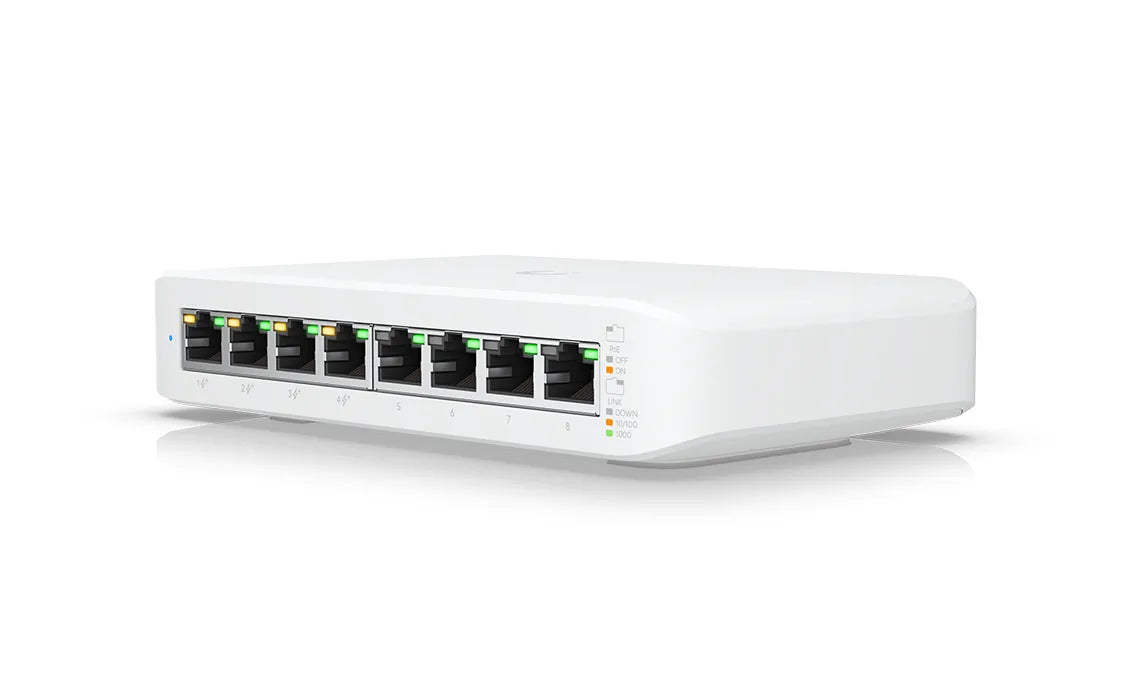

The Ubiquiti UniFi Switch Lite 8 PoE is an 8-port Layer 2 PoE switch that operates with silent fanless cooling, making it suitable for quiet environments. It features 8 GbE RJ45 ports, 1 Gbps downlink and uplink speeds, and provides a total PoE availability of 52W. Equipped with GbE PoE+ ports, the switch allows seamless integration of PoE-enabled devices such as UniFi access points and IP cameras, simplifying network setup.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- 8-port Layer 2 PoE switch with fanless cooling
- (8) GbE RJ45 ports
- 1 Gbps downlink speed
- 1 Gbps uplink speed
- 52W total PoE availability
- AC power method

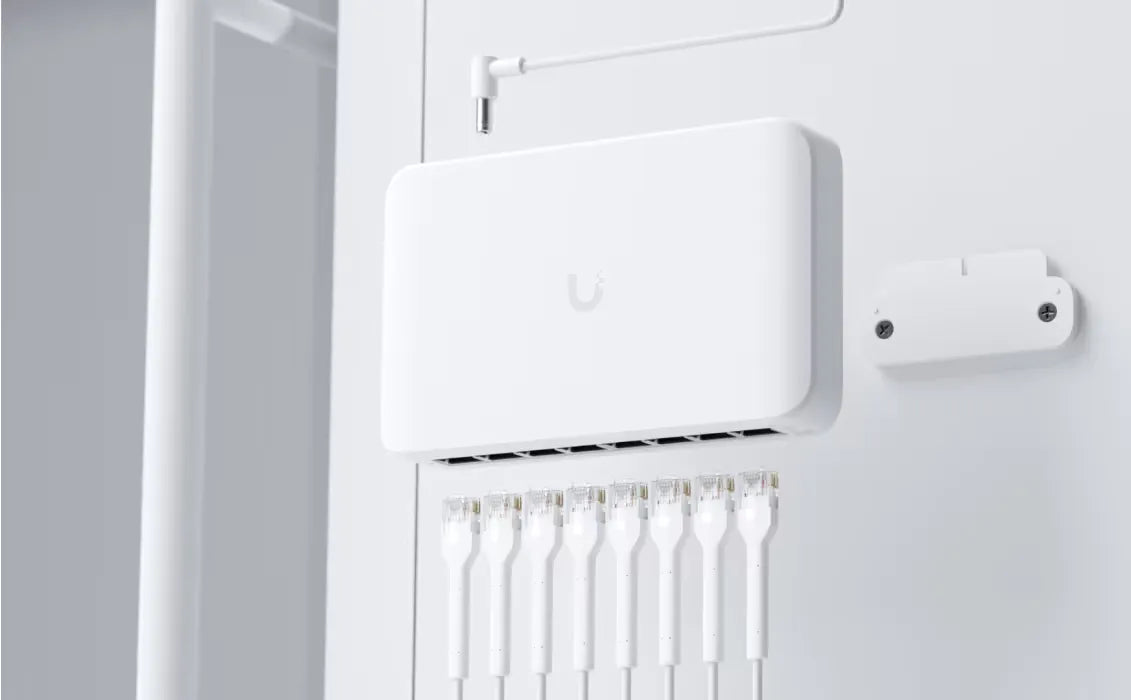

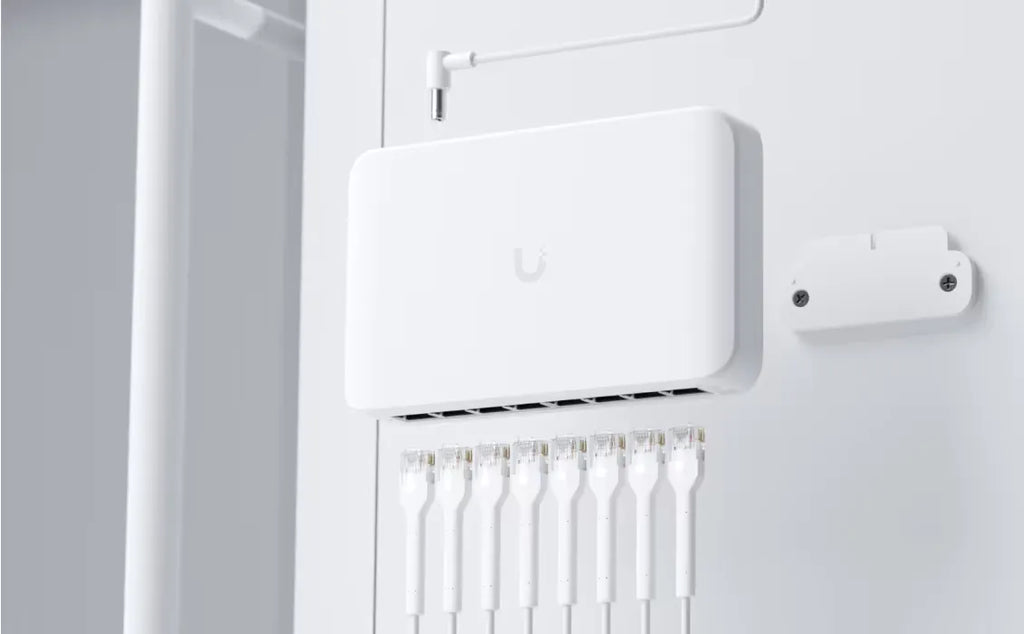

- Compact, wall-mountable design
- LACP port aggregation
- STP and RSTP support
- Advanced IGMP configuration with querier, fast leave, and router port
- IGMP snooping
- 802.1X control
- MAC-based ACLs and device isolation
- DHCP snooping and guarding
- Egress rate limit
- Flow control
- Storm control
- Multicast and broadcast rate limiting
- MAC address blocking
- IP-based ACLs and network isolation
- MAC-based port restriction
- Port isolation
- Port mirroring
- Jumbo frames
- LLDP-MED
- Voice VLAN
- Loop protection
- Virtual network override
Specifications:
- Dimensions: 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")
- Port Layout: 8x 1 GbE RJ45 (4 PoE+), 1G/100M/10M
- Max PoE Output: Up to PoE+
- Total PoE Availability: 52W
- Form Factor: Compact desktop, wall
- Switching Capacity: 16 Gbps
- Total Non-Blocking Throughput: 8 Gbps
- Forwarding Rate: 12 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 8,000
- Packet Buffer Size: 0.5 MB
- Access Lists: IPv4 128, MAC 128
- PoE Ports: PoE+ 4
- Max PoE Wattage per Port by PSE: PoE+ 30W
- Max Power Consumption: 8W excluding PoE output, 60W including PoE output
- Power Method: AC/DC adapter (included)
- Power Input Method: DC input
- Power Supply: AC/DC, external, 60W
- Supported Voltage Range: 50-57V DC
- Management: Ethernet
- Heat Dissipation: 27.3 BTU/hr excluding PoE output
- Weight: 295 g (10.4 oz)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Ambient Operating Temperature: -15 to 40°C (5 to 104°F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel 04479-21-08356
- Application Requirements: UniFi Network version 7.2.94 and later
Package Contents:
- UniFi Switch Lite 8 PoE
- External 60W power adapter
- Wall mount kit
