Description:

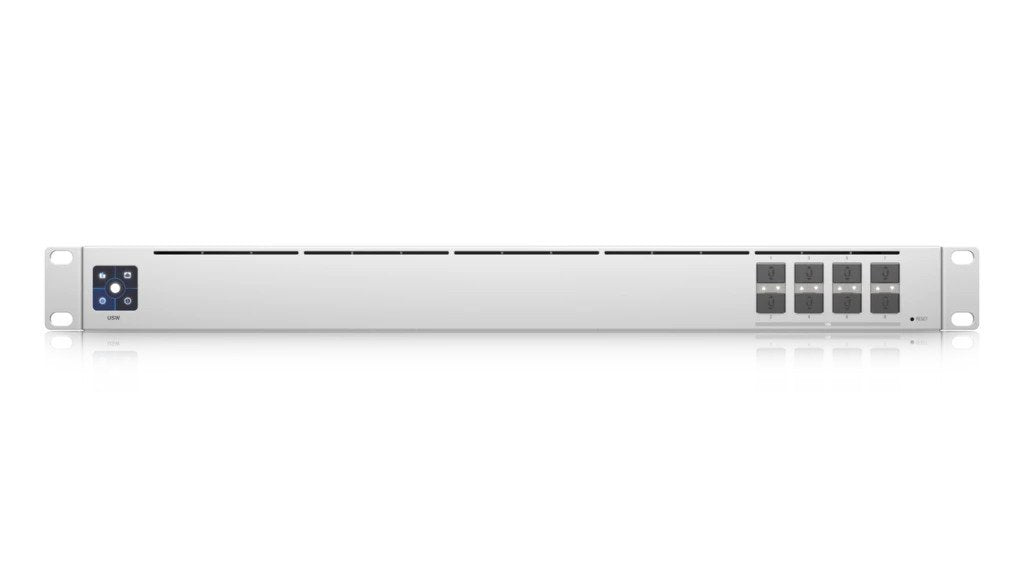

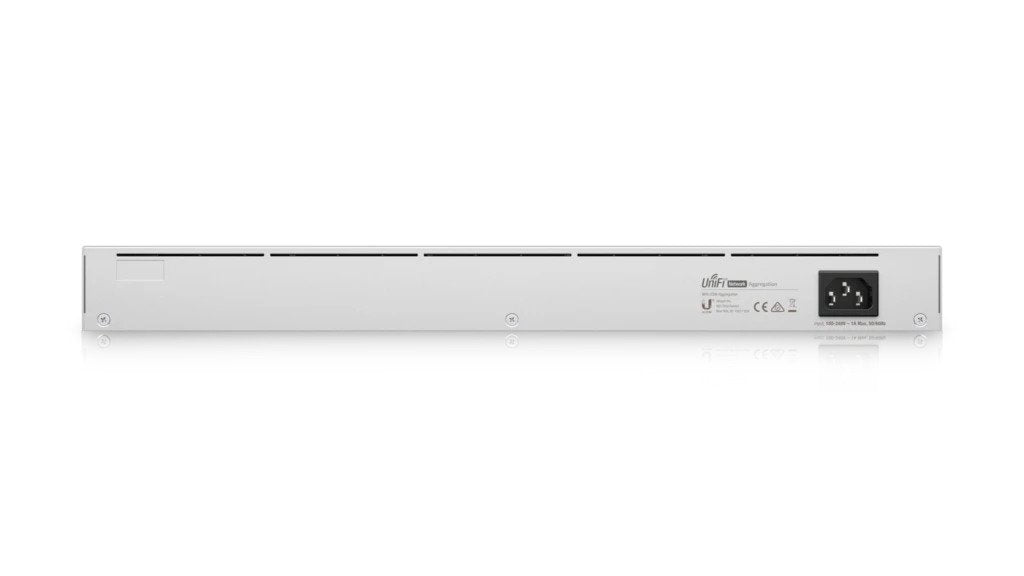

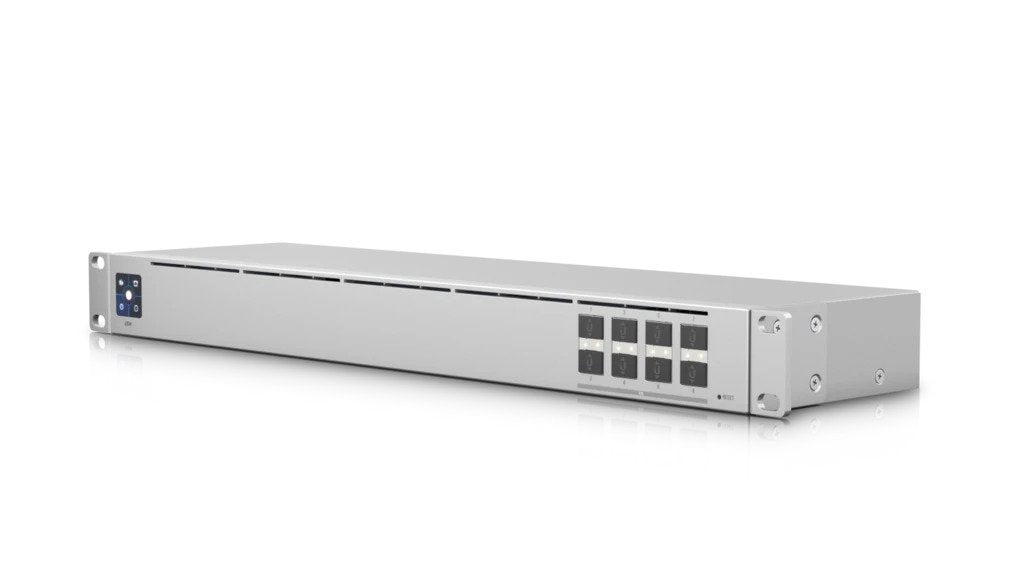

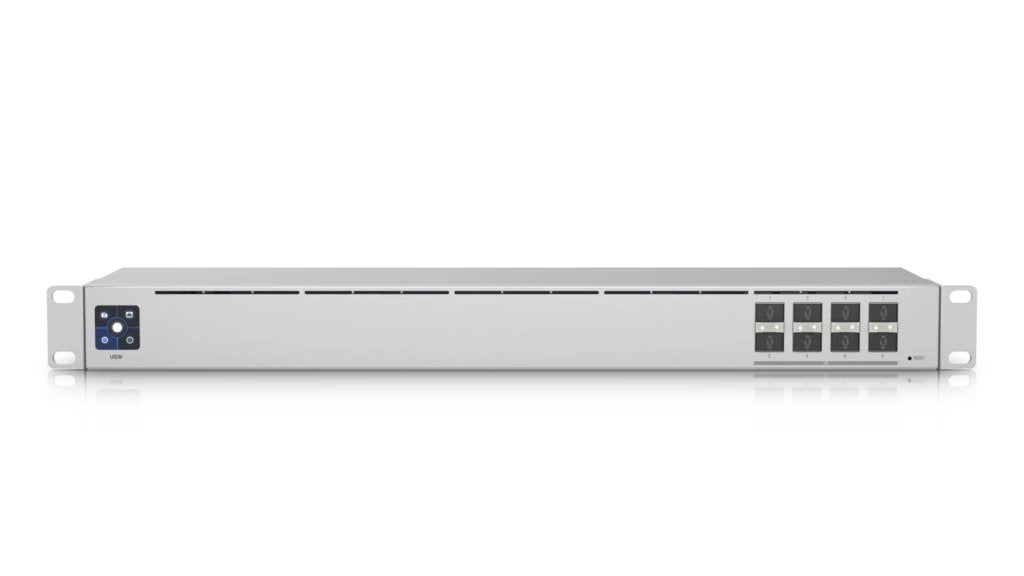

The USW Aggregation is a fully managed, Layer 2 switch featuring 8 10G SFP+ ports designed to boost network switching capacity and performance through high bandwidth aggregation links. It offers 160 Gbps switching capacity, making it well suited for demanding network environments.
Features:
- Fanless, near silent cooling design
- Compact 4.7 inch depth suited for SOHO rack cabinets
- Centralized management through the UniFi Network web application
- Real time device insights and deep configuration options
- Remote firmware upgrade capability
- Simplified network user and guest management
- Customizable guest hotspot design, architecture, and privacy settings
- Mobile app support for on the go management
Specifications:
- Dimensions: 442.4 x 120 x 43.7 mm
- Weight Without Mount: 2.65 kg
- Weight With Mount: 2.74 kg
- Enclosure Material: SGCC steel
- Total Non Blocking Throughput: 80 Gbps
- Switching Capacity: 160 Gbps
- Forwarding Rate: 119.04 Mpps
- Maximum Power Consumption: 30W
- Power Method: Universal AC input, 100 to 240V AC, 50/60 Hz
- Power Supply: AC/DC, internal, 36W
- Management Interface: Ethernet in band
- Modes: SMB Layer 2 Gigabit Ethernet Switch
- Maximum Supported SFP+ Modules: UACC-OM-MM-10G 8 modules, UACC-OM-SM-10G 8 modules, UACC-CM-RJ45-10G 4 modules
- ESD/EMP Protection: Air plus or minus 16kV, Contact plus or minus 12kV
- Operating Temperature Range: Minus 5 to 40 degrees Celsius
- Operating Humidity Range: 10 to 90 percent, noncondensing
- Certifications: CE, FCC, IC
- System LEDs: Bootup animation for bootup in progress, firmware upgrade icon for firmware upgrading, steady white for factory defaults and awaiting adoption, steady blue for device adopted
- SFP+ LEDs: White indicating 10G or 1G connection
