Description:

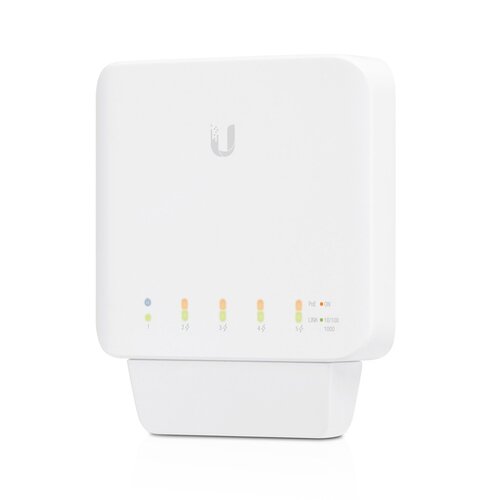

The USW Flex is a flexible 5 port, Layer 2 PoE switch designed for both indoor and outdoor use, capable of being powered through PoE++. It offers up to 46W of total PoE availability when powered by a 60W 802.3bt PoE++ source, with four auto sensing PoE ports that make it easy to power multiple UniFi devices directly from the switch.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Up to 46W of total PoE availability when powered by PoE++
- Auto sensing PoE ports for easy multi device power delivery
- Centralized management through the UniFi Controller
- Weatherproof housing suited for indoor and outdoor use

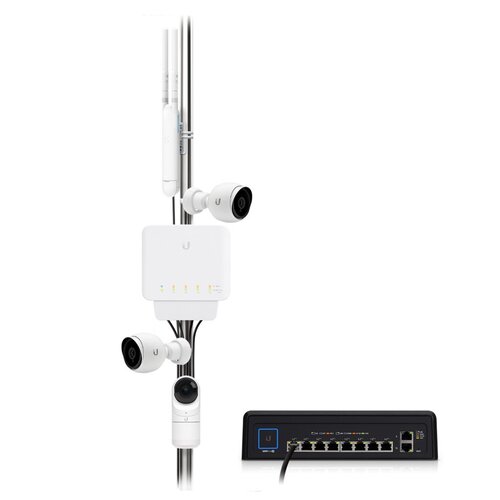

- Versatile mounting with desktop, wall, and pole mount options
- Supports horizontal or vertical installation
- Outdoor ready design for harsh conditions
Specifications:
- Dimensions: 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1 inches)

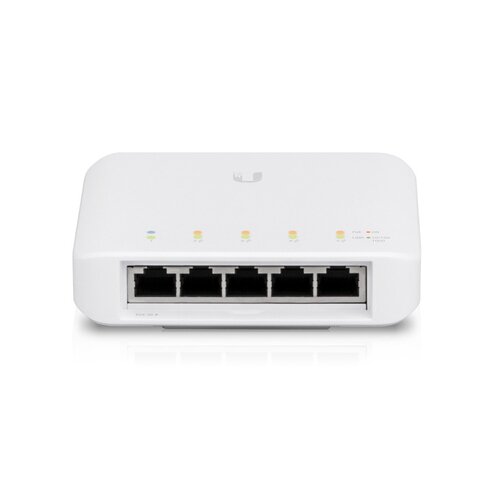

- Port Layout: 5 GbE RJ45 ports, 4 PoE+ and 1 PoE++, at 1G/100M/10M
- Maximum PoE Output: Up to PoE+
- Total PoE Availability: 46W
- Form Factor: Compact desktop, wall, pole
- Switching Capacity: 10 Gbps
- Total Non Blocking Throughput: 5 Gbps
- Forwarding Rate: 7 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 2,000
- Layer 2 Features: Egress rate limit, flow control, port isolation, port mirroring, jumbo frames
- PoE Ports: 4 PoE+ ports, 1 PoE++ port
- Maximum PoE Wattage per Port: PoE+ 25W
- Maximum Power Consumption: 5W excluding PoE output, 51W including PoE output
- Power Method: PoE++
- Power Input Method: PoE
- Supported Voltage Range: 50 to 57V PoE
- Management: Ethernet
- Heat Dissipation Excluding PoE Output: 17.06 BTU/hr
- Outdoor Ready: Yes
- Weight: 230 g (8.1 oz)
- ESD/EMP Protection: Air/contact plus or minus 16kV
- Operating Temperature Range at 46W PoE Output: Minus 40 to 55 degrees Celsius (Minus 40 to 131 degrees Fahrenheit)
- Operating Temperature Range at 25W PoE Output: Minus 40 to 65 degrees Celsius (Minus 40 to 149 degrees Fahrenheit)
- Operating Humidity Range: 5 to 95 percent, noncondensing
- Certifications: CE, FCC, IC
- NDAA Compliance: Yes
