Description

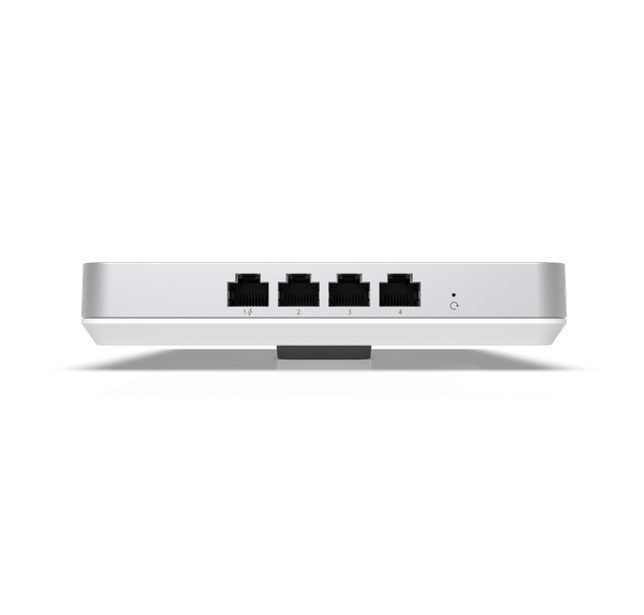

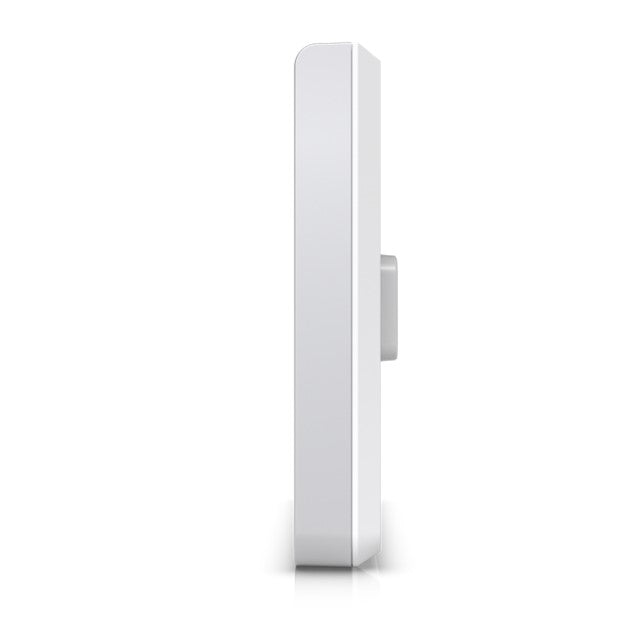

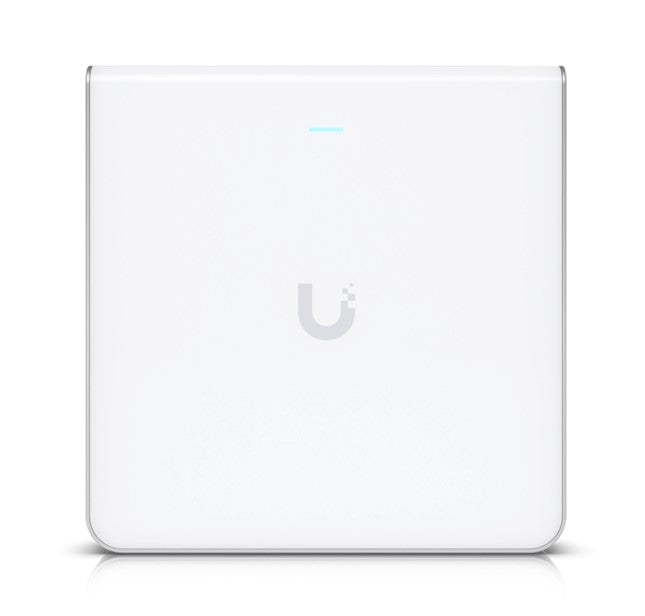

The Ubiquiti U6 Enterprise In-Wall is a sleek, wall mounted WiFi 6E access point with an integrated four port switch designed for high density office networks. Delivering WiFi 6E performance with 4x4 MIMO on the 5 GHz band, it achieves data rates of up to 4.8 Gbps while covering an area of 115 m² (1,250 ft²) and supporting hundreds of connected devices. The integrated switch provides four GbE ports with one PoE output, and the access point itself is powered using PoE+/PoE++, with PoE+ required for PoE output. A wall mount is included for clean, convenient installation.
Features
- 115 m² (1,250 ft²) coverage
- 600+ connected devices
- WiFi 6E (4x4 MIMO)
- Powered using PoE+/PoE++
- 4 GbE ports with 1 PoE output
- 2.5GbE uplink
- Sleek wall mounted design for high density office networks
Specifications
- Dimensions: 139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3 inches)
- WiFi standard: WiFi 6
- Spatial streams: 6
- Coverage area: 115 m² (1,250 ft²)
- Maximum client count: 250+
- Uplink: GbE

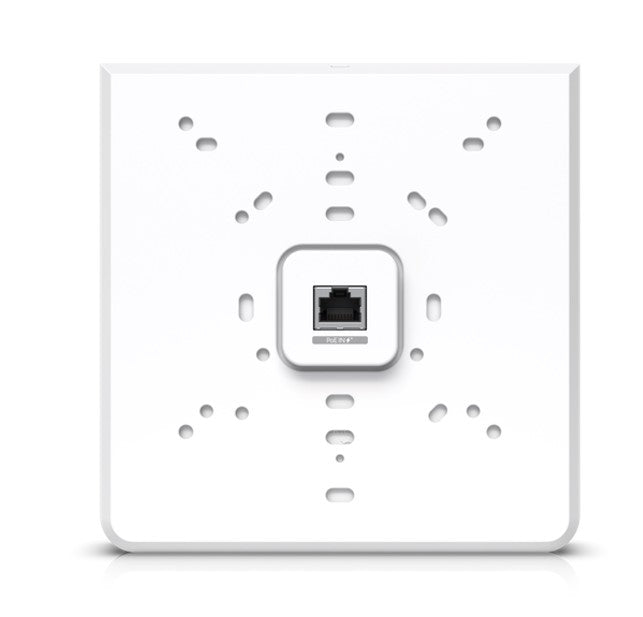

- Mounting: Wall (mount included)
- Power method: PoE, PoE+ (required for PoE output)
- MIMO: 5 GHz 4 x 4 (DL/UL MU-MIMO), 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
- Maximum data rate: 5 GHz 4.8 Gbps (BW160), 2.4 GHz 573.5 Mbps (BW40)
- Antenna gain: 5 GHz 5.9 dBi, 2.4 GHz 5 dBi
- Maximum TX power: 5 GHz 26 dBm, 2.4 GHz 22 dBm
- Maximum BSSIDs: 8 per radio
- Supported data rates: 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps, 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps, 802.11n 6.5 Mbps to 600 Mbps
- Features: Wireless meshing, band steering, 802.11v BSS transition management, 802.11r fast roaming, 802.11k radio resource management, advanced radio management, Passpoint (Hotspot 2.0), captive hotspot portal with custom branding landing page, voucher authentication, payment based authentication, external portal server support, password authentication, guest network isolation, private pre shared key (PPSK), WiFi speed limiting, client device isolation, WiFi schedules, RADIUS over TLS (RadSec), dynamic RADIUS assigned VLAN
- Maximum power consumption: 13W (excluding PoE output)
- Networking interface: 1 data-in GbE RJ45 port, 4 data-out GbE RJ45 ports
- Weight: 460 g (1 lb)
- Management: Ethernet, Bluetooth
- Built-in switch: 4 GbE ports with 1 PoE output
- Enclosure material: Plastic, aluminum
- Mount material: Aluminum
- LEDs: System white/blue
- Channel bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
- Operating frequency US/CA: 2400 to 2472 MHz, U-NII-1 5150 to 5250 MHz, U-NII-2A 5250 to 5350 MHz, U-NII-2C 5470 to 5725 MHz, U-NII-3 5725 to 5850 MHz
- Operating frequency worldwide: 2400 to 2483.5 MHz, 5150 to 5850 MHz
- Ambient operating temperature: -30 to 60° C (-22 to 140° F)
- Ambient operating humidity: 5 to 95% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, SRRC, Anatel: 11546-22-08356
- Application requirements: UniFi Network version 6.0.45 and later
Note: For installation assistance, you can contact us or reach out directly to the brand.
Package Contents
- Ubiquiti U6 Enterprise In-Wall Access Point
- Wall mount
