Description

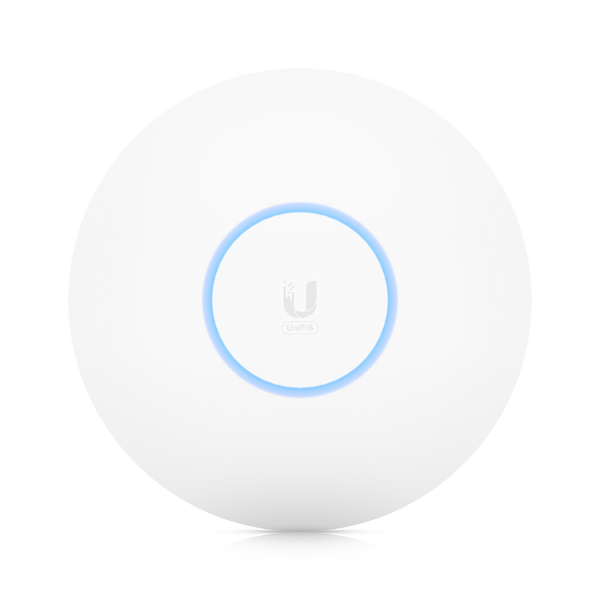

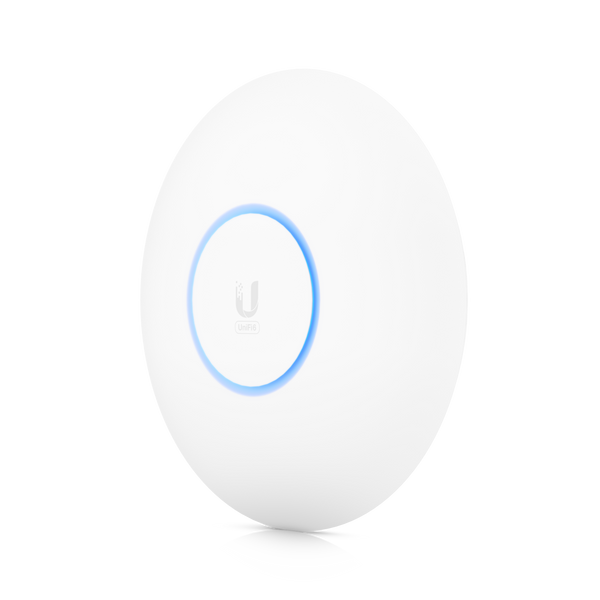

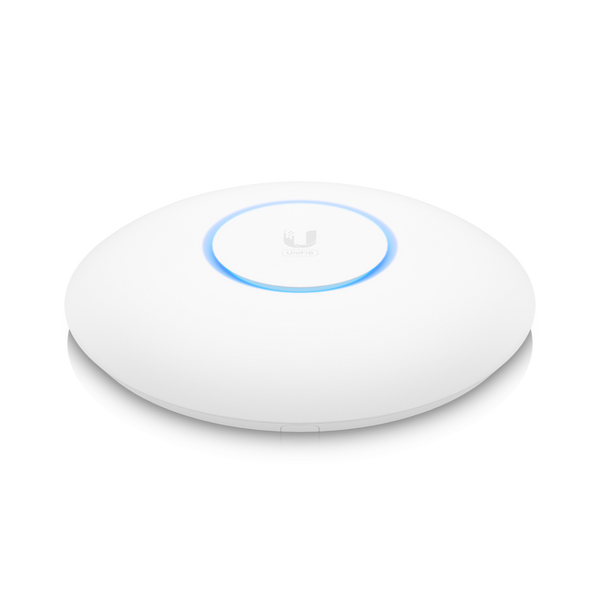

The Ubiquiti Access Point WiFi 6 Pro (U6 Pro) is a high performance, dual band WiFi 6 access point ideal for home and office use, capable of supporting over 300 clients with its 5.3 Gbps aggregate throughput rate. It reaches this performance with its 5 GHz (4x4 MU-MIMO and OFDMA) band delivering a 4.8 Gbps throughput rate and its 2.4 GHz (2x2 MU-MIMO and OFDMA) band delivering 573.5 Mbps, while operating at full 4x4 MIMO with 160 MHz bandwidth. The U6 Pro simplifies the process of bringing WiFi 6 to enterprise networks that support a large number of clients, and can be set up in minutes and fully managed with the UniFi Network web application or mobile app. Guest Traffic Isolation enhances wireless network security and lowers traffic congestion. UAPs can be locally or remotely managed with the UniFi Network application running on a UniFi OS Console, or set up as independent devices, though doing so limits configuration and remote access options. A universal mounting plate, backing plate, and screw kit are included. Please note that due to chip supply shortages, the U6 AP's LED has been limited to only white and blue colour modes, and no PoE injector is included.
Features
- Dual band WiFi 6 (802.11ax)
- 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
- Operates at full 4x4 MIMO with 160 MHz bandwidth
- 300+ concurrent client capacity
- Guest Traffic Isolation for enhanced wireless network security and lower traffic congestion
- Included universal mounting plate, backing plate, and screw kit
- No PoE injector included
Specifications
- Dimensions: Ø197 x 35 mm
- Weight: Without mount 460 g, with mount 600 g
- Enclosure material: Plastic
- Mount material: SGCC steel
- Weatherproofing: IP54
- Management interface: Ethernet, Bluetooth

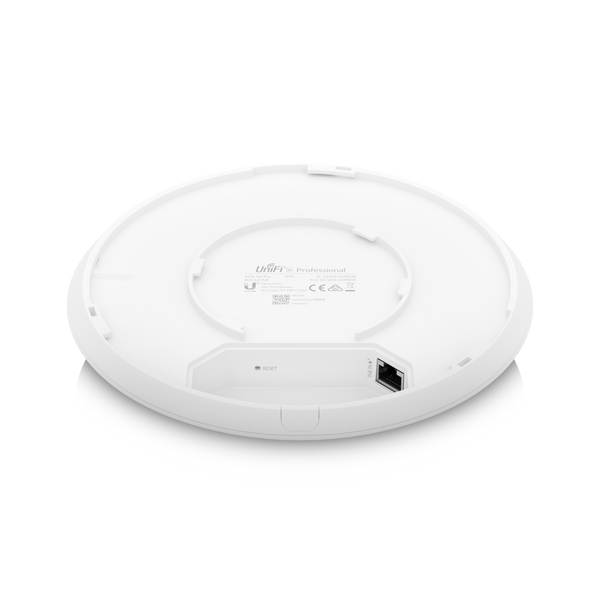

- Networking interface: 1 GbE RJ45 port
- Button: Factory reset
- LED: White/blue (due to chip supply shortages, the U6 AP's LED has been limited to only white and blue colour modes)
- Power method: PoE
- Supported voltage range: 44 to 57V DC
- Maximum power consumption: 13W
- Maximum TX power: 2.4 GHz 22 dBm, 5 GHz 26 dBm
- MIMO: 2.4 GHz 2 x 2 (UL MU-MIMO), 5 GHz 4 x 4 (DL/UL MU-MIMO)
- Throughput rate: 2.4 GHz 573.5 Mbps, 5 GHz 4.8 Gbps
- Antenna gain: 2.4 GHz 4 dBi, 5 GHz 6 dBi
- Mounting: Wall/ceiling (included)
- Operating temperature: -30 to 60° C
- Operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
- WiFi standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 300+
- Zero wait DFS: Yes (supported with upcoming firmware versions)
- Supported data rates: 802.11a 6 to 54 Mbps, 802.11b 1 to 11 Mbps, 802.11g 6 to 54 Mbps, 802.11n (WiFi 4) 6.5 Mbps to 600 Mbps, 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps, 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps
Note: For installation assistance, you can contact us or reach out directly to the brand.
Package Contents
- Ubiquiti U6 Pro Access Point
- Universal mounting plate
- Backing plate
- Screw kit
