Description:

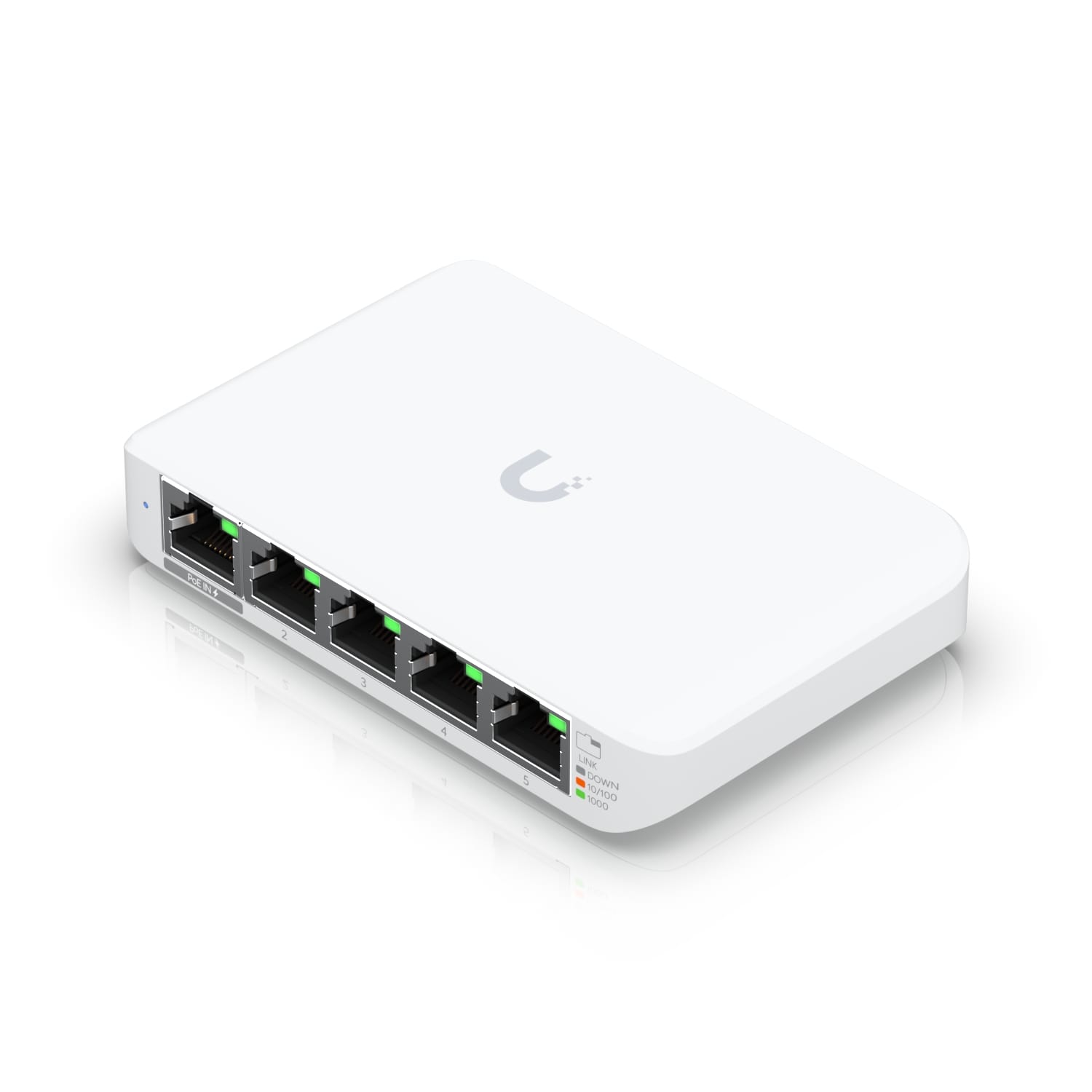

The Switch Flex Mini is a fully managed, Layer 2 switch featuring 5 GbE RJ45 ports, including one 802.3af PoE input. It can be powered either through PoE via Port 1 or its included USB-C power adapter, offering flexible power options that simplify integration into existing network setups without requiring additional infrastructure.
Features:
- Fully managed Layer 2 switching
- Dual power options through PoE or included USB-C adapter
- Compact desktop form factor for space constrained environments
- Centralized management through the UniFi Network application
- Remote monitoring and configuration via web and mobile app
- Egress rate limit, flow control, and storm control support
- Port isolation, port mirroring, and jumbo frame support
Specifications:
- Dimensions: 107 x 70 x 21 mm (4.2 x 2.8 x 0.8 inches)
- Port Layout: 5 GbE RJ45 ports at 1G/100M/10M
- Form Factor: Compact desktop
- Switching Capacity: 10 Gbps
- Total Non Blocking Throughput: 5 Gbps
- Forwarding Rate: 7 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 2,000
- Layer 2 Features: Egress rate limit, flow control, storm control, multicast and broadcast rate limiting, port isolation, port mirroring, jumbo frames
- Maximum Power Consumption: 2.5W

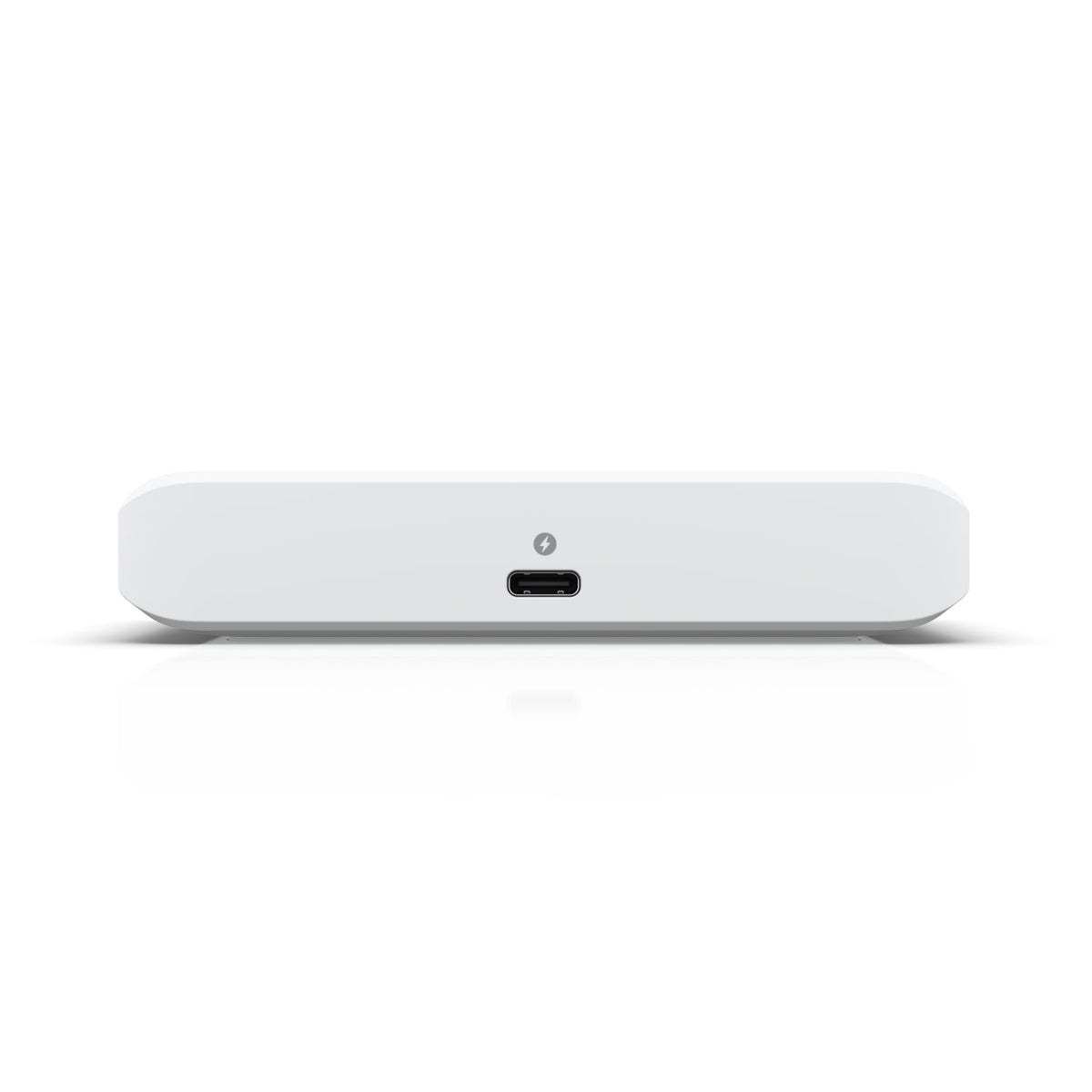

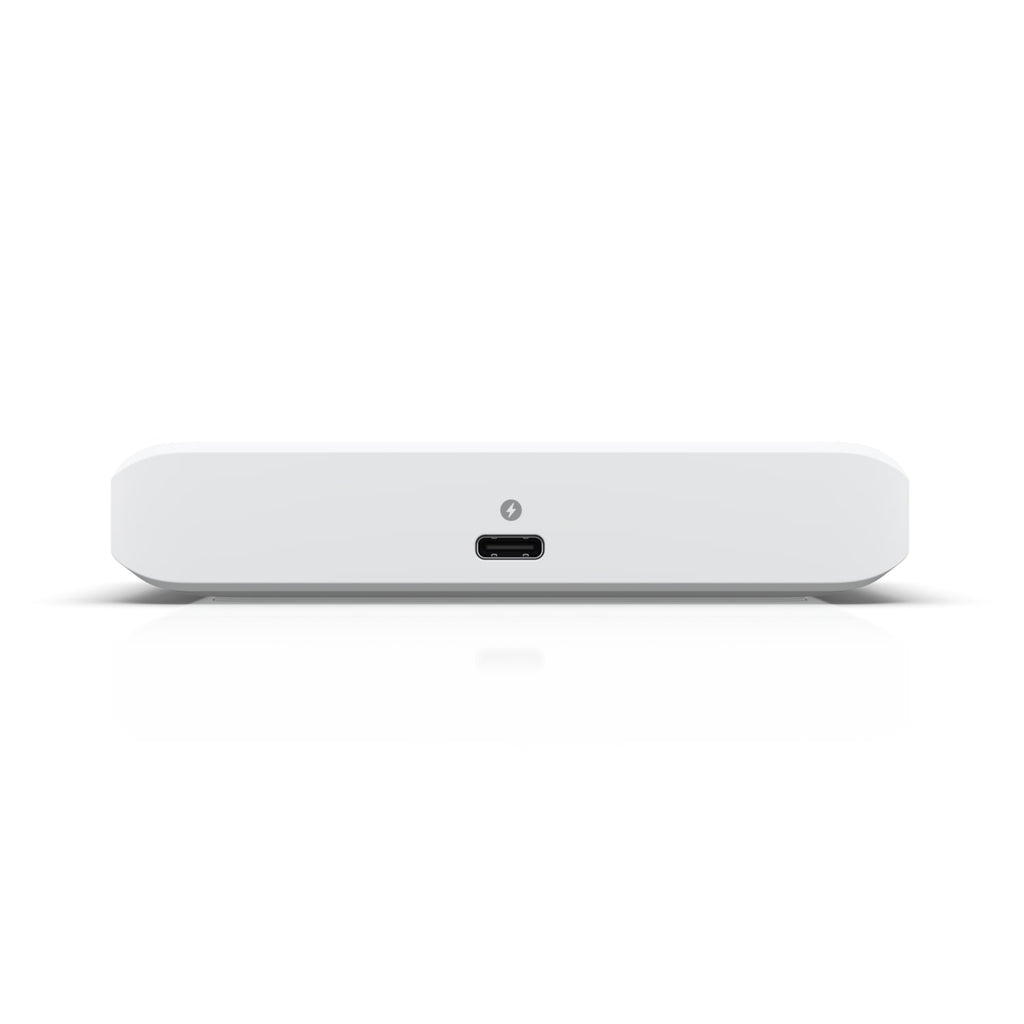

- Power Method: One USB Type-C, 5V DC, 1A; one PoE
- Power Input Method: USB input, PoE
- Power Supply: AC/DC, external, 5W
- Supported Voltage Range: 4.8 to 5.2V DC/USB, 44V to 57V PoE
- Management: Ethernet
- Heat Dissipation Excluding PoE Output: 6.824 BTU/hr
- Weight: 150 g (5.3 oz)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- ESD Protection: Air plus or minus 16kV, Contact plus or minus 12kV
- Operating Temperature Range: Minus 5 to 45 degrees Celsius (23 to 113 degrees Fahrenheit)
- Operating Humidity Range: 10 to 90 percent, noncondensing
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC
- Application Requirement: UniFi Network Version 5.12.5 and later
